Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction
Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction
Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction
Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction
Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction
1 / 5
Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction
Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction
Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction
Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction
Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction

Zlp800 Building Hanging Scaffold Electric Swing Stage Equipment for Construction

Customization: Available
After-sales Service: Engineer Oversea Service, Online
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specification
Model NO.
ZLP800
Certification
TUV, ISO, CE
Condition
New
Rated Load
800KG
Power Source
Electric
Material
Galvanized Steel
Type
Standard Suspended Platform
Production Capacity
800 pieces/Month
Product Description

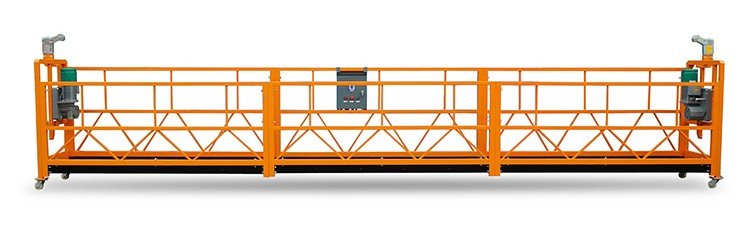

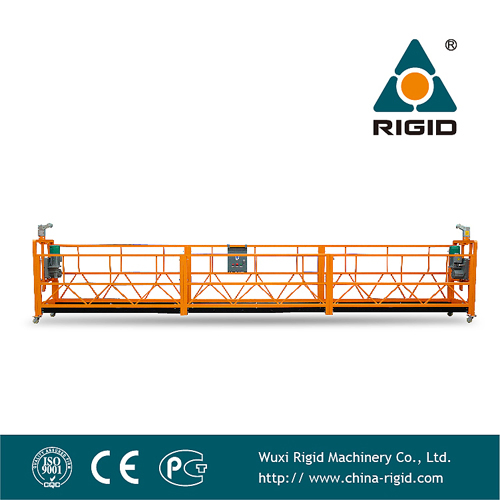

ZLP800 suspended platform

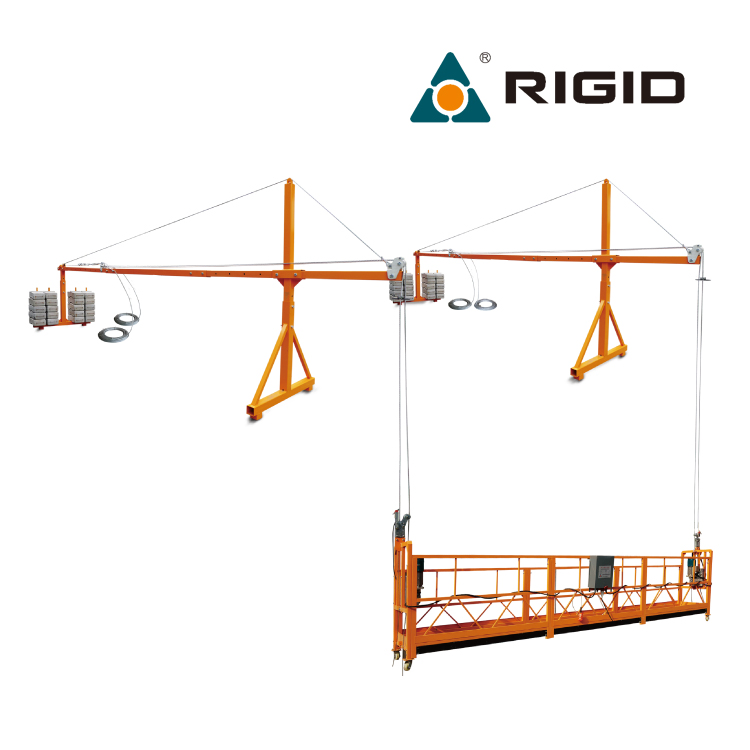

ZLP series are designed for temporary applications for lifting people and their working equipment at unlimited heights.

This model is perfectly suited for lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning, and more. The complete system consists of a working platform equipped with two electric LTD hoists and support wheels, suspended by steel wire ropes from a suspension structure.

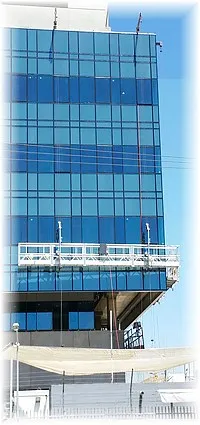

Hoist Detail

Safety Systems

To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:

  • Service brake incorporated in the LTD hoist.
  • Two fall arrest devices acting on the safety wire ropes.
  • Two upper limit switches.
  • No power descent in case of power failure.
  • Emergency stop button.
  • Phase controller (Optional).
  • Overload sensor in LTD hoists (Optional according to EN 1808).
Technical Parameters
Type ZLP500 ZLP630 ZLP800 ZLP1000
Rated Load500kg630kg800kg1000kg
Lifting Speed9m/min9m/min9m/min8.7m/min
Voltage (3-Phase)380V (415V/220V), 50Hz/60Hz
Power1.1kW × 21.5kW × 21.8kW × 22.0kW × 2
Hoist ModelLTD50LTD63LTD80LTD100
Safety LockLSF308LSF308LSF309LSF310
Wire Rope Dia.8.3mm8.3mm9.1mm10.2mm
Platform Size (LxWxH)Configurable (up to 7.5m length x 0.76m width x 1.45m height)

*The weight of the lifting part includes the platform, hoist, safety locks, and electric control system.

Suspended Platform Details

Perfecting the details of the process and quality is our guarantee.

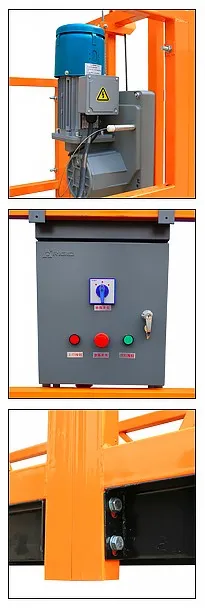

LTD Series Hoist

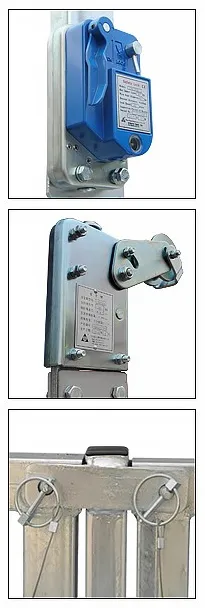

Safety Lock
LTD Series Hoist: High quality die-casting aluminum casing.
OSL Series Safety Lock: Overspeed centrifugal type for stirrups.
Electrical Box: First class electrical components.
Mounting: Screw and Pin types for quick assembly.

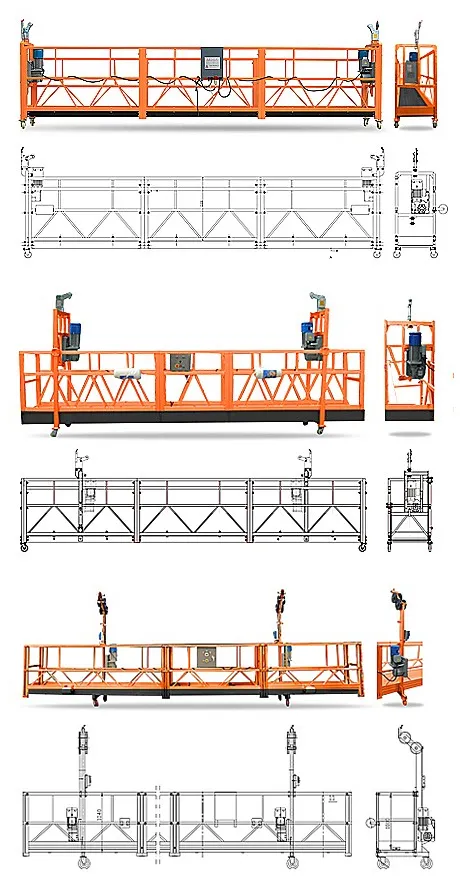

Platform Suspension Types
Suspension Options
End Stirrup: Economical and lightweight, fitted at the platform ends.
Frame Stirrup: Slipped over like a frame, leaving building corners clear.
"L" Stirrup: Placed at the rear to keep the working surface completely clear.

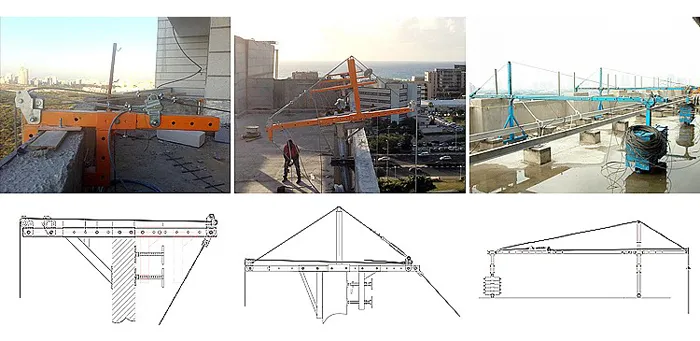

Anchoring Options
Anchoring Options

Options include Light Parapet Clamps, Standard Parapet Clamps, and Normal Suspension Jibs for versatile roof attachment.

Frequently Asked Questions
What are the primary uses for the ZLP800 suspended platform?
It is ideal for high-rise building applications including painting, decoration, refurbishing, window cleaning, and external wall maintenance.
What materials are used for the platform construction?

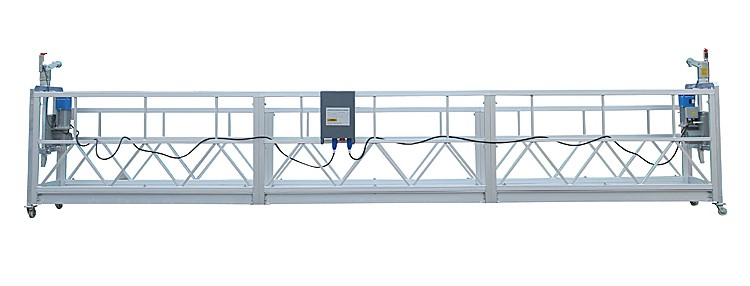

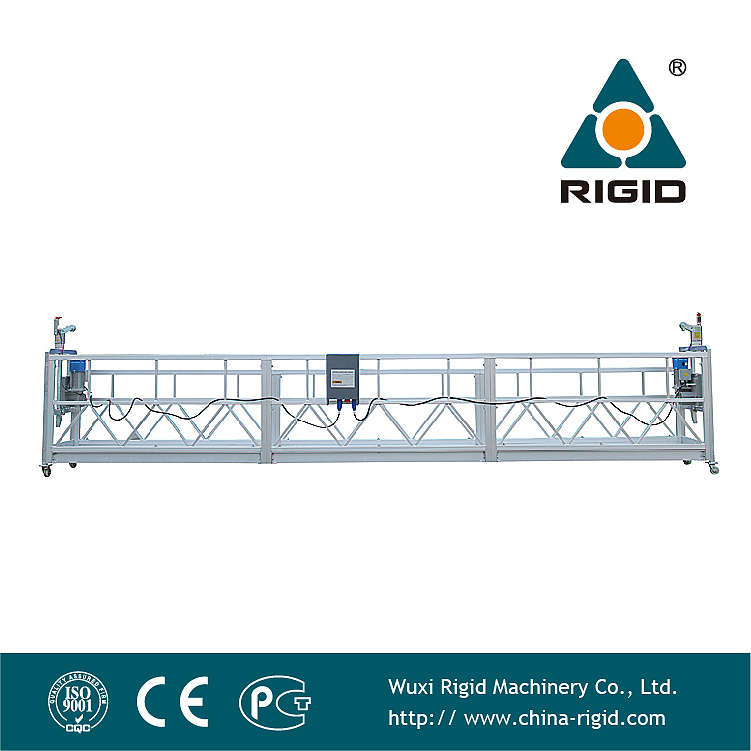

The ZLP800 typically features a Galvanized Steel structure, though aluminum versions are also available for reduced self-weight.
How is the safety of the workers guaranteed?
The system includes multiple safety features: service brakes, fall arrest locks, upper limit switches, emergency stop buttons, and optional overload sensors.
Can the platform operate during a power failure?
The platform is designed with a "no power descent" safety feature and manual release to ensure personnel can be brought down safely in case of a power outage.
What are the power requirements for the LTD hoists?
The electric motors typically require a 3-phase power supply, compatible with 380V, 415V, or 220V at 50Hz or 60Hz.
Which anchoring system is best for a roof with a parapet wall?
For buildings with structural parapets, Parapet Clamps are the most efficient option as they require less space than traditional suspension jibs.
