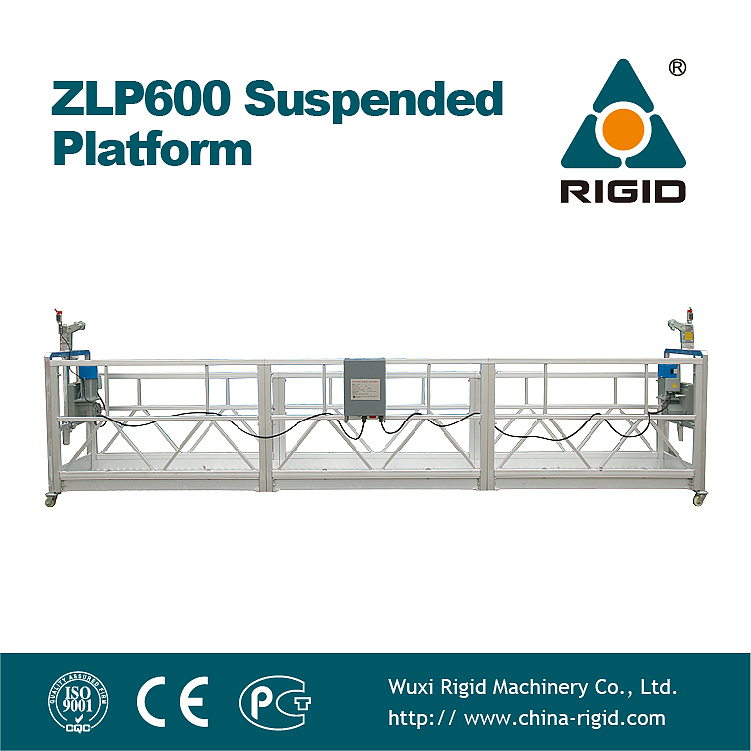

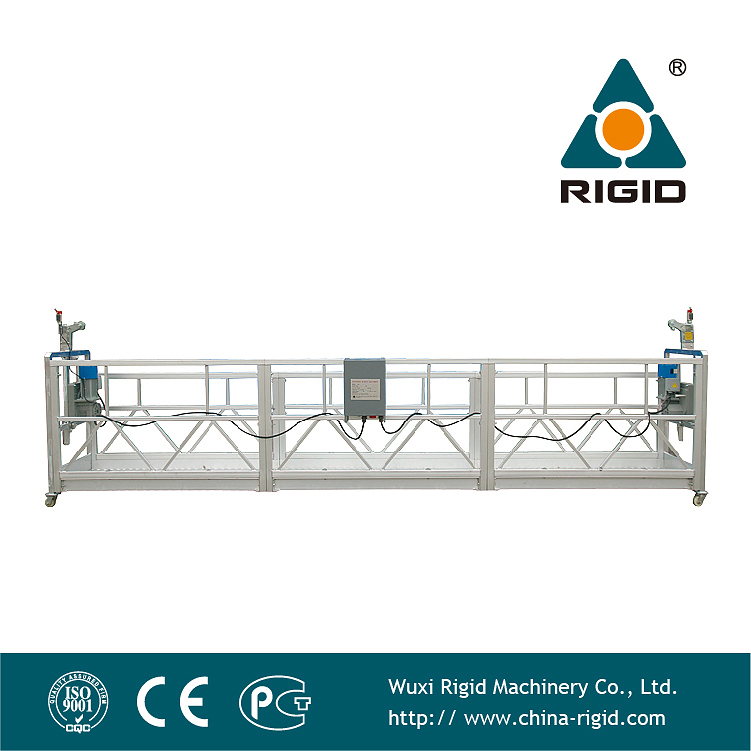

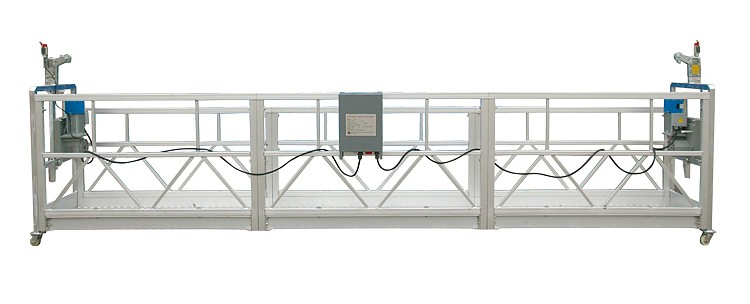

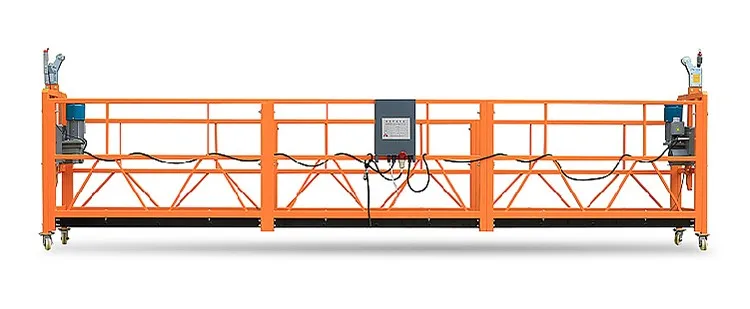

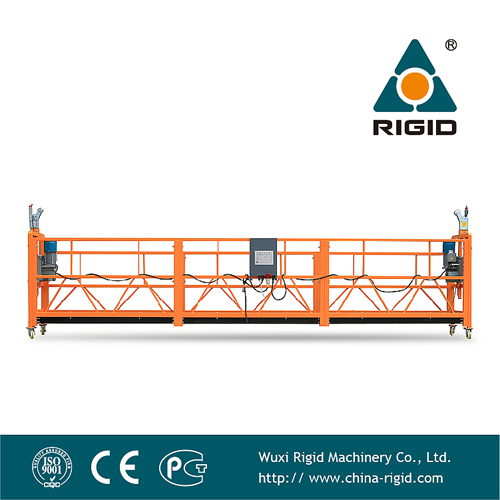

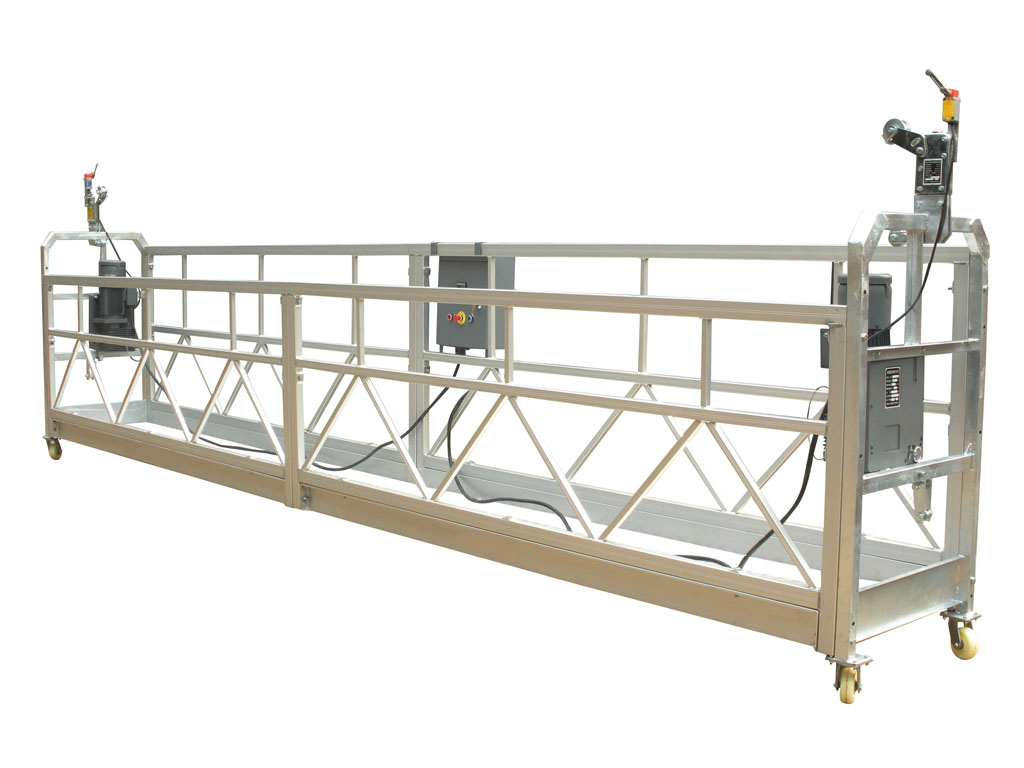

ZLP series are for temporary applications for lifting people and their working equipment at unlimited heights.

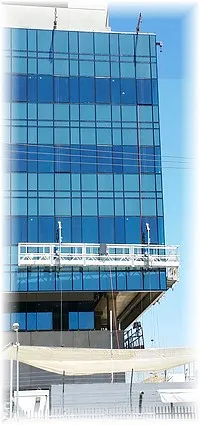

This model is perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, and window cleaning. The complete system consists of the working platform equipped with two electric LTD hoists and support wheels, suspended by steel wire ropes from a suspension structure.
Service brake incorporated directly in the LTD hoist for immediate response.
Two fall arrest devices acting directly on the safety wire ropes.
Equipped with two upper limit switches to prevent over-travel.
Features emergency stop buttons and no-power descent capability in case of power failure.
| Type | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
|---|---|---|---|---|
| Rated Load | 500kg | 630kg | 800kg | 1000kg |
| Lifting speed | 9m/min | 9m/min | 9m/min | 8.7m/min |
| Power | 1.1×2 kw | 1.5×2 kw | 1.8×2 kw | 2.0×2 kw |
| Hoist Model | LTD50 | LTD63 | LTD80 | LTD100 |
| Wire Rope Dia. | 8.3mm | 8.3mm | 9.1mm | 10.2mm |
| Counter Weight | 800kgs | 900kgs | 1000kgs | 1200kgs |
*The weight of lifting part includes platform, hoist, safety locks and electric control system.

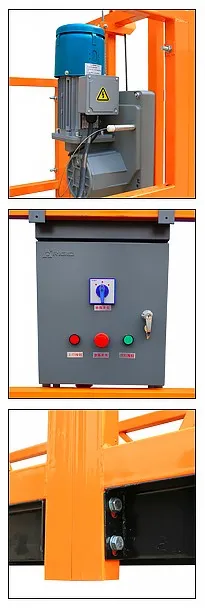

LTD Series Hoist
Die-casting aluminum casing

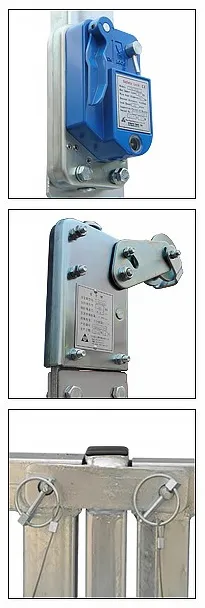

Safety Lock
Overspeed & Anti-Tilt types
Control Box
First class components

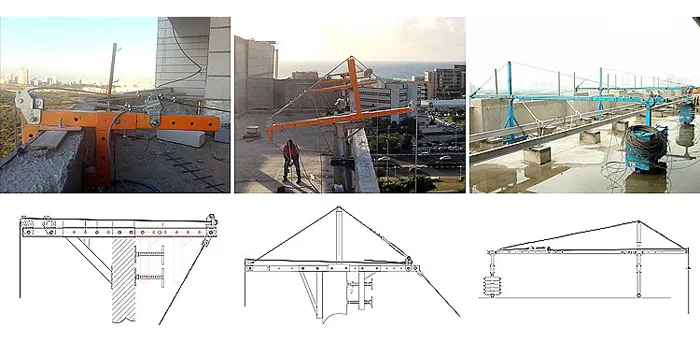

Options: Light Parapet clamp | Normal Parapet clamp | Normal suspension jibs
