Basic Information
Model NO.TC-FSJ04B
Frequency Range2.4-2.5GHz
Encryption MethodAES
Max CapacityUnlimited Receivers
Grouping FunctionUp to 255 Groups
Sensitivity-121dBm
Battery Service Time16 Hours
Weight136g (with Lithium Battery)
📡

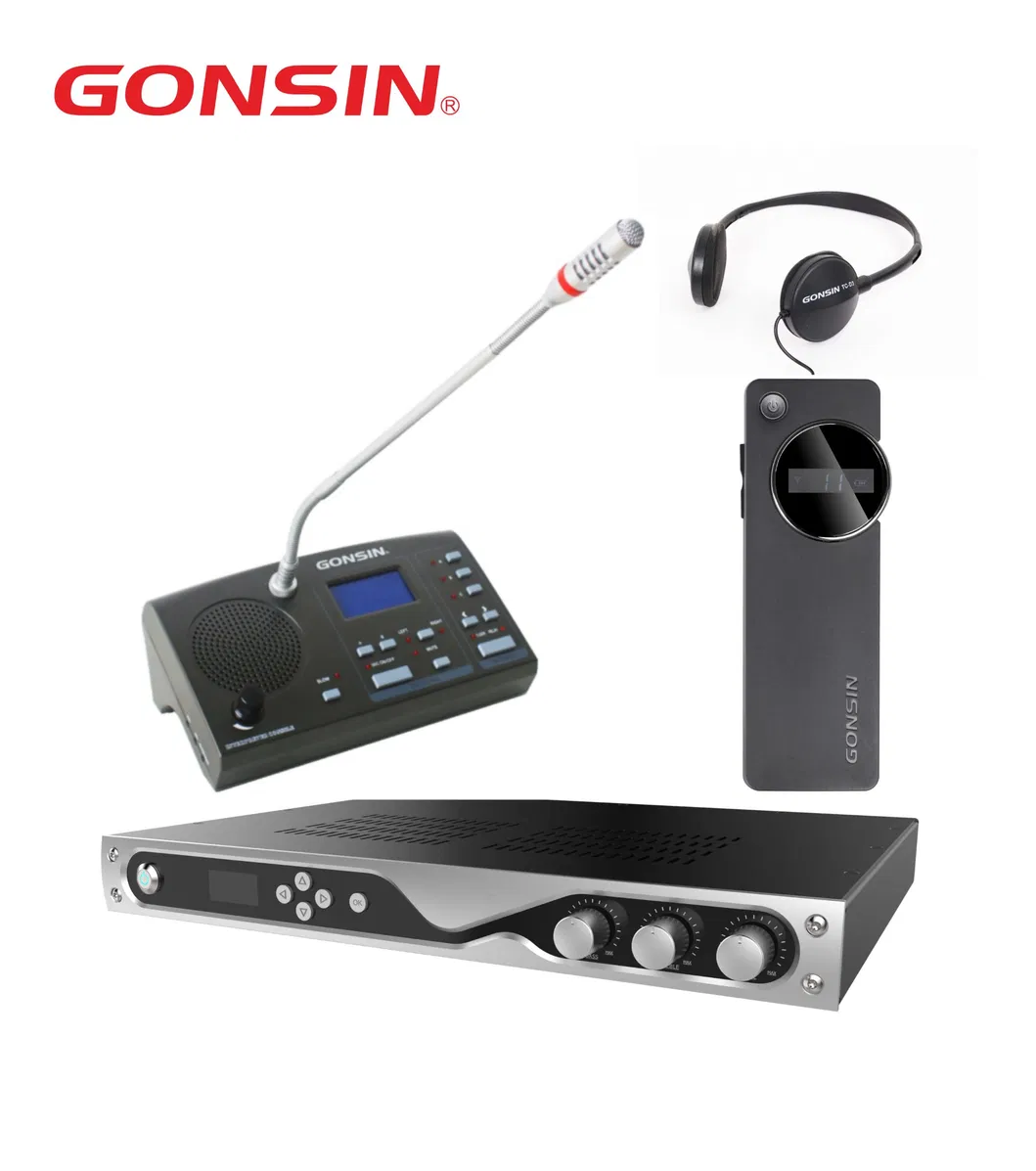

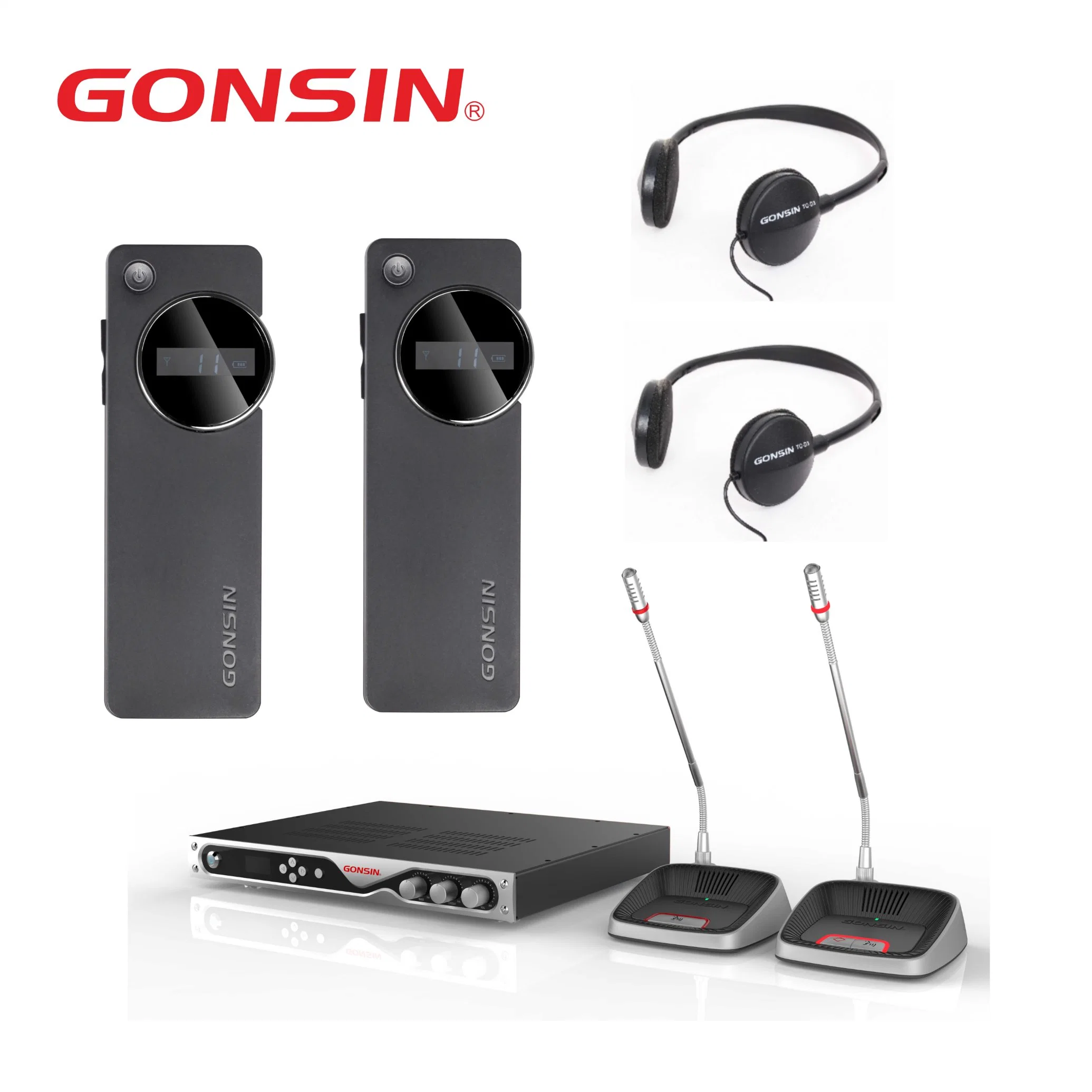

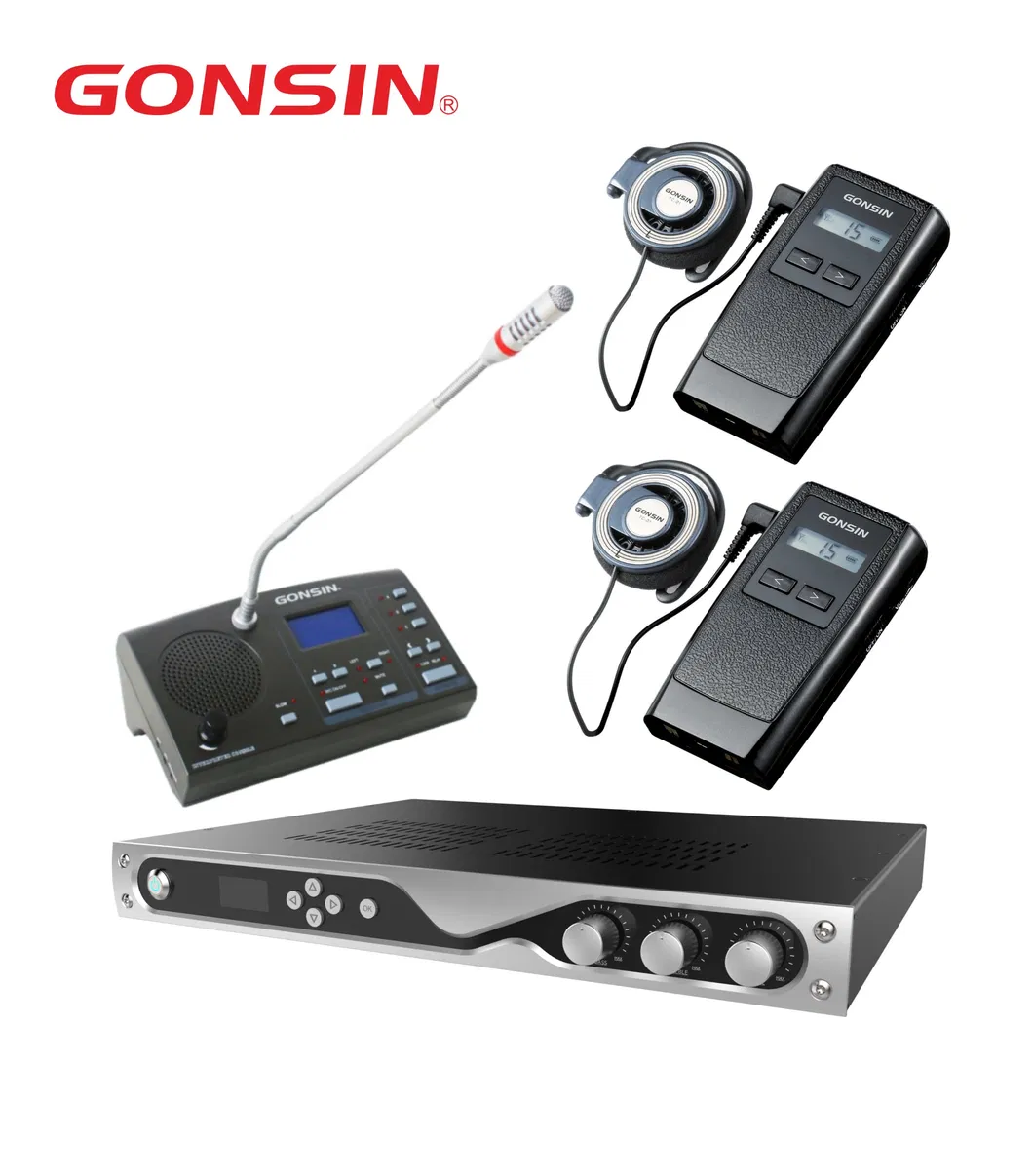

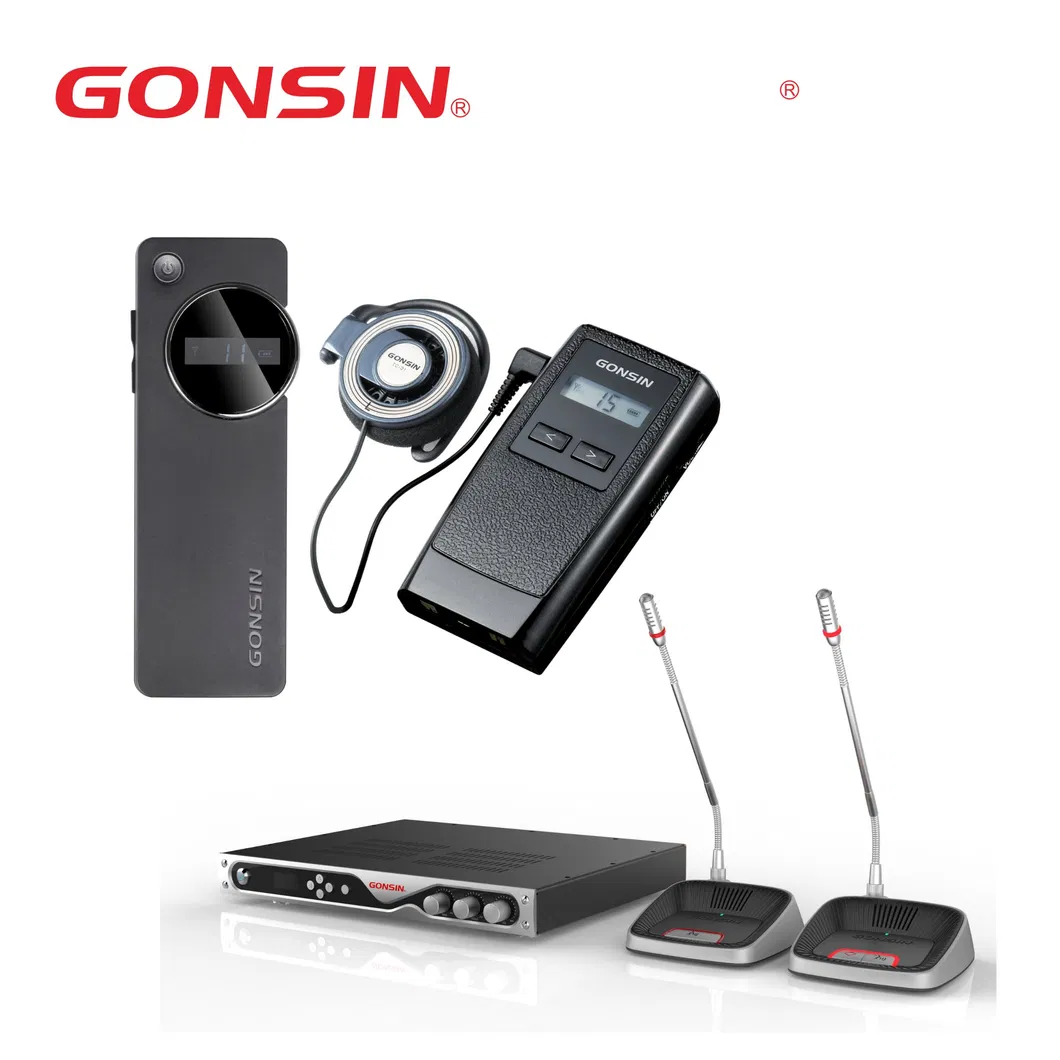

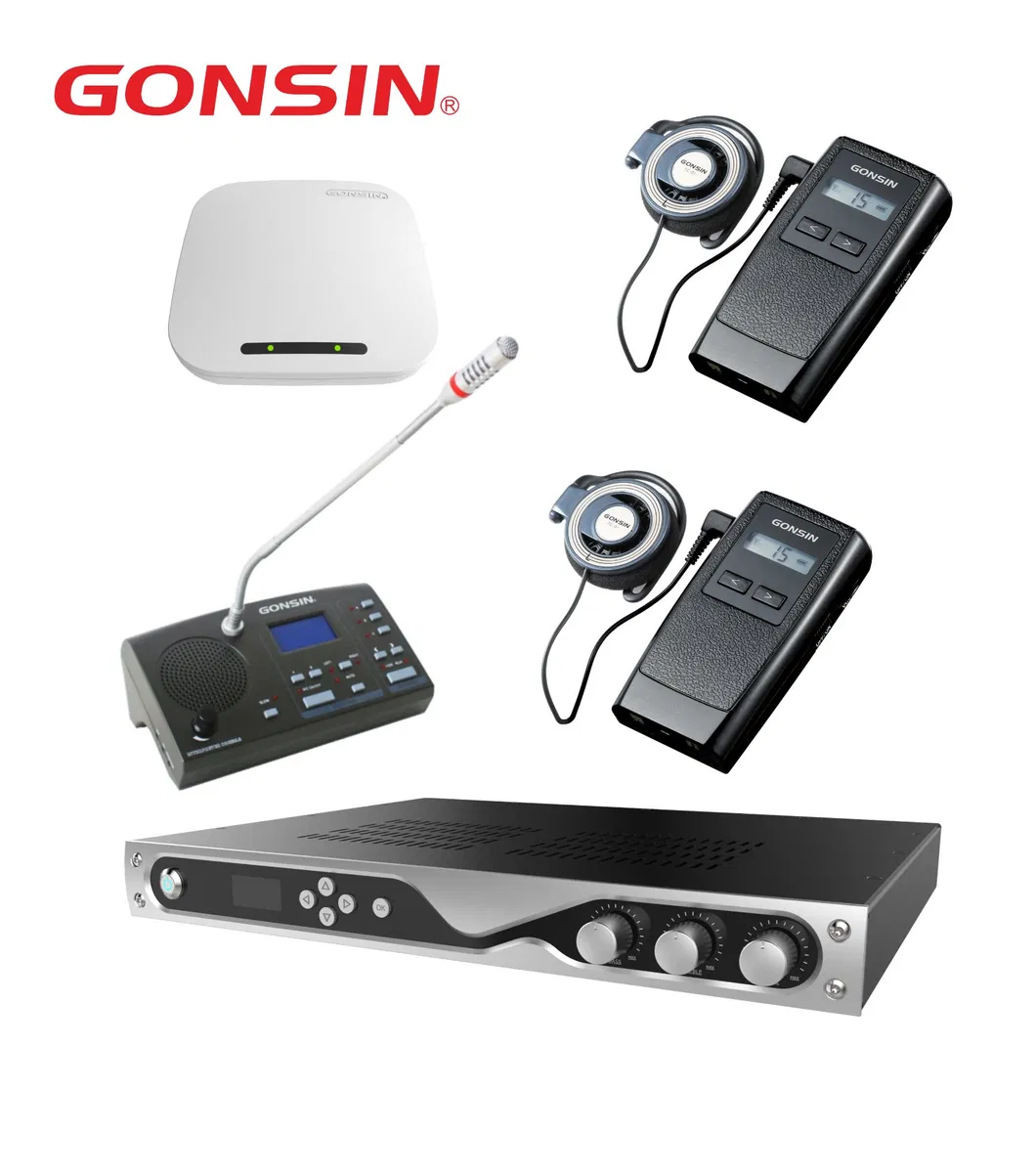

FS-FHSS Wireless Simultaneous Interpretation System
FS-FHSS wireless simultaneous interpretation system utilize digital wireless communication and innovated FS-FHSS (Frequency Selecting - Frequency Hopping Spread Spectrum) technology. It comes with super-strong anti-interference capability and broad bandwidth, provides perfect audio quality, and utilizes AES technique to encrypt data. Effective communication distance is 50~500m. Signals can be transmitted out in all directions. Eight channel is configured with one antenna unit, which reduces deployment difficulty and saves system investment.
The system is able to modulate and transmit up to 16 channels at the same time, allowing participants to select a channel to hear the required language so long as he/she has a handheld or headset receiver.
⭐
Key Features
- Innovated FS-FHSS technology for superior stability
- Highly flexible for indoor/outdoor and fixed/temporary venues
- AES data encryption prevents malicious listening
- Immune to light sources and signal jammers
- Adjustable transmission power (50m to 500m)
- Unlimited system capacity within signal scope
- All-direction transmission for participant mobility
- Supports up to 16 simultaneous interpretation channels
🎧

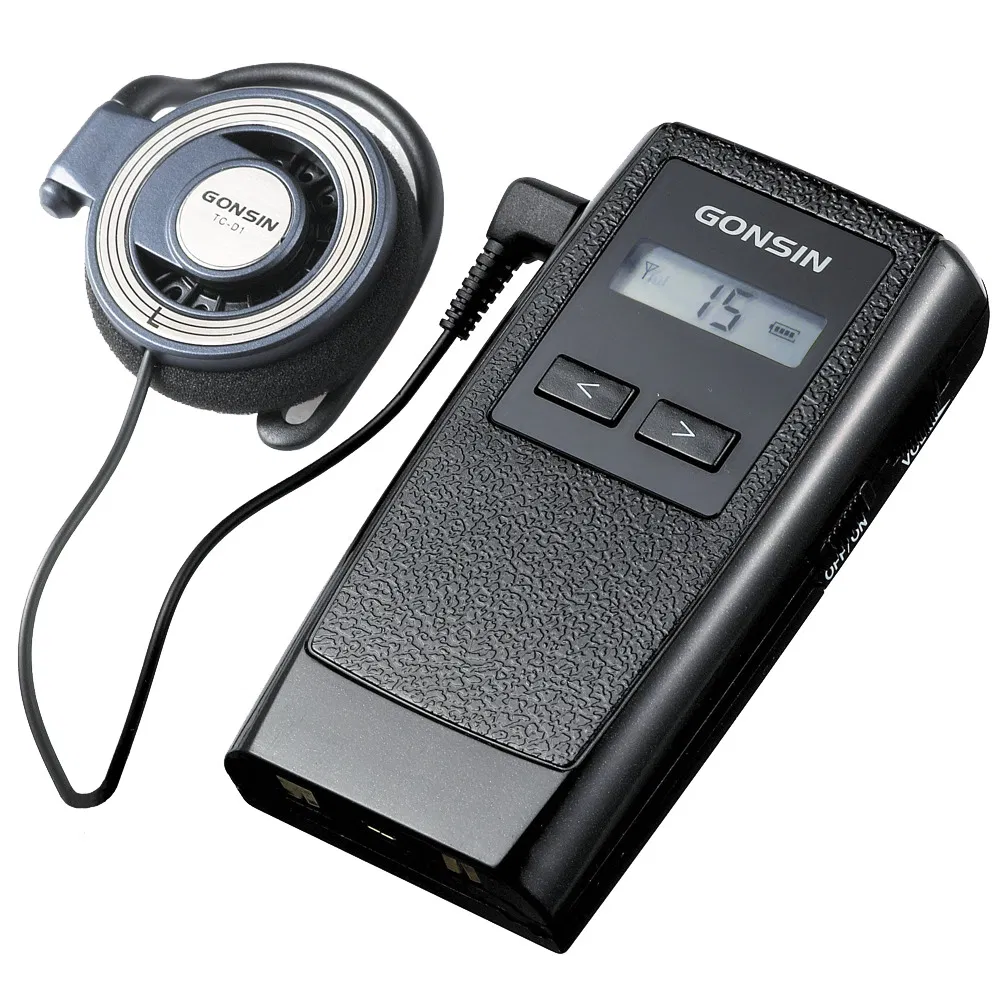

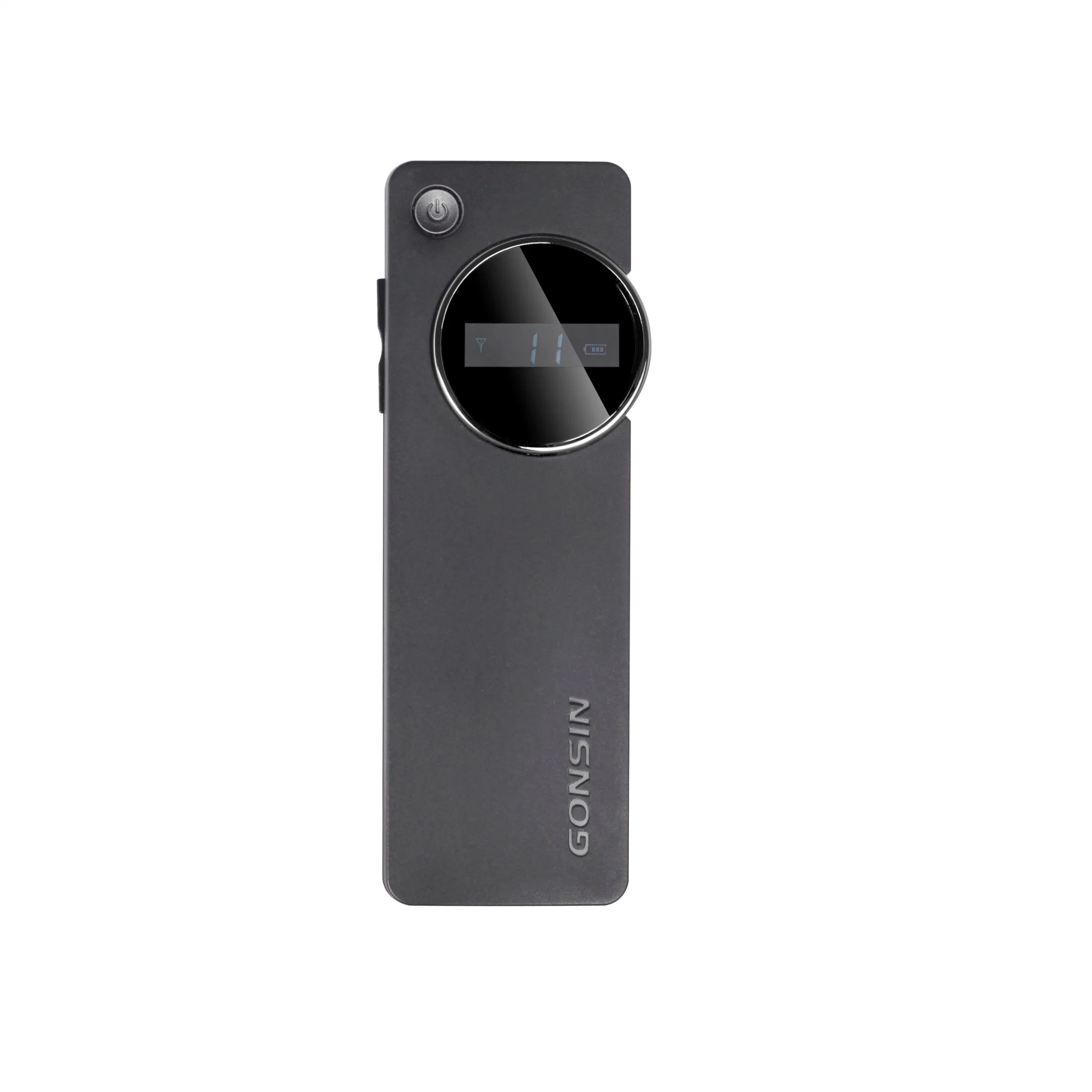

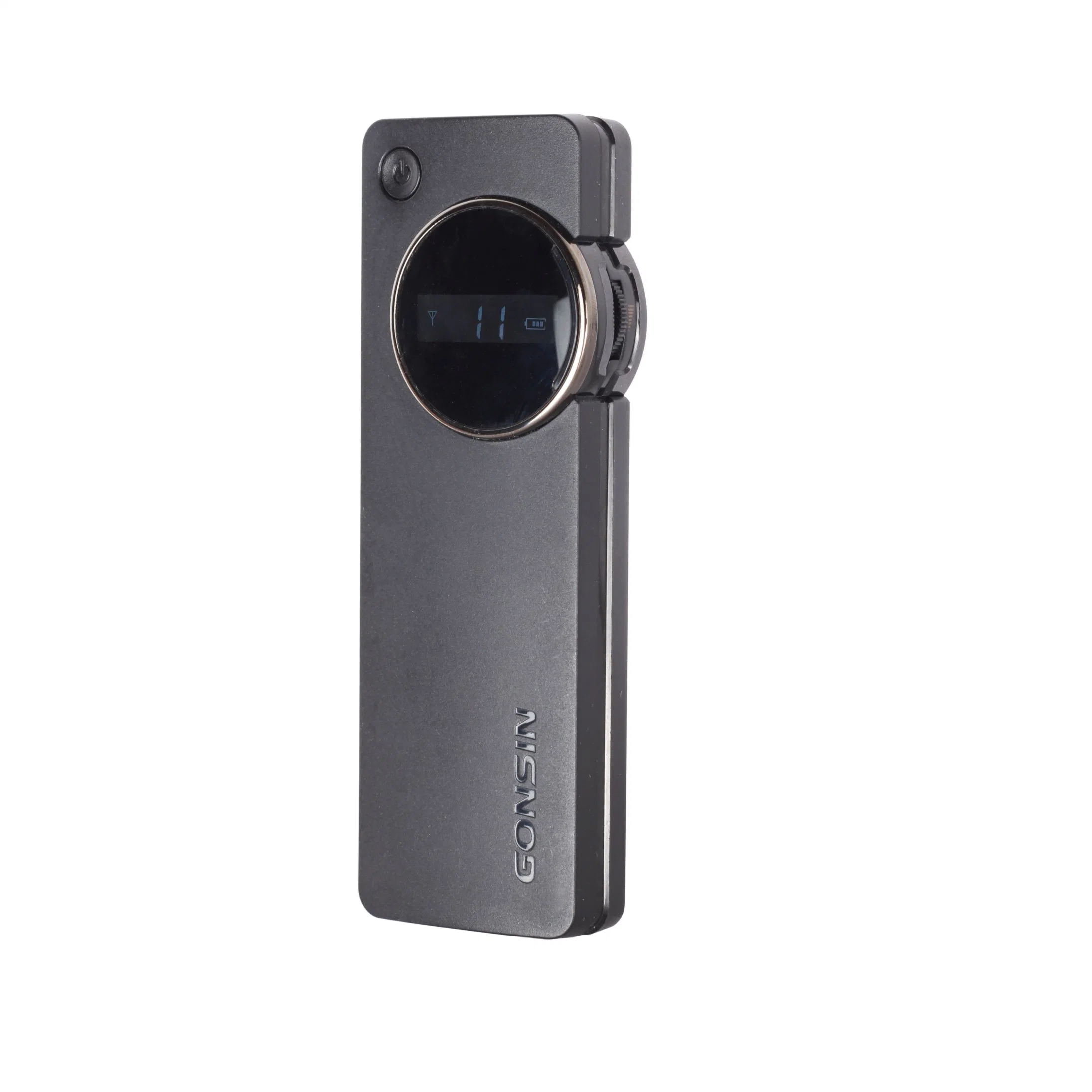

Wireless Receiver TC-FSJ04B/08B/12B/16B
- OLED screen displaying signal strength and battery level
- Grouping encryption with up to 255 independent groups
- 16-hour consecutive battery life with low power alarm
- Automatic shut-down after 10 minutes of no signal
- Earphone detection: auto shut-down after 2 mins without headset

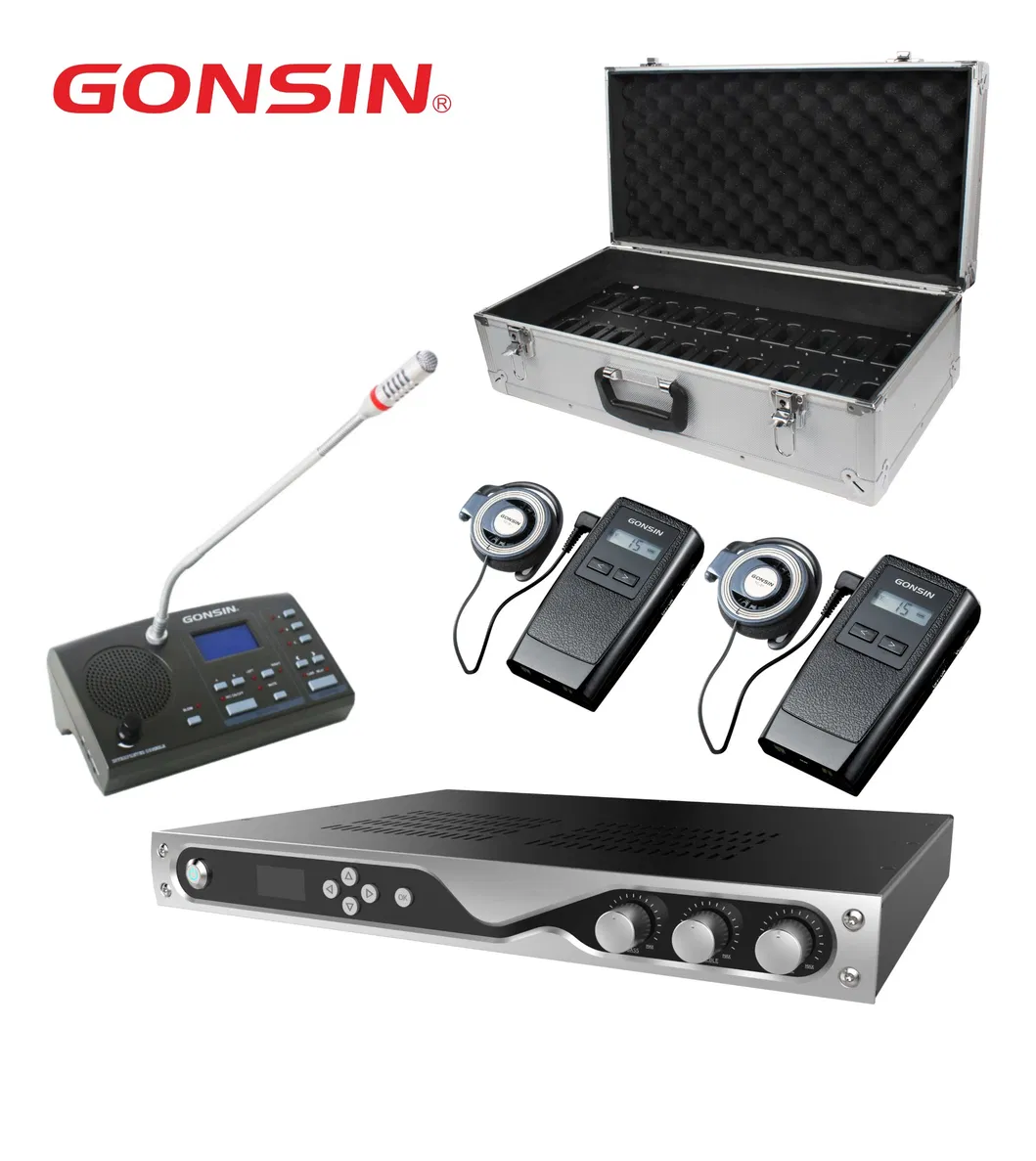

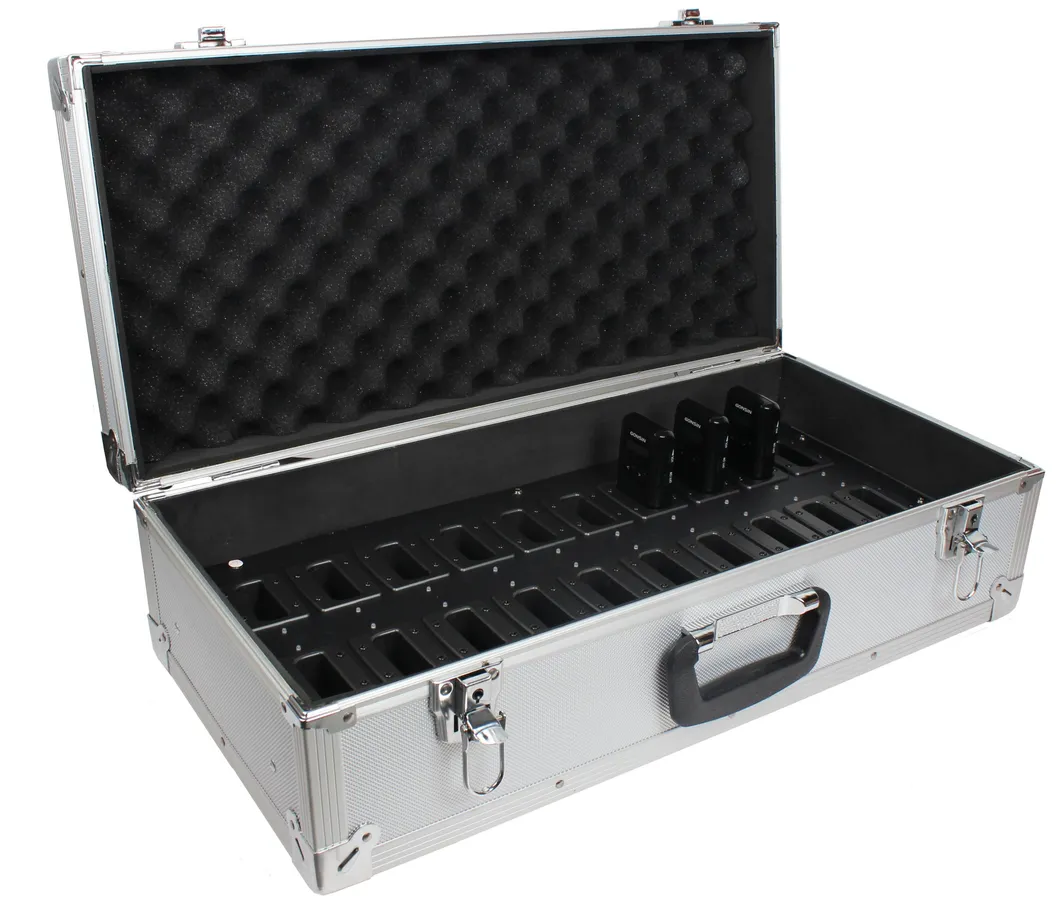

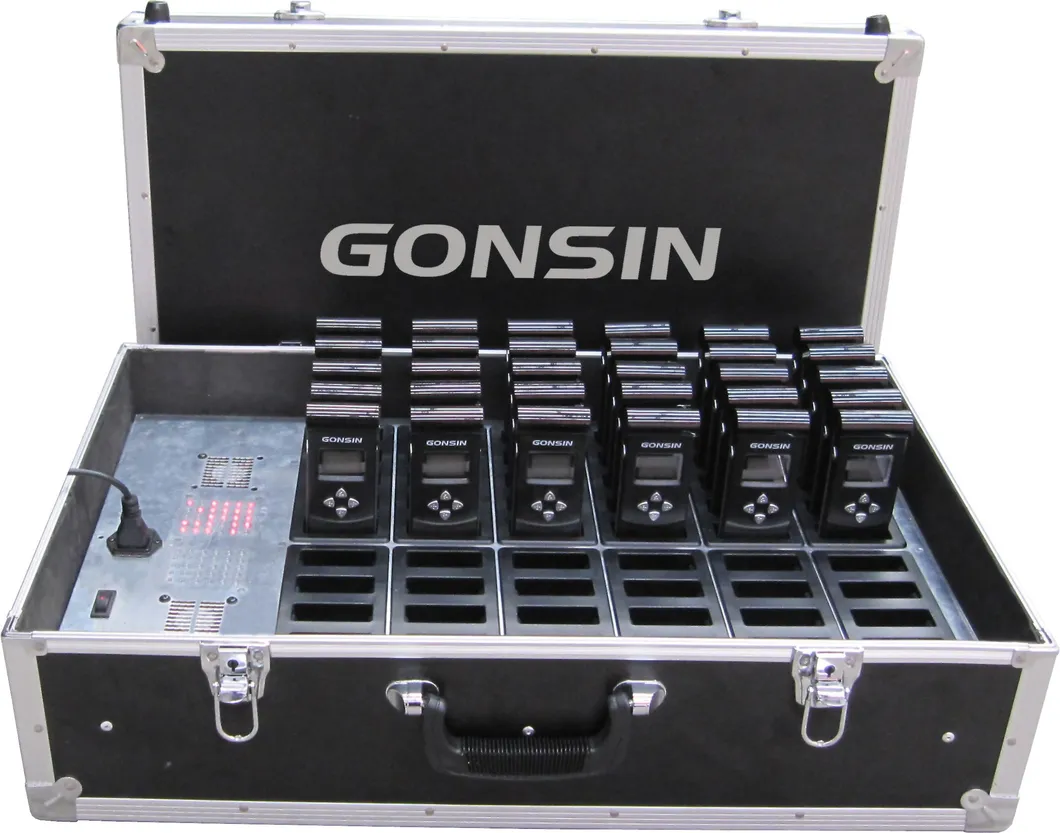

- Centralized charging: one case charges 60 receivers
📊
Technical Parameters
| Modulation Mode | FS-FHSS technology |
| Frequency Range | 2.4-2.5GHz |
| Encryption Method | AES |
| System Max Capacity | Unlimited receivers within signal distance |
| Sensitivity | -121dBm |
| Earphone Jack | 3.5mm jack stereo |
| OLED Screen | 35 × 10mm |
| Battery | Lithium battery / 2 AA batteries |
| Battery Service Time | 16 hours |
| Working Temperature | 0 ~ 45°C |
| Dimension (L×W×H) | 136 × 50 × 21mm |
❓
Frequently Asked Questions
Q1: What is the maximum communication range of the system?
The system offers adjustable transmission power, with an effective communication distance ranging from 50 meters to 500 meters depending on the setup.
Q2: How many interpretation channels can be used simultaneously?
A single system supports up to 8 channels. By cascading systems, the capacity can be extended to support a maximum of 16 simultaneous interpretation channels.
Q3: Is the wireless signal secure from interference?
Yes, the system utilizes FS-FHSS (Frequency Selecting - Frequency Hopping Spread Spectrum) technology and AES encryption to ensure high anti-interference capability and data security.
Q4: How long does the receiver battery last?
The receiver is designed for low power consumption, allowing it to run consecutively for up to 16 hours on a full charge or with high-quality AA batteries.
Q5: Is there a limit to the number of receivers I can use?
No, the system capacity is unlimited within the effective signal coverage area, making it suitable for conferences of any size, from small meetings to super-large events.
Q6: What happens if a participant leaves the room or forgets to turn off the receiver?
The receivers feature an automatic turn-off function if no signal is received for 10 minutes or if no earphone is detected for 2 minutes, helping to preserve battery life.
