Electric Wire Rope Hoist Zlp500 Suspended Lifting Equipment

Customization:	Available
After-sales Service:	Engineer Oversea Service, Online
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZLP500

Certification

TUV, ISO, CE

Condition

New

Rated load

500KG

Power Source

Electric

Material

Steel

Type

Standard Suspended Platform

Anchoring

Suspension Jibs

Mounting

Screw Type

HS Code

8428909090

Capacity

800 pieces/Month

Product Description

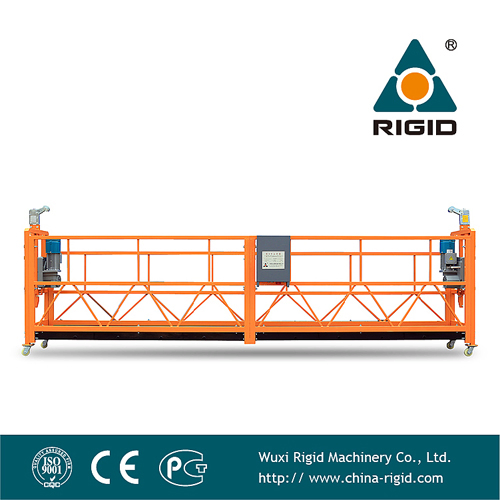

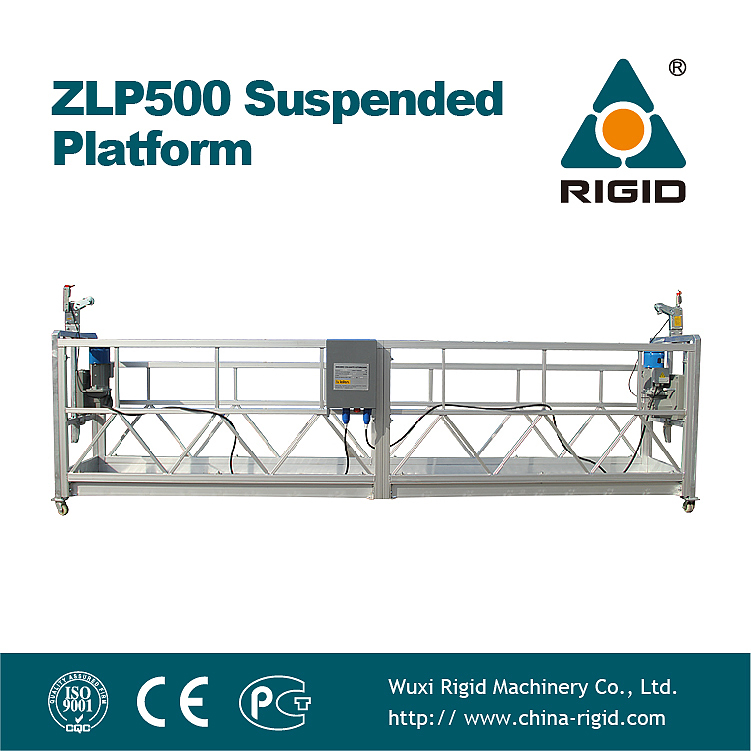

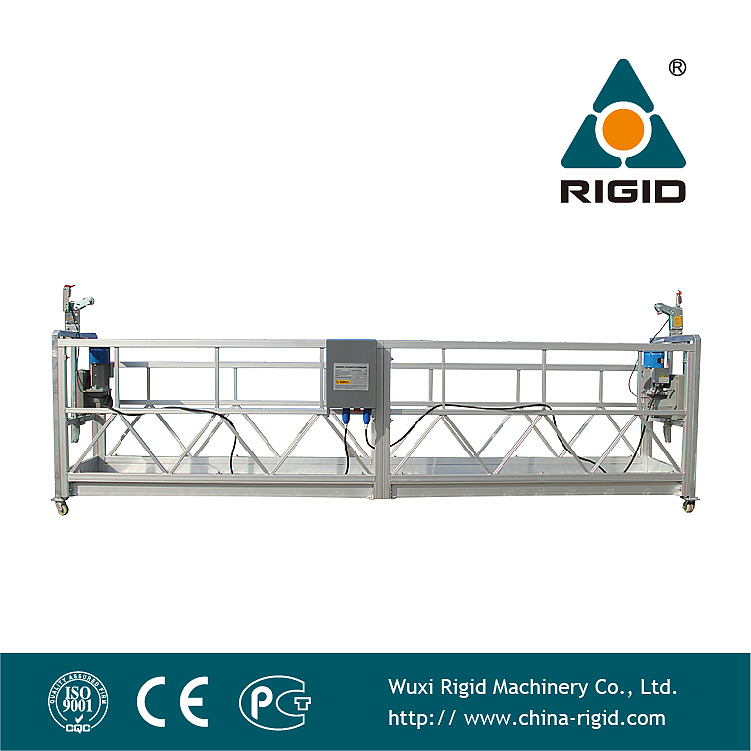

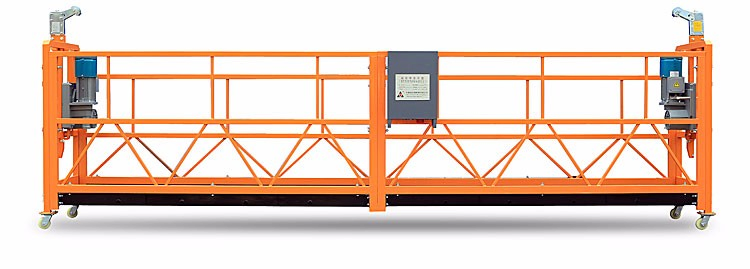

Electric wire rope hoist zlp500 suspended lifting equipment

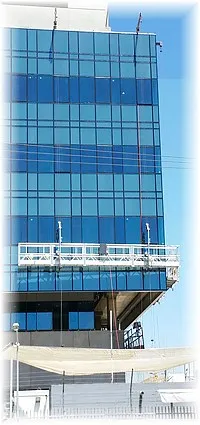

ZLP series are for temporary applications for lifting people and their working equipment - at unlimited heights.

The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc. The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure.

Safety systems

Service brake incorporated in the LTD hoist.
Two fall arrest devices acting on the safety wire ropes.
Two upper limit switches.
No power descent in case of power failure.
Emergency stop and Phase controller.
Overload sensor incorporated in the LTD hoists according to EN 1808.

Technical Parameters

Type	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Load	500kg	630kg	800kg	1000kg
Lifting speed	9m/min	9m/min	9m/min	8.7m/min
Voltage-3phase	380V(415V/220V)	380V(415V/220V)	380V(415V/220V)	380V(415V/220V)
Power	1.1×2 kw	1.5×2 kw	1.8×2 kw	2.0×2 kw
Hoist Model	LTD50	LTD63	LTD80	LTD100
Safety lock	LSF308	LSF308	LSF309	LSF310
Wire Rope Dia.	8.3mm	8.3mm	9.1mm	10.2mm
Counter Weight	800kgs	900kgs	1000kgs	1200kgs

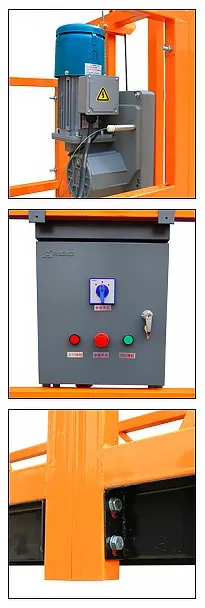

Key Components

LTD Series Hoist: High quality Die-casting aluminum casing.

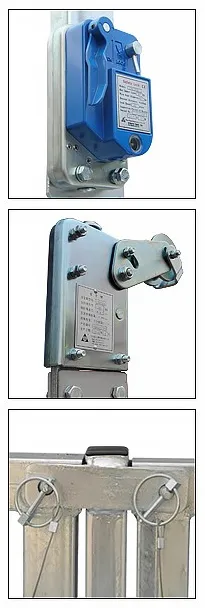

OSL/LSF Safety Lock: Anti-Tilt and Overspeed protection types.

Electrical Box: First class electrical components for reliability.

Platform Suspension Options

End Stirrup: Economical and lightweight, fitted at the ends.

Frame Stirrup: Clear building corners, slipped over like a frame.

"L" Stirrup: Placed at the rear, offering completely clear working surface.

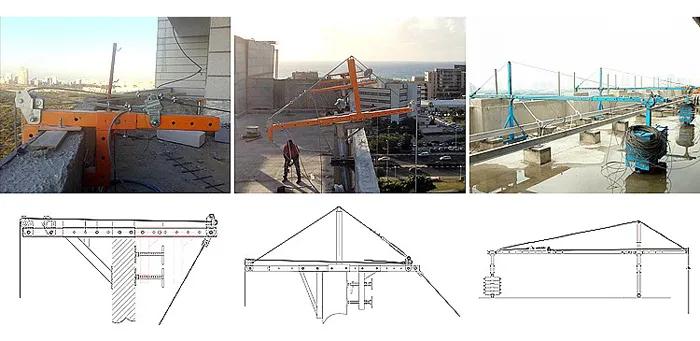

Roof Anchoring Solutions

Includes Light Parapet Clamps, Standard Parapet Clamps, and Normal Suspension Jibs for mobile roof attachment.

Frequently Asked Questions

Q1: What is the primary use of the ZLP500 suspended platform? A1: It is designed for temporary applications such as painting, decoration, refurbishing, window cleaning, and external maintenance at unlimited heights.

Q2: What are the main safety features included? A2: The system includes a service brake, fall arrest devices, upper limit switches, emergency stop, and optional overload sensors.

Q3: Can the platform height be adjusted? A3: Yes, since it uses an electric wire rope hoist system, it can operate at practically unlimited heights depending on the length of the wire rope used.

Q4: What materials are available for the platform? A4: The platforms are typically available in both Steel (painted or galvanized) and Aluminum options to suit different weight and durability requirements.

Q5: What power supply is required for operation? A5: It requires a 3-phase power source, supporting voltages such as 380V, 415V, or 220V at 50Hz or 60Hz.

Q6: Are there different stirrup options for the platform? A6: Yes, we offer End Stirrups, Frame Stirrups, and "L" Stirrups to provide different levels of facade access and economy.
