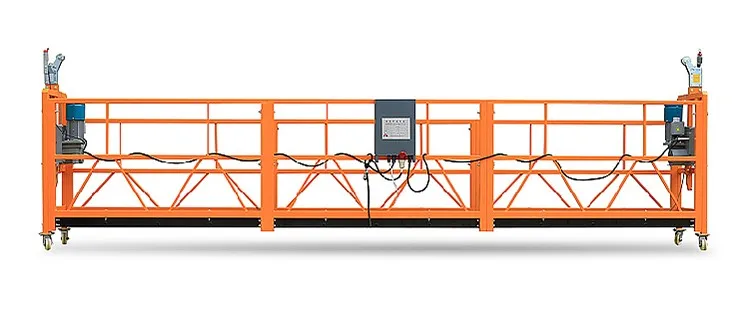

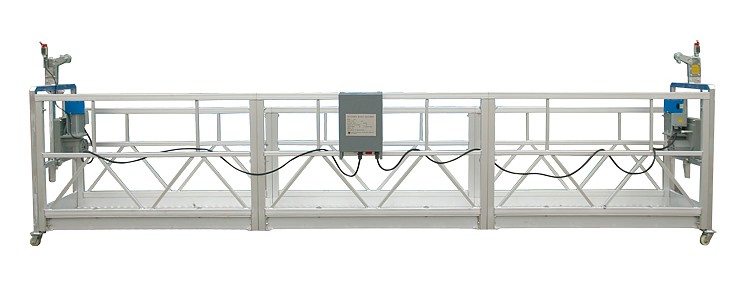

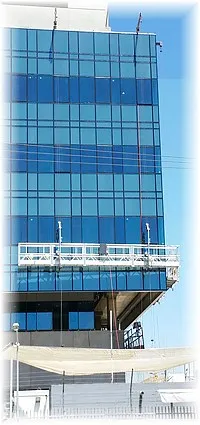

ZLP series are designed for temporary applications for lifting people and their working equipment at unlimited heights.

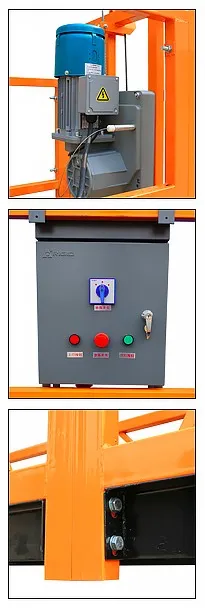

This model is perfectly suited for lightweight applications such as painting and decorating, refurbishing, jointing and repairs, and windows cleaning. The complete system consists of the working platform equipped with two electric LTD hoists and support wheels, suspended by steel wire ropes from a suspension structure.
| Type | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
|---|---|---|---|---|
| Rated Load | 500kg | 630kg | 800kg | 1000kg |
| Lifting speed | 9m/min | 9m/min | 9m/min | 8.7m/min |
| Voltage-3phase | 380V (415V/220V) 50Hz/60Hz | |||
| Power | 1.1×2 kw | 1.5×2 kw | 1.8×2 kw | 2.0×2 kw |
| Hoist Model | LTD50 | LTD63 | LTD80 | LTD100 |
| Safety lock | LSF308 | LSF308 | LSF309 | LSF310 |
| Wire Rope Dia. | 8.3mm | 8.3mm | 9.1mm | 10.2mm |
| Platform Size (L) | 5M | 6M | 7.5M | 7.5M |
*The weight of lifting part includes platform, hoist, safety locks and electric control system.

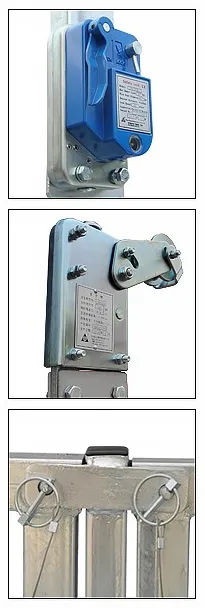

Perfect details and high-quality processing guarantee safety.

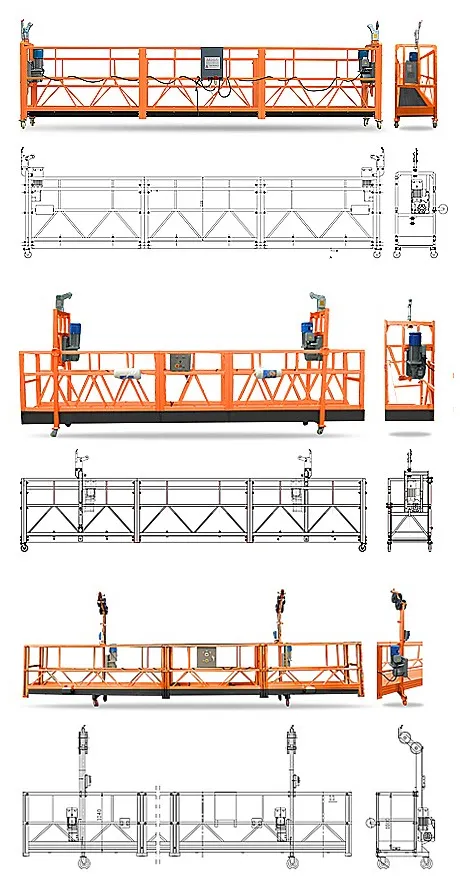

End stirrup: The most economical and lightweight version, fitted at the ends of the platform.
Frame stirrup: Slipped over the platform like a "frame". Building corners are clear and easily accessed.
"L" stirrup: Placed at the rear of the platform. The working surface is completely clear for facade access.

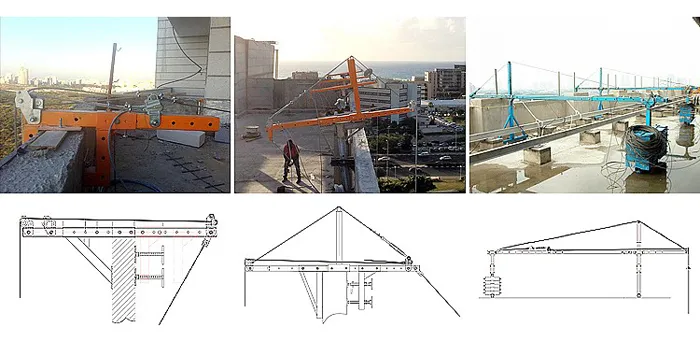

Options include Light Parapet clamp, Standard Parapet clamp, and Normal suspension jibs. In most applications, mobile suspension jibs on the roof are used for temporary platform attachment.
