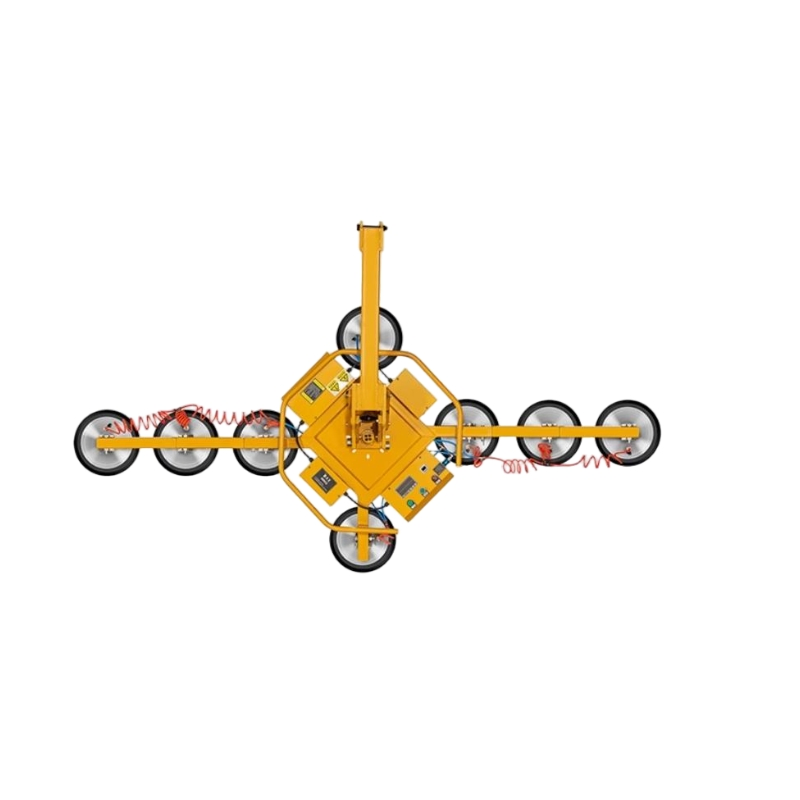

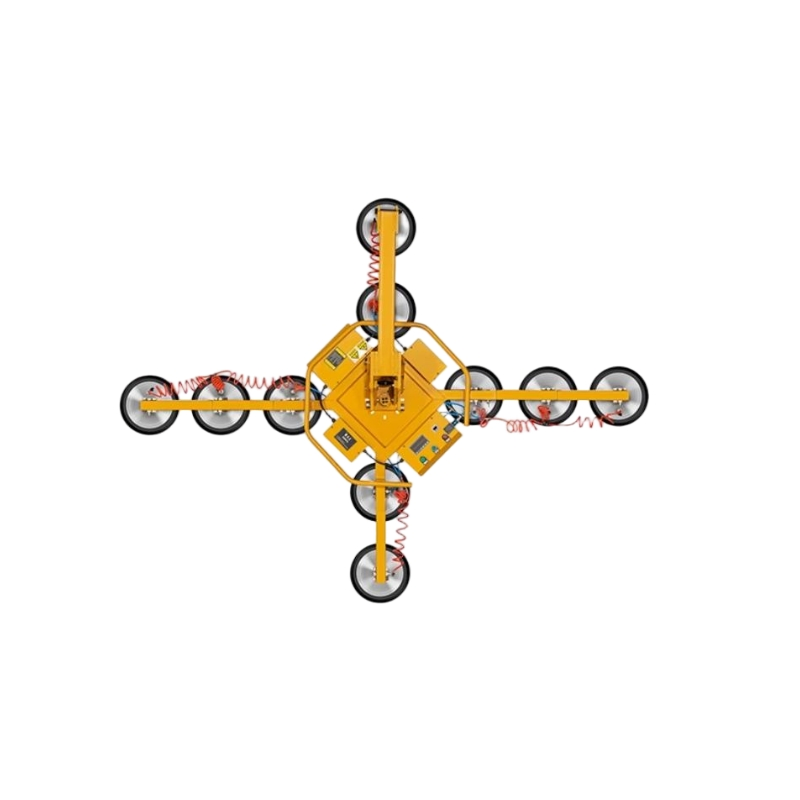

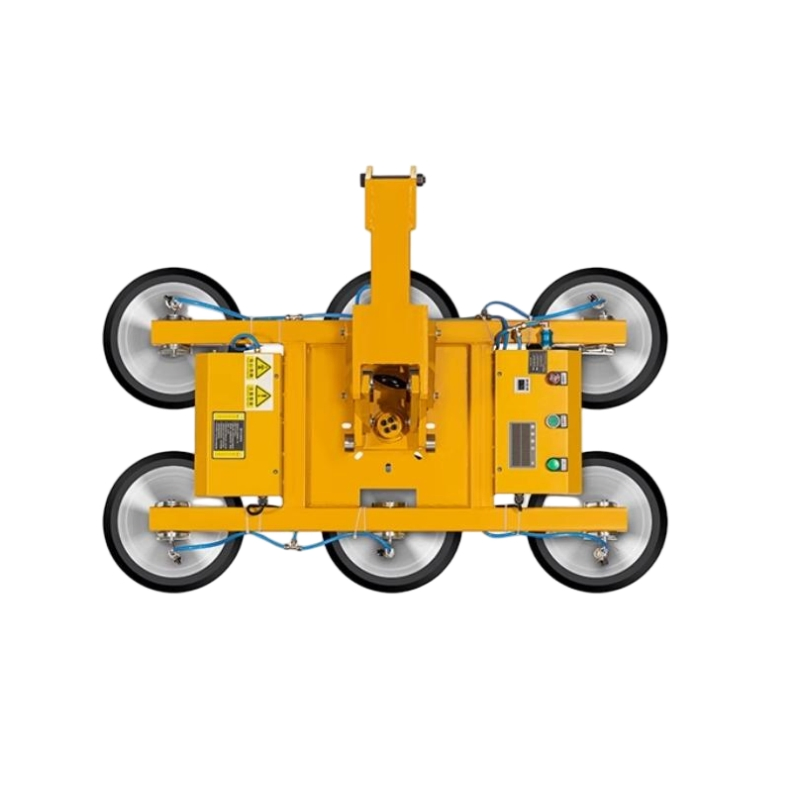

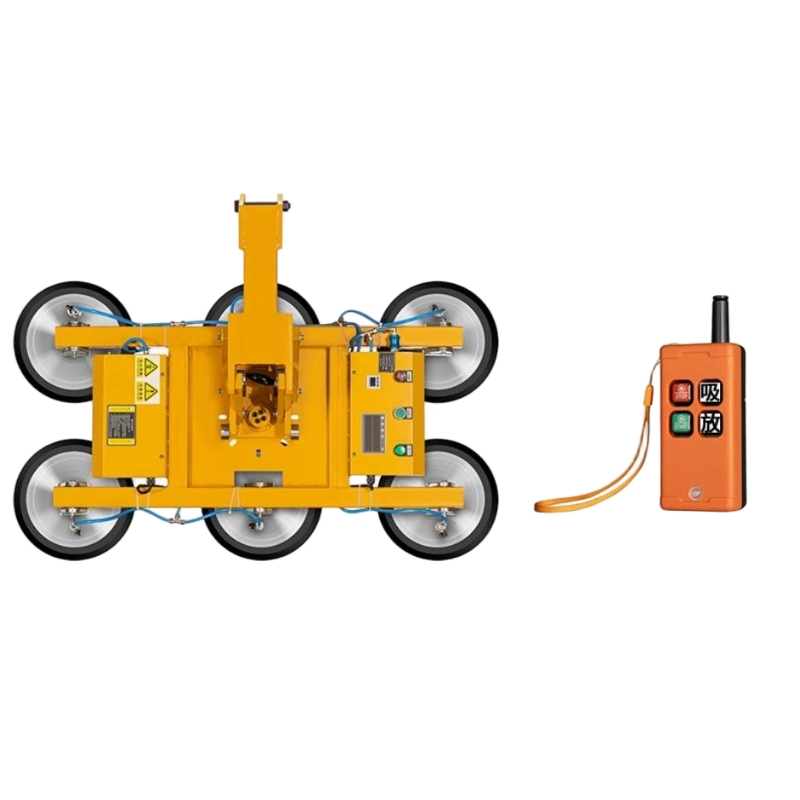

90 Degrees Tilting Glass Processing Suction Lifting Equipment for Construction Industry

1 / 5

90 Degrees Tilting Glass Processing Suction Lifting Equipment for Construction Industry

Customization:	Available
After-sales Service:	Video Technical Support
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.:HX

Cup Quantity:6

Application:Moving Metal Material (Glass, Steel, Stone)

Vacuum Source:Oil-Free Vacuum Pump

Max Loading:300-1000kg (Customizable)

Power:AC/200V 380V DC12V/24V

Rocker Arm:0~360 degree Rotation

HS Code:8428909090

Versatile Vacuum Lifting Device

⚙️

This vacuum lifter provides an efficient and reliable solution for handling flat and smooth materials in both indoor and outdoor environments. Constructed with a high-strength frame and equipped with powerful suction cups, it ensures secure gripping and safe lifting.

Key Applications

Glass Handling: Secure lifting and positioning of glass panes in production or installation.
Sheet Metal Work: Ideal for transporting steel or aluminum sheets without surface damage.
Stone Processing: Safely lift marble, granite, and other slabs with minimal manual effort.
Panel Installation: Perfect for sandwich panels, solar panels, and wall panels.
Warehouse Logistics: Improve loading/unloading efficiency of flat materials.
Outdoor Construction: Rugged design suitable for open-air jobs with optional weatherproof features.

Operational Showcase

Superior Configurations

Strong Suction: High-performance vacuum pump ensures reliable grip.
Multi-Direction: Supports tilting and 360° rotation.
Built-in Safety: Vacuum gauge and alarm for secure lifting.

Flexible Power: Electric, battery, or pneumatic options available.
Adjustable Arms: Fit different load sizes and shapes.
Durable Pads: Replaceable suction cups fit various materials.

Detailed Technical Specifications

Item	Specification Range	Remarks
Lifting Capacity	100 kg ~ 3000 kg	Based on suction pad quantity
Suction Pad Diameter	150 mm ~ 400 mm	Optional sizes available
Power Supply	12V / 24V DC / AC / Battery	Customizable
Tilting Function	0° ~ 90°	Manual or motorized
Rotation Function	0° ~ 360°	Manual or powered
Vacuum Holding Time	≥ 30 min	Safety after power loss

Why Choose Our Solutions?

We provide customized solutions tailored to your specific needs and branding requirements. Benefit from competitive pricing, fast shipping, and comprehensive turnkey project execution.

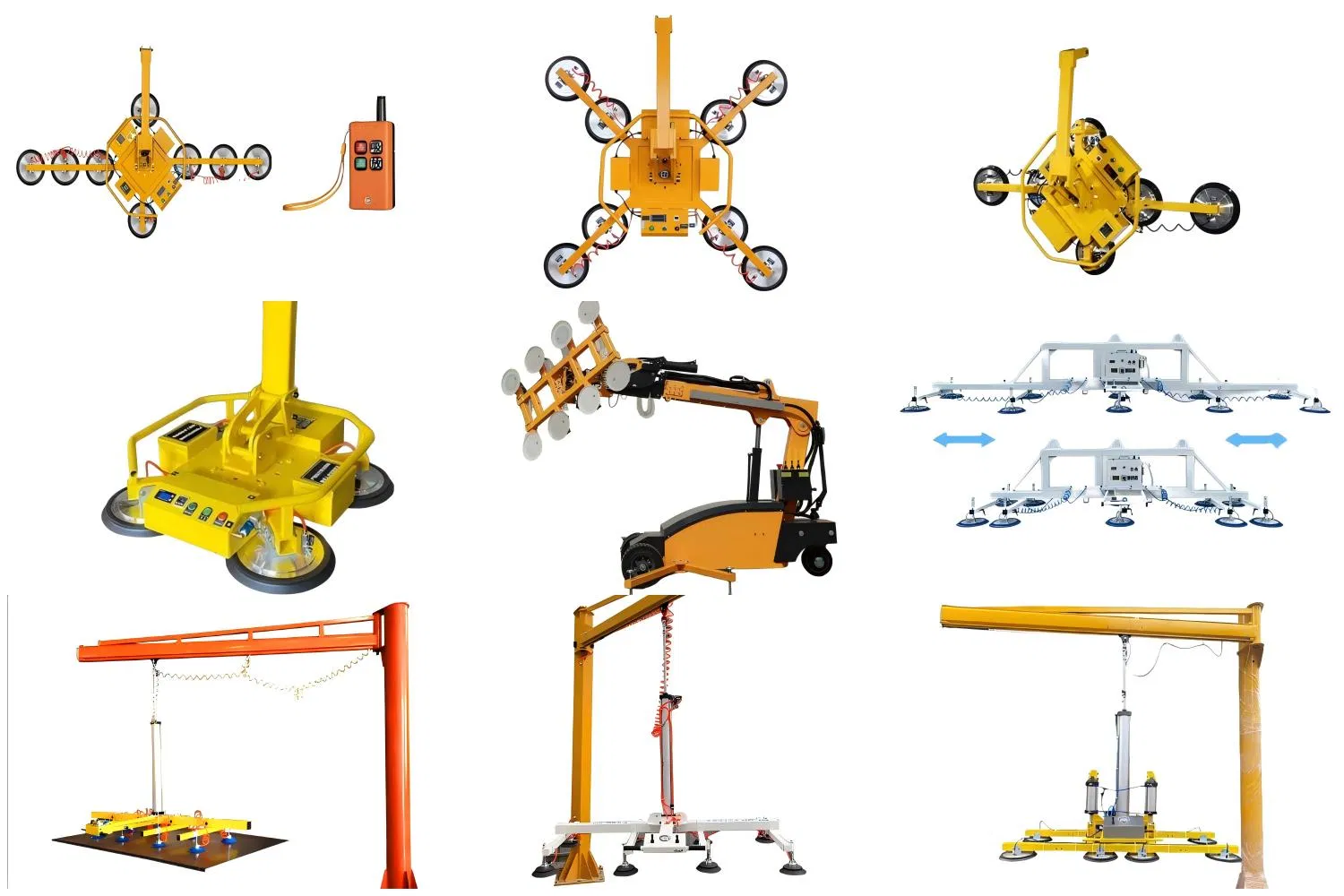

Product Portfolio

Frequently Asked Questions

Q1: What materials can this vacuum lifter handle? A: It is suitable for glass, metal sheets, stone slabs, plastic panels, and other flat or smooth surfaces.

Q2: Can the lifter be used outdoors? A: Yes. The unit is weather-resistant and comes with anti-corrosion treatment for outdoor use.

Q3: What happens if the power cuts off during lifting? A: The system is equipped with a non-return valve and vacuum reservoir to maintain suction for at least 30 minutes for safety.

Q4: Can I adjust the number or position of suction cups? A: Yes. The suction pads are modular and can be repositioned or added according to load size.

Q5: Does it support tilting or rotation? A: Optional features include 90° tilting and 360° rotation, available in either manual or electric modes.

Q6: What power supply options are available? A: You can choose from 12V/24V battery, 220V/380V AC, or pneumatic systems depending on your working site.
