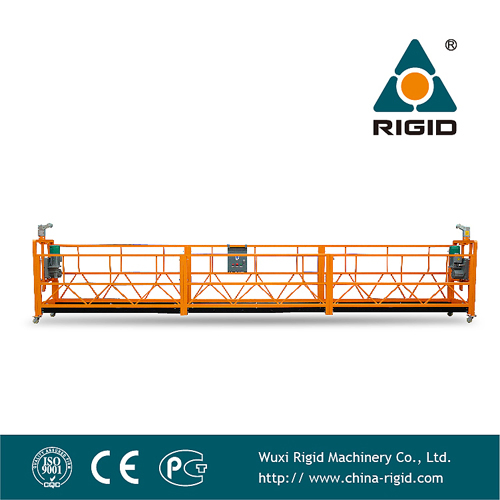

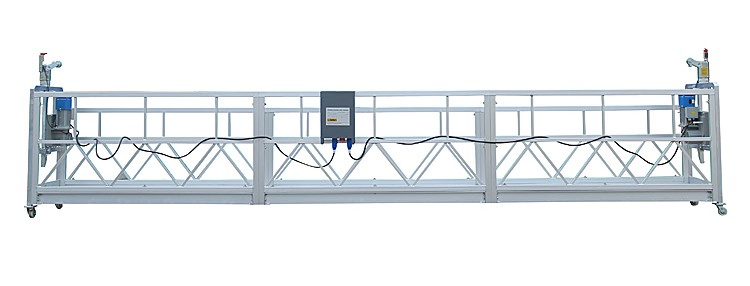

Safety Zlp800 Construction Swing Stage Equipment with Quality Certificates

1 / 5

Safety Zlp800 Construction Swing Stage Equipment with Quality Certificates

Customization:	Available
After-sales Service:	Engineer Oversea Service, Online
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO. ZLP800

Certification TUV, ISO, CE

Rated Load 800KG

Power Source Electric

Material Galvanized Steel

Condition New

Type Standard Suspended Platform

HS Code 8428909090

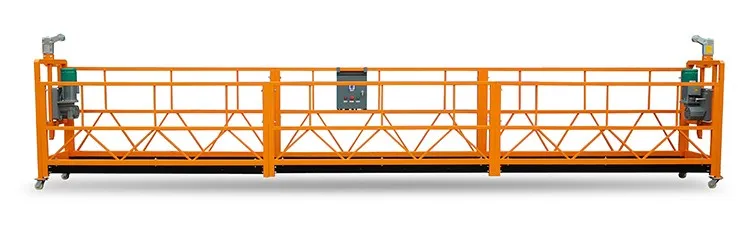

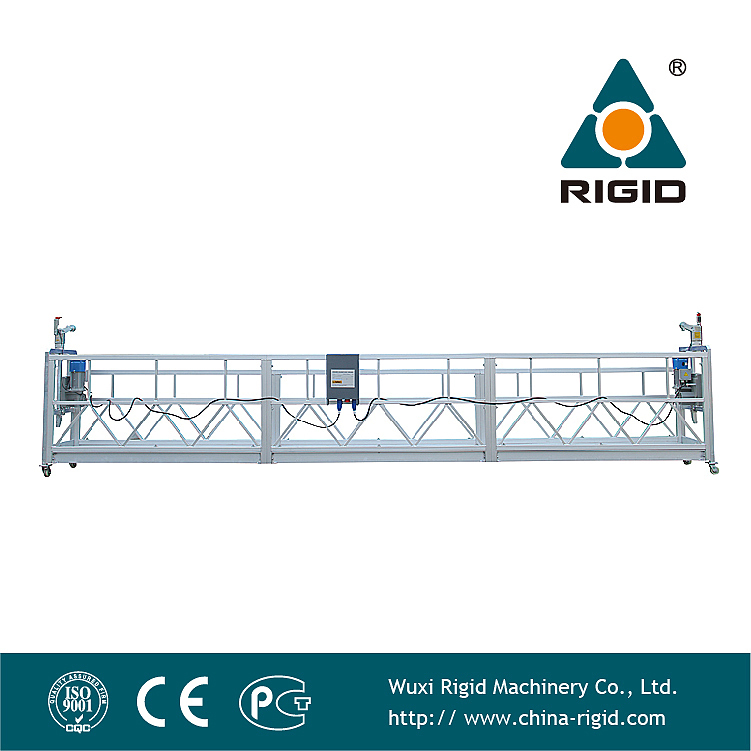

Safety ZLP800 Construction Swing Stage Equipment

ZLP series are designed for temporary applications for lifting personnel and their working equipment at unlimited heights.

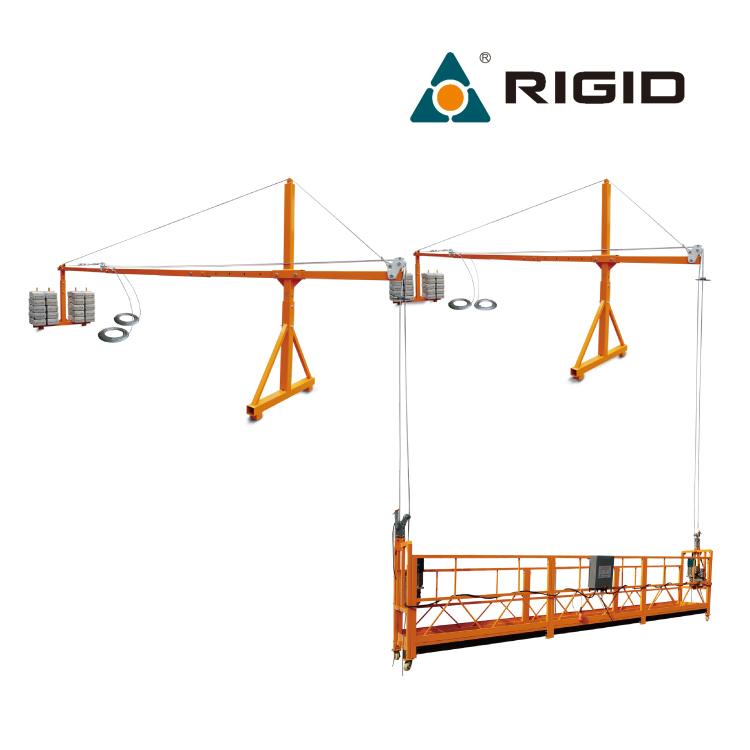

This model is perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning, and more. The complete system consists of the working platform equipped with two electric LTD hoists and support wheels, suspended by steel wire ropes from a suspension structure.

🛡️ Advanced Safety Systems

1Service brake incorporated in the LTD hoist.

2Two fall arrest devices acting on the safety wire ropes.

3Two upper limit switches.

4No power descent feature in case of power failure.

5Emergency stop button.

6Phase controller (Optional).

7Overload sensor according to EN 1808 (Optional).

Technical Parameters

Type	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Load	500kg	630kg	800kg	1000kg
Lifting Speed	9m/min	9m/min	9m/min	8.7m/min
Power	1.1×2 kw	1.5×2 kw	1.8×2 kw	2.0×2 kw
Wire Rope Dia.	8.3mm	8.3mm	9.1mm	10.2mm
Counter Weight	800kg	900kg	1000kg	1200kg

Key Components Detail

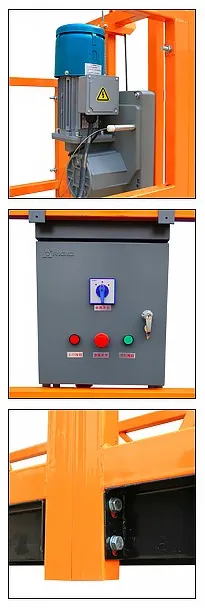

LTD Series Hoist
Die-casting aluminum casing

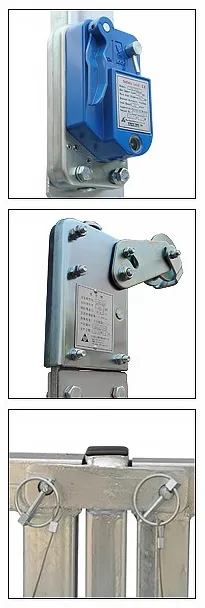

Safety Lock System
Overspeed & Anti-Tilt types

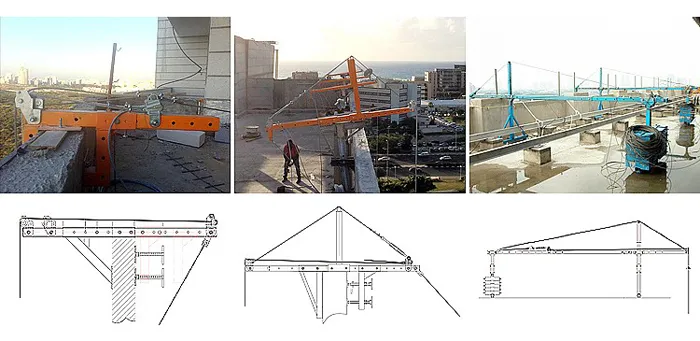

Anchoring & Suspension Options

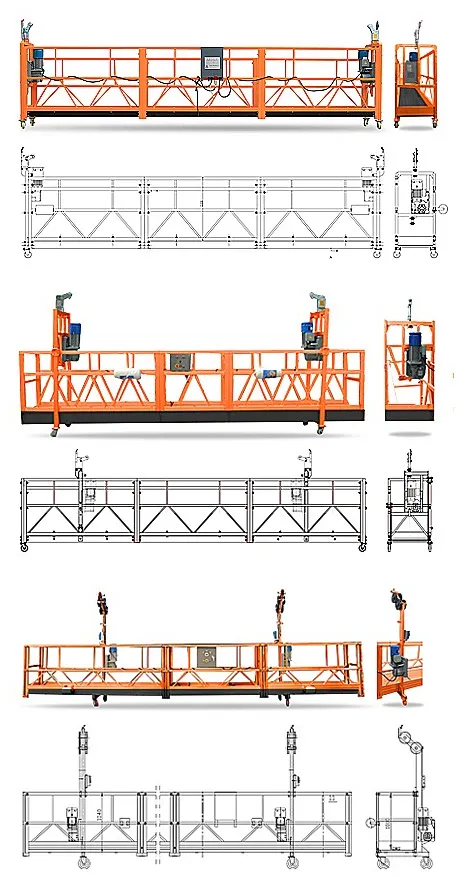

Stirrup Variations:

End Stirrup: Most economical and lightweight.
Frame Stirrup: Allows clear access to building corners.
"L" Stirrup: Placed at the rear for a completely clear working surface.

Options include Light Parapet Clamps, Standard Parapet Clamps, and Normal Suspension Jibs.

Frequently Asked Questions

Q1: What is the maximum rated load for the ZLP800 model?

A: The ZLP800 suspended platform is specifically designed to handle a rated load of 800kg, making it ideal for heavy-duty construction tasks.

Q2: What materials are used in the construction of the platform?

A: The platform is primarily constructed from high-quality Galvanized Steel, ensuring durability and resistance to corrosion. Aluminum options are also available for specific components to reduce weight.

Q3: How many safety devices are integrated into the system?

A: The system includes at least 5 standard safety features: a service brake, fall arrest devices (safety locks), upper limit switches, emergency stop, and manual descent capability during power failures.

Q4: Can the ZLP800 be used for high-rise building maintenance?

A: Yes, the ZLP series is designed for lifting personnel and equipment at unlimited heights, provided the steel wire rope length is sufficient for the building's height.

Q5: What are the typical applications for this swing stage equipment?

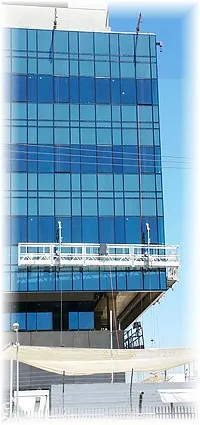

A: It is widely used for external wall construction, painting, window cleaning, facade maintenance, and repair work on high-rise structures or large tanks.

Q6: What power source is required for operation?

A: The ZLP800 is electrically powered, typically requiring a 3-phase voltage of 380V (with options for 220V or 415V) at 50Hz/60Hz frequency.
