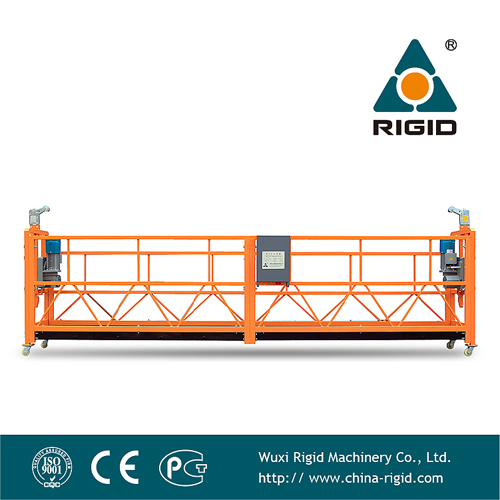

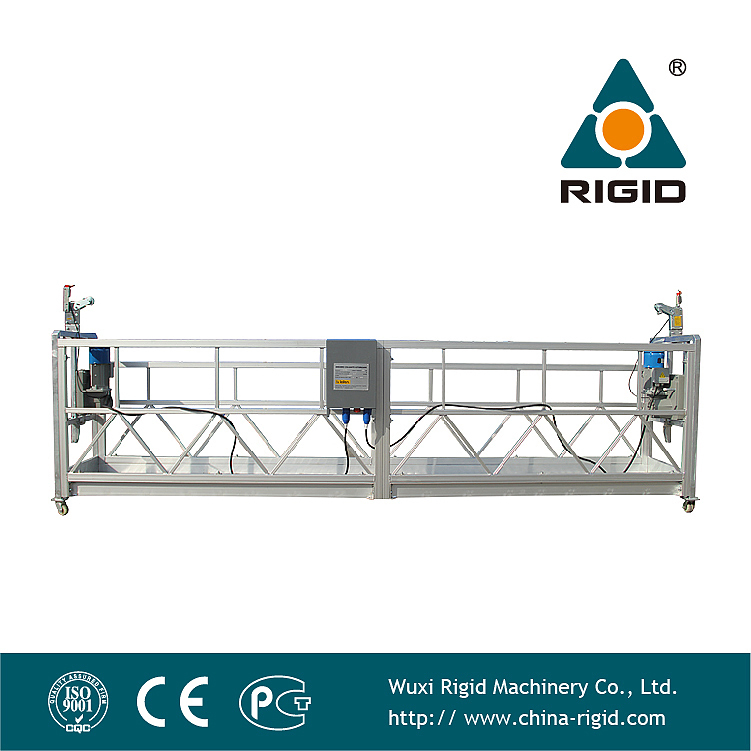

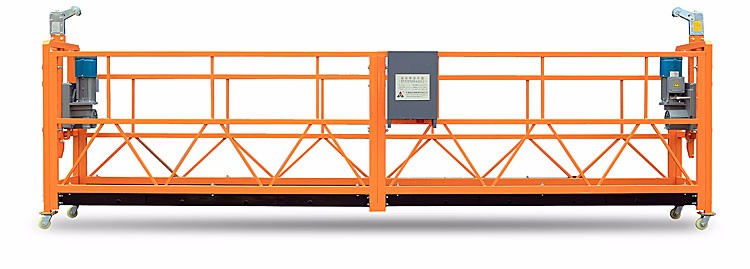

Chinese Factory Sell Zlp500 Construction Swing Stage Equipment
Chinese Factory Sell Zlp500 Construction Swing Stage Equipment
Chinese Factory Sell Zlp500 Construction Swing Stage Equipment
Chinese Factory Sell Zlp500 Construction Swing Stage Equipment
Chinese Factory Sell Zlp500 Construction Swing Stage Equipment
1 / 5
Chinese Factory Sell Zlp500 Construction Swing Stage Equipment
Chinese Factory Sell Zlp500 Construction Swing Stage Equipment
Chinese Factory Sell Zlp500 Construction Swing Stage Equipment
Chinese Factory Sell Zlp500 Construction Swing Stage Equipment
Chinese Factory Sell Zlp500 Construction Swing Stage Equipment

Chinese Factory Sell Zlp500 Construction Swing Stage Equipment

Customization: Available
After-sales Service: Engineer Oversea Service, Online
Warranty: 12 Months
Send Inquiry

Product Description

Technical Specification

Model NO.
ZLP500
Certification
TUV, ISO, CE
Condition
New
Rated load
500KG
Power Source
Electric
Material
Aluminum Alloy
Type
Standard Suspended Platform
Anchoring
Suspension Jibs
Mounting
Screw Type
HS Code
8428909090
Capacity
800 pieces/Month

Product Description

ZLP series construction swing stage equipment is designed for temporary applications for lifting people and their working equipment at unlimited heights.

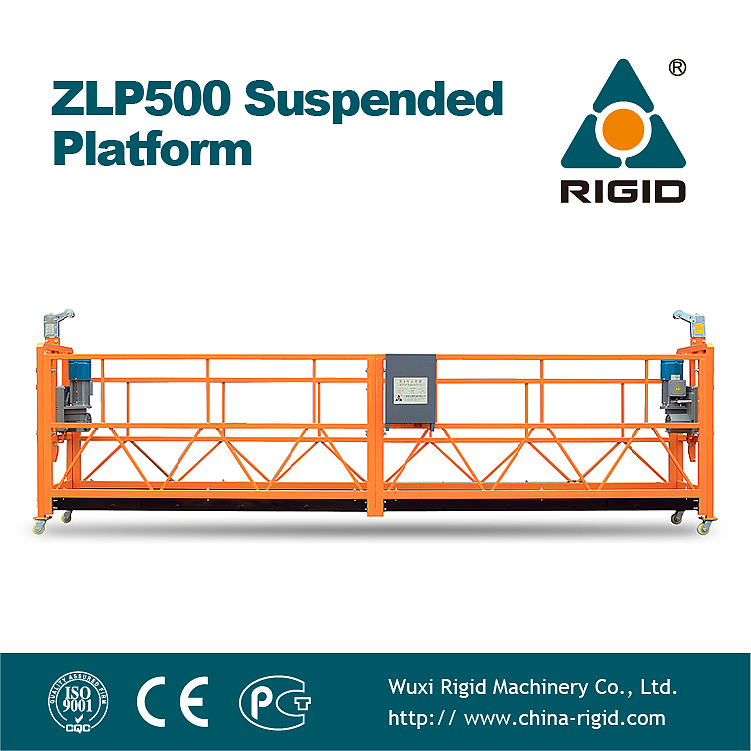

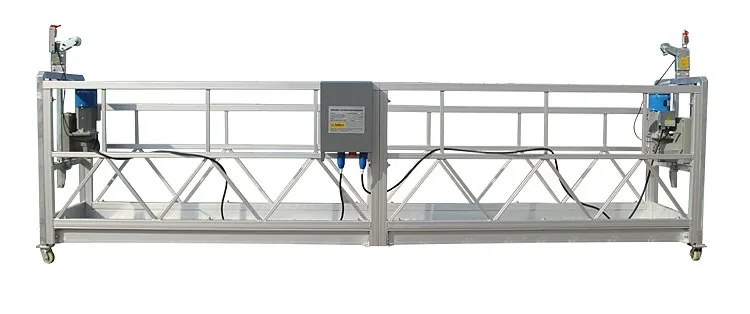

ZLP500 Construction Swing Stage

The model is perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning, etc. The complete system consists of the working platform equipped with two electric LTD hoists and support wheels, suspended by steel wire ropes from a suspension structure.

🛡️ Safety Systems

To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:

  • Service brake incorporated in the LTD hoist.
  • Two fall arrest devices acting on the safety wire ropes.
  • Two upper limit switches.
  • No power descent in case of power failure.
  • Emergency stop and phase controller.
  • Optional overload sensor according to EN 1808.

Parameters of ZLP Series

Type ZLP500 ZLP630 ZLP800 ZLP1000
Rated Load500kg630kg800kg1000kg
Lifting Speed9m/min9m/min9m/min8.7m/min
Voltage380V(415V/220V)380V(415V/220V)380V(415V/220V)380V(415V/220V)
Power1.1×21.5×21.8×22.0×2
HoistLTD50LTD63LTD80LTD100
Safety LockLSF308LSF308LSF309LSF310
Wire Rope Dia.8.3mm8.3mm9.1mm10.2mm
Platform Weight (Alu)290kg310kg340kg340kg
Counter Weight800kgs900kgs1000kgs1200kgs

*Note: The weight of lifting part includes platform, hoist, safety locks, and electric control system.

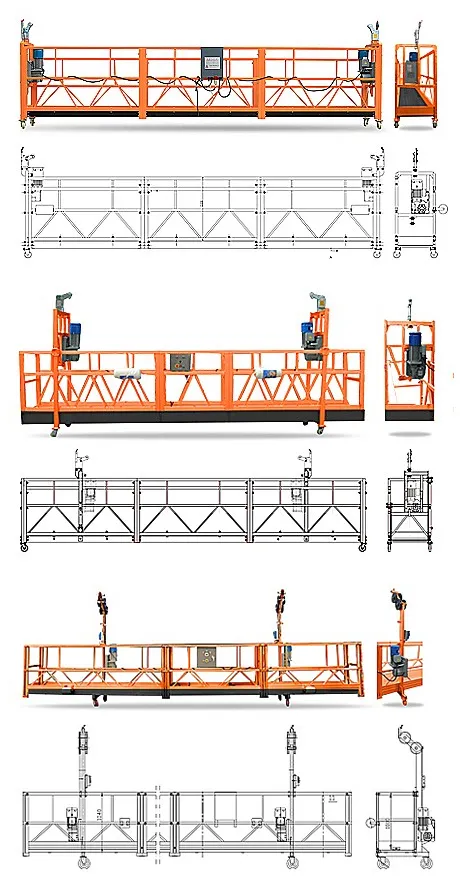

Suspended Platform Details

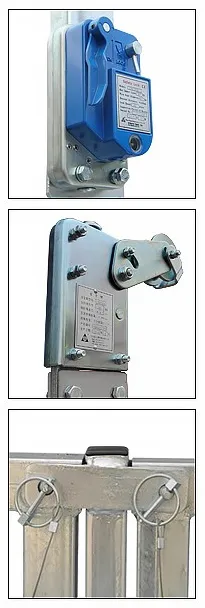

Safety Lock Detail

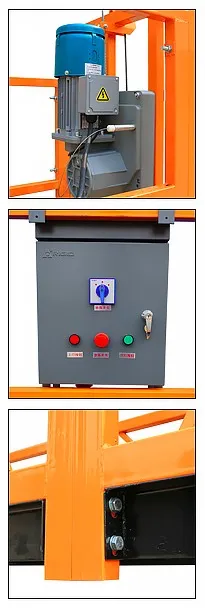

LTD Hoist Detail
Control Box Detail

Platform Suspension & Anchoring

Suspension Stirrups

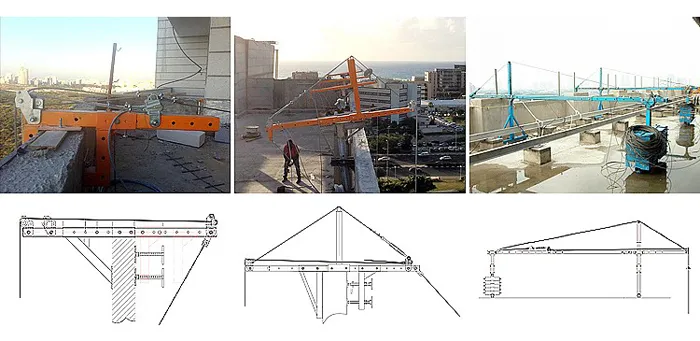

Anchoring Options

Available Stirrup Types:

  • End stirrup: Most economical and lightweight.
  • Frame stirrup: Provides clear building corners for easy access.
  • "L" stirrup: Placed at the rear to keep the working surface completely clear.

Frequently Asked Questions

What are the main applications for the ZLP500?
The ZLP500 is ideal for high-rise construction tasks such as painting, decoration, building refurbishing, window cleaning, and joint repairs.
What safety features are included in the system?
It includes a service brake in the LTD hoist, two fall arrest safety locks, upper limit switches, emergency stop buttons, and no-power descent capabilities during power failures.
Can the platform length be adjusted?
Yes, the platform uses a modular design (Screw or Pin type) which allows for quick and easy assembly to meet different working length requirements.
What materials are the platforms made of?
We offer both high-grade Aluminum Alloy and Steel options. Aluminum alloy is preferred for its lightweight and corrosion-resistant properties.
What power supply is required for operation?
Standard configurations require a 3-phase power supply, typically 380V at 50Hz/60Hz, though 220V and 415V options are also available.
Is the equipment certified for international standards?
Yes, our ZLP series suspended platforms are fully certified with CE, TUV, and ISO9001:2008 standards for global compliance.
