Hot Sale Zlp800 Electric Suspended Access Equipment

Customization:	Available
After-sales Service:	Engineer Oversea Service, Online
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZLP800

Certification

TUV, ISO, CE

Condition

New

Rated load

800KG

Power Source

Electric

Material

Aluminum Alloy

Type

Standard Suspended Platform

Anchoring Options

Suspension Jibs

Production Capacity

800pieces/Month

Origin

Wuxi, Jiangsu

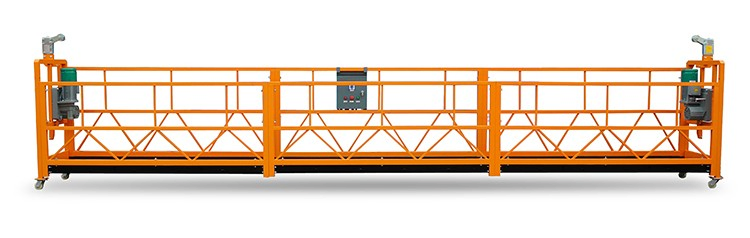

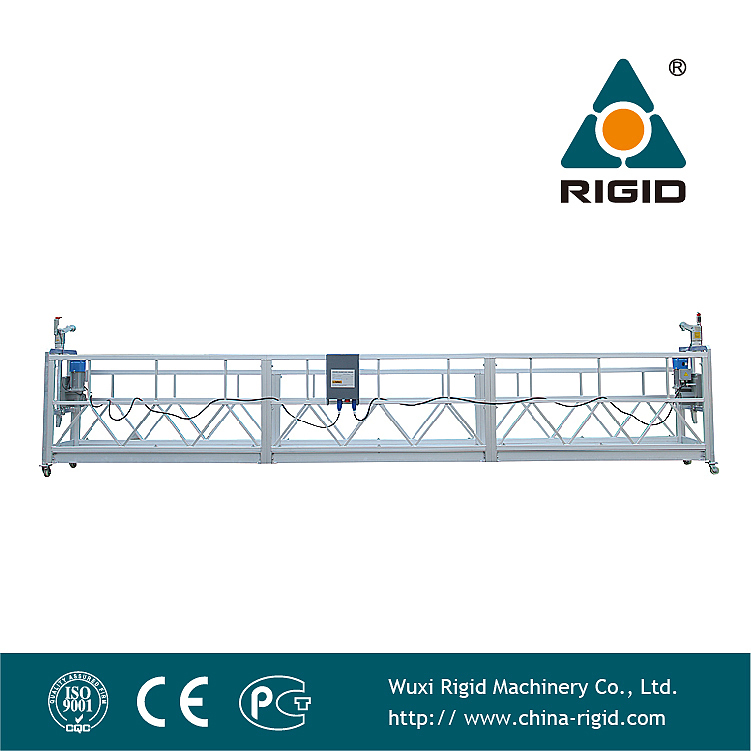

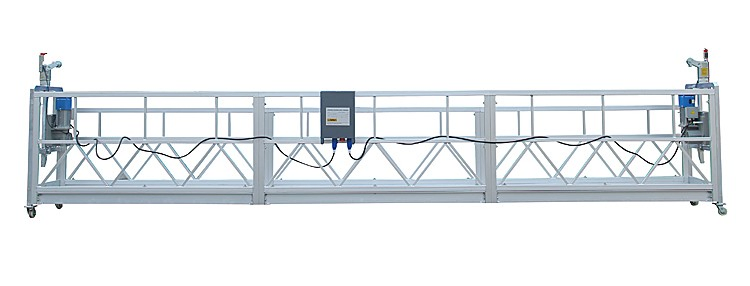

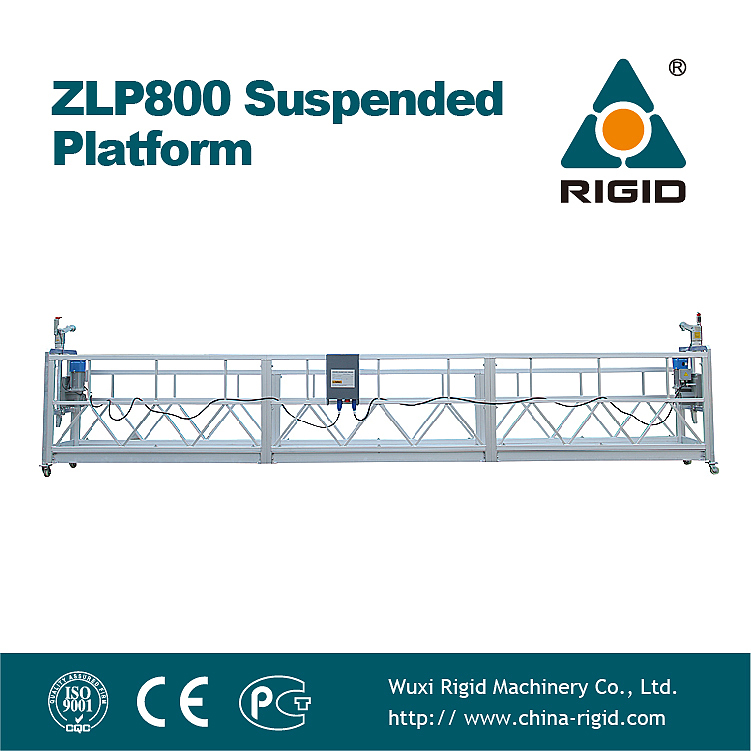

Electric Suspended Access Equipment

ZLP series are for temporary applications for lifting people and their working equipment at unlimited heights.

Perfectly suited for lightweight applications such as painting, decorating, refurbishing, jointing, repairs, and window cleaning. The system consists of a working platform with two electric LTD hoists and support wheels, suspended by steel wire ropes from a suspension structure.

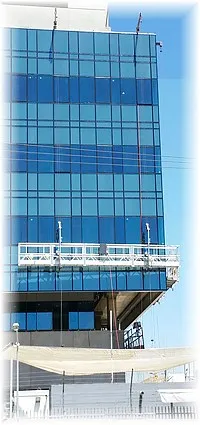

Safety Systems & Protection

Service brake incorporated in the LTD hoist.
Two fall arrest devices acting on the safety wire ropes.
Two upper limit switches.
No power descent in case of power failure.
Emergency stop button.
Phase controller (Option).
Overload sensor according to EN 1808 (Option).

Technical Parameters (ZLP Series)

Type	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Load	500kg	630kg	800kg	1000kg
Lifting speed	9m/min	9m/min	9m/min	8.7m/min
Voltage-3phase	380V (415V/220V), 50Hz/60Hz
Power	1.1×2 kw	1.5×2 kw	1.8×2 kw	2.0×2 kw
Hoist Model	LTD50	LTD63	LTD80	LTD100
Safety lock	LSF308	LSF308	LSF309	LSF310
Wire Rope Dia.	8.3mm	8.3mm	9.1mm	10.2mm
Platform Size	(2.5×2)m	(2×3)m	(2.5×3)m	(2.5×3)m
Counter Weight	800kg	900kg	1000kg	1200kg

Suspended Platform Details

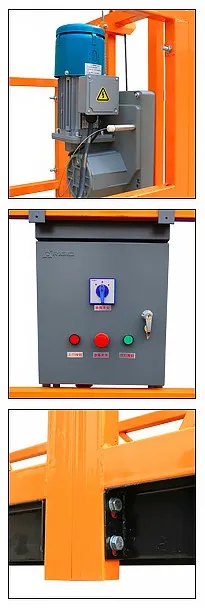

LTD Series Hoist
Aluminum Casing

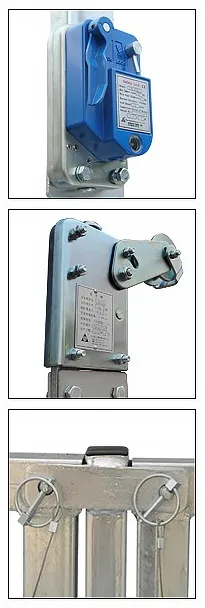

Safety Lock
Anti-Tilt & Centrifugal

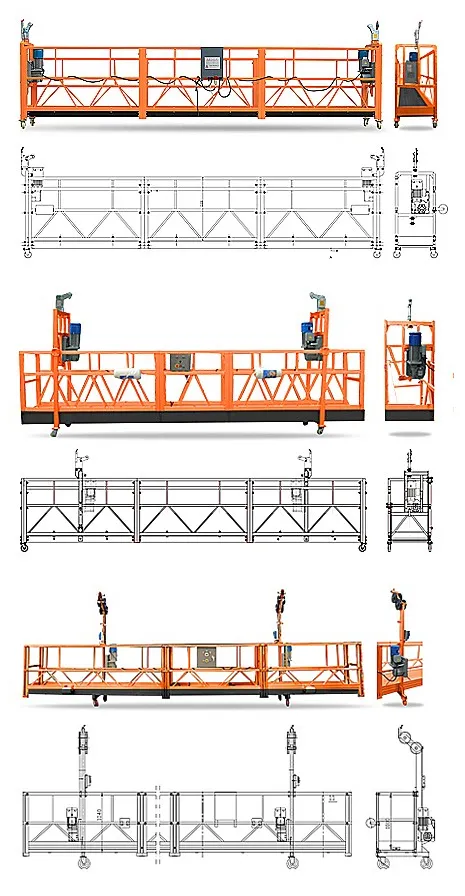

Suspension Stirrup
Multiple Designs

💡 End Stirrup: Economical and lightweight version.

💡 Frame Stirrup: Allows clear access to building corners.

💡 "L" Stirrup: Placed at the rear for a completely clear working surface.

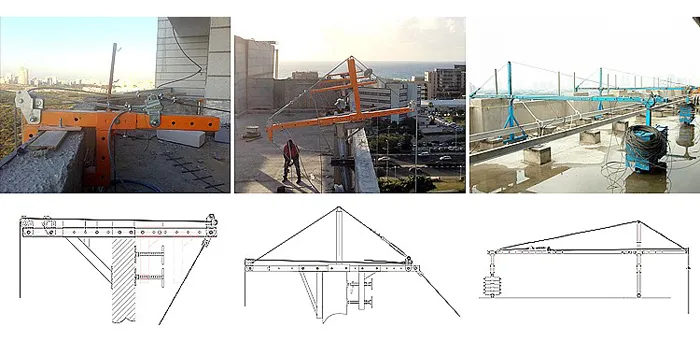

Anchoring & Suspension Options

Light Parapet Clamp | Parapet Clamp | Normal Suspension Jibs

Mobile suspension jibs are typically used on roofs for temporary attachment of the platforms.

Frequently Asked Questions

Q1: What is the maximum load capacity of the ZLP800 model? The ZLP800 is designed for a rated load of 800KG, making it suitable for heavy-duty facade work.

Q2: What materials are the platforms made of? The platforms are primarily constructed from high-quality Aluminum Alloy, providing a balance of strength and lightweight maneuverability.

Q3: What safety mechanisms are included in the electric hoists? Safety features include a service brake in the LTD hoist, fall arrest devices, upper limit switches, emergency stop, and optional overload sensors.

Q4: Can the platform be used during a power failure? The system includes a manual descent feature that allows for a safe controlled descent in the event of a power failure.

Q5: What are the different stirrup options available? We offer End stirrups, Frame stirrups (for corner access), and "L" stirrups (for a completely clear working surface).

Q6: What certifications does the equipment carry? The equipment is fully certified with TUV, ISO, and CE standards, ensuring international safety compliance.
