New Update Wireless Simultaneous Interpretation System Digital Interpreter Console Wireless Interpretation Equipment

Customization:	Available
Color:	Black
Modulation Mode:	Fs-Fhss Technology

Send Inquiry

Product Description

Basic Specifications

Model NO.	TC-FSJ04B/08B/12B/16B
Frequency Range	2.4-2.5GHz
Encryption Method	AES
System Max Capacity	Unlimited Receivers Within Signal Distance
Grouping Function	up to 255 Groups
Sensitivity	-121dBm
Earphone Jack	3.5mm Jack Stereo
OLED Screen	35*10mm
Battery Display	Real-Time Display, Low Power Alarm
Battery	Lithium Battery/ 2 AA Batteries
Battery Service Time	16 Hours
Package	Portable Aluminum Case
Weight	136g (with Lithium Battery); 94g (without Battery)
Type	Voice Conferencing System
Communication	Wireless
Origin	China

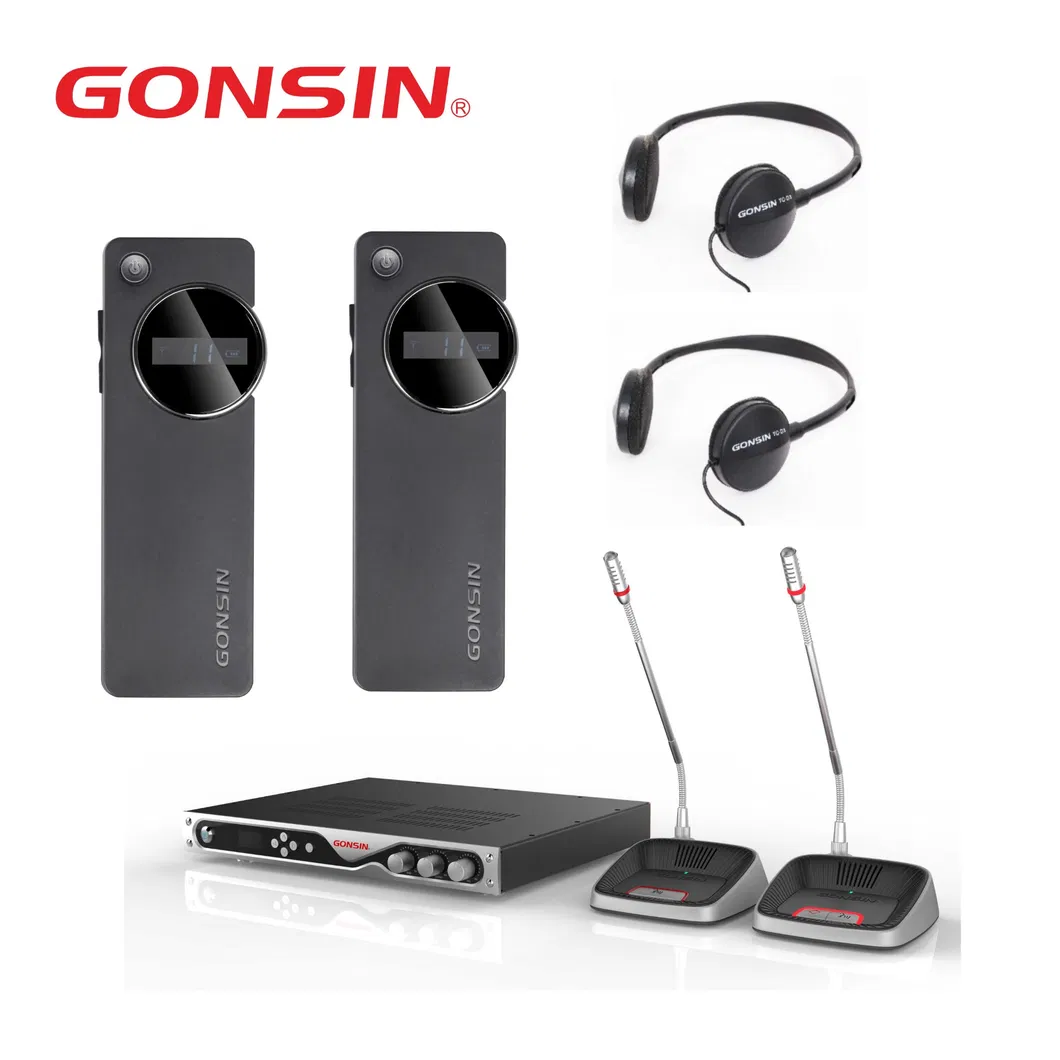

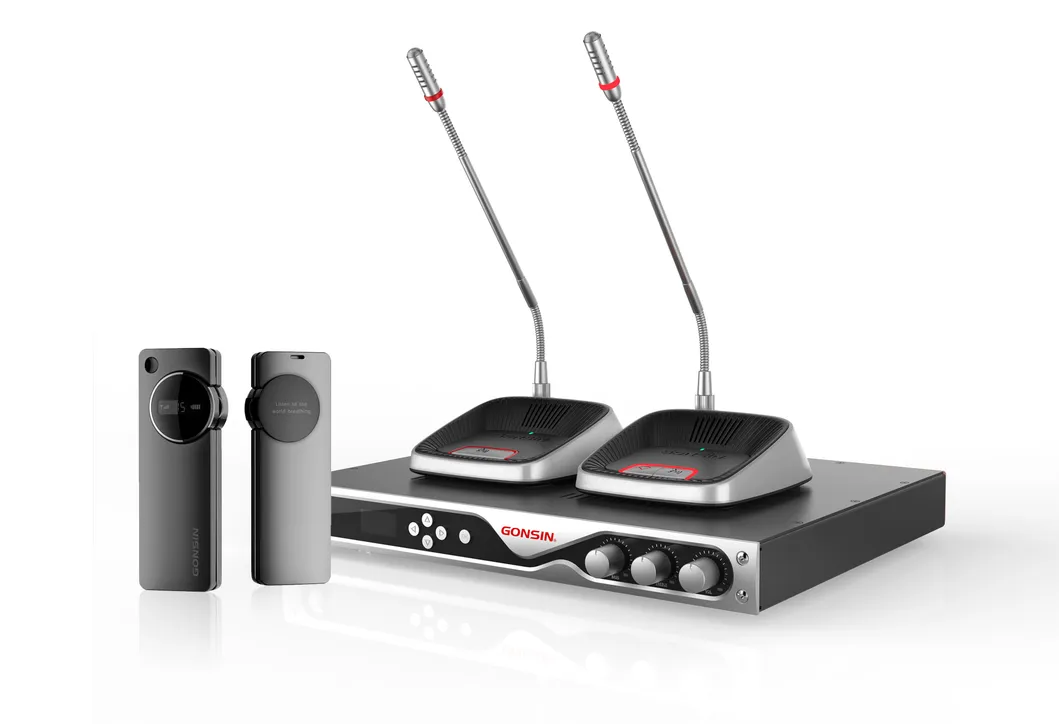

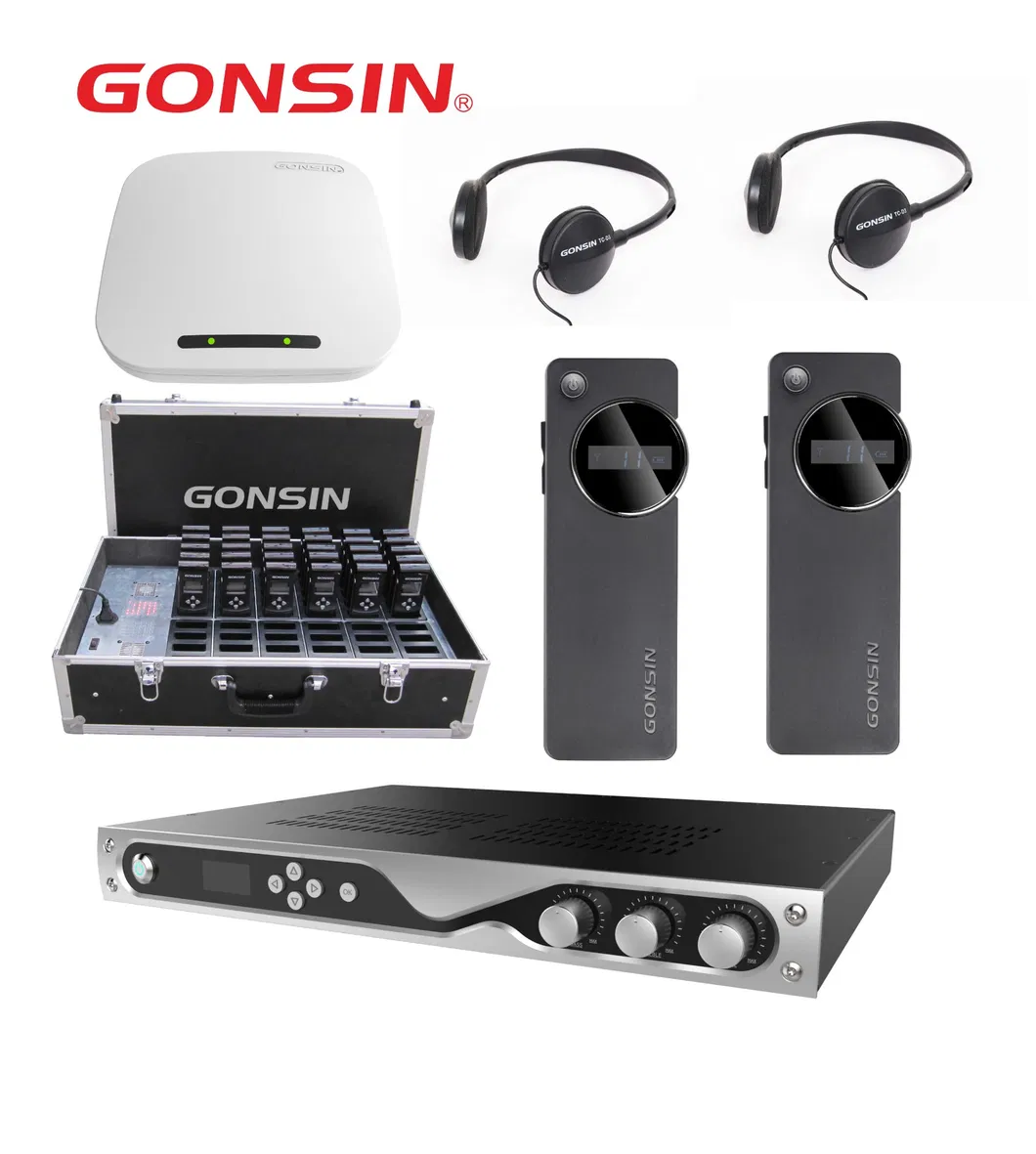

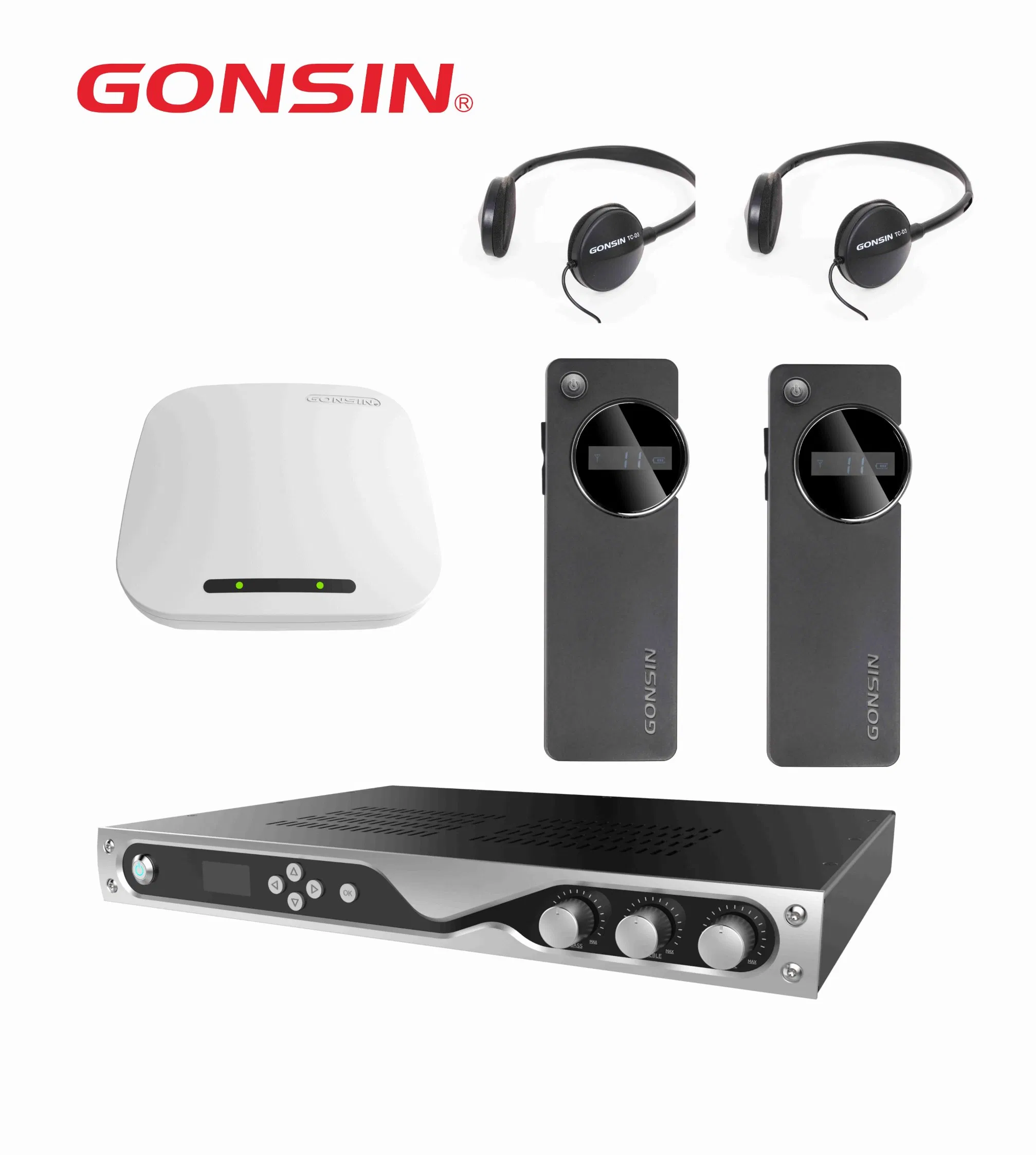

Wireless Simultaneous Interpretation System

The FS-FHSS wireless simultaneous interpretation system utilizes digital wireless communication and innovated FS-FHSS (Frequency Selecting - Frequency Hopping Spread Spectrum) technology. It features super-strong anti-interference capability and broad bandwidth, providing perfect CD-level audio quality, and utilizes AES techniques to encrypt data.

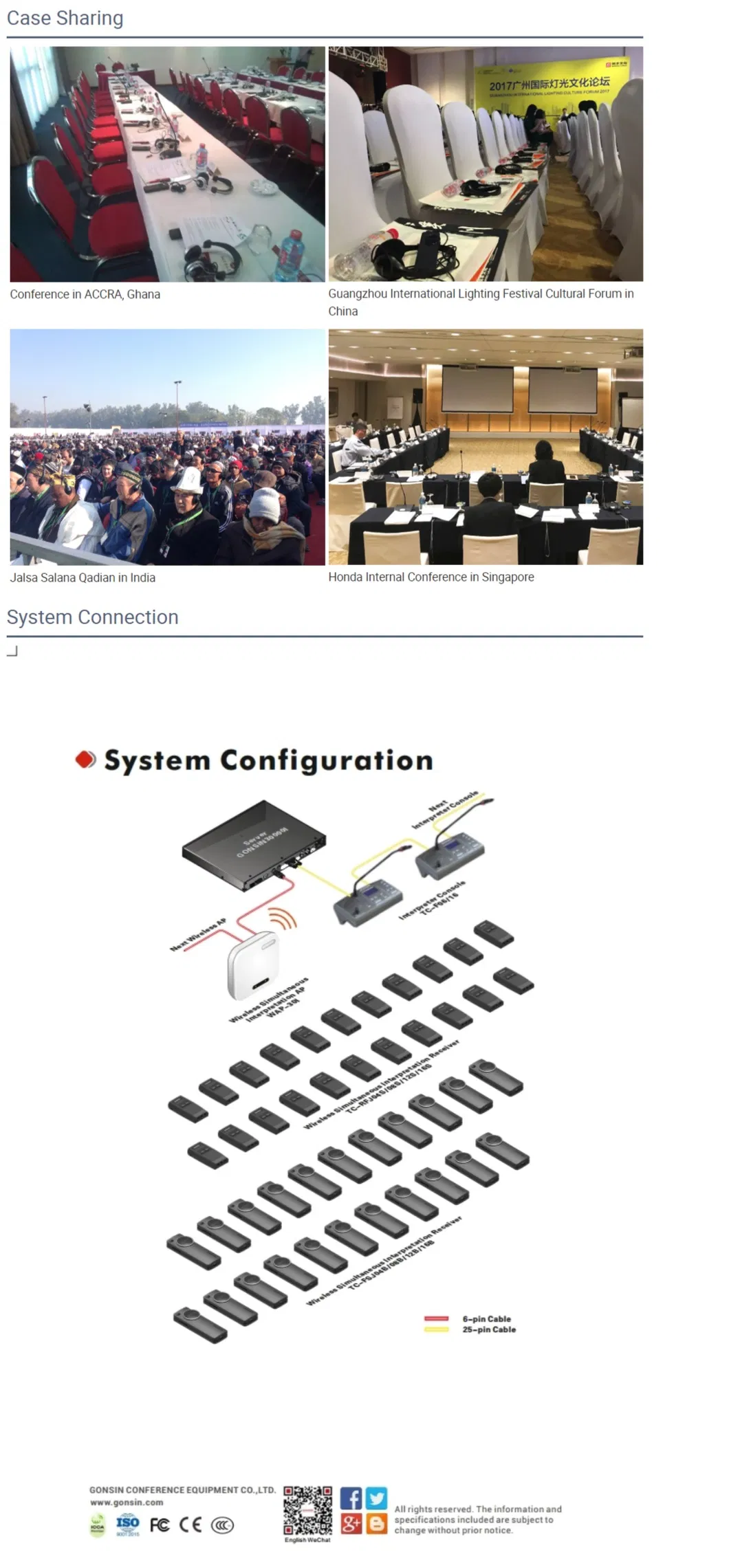

Effective communication distance spans from 50m to 500m. Signals are transmitted in all directions. Each eight-channel configuration uses one antenna unit, reducing deployment difficulty and saving system investment. The system can modulate and transmit up to 16 channels simultaneously, allowing participants to select their required language via handheld or headset receivers.

Key Features

Innovated FS-FHSS (Frequency Selecting-Frequency Hopping Spread Spectrum) technology
Highly flexible for outdoor, indoor, temporary, or fixed conference places
AES data encryption prevents malicious interference and eavesdropping
Immune to light sources, other wireless equipment, and signal jammers
Adjustable transmission power for coverage from 50m up to 500m
Unlimited system capacity within the effective transmission scope
All-direction signal transmission for complete mobility
Supports up to 16 simultaneous interpretation channels via cascading
Simple deployment requiring only one wireless access point

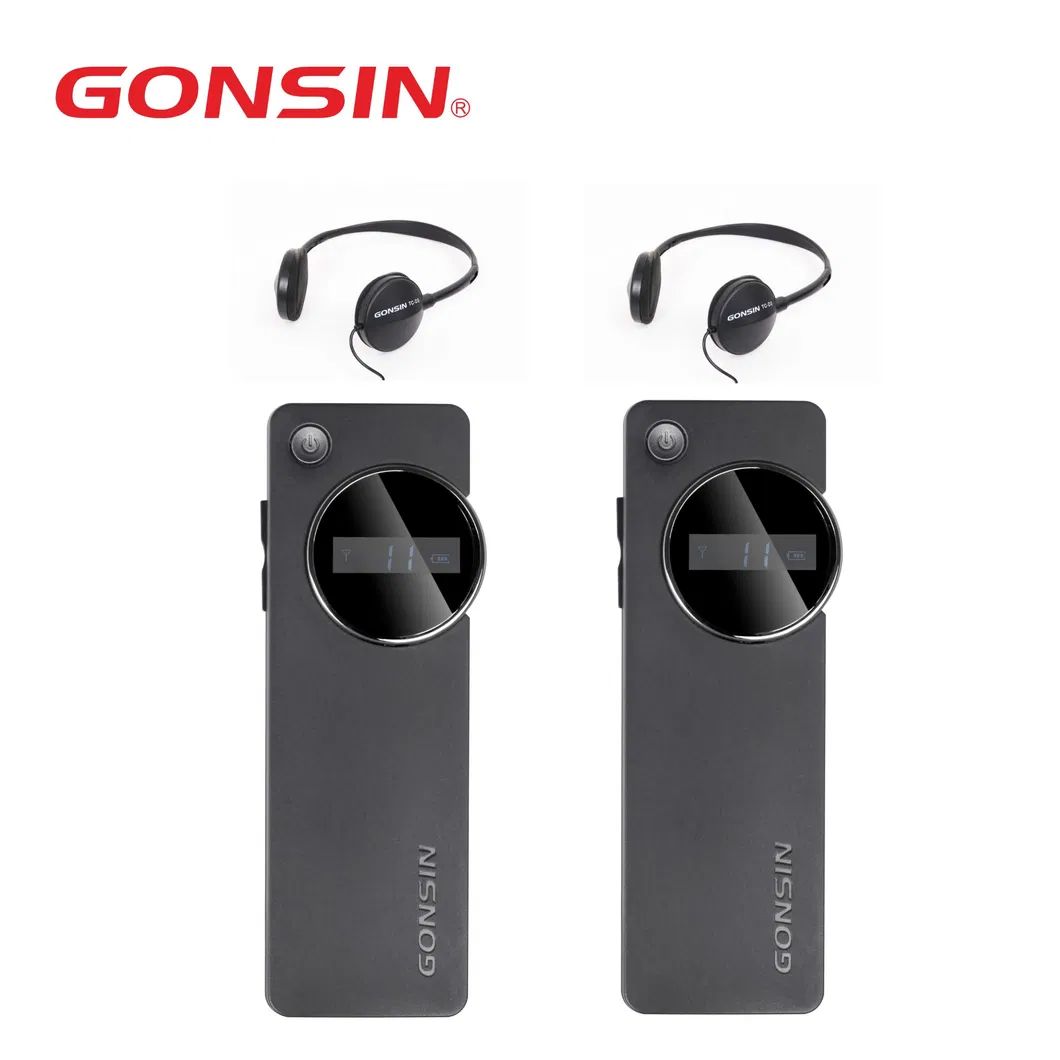

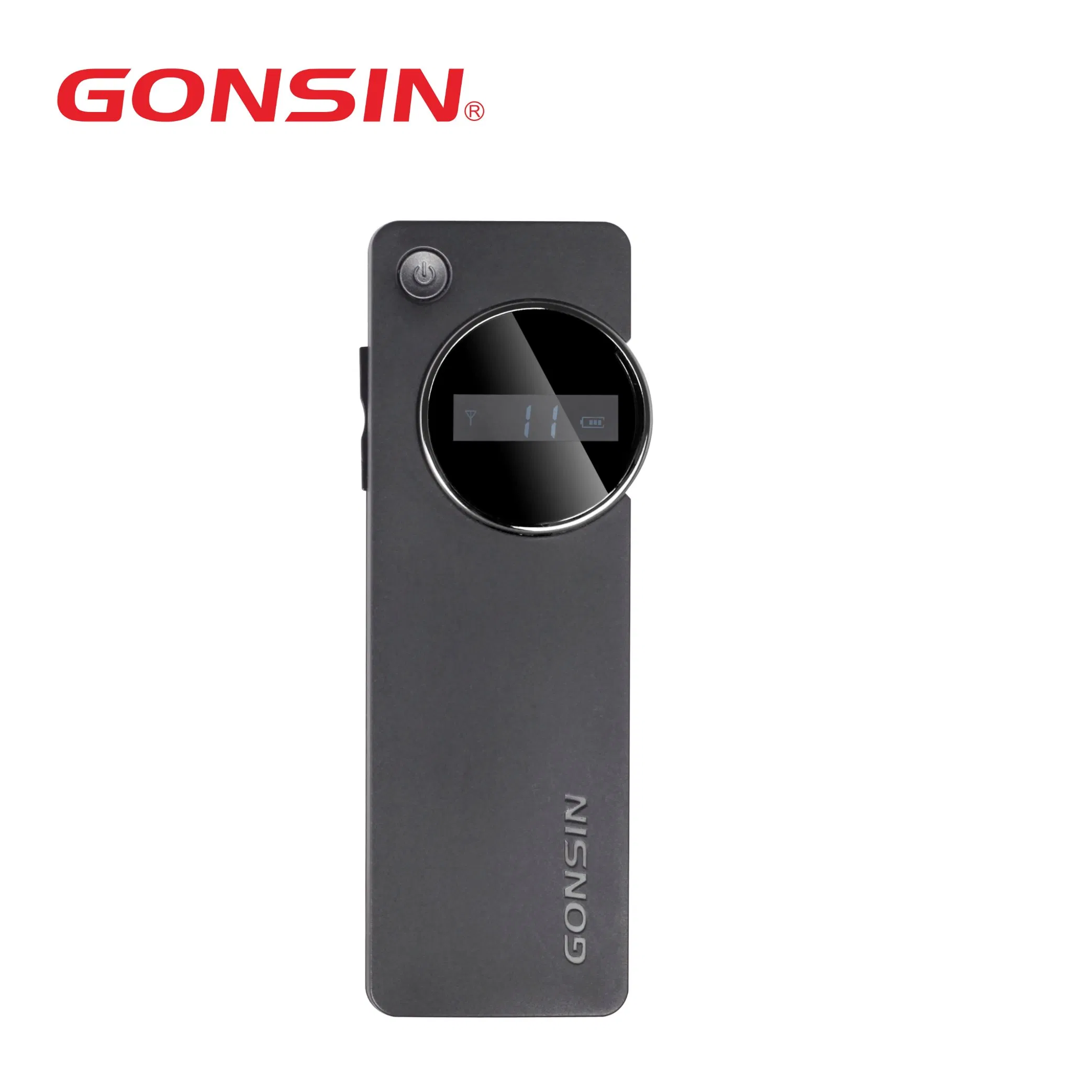

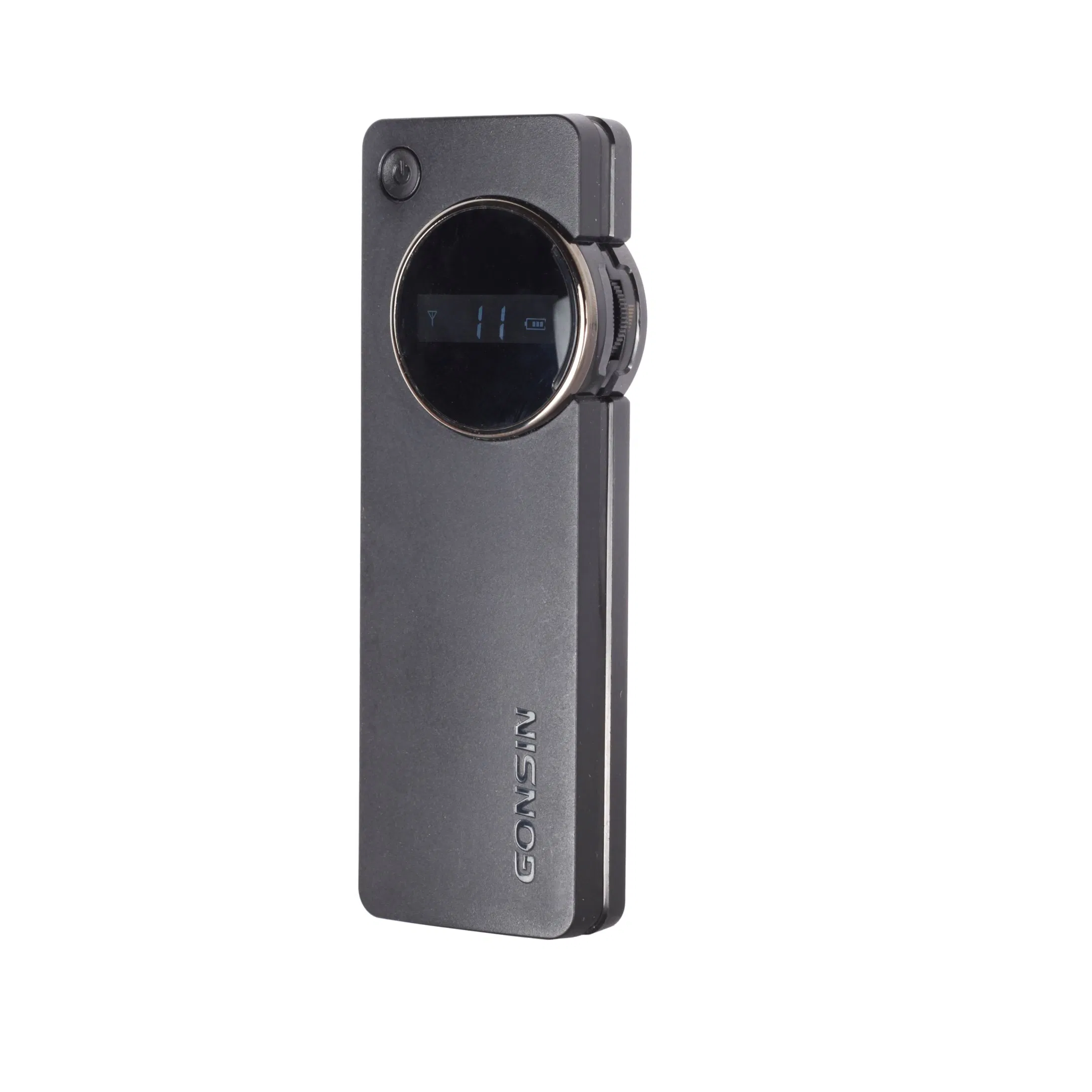

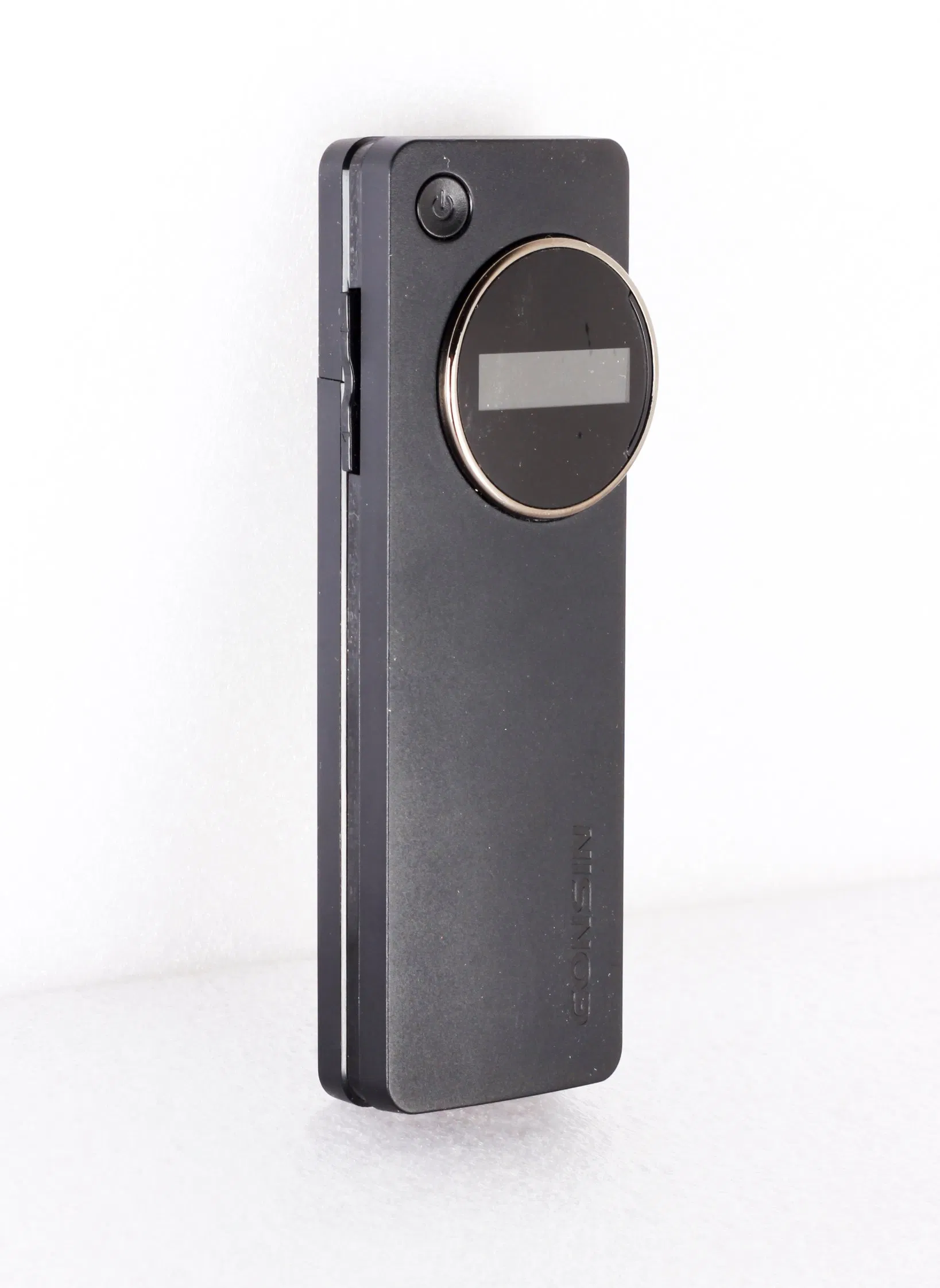

Wireless Receiver TC-FSJ04B/08B/12B/16B

Advanced Functionality: Supports CD-level sound quality and automatic Host ID tracking. The OLED screen provides dynamic info on signal strength, battery level, and channel selection.

Up to 16 channels (1 floor + 15 interpretation audio)
Real-time battery level detection with low power alarm
255 unique groups to prevent cross-interference
Unified shut-down function to reduce workload
Consecutive 16-hour battery life with low power consumption
Automatic turn-off after 10 mins of no signal or 2 mins without earphones

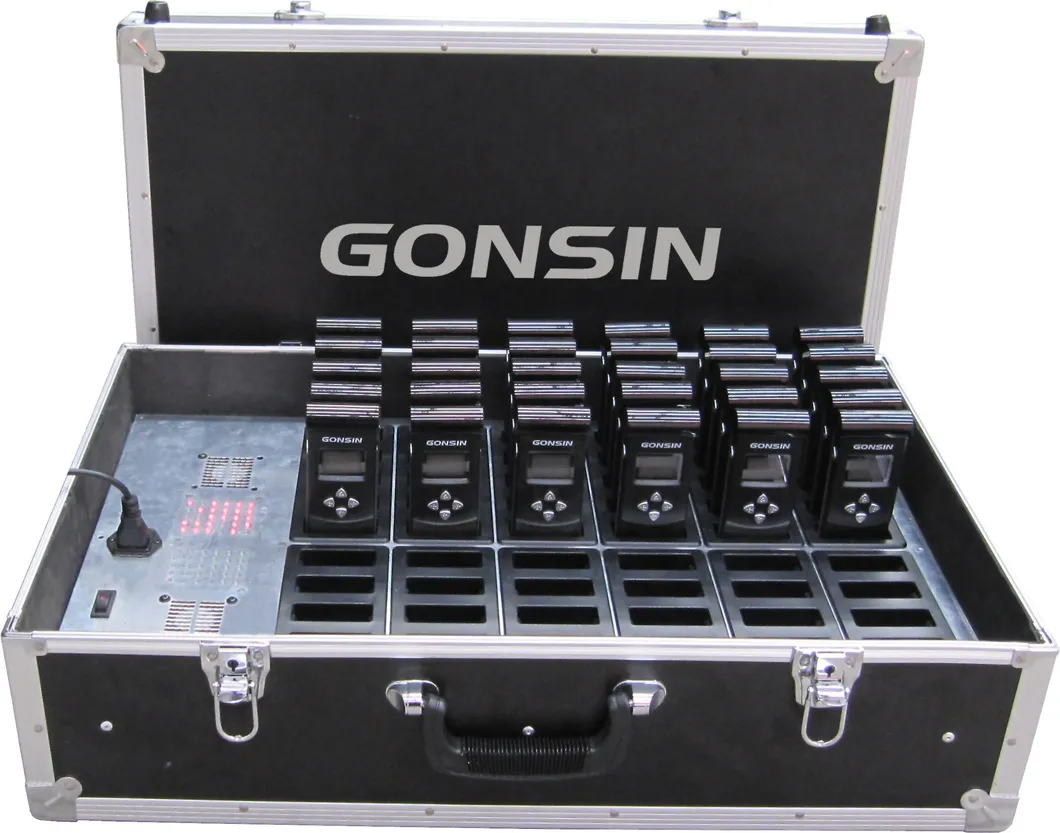

Centralized charging case supports up to 60 receivers simultaneously

Technical Parameters

Modulation Mode	FS-FHSS Technology
Frequency Range	2.4-2.5GHz
Encryption	AES
Sensitivity	-121dBm
Earphone Jack	3.5mm Stereo
OLED Display	35 × 10mm
Battery Life	16 Hours (varies by battery type)
Dimensions (L×W×H)	136 × 50 × 21mm
Working Temp	0~45°C
Storage Temp	-20~50°C

Frequently Asked Questions

What is FS-FHSS technology?

FS-FHSS stands for Frequency Selecting - Frequency Hopping Spread Spectrum. It is an innovated wireless technology that monitors and selects undisturbed frequency bands to ensure stable, high-quality audio communication without interference.

How many languages can be interpreted at once?

The system supports up to 8 channels in a standard setup and can be expanded up to 16 channels (1 floor language + 15 interpreted languages) through cascading.

Is the wireless signal secure?

Yes, the system utilizes AES data encryption techniques to prevent malicious interference and unauthorized listening, making it suitable for confidential government or corporate meetings.

What is the effective transmission range?

The transmission power is adjustable, allowing the signal to cover distances from 50 meters up to 500 meters depending on the environment and requirements.

How long does the receiver battery last?

The receiver is designed for low power consumption, allowing it to run consecutively for approximately 16 hours on a full charge or fresh batteries.

Is there a limit to the number of participants?

Within the effective signal coverage area, the number of wireless receivers is unlimited. Participants can move freely as long as they stay within the transmission scope.
