Construction Temporary Gondola Zlp630 High Rise Window Cleaning Equipment

Customization:	Available
After-sales Service:	Engineer Oversea Service, Online
Warranty:	12 Months

Basic Specifications

Model NO.

ZLP630

Certification

TUV, ISO, CE

Condition

New

Rated load

630KG

Power Source

Electric

Material

Aluminum Alloy

Type

Standard Suspended Platform

Anchoring Options

Suspension Jibs

Platform Mounting

Screw Type

HS Code

8428909090

Production Capacity

800 pieces/Month

Product Description

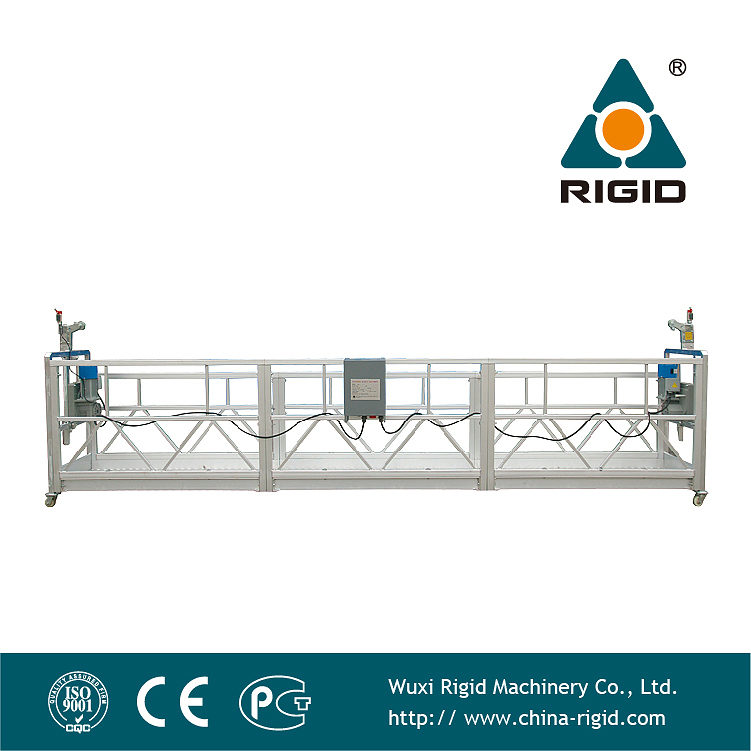

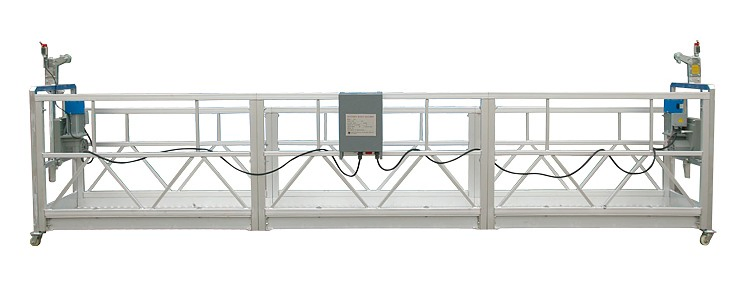

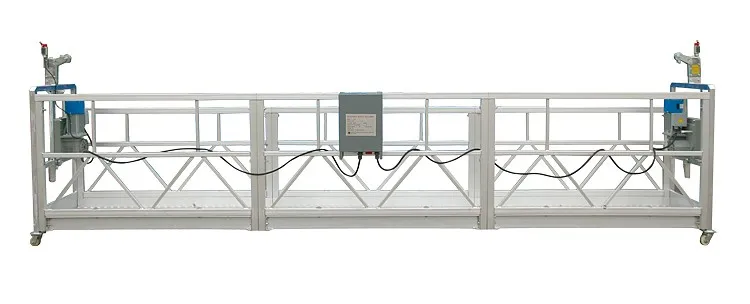

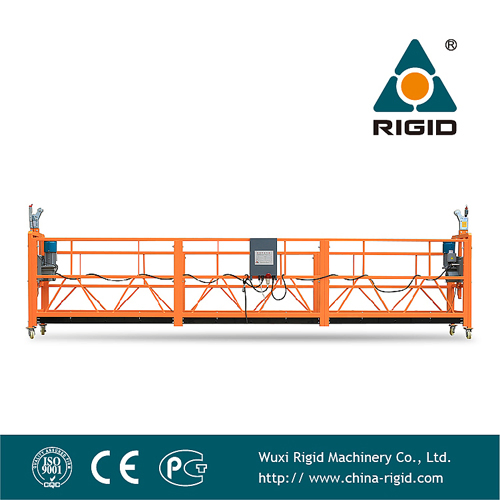

Construction Temporary Gondola ZLP630 High Rise Window Cleaning Equipment

ZLP series are designed for temporary applications for lifting people and their working equipment at unlimited heights.

Perfectly suited for lightweight applications such as painting, decorating, refurbishing, jointing and repairs, and window cleaning. The system consists of a working platform equipped with two electric LTD hoists and support wheels, suspended by steel wire ropes.

Safety Systems

Service brake incorporated in the LTD hoist.
Two fall arrest devices acting on the safety wire ropes.
Two upper limit switches.
No power descent in case of power failure.
Emergency stop button.
Phase controller (Optional).
Overload sensor according to EN 1808 (Optional).

Technical Parameters

Type	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Load	500kg	630kg	800kg	1000kg
Lifting Speed	9m/min	9m/min	9m/min	8.7m/min
Voltage	380V (415V/220V)	380V (415V/220V)	380V (415V/220V)	380V (415V/220V)
Power	1.1kW × 2	1.5kW × 2	1.8kW × 2	2.0kW × 2
Hoist Model	LTD50	LTD63	LTD80	LTD100
Safety Lock	LSF308	LSF308	LSF309	LSF310
Wire Rope Dia.	8.3mm	8.3mm	9.1mm	10.2mm
Platform Size (L×W)	(2.5×2)×0.76m	(2×3)×0.76m	(2.5×3)×0.76m	(2.5×3)×0.76m
Counter Weight	800kg	900kg	1000kg	1200kg

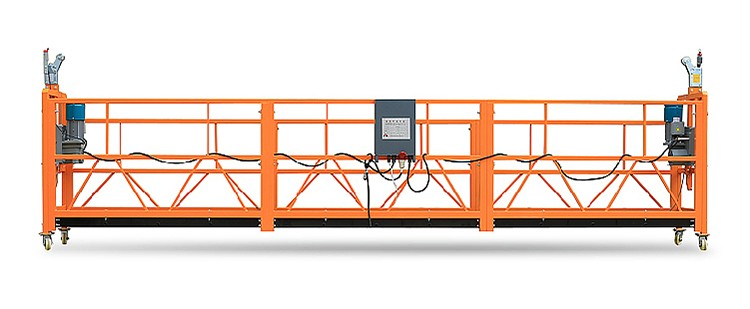

Working Platform Details

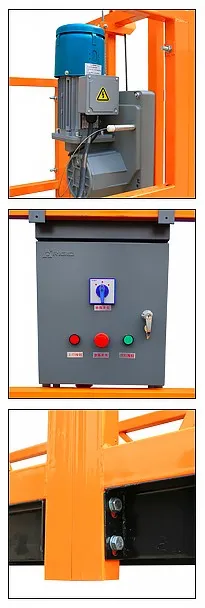

LTD Series Hoist & Control Box

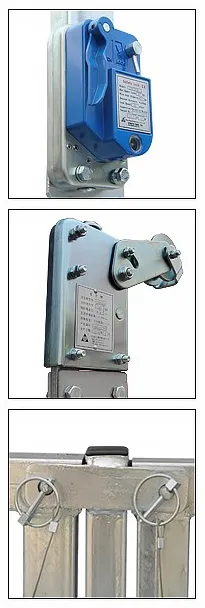

Safety Lock Systems

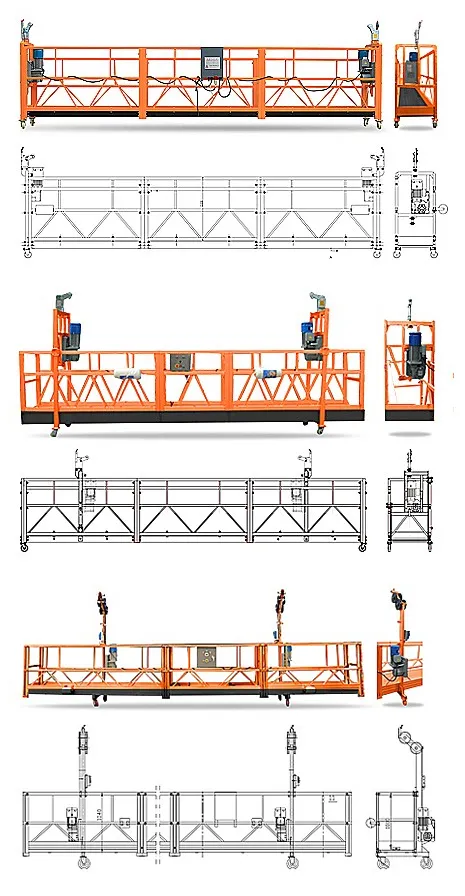

Stirrup Options

End Stirrup: Economical and lightweight, fitted at platform ends.

Frame Stirrup: Slipped over the platform, allowing clear access to building corners.

"L" Stirrup: Placed at the rear for a completely clear working surface.

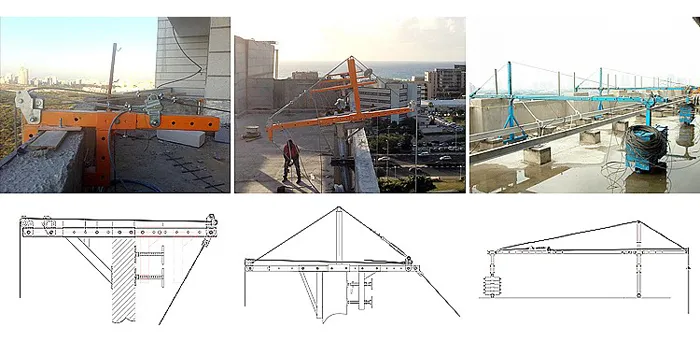

Anchoring & Roof Options

Light Parapet Clamp

Standard Parapet Clamp

Normal Suspension Jibs

Frequently Asked Questions

What is the maximum rated load of the ZLP630 model?

The ZLP630 model is designed with a rated load capacity of 630kg, making it ideal for standard high-rise maintenance and cleaning tasks.

What materials are the suspended platforms made of?

The platforms are primarily available in high-quality Aluminum Alloy or Galvanized Steel, ensuring durability and resistance to weather conditions.

Is the height of the suspended platform limited?

The ZLP series hoists allow for work at virtually unlimited heights, restricted only by the length of the steel wire rope provided.

What safety features are standard on these gondolas?

Standard safety features include a service brake, two fall arrest devices (safety locks), upper limit switches, and an emergency stop button.

What applications is this equipment best suited for?

It is perfect for high-rise building exterior construction, decoration, cleaning, painting, and general maintenance projects.

Can the platform be customized for different building shapes?

Yes, by using different stirrup types (End, Frame, or L-type) and anchoring options like parapet clamps, the system can be adapted to various facade requirements.
