Colo-660V Manual Powder Coating Equipment for Metallic Spray

1 / 5

Colo-660V Manual Powder Coating Equipment for Metallic Spray

Type:	Coating Spray Gun
Coating:	Powder Coating
Substrate:	Aluminum

Send Inquiry

Product Description

Basic Information

Model NO.

Colo-660V

Certification

CE, ISO

Condition

New

Packing Size

84X52X68cm

Voltage

110/220V

Weight

37kgs

Delivery Time

3-4 days

Warranty

12 months

Power

50W

HS Code

8424899990

Product Description

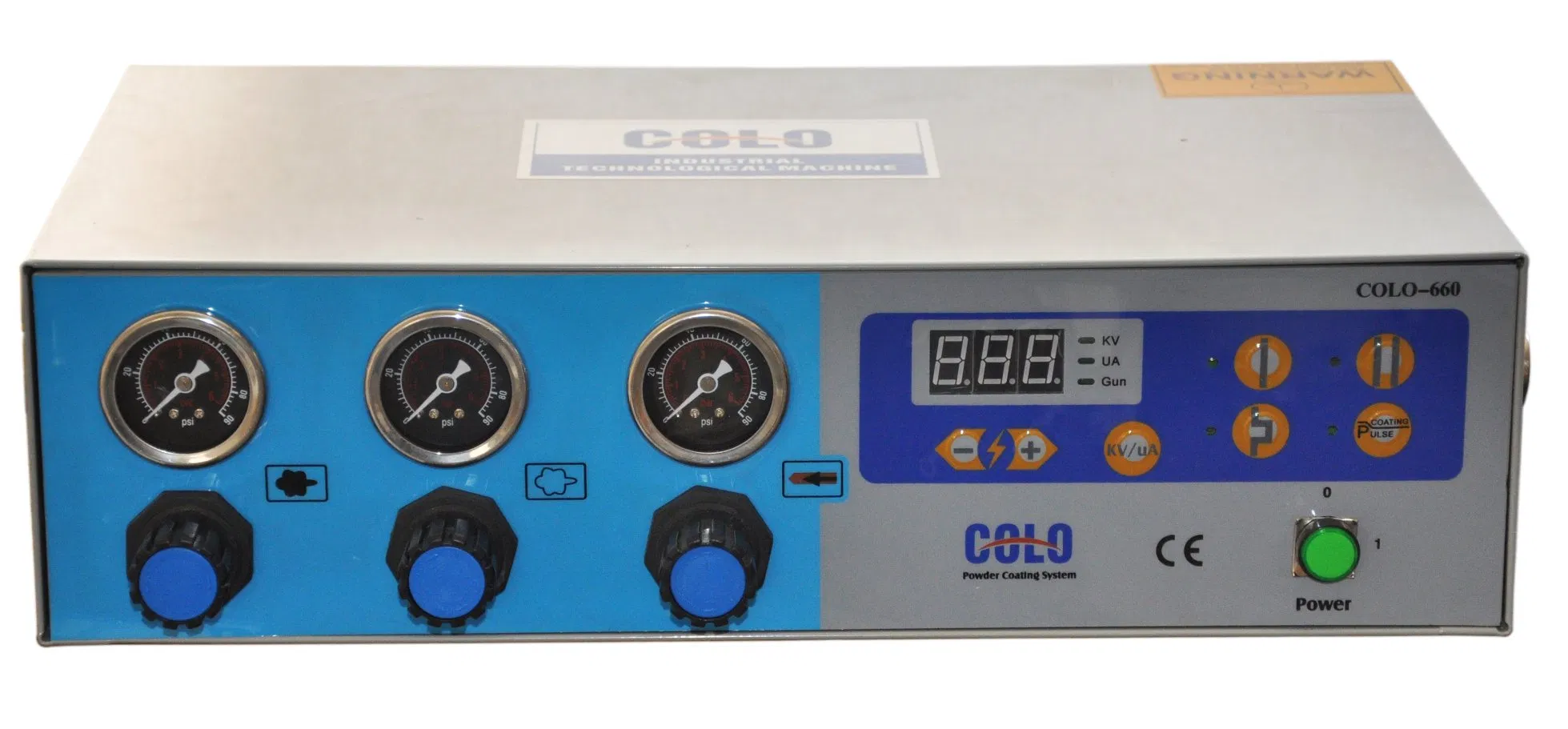

COLO-660 powder coating machine/powder painting machine is a basic model with affordable price. This powder coating gun is designed with user-friendly one-touch operation buttons, which is convenient to switch the mode for powder coating. The function of pulse powder coating is suitable for spraying alloy wheels, aluminum profile and other workparts with complex shape.

Colo-660V Manual Powder Coating Equipment

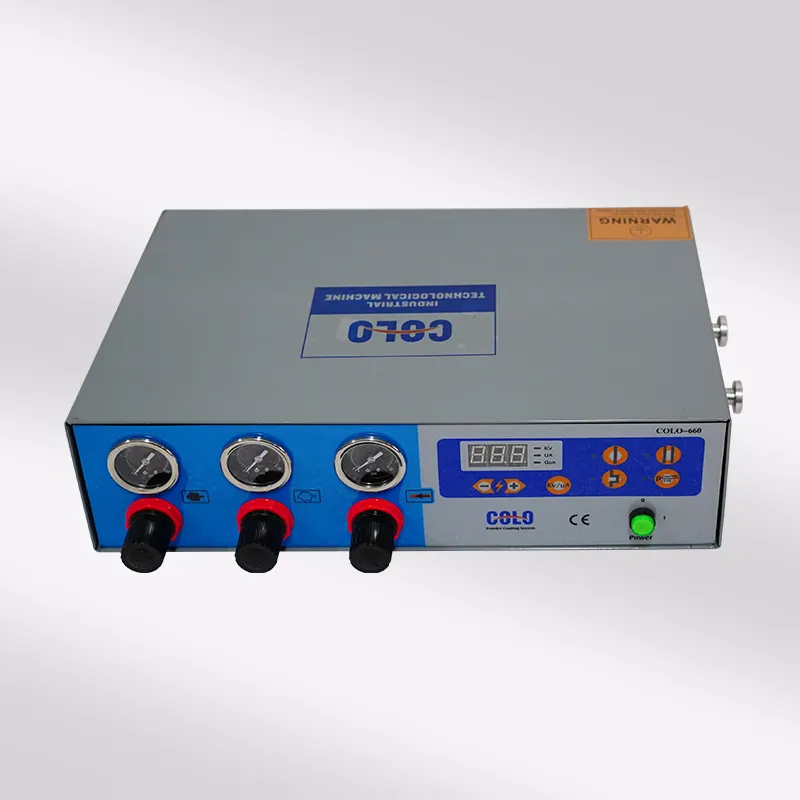

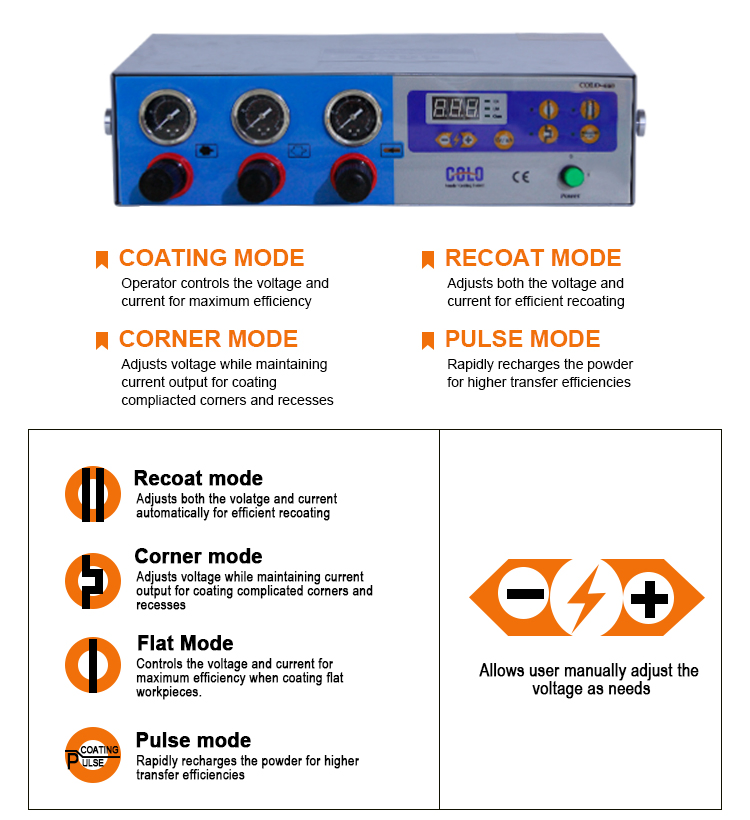

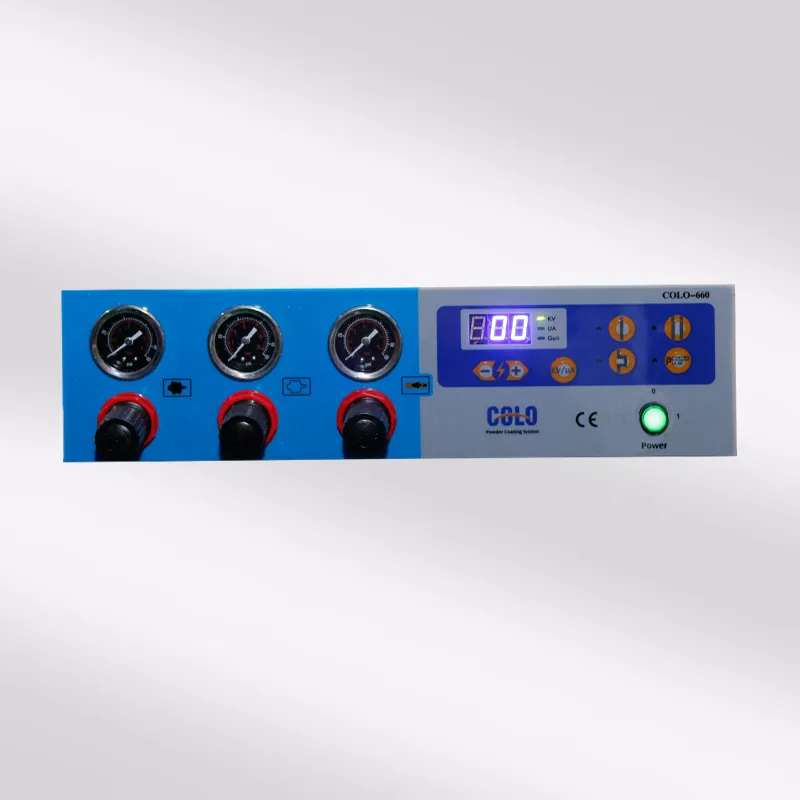

Intelligent Operation Modes

Innovative design with four pre-programmed control options for spraying different parts. These one-touch intelligent operation buttons give you quick access to optimal powder coating.

⏹

Flat Mode: Maximize voltage for super transfer efficiency for coating flat parts.

🔄

Recoat Mode: Adjusts the voltage and current automatically for repeat coating.

🧩

Complex Mode: Adjusts the voltage while holding current with coating complicated shapes.

⚡

Pulse Mode: Rapidly and continuously recharges the powder to coat complex shapes and deep corners.

Technical Specifications

Electrical Data
Power Range	220V/110V
Frequency	50HZ/60HZ
Temperature range in use	-10 ºC +50 ºC
Powder Gun Data
Gun weight	500G
Rated output voltage	24VDC
Maximum output current	180Ua (max)
Maximum output voltage	0-100KV (adjustable)
Maximum powder injection	600g/min
Polarity	Negative (-)
Pneumatic Data
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Maximum compressed-air consumption	13.2 m3/h

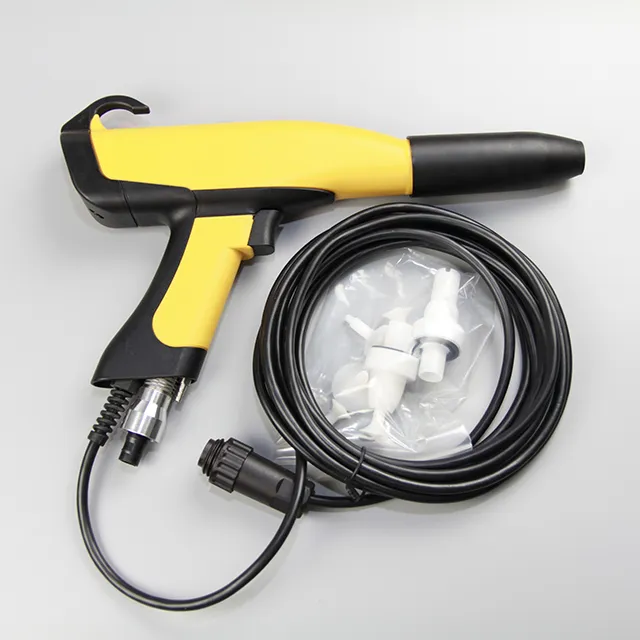

COLO-08 Powder Spray Gun

High Efficiency: 100 kV powder spray gun maximizes powder charging capacity and maintains high transfer efficiency.
Ergonomic Design: Lightweight and ergonomic design effectively reduces fatigue during working.
Durable Materials: Made of high-quality engineering materials for less wear and longer life.
Versatile Nozzles: Comes with a full array of nozzle assortment including flat, round, and extension nozzles.

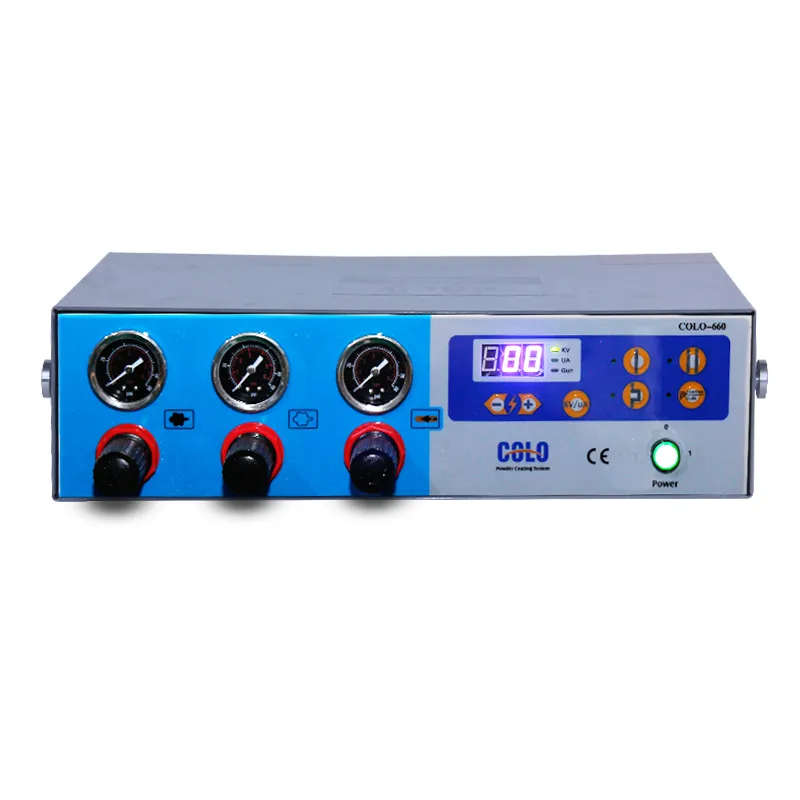

Package Includes

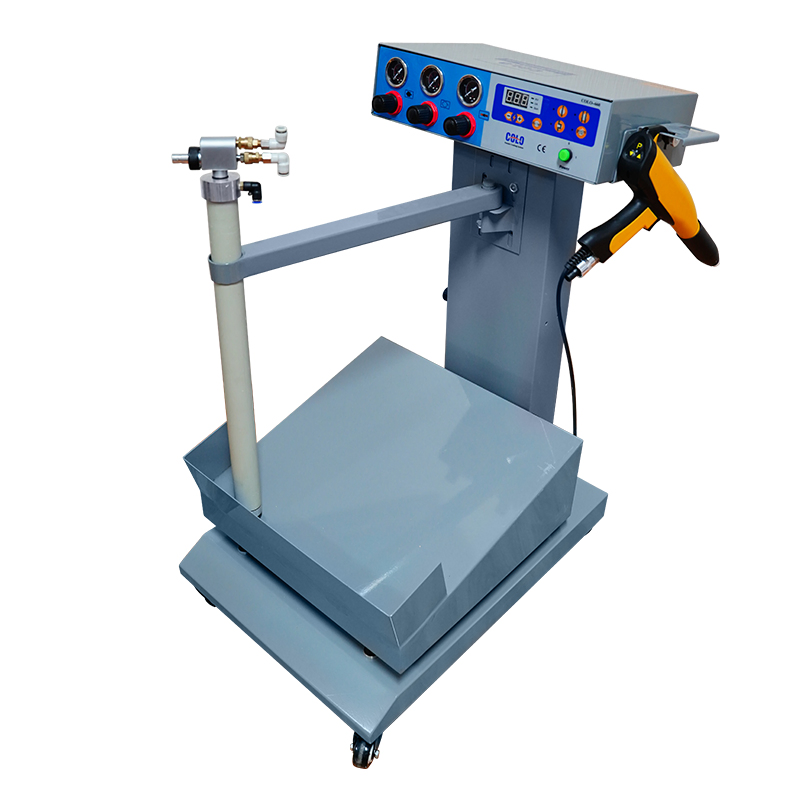

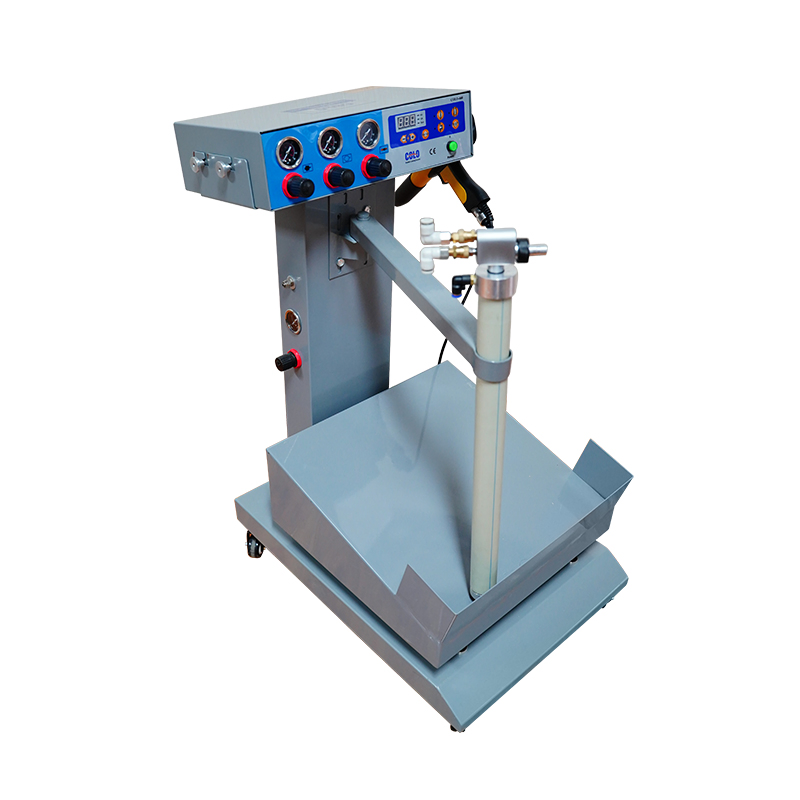

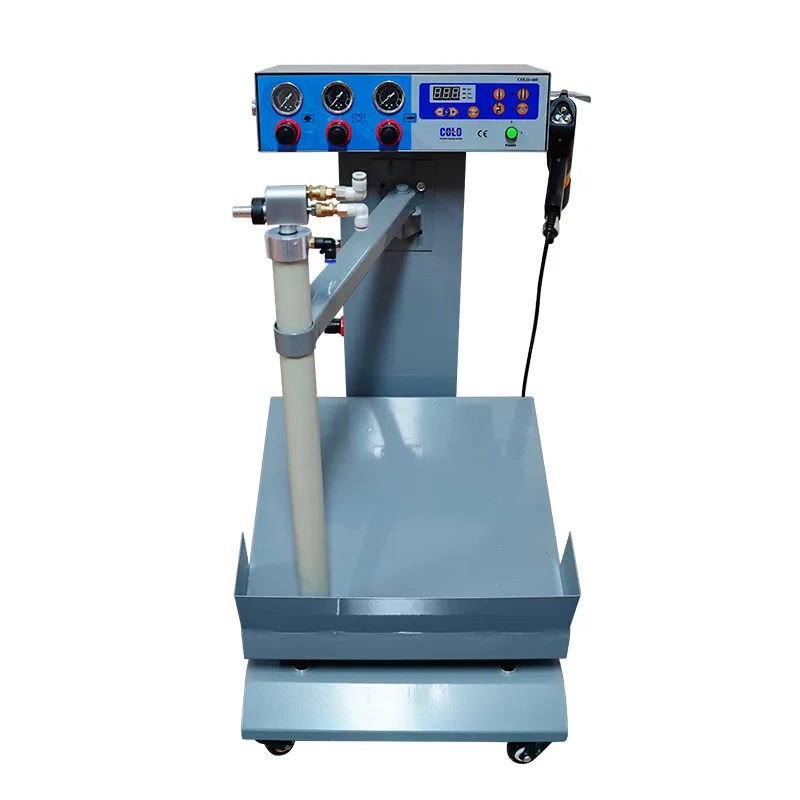

Standard Configuration: 1 pcs control unit + 1 pcs powder coating spray gun + 1 pcs powder pump + 1 pcs separator + air hose & powder hose + 1 pcs trolley (with vibration platform).

Related Equipment

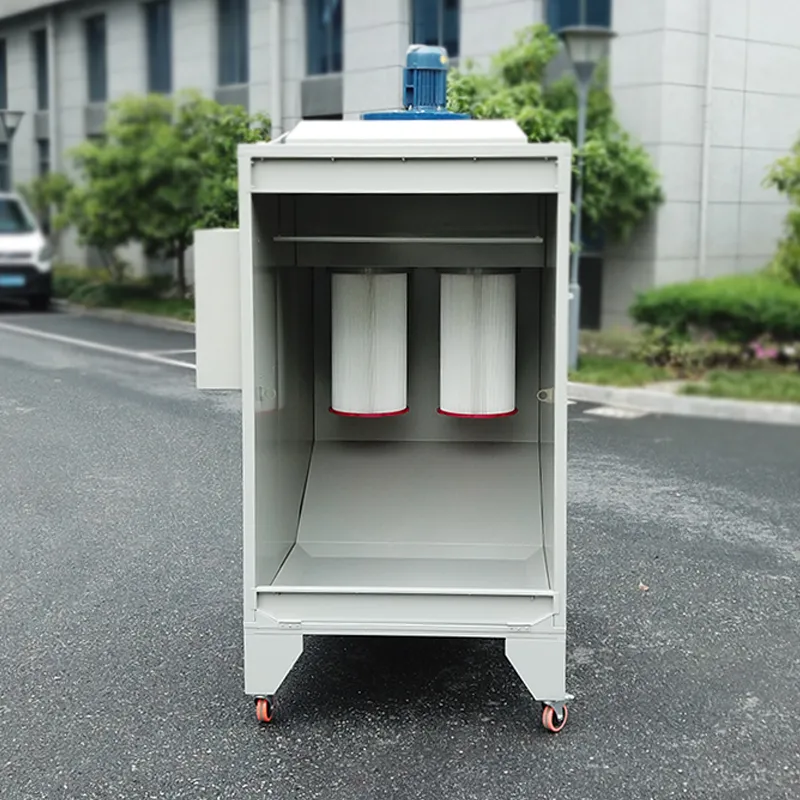

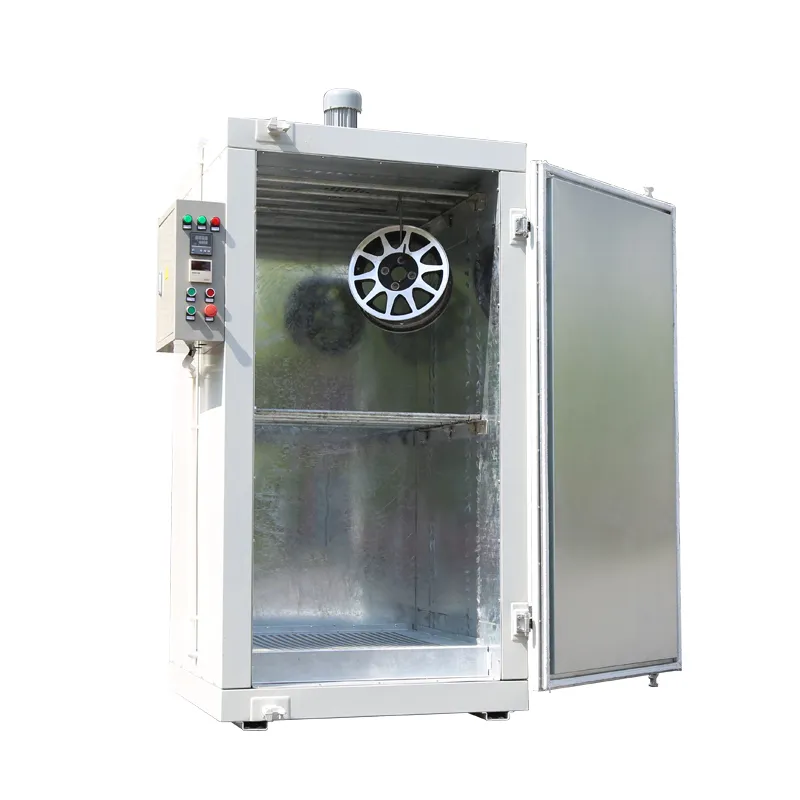

Complete your setup with our small powder coating oven and painting booth.

Frequently Asked Questions

Q1: What are the main applications of the Colo-660V? A: It is ideal for coating alloy wheels, aluminum profiles, and various metal workparts, especially those with complex shapes using its Pulse mode.

Q2: Can a beginner operate this machine easily? A: Yes, it features one-touch intelligent operation buttons and a stable control panel designed for easy access, making it very beginner-friendly.

Q3: How does the Pulse Mode benefit the coating process? A: Pulse Mode rapidly recharges the powder, allowing it to penetrate deep corners and cover complex geometries that standard modes might miss.

Q4: What is the delivery time and warranty for this equipment? A: The standard delivery time is 3-4 days, and the product comes with a 12-month warranty for peace of mind.

Q5: Is the spray gun durable for long-term use? A: Absolutely. The COLO-08 gun is made from high-quality engineering materials designed to minimize wear and extend service life.

Q6: What power voltages are supported? A: The equipment is compatible with both 110V and 220V power supplies at 50/60Hz frequency.
