Basic Information
Application: Paper, Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric
Product Description
Faster, Better, Simpler Operation
YH Waterjet technology results in high-efficiency systems. Key highlights include:
- Precision design cutting head system for easy component replacement and accurate tool center point control.
- Minimized Abbe error through optimized distance between cutting head top and bottom points.
- Fast Act on/off valve: high-speed, long-life, and lightweight.
- User-friendly Weihong Control Software for automated calculations based on material and thickness.
Technical Key Features
- Extrusion molding alloy aluminum beam: lightweight, high-rigid, and stable.
- Integral design for superior rigidity, stability, and uniform stress.
- Specialized waterproof and dust-proof shield design.
- S-type bearing platform gratings for high practicability and durability.
- Adjusting nuts on the platform for precise flatness regulation.
- Imported servo driver for accurate localization and stable running.
- Overtravel range limit protection for safety.
- Taiwan TBI Lead Screw and Silver Guide Rail for high precision and smooth transmission.

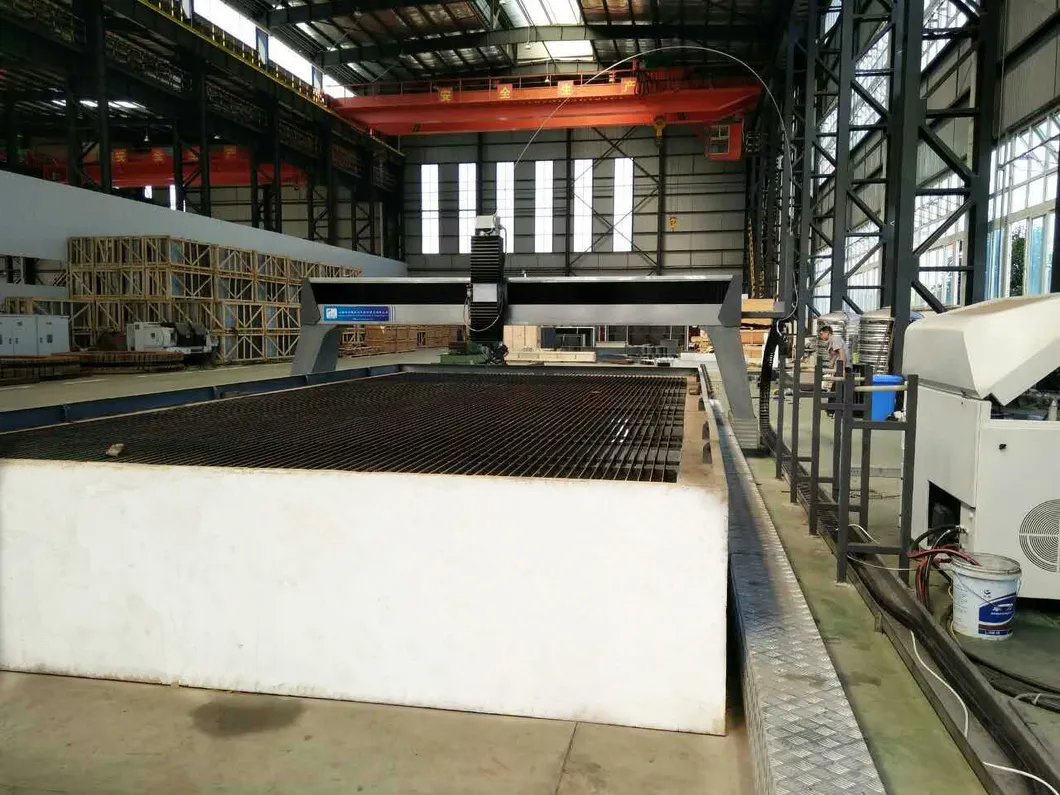

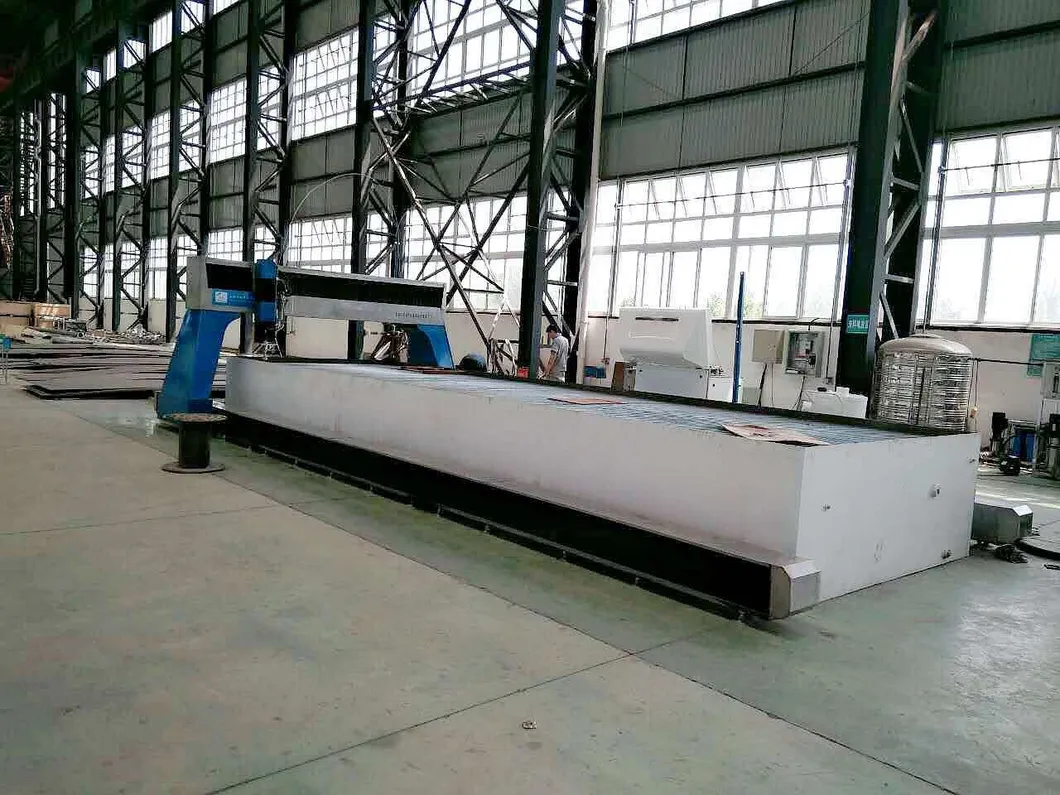

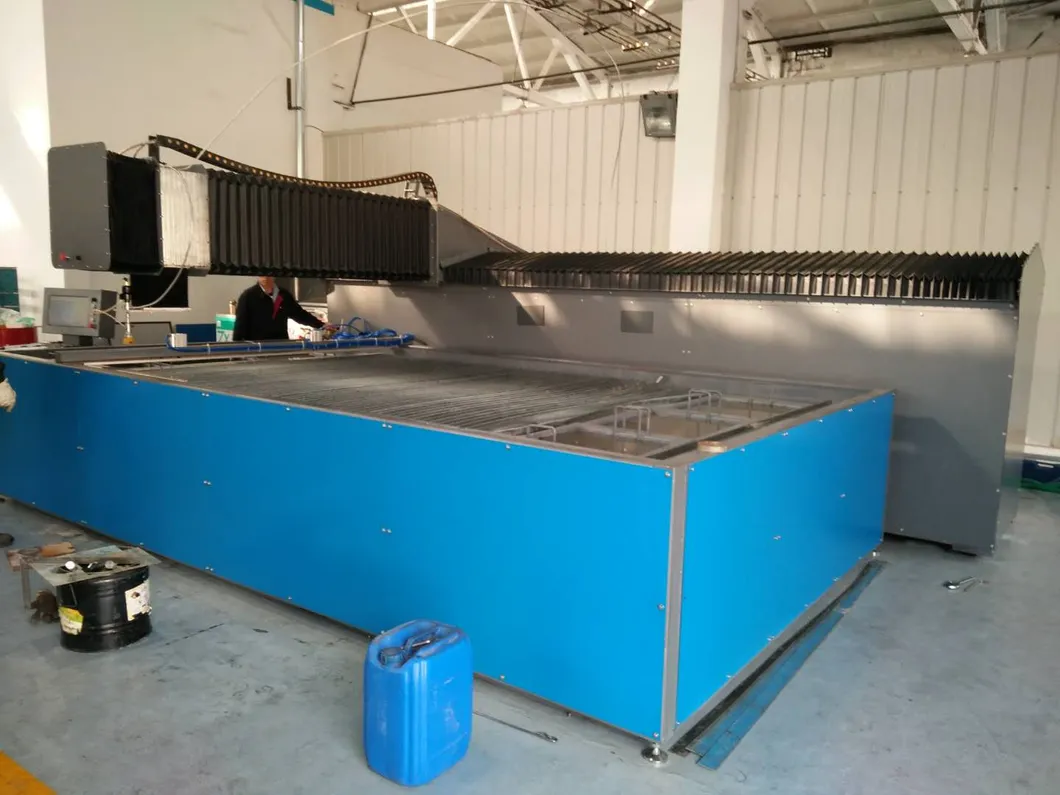

- Large split type gantry with helical pinion and rack for unlimited length and high efficiency.

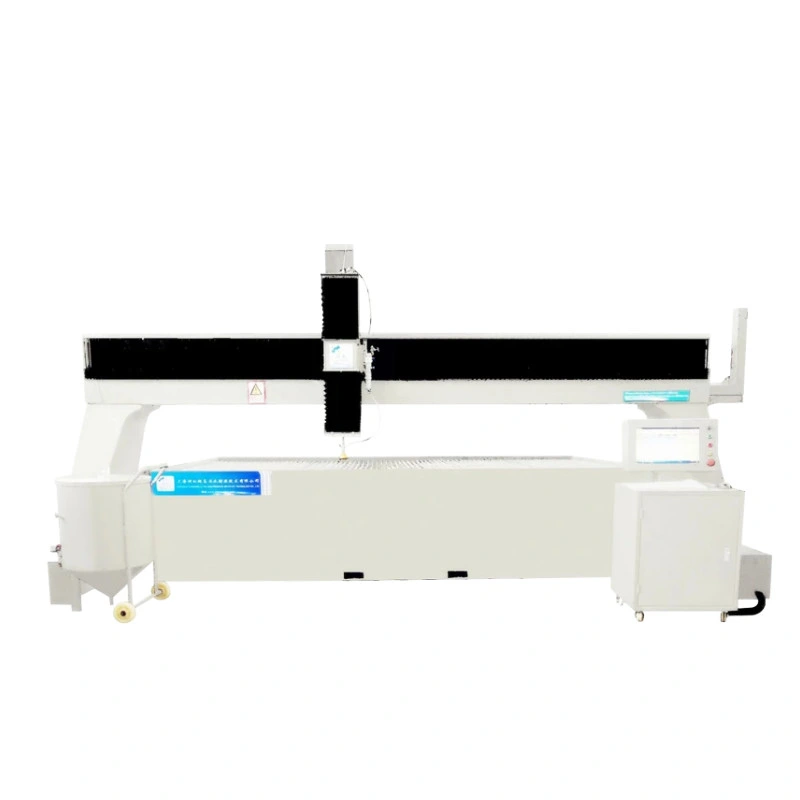

Cantilever type NC cutting platform allows loading from three directions, overcoming gantry limitations. It is especially suitable for irregular material sizes and flexible loading situations.
Frequently Asked Questions
Q1: What materials can the CNC water jet cutting machine process?
The machine can flexibly process virtually all materials including metal, glass, stone, ceramics, rubber, plastics, and fabrics with consistent quality.
Q2: What is the precision of this cutting system?
The control precision is ±0.02mm, while the actual cutting precision ranges between ±0.1mm and ±0.2mm, depending on the material thickness and cutting speed.
Q3: What are the advantages of the cantilever design?
The cantilever platform allows for material loading and discharging from three directions. This makes it ideal for irregular material sizes and provides more space for material handling compared to gantry systems.
Q4: Does the software require manual calculation of cutting parameters?
No, the Weihong Control Software simplifies operation. You only need to enter the material type, thickness, and desired surface quality; the software then automatically calculates and controls the head movements.
Q5: What pressure options are available for the intensifier pump?
Standard systems operate at 60,000 psi (420 MPa), with an optional 94,000 psi system available. Various pump configurations from 30HP to 100HP are offered.
Q6: What kind of technician support is provided?

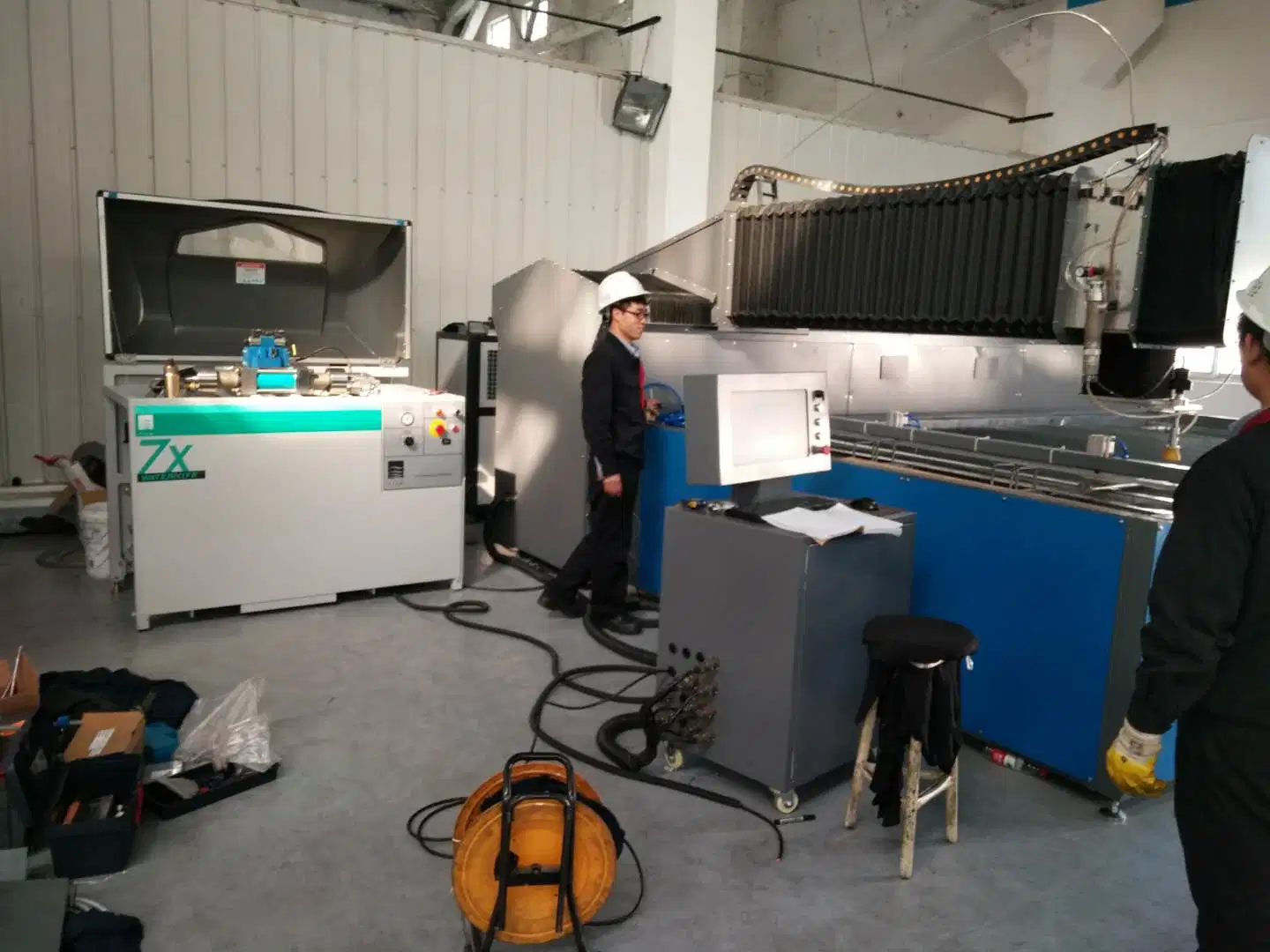

We provide free field training and installation support. Warranty covers the machine for one year.
