Vertical Manual Hydraulic Single Man Lifting Equipment for Sale

Customization:	Available
Application:	Workshop Crane, Warehouse Crane, Man Lift for Truck Spray Booth
Lift Mechanism:	Articulated Lift

Send Inquiry

Product Description

Basic Specifications

Model NO.: GL1010

Carrying Capacity: Middle-Level

Driven Type: Pneumatic

Feature: Explosion-Proof

Certification: GS, CE, RoHS

Load Capacity: 1 Person (Below 150kgs)

Working Pressure: 6-7 Bar

Max Lifting Height: 3100 mm

Product Description

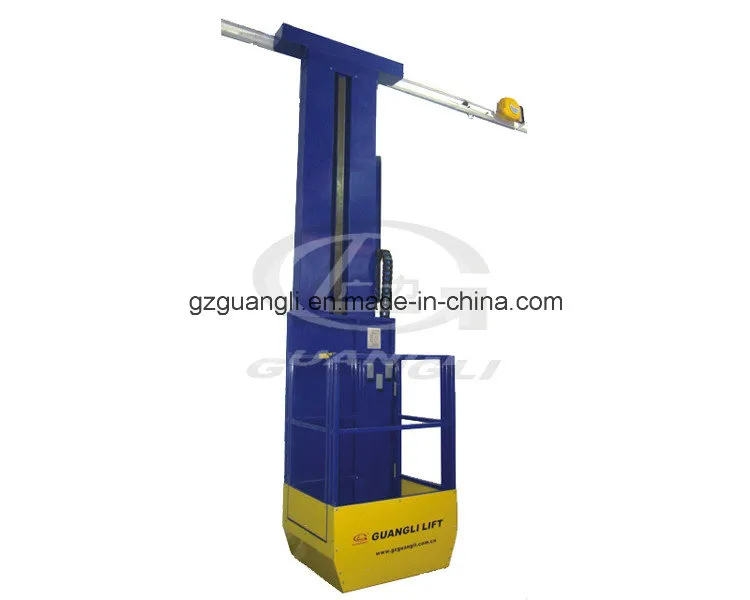

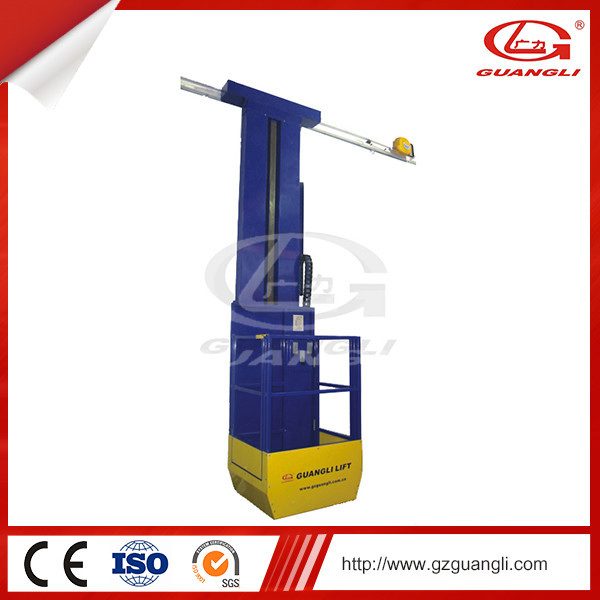

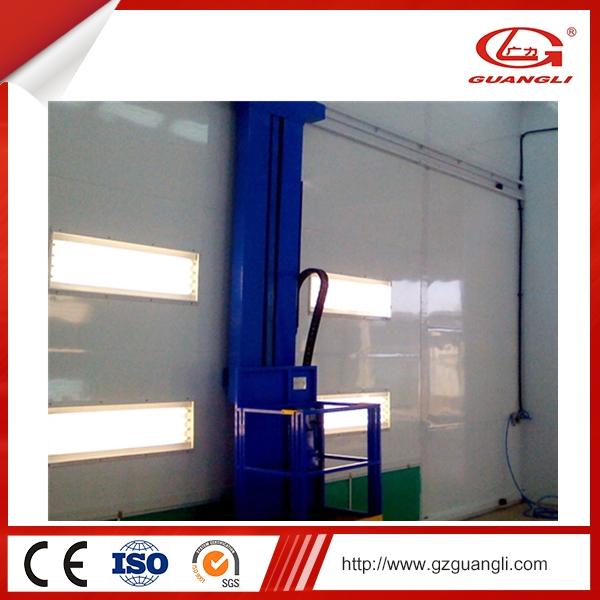

Vertical Manual Hydraulic Single Man Lifting Equipment

This 3D (three-dimensional) man lift is powered by a pneumatic motor, requiring only a compressed air resource. It operates completely without electrical sources, making it ideal for specialized environments.

3D Movement: The work table moves in longitudinal (up-down), transverse (front-back), and planar (left-right) directions.
Safety Design: Work table is fully surrounded by a protecting fence and equipped with two work doors.
Easy Operation: An integrated control handle on the work table allows the operator to complete movements in any direction conveniently.

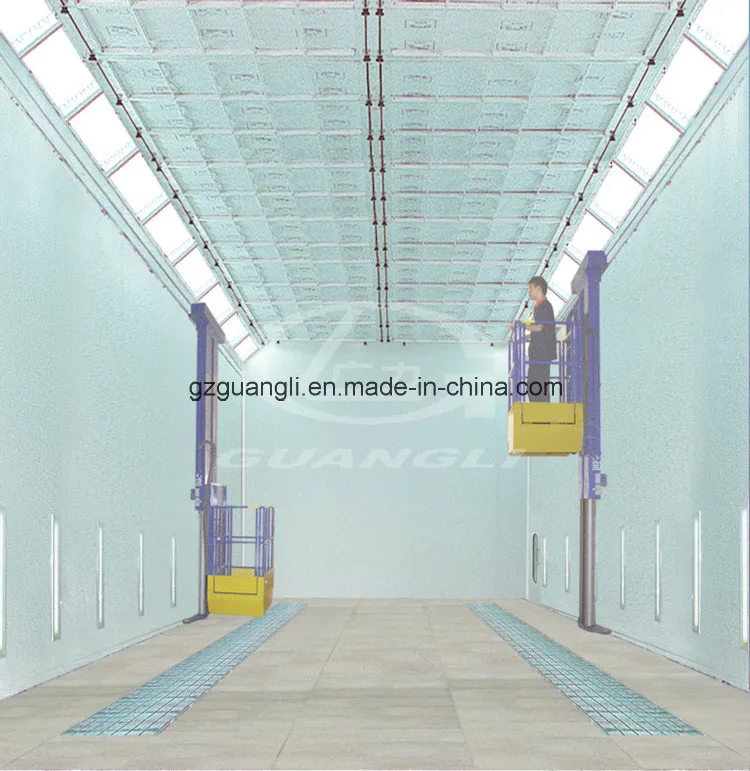

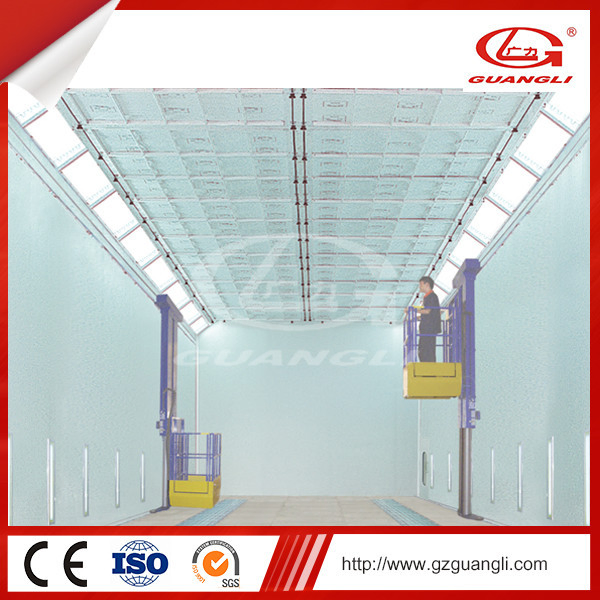

Versatile Application: Specifically designed for painting large-scale equipment such as oversized trucks, trains, steamboats, and aircraft.

Model	GL1010
Load capacity	1 person (below 150kgs)
Working pressure bar	6-7
Normal strength bar	6.5
Working fan capacity	350 L/min
Max lifting height	3100 mm
Working table move distance	900 mm
Working table size (LxWxH)	900x720x1400mm

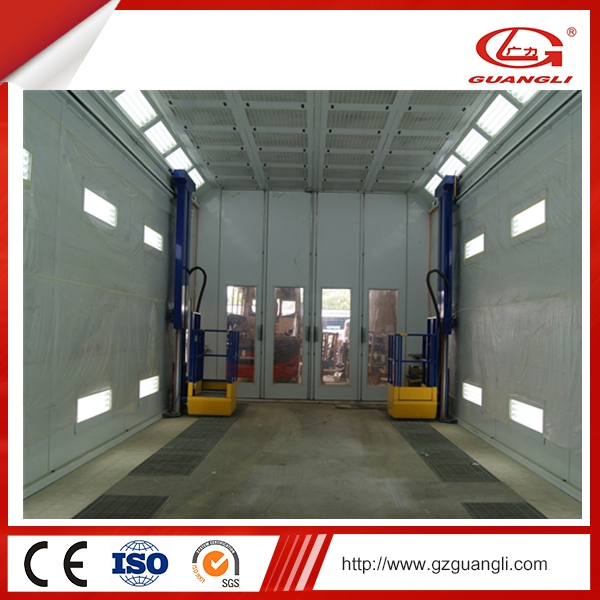

Product Showcase

Why Choose This Equipment

Over 20 years of technical and production experience in the field.
Superb unique technology and automatic production lines.
Advanced equipment and exquisite workmanship ensuring durability.
Reliable explosion-proof features for hazardous painting environments.
Comprehensive pre-sales and after-sales support.

Certificates & Global Presence

Our products have attained CE certification and comply with ISO9001 quality management standards.

Frequently Asked Questions

Q1: What is a 3D Man Lift and how does it work? A: A 3D man lift is a specialized lifting platform that moves in three dimensions: up-down, front-back, and left-right. It is powered by a pneumatic motor using compressed air, making it safe for environments where electricity might be a hazard.

Q2: Is this lifting equipment explosion-proof? A: Yes, the GL1010 model is designed with explosion-proof features, which is essential for spray booth operations and painting large vehicles or aircraft where flammable vapors may be present.

Q3: What is the maximum load capacity and lifting height? A: The equipment is designed for one person with a maximum weight capacity of 150kg. It can reach a maximum lifting height of 3100mm.

Q4: Does the equipment require an electrical power source? A: No, it operates entirely on pneumatic power (compressed air) with a working pressure of 6-7 bar. This eliminates the need for electrical cabling in the work area.

Q5: Can the specifications be customized for specific markets? A: Yes, customization of materials and standards is acceptable to meet different market requirements and specific customer preferences.

Q6: What are the typical applications for this man lift? A: It is widely used for the painting and maintenance of large-scale equipment, including oversized trucks, trains, steamboats, and airplanes.
