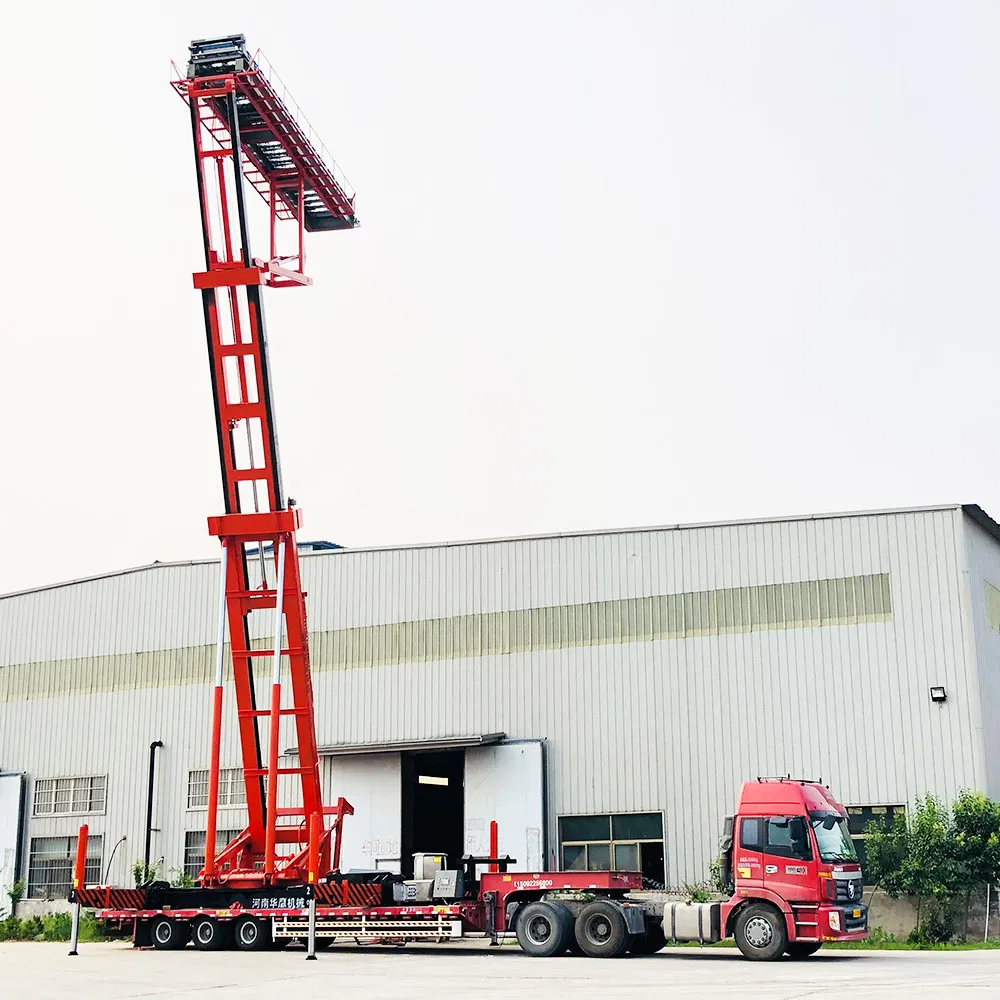

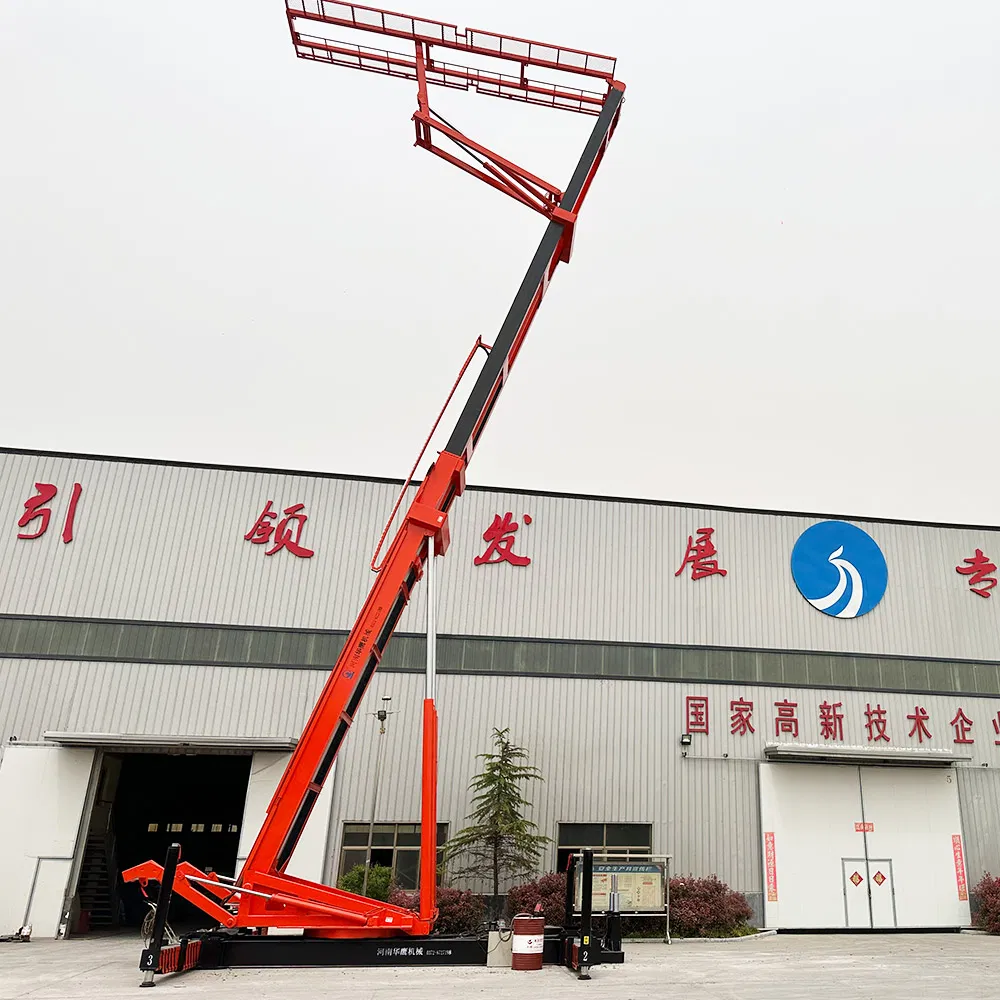

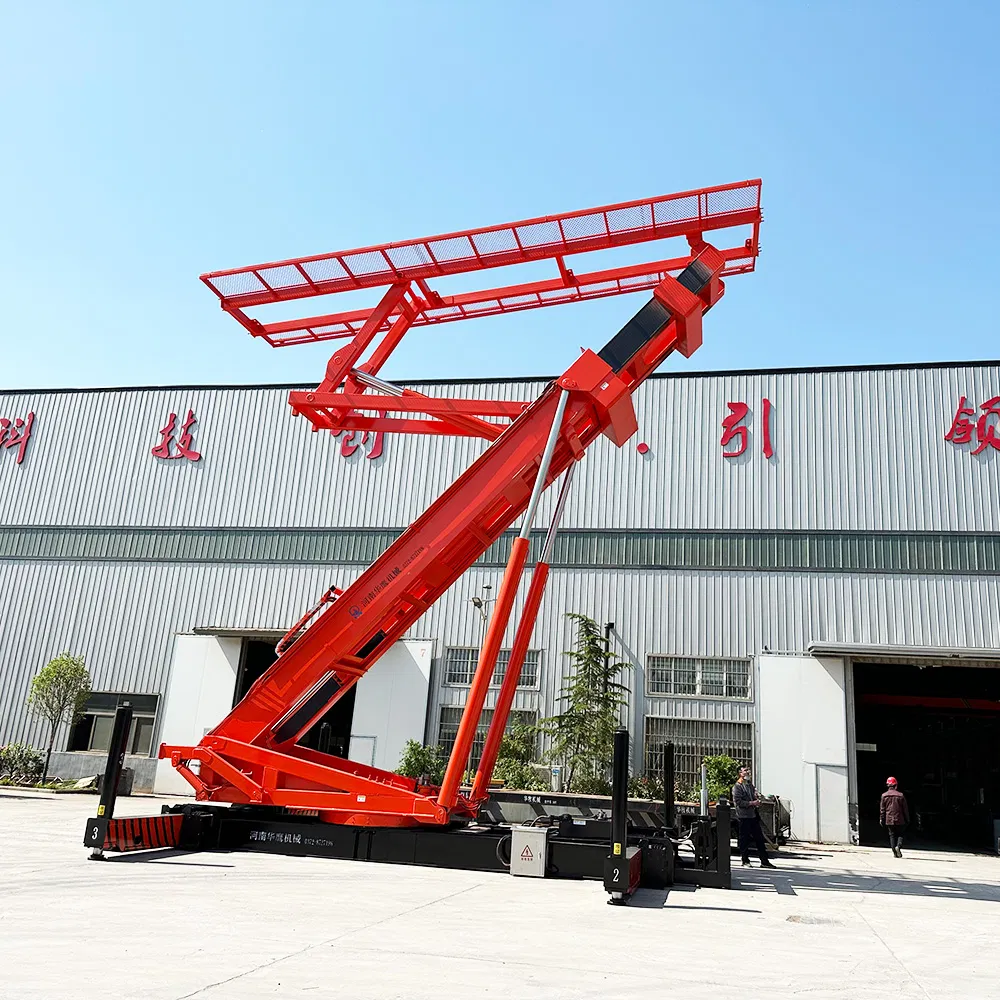

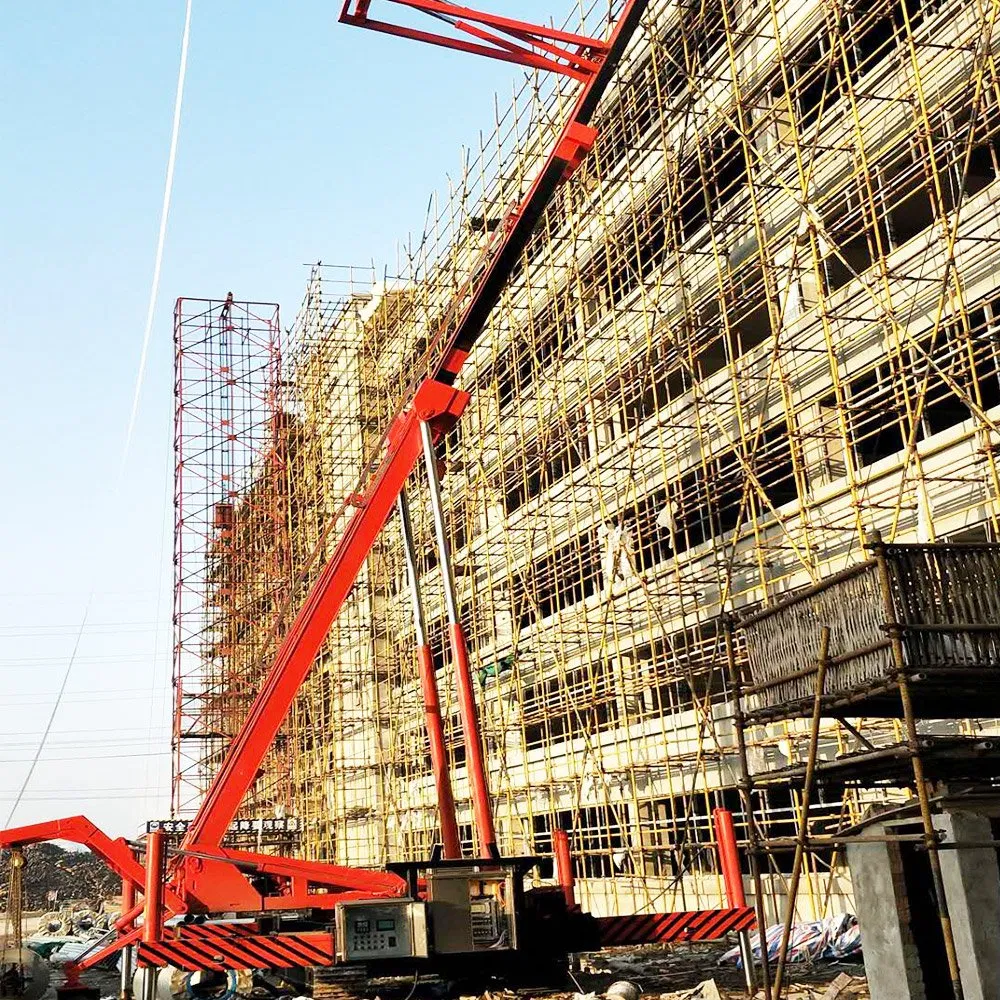

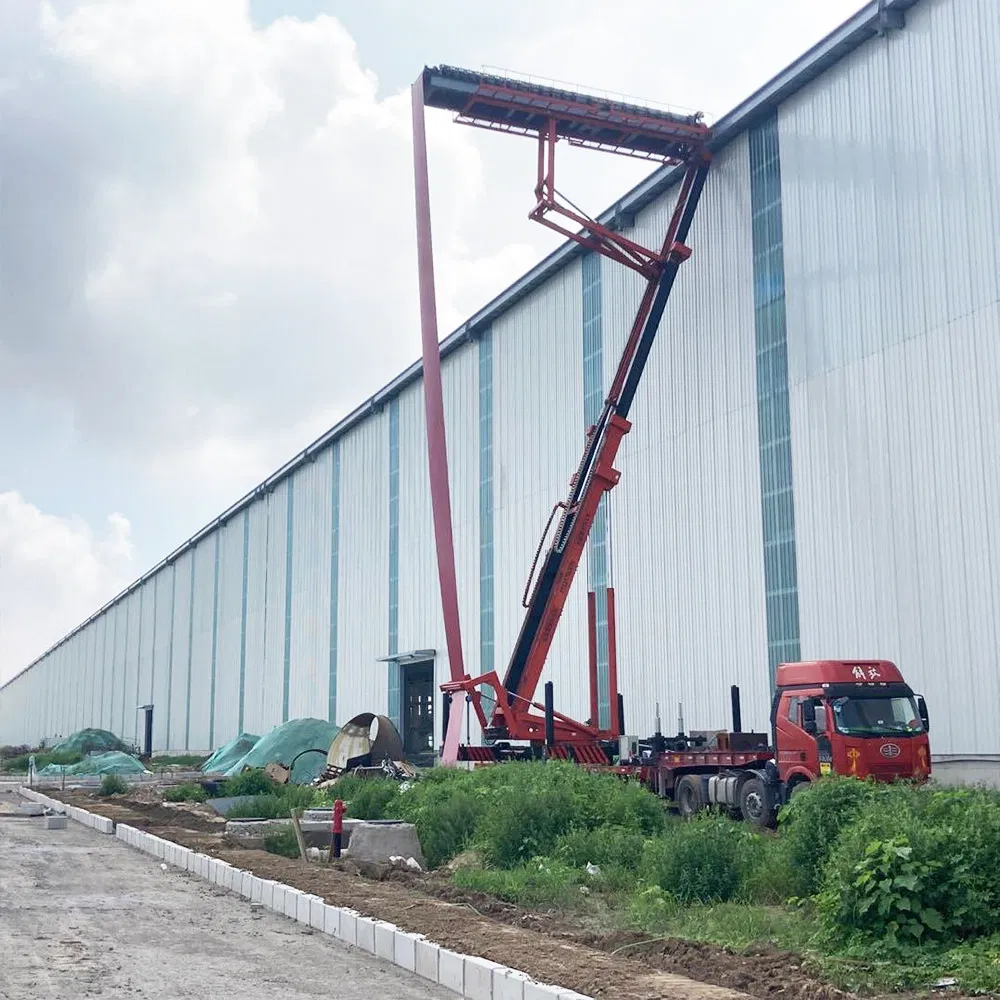

Truck-Mounted Hydraulic Lifting Platform Equipment Is Suitable for All Jiaochi Series Press

Customization:	Available
After-sales Service:	Excellent After-Sales Service
Warranty:	1 Year

📋 Basic Information

Model NO.

HYJX-21

Application

Workshop Crane, Building Crane

Lift Mechanism

Telescoping Lift

Carrying Capacity

Weight Level

Moves

Vehicular

Driven Type

AC

Running Mode

Moving

Feature

Explosion-Proof

Certification

ISO 9001

Voltage & Power

380V, 18kw

Lifting Height

21 M

Lifting Weight

8 Tons

Output Tile Length

1m - 200m

Production Capacity

1000 Units Per Year

🚚 Product Description

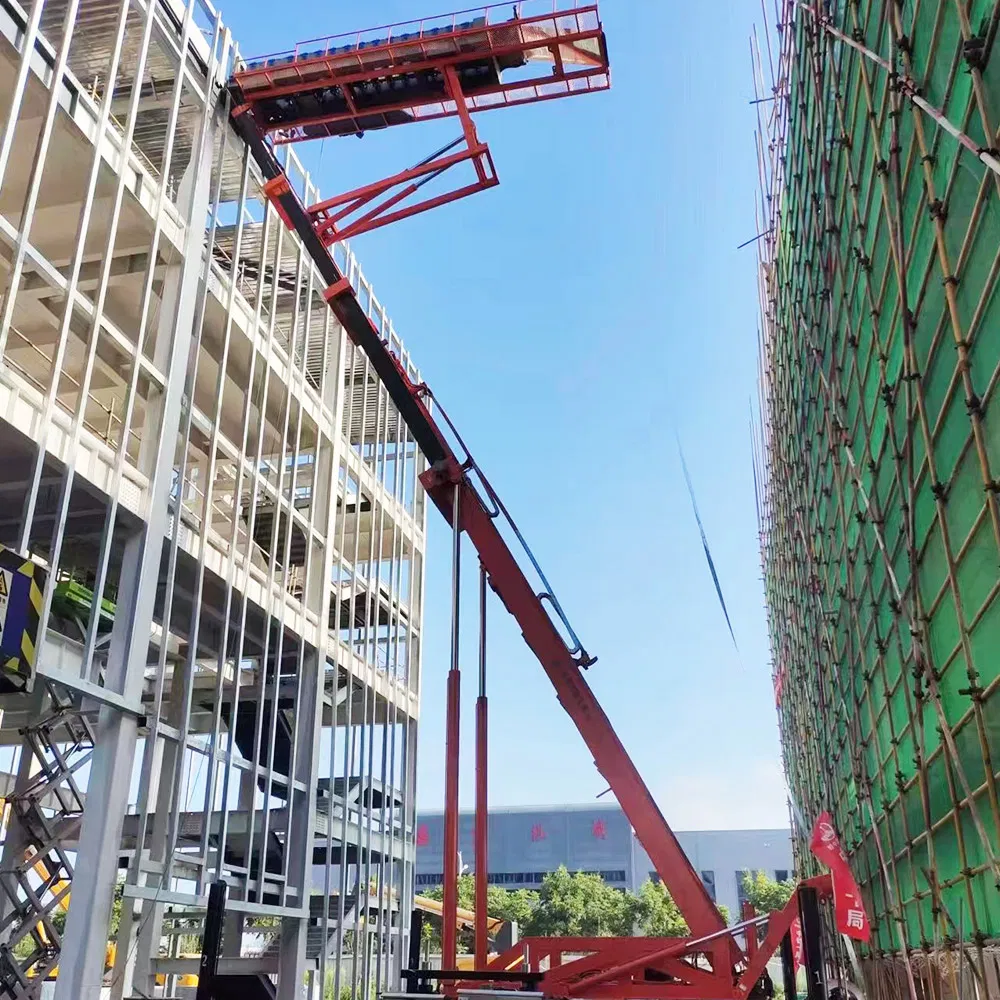

High-altitude tile press is a kind of steel structure color steel tile air forming and construction equipment using high-level automatic control software for information control. The equipment will lift the Angle bending tile press machine to the height of the factory building for air construction. The whole equipment sets tile forming, conveying, and cutting as a whole, to provide a complete ultra-long span color steel tile for the steel structure plant.

Sheet Material	Color steel plate, galvanized plate, aluminized manganese plate
Suitable Molding	All Kok Chi series, fritillary plate, roof plate forming machine, motor + reducer drive, hydraulic shear type
Crane Function (Optional)	Hydraulic drive, can lift 8T
Required Voltage	380V, 18KW
Sheet Thickness	0.3 mm - 1.0 mm
Installation Specs	12.6 m x 2.4 m x 4.2 m (L × W × H)

⚙ Equipment Features

1. Color steel tile directly pressed and transported to the top of the plant.

2. Integrated design of unwinding, tile pressing, lifting, and conveying.

3. Double remote control system with manual panel and automatic control modes.

4. Standard 8-ton capacity; 12-ton and 20-ton platforms customizable.

5. Significant reduction in personnel requirements and improved work efficiency.

6. Enhanced safety and reduced incidence of construction accidents.

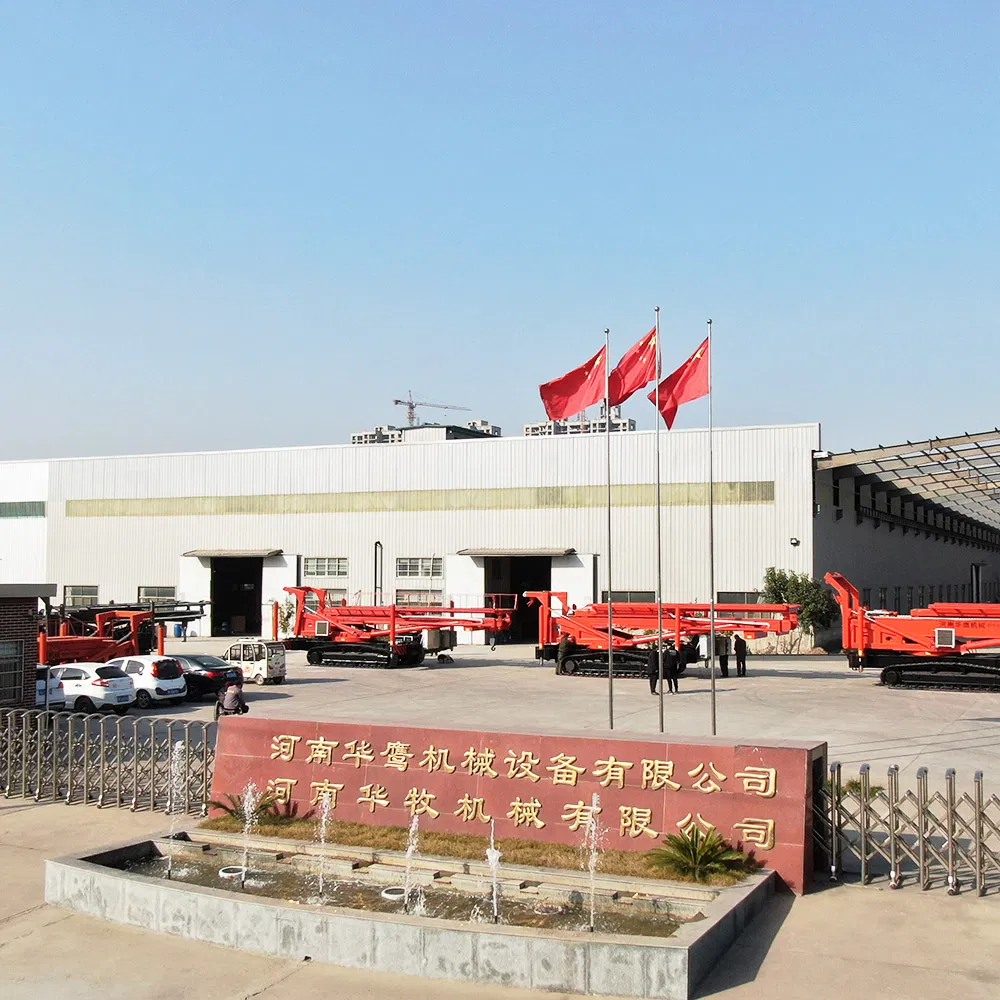

🏭 Profile

We provide a variety of models to choose from, including lifting heights of 17 meters, 18.5 meters, 21 meters, and 23 meters with load capacities ranging from 8 to 11 tons. Our equipment utilizes innovative technology and constant research and development to meet the evolving production needs of our global customers. A variety of equipment produced has obtained multiple technical patents.

Our aim is: excellent product quality, perfect service system, and a warm service attitude. We are dedicated to providing timely delivery and reliable after-sales support to establish long-term friendly partnerships with clients from all walks of life.

👍 Recommend For You

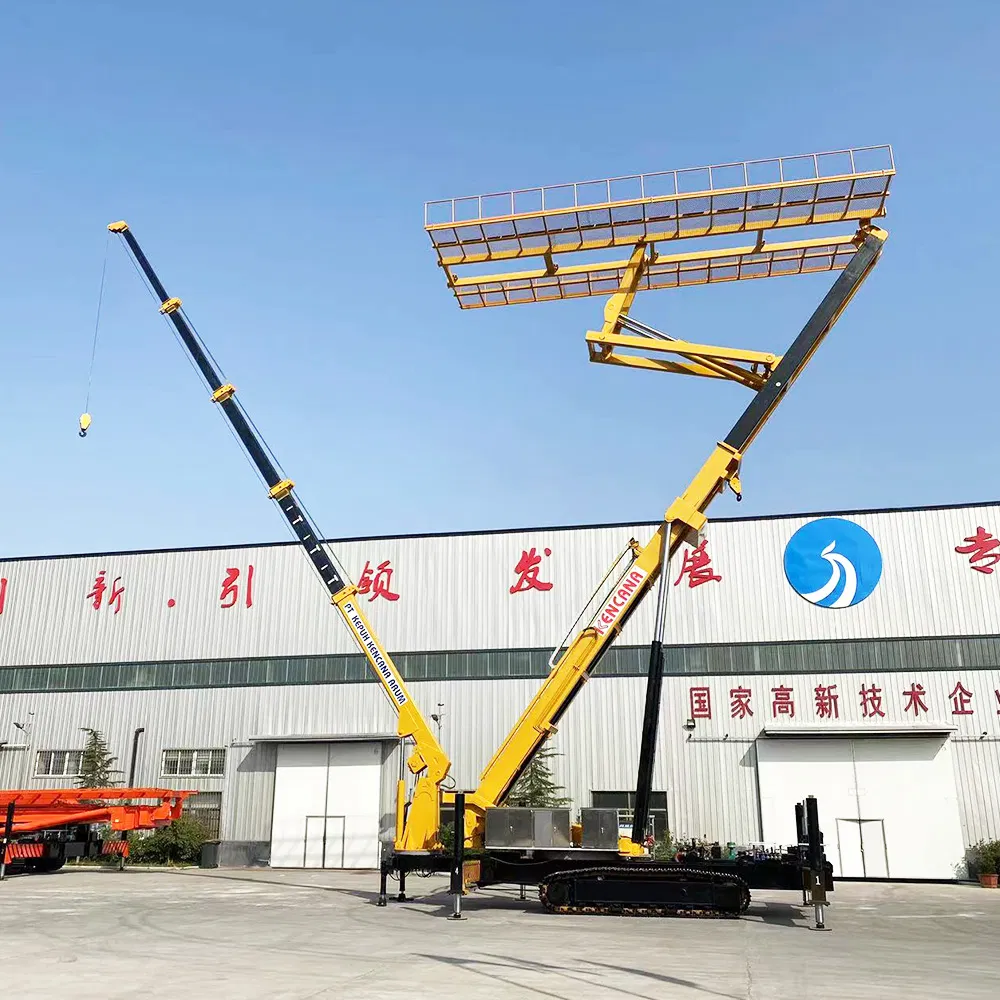

Crawler type high altitude tile press

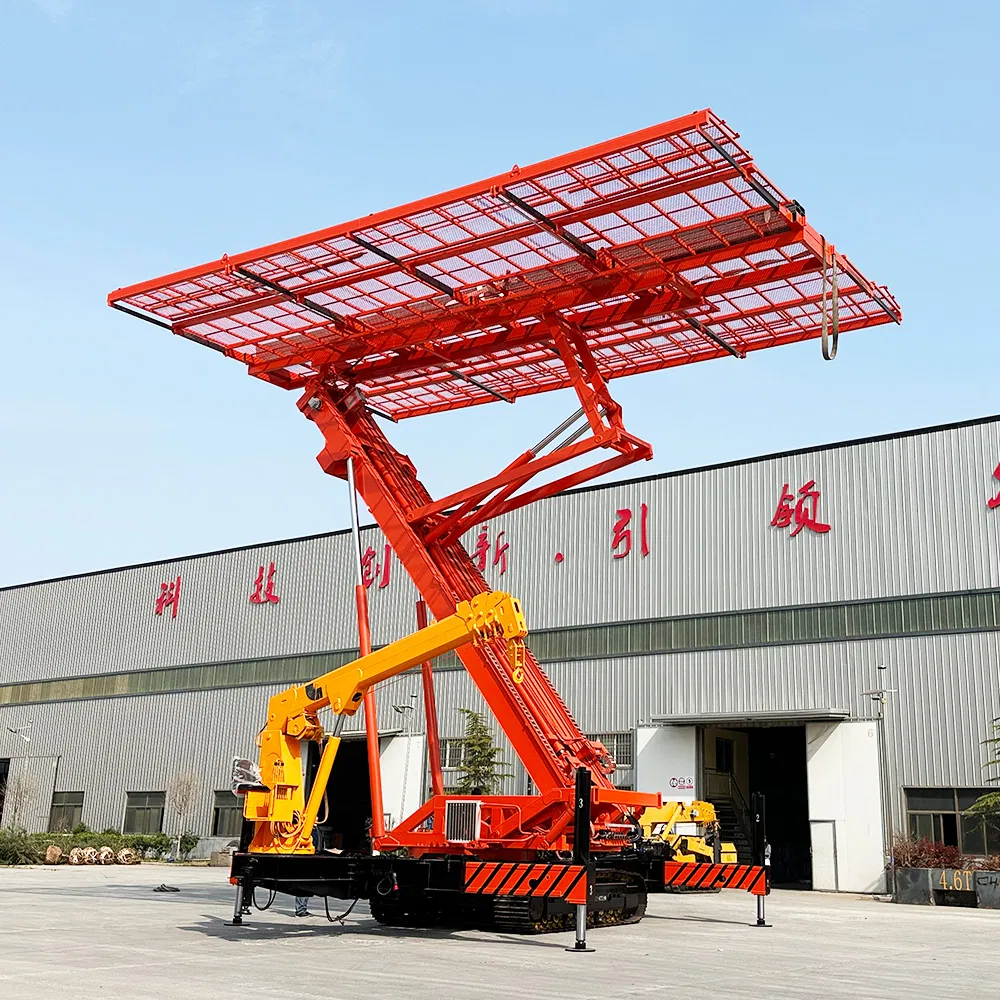

Reverse ceiling equipment

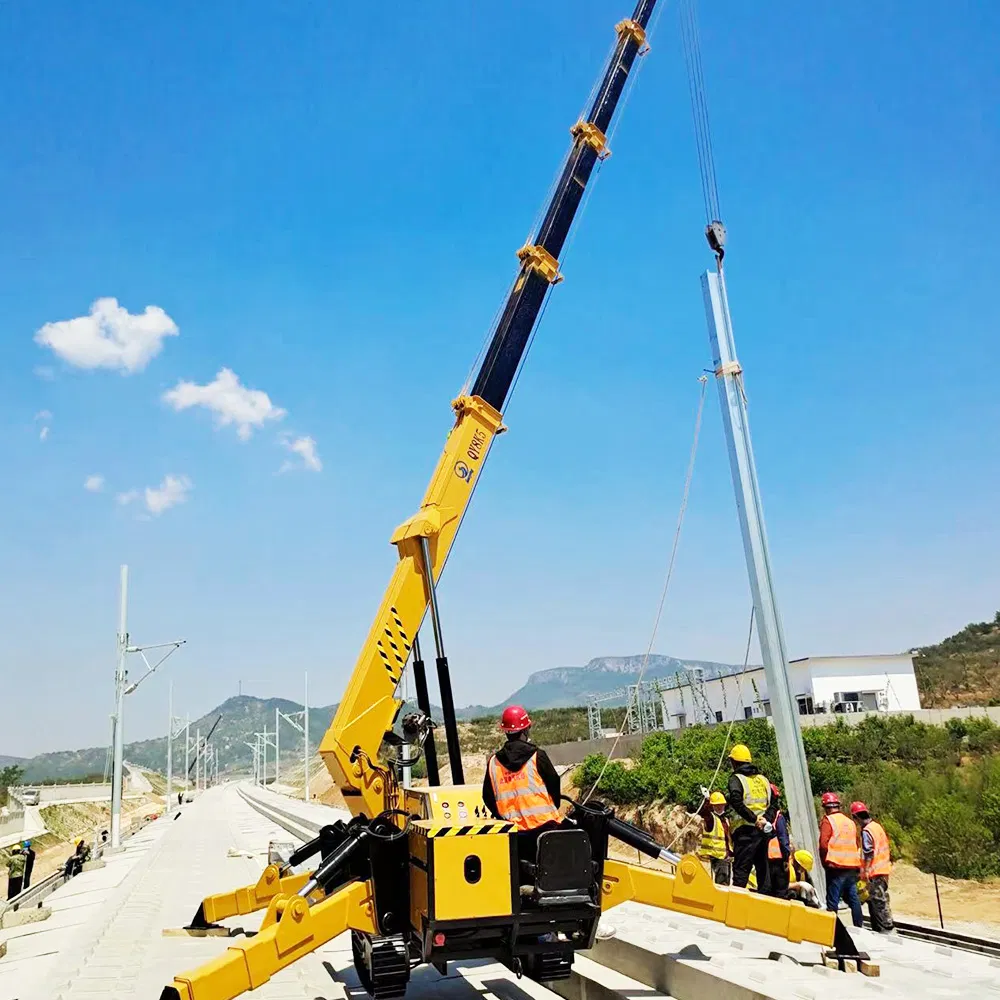

Crawler spider hanger

🎖 Certifications & Dynamics

❓ Frequently Asked Questions

High altitude tile press working noise?

Lack of lubrication in key parts may result in friction between components. Solution: Lubricate the moving parts regularly.

What if the machine cannot lift?

This is often caused by hydraulic system damage or oil issues. We recommend professional inspection to solve hydraulic pressure problems.

Phenomenon of platform sinking?

Likely due to loss of liquid pressure or leakage of hydraulic valves and seals. Damaged parts and seals should be replaced immediately.

What is the maximum output length of the tiles?

The equipment can continuously produce tiles from 1 meter up to 200 meters in length, depending on the project requirements.

What voltage is required for operation?

The standard operation requires a 380V power supply with a minimum of 18KW power capacity for optimal performance.

Can the carrying capacity be customized?

Yes, while the standard configuration is 8 tons, we can customize platforms with 12 tons or 20 tons capacity upon request.
