Product Description

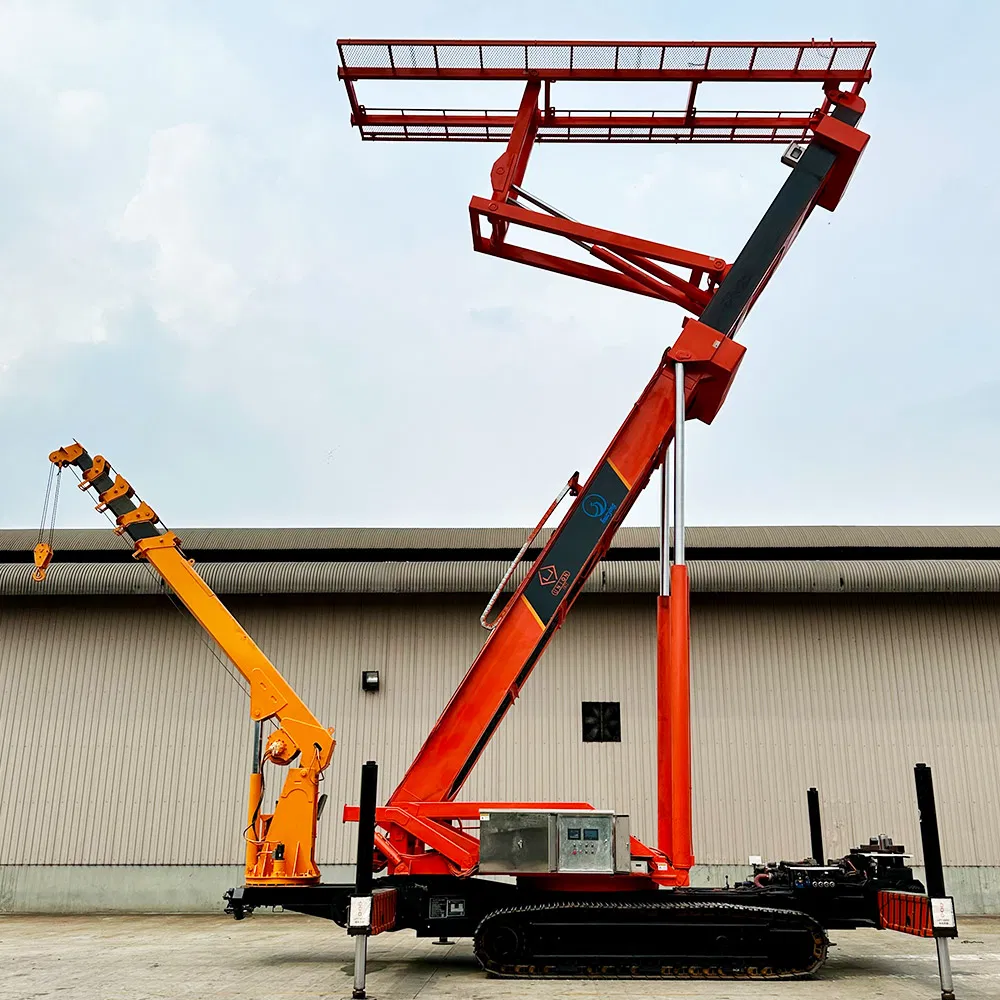

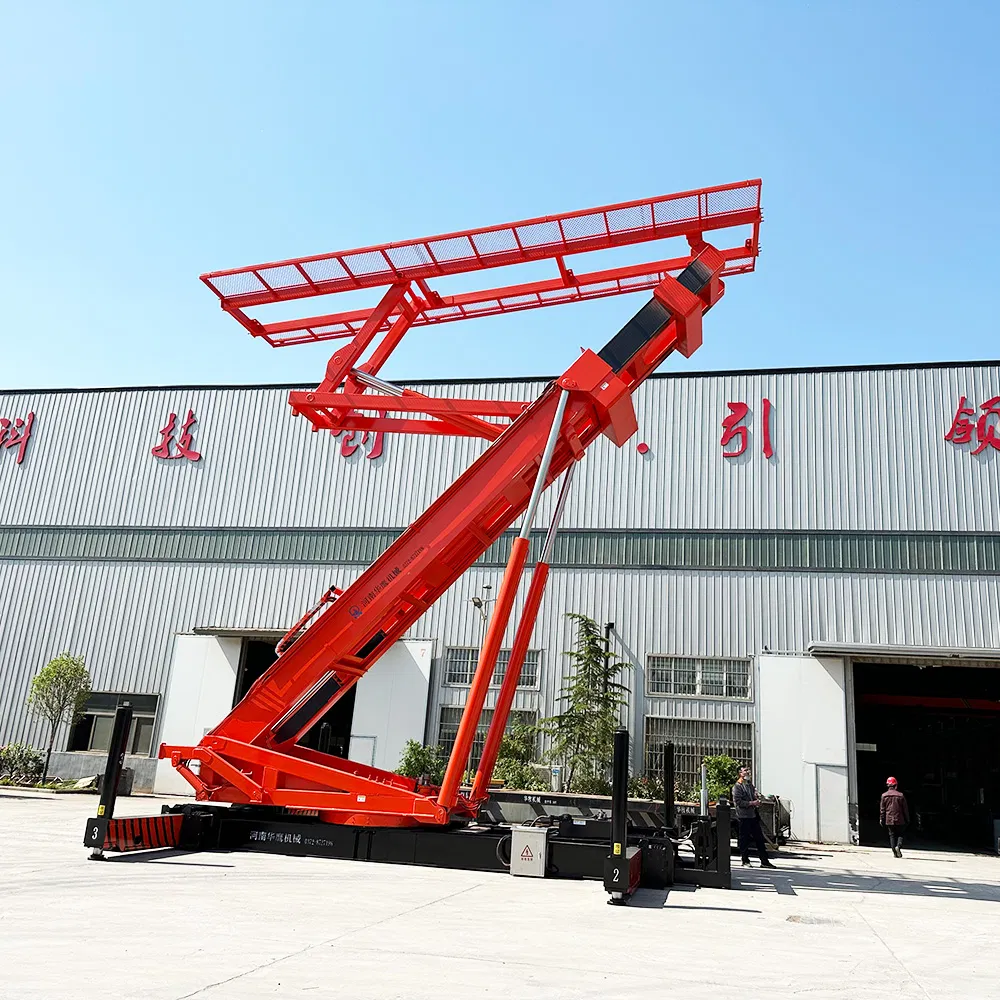

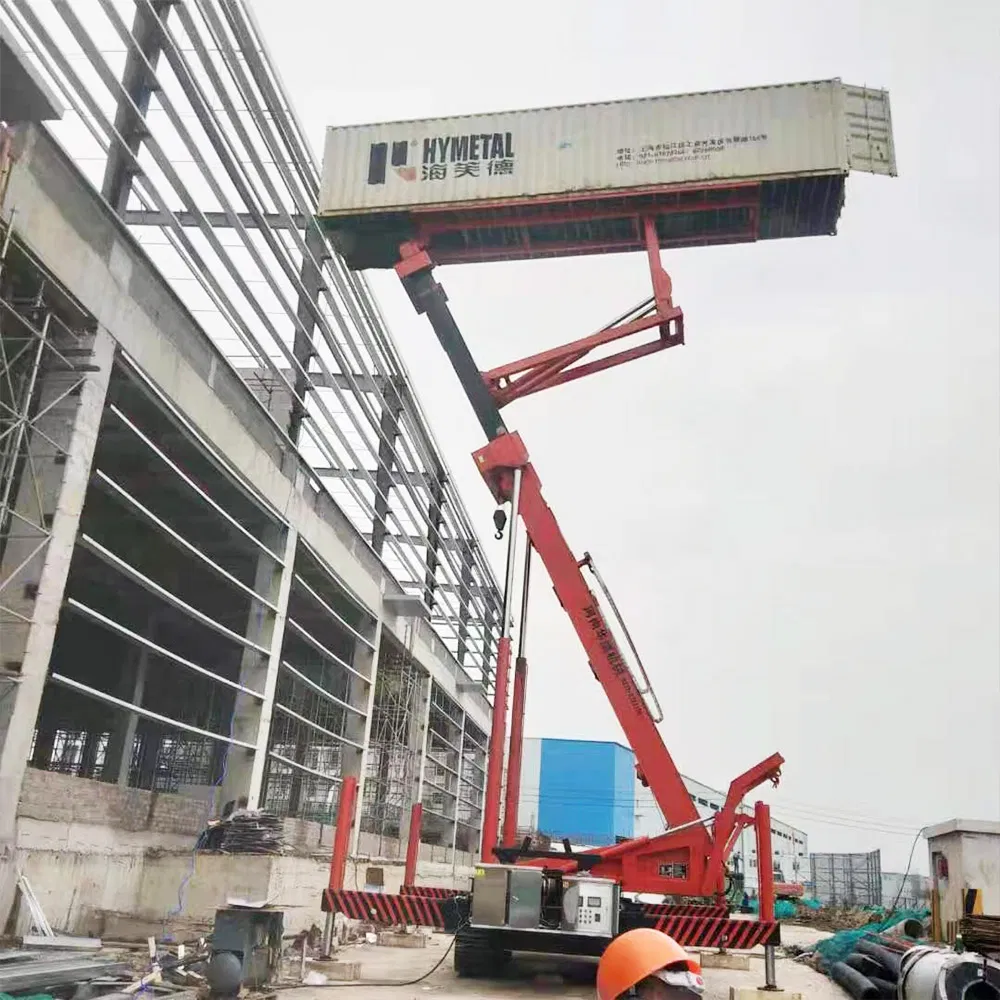

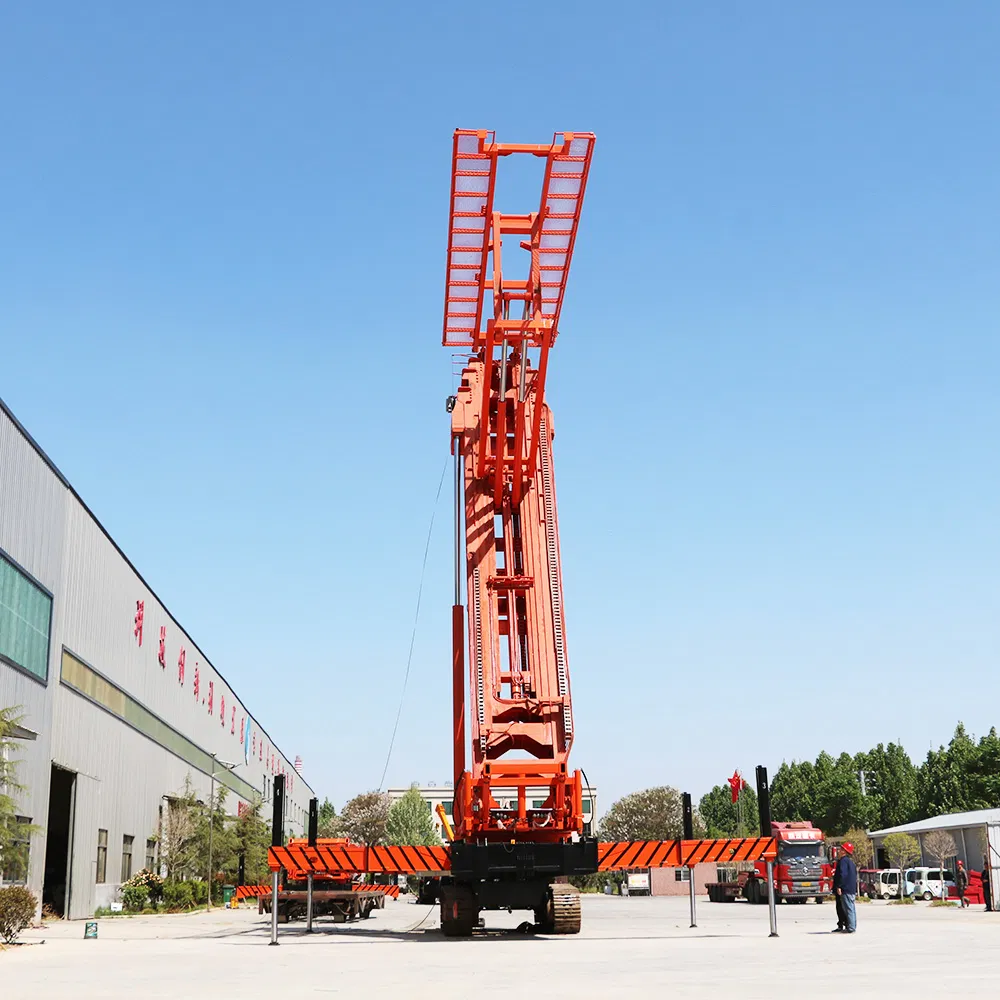

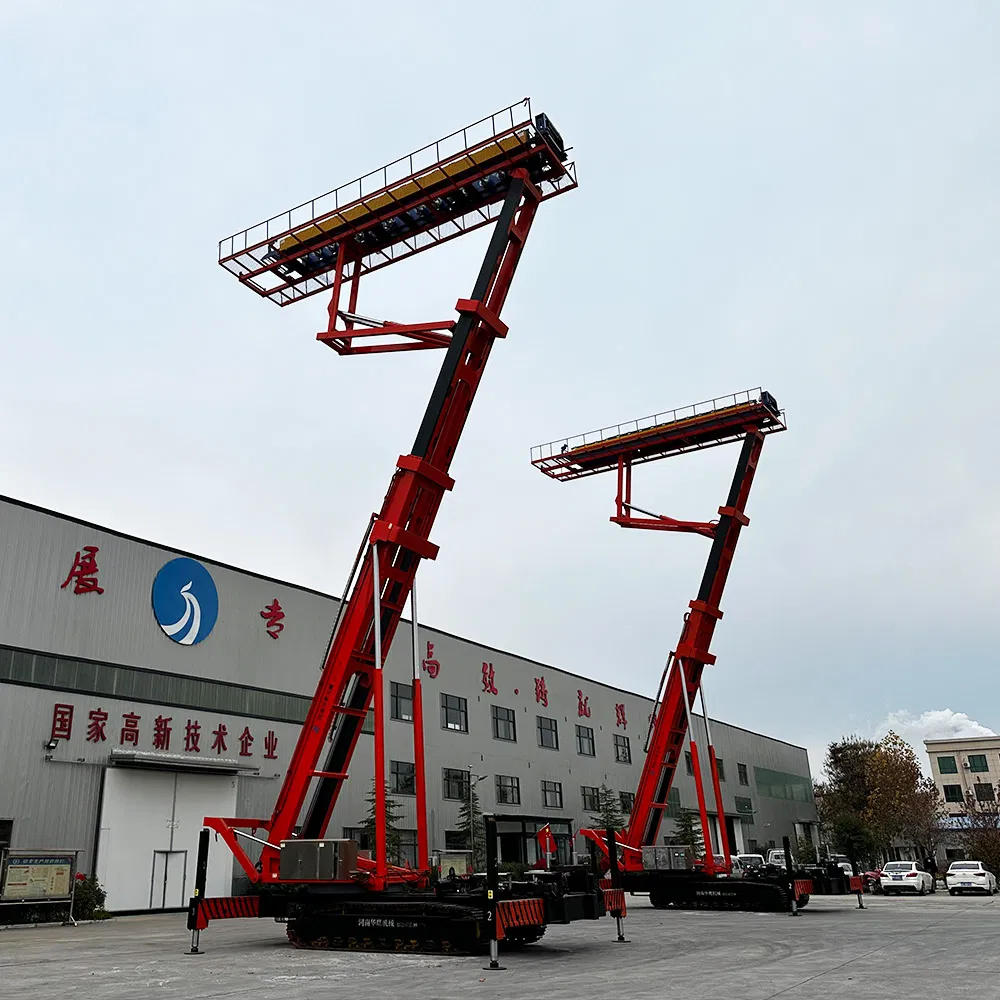

The special equipment for steel structure anti-ceiling is improved on the basis of the original high-altitude tile pressing machine. The small platform required by the original tile pressing machine has been evolved into a large platform, which can be folded for convenient storage when not in use. After the platform is opened, 4-5 people can carry out high-altitude work at the same time, and required materials can also be lifted to the roof efficiently.
| Sheet Material | Color steel plate, galvanized plate, aluminized manganese plate |
| Suitable Molding | All series roof plate forming machine, motor + reducer drive, hydraulic shear type |
| Crane Function | Optional Hydraulic drive, can lift 8T |
| Sheet Thickness | 0.3 mm - 1.0 mm |
| Dimensions (LxWxH) | 12.6 m x 3 m x 3.4 m |
⭐

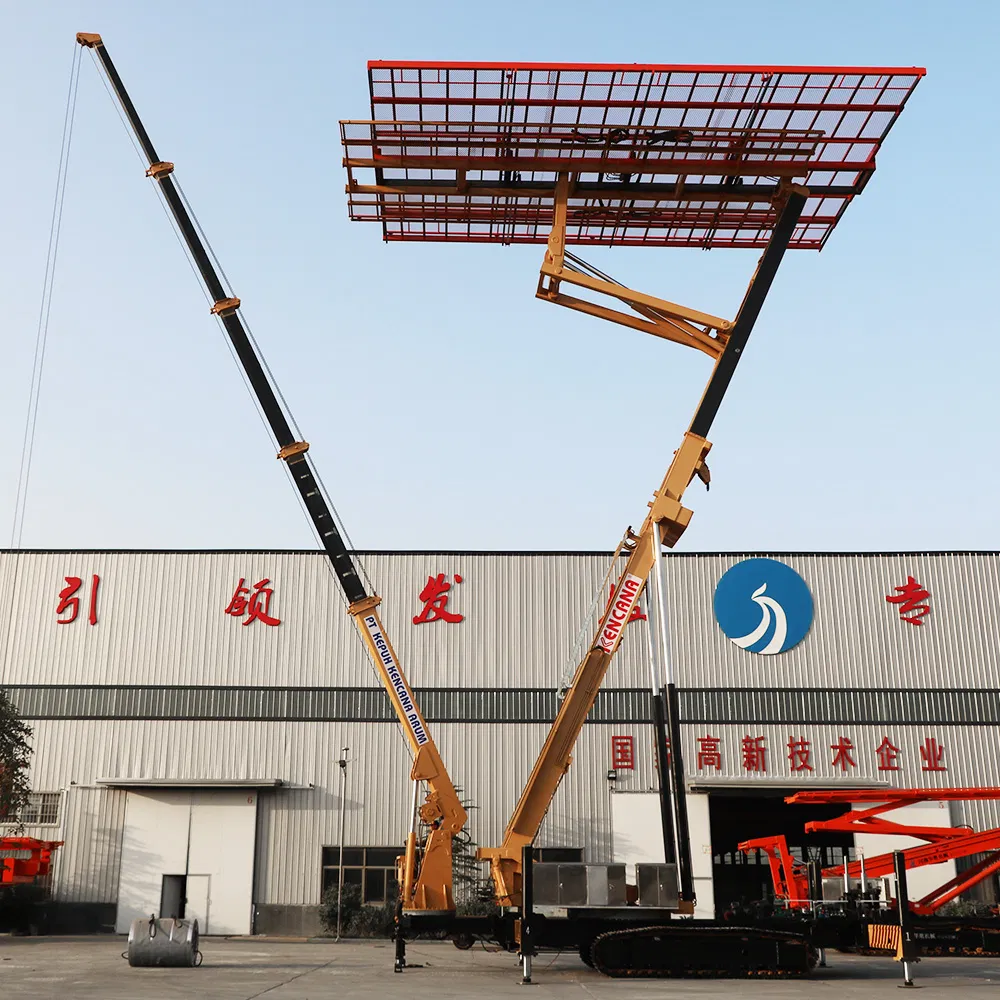

Equipment Features
✔With a large platform, both anti-ceiling operation and high-altitude tile placement can be realized.
✔Supports 4-5 people working simultaneously, significantly improving construction efficiency.
✔Track chassis walking device adapts to various road surfaces and terrains.

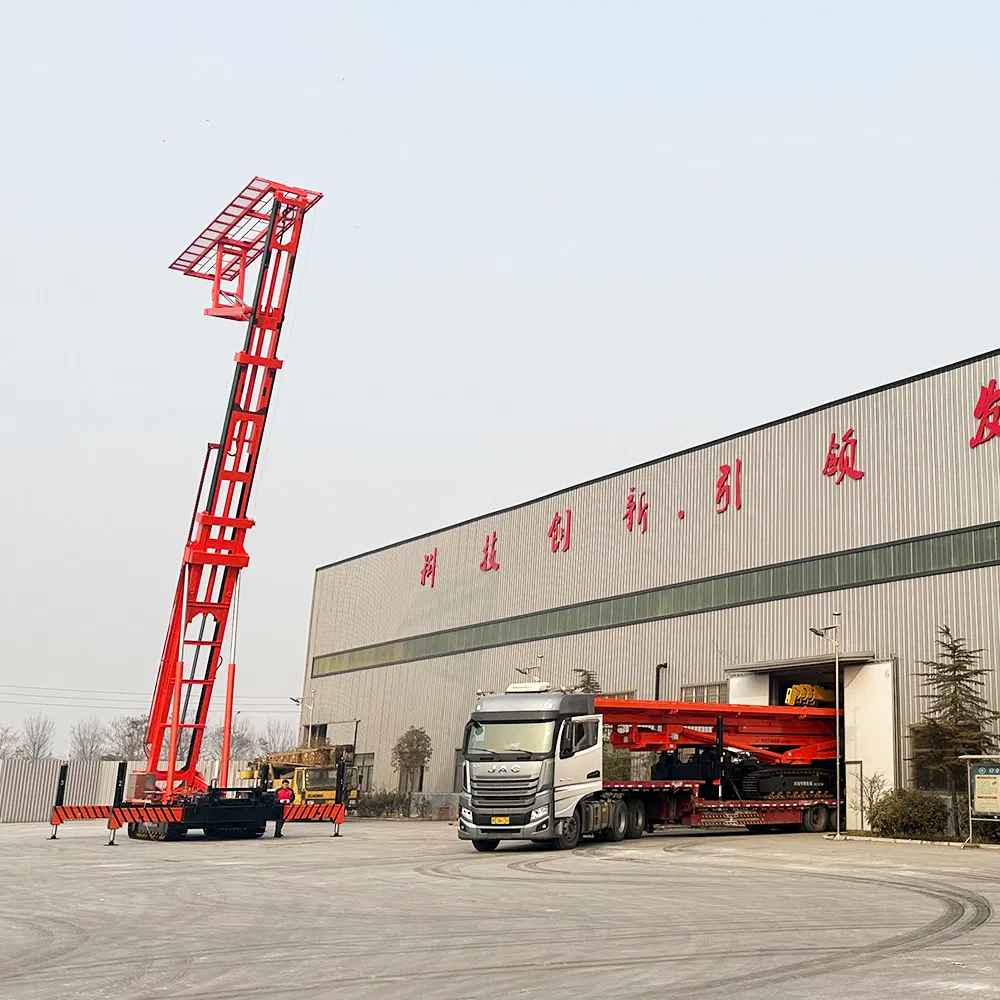

✔Customizable lifting height from 17-32 meters to meet various plant construction needs.
✔Full remote control operation for simple and convenient management.
✔Foldable platform design for space-saving and convenient storage.

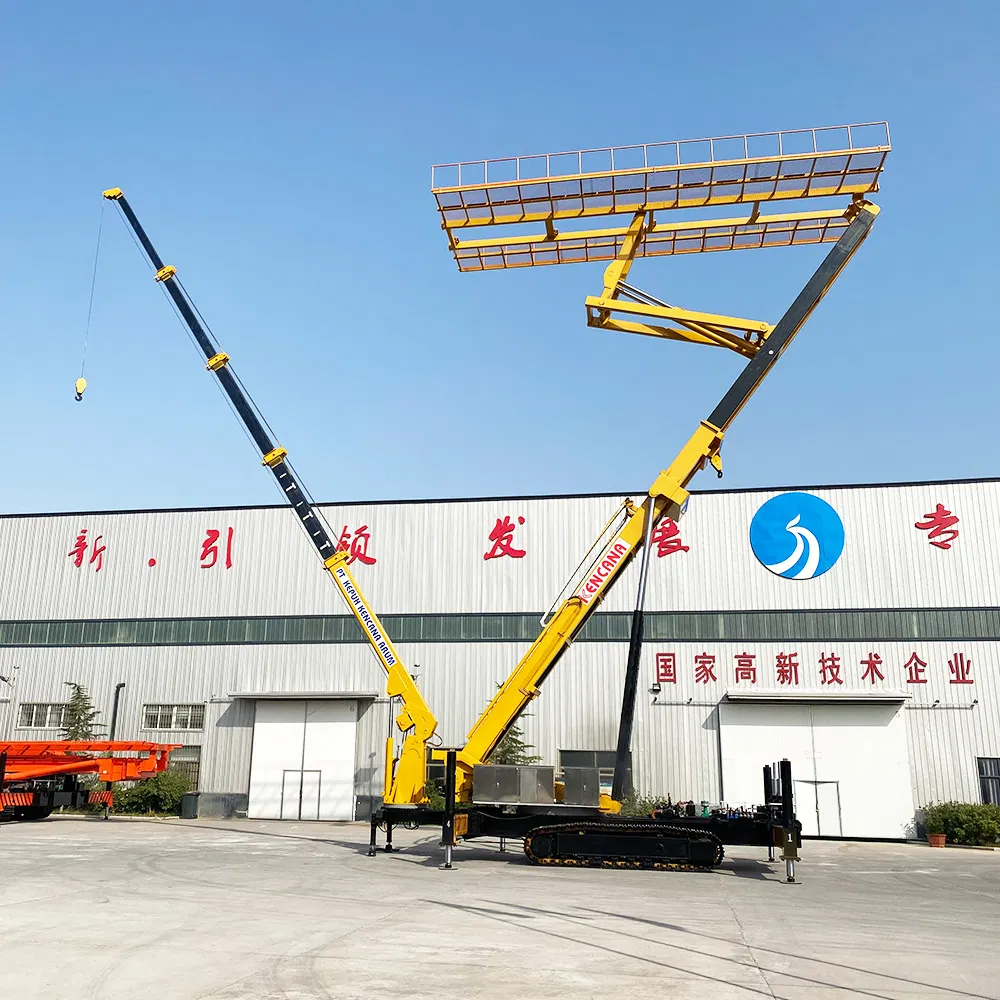

✔Optional lifting hook device to satisfy platform work, upper tile, and crane needs simultaneously.
🏢
Professional Capability
A wide variety of models are available, including equipment with 17m/8t capacity, 18.5m/8t, 21m/8t, 18.5m/11t, and 23m/11t. Continuous innovation in high-altitude tile equipment technology ensures research and development improvements that meet diverse production needs. Numerous equipment designs have obtained national patents.
Frequently Asked Questions
What is the maximum lifting height of the HYJX-39 model?
The equipment is capable of reaching a lifting height of up to 39 meters, suitable for large-scale industrial plant construction.
How many workers can the platform accommodate?
The large platform is designed to allow 4-5 people to perform high-altitude work simultaneously while also carrying necessary materials.
Can the tile press equipment handle different types of metal sheets?
Yes, it is suitable for color steel plates, galvanized plates, and aluminized manganese plates with thicknesses ranging from 0.3mm to 1.0mm.
How do I resolve abnormal working noise?
Working noise is often caused by a lack of lubrication in key parts. Ensure all mechanical joints and moving parts are properly lubricated to reduce friction.
What should be checked if the platform fails to lift?
This is typically related to hydraulic system issues or hydraulic oil contamination. It is recommended to inspect the hydraulic valves and seals or consult a professional engineer.
Is the equipment mobile on rough construction sites?
Yes, the equipment utilizes a track-based crawler chassis, which allows it to adapt to various road conditions and unstable surfaces commonly found on construction sites.
