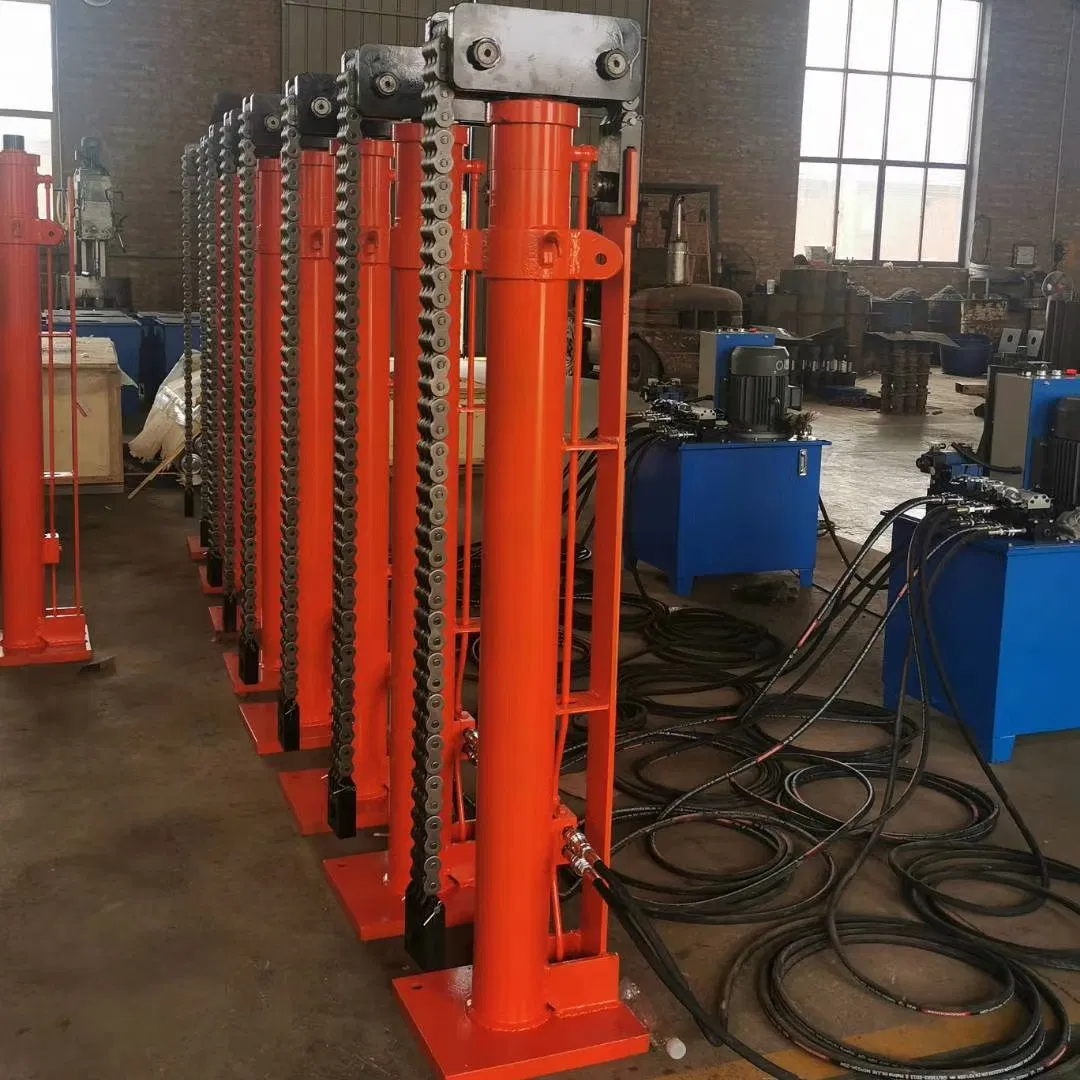

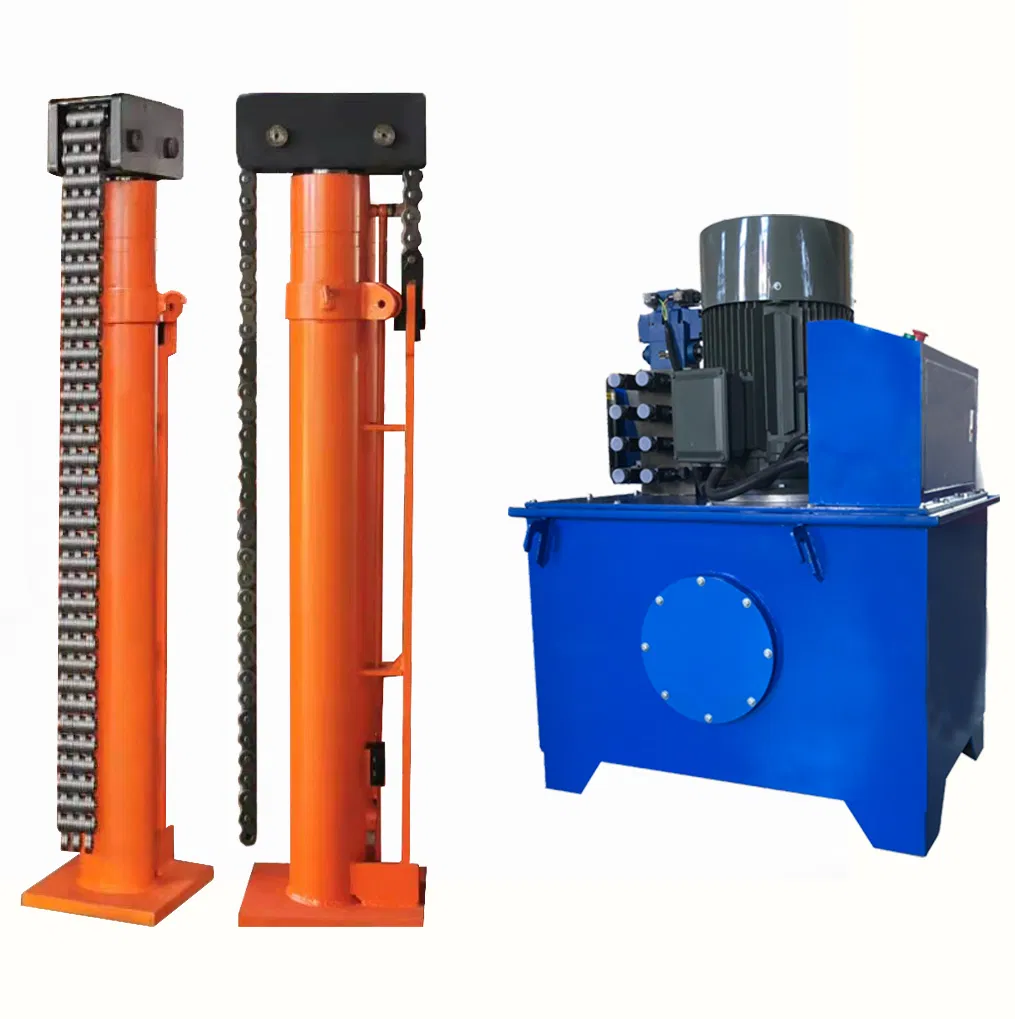

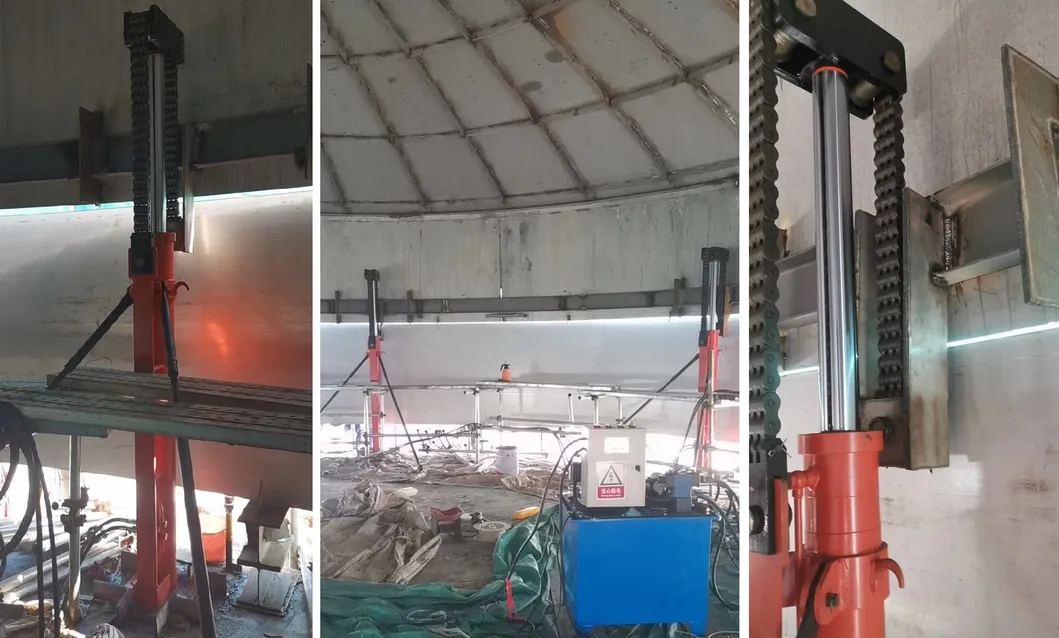

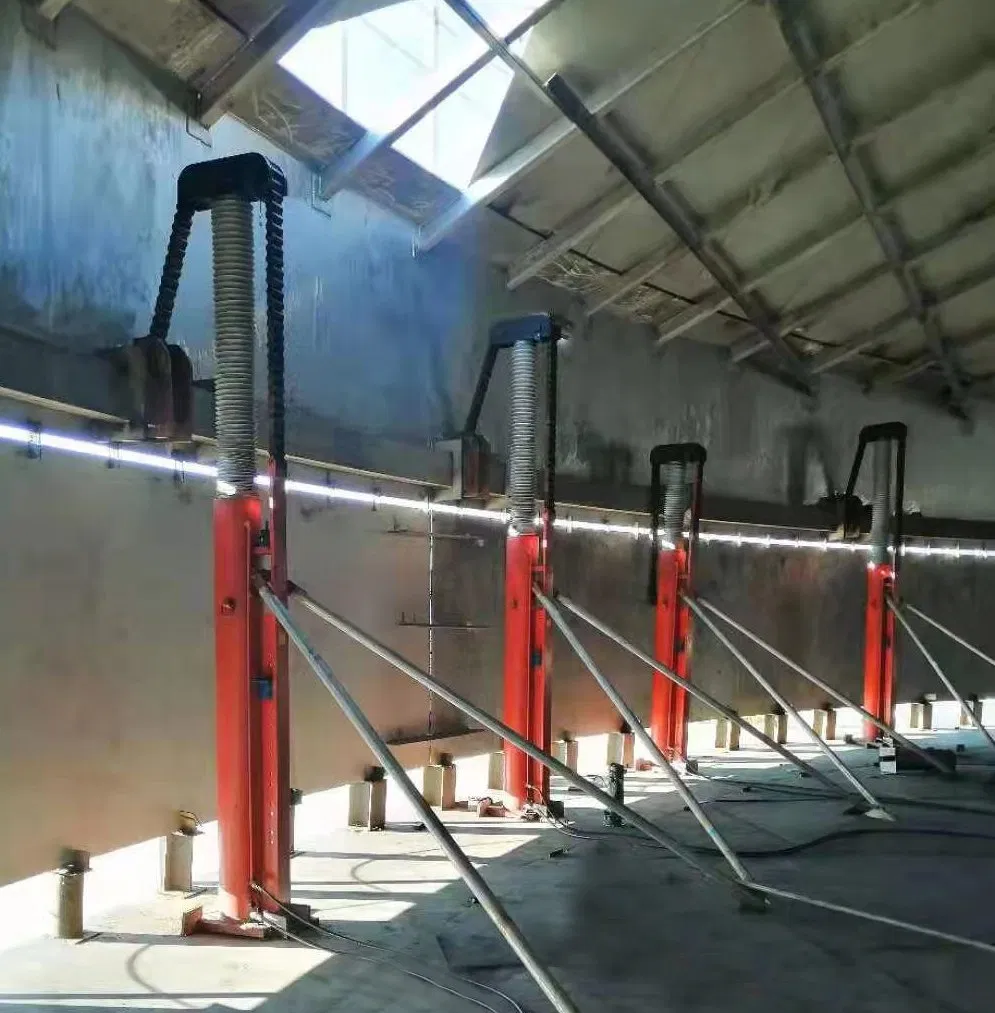

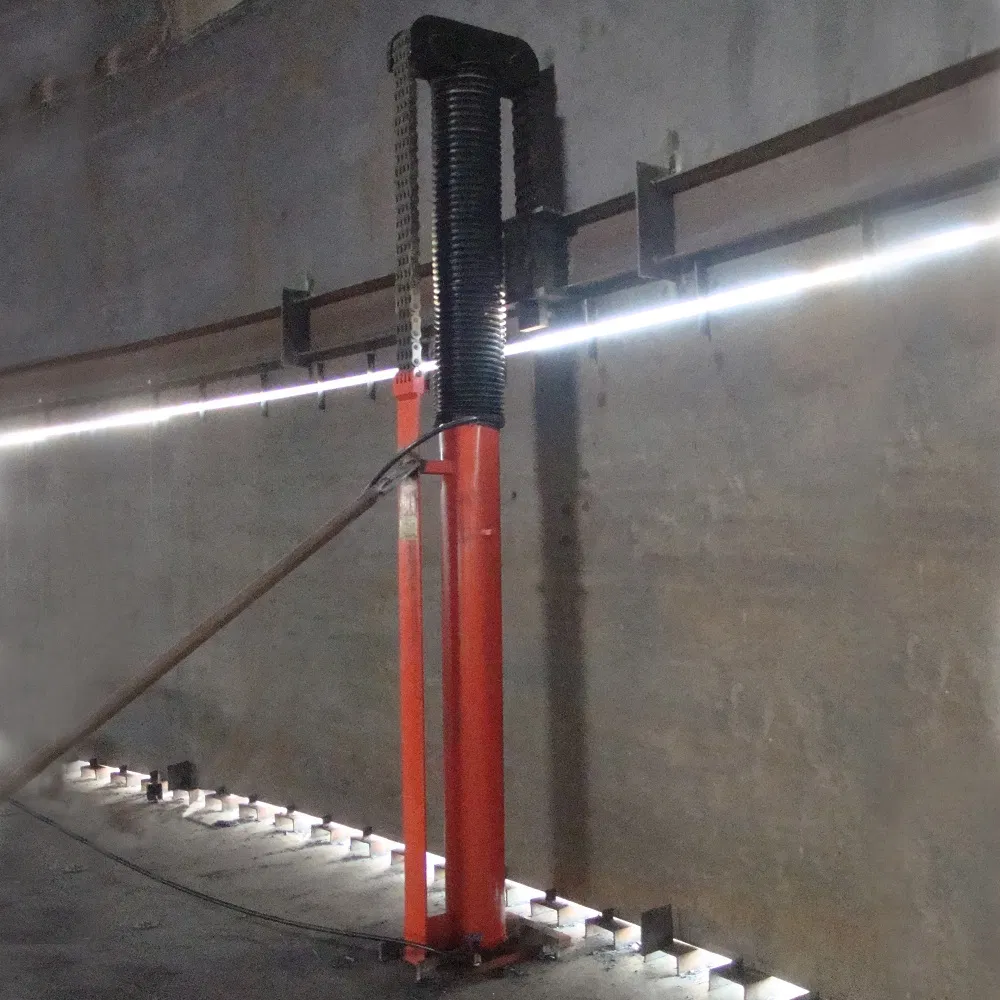

Chain Type Simple Hydraulic Jack: The LYT-type hoist is composed of a one-stage double-acting hydraulic cylinder, pulley block, load-bearing chain, and oil way. A moveable pulley is utilized to enlarge the chain stroke, meaning the traveling distance of the cylinder is half of the lifting distance of the chain. This system is specifically designed for the inverted installation and construction of various large steel storage tanks.

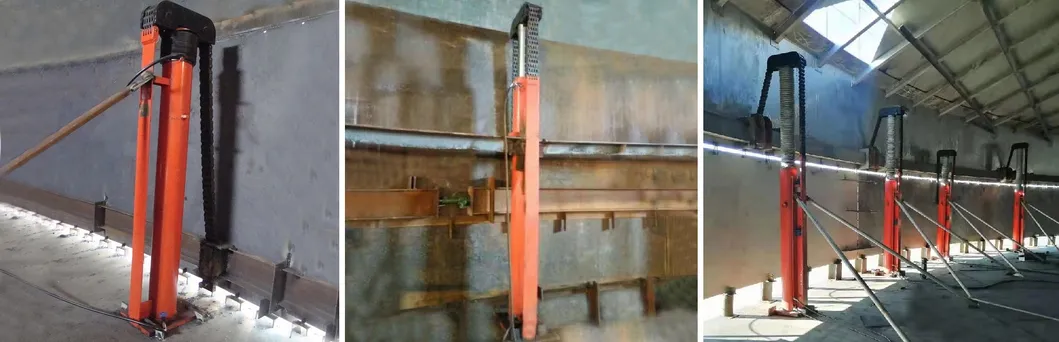

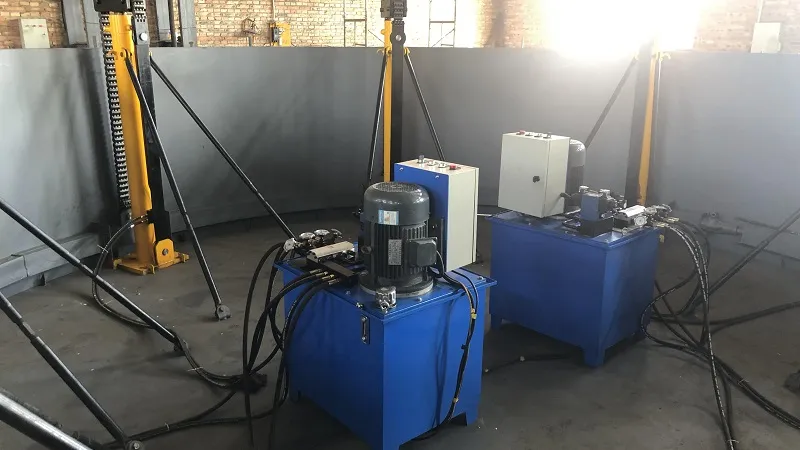

1. The hoist initially lifts the tank roof and the first layer of siding. When the lifting height exceeds the second siding by 30-50mm, group welding is performed. This process repeats layer by layer from the top down to the bottom layer.

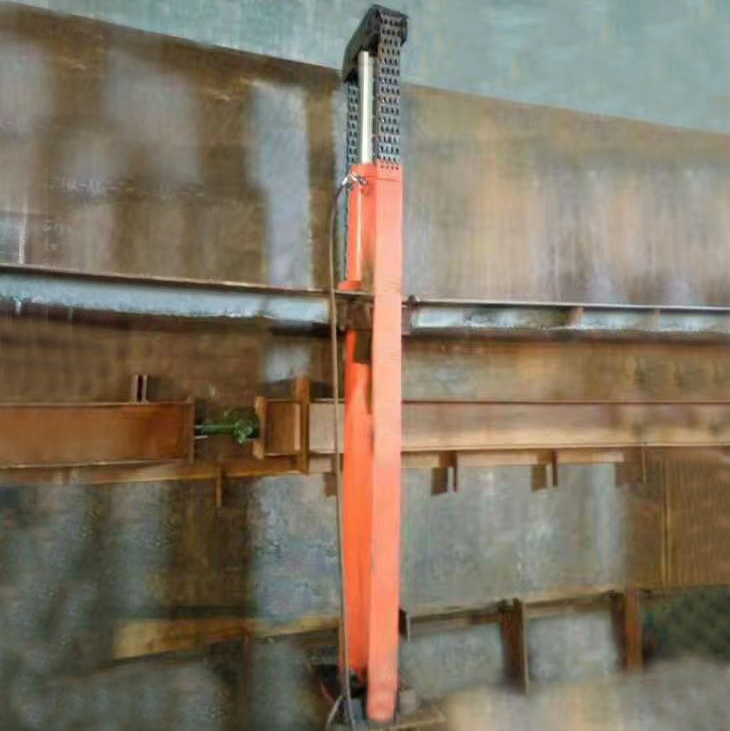

2. When oil enters the hydraulic jack, the movable pulley pushes upward, driving the load-bearing chain to lift the expansion ring. The whole tank is lifted to a pre-set height for circular seam and vertical seam welding.

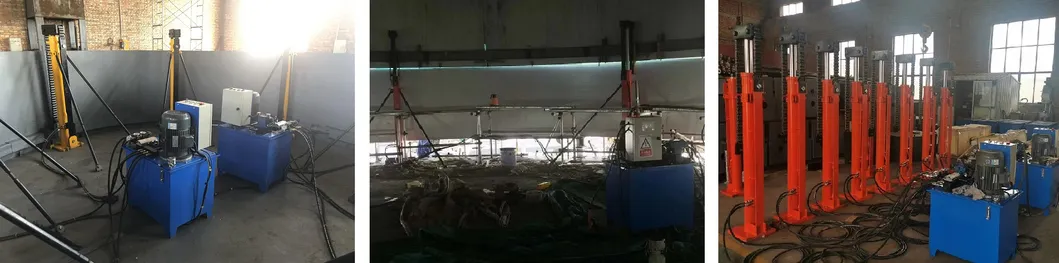

• Safety & Reliability: Unified hydraulic control with synchronizing valves and hydraulic locks prevents sliding or falling during power failures.
• High Quality: Precise control over lifting height ensures the structural integrity and welding quality of the tank.
• Efficiency: Easy operation improves work efficiency and construction environment.
• Adaptability: Scalable system suitable for storage tanks ranging from thousands to tens of thousands of cubic meters.

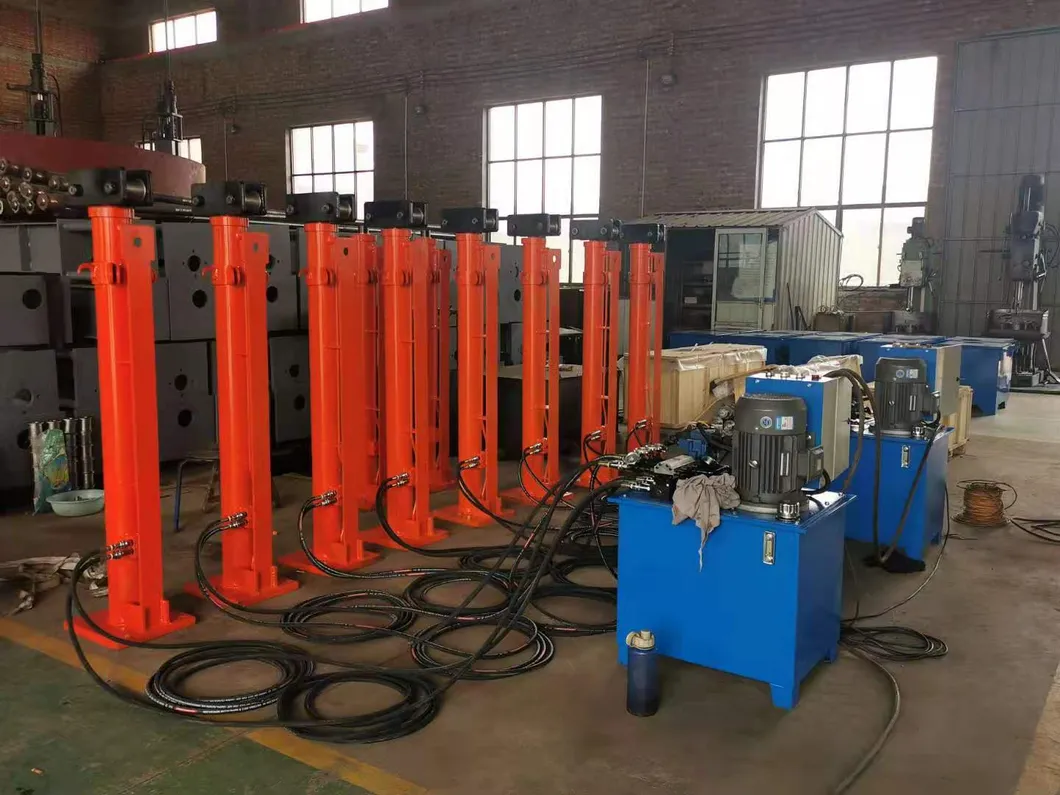

| Model | Tank Volume | Rated Pressure | Rated Flow | Power | Motor Rate |
|---|---|---|---|---|---|
| YB-7.2 | 220L | 25Mpa | 7.2L/min | 3-Phase 380V | 5.5kw |
| YB-14.5 | 340L | 25Mpa | 14.5L/min | 3-Phase 380V | 7.5kw |

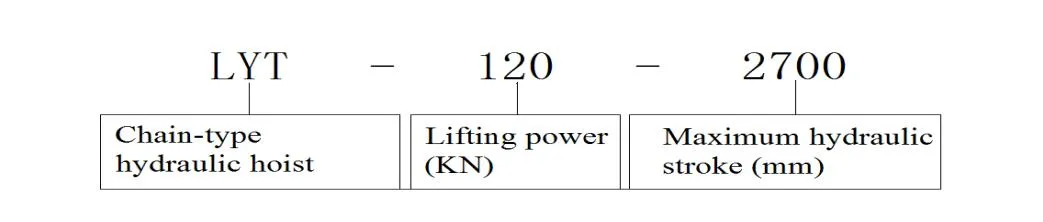

| Model | Lifting Capacity (KN) | Oil Pressure (MPa) | Piston Stroke (mm) | Chain Stroke (mm) | Safety Equipment |
|---|---|---|---|---|---|
| LYT-120-2700 | 120 | 25 | 1500 | 2700 | Hydraulic Lock |
| LYT-200-2700 | 200 | 25 | 1500 | 2700 | Hydraulic Lock |
| LYT-300-2700 | 300 | 25 | 1500 | 2700 | Hydraulic Lock |

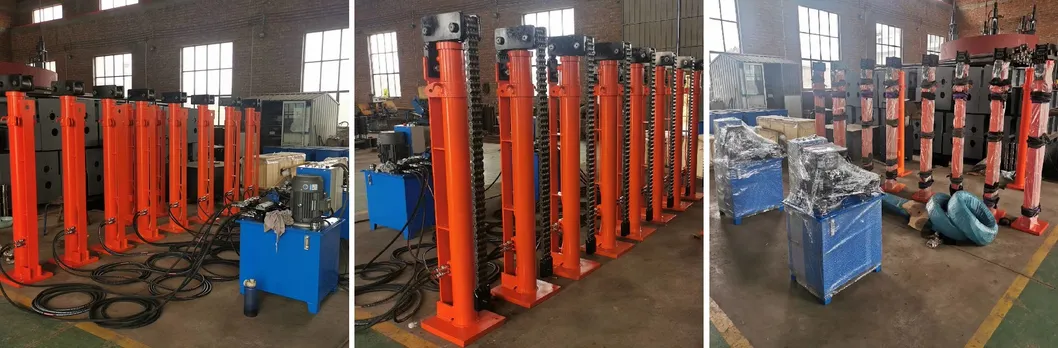

As a specialized hydraulic machinery manufacturer, the company integrates design, development, production, and sales. Key products include the LYT-type chain-type hydraulic hoist and SQD hydraulic hoists, which are essential for the inverted lifting and installation of steel storage tanks. Since its establishment in 2003, the company has focused on scientific research, obtaining multiple patents and trademarks.
With over a decade of experience, our equipment has been utilized across numerous regions globally. Supported by a professional team, strict management, and advanced production lines, we strive to provide innovative hydraulic lifting solutions that ensure project quality while reducing construction periods and labor costs.
