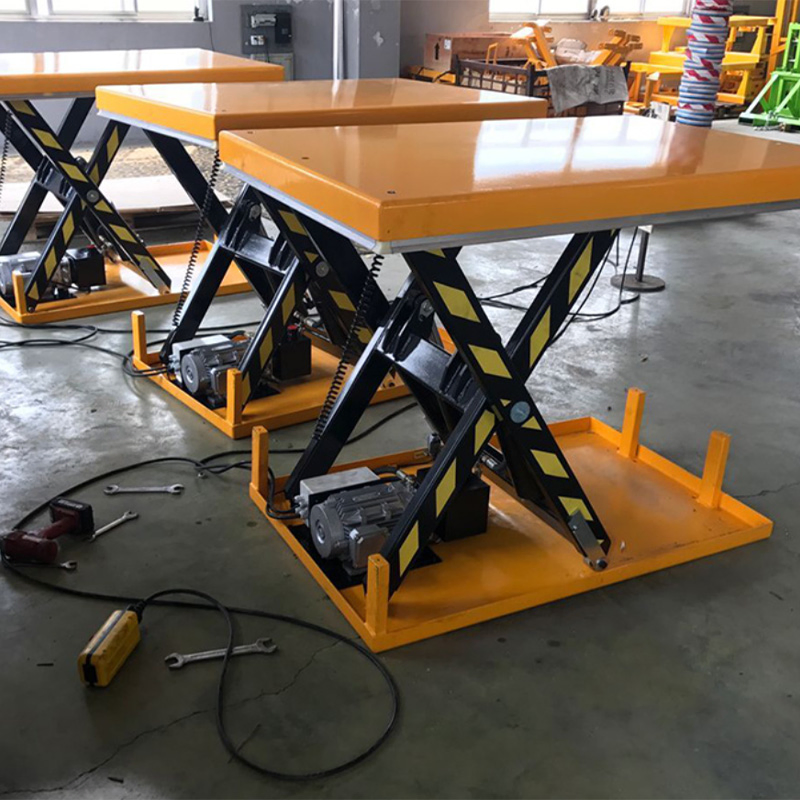

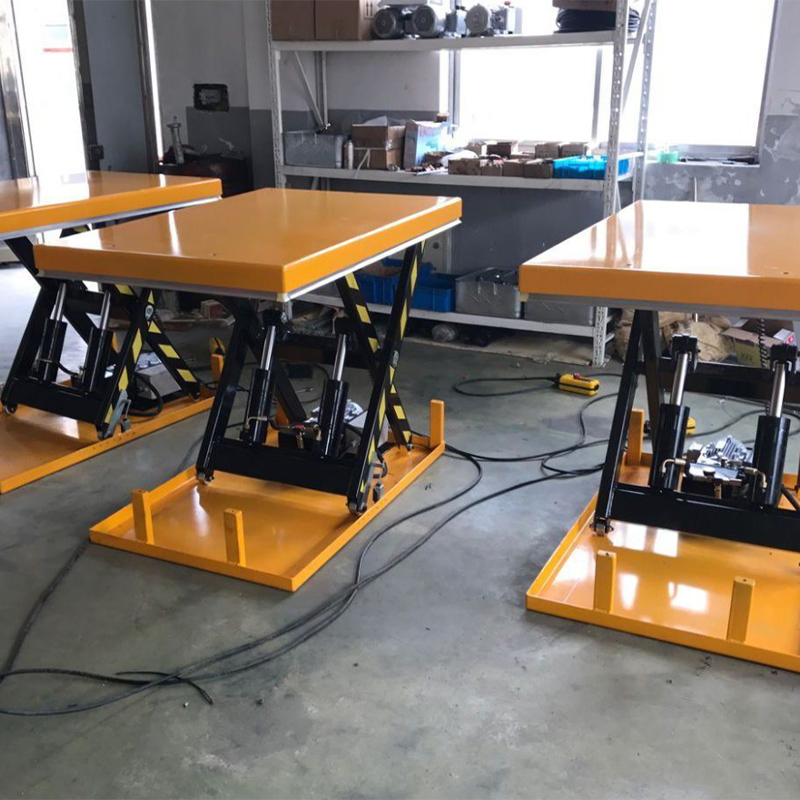

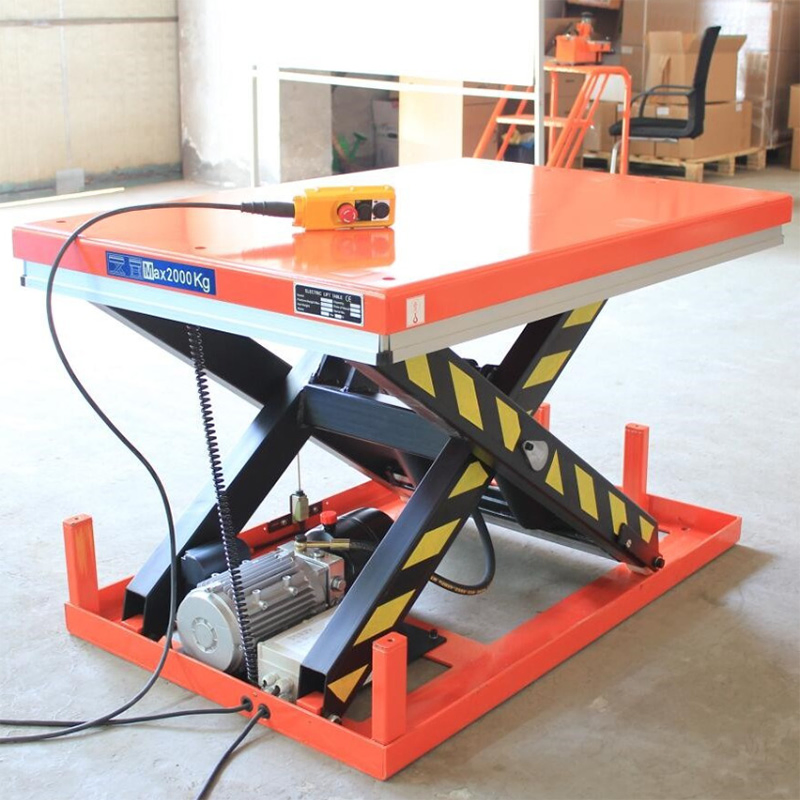

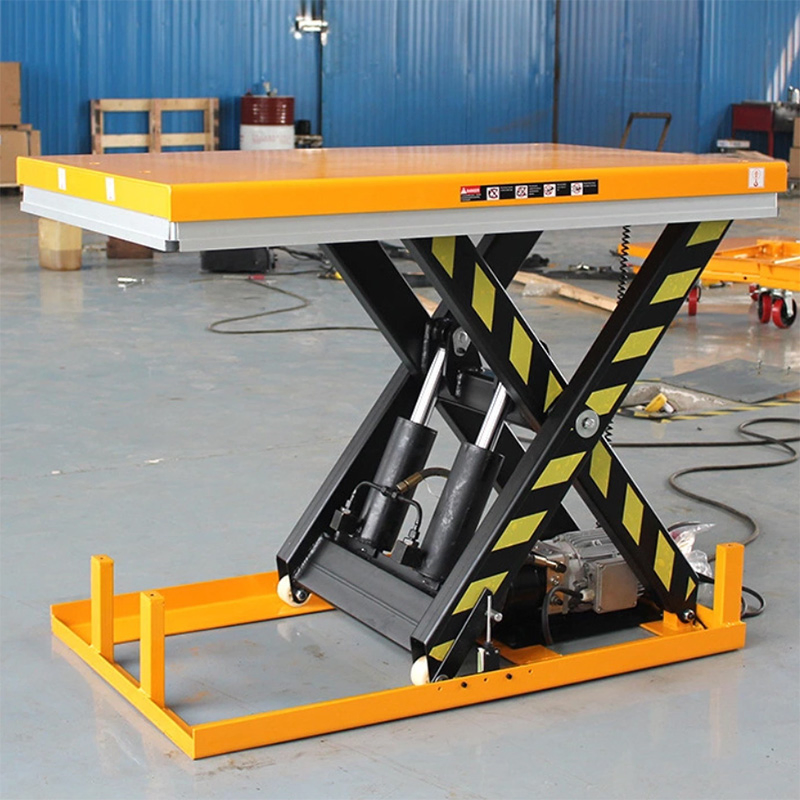

Hydraulic Stationary Fixed Scissor Lifting Platform Lift Equipment

1 / 5

Hydraulic Stationary Fixed Scissor Lifting Platform Lift Equipment

Customization:	Available
After-sales Service:	Online
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.:SL0.5-1

Lift Mechanism:Scissor Lift

Driven Type:Hydraulic

Moves:Stationary

Feature:Explosion-Proof, Insulating

Certification:CE

Origin:China

Package:Wooden Box

Applications & Usage

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Table, Lift Platform, Cargo Lift, Freight Elevator, Lifting Equipment

Packaging & Delivery

Package Size:70.00cm * 120.00cm * 120.00cm

Gross Weight:500.000kg

Technical Parameters

Hydraulic Stationary Fixed Scissor Lifting Platform

Model	Loading (Kg)	Min/Max height (mm)	Platform size (mm)	Bottom size (mm)	Lift time (s)	Weight (Kg)
EW1001	1000	205/990	1300*820	1240*640	20-25	160
EW1002	1000	205/990	1600*1000	1240*640	20-25	186
EW1003	1000	240/1300	1700*850	1580*640	30-35	200
EW1004	1000	240/1300	1700*1000	1580*640	30-35	210
EW1005	1000	240/1300	2000*850	1580*640	30-35	212
EW1006	1000	240/1300	2000*1000	1580*640	30-35	223
EW1007	1000	240/1300	1700*1500	1580*1320	30-40	365
EW1008	1000	240/1300	2000*1700	1580*1320	30-40	430
EW2001	2000	230/1000	1300*850	1220*785	20-25	235
EW2002	2000	230/1000	1600*1000	1220*785	20-25	268
EW2003	2000	250/1300	1700*850	1600*785	25-35	289
EW2004	2000	250/1300	1700*1000	1600*785	25-35	300
EW2005	2000	250/1300	2000*850	1600*785	25-35	300
EW2006	2000	250/1300	2000*1000	1600*785	25-35	315
EW2007	2000	250/1400	1700*1500	1600*1435	25-35	415
EW2008	2000	250/1400	2000*1800	1600*1435	25-35	500
EW4001	4000	240/1050	1700*1200	1600*900	30-40	375
EW4002	4000	240/1050	2000*1200	1600*900	30-40	405
EW4003	4000	300/1400	2000*1000	1980*900	30-40	470
EW4004	4000	300/1400	2000*1200	1980*900	35-40	490
EW4005	4000	300/1400	2200*1000	1980*900	35-40	480
EW4006	4000	300/1400	2200*1200	1980*900	35-40	505
EW4007	4000	350/1300	1700*1500	1620*1400	35-45	570
EW4008	4000	350/1300	2200*1800	1620*1400	35-45	655

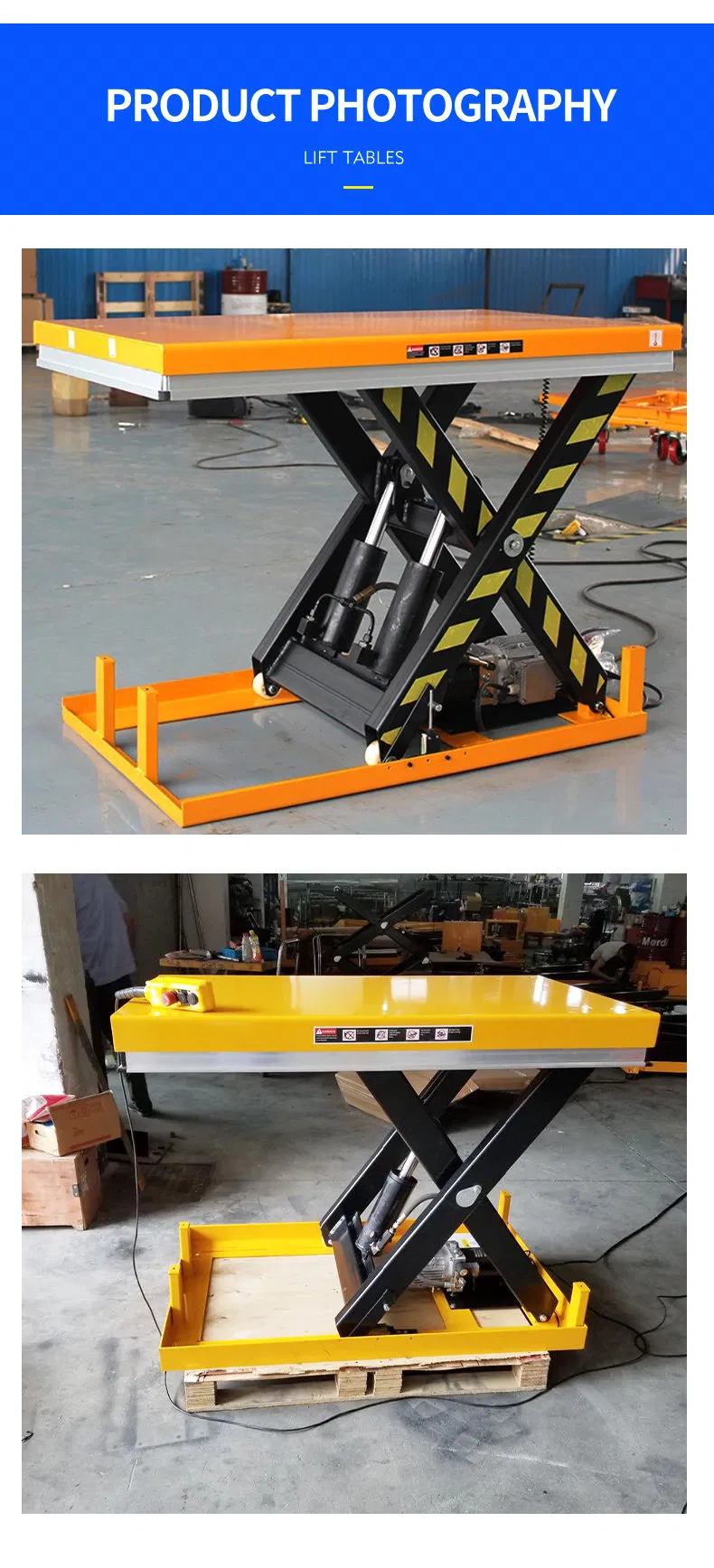

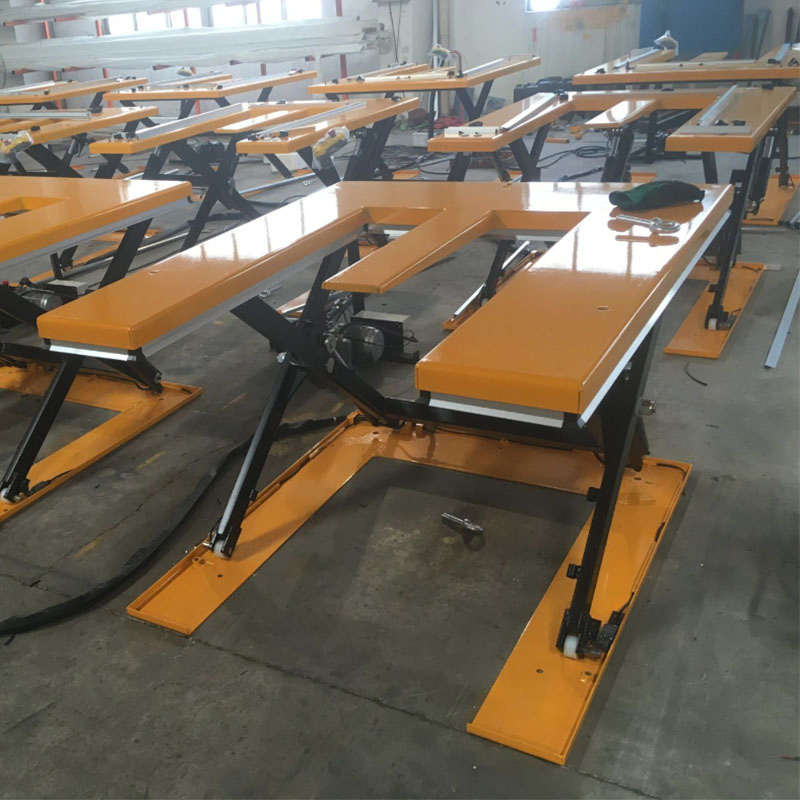

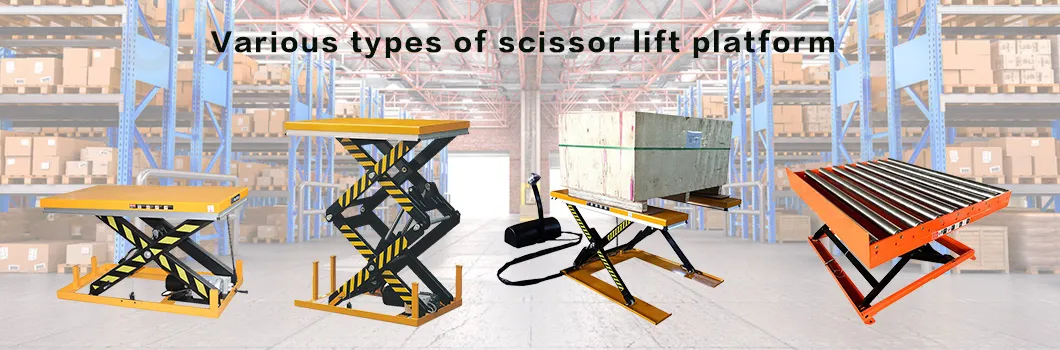

Product Showcase

Frequently Asked Questions

What lifting mechanism does this equipment use?

This equipment utilizes a hydraulic scissor lift mechanism, ensuring stable and powerful vertical movement for various industrial applications.

Can this lift platform be used in hazardous environments?

Yes, the platform features explosion-proof and insulating properties, making it suitable for specialized environments such as workshops or chemical plants where safety is a priority.

What is the maximum carrying capacity of these models?

Our stationary scissor lifts cover a range of weight levels, with specific models designed to handle loads of 1000kg, 2000kg, and up to 4000kg.

Is the platform size customizable?

Yes, the specifications are listed as customized to meet specific workshop or warehouse requirements, though standard sizes range from 1300*820mm to 2200*1800mm.

How is the lifting platform packaged for international shipping?

The equipment is securely packed in a wooden box to prevent damage during transit. The standard package size is approximately 70cm x 120cm x 120cm.

What certifications does this product hold?

The product is CE certified, ensuring it meets the essential health and safety requirements set by European standards.
