Good Quality Hydraulic Lifting Equipment in Stock Tank Jacks

Customization:	Available
After-sales Service:	Quality Assurance
Warranty:	1 Year

📊 Basic Information

Model NO.

YT Series

Type

Hydraulic Jack

Structure

Hydraulic Jack

Capacity (Load)

12-120t

Power Source

Hydraulic

Max Height

1~3 M

Certification

CE, ISO 9001:2000, ISO 9001:2008

Condition

New

Keyword

Tank Hydraulic Jacking System

Max Capacity

50t Above

Max Stroke

3400mm

Color

Red

📝 Product Description

Advanced Three-Stage Hydraulic Jacking System

Hydraulic jacking system is mainly used for inverted construction of vertical cylindrical steel storage tank (hydraulic jacking method) and inverted construction of vertical cylindrical low-temperature storage tank in petrochemical industry. It can also be used for vertical lifting and lifting of super large objects.

⭐ Main Features:

✔ The system consists of hydraulic pump station, cylinders, steel wire, and strokes. Easy to installation and operation.

✔ Utilizes PLC central control to handle lift. Each power pack is equipped with auxiliary balance device to guarantee precision.

✔ Subsidiary manual control and central control two operation models. Cylinders can be adjusted to lift separately or in groups.

✔ All cylinders feature safety valves that automatically lock to avoid tank dropping during power failure or hose breakage.

✔ High pressure hose design prevents oil leakage. Cylinder returns to initial condition by self-weight.

✔ Stroke of 1475mm satisfies annular shell one-step lift, significantly reducing time waste.

✔ Cylinder height of 2050mm matches automatic girth welding machines for internal seam welding.

✔ Modular configuration allows jacking system quantity to be adjusted based on tank size and weight.

✔ High efficiency: Each lifting or falling cycle requires approximately 15 minutes.

⚙️ Product Parameters

Model	YT10-1650	YT10-1700	YT12-2700	YT18-1700	YT25-3200	YT25-2700	YT30-2700	YT30-3200	YT40-3400	YT50-2700
Max Pressure	28 MPa	28 MPa	13Mpa	30Mpa	20Mpa	25Mpa	24Mpa	30Mpa	20Mpa	10Mpa
Output Force	10 t	10 t	12 t	18 t	25 t	25 t	30 t	30 t	40 t	51 t
Max Stroke	1700 mm	1700 mm	2700mm	1650mm	3200mm	2700mm	2700mm	3200mm	3400mm	2620mm
Lifting Speed	90mm/min	90mm/min	160mm/min	95mm/min	180mm/min	180mm/min	110mm/min	50mm/min	80mm/min	140mm/min
Motor Power	2x5.5KW	2x5.5KW	15kw	4kw	5.5kw	5.5kw	4kw	4kw	4kw	5.5kw

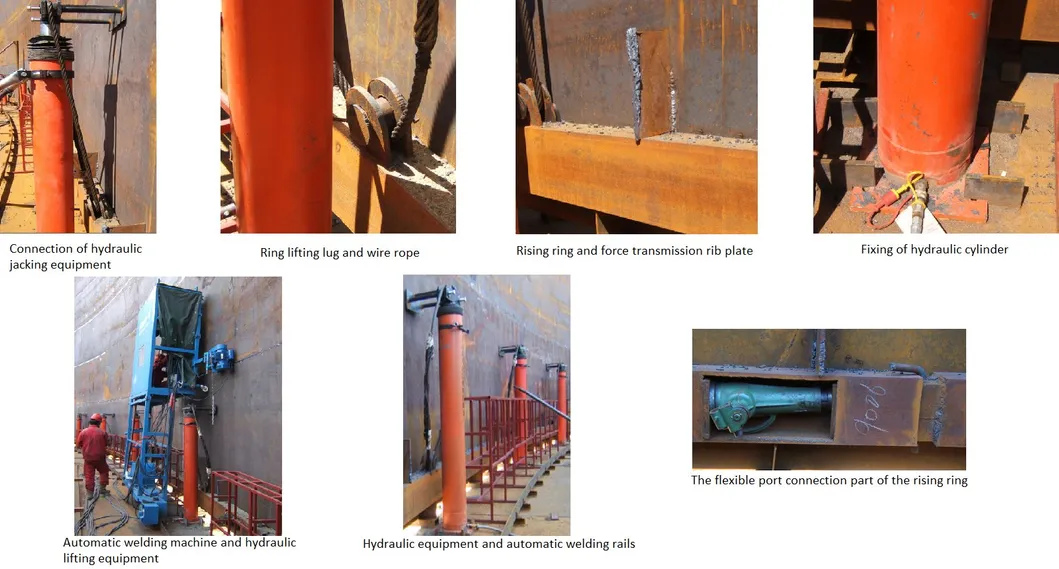

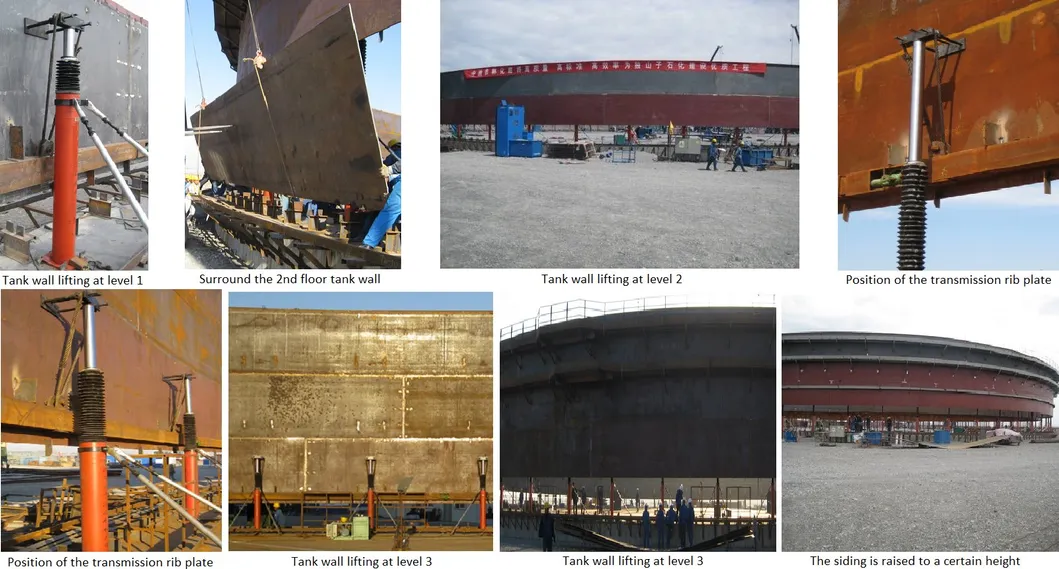

📸 Detailed Photos

🏢 Service Strength

We are engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial fields.

Our Services:

⚡ Providing workable solutions for shorter project execution time and fewer man-hour costs.

📐 Designing matched configurations based on site space to guarantee production pace.

🛠️ Prompt supply of project materials, tools, equipment, and special merchandise.

❓ FAQ

How can you support us during the bidding phase?

We support you to win projects by providing suitable configurations that help shorten construction time and optimize efficiency.

What technical support do you provide for construction?

We provide all necessary technical documents and advice to support construction procedure clarifications.

How is the number of hydraulic jacks determined?

We can calculate the most suitable number of hydraulic jacks required specifically according to the weight of your tank.

Do you offer accessories at competitive prices?

Yes, we provide suitable hydraulic jack accessories through our long-term business partners to ensure competitive pricing.

Do you provide on-site training or manpower?

We offer site training services, operation services, and can provide manpower or act as a subcontractor for your project.
