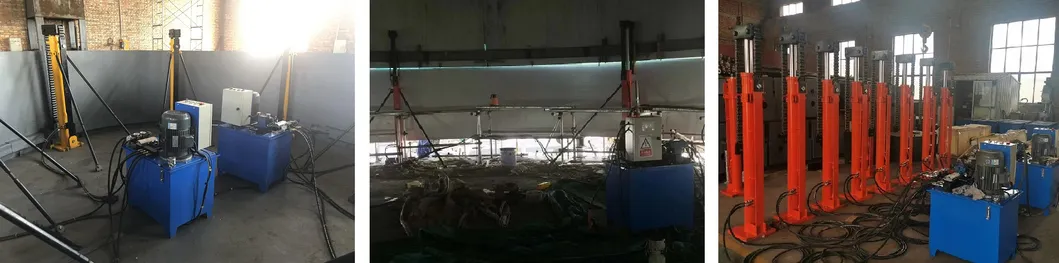

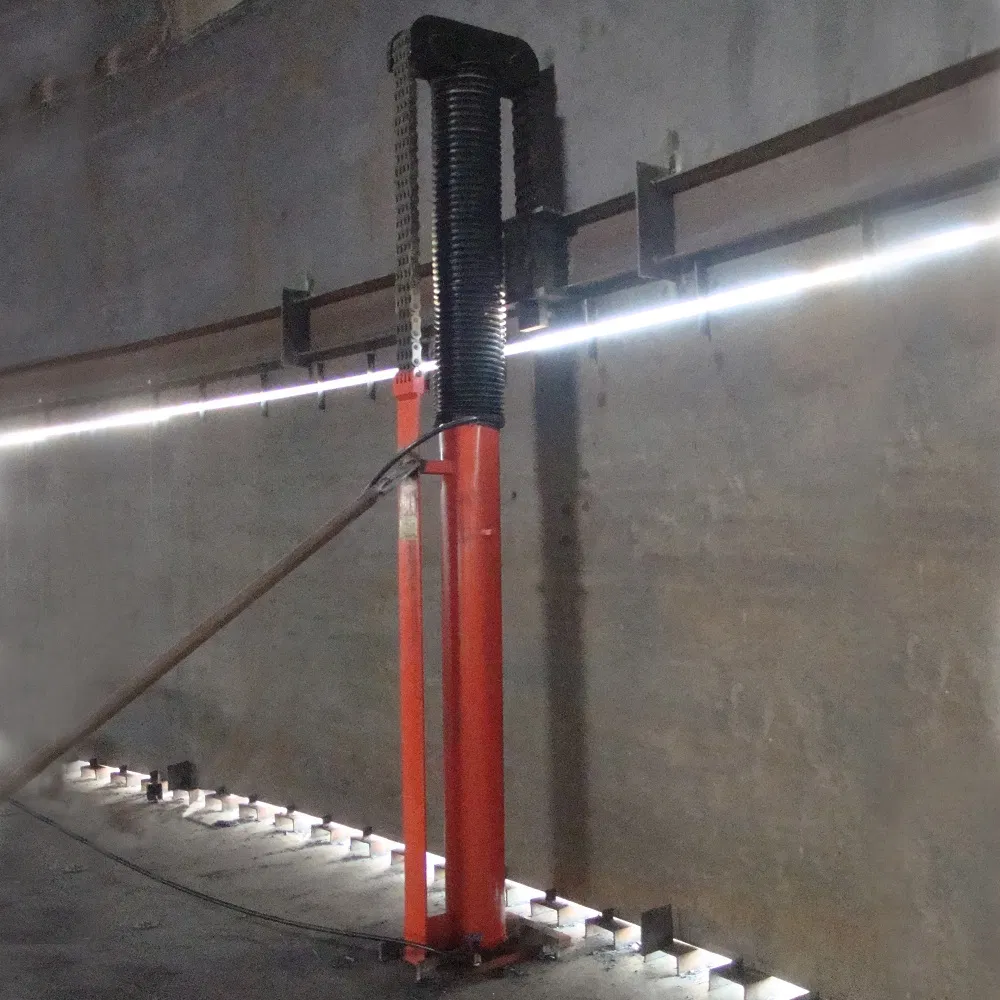

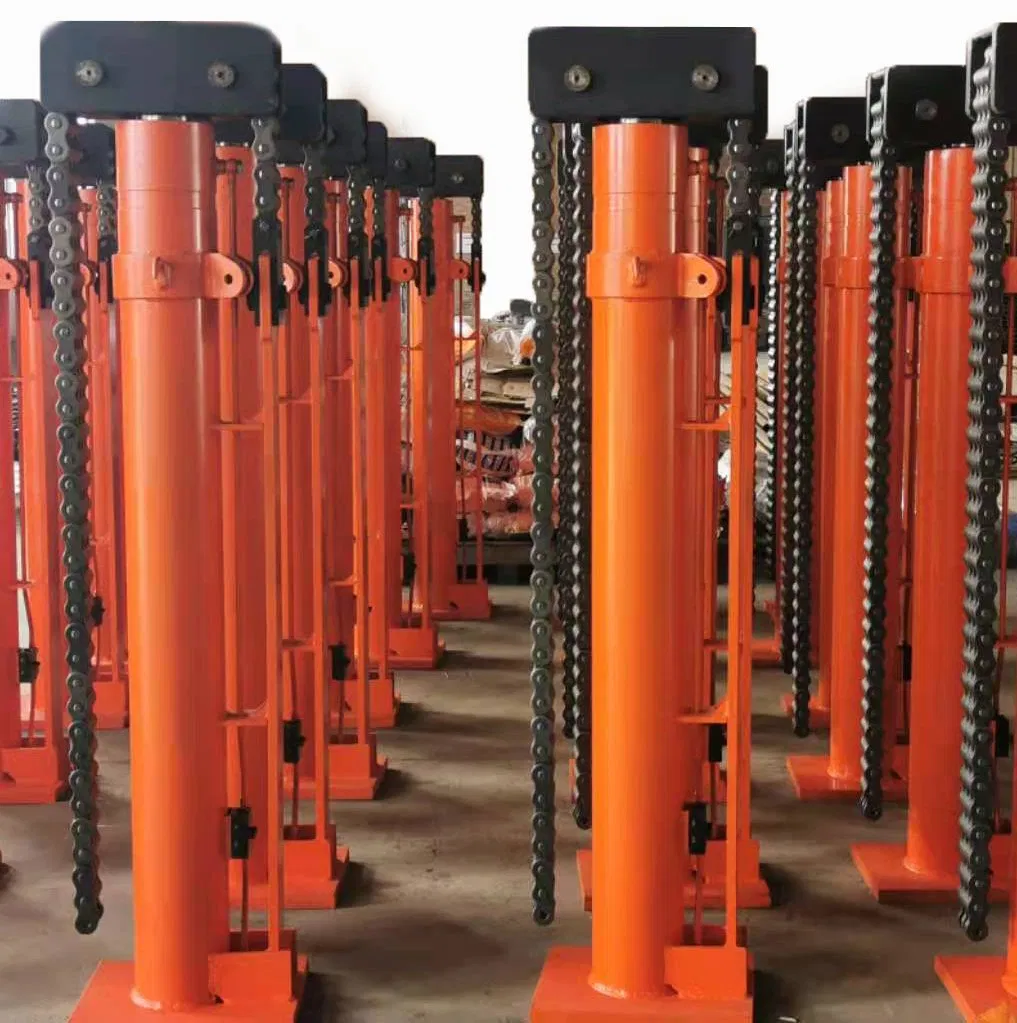

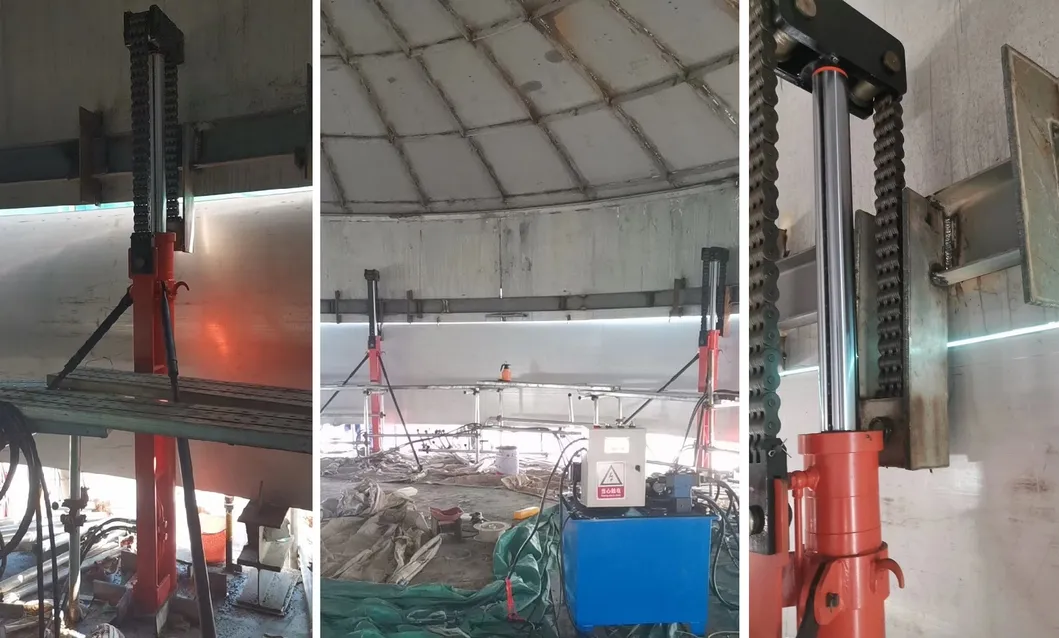

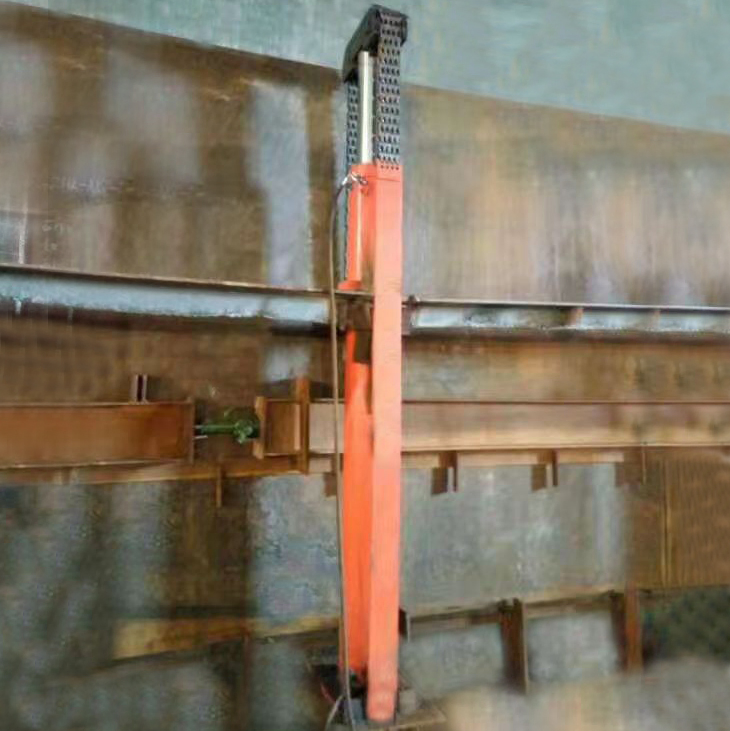

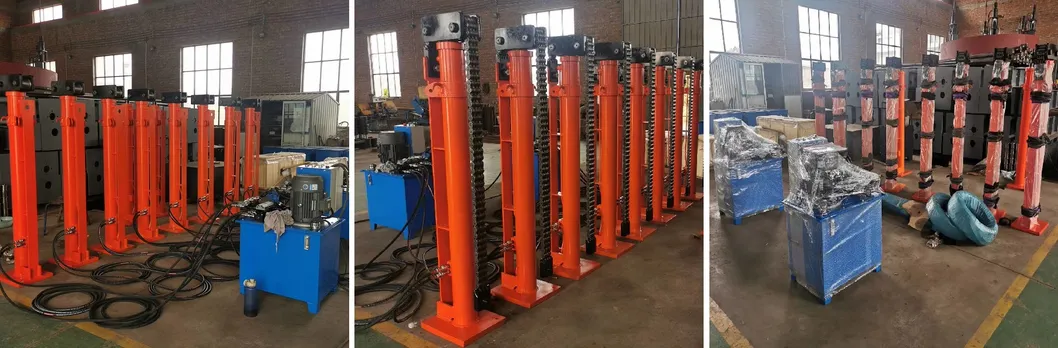

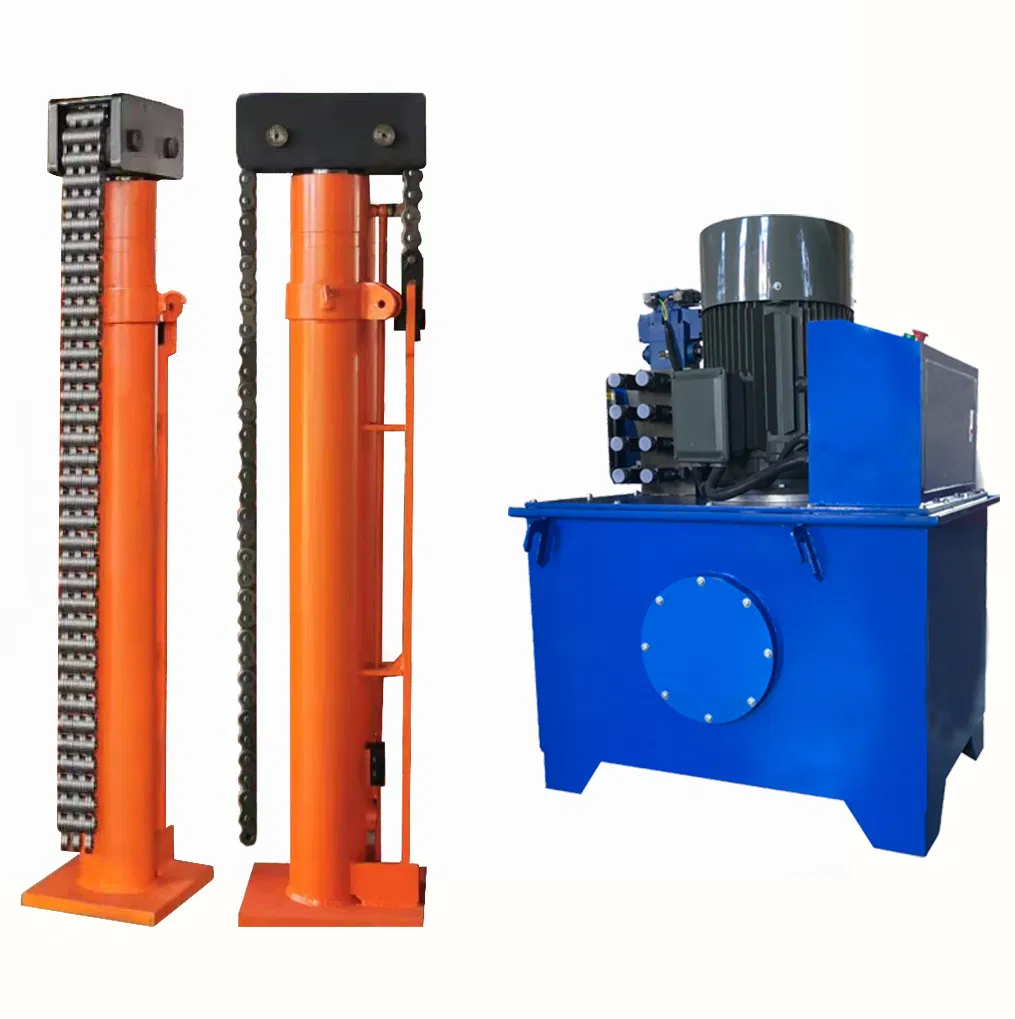

Chain Type Simple Hydraulic Jack: The LYT-type hoist is composed of a one-stage double-acting hydraulic cylinder, pulley block, load-bearing chain, and oil way. A moveable pulley is utilized to enlarge the chain stroke, meaning the traveling distance of the cylinder is 1/2 of the lifting distance of the chain. This system is ideal for the inverted installation and construction of various large steel storage tanks.

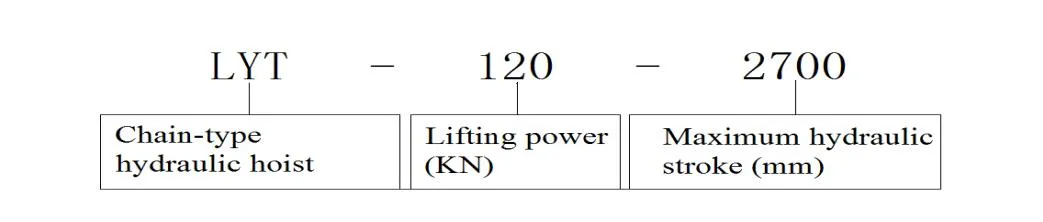

Available models include LYT-120-2700, LYT-200-2700, and LYT-300-2700. Customized strokes are available upon request to meet specific construction requirements.

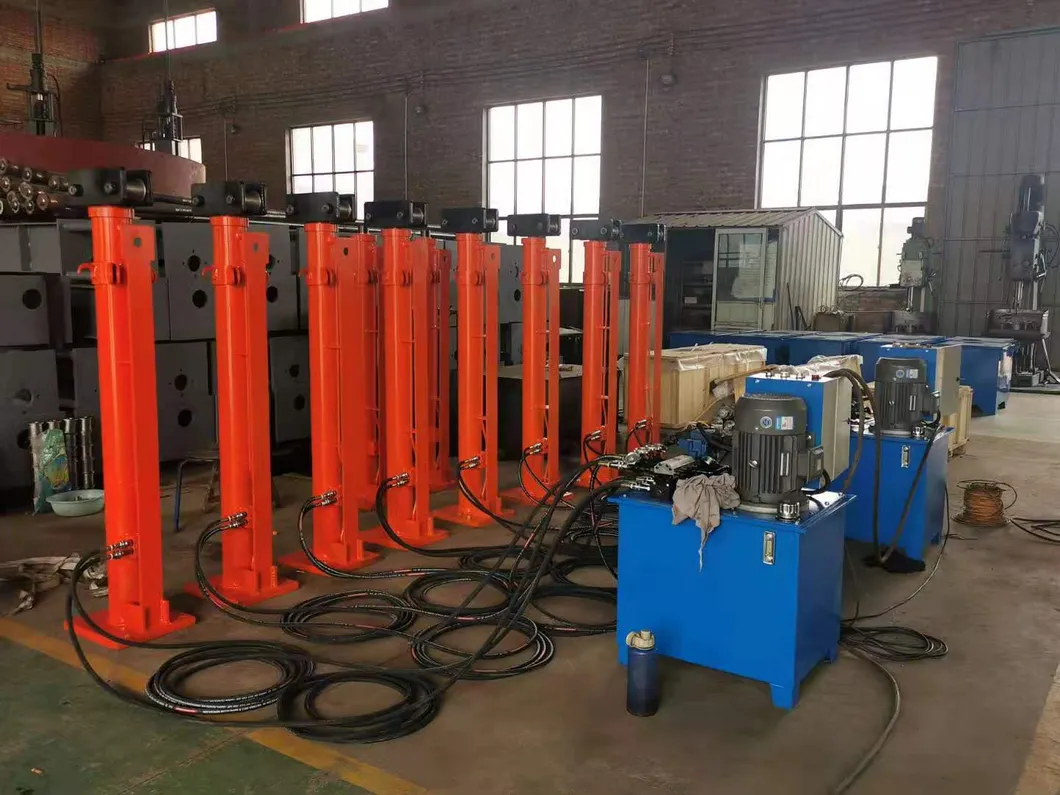

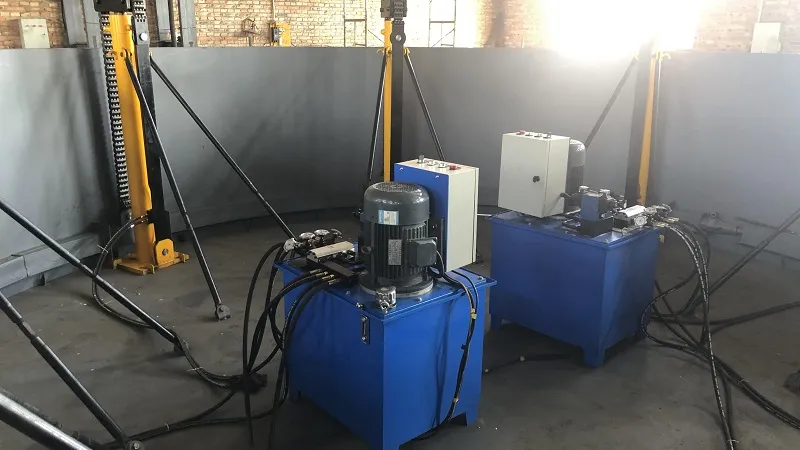

1. Hydraulic Pump Station Specifications
| Model | Tank Volume | Rated Pressure | Rated Flow | Power Source | Control Voltage | Motor Rate |
|---|---|---|---|---|---|---|
| YB-7.2 | 220L | 25Mpa | 7.2L/min | Three-phase 380V | 220V | 5.5kw |
| YB-14.5 | 340L | 25Mpa | 14.5L/min | 220V | 7.5kw |
2. Hoist Performance Parameters
| Model | Lifting Capacity (KN) | Hydraulic Area (mm) | Oil Pressure | Piston Stroke | Chain Stroke | Safety Equipment |
|---|---|---|---|---|---|---|
| LYT-120-2700 | 120 | 11304 | 25 MPa | 1500mm | 2700mm | Double-direction hydraulic lock |
| LYT-200-2700 | 200 | 18859.6 | 25 MPa | 1500mm | 2700mm | |
| LYT-300-2700 | 300 | 25434 | 25 MPa | 1500mm | 2700mm |

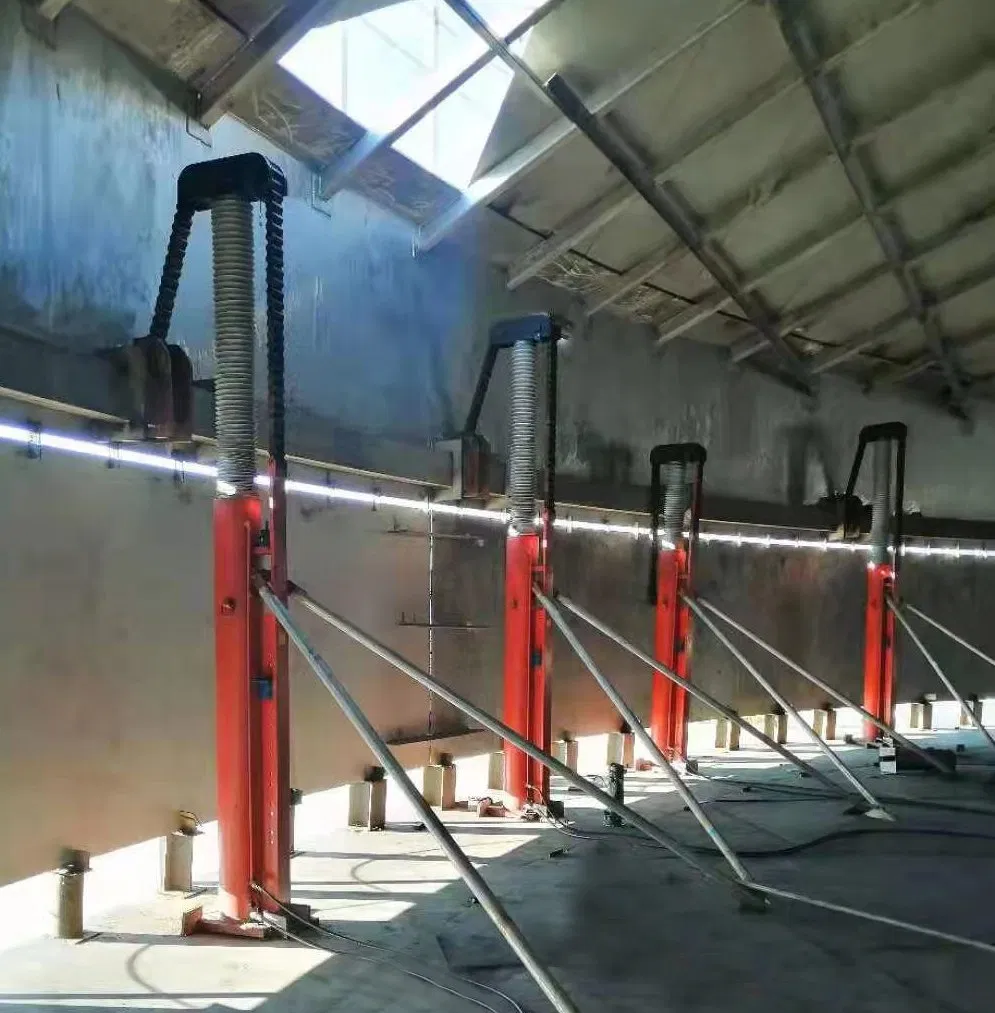

As a specialized hydraulic machinery manufacturer, the focus remains on the design, development, and production of LYT-type chain-type hydraulic hoists and SQD holding-latch hydraulic systems. These products are engineered for the high-precision inverted lifting of steel storage tanks. With over a decade of experience in the market, the equipment has been utilized in numerous large-scale installation projects across various regions, delivering consistent and reliable results.
