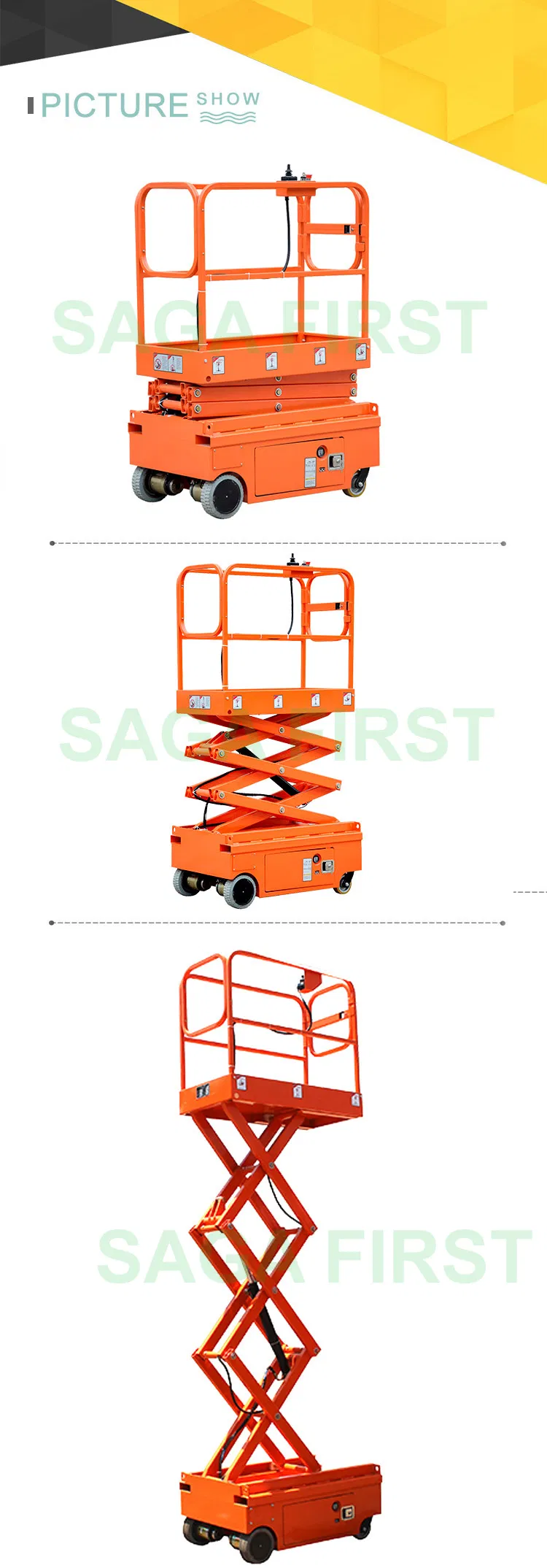

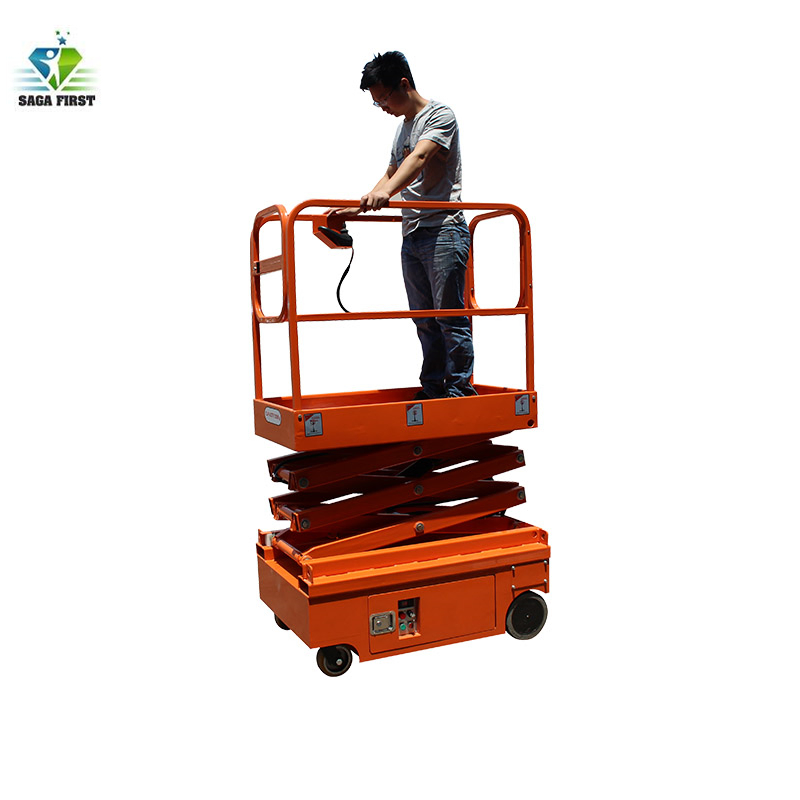

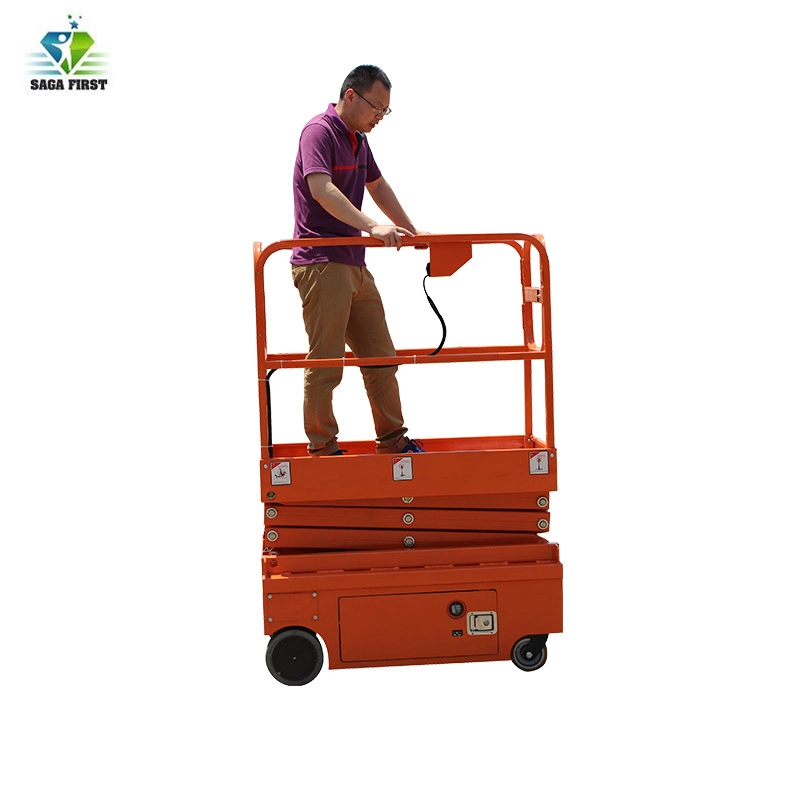

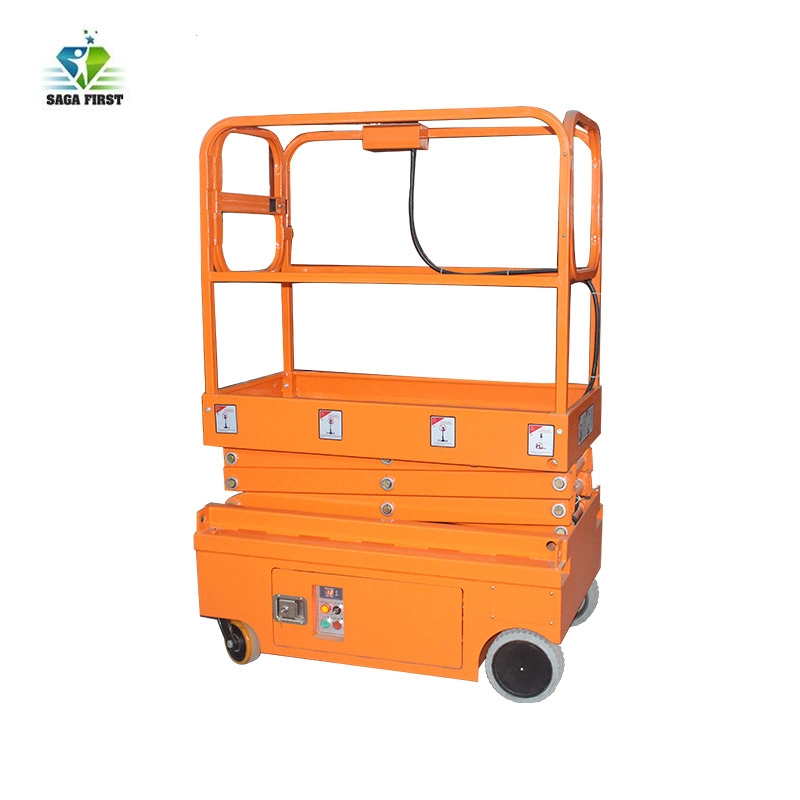

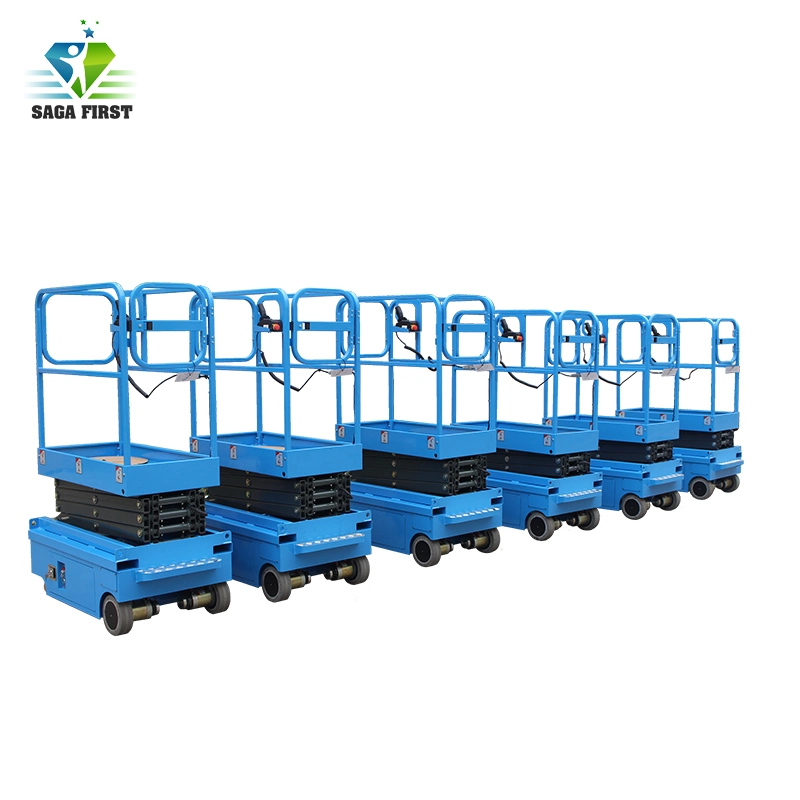

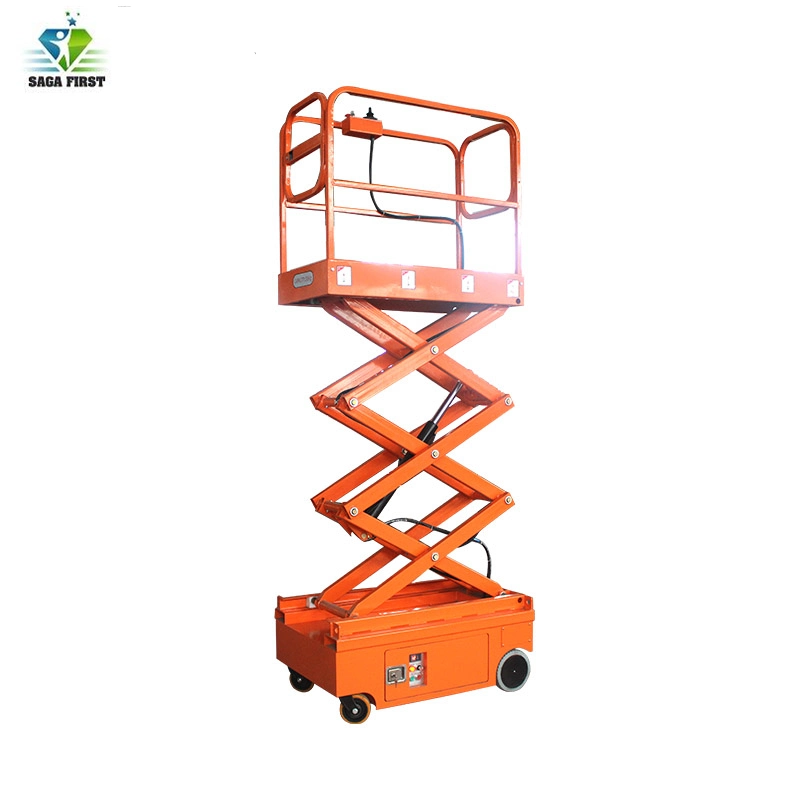

Self Propelled Mini Scissor Lift is equipped with two kinds of motors: a hydraulic lifting motor and an electric driving motor. The hydraulic lifting motor provides power for smooth vertical movement, while the electric driving motor powers forward, backward, and turning maneuvers.
Its compact and modular structure allows it to operate effectively in narrow aisles and limited spaces. The new electric propulsion system ensures quiet and efficient performance.
| Model Type | Unit | SPS3.0 | SPS3.9 |
|---|---|---|---|
| Max. Platform Height | mm | 3000 | 3900 |
| Max. Working Height | mm | 5000 | 5900 |
| Lift Rated Capacity | kg | 300 | 300 |
| Platform Size | mm | 1170*600 | 1170*600 |
| Lifting/Falling Speed | sec | 20/30 | 20/30 |
| Overall Net Weight | kg | 490 | 600 |

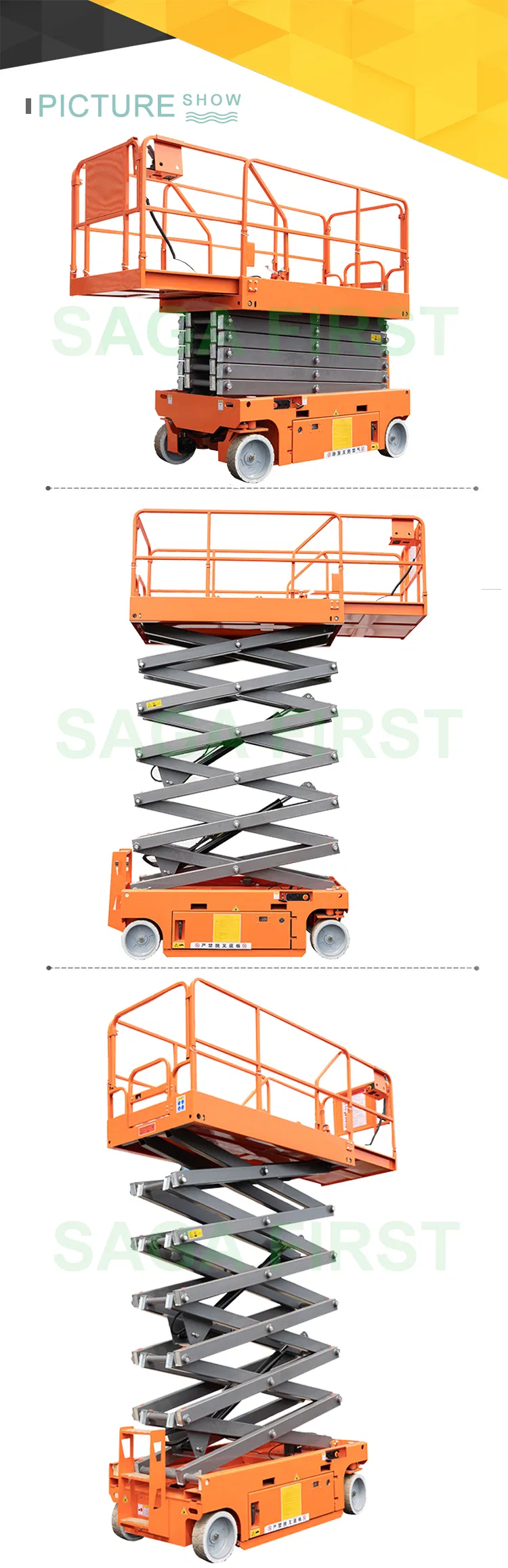

| Model No. | Unit | SP06 | SP08 | SP10 | SP12 |
|---|---|---|---|---|---|
| Lifting capacity | kg | 300 | 300 | 300 | 300 |
| Overall Length | mm | 2400 | 2400 | 2400 | 2400 |
| Overall Width | mm | 1150 | 1150 | 1150 | 1150 |
| Running speed (folding) | km/h | 4 | 4 | 4 | 4 |
| Whole weight | kg | 1900 | 2080 | 2490 | 2760 |
