Precision Heavy-Duty Lifting Solutions for Advanced Electromagnetic Equipment

1 / 5

Precision Heavy-Duty Lifting Solutions for Advanced Electromagnetic Equipment

Customization:	Available
After-sales Service:	7*24hours
Warranty:	7*24hours

Send Inquiry

Product Description

Basic Information

Model NO.:MW5-70L/1

Shape:Round

Color:Red

Electromagnetic Equipment:Y573/Y574aw

Cold Current:15/18 A

Electric Furnace:2t

Application:Lifting & Collecting

Transport Package:Wooden Case, Bear Packing

Specification:700*700*700mm

HS Code:8505901000

Production Capacity:1000 sets/Year

Packaging & Delivery

Package Size:70.00cm * 70.00cm * 70.00cm

Package Gross Weight:1500.000kg

Product Description

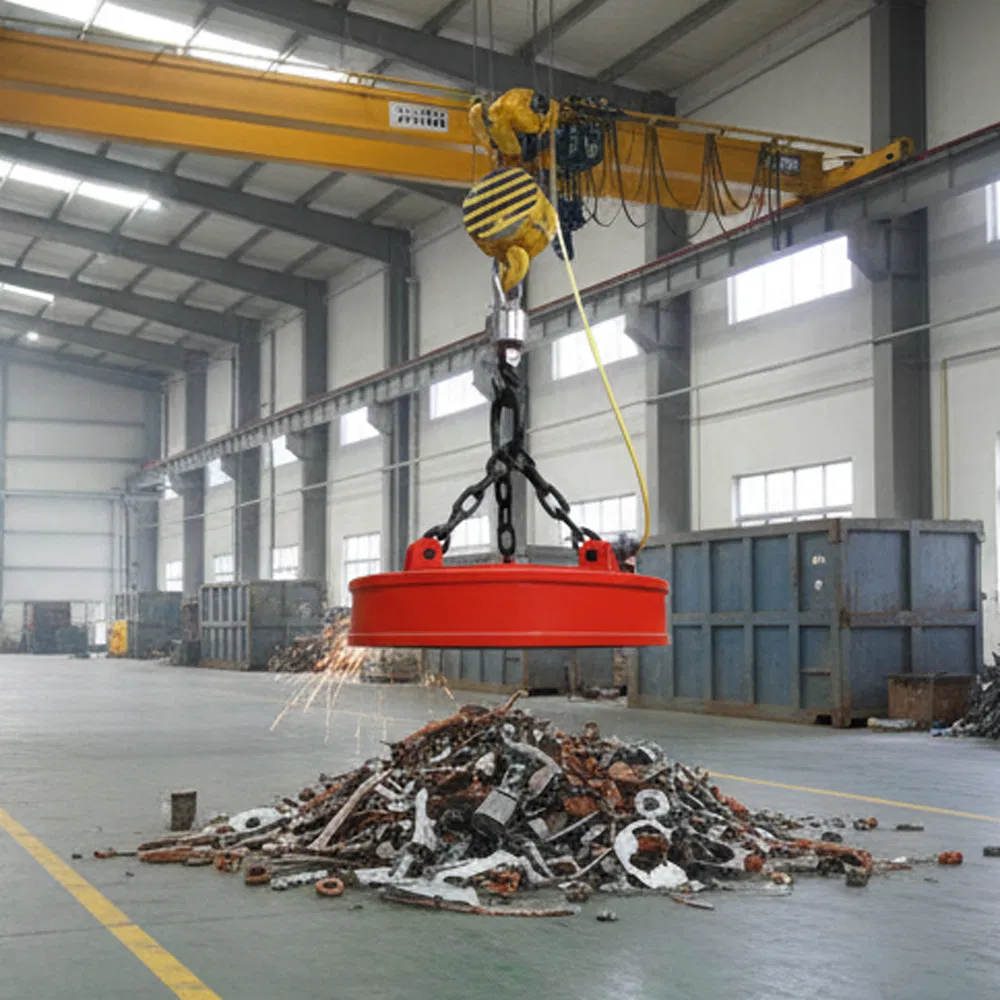

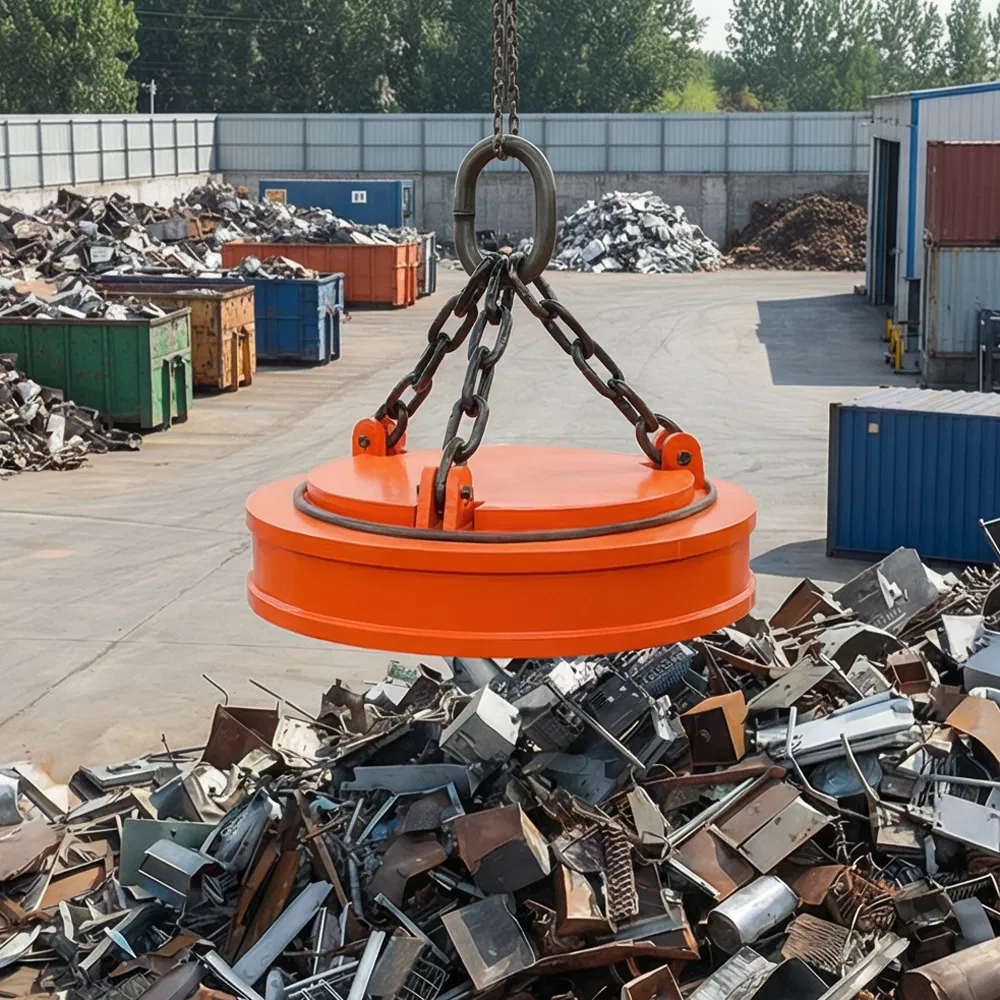

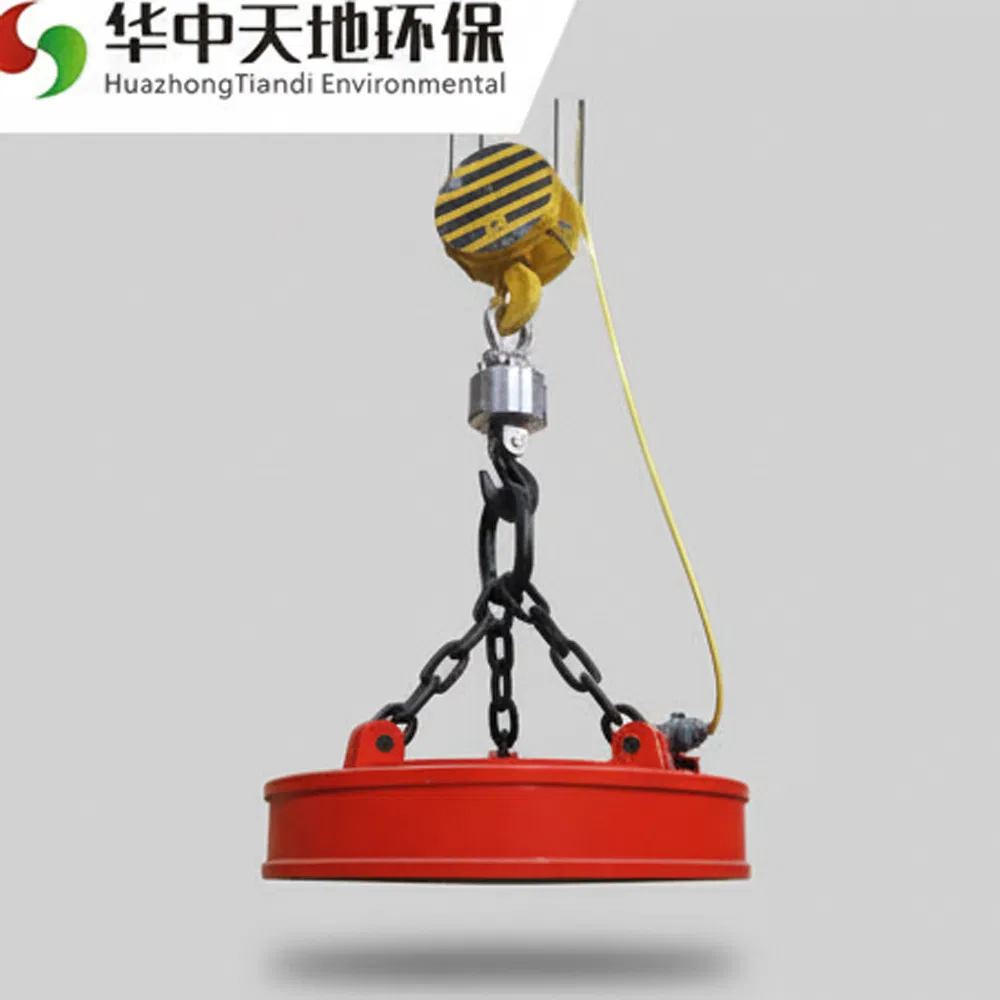

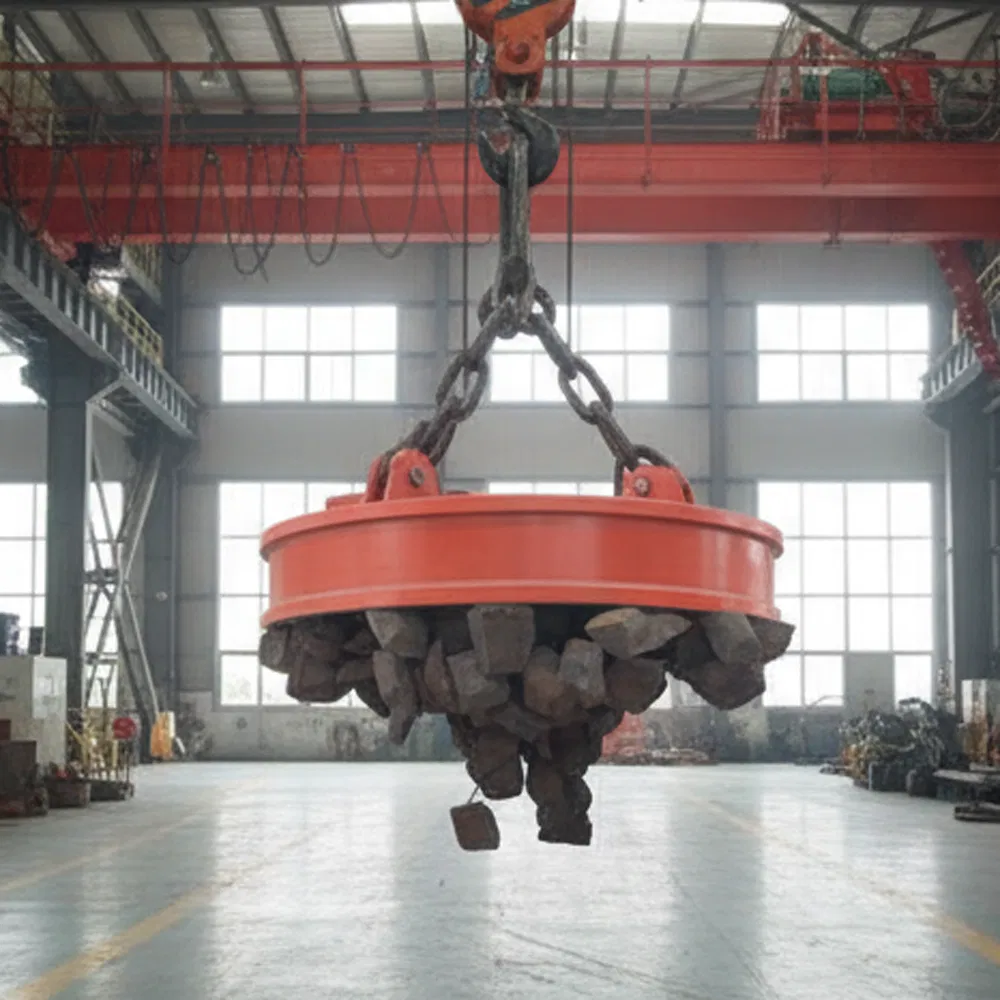

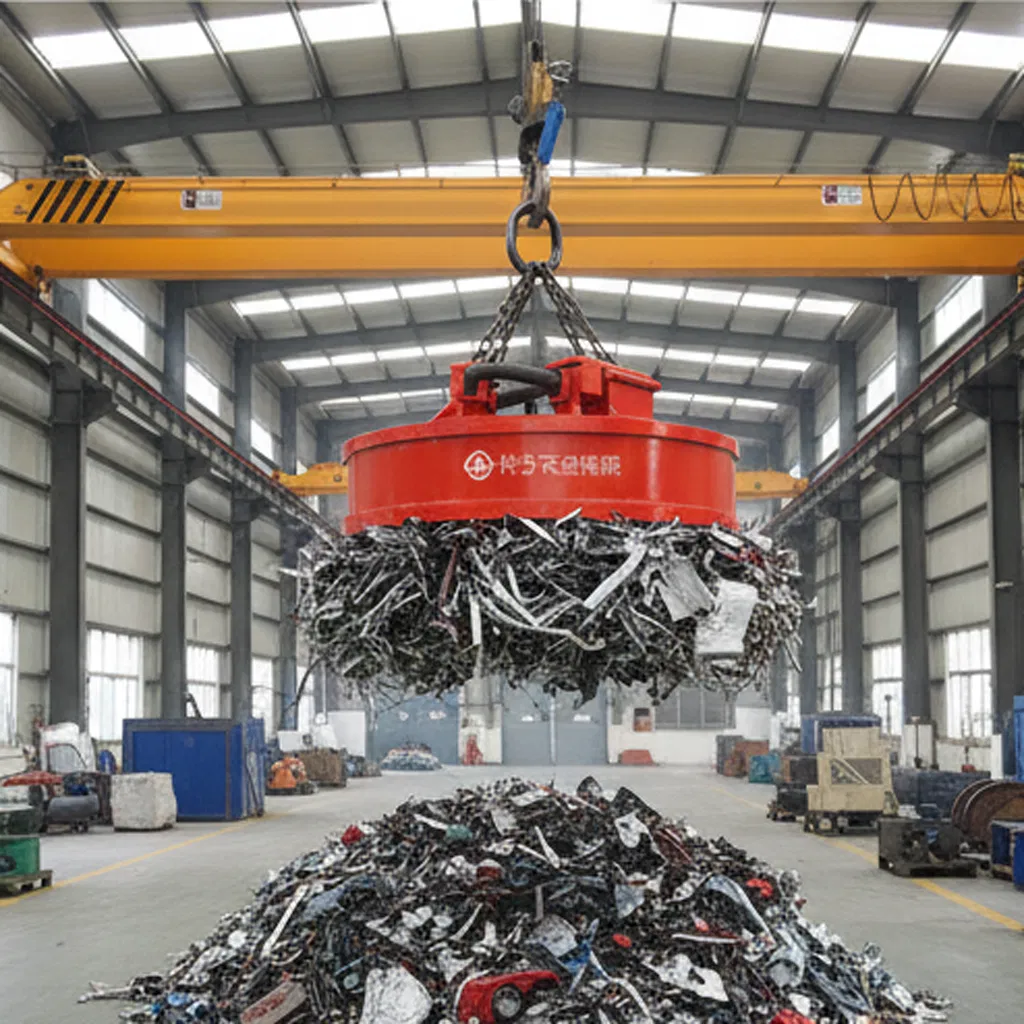

Lifting Electromagnet

The Lifting Electromagnet is crucial, using electric and magnetic forces for material elevation, vital for lifting and moving ferromagnetic materials in metallurgy, mining, machinery, shipbuilding, and transport. It serves as an electromagnetic manipulator, magnetic centering device, and bar length fixer in various industries. Custom materials, electromagnet structures, circuits, and processes form a specialized product range.

Technical Specifications

Model Parameter	MW5-70L/80L	MW5-90L	MW5-110L	MW5-130L	MW5-150L	MW5-165L	MW5-180L	MW5-210L
Diameter (mm)	700/800	900	1100	1300	1500	1650	1800	2100
Self Weight (kg)	500/620	800	1300	2000	2800	3200	4200	6800
Cold Current (A)	15/18	26	35	54	72	75	102	139.5
Cold Power Consumption (kW)	3.3/4	5.85	7.7	11.9	15.6	16.5	22.5	30.7
Pig Iron Capacity (kg)	180-380	250-500	380-750	750-1200	900-1500	1200-2000	1600-2300	2800-3500
Scrap Capacity (kg)	60-200	100-250	180-380	260-500	450-800	800-1200	900-1500	1850-2300

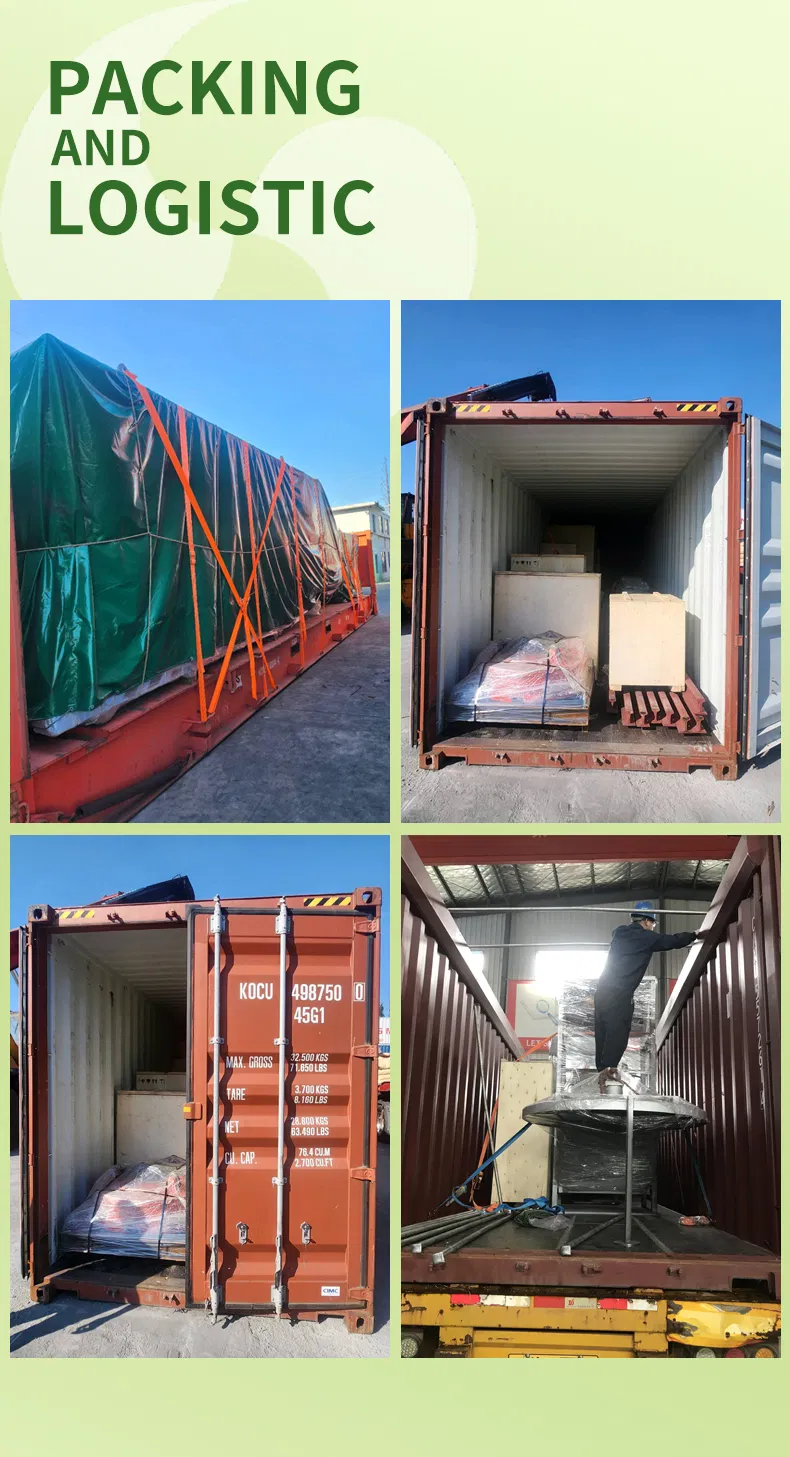

Packing & Logistic

Our Advantages & Certificates

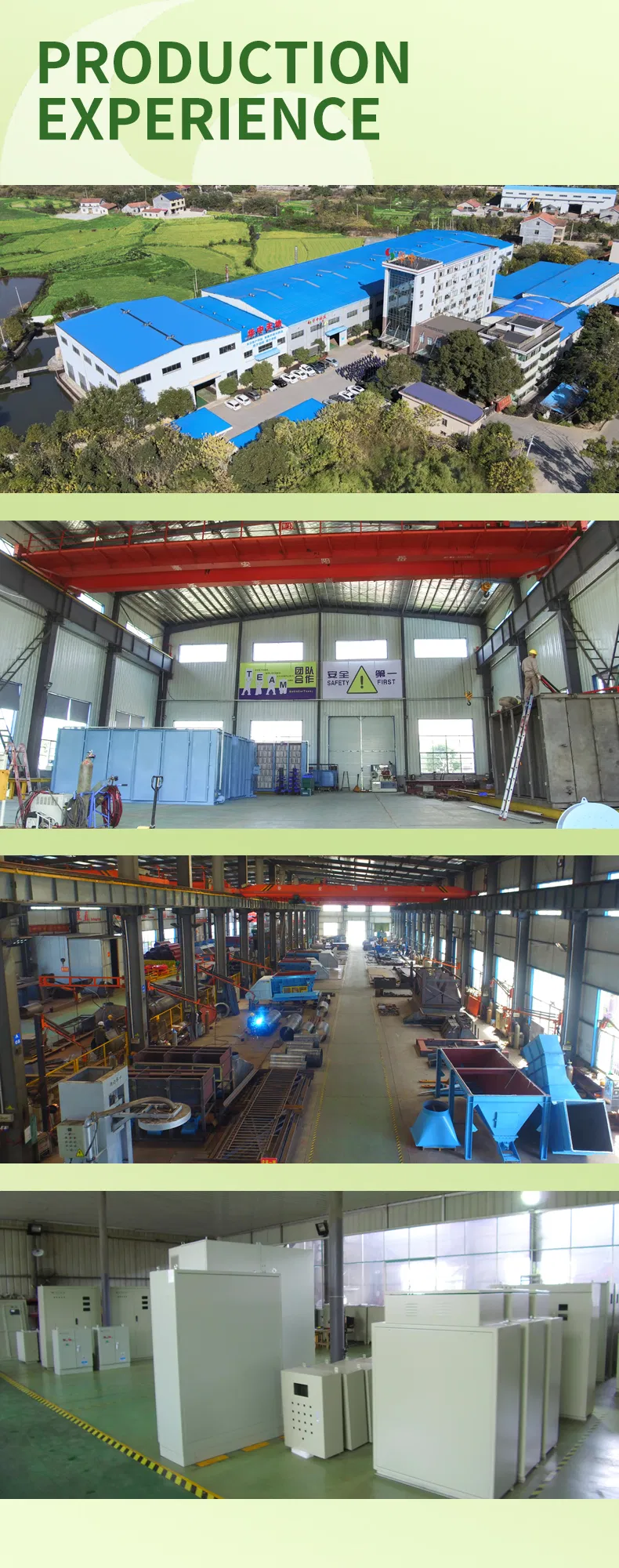

Production Experience & Visits

Shipping Method

Frequently Asked Questions

What materials can be lifted with this electromagnet?

It is designed for ferromagnetic materials, including pig iron, steel scrap, round billets, and iron powder, commonly used in metallurgy and mining.

Is this equipment compatible with different crane types?

Yes, the electromagnetic disc is adaptable to various cranes, including electromagnetic cranes with A7 adapter ratings.

How does the wireless data transmission system work?

The system utilizes a microcomputer iron-fitting scale for wireless digital transmission, allowing for precise weight monitoring and data management without complex wiring.

What is the difference between cold and hot current ratings?

Cold current refers to the initial power draw when the magnet is at ambient temperature. As the magnet heats up during operation, the resistance increases and current naturally decreases.

Can the lifting capacity be customized?

While we provide standard models from MW5-70L to MW5-210L, the structures and circuits can be specialized to meet specific industry requirements.

How is the product protected during shipping?

Products are typically packed in sturdy wooden cases or bear packing to ensure safe transit and protection against moisture and impact.
