Powerful Electromagnetic Lifting Solutions for Robust Heavy-Duty Equipment

1 / 5

Powerful Electromagnetic Lifting Solutions for Robust Heavy-Duty Equipment

Customization:	Available
After-sales Service:	7*24hours
Warranty:	7*24hours

Send Inquiry

Product Description

Basic Product Information

Model NO.:

MW5-70L/1

Shape:

Round

Color:

Red

Electromagnetic Equipment:

Y573/Y574aw

Cold Current:

15/18A

Applicable Furnace:

Application:

Lifting & Collecting

HS Code:

8505901000

Production Capacity:

1000 sets/Year

Product Description

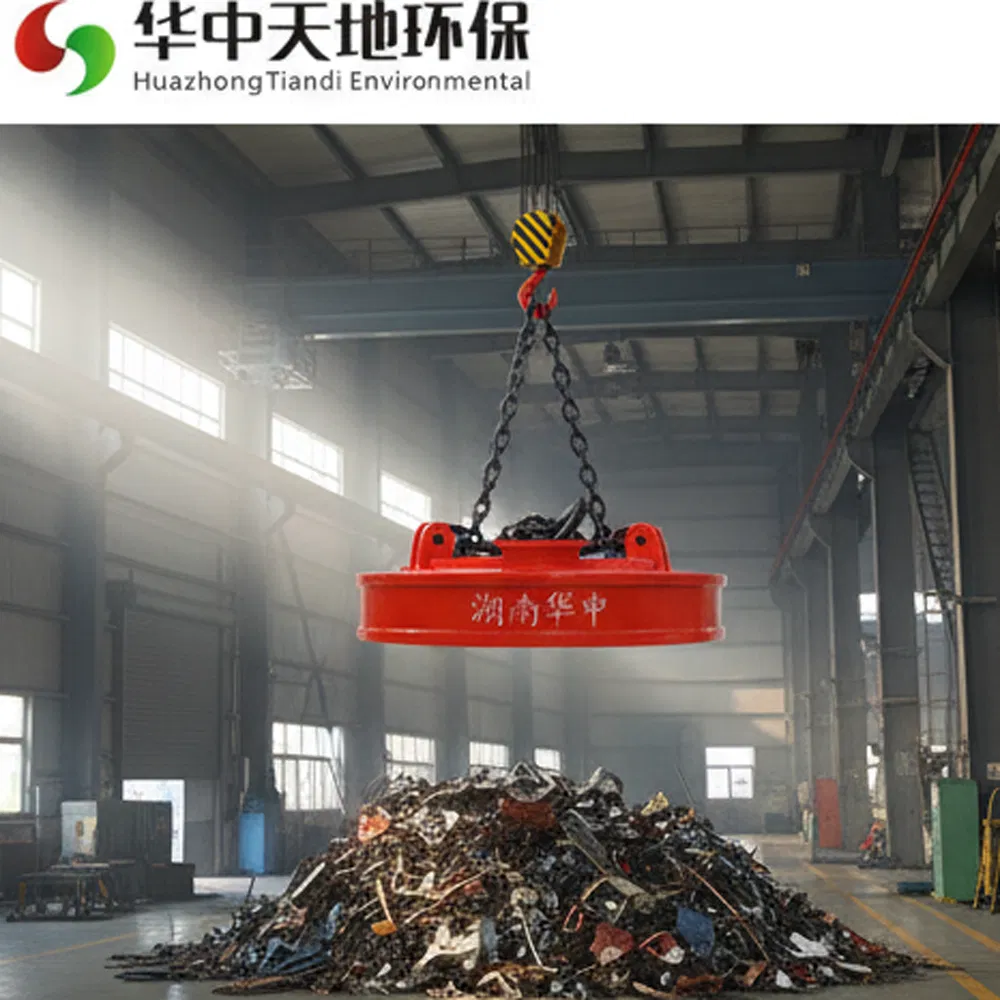

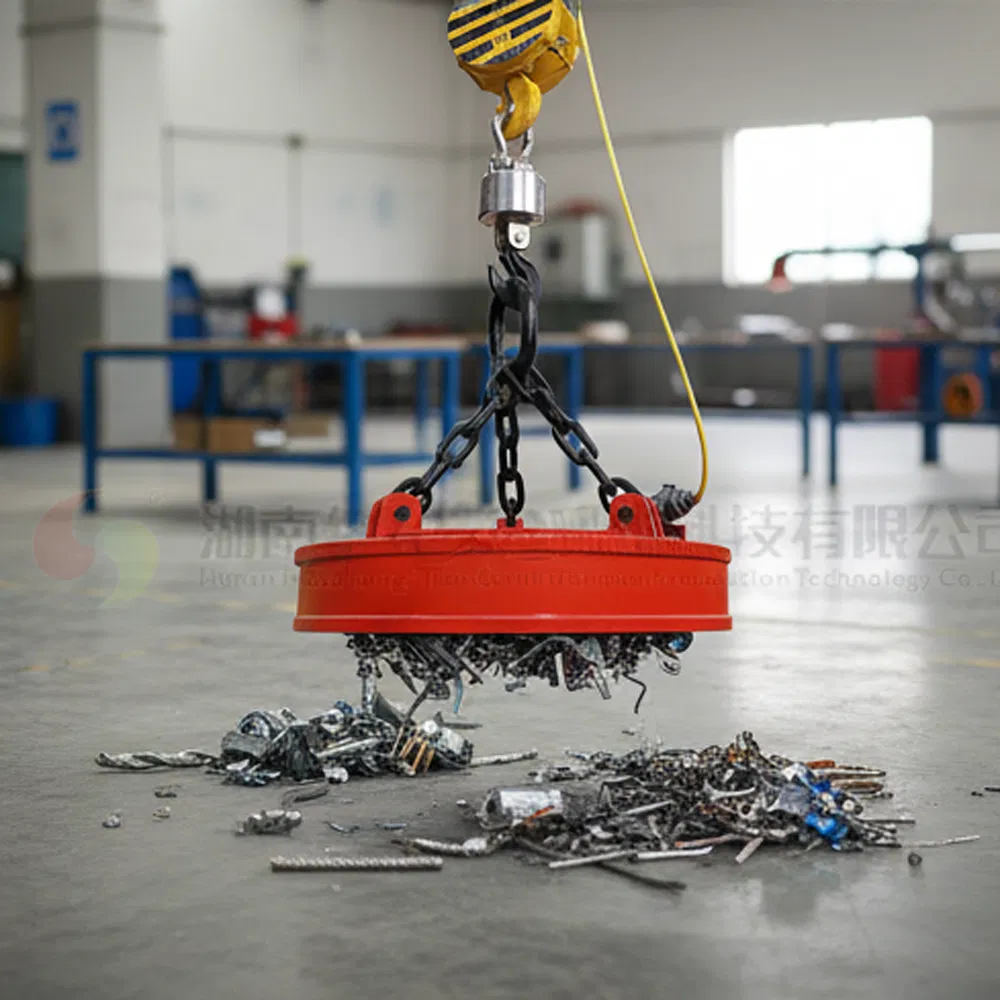

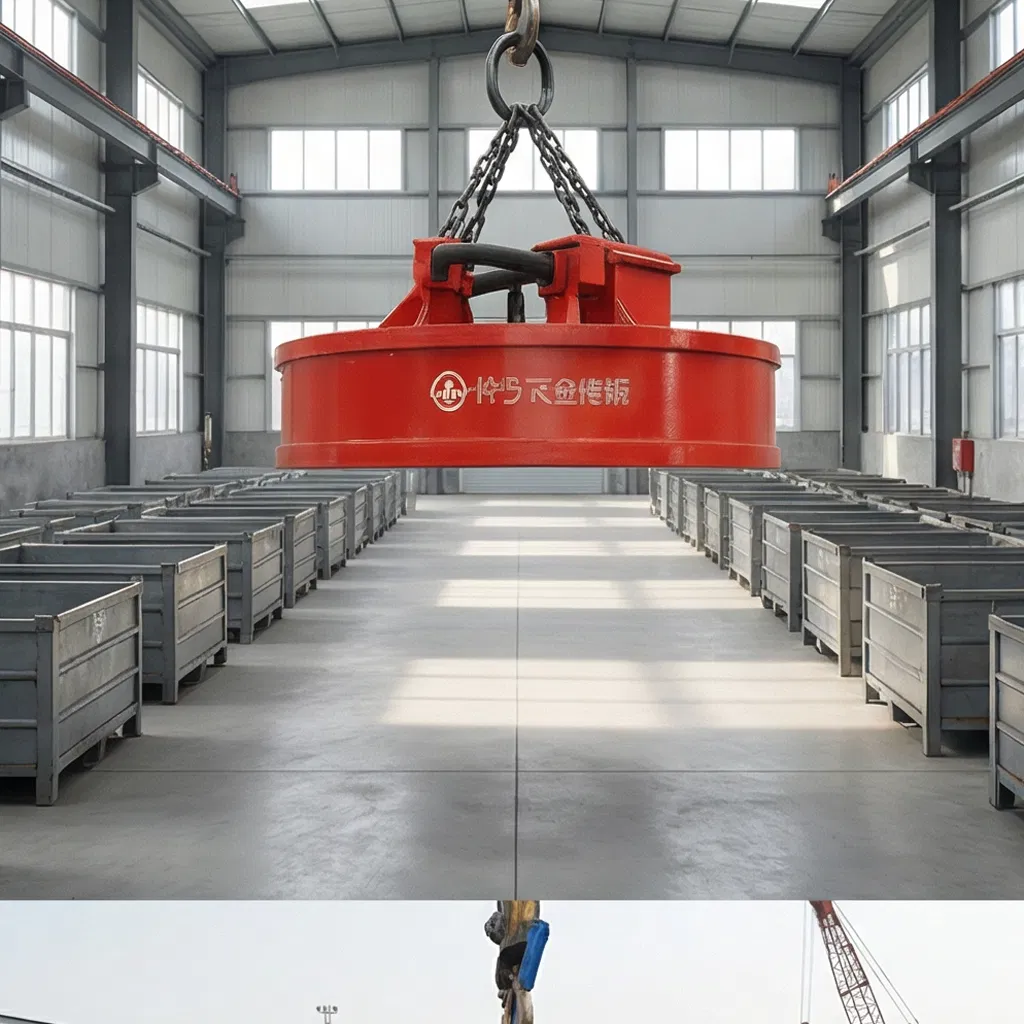

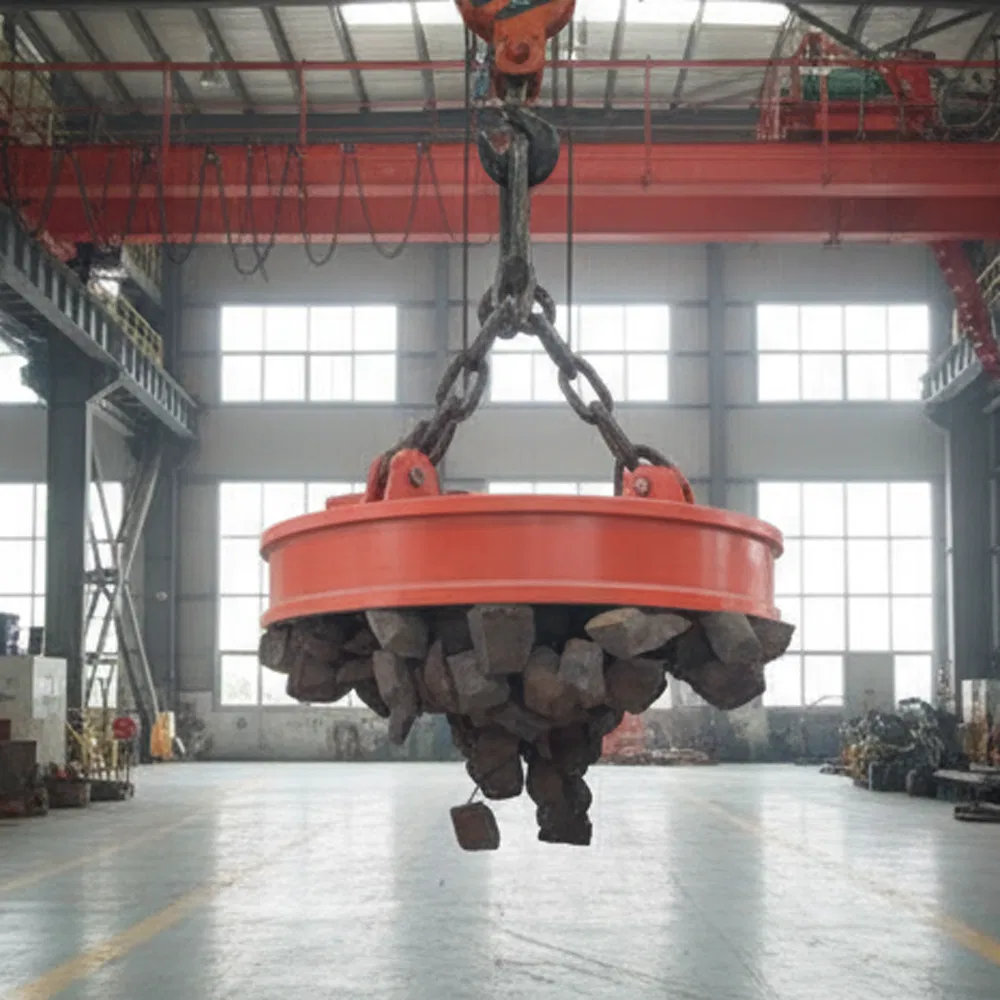

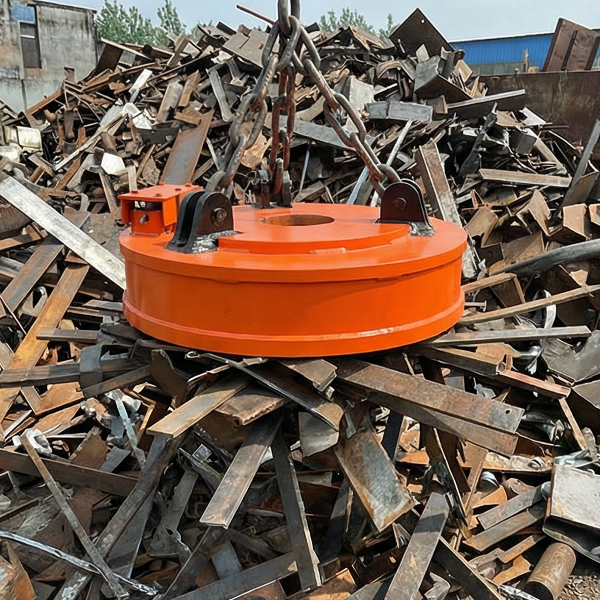

Lifting Electromagnet Solutions
The Lifting Electromagnet is crucial, using electric and magnetic forces for material elevation, essential for lifting and moving ferromagnetic materials in metallurgy, mining, machinery, shipbuilding, and transport. It serves as an electromagnetic manipulator, magnetic centering device, and bar length fixer across industries. Customized materials, electromagnet structures, circuits, and processes form a specialized product range.

Technical Specifications

Model Parameter	MW5-70L/80L	MW5-90L	MW5-110L	MW5-130L	MW5-150L	MW5-165L	MW5-180L	MW5-210L
Diameter (mm)	700/800	900	1100	1300	1500	1650	1800	2100
Weight (kg)	500/620	800	1300	2000	2800	3200	4200	6800
Cold Current (A)	15/18	26	35	54	72	75	102	139.5
Cold Power (kW)	3.3/4	5.85	7.7	11.9	15.6	16.5	22.5	30.7
Lifting Pig Iron (kg)	180-380	250-500	380-750	750-1200	900-1500	1200-2000	1600-2300	2800-3500
Lifting Scrap (kg)	60-200	100-250	180-380	260-500	450-800	800-1200	900-1500	1850-2300

Visual Display & Logistics

Frequently Asked Questions

What materials can be lifted with this electromagnet?

It is designed for ferromagnetic materials including pig iron, scrap steel, steel plates, and various iron-fitting components used in metallurgy and machinery.

How is the lifting capacity determined?

Capacity depends on the model's diameter and current. For example, the MW5-130L can lift between 750-1200kg of pig iron depending on the material's surface and density.

Does the system support wireless data transmission?

Yes, the system is compatible with wireless digital electromagnetic scales and microcomputer iron-fitting systems (e.g., Y573/Y574 series).

What kind of power supply is required?

The equipment requires a DC power supply, typically managed through an integrated rectifier and control cabinet like the WZK or ZQC series.

Is the equipment suitable for high-temperature environments?

Standard models are designed for normal temperatures; however, customized structures are available for specialized industrial furnace applications.

How is the product packaged for international shipping?

Units are typically secured in robust wooden cases or bear packing to ensure safety during long-distance maritime or land transport.
