Product Description

Basic Information

Model NO.

JTC55G6

Certification

GS, RoHS, CE, ISO9001

Condition

New

Maximum Lifting Height

>40m

Maximum Lifting Weight

>16t

Crane Jib

Six-Arm

Type

Straight Arm

Maximum Turning Speed

1.8r/Min

Engine Model

Yck09360

Driving Speed

90km/M

Specification

14400*2800*3750

Product Features

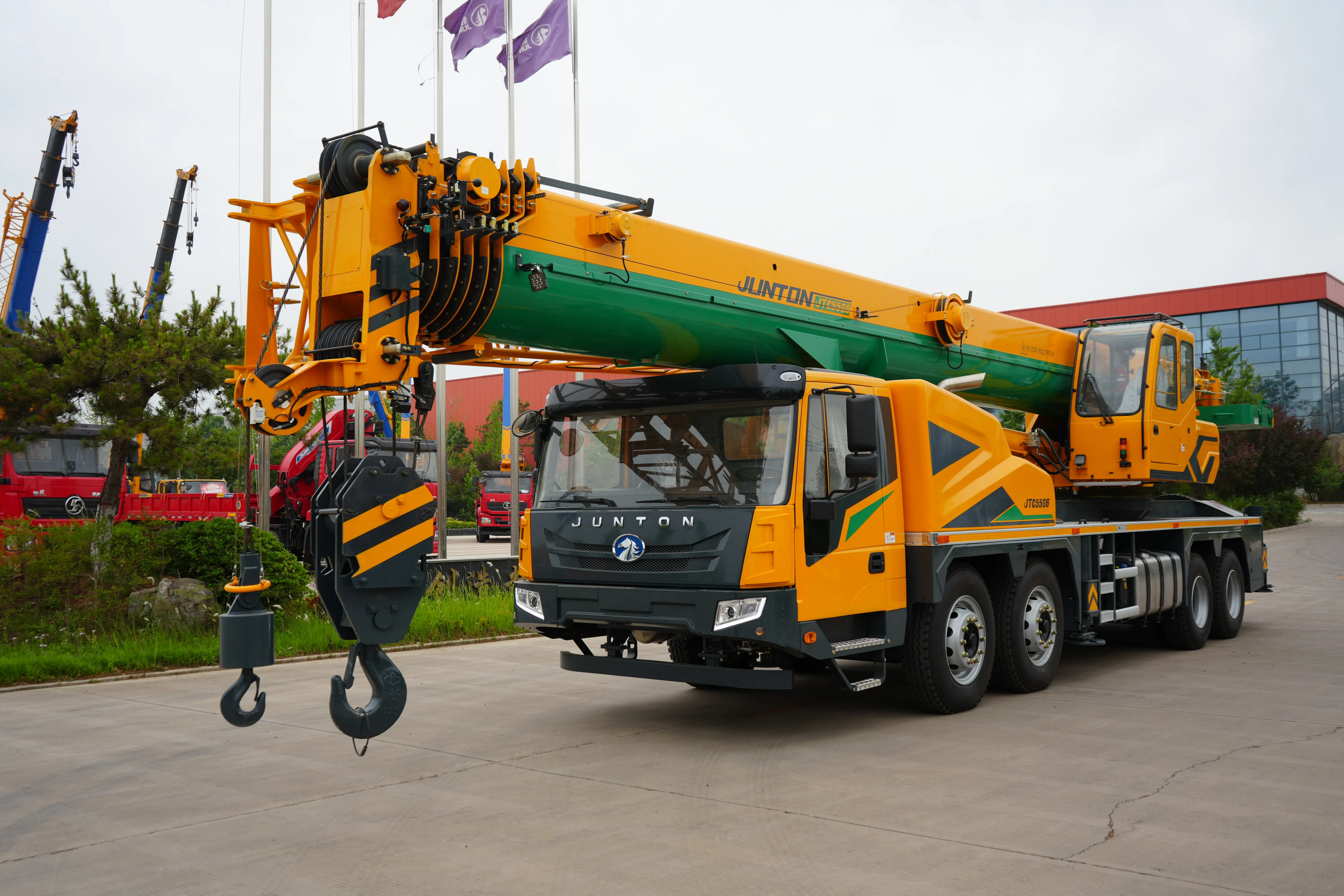

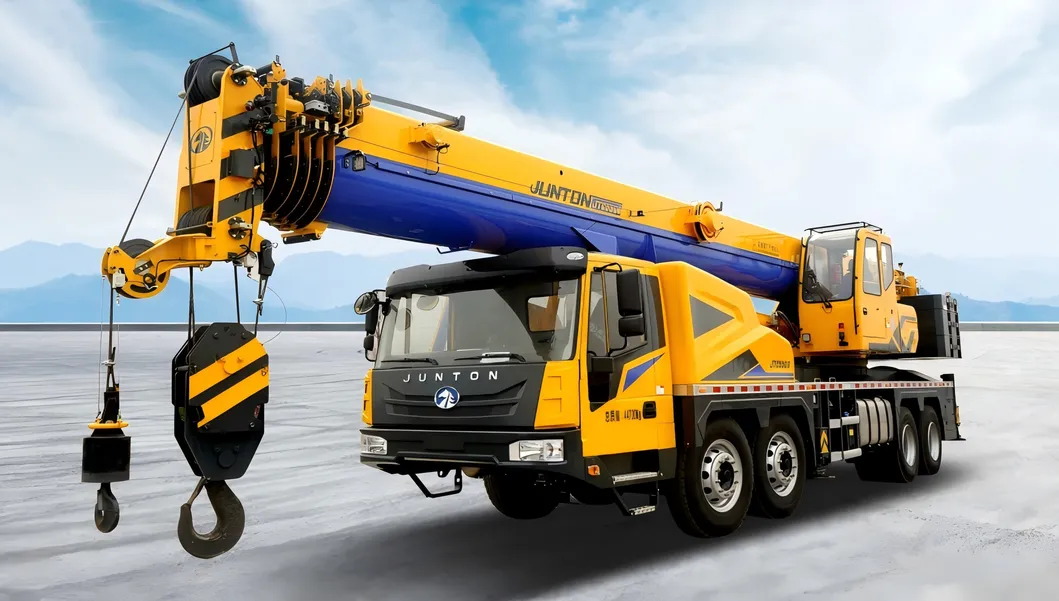

Truck Crane Main View

1New-generation truck crane with patented sixth boom selective telescoping system.
256.9m full extension for six sections; 48m for five sections using high-strength LG960QT steel U-shape boom.
3Max lifting moment reaches 2254kN.m with monolithic boom head and lightweight design.
4Heightened and widened boom sections for significantly stronger load capacity.
5Stable support provided by lower-positioned outriggers spanning 4.65m × 5.1m.
6High-efficiency operation with 1.8r/min slewing speed and 140m/min winch speed.
7Wide-body Chassis with H-type outriggers ensuring lifting stability.
8Equipped with YCK06360 engine and 10-level transmission with synchronizer.
9Max gradeability of 45% with efficient fuel consumption of 42L/100km.
10Equipped with a 560L large fuel tank for 50% increased endurance.

Visual Presentation

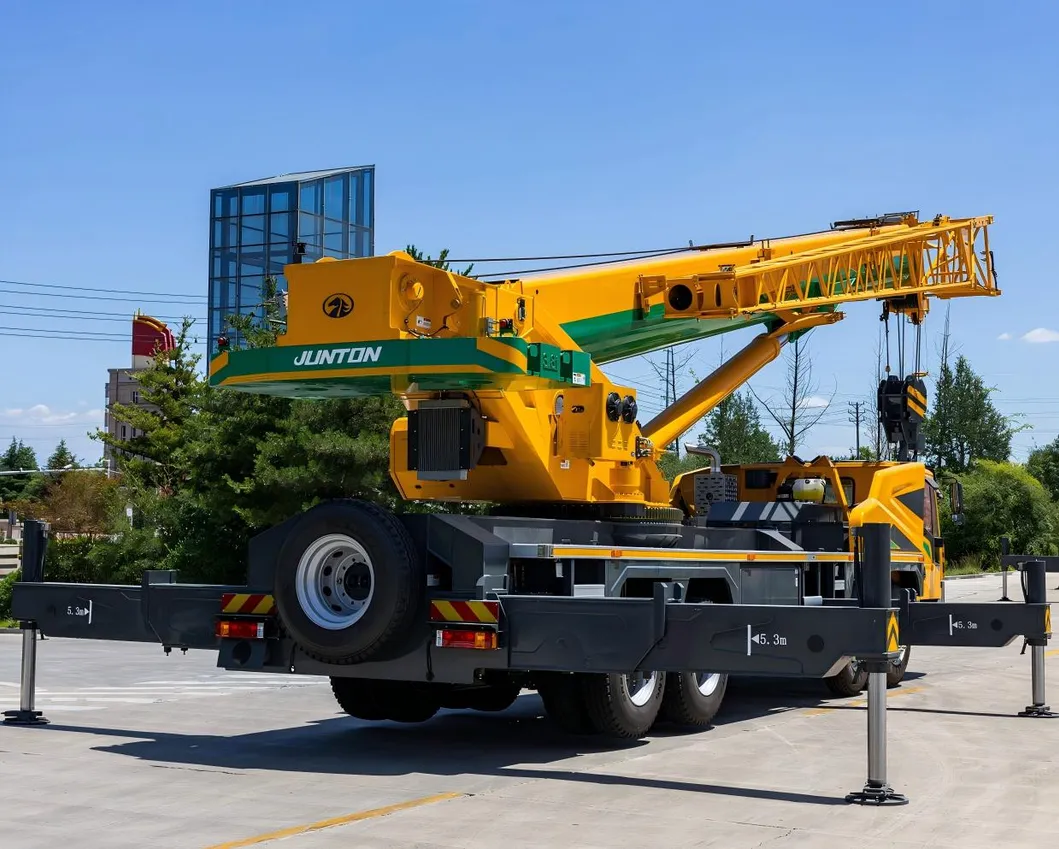

Crane Detail 1

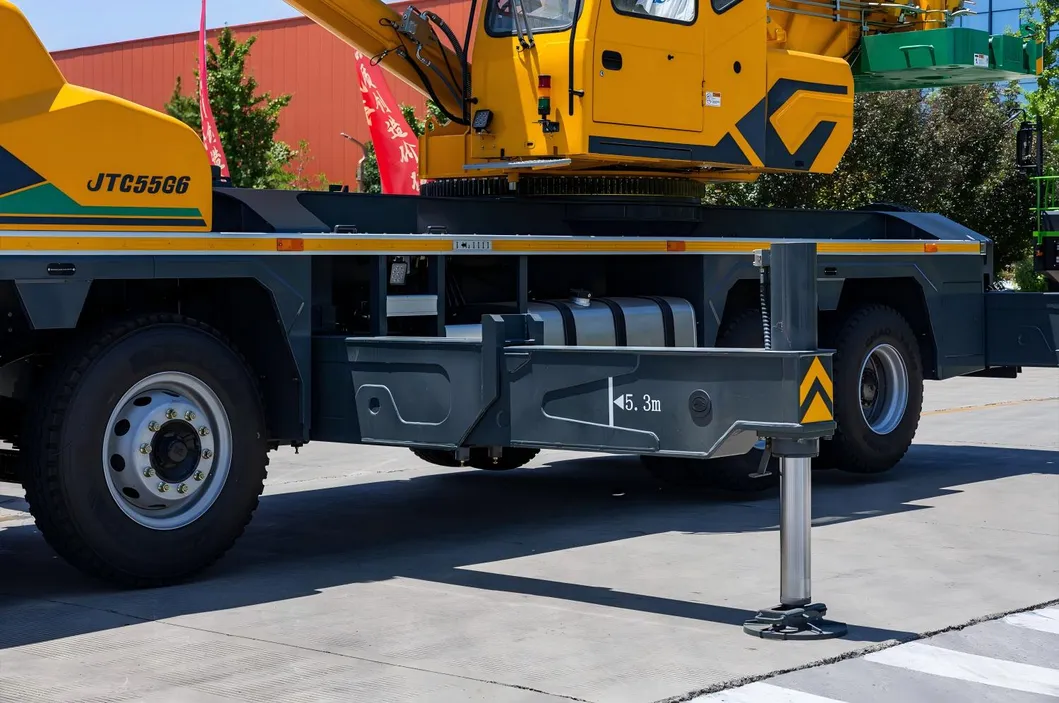

Crane Detail 2

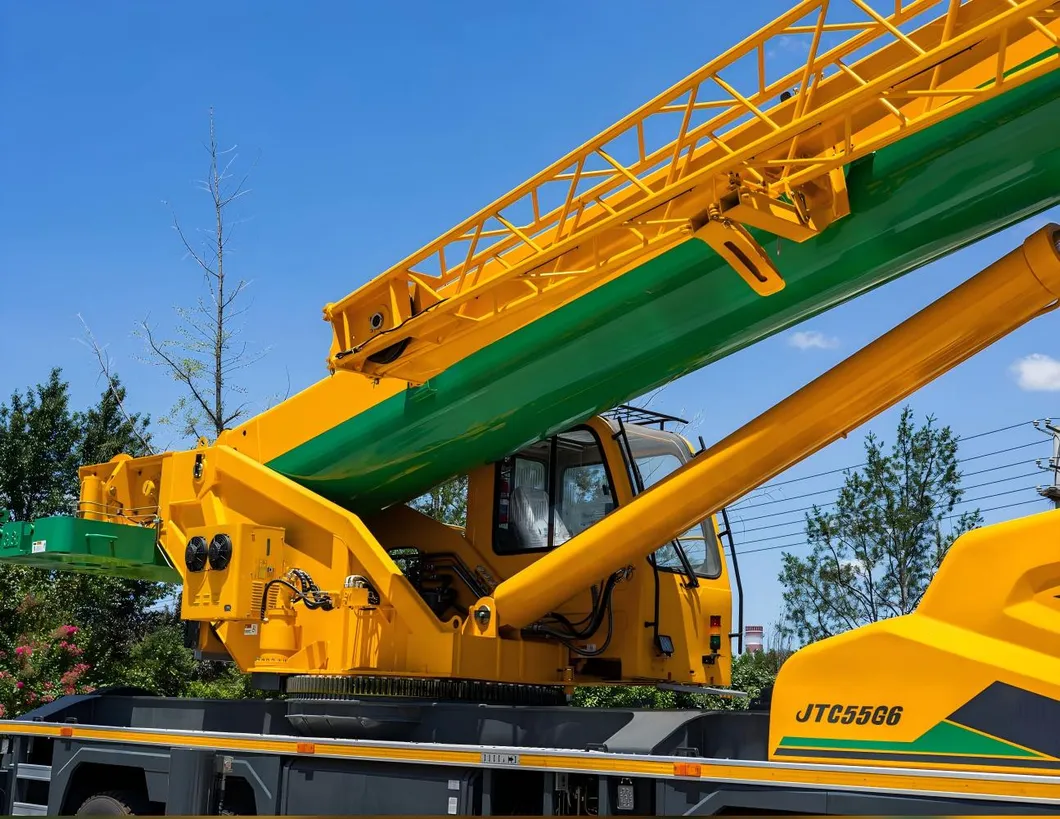

Crane Detail 3

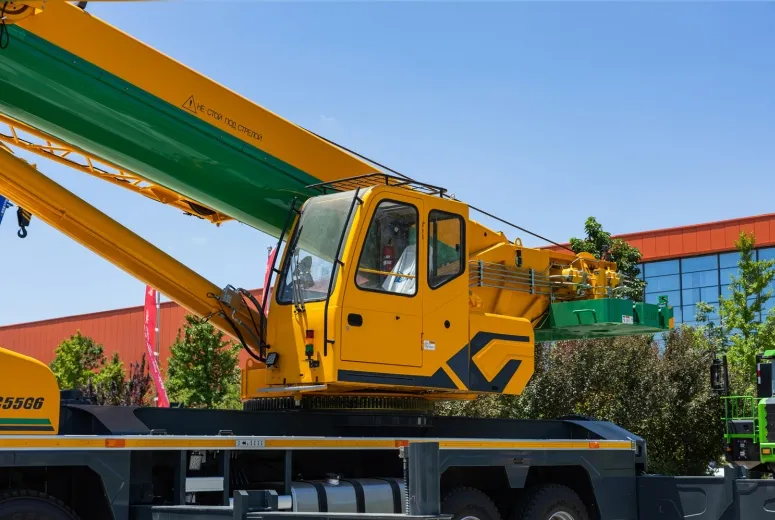

Crane Detail 4

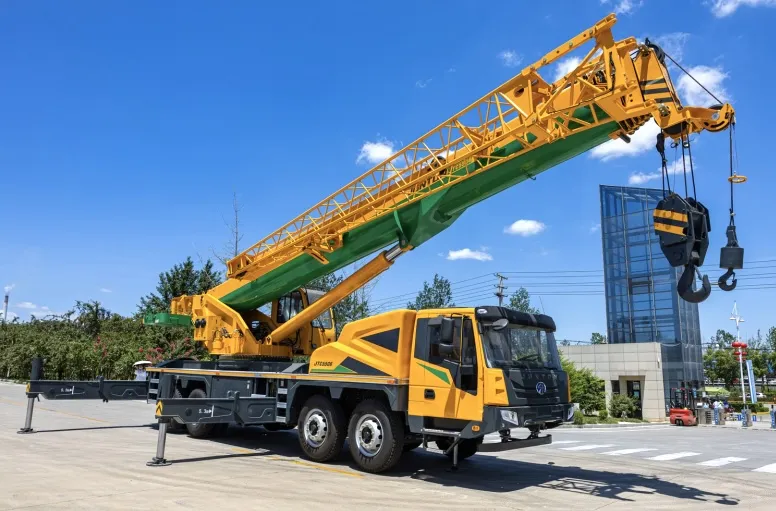

Crane Detail 5

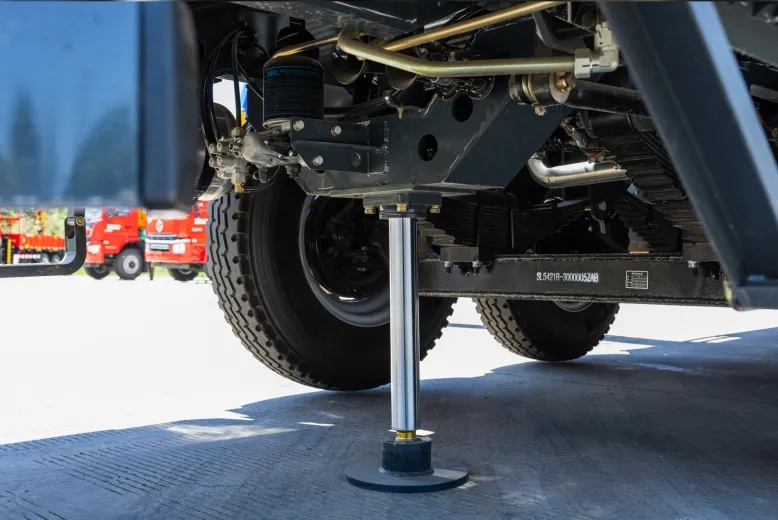

Crane Detail 6

Crane Detail 7

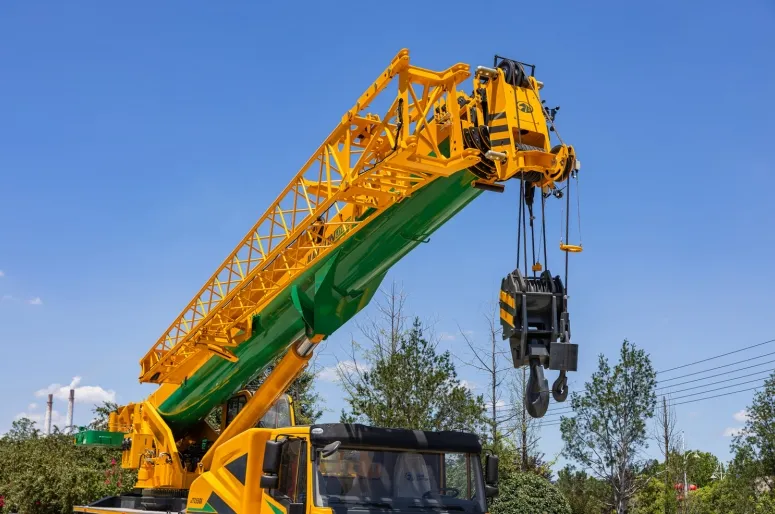

Crane Detail 8

Key Product Parameters

Category	Item	Parameter
Vehicle Dimension	Length (mm)	14670
	Width (mm)	2800
	Height (mm)	3750
Mass	Overall Mass (kg)	44700
Operating Performance	Main Boom Length (m)	12.47 - 48 / 56.9
	Number of Boom Sections	6
	Boom Section Profile	U - type Boom
	Outrigger Span (mm)	6270 × 7800
Operating Speed	Maximum Slewing Speed (r/min)	1.8
Operating Speed	Max Speed of Hoists (m/min)	140

Frequently Asked Questions

What is the maximum boom length of the JTC55G6?

The JTC55G6 features a 6-section main boom with a maximum extension length of 56.9 meters.

What type of steel is used for the boom construction?

The boom is constructed using high-strength LG960QT steel plate with a U-shape large cross-section design for enhanced durability.

How stable is the crane during heavy lifting?

It utilizes a wide-body chassis with H-type outriggers and a large outrigger span (6270×7800mm) to ensure maximum lifting stability.

What are the engine specifications and fuel capacity?

The vehicle is equipped with a high-performance engine (YCK06360/YCK09360) and a 560L fuel tank, which increases endurance by approximately 50%.

What is the maximum driving speed and gradeability?

The truck crane can reach a maximum driving speed of 90 km/h and has a gradeability of 45%, making it suitable for various terrains.

Does the crane come with international certifications?

Yes, the model is certified under GS, RoHS, CE, and ISO9001 standards, ensuring compliance with global safety and quality requirements.
