Heavy-Duty Lifting Solutions with Robust Electromagnetic Device Features

Customization:	Available
After-sales Service:	7*24hours
Warranty:	7*24hours

Send Inquiry

Product Description

Basic Specifications

Model NO.:MW5-70L/1

Shape:Round

Color:Red

Equipment Type:Electromagnetic Lifting Equipment

Cold Current:15/18 A

Applicable Furnace:2t (Set)

Application:Lifting & Collecting

Transport Package:Wooden Case, Bear Packing

Overall Size:700*700*700mm

HS Code:8505901000

Production Capacity:1000 sets/Year

Gross Weight:1500.00kg

Product Description

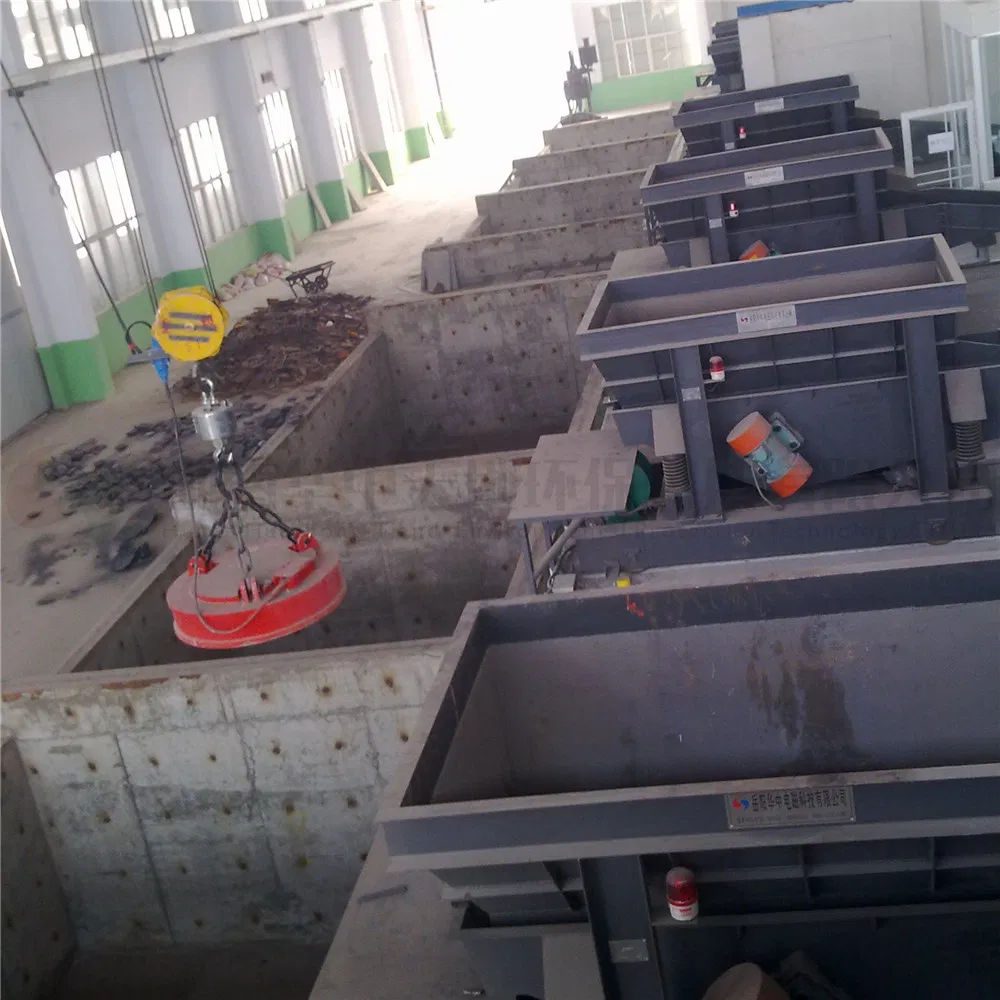

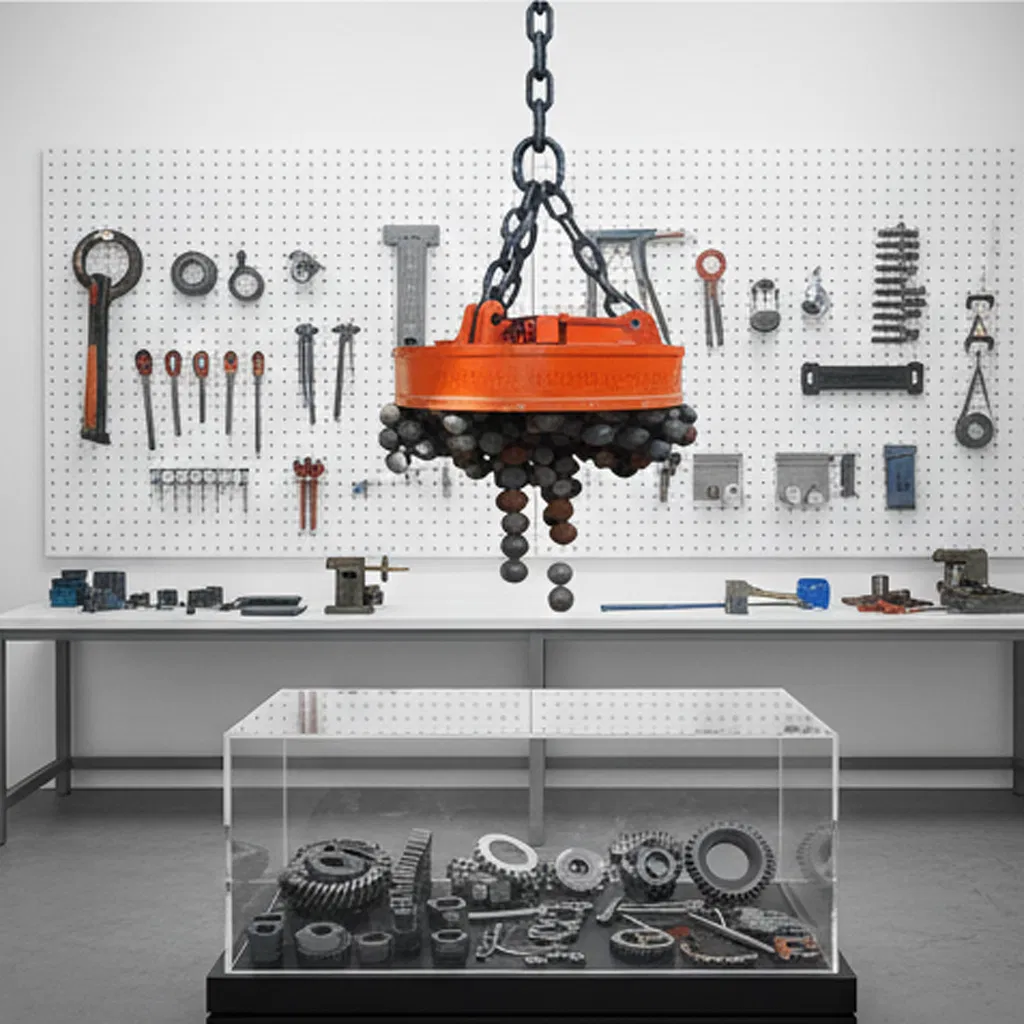

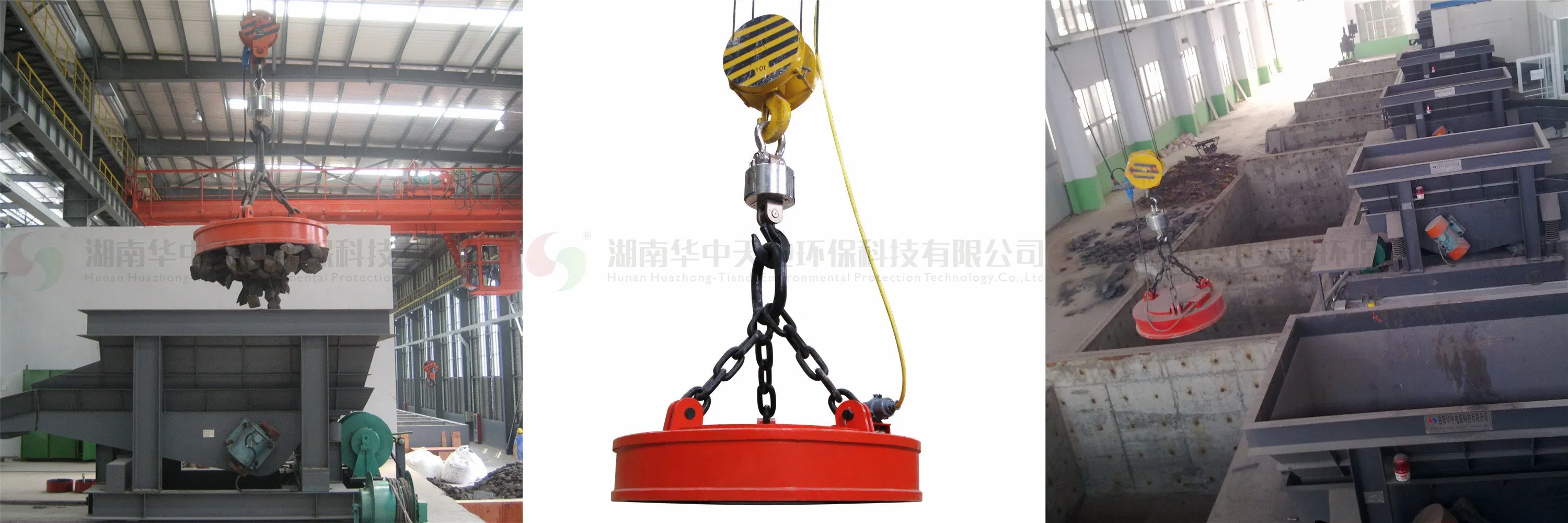

Lifting Electromagnet: This equipment is essential for industrial operations, utilizing combined electric and magnetic forces for efficient material elevation. It is a vital component for lifting and transporting ferromagnetic materials in sectors such as metallurgy, mining, machinery, shipbuilding, and logistics.

Beyond simple lifting, it functions as an electromagnetic manipulator, magnetic centering device, and bar length fixer. Due to the diversity of materials handled, our electromagnets feature unique structures, specialized magnetic circuits, and advanced manufacturing processes to ensure a high-performance, specialized product range.

Technical Specifications

Model Parameter	MW5-70L/80L	MW5-90L	MW5-110L	MW5-130L	MW5-150L	MW5-165L	MW5-180L	MW5-210L
Diameter (mm)	700/800	900	1100	1300	1500	1650	1800	2100
Weight (kg)	500/620	800	1300	2000	2800	3200	4200	6800
Cold Current (A)	15/18	26	35	54	72	75	102	139.5
Power (kW)	3.3/4	5.85	7.7	11.9	15.6	16.5	22.5	30.7
Scrap Capacity (kg)	60-200	100-250	180-380	260-500	450-800	800-1200	900-1500	1850-2300

Visual Showcase & Logistics

Frequently Asked Questions

What materials can be lifted with these electromagnets?

They are specifically designed for ferromagnetic materials, including pig iron, steel scrap, and other magnetic metal components used in metallurgy and shipbuilding.

Are there different models for various furnace sizes?

Yes, we provide models suitable for electric furnaces ranging from 2t up to 50t, with varying ingredient capacities to match your specific requirements.

How is the equipment packaged for international shipping?

We typically use robust wooden cases or specialized bear packing to ensure the electromagnet remains secure and undamaged during long-distance transit.

What are the power requirements for the MW5-70L model?

The MW5-70L model has a cold power consumption of approximately 3.3 to 4.0 kW and operates with a cold current of 15/18 A.

Can this equipment be used with wireless systems?

Yes, our range includes compatibility with wireless data transmission microcomputer iron-fitting systems and wireless digital electromagnetic iron scales.

What industries benefit most from lifting electromagnets?

Key industries include metallurgy, mining, heavy machinery manufacturing, shipbuilding, and transport/logistics centers.
