Versatile Heavy-Duty Lifting Solutions with Robust Electromagnetic Technology

Customization:	Available
After-sales Service:	7*24hours
Warranty:	7*24hours

Send Inquiry

Product Description

Basic Information

Model NO.

MW5-70L/1

Shape

Round

Color

Red

Electromagnetic Lifting

Y573/Y574aw

Cold Current (A)

15/18

Applicable Furnace

Application

Lifting & Collecting

Transport Package

Wooden Case

Specification

700*700*700mm

HS Code

8505901000

Production Capacity

1000 sets/Year

Package Gross Weight

1500.00kg

Product Description

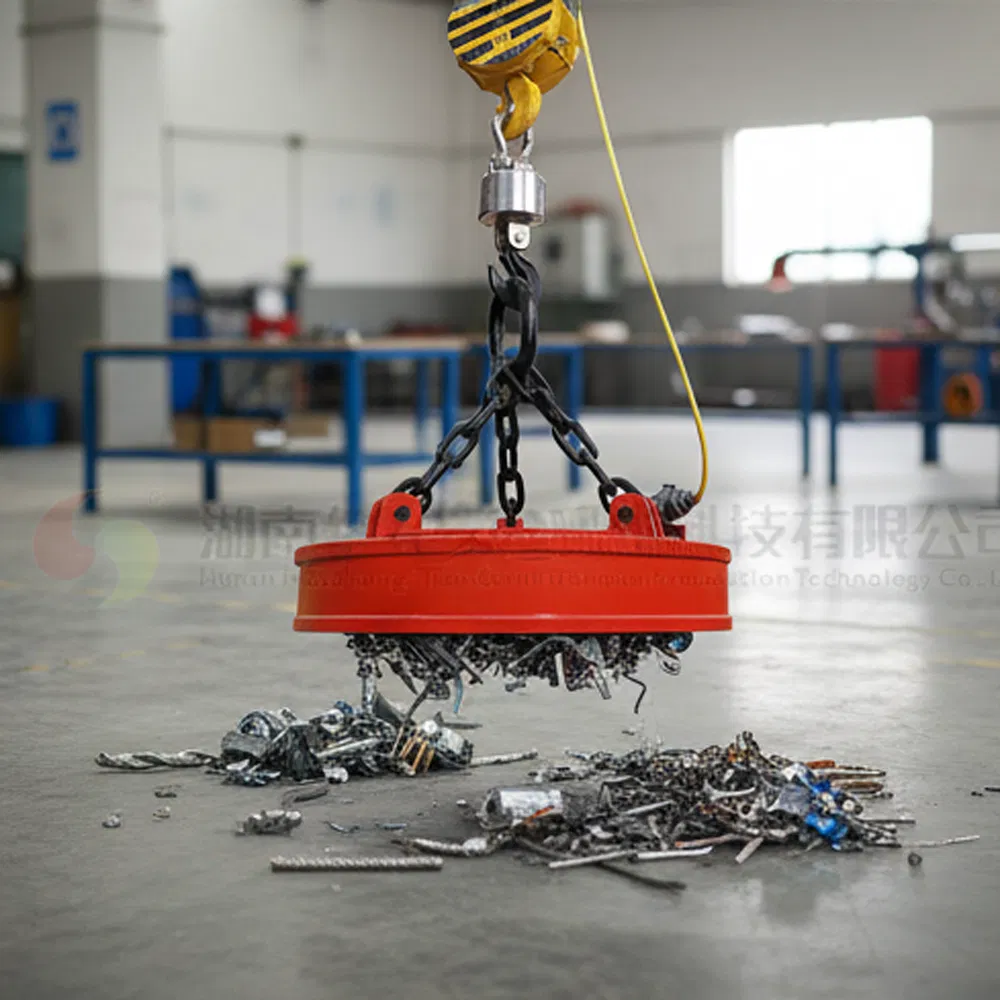

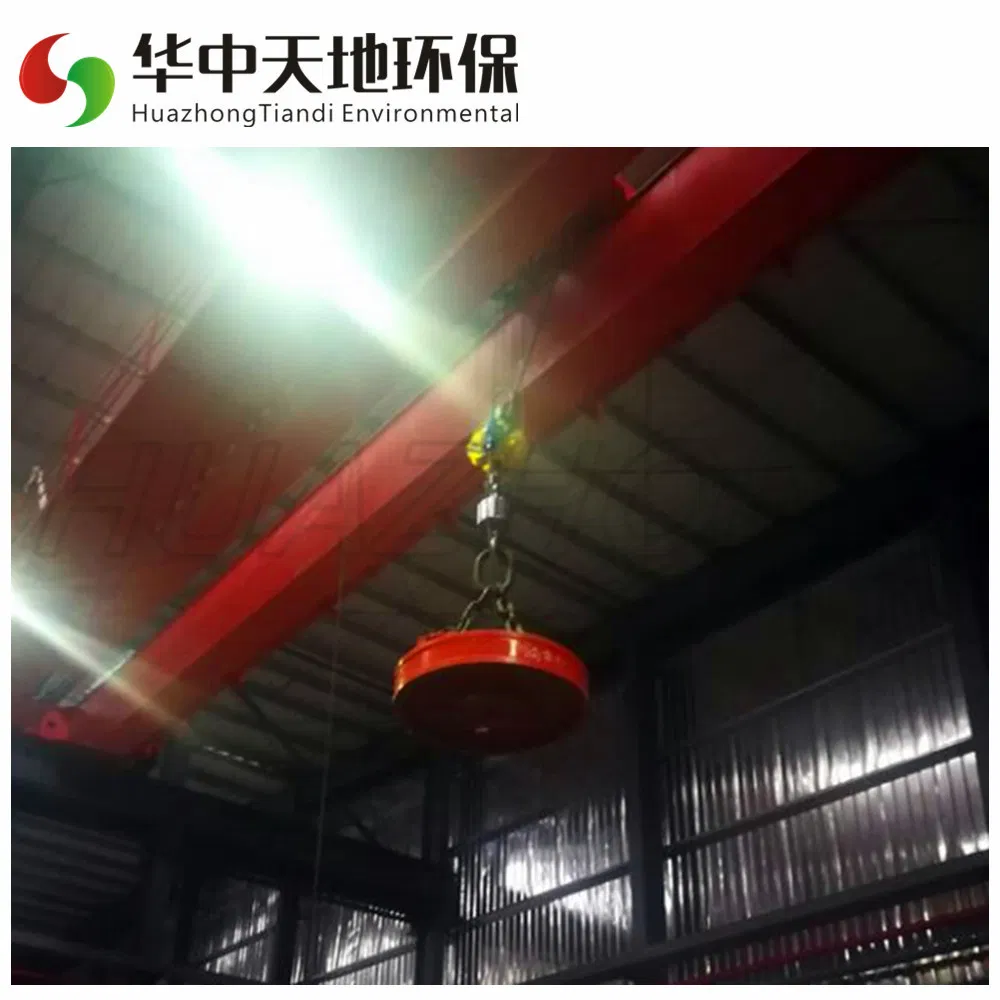

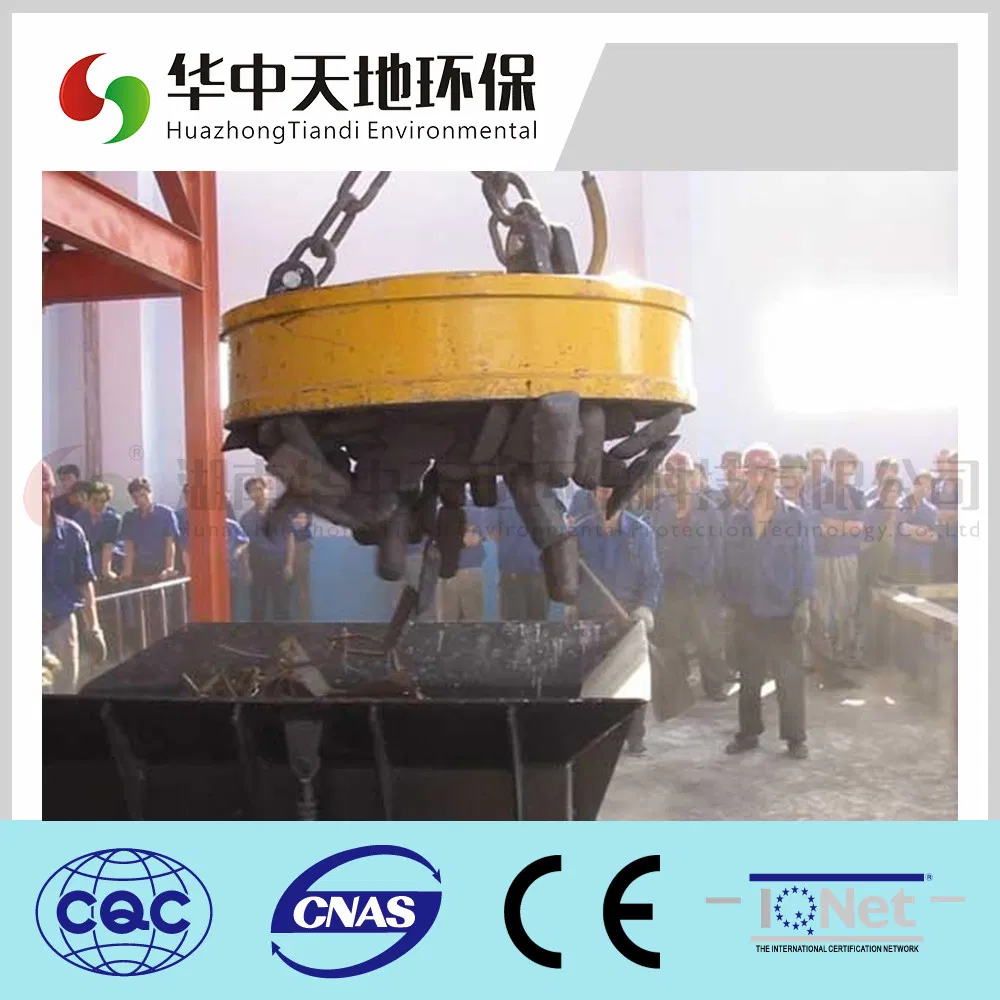

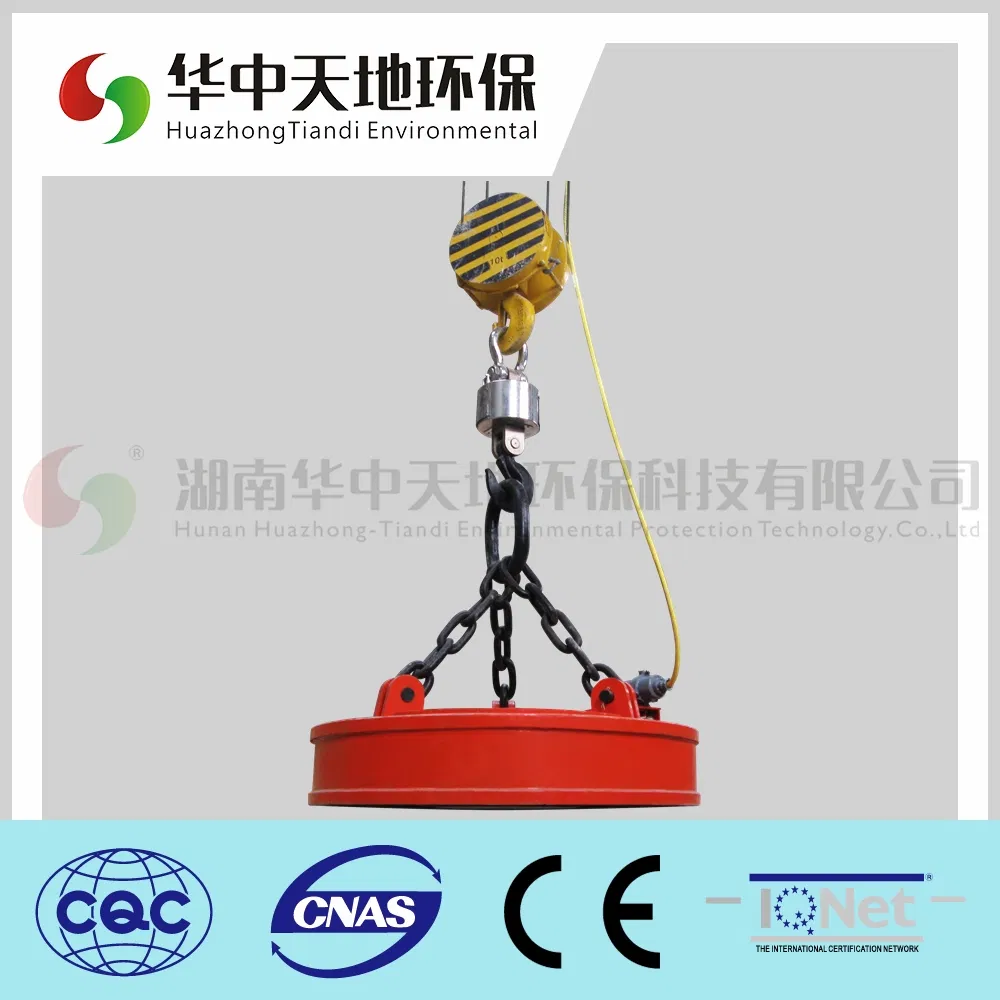

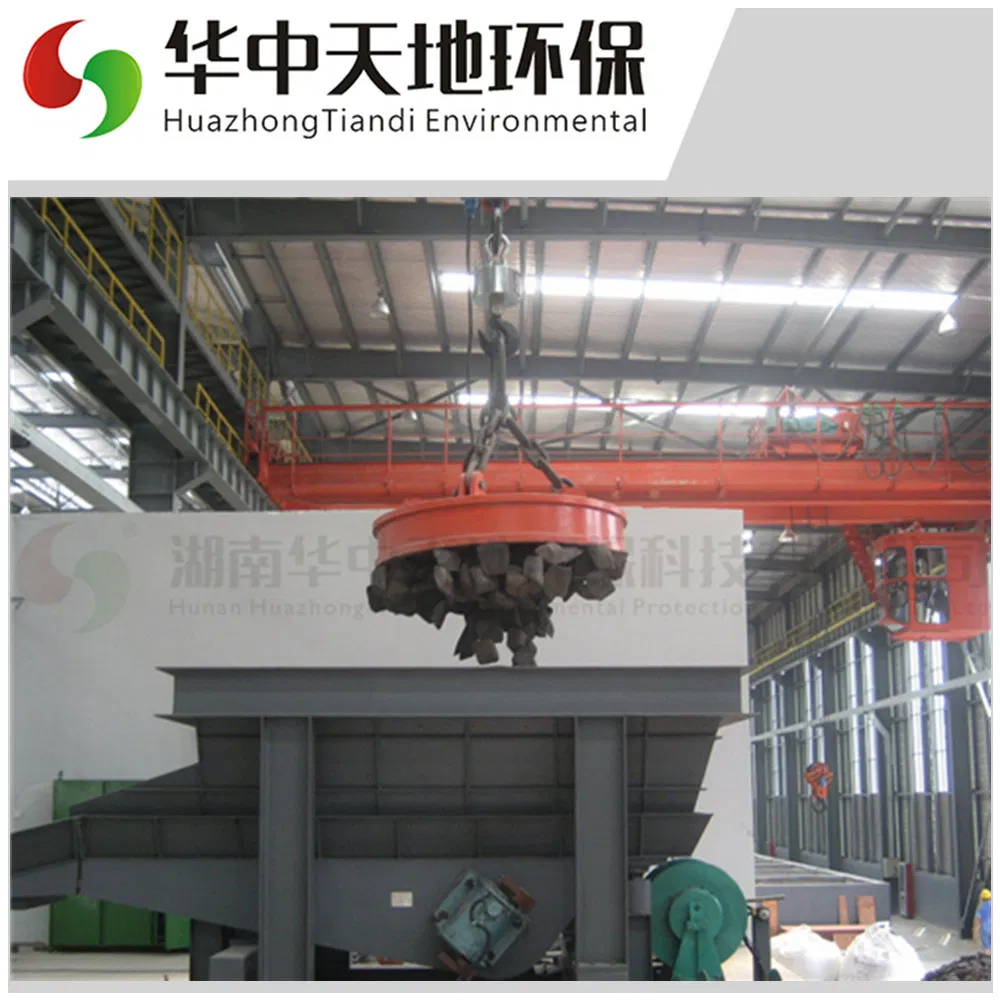

Lifting Electromagnet

The Lifting Electromagnet is an essential tool employing electric and magnetic forces for elevating materials. It's indispensable for lifting and transporting ferromagnetic materials in metallurgy, mining, machinery, shipbuilding, and transport. It functions as an electromagnetic manipulator, magnetic centering device, and bar length fixer across multiple industries. With various materials, electromagnet structures, magnetic circuits, and manufacturing processes are customized, creating a specialized product range.

Technical Specifications

Model Details		Y573/Y574	Y575	Y577	Y5710	Y5715	Y5720	Y5730	Y5740
Electromagnetic Plate Model		MW5-70L/80L	MW5-90L	MW5-110L	MW5-130L	MW5-150L	MW5-165L	MW5-180L	MW5-210L
Ingredient capacity		2	2~3	3~5	6~8	8~12	12~20	18~30	20-50
Parameters	Diameter (mm)	700/800	900	1100	1300	1500	1650	1800	2100
	Weight (kg)	500/620	800	1300	2000	2800	3200	4200	6800
	Cold Current (A)	15/18	26	35	54	72	75	102	139.5
	Cold Power (kW)	3.3/4	5.85	7.7	11.9	15.6	16.5	22.5	30.7
Weight of Pig Iron (kg)		180-300	250-500	380-750	750-1200	900-1500	1200-2000	1600-2300	2800-3500
Scrap Weight (kg)		60-180	100-250	180-380	260-500	450-800	800-1200	900-1500	1850-2300

Logistics & Experience

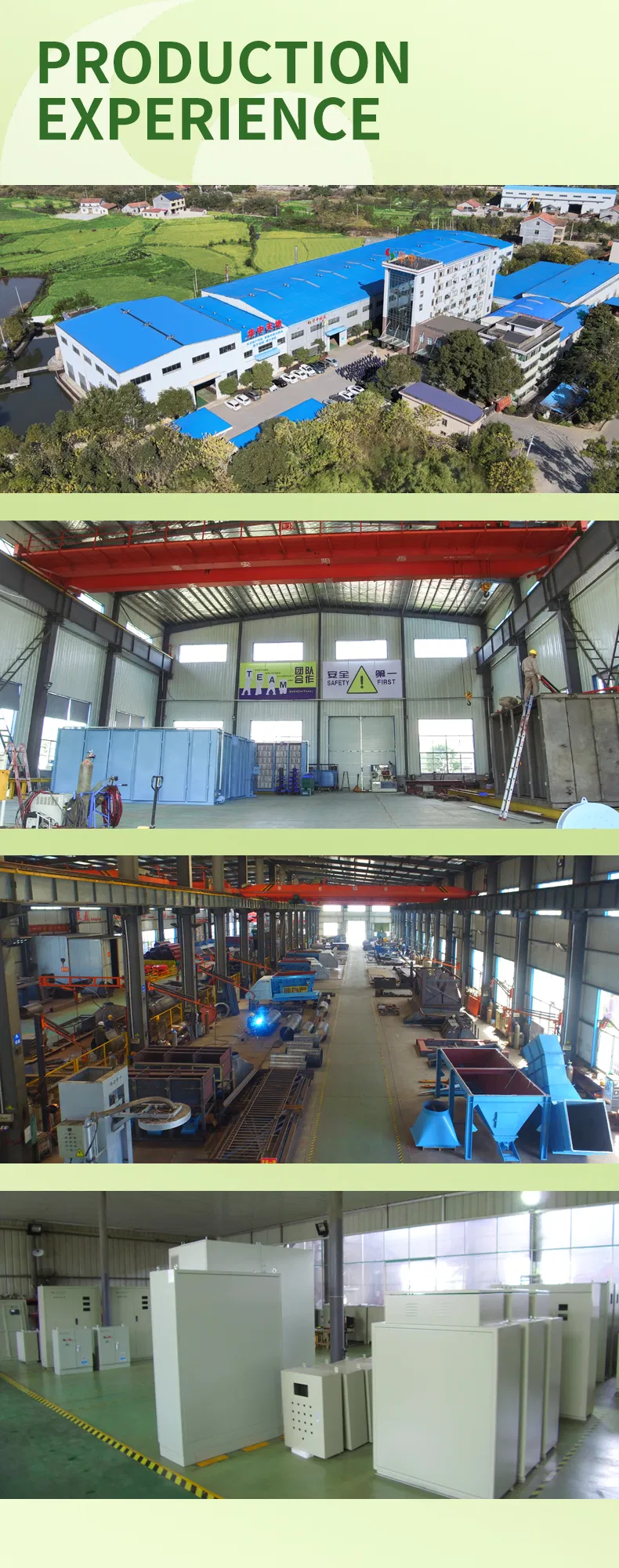

Certificates & Production

Customer Visits & Shipping

Frequently Asked Questions

What are the primary applications of a Lifting Electromagnet?

Lifting electromagnets are widely used in metallurgy, mining, machinery, and shipbuilding for transporting ferromagnetic materials, acting as centering devices or manipulators.

Can the electromagnet handle different types of scrap metal?

Yes, depending on the model (e.g., MW5 series), it can lift pig iron ranging from 180kg to 3500kg and scrap metal from 60kg to 2300kg per lift.

Is the system compatible with modern wireless data transmission?

Absolutely. Our specifications include models like the Y573/Y574WY which feature wireless data transmission microcomputer iron-fitting systems.

What kind of maintenance does the "Cold Current" parameter imply?

The cold current and cold power consumption indicate the electrical requirements during initial operation. Regular monitoring of these values ensures the efficiency and longevity of the magnetic circuit.

How is the equipment protected during international shipping?

Products are typically packed in robust wooden cases or bear packing to withstand long-distance transport and ensure they arrive in perfect condition.

Are there different models for different furnace sizes?

Yes, we provide equipment suitable for various electric furnaces, ranging from 2t up to 50t capacities, with matching control cabinets and cable reels.
