Product Description

🔹 Basic Information

Model NO.

MW5-70L/1

Shape

Round

Color

Red

Electromagnetic Equipment

Y573/Y574aw

Cold Current (A)

15/18

Applicable Furnace

Application

Lifting & Collecting

Transport Package

Wooden Case, Bear Packing

Specification

700*700*700mm

Origin

HS Code

8505901000

Production Capacity

1000sets/Year

📦 Packaging & Delivery

Package Size

70.00cm * 70.00cm * 70.00cm

Package Gross Weight

1500.000kg

📝 Product Description

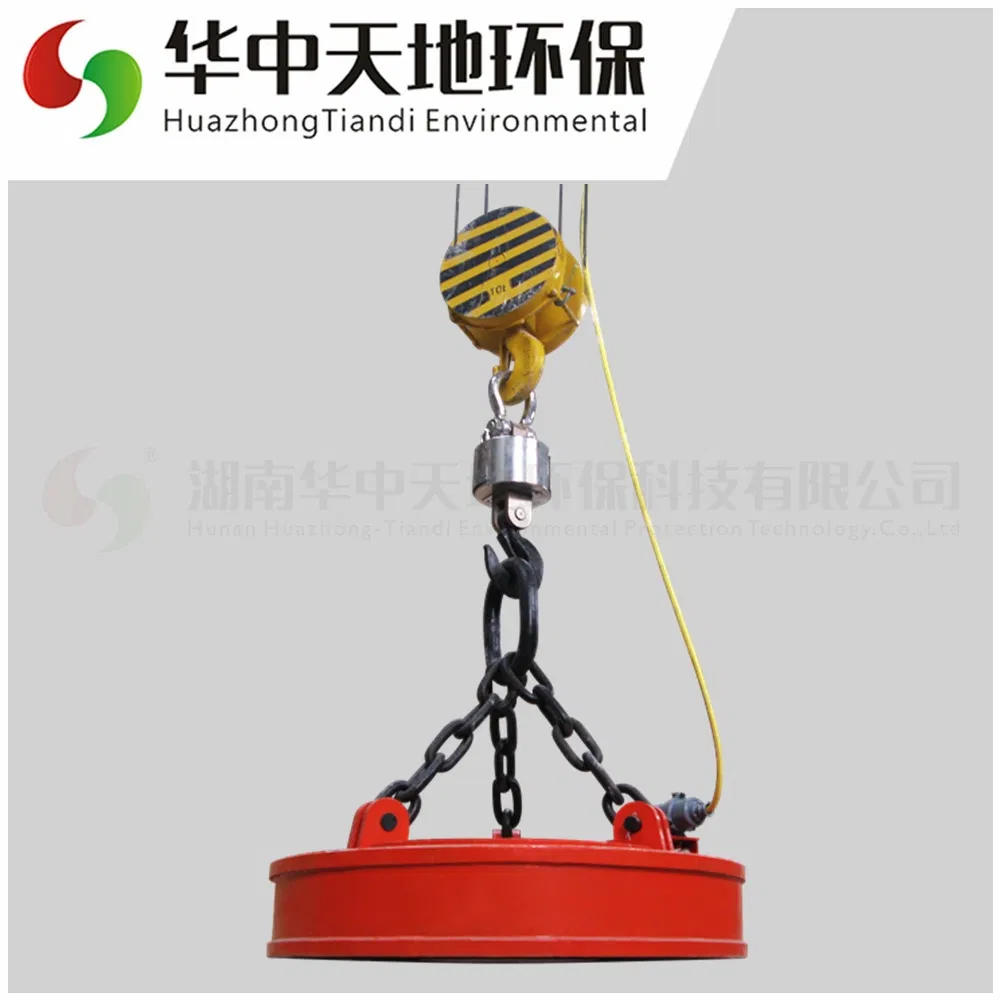

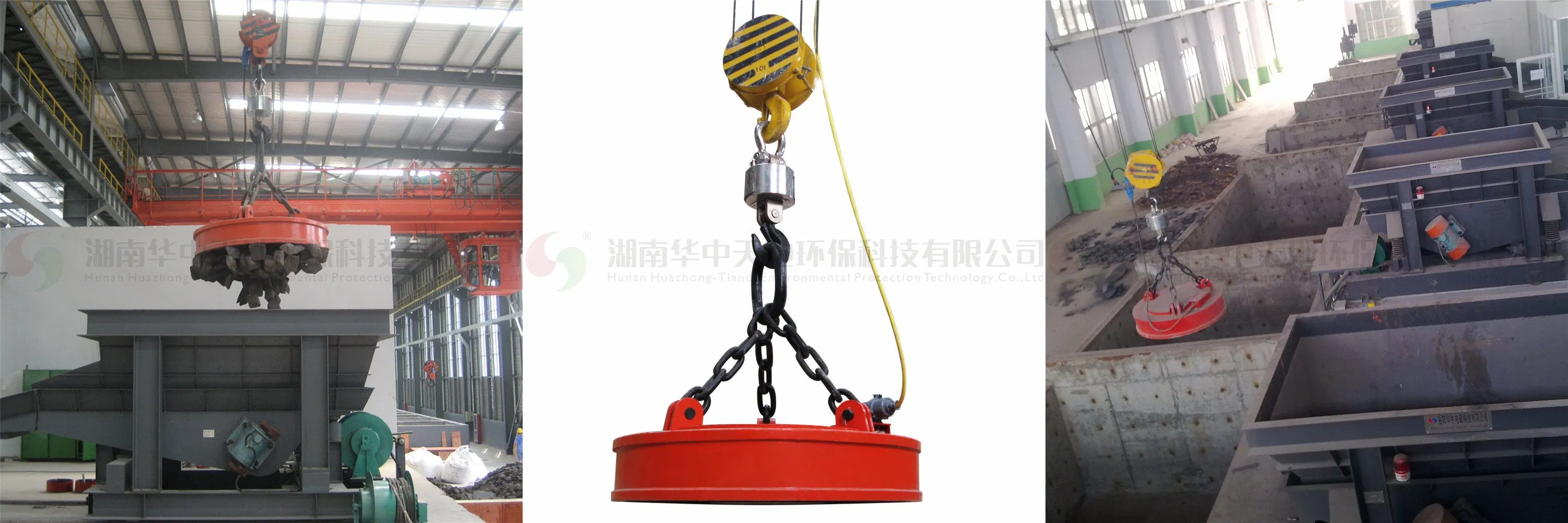

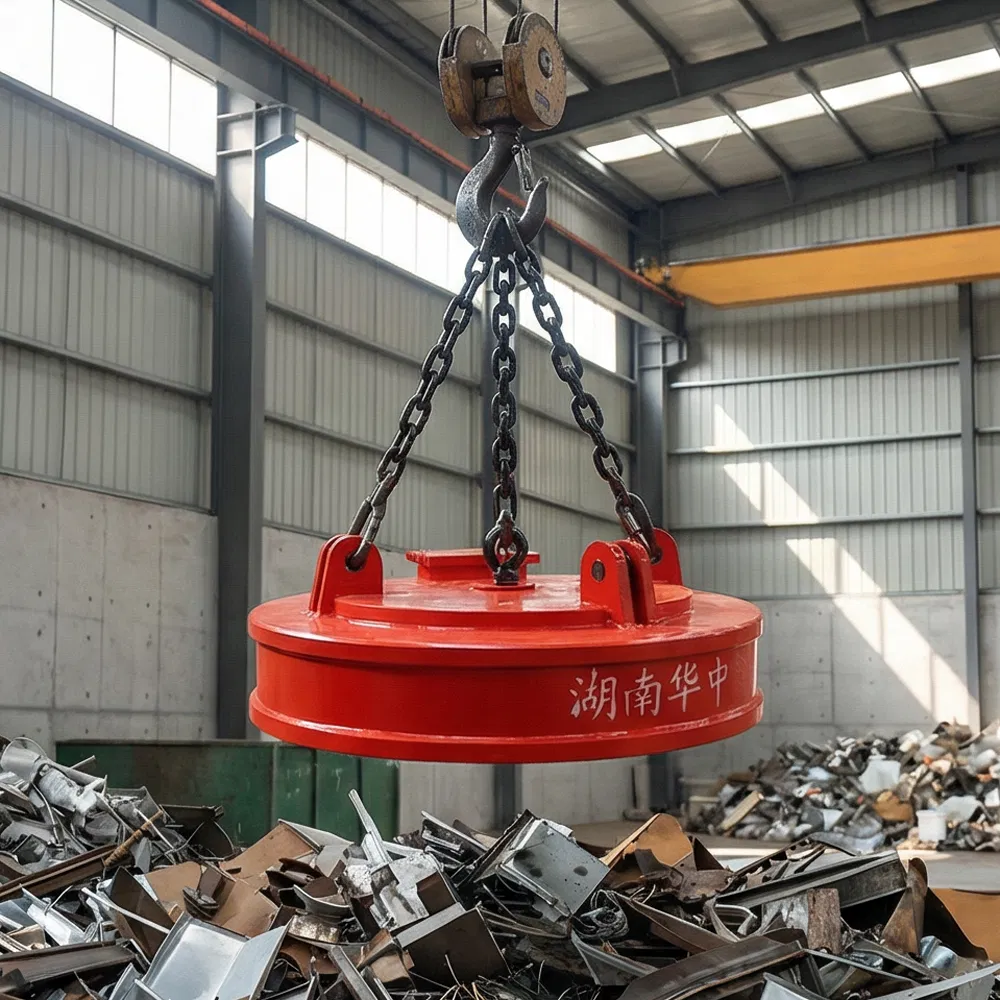

Lifting Electromagnet: The Lifting Electromagnet harnesses electric and magnetic forces for material elevation, essential for lifting and transporting ferromagnetic materials in metallurgy, mining, machinery, shipbuilding, and transport sectors.

It acts as an electromagnetic manipulator, magnetic centering device, and bar length fixer. Various materials, electromagnet structures, magnetic circuits, and manufacturing processes are customized for a specialized product range diversity, leading to unique electromagnet structures and magnetic circuits.

📊 Specifications

System Type / Model		Y573/Y574	Y575	Y577	Y5710	Y5715	Y5720	Y5730	Y5740
Electromagnetic Plate Model		MW5-70L/80L	MW5-90L	MW5-110L	MW5-130L	MW5-150L	MW5-165L	MW5-180L	MW5-210L
Applicable Electric Furnace		2t	2~3t	3-5t	6-8t	8~12t	12~20t	18~30t	20-50t
Main Parameters	Diameter (mm)	700/800	900	1100	1300	1500	1650	1800	2100
	Self Weight (kg)	500/620	800	1300	2000	2800	3200	4200	6800
	Cold Current (A)	15/18	26	35	54	72	75	102	139.5
	Cold Power (kW)	3.3/4	5.85	7.7	11.9	15.6	16.5	22.5	30.7
Lifting Capacity	Pig Iron (kg)	180-380	250-500	380-750	750-1200	900-1500	1200-2000	1600-2300	2800-3500
Lifting Capacity	Scrap (kg)	80-200	100-250	180-380	260-500	450-800	800-1200	900-1500	1850-2300

🖼️ Process & Logistics

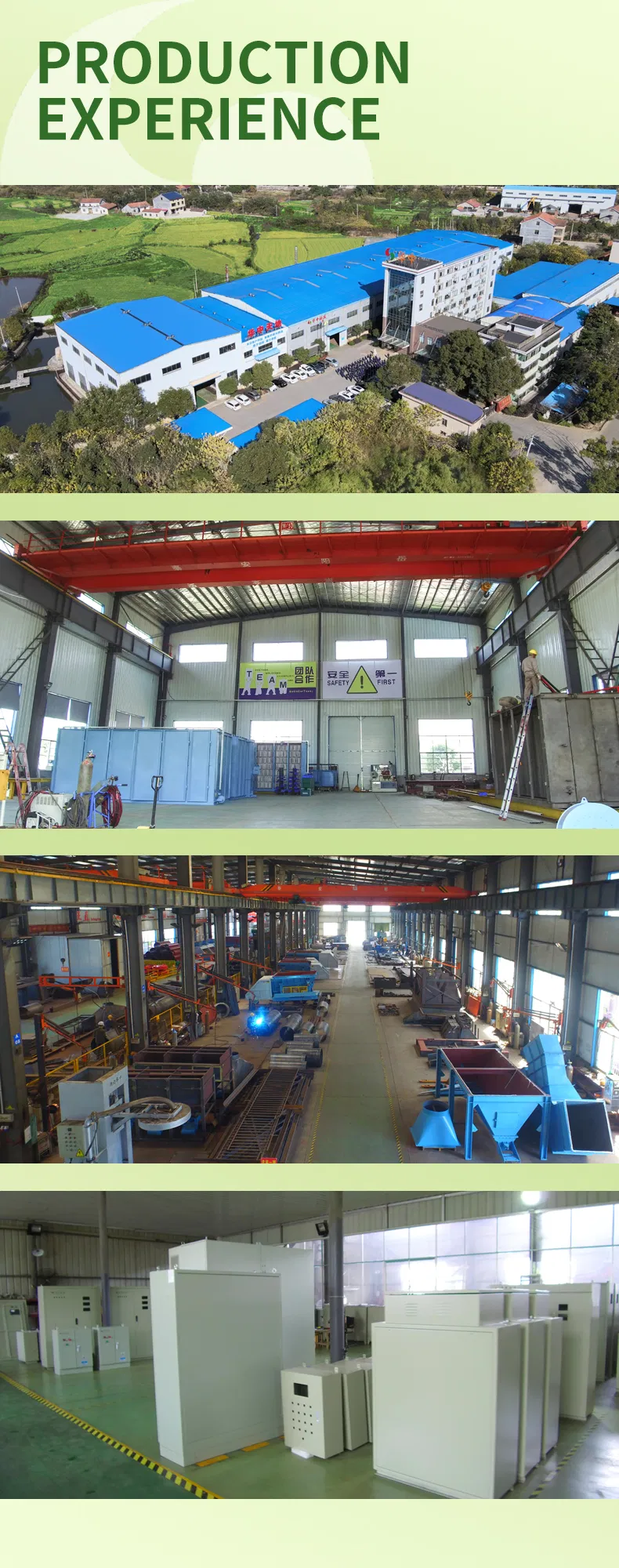

🏆 Certificates & Production

🚢 Shipping & Handling

❓ Frequently Asked Questions

What are the primary applications for lifting electromagnets?

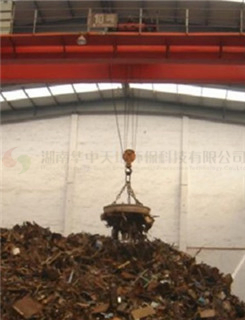

They are widely used in metallurgy, mining, machinery, and shipbuilding for lifting and transporting ferromagnetic materials such as pig iron and steel scrap.

Can the electromagnet be customized for specific electric furnaces?

Yes, models range from 2t up to 50t capacities to match various electric furnace requirements and material handling needs.

What materials are used for packaging during transport?

Products are typically packed in sturdy wooden cases or bear packing to ensure safety during long-distance shipping.

Does the system support wireless data transmission?

Yes, the specifications include models compatible with wireless data transmission microcomputer iron-fitting systems and digital scales.

What is the difference between cold current and cold power consumption?

Cold current (A) refers to the initial electrical current when the magnet is at ambient temperature, while cold power (kW) is the actual power used during that state.

How do I choose the right diameter for my electromagnet?

Selection depends on your crane capacity and the type of material (scrap vs. pig iron) you intend to lift. Diameters range from 700mm to 2100mm.
