Versatile Heavy-Duty Lifting Solutions for Advanced Electromagnetic Applications

1 / 5

Versatile Heavy-Duty Lifting Solutions for Advanced Electromagnetic Applications

Customization:	Available
After-sales Service:	7*24hours
Warranty:	7*24hours

Send Inquiry

Product Description

Basic Information

Model NO.

MW5-70L/1

Shape

Round

Color

Red

Equipment Type

Electromagnetic Lifting Equipment

Cold Current

15/18

Furnace Application

Application

Lifting & Collecting

Transport Package

Wooden Case

Specification

700*700*700mm

HS Code

8505901000

Production Capacity

1000 sets/Year

Product Description

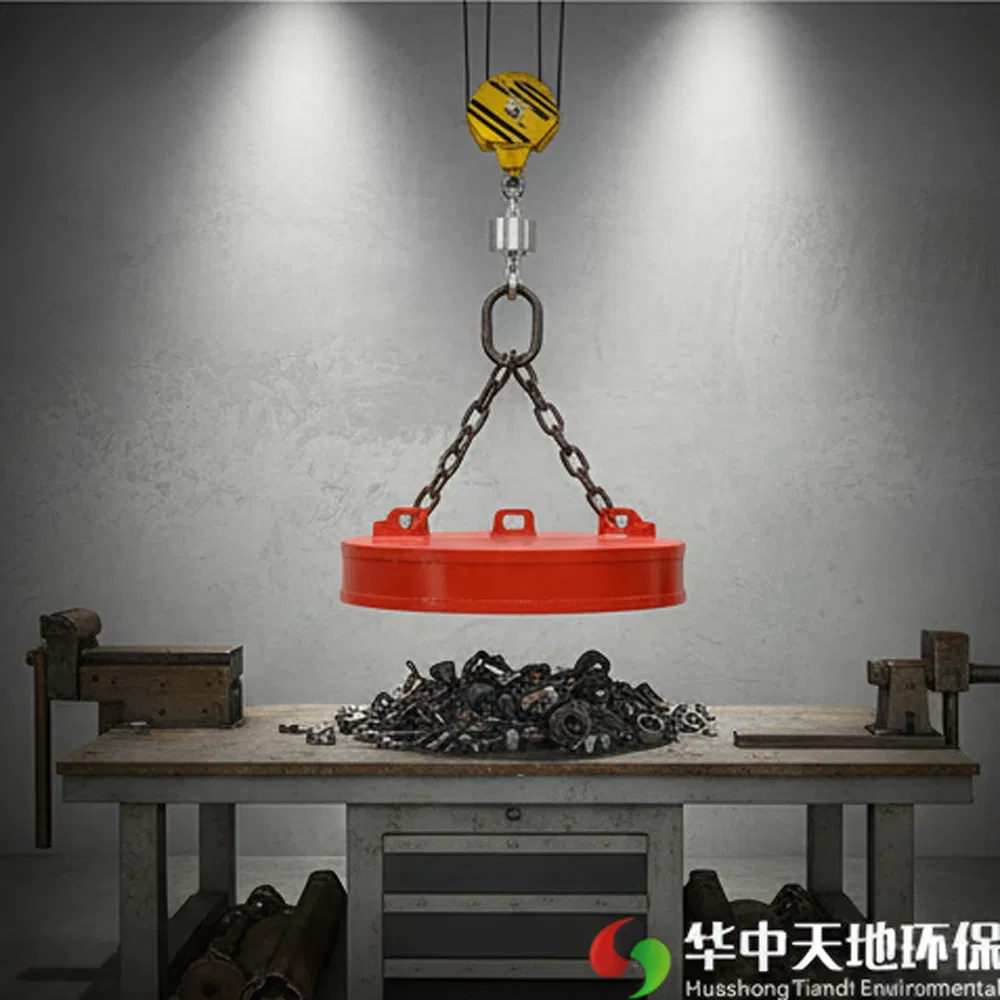

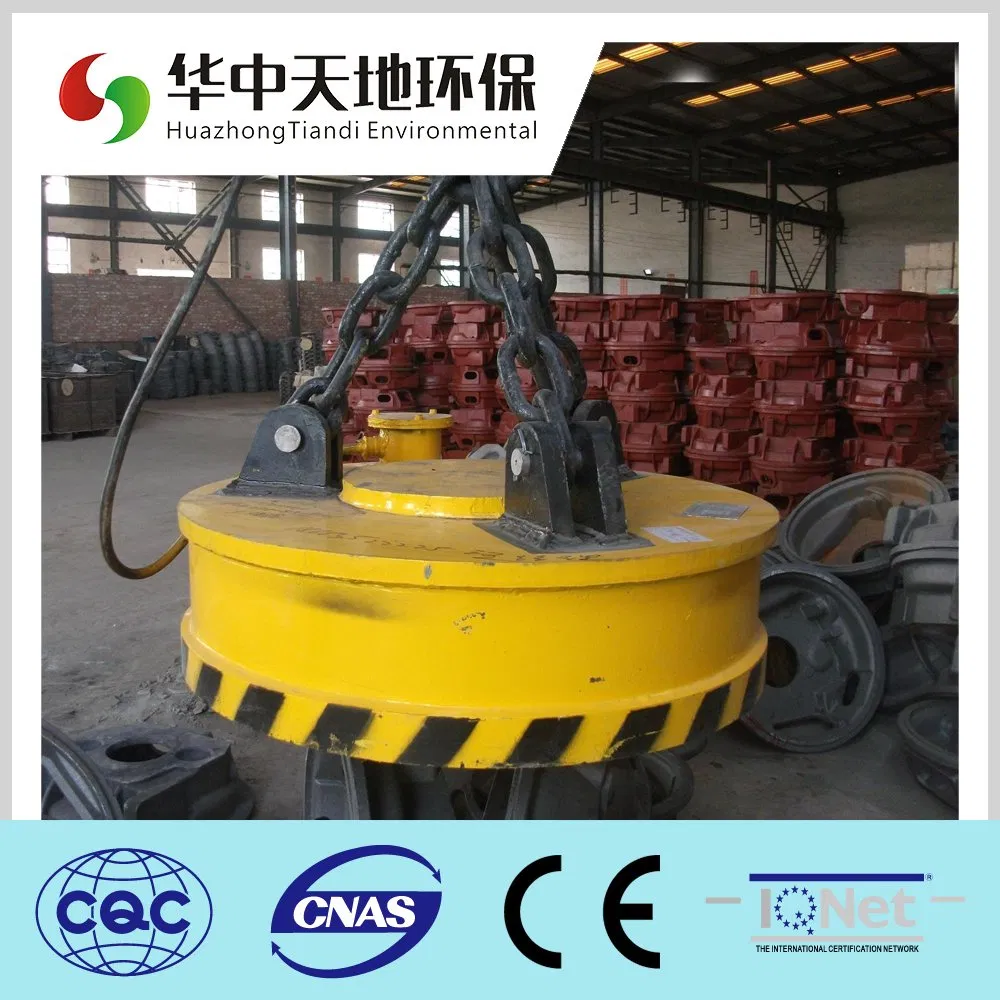

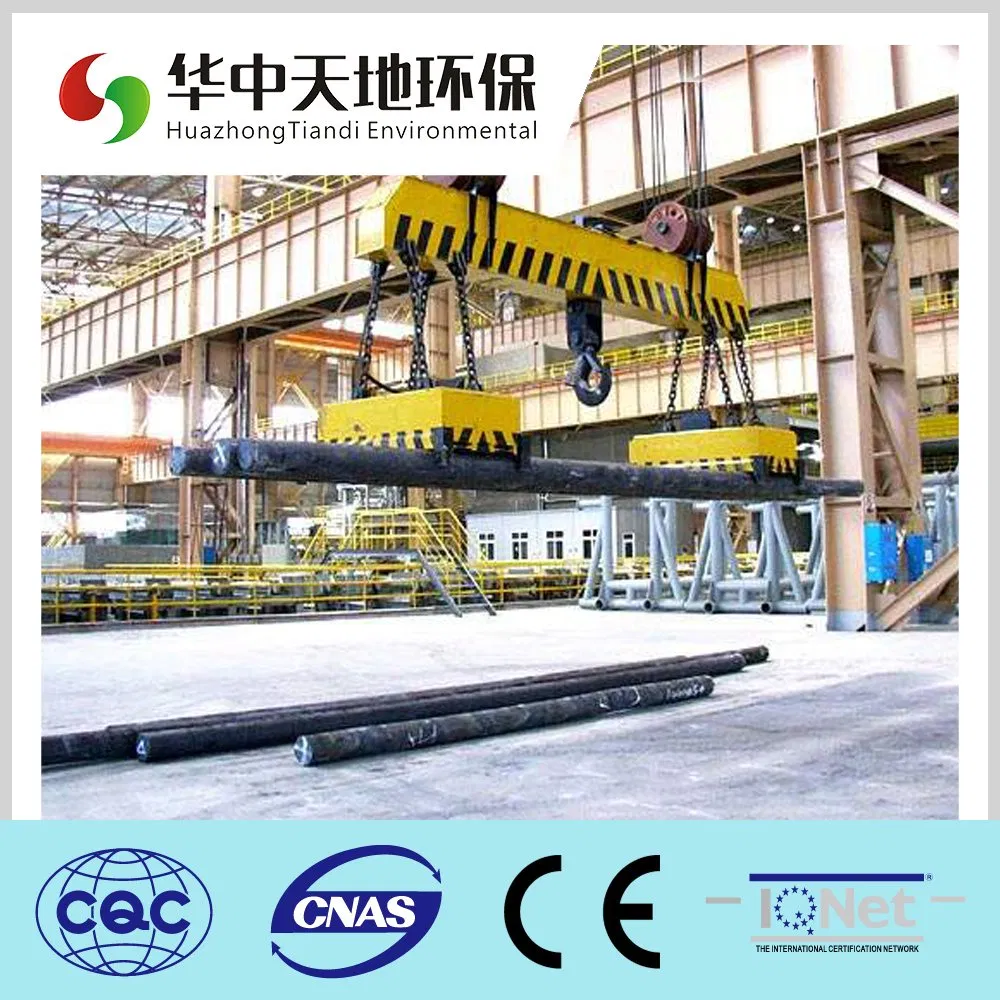

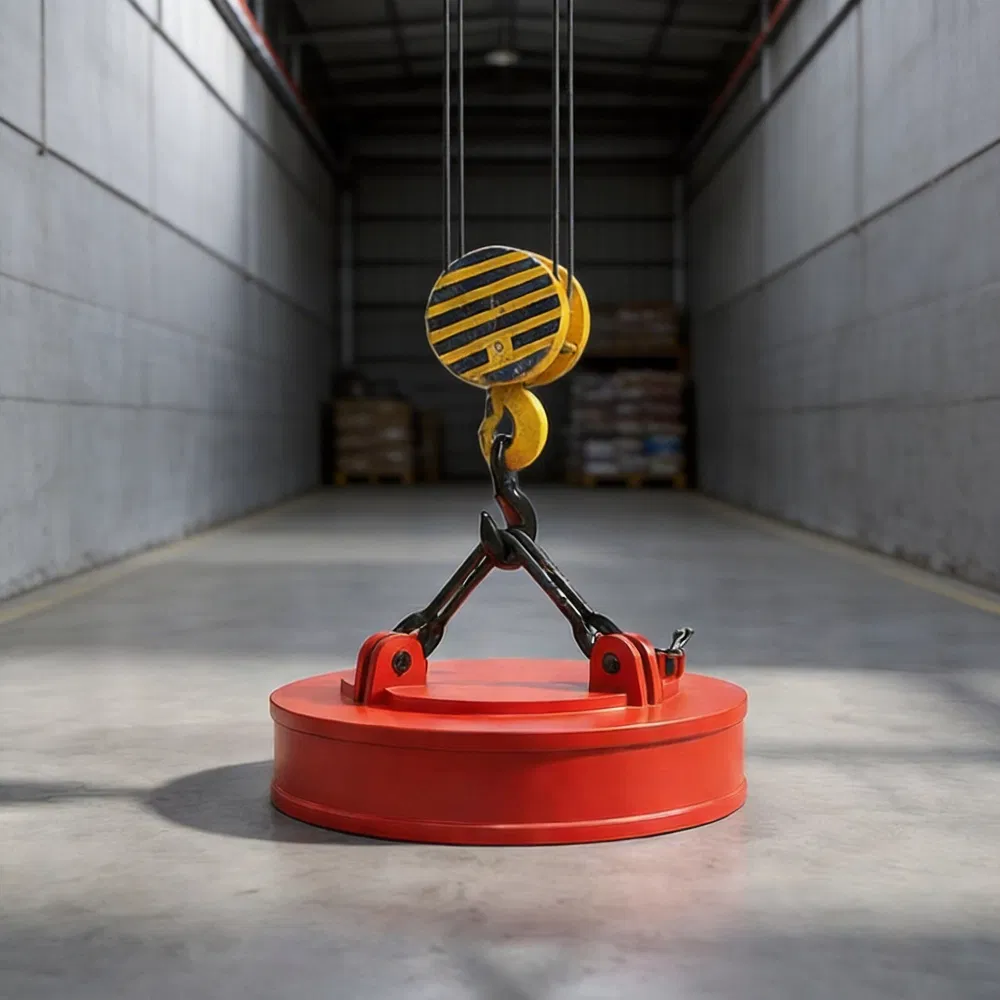

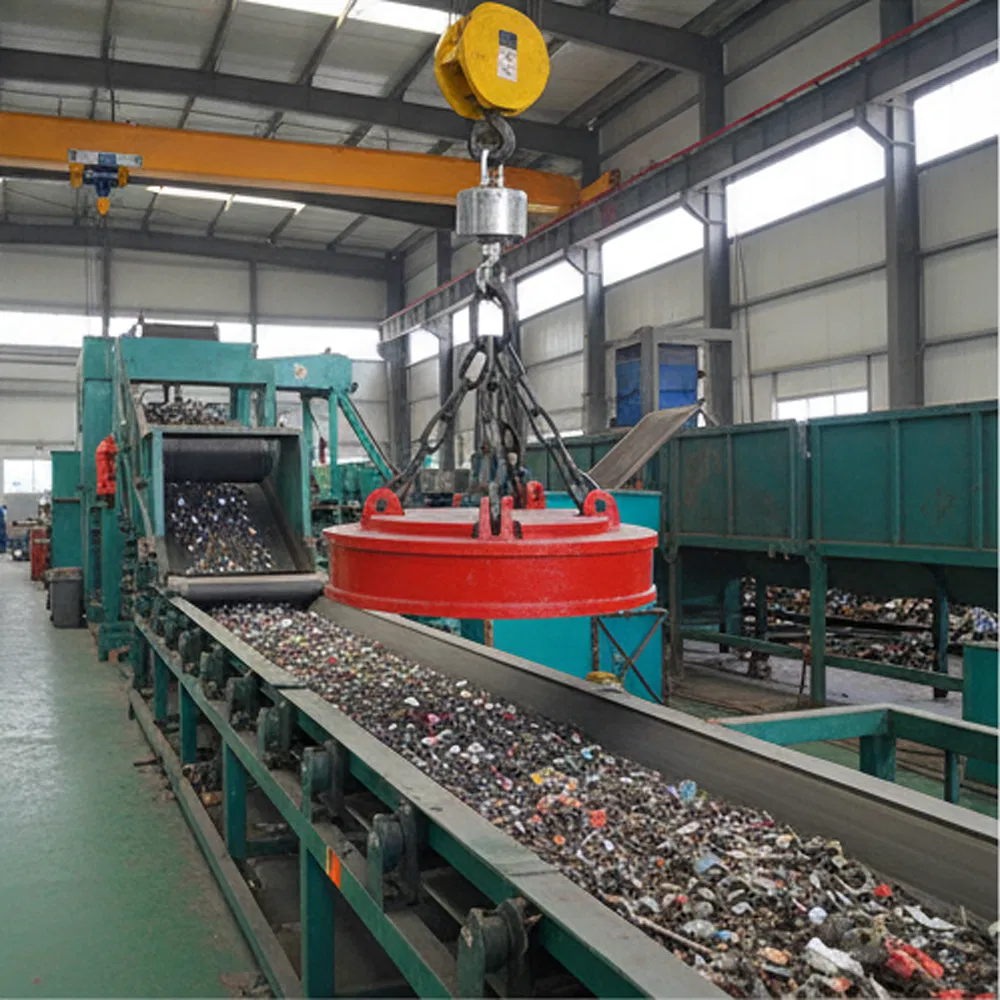

Lifting Electromagnet

The Lifting Electromagnet is crucial, utilizing electric and magnetic forces for lifting, essential for elevating and transporting ferromagnetic materials in metallurgy, mining, machinery, shipbuilding, and transport. It acts as an electromagnetic manipulator, magnetic centering device, and bar length fixer across various industries. Tailored materials, electromagnet structures, circuits, and processes form a specialized product range.

Technical Specification

Parameter Item		MW5-70L/80L	MW5-90L	MW5-110L	MW5-130L	MW5-150L	MW5-165L	MW5-180L	MW5-210L
Ingredient Capacity		2	2~3	3~5	6~8	8~12	12~20	18~30	20~50
Applicable Electric Furnace		2t	2~3t	3~5t	6~8t	8~12t	12~20t	18~30t	20~50t
Main Disk Parameters	Diameter (mm)	700/800	900	1100	1300	1500	1650	1800	2100
	Weight (kg)	500/620	800	1300	2000	2800	3200	4200	6800
	Cold Current (A)	15/18	26	35	54	72	75	102	139.5
	Cold Power (kW)	3.3/4	5.85	7.7	11.9	15.6	16.5	22.5	30.7
	Pig Iron Weight (kg)	180-300	250-500	380-750	750-1200	900-1500	1200-2000	1600-2300	2800-3500
	Scrap Weight (kg)	60-180	100-250	180-380	260-500	450-800	800-1200	900-1500	1850-2300

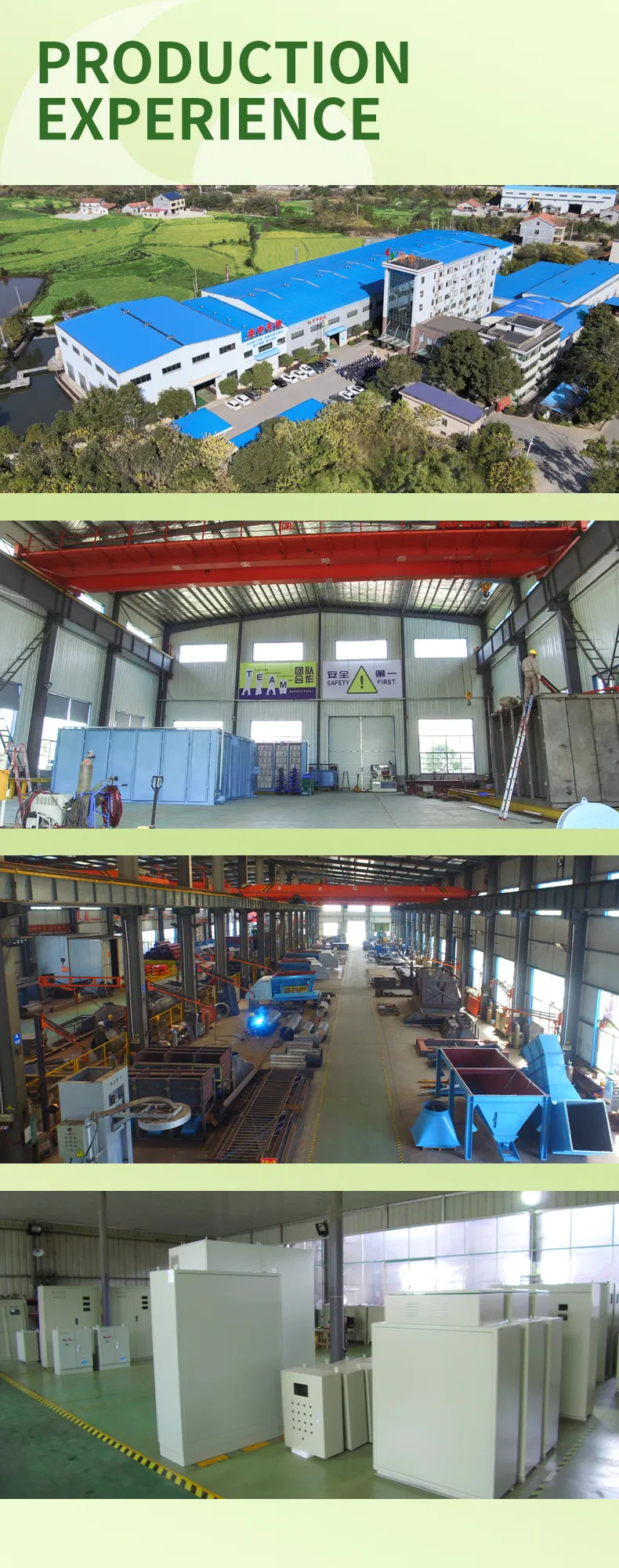

Visual Showcase & Logistics

Frequently Asked Questions

What are the primary applications of a lifting electromagnet?

Lifting electromagnets are widely used in metallurgy, mining, machinery, and shipbuilding to elevate and transport ferromagnetic materials like steel scrap, pig iron, and steel plates.

How do I choose the right model for my furnace?

Selection depends on the furnace capacity. For example, the MW5-70L is suitable for a 2t furnace, while larger models like MW5-210L support furnaces up to 50t.

What is the difference between "Cold Current" and "Cold Power"?

Cold Current (A) refers to the initial amperage used by the magnet when starting at ambient temperature, while Cold Power (kW) indicates the power consumption during this phase.

Can these magnets handle both pig iron and steel scrap?

Yes, the technical specifications show different lifting capacities for pig iron and scrap for each model, as scrap is generally less dense and harder to lift in bulk.

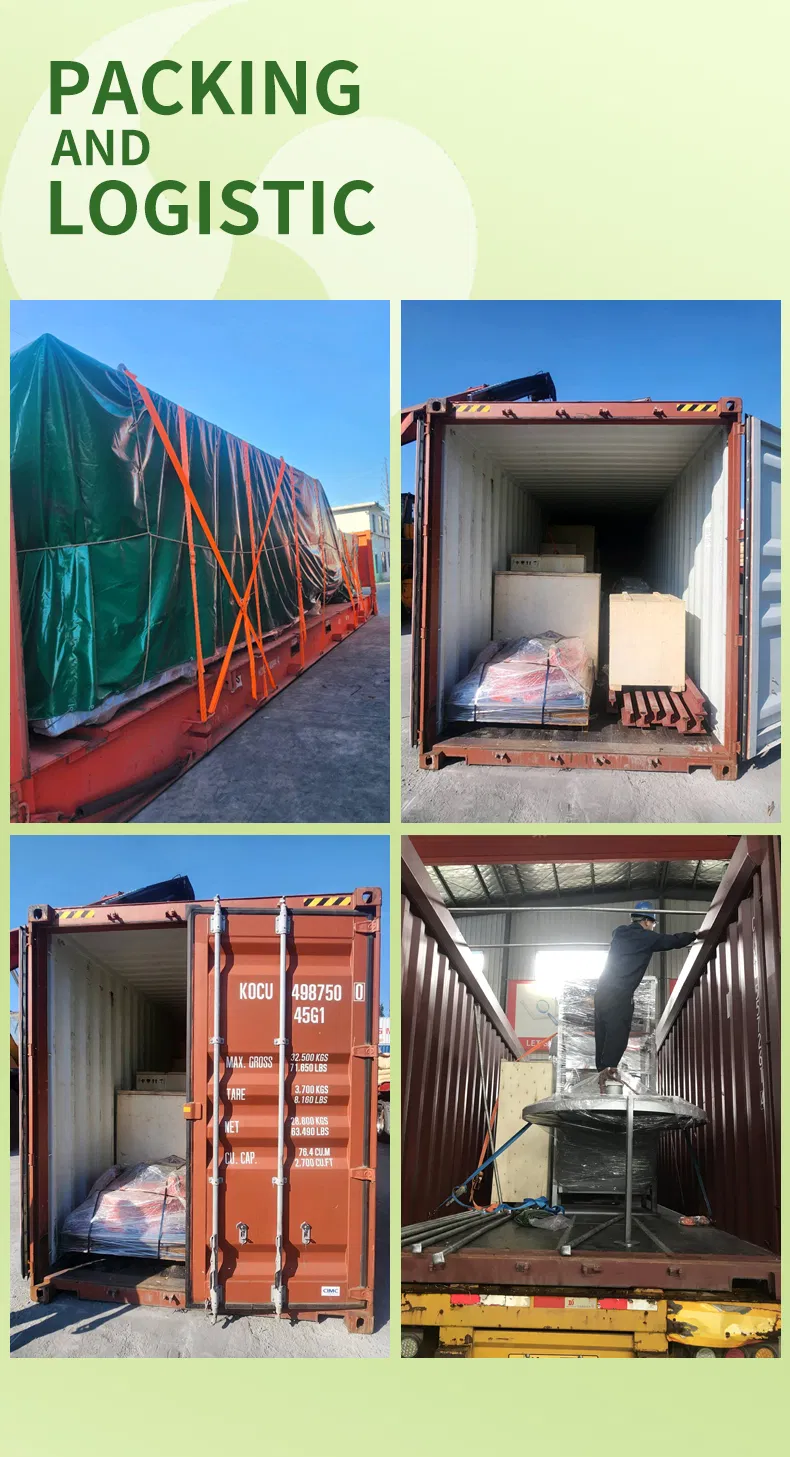

What type of packaging is used for international shipping?

Standard equipment is packed in heavy-duty wooden cases or specialized bear packing to ensure safety during sea or land transit.

Is a control cabinet required to operate the magnet?

Yes, the lifting electromagnet system typically requires an integrated rectifier and control cabinet (like the WZK or ZQC series) to manage power distribution and safety.
