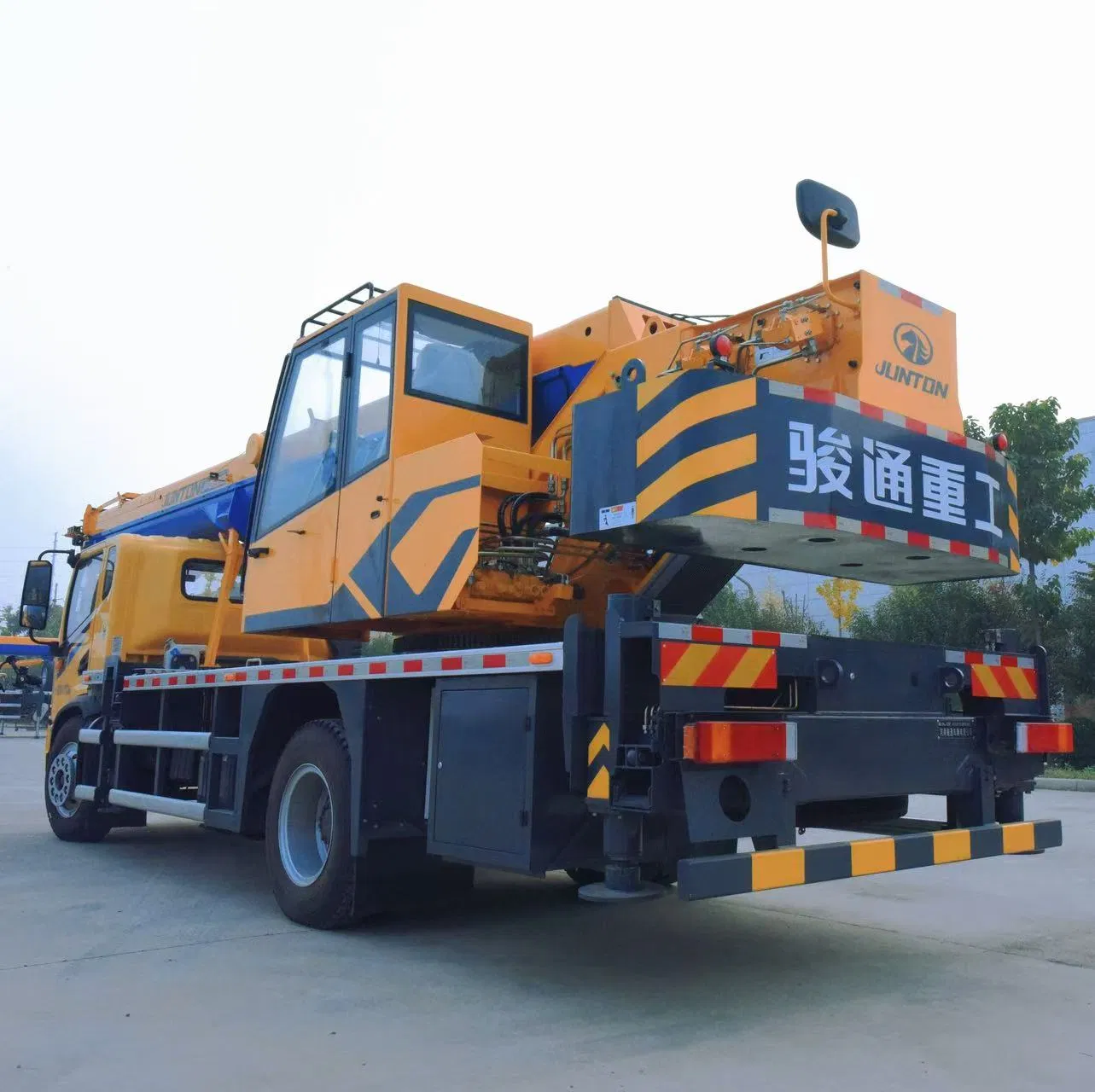

Heavy-Duty Lifting Equipment: Junton Mobile Crane Truck Solutions

1 / 5

Heavy-Duty Lifting Equipment: Junton Mobile Crane Truck Solutions

Customization:	Available
After-sales Service:	Technical Services
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

JPC120E5

Certification

GS, RoHS, CE, ISO9001

Condition

New

Max Lifting Height

30-40m

Max Lifting Weight

11-13t

Shaft Number

Crane Jib

Five-Arm

Type

Straight Arm

Specification

10920*2500*3375mm

Trademark

JUNTON

Product Highlights

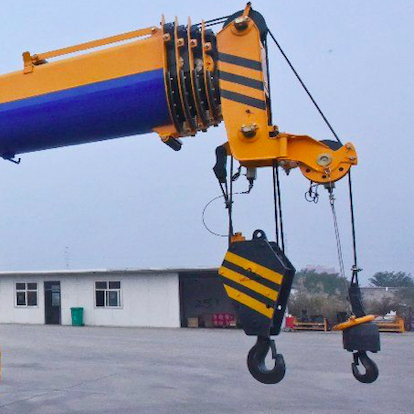

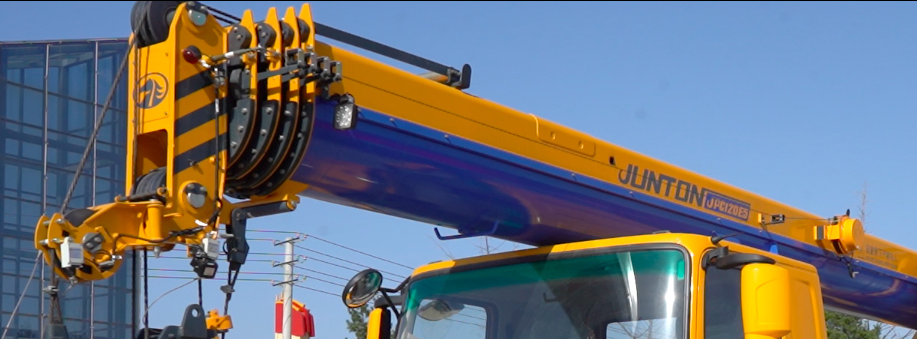

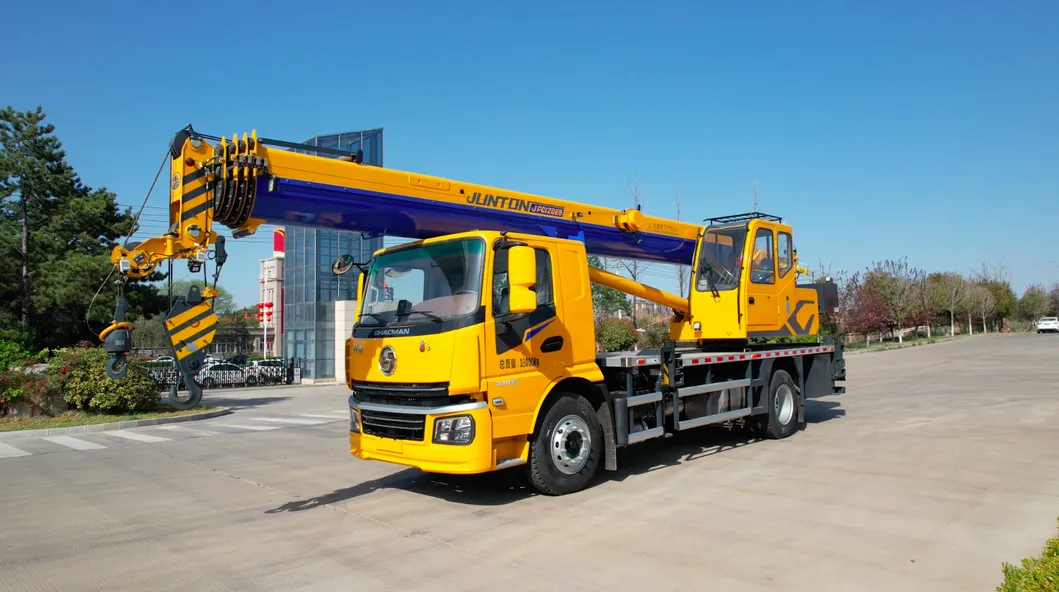

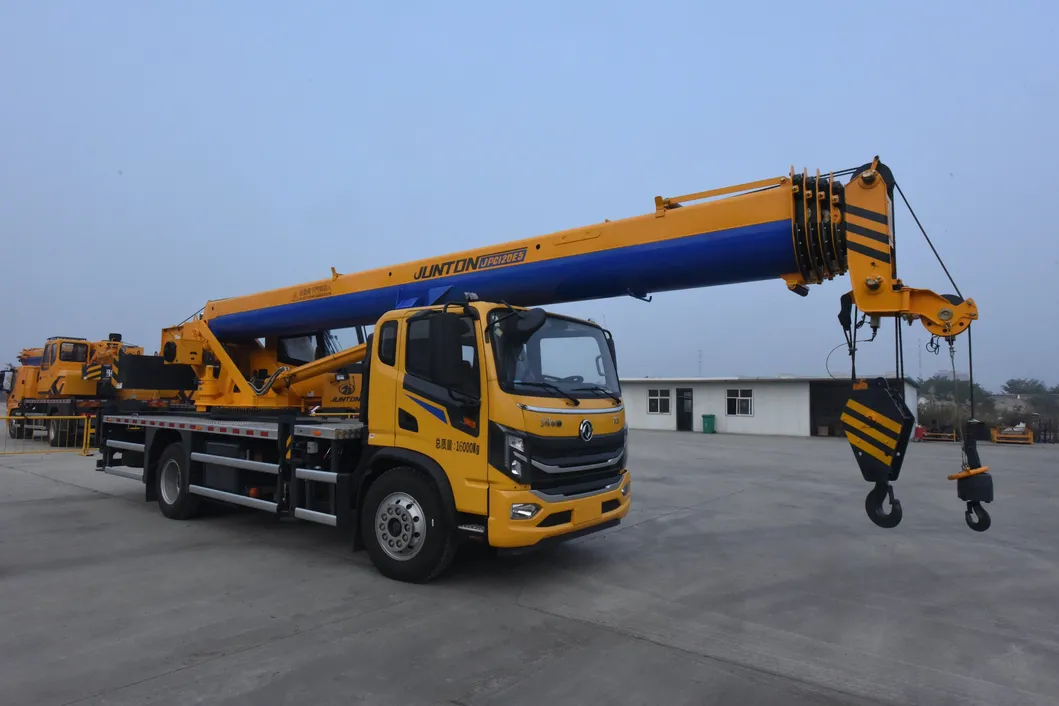

Revel in the unprecedented reach of our Heavy-Duty Lifting Equipment featuring a fully extendable five-section main boom with an impressive length of 32.5 meters. This U-shape large cross-section boom, paired with an optional 7-meter jib, enables versatile and robust operations.

Superior Lifting: Maximum lifting torque of 405kN.m for the basic boom and 286kN.m for the longest extended main boom.

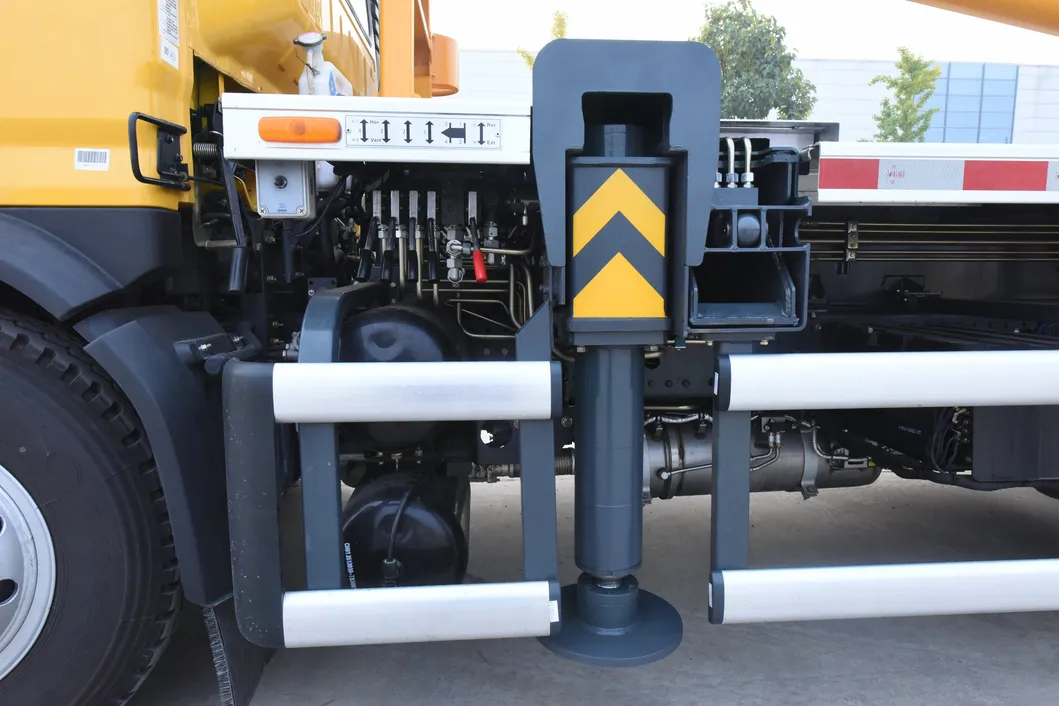

Enhanced Stability: Strategically designed lower positioned outrigger spanning 4.975m by 5.7m for heavy-duty support.

High Efficiency: Slewing speed of 3 rpm, main winch speed of 140 m/min, and auxiliary winch speed of 135 m/min.

Advanced Hydraulics: Bipolar rotary reducer, triple gear pump, and dual pump separation/confluence technology.

Chassis & Power: Dongfeng Vasol chassis, YUCHAI engine, FAST 8-speed forward transmission, and 9.00R20 16PR tyres.

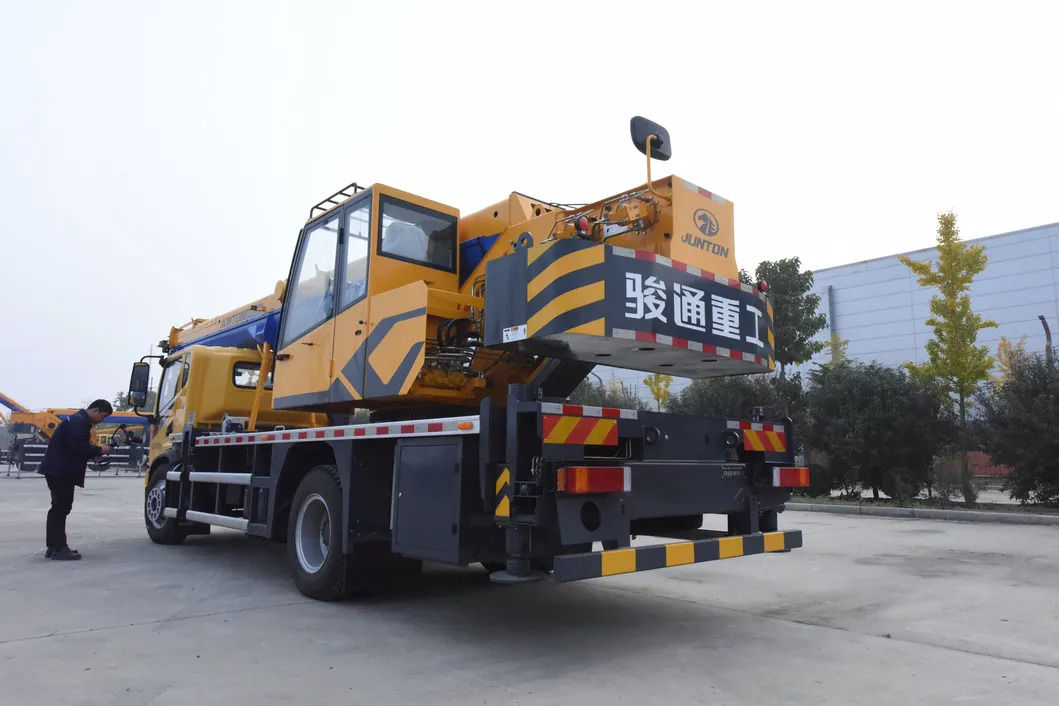

Safety & Precision: Fifth outrigger with 360° rotation, torque limiter, and "black box" function for accident analysis.

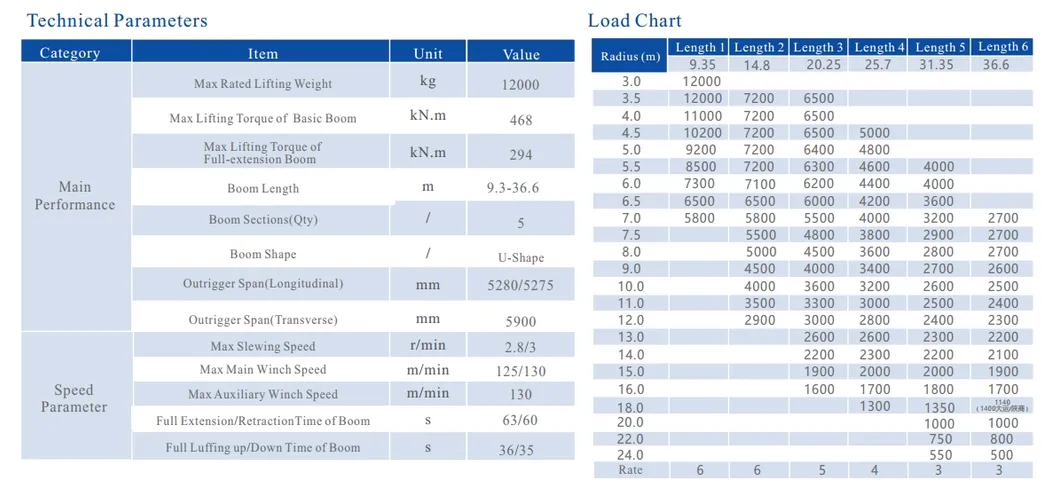

Product Parameters

Category	Item	Unit	Dongfeng Huashen National VI	Dayun Yunlong	Shangshang Xuande Yi 6
Overall Dimension	Overall Length	mm	10936	10950	10920
	Overall Width	mm	2500	2500	2500
	Overall Height	mm	3270	3230	3375
	Wheel Base	mm	4400	4700	4700
Weight	Gross Weight	kg	16000	17700	18000
Engine	Model	-	YCS04200-68	YCS04200-68	YCS04220-61A
	Rated Power	kw/r/min	147	147	162/2300
	Rated Torque	N.m/r/min	720	720	850
Travel	Max Travel Speed	km/h	88	89	89
