Heavy-Duty Lifting Device: Advanced Solutions for Electromagnetic Tasks

Customization:	Available
After-sales Service:	7*24hours
Warranty:	7*24hours

Send Inquiry

Product Description

📋

Basic Information

Model NO.

MW5-70L/1

Shape

Round

Color

Red

Equipment

Electromagnetic Lifting

Cold Current

15/18 A

Furnace Capacity

Application

Lifting & Collecting

Transport Package

Wooden Case

Specification

700*700*700mm

HS Code

8505901000

Capacity

1000 sets/Year

Gross Weight

1500.00kg

⚙️

Product Description

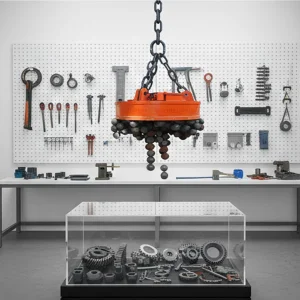

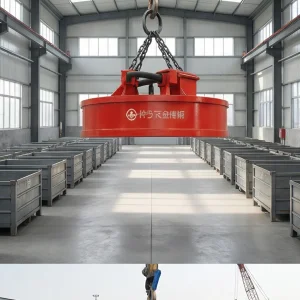

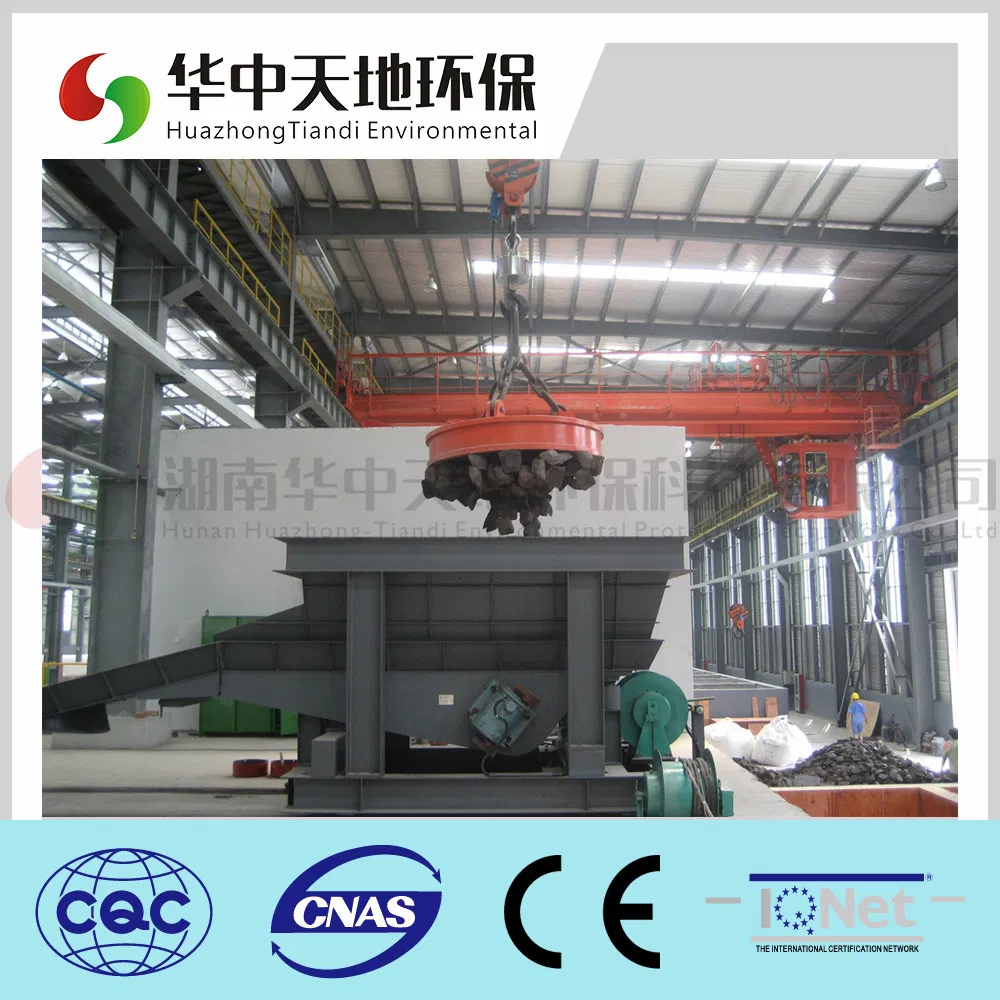

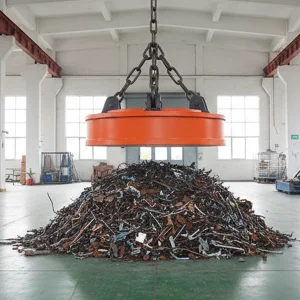

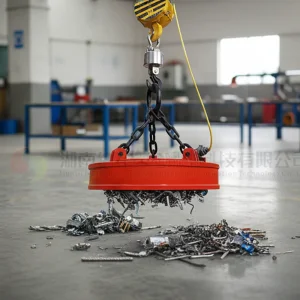

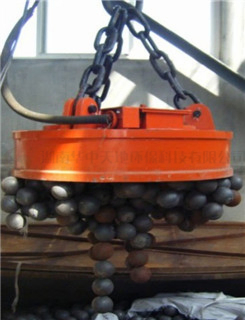

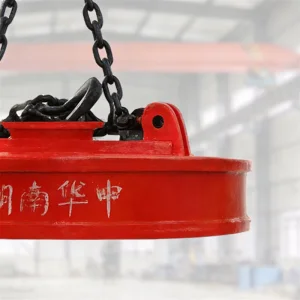

Lifting Electromagnet

The Lifting Electromagnet harnesses electric and magnetic forces for material elevation. Essential for lifting and moving ferromagnetic materials in metallurgy, mining, machinery, shipbuilding, and transport. It acts as an electromagnetic manipulator, magnetic centering device, and bar length fixer across industries. With diverse materials, tailored electromagnet structures, magnetic circuits, and manufacturing processes create a specialized product range.

📊

Technical Specifications

System Type / Model		MW5-70L/80L	MW5-90L	MW5-110L	MW5-130L	MW5-150L	MW5-165L	MW5-180L	MW5-210L
Ingredient Capacity		2	2~3	3~5	6~8	8~12	12~20	18~30	20-50
Applicable Electric Furnace		2t	2~3t	3-5t	6-8t	8~12t	12~20t	18~30t	20-50t
Disk Parameters	Diameter (mm)	700/800	900	1100	1300	1500	1650	1800	2100
	Weight (kg)	500/620	800	1300	2000	2800	3200	4200	6800
	Cold Current (A)	15/18	26	35	54	72	75	102	139.5
	Power Consumption (kW)	3.3/4	5.85	7.7	11.9	15.6	16.5	22.5	30.7
	Pig Iron Weight (kg)	180-380	250-500	380-750	750-1200	900-1500	1200-2000	1600-2300	2800-3500
	Scrap Weight (kg)	60-200	100-250	180-380	260-500	450-800	800-1200	900-1500	1850-2300

🖼️

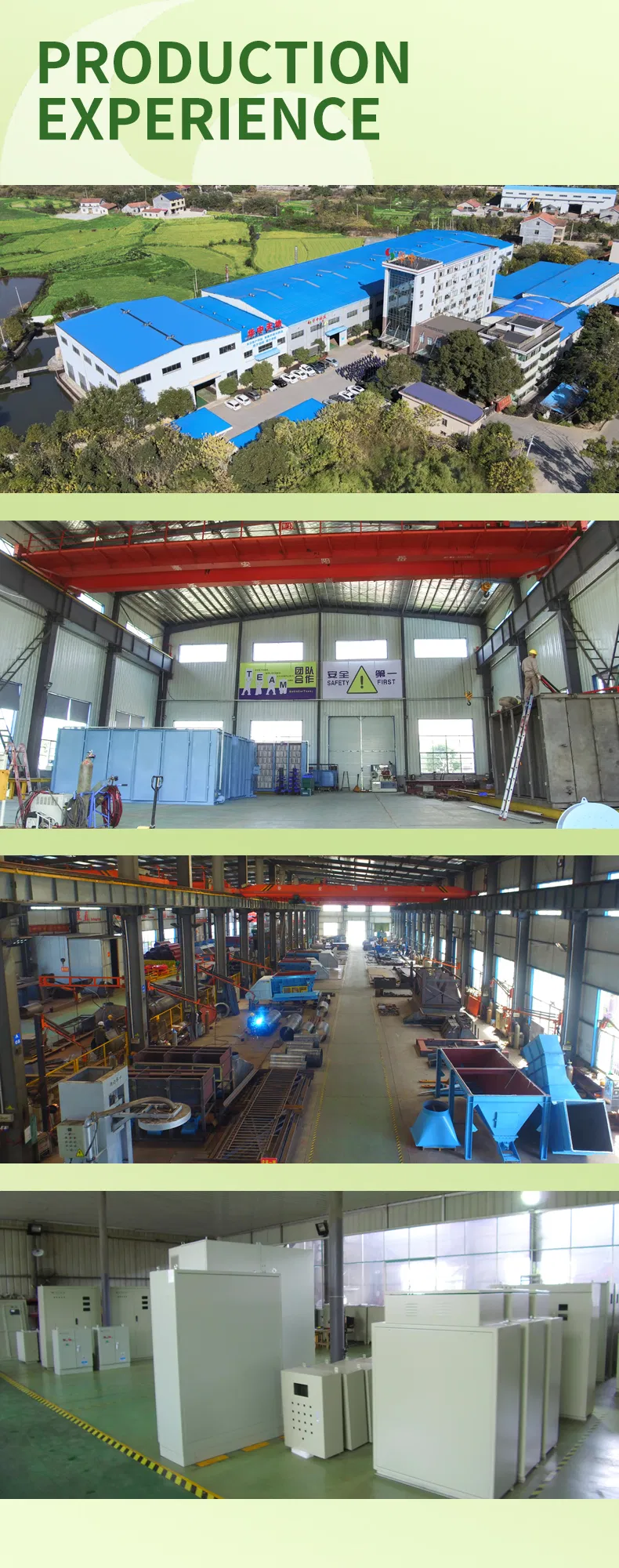

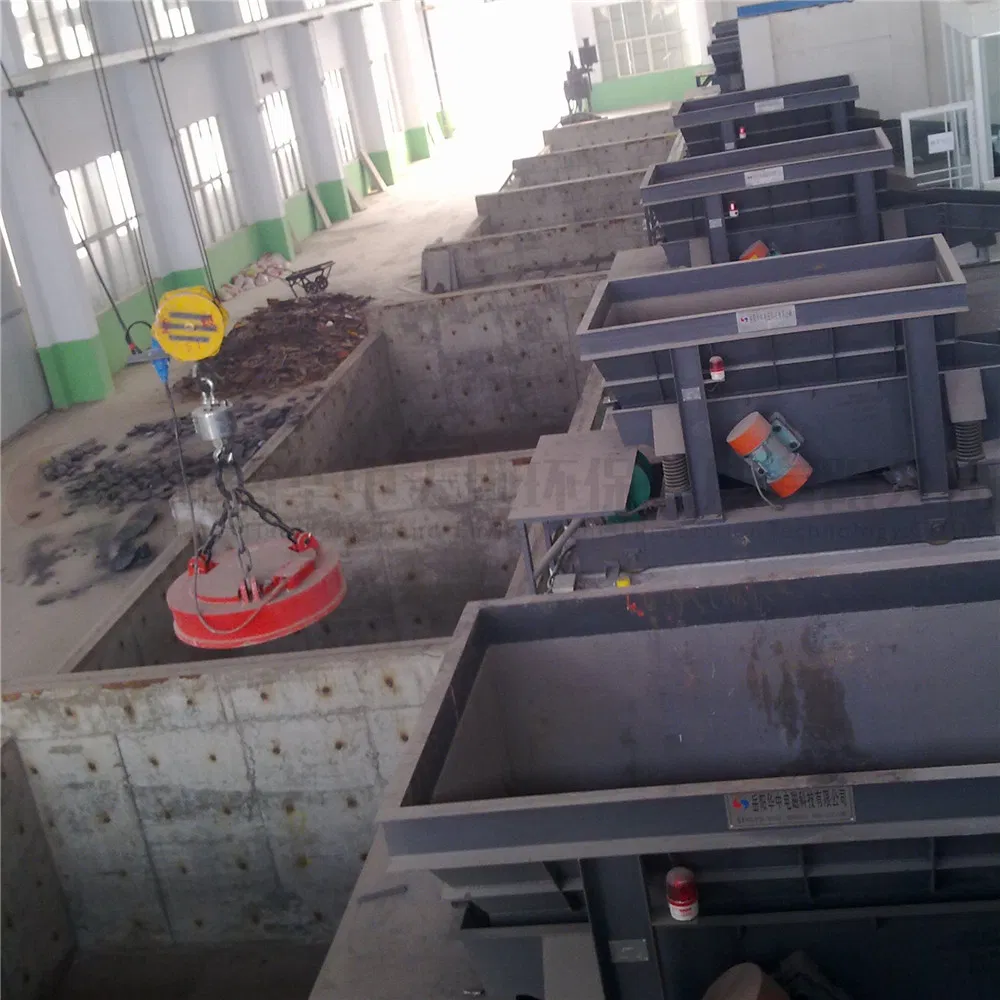

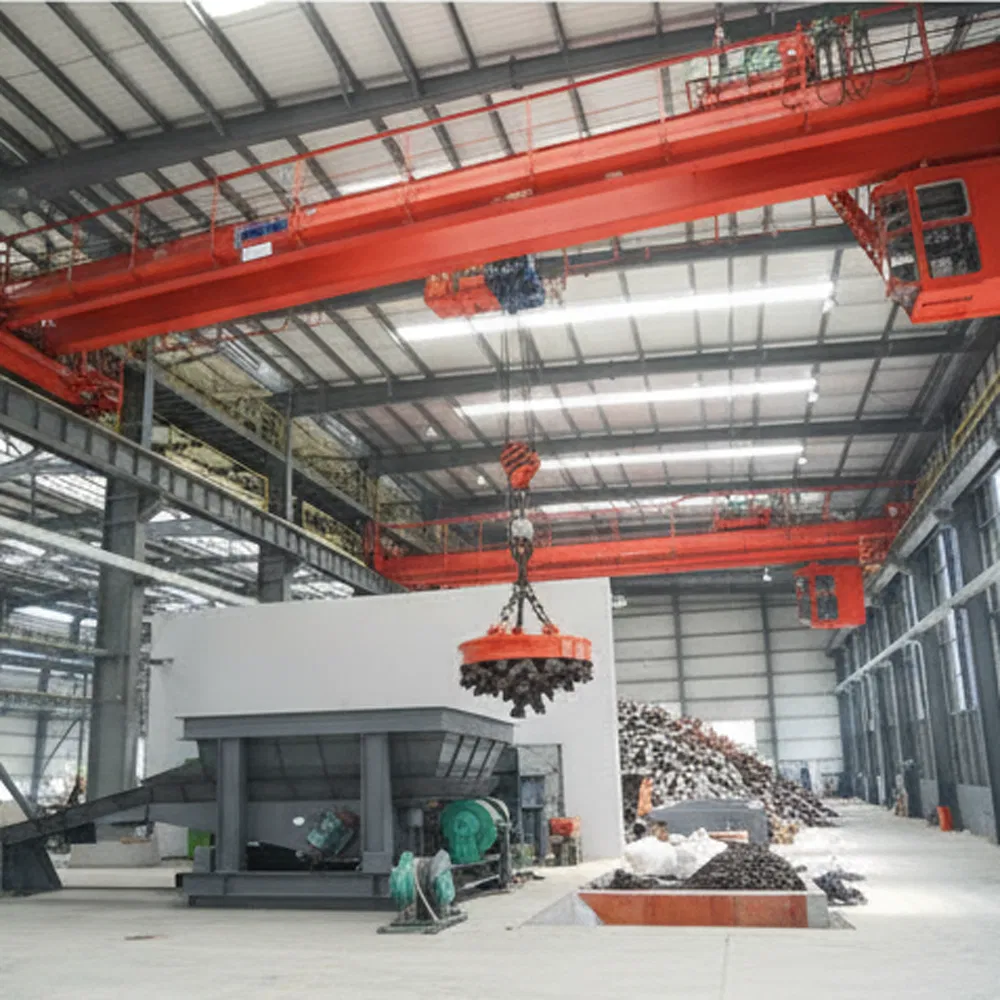

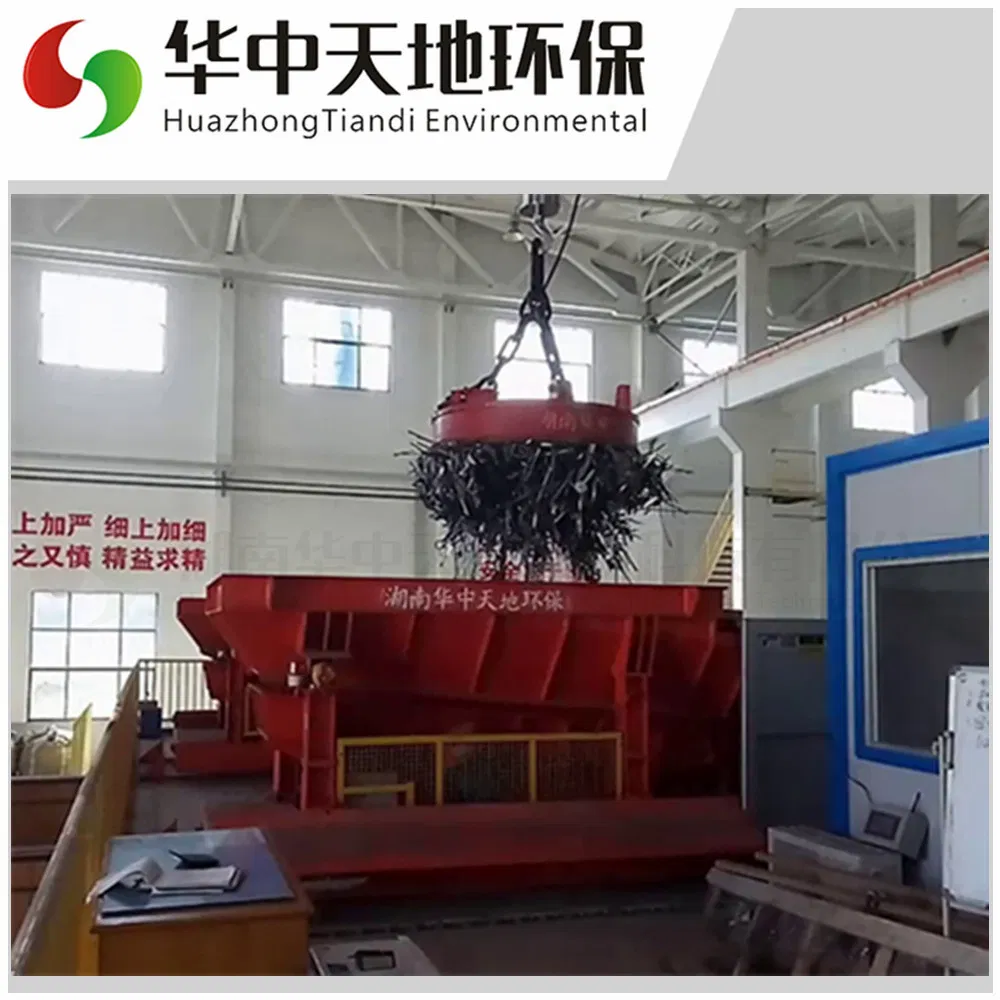

Visual Overview & Production

💡

Frequently Asked Questions

What materials are suitable for lifting with this electromagnet?

It is designed for ferromagnetic materials such as pig iron, scrap steel, steel plates, and other iron-based components in industrial settings.

How is the lifting capacity calculated for different materials?

Capacity varies by material density; pig iron typically allows for higher lifting weights compared to loose scrap steel due to its solid structure.

Can these electromagnets be used in high-temperature environments?

Yes, specialized models are available for high-temperature lifting, featuring enhanced insulation and heat-resistant magnetic circuits.

What is the standard duty cycle of the electromagnet?

Most models are designed for 60% or 75% duty cycles, ensuring optimal performance during continuous loading and unloading operations.

Is the control cabinet included with the lifting disk?

We offer compatible integrated rectifiers and control cabinets, including microcomputer-controlled versions for precise ingredient mixing.

What maintenance does the electromagnet require?

Regular inspections of the cable connectors, checking insulation resistance, and ensuring the bottom plate is free from excessive wear are recommended.
