Advanced Electromagnetic Lifting Solutions for Heavy-Duty Steel Operations

Customization:	Available
After-sales Service:	7*24hours
Warranty:	7*24hours

i

Basic Specifications

Model NO.

MW5-70L/1

Shape

Round

Color

Red

Equipment

Y573/Y574aw

Cold Current

15/18

Electric Furnace

2t

Application

Lifting & Collecting

HS Code

8505901000

Production Capacity

1000 sets/Year

Package Size

70.00cm * 70.00cm * 70.00cm

Gross Weight

1500.000kg

★

Product Description

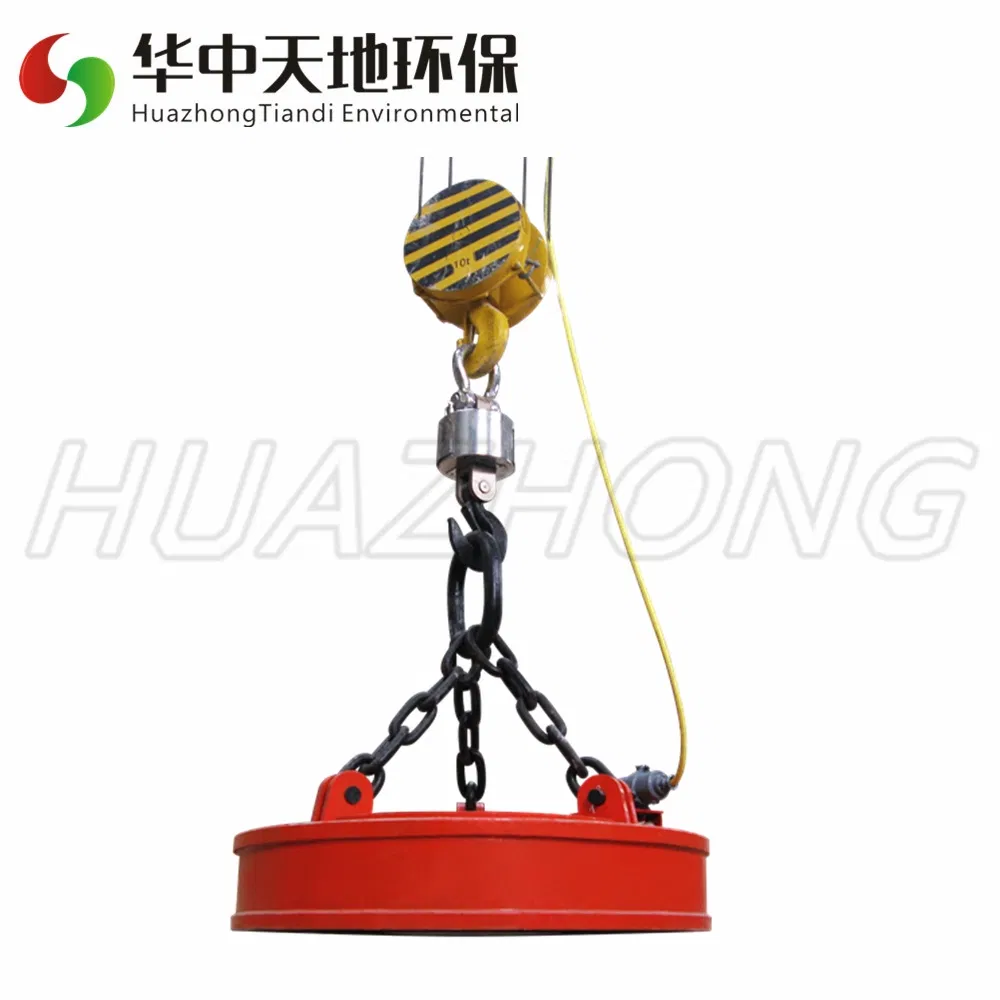

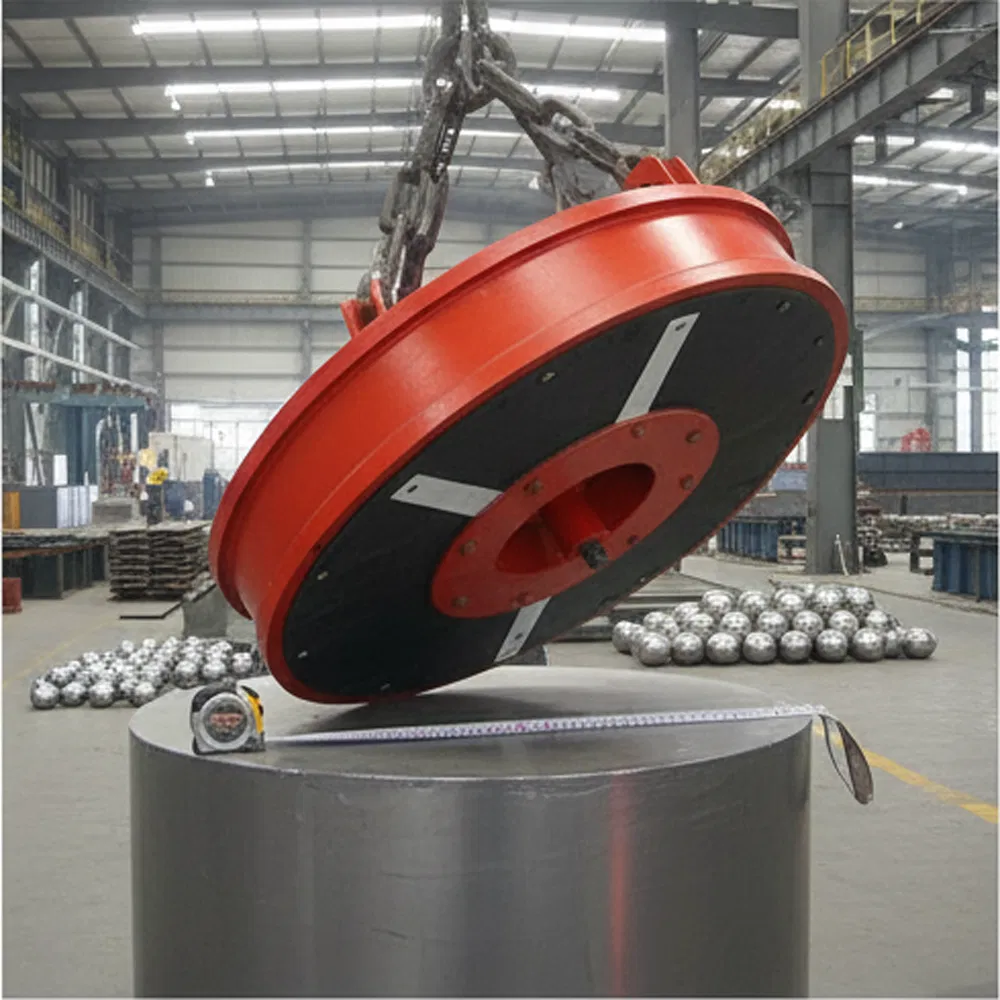

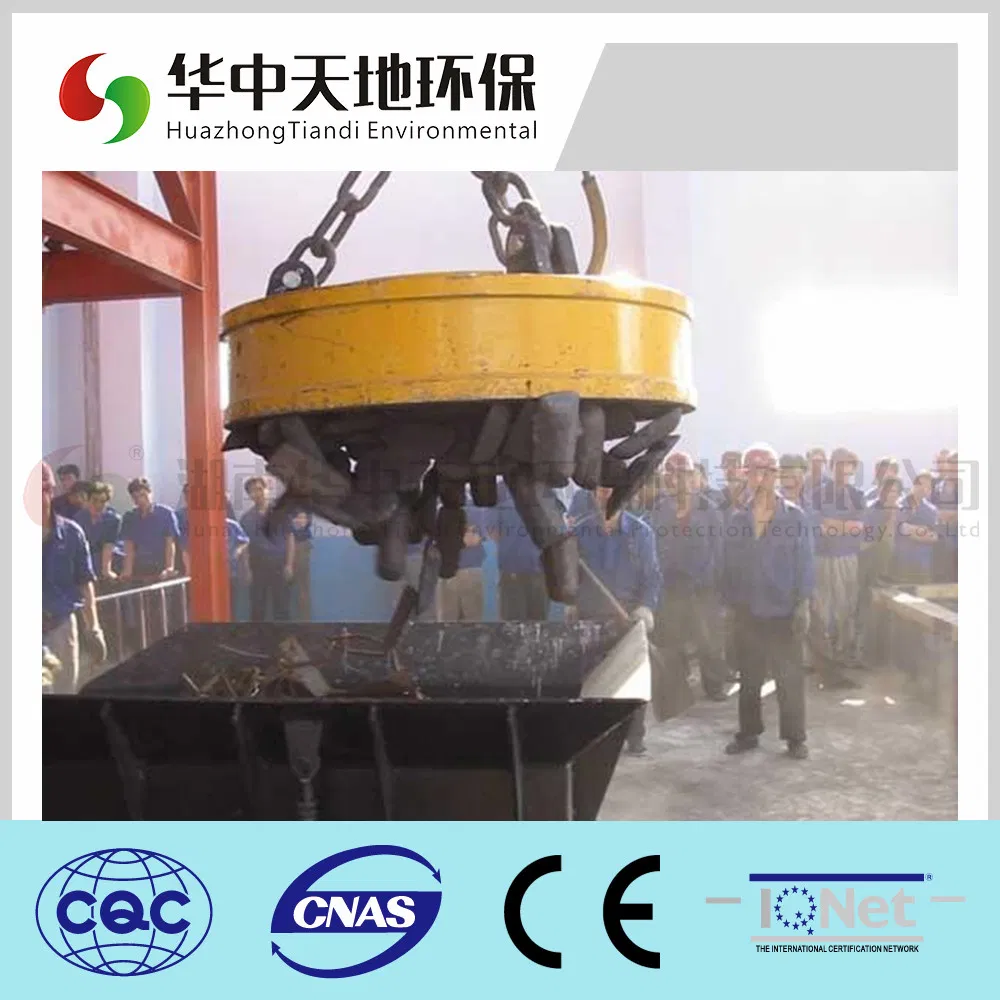

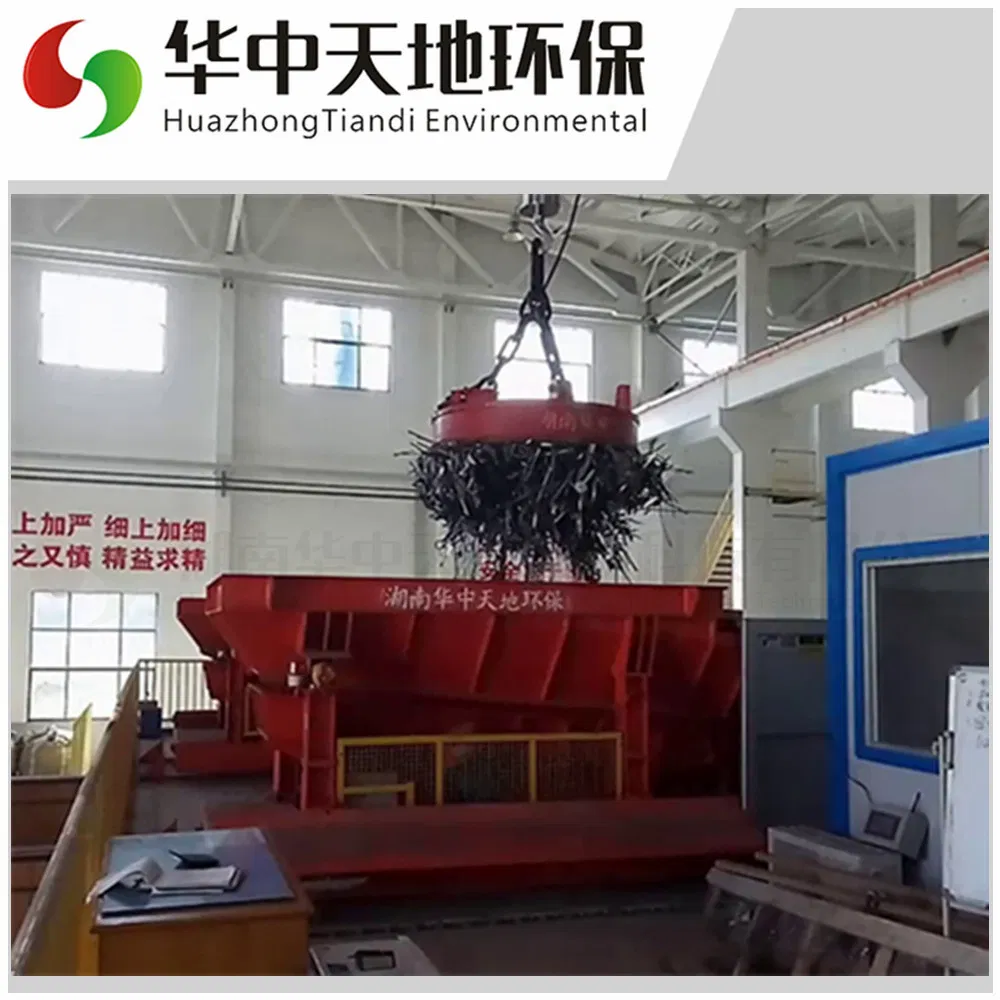

Lifting Electromagnet: An essential tool harnessing electric and magnetic forces for material elevation. It is indispensable for lifting and transporting ferromagnetic materials in metallurgy, mining, machinery, shipbuilding, and transport sectors.

It functions as an electromagnetic manipulator, magnetic centering device, and bar length fixer across multiple industries. Tailored for diverse materials, electromagnet structures, magnetic circuits, and manufacturing processes, it forms a specialized product range.

⚙

Technical Parameters

Model Details		MW5-70L/80L	MW5-90L	MW5-110L	MW5-130L	MW5-150L	MW5-165L	MW5-180L
Main Parameters	Diameter (mm)	700/800	900	1100	1300	1500	1650	1800
	Weight (kg)	500/620	800	1300	2000	2800	3200	4200
	Cold Current (A)	15/18	26	35	54	72	75	102
	Power (kW)	3.3/4	5.85	7.7	11.9	15.6	16.5	22.5
Lifting Capacity (Scrap kg)		60-200	100-250	180-380	260-500	450-800	800-1200	900-1500

⚓

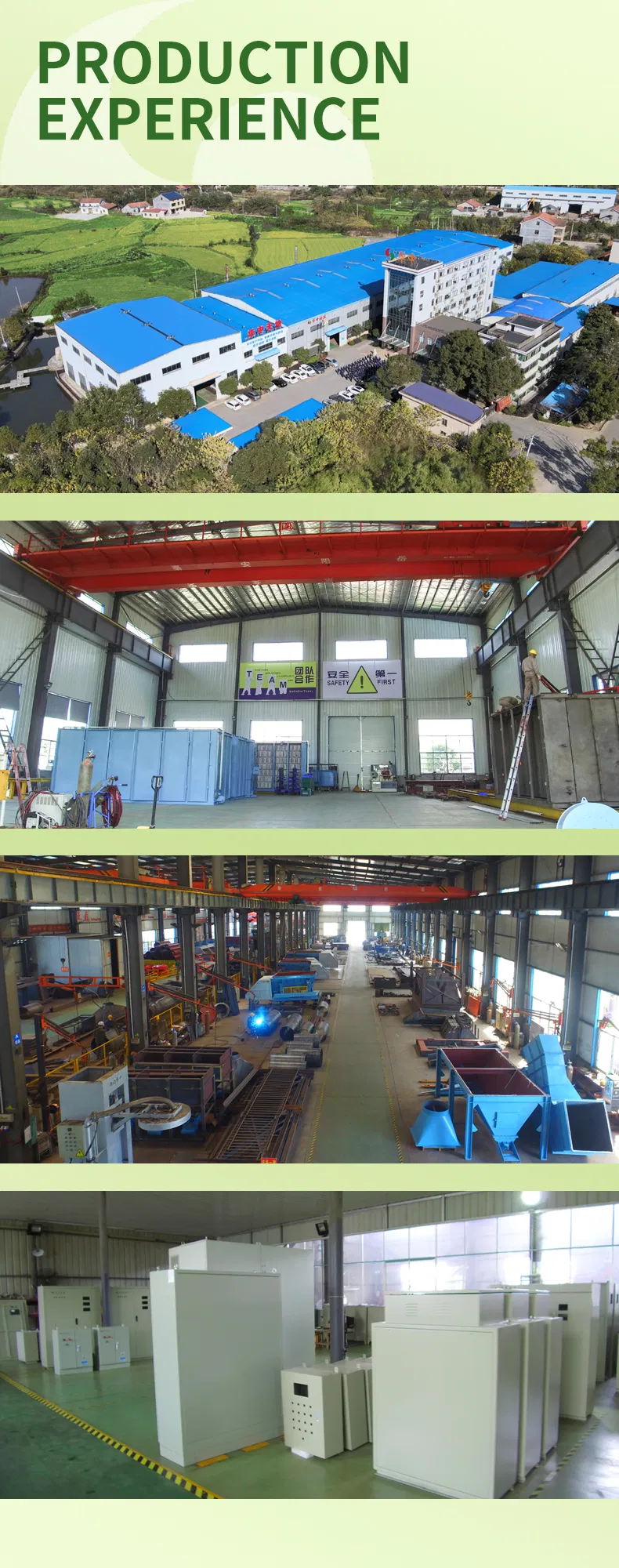

Production & Logistics

?

Frequently Asked Questions

What materials can this lifting electromagnet handle?

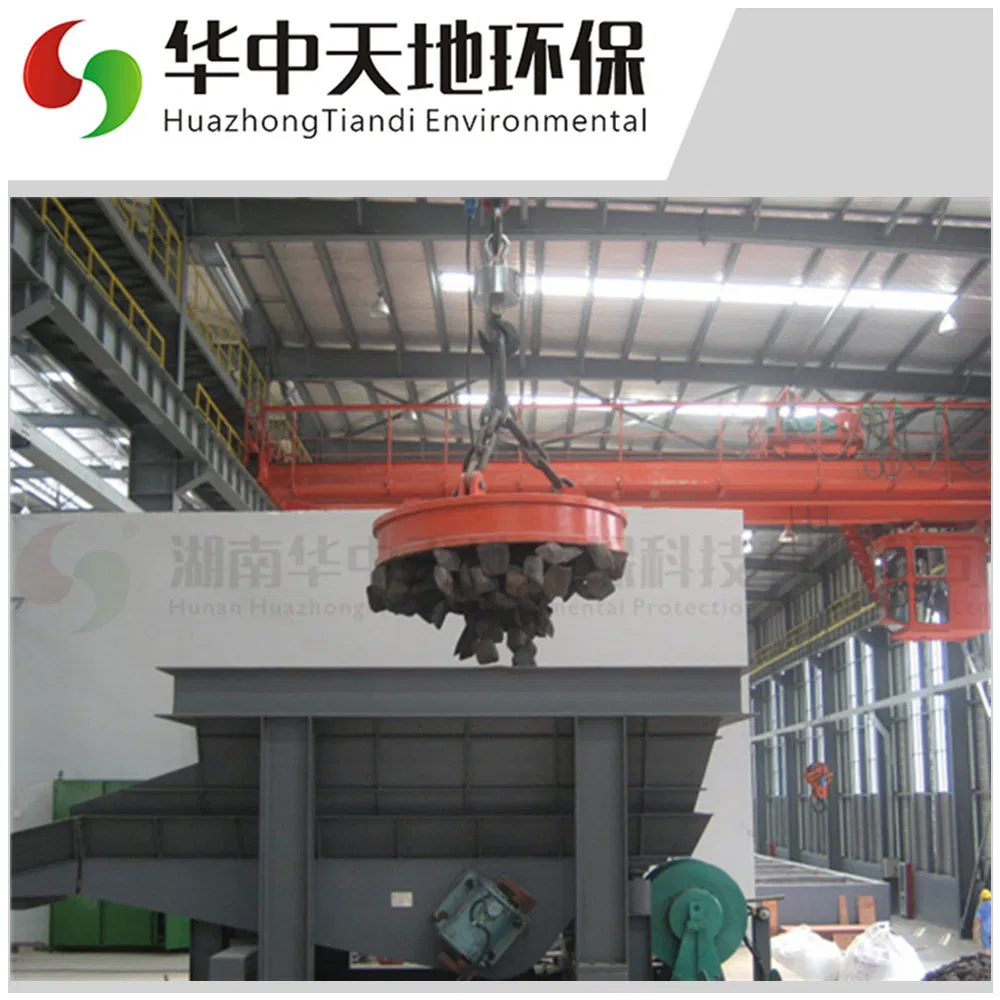

It is specifically designed for ferromagnetic materials, including pig iron, steel scrap, slabs, and steel balls used in metallurgy and mining.

Is the equipment compatible with different crane types?

Yes, we provide adapters for various crane capacities, ranging from 3t to 16t, ensuring compatibility with standard industrial lifting systems.

What are the power requirements for the MW5 series?

Power consumption varies by model size, starting from 3.3kW for the 70L model up to 30.7kW for the 210L heavy-duty model.

How is the product protected during shipping?

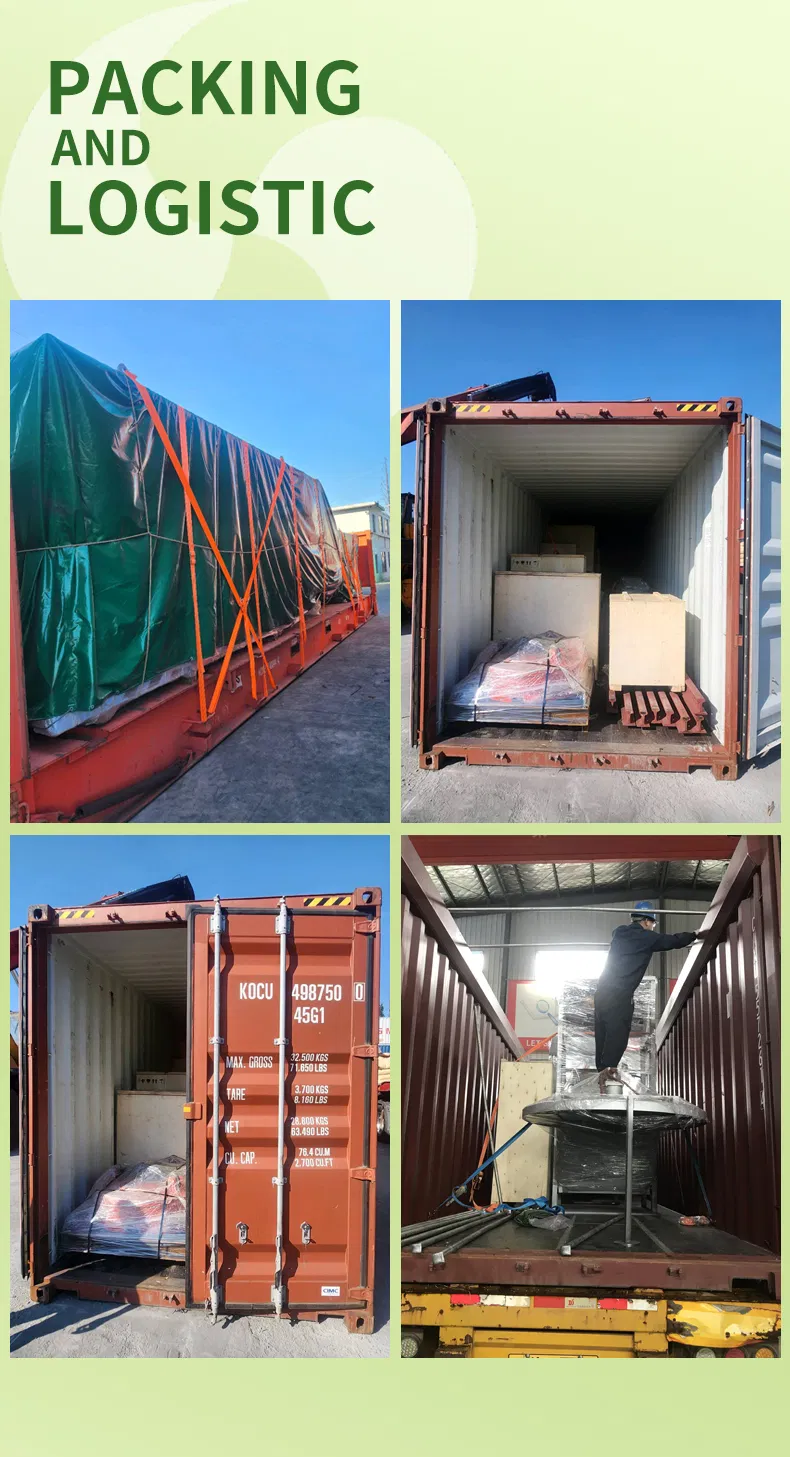

We use robust wooden cases and bear packing to ensure the electromagnet remains secure and undamaged during international transit.

Can the magnetic force be adjusted?

The magnetic force is controlled via the integrated rectifier and control cabinet, allowing for precise operation during ingredient mixing or loading.

What is the standard production lead time?

With a production capacity of 1000 sets per year, we maintain a steady supply chain to ensure timely delivery for both small and large orders.
