Basic Information
Product Name
Motorized Transport Solution
Usage
Heavy Duty Material Transportation
Control Mode
Pendant/Remote/PLC Control
Application
Steel Industry, Factory, Warehouse, Port
Special Function
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Transport Package
Tarp and Polywood Case
Production Capacity
50 Sets/Month

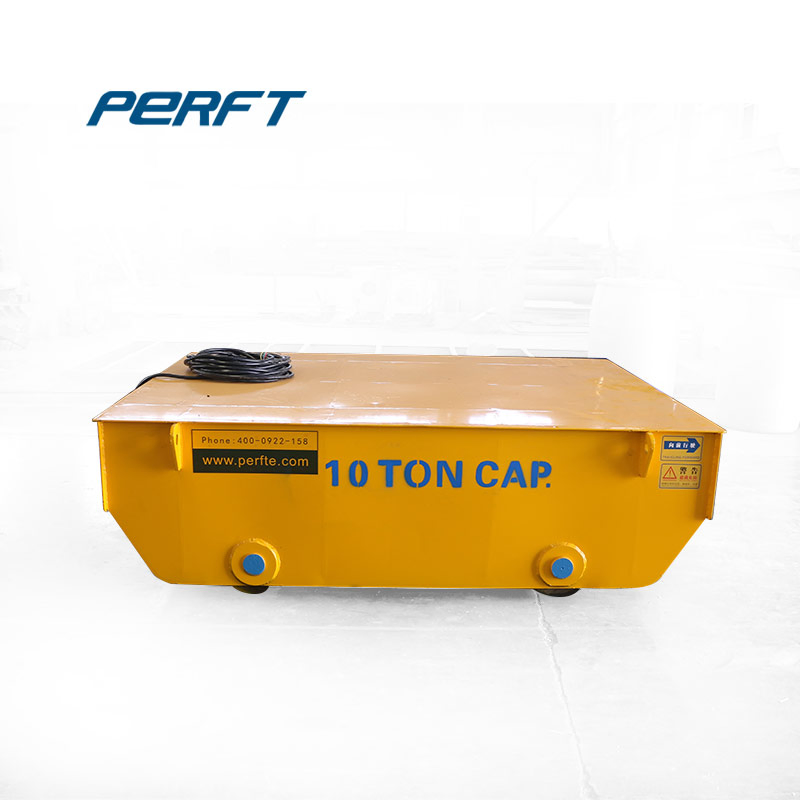

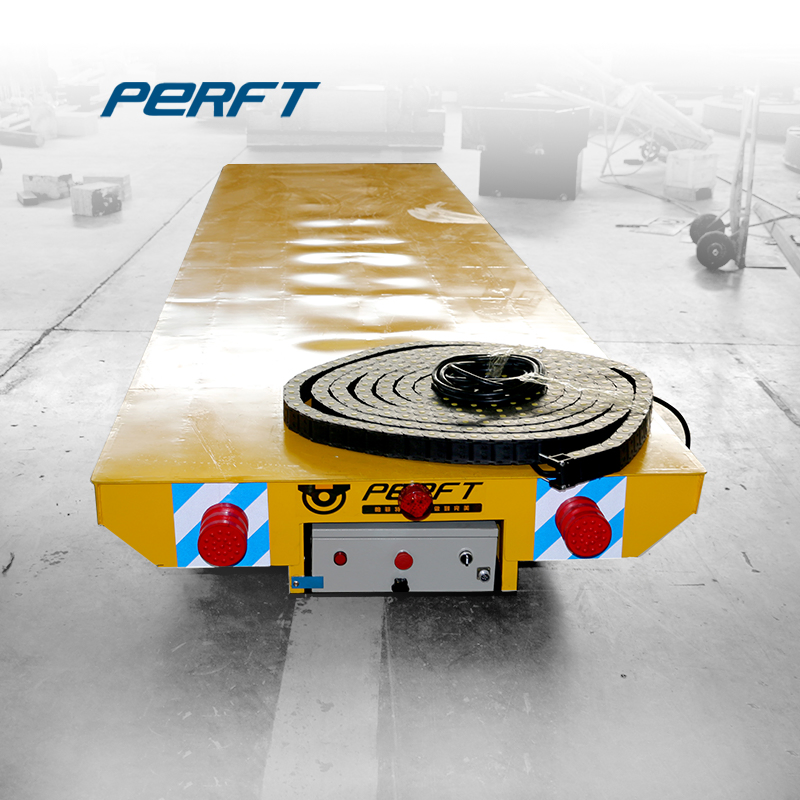

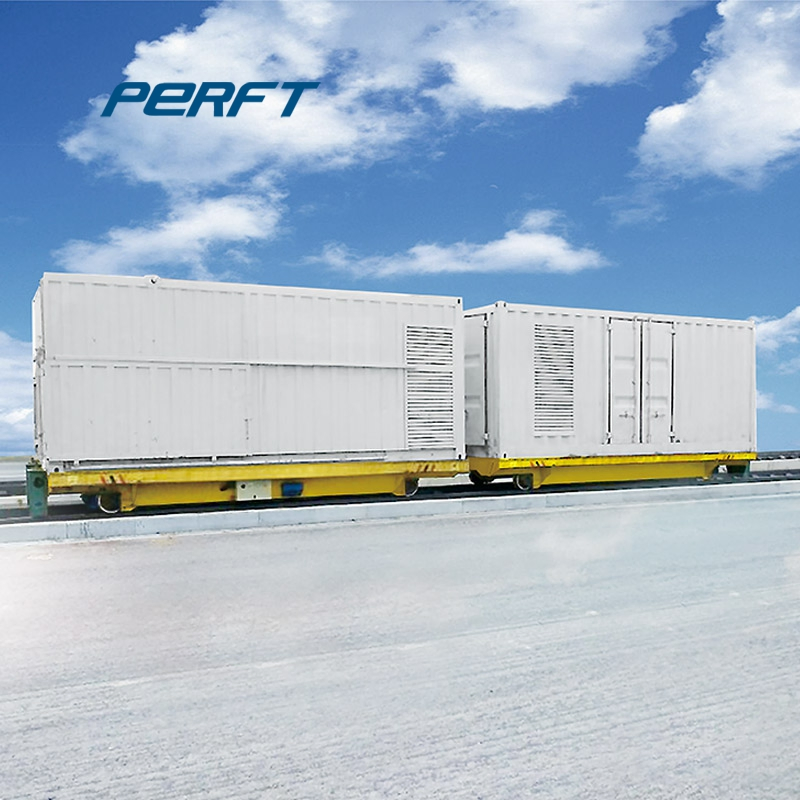

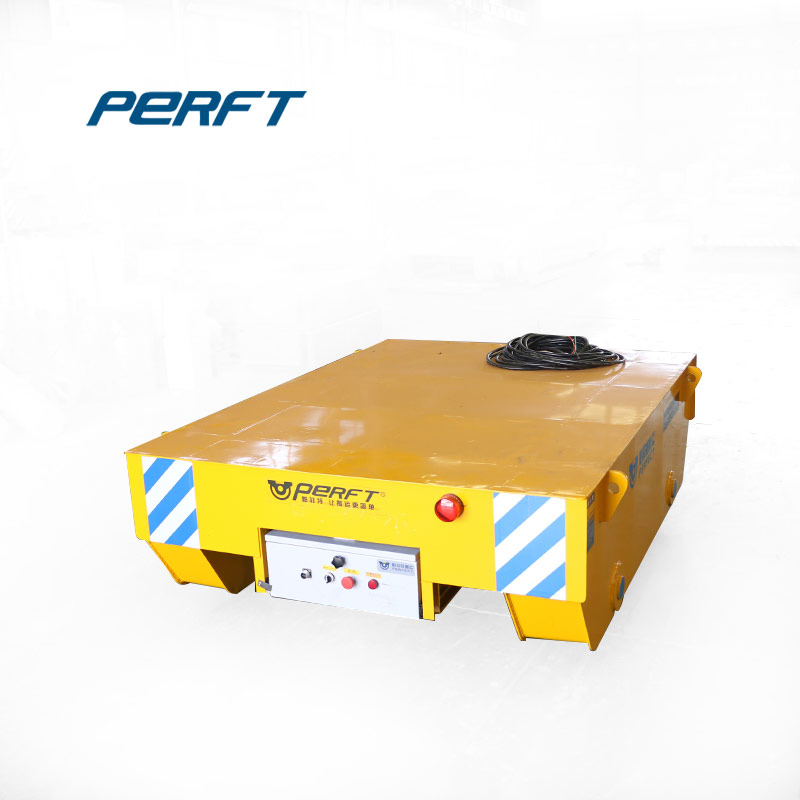

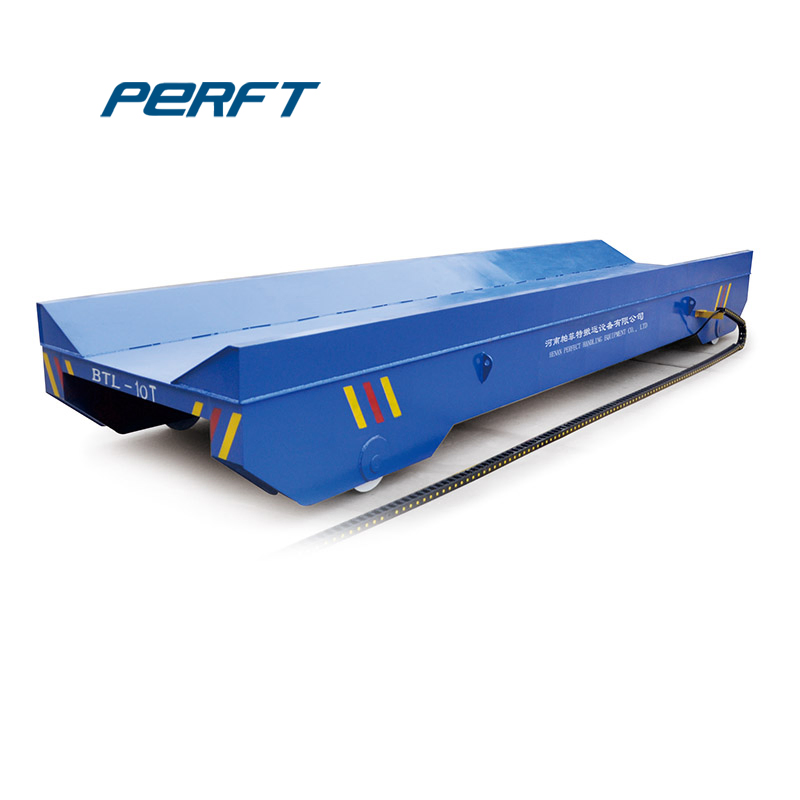

Aluminum Factory Using Transfer Table Motorized Transfer Solution
Introduction of Motorized Transport Solution
Our line of Motorized Transport Solution are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

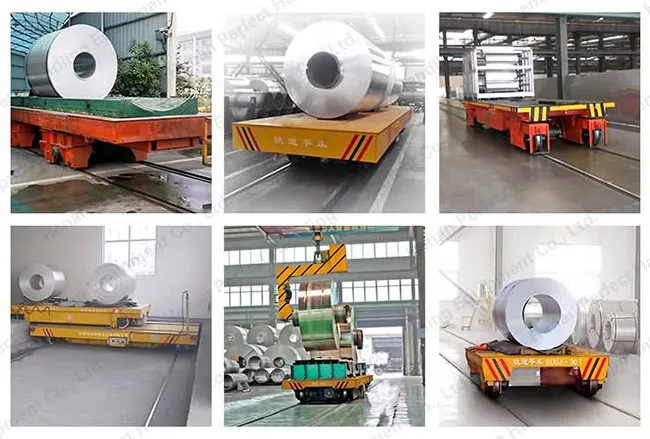

Application of Motorized Transport Solution
The Motorized Transport Solution allow movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production line, and so on.
Customized Motorized Transport Solution Specifications
| Product Name |
Model |
Power Supply |
Load Capacity |
Running Distance |
Usage |
| Rail Transfer Cart |
BDG |
Conductor Rail |
1-300t customized according to requirements. |
≤70m |
Handling industrial materials: steel plate, tube, ladle, coils, roller, die mold, precast slab, boiler, etc. |
| Battery Powered Transfer Car |
BXC |
Battery |
Unlimited |
| Cable Powered Transfer Trolley |
BJT |
Cable Drum |
≤50m |
| Electric Transfer Cart |
BTL |
Trailing Cable |
≤20m |
| Busbar Powered Handling Vehicle |
BHX |
Busbar |
Unlimited |
| Towed Rail Trailer |
BP |
Towed by machine |
Unlimited |
| Industrial Trailer |
BWT |
Manual/Towed |
1-150t |
Unlimited |
| Trackless Handling Wagon |
BWP |
Battery |
Unlimited |
Professional Design and Manufacture

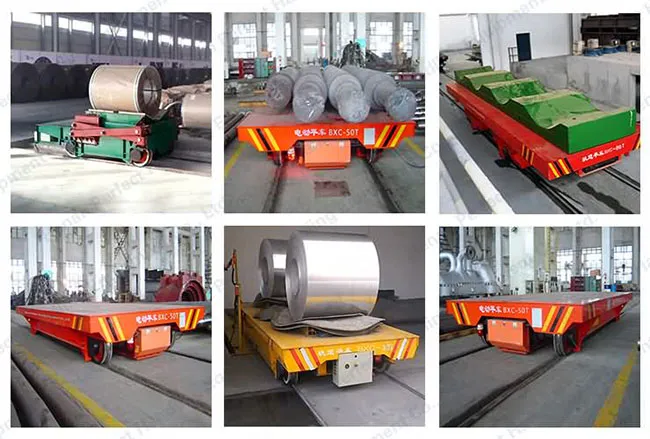

Specializing in the Design and Manufacture of transport systems to solve every material handling requirement. Product range includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.

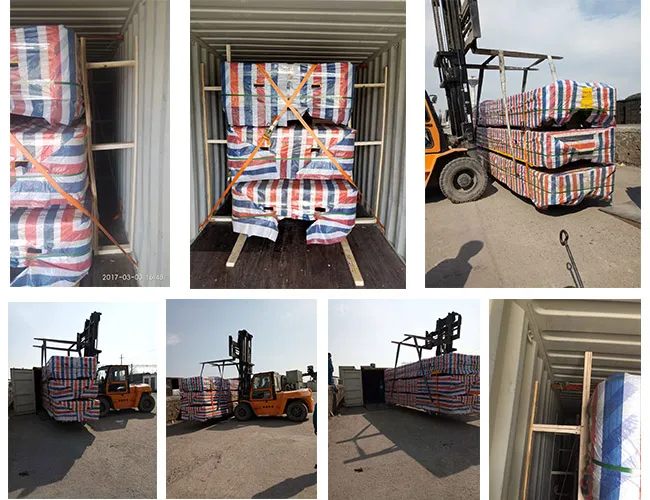

Transportation & Packaging
*For length less than 6m and width less than 2.2m, vehicles are transported by 20ft container. For longer units (up to 12m), 40ft containers are used. Multi-set orders can share containers, while single sets may use LCL.
*For units exceeding 2.2m in width, flat racks (20 or 40 ft) or bulk cargo shipping are utilized to ensure safe delivery.
How to choose the Motorized Transport Solution?
⚙️
Towed Type Carts: For loads up to 60 ton. Economical alternative, manually moved or towed behind lift trucks. Ideal for space-constrained areas.
⚙️
On-Rail Type Carts: For loads up to 100 ton. Fixed path shuttling using steel rails. AC or DC battery powered. Suitable for heavy tanks or steel movement.
⚙️
Steerable Type Carts: For loads up to 45 ton. DC battery powered with swivel casters for smooth, level floors. Highly flexible for specific factory layouts.
Frequently Asked Questions
Q: What is the maximum load capacity of these transport solutions?
A: We can design and manufacture transfer carts with a load capacity ranging from 1 ton up to 300 tons, customized to your specific needs.
Q: Which power supply mode is best for long-distance running?
A: For unlimited running distances, we recommend Battery powered (BXC/BWP) or Busbar powered (BHX) models.
Q: Can the transfer carts be used in high-temperature environments?
A: Yes, we offer special functions including heat-resistant and anti-explosion designs specifically for foundry or steel industry applications.
Q: What control options are available for the operators?
A: You can choose from a hand-held pendant, wireless remote control, or fully automated PLC control systems.
Q: Is it possible to customize the table size and shape?
A: Absolutely. All table dimensions, shapes (like V-decks for coils), and specifications are customized based on the material being handled.
