Advanced Lifting Solutions with Heavy-Duty Electromagnetic Device Included

Customization:	Available
After-sales Service:	7*24hours
Warranty:	7*24hours

Send Inquiry

Product Description

Basic Specifications

Model NO.

MW5-70L/1

Shape

Round

Color

Red

Equipment Type

Electromagnetic Lifting

Cold Current (A)

15/18

Electric Furnace Suitability

Application

Lifting & Collecting

Transport Package

Wooden Case, Bear Packing

Unit Dimensions

700*700*700mm

Production Capacity

1000 sets/Year

Product Description

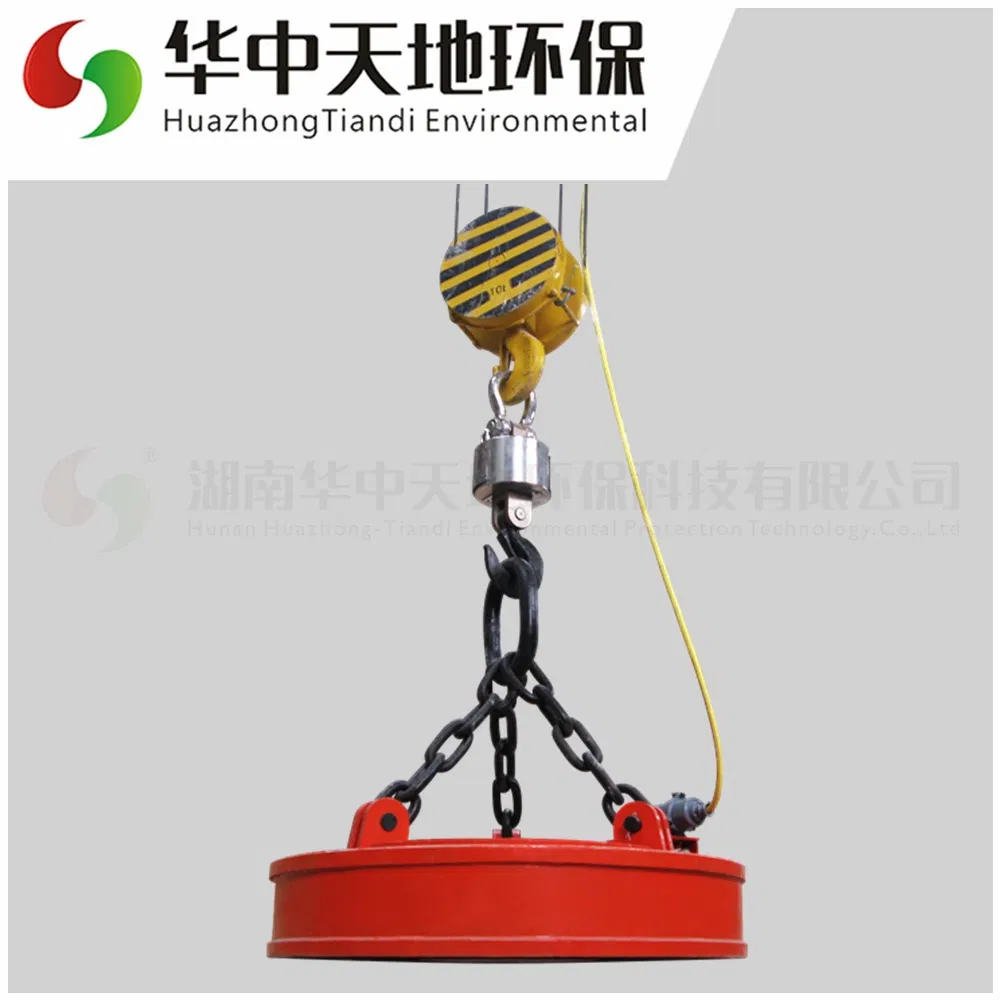

Lifting Electromagnet Overview

The Lifting Electromagnet employs advanced electric and magnetic forces for efficient material elevation. It is an essential tool for lifting and moving ferromagnetic materials across industries such as metallurgy, mining, machinery, shipbuilding, and transport. Beyond standard lifting, it functions as a high-precision electromagnetic manipulator, magnetic centering device, and bar length fixer. Each unit is customized with specific electromagnet structures, magnetic circuits, and specialized manufacturing processes to meet diverse industrial requirements.

Technical Parameters

System Model		Y573/Y574	Y575	Y577	Y5710	Y5715	Y5720	Y5730	Y5740
Electromagnetic Plate Model		MW5-70L/80L	MW5-90L	MW5-110L	MW5-130L	MW5-150L	MW5-165L	MW5-180L	MW5-210L
Applicable Furnace (set)		2t	2~3t	3-5t	6-8t	8~12t	12~20t	18~30t	20-50t
Main Parameters	Diameter (mm)	700/800	900	1100	1300	1500	1650	1800	2100
	Weight (kg)	500/620	800	1300	2000	2800	3200	4200	6800
	Cold current (A)	15/18	26	35	54	72	75	102	139.5
	Power (kW)	3.3/4	5.85	7.7	11.9	15.6	16.5	22.5	30.7
Scrap Capacity (kg)		60-200	100-250	180-380	260-500	450-800	800-1200	900-1500	1850-2300

Process & Logistics

Frequently Asked Questions

What is the primary function of a lifting electromagnet?

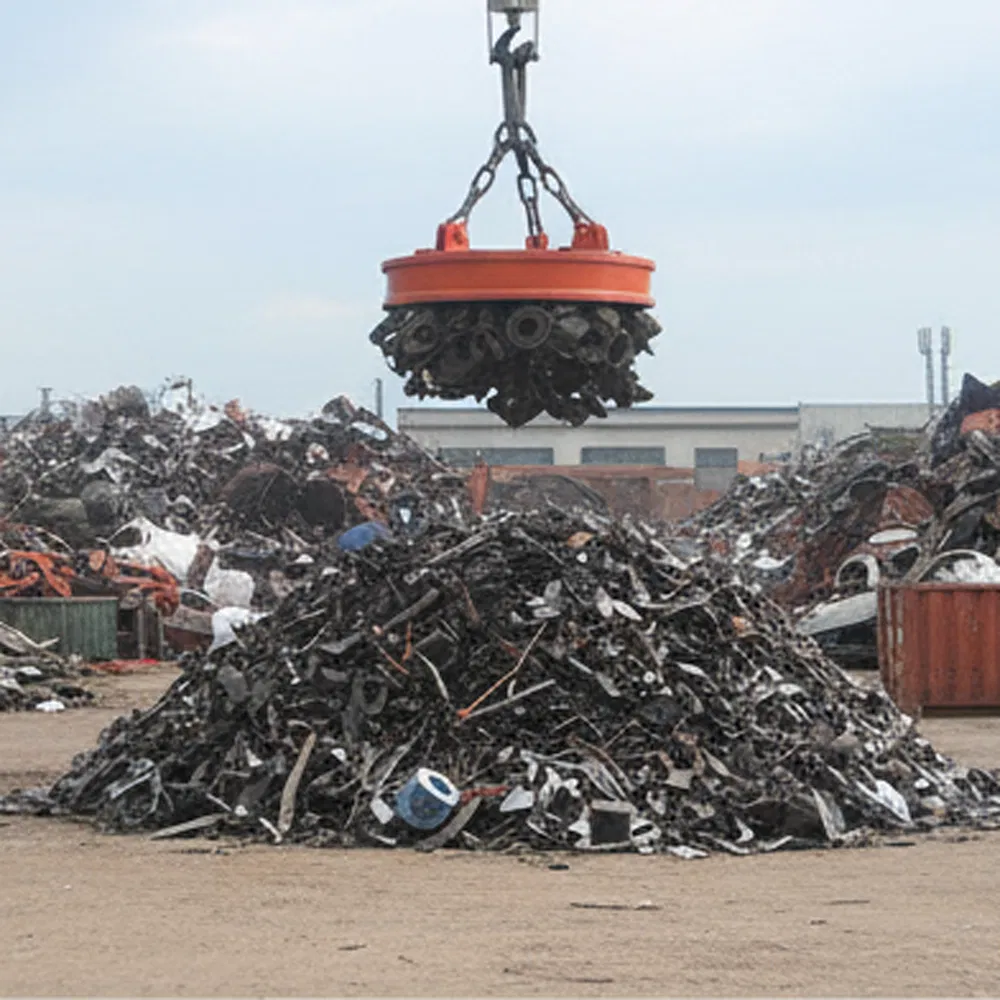

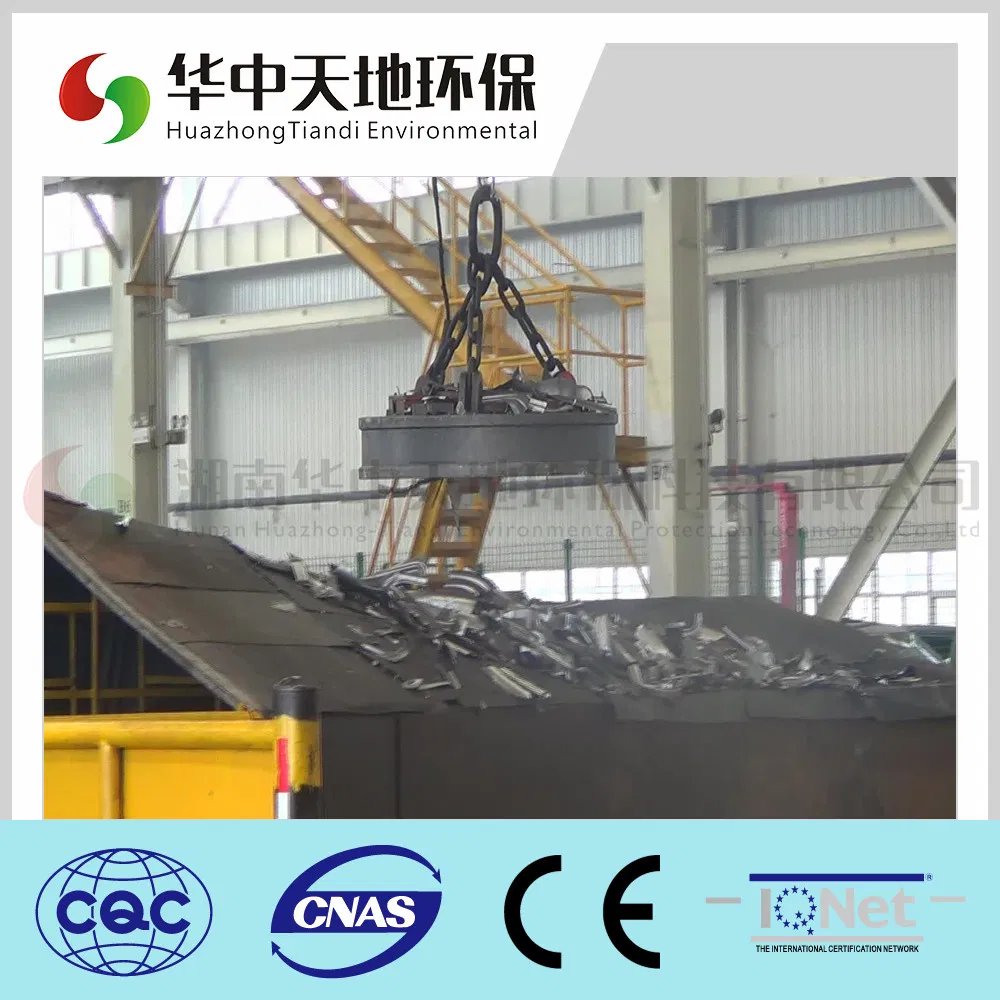

It is designed to lift and transport ferromagnetic materials like iron scrap, steel plates, and pig iron using powerful electromagnetic force.

Can this equipment handle high-temperature materials?

While standard models are for normal temperatures, specialized high-temperature versions can be manufactured to handle materials up to 700°C.

How do I choose the correct model for my electric furnace?

Model selection depends on the furnace capacity. For example, the MW5-70L is ideal for a 2t furnace, while larger models like the MW5-210L suit furnaces up to 50t.

What are the power requirements for these electromagnets?

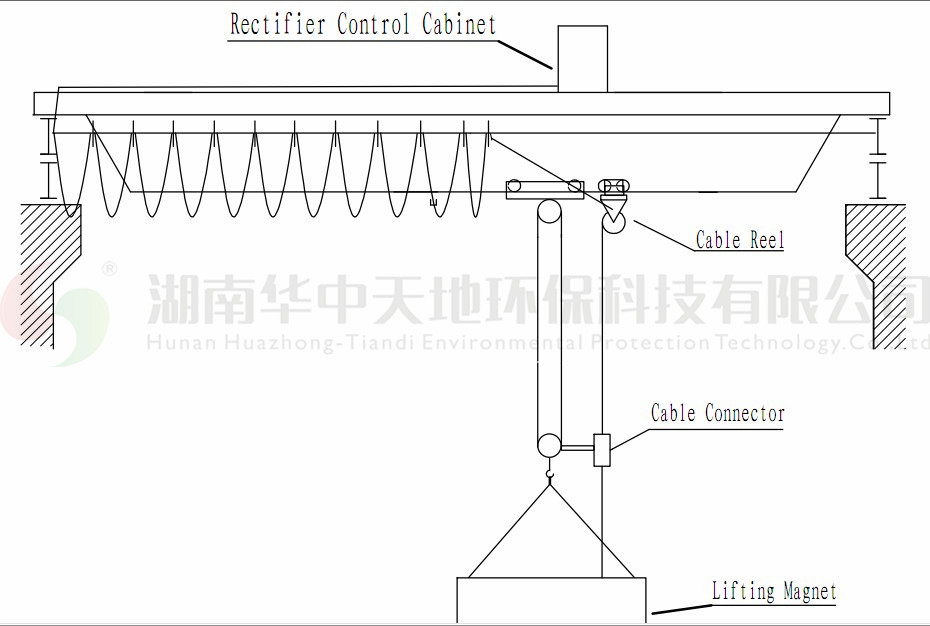

They typically operate on DC power, which is supplied via a matching rectifier control cabinet from an AC source.

Does the magnet come with a control system?

Yes, we provide integrated rectifier and control cabinets, including microcomputer or manual options, to manage the excitation and demagnetization process.

What type of maintenance is required?

Regular inspections of the cable connections, coil insulation resistance, and the wear of the pole plates are recommended to ensure long-term reliability.
