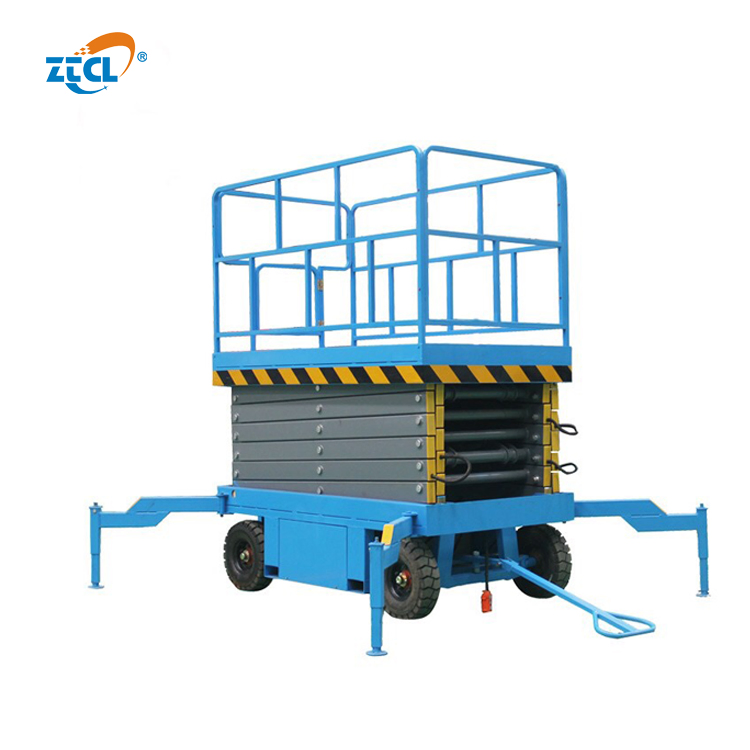

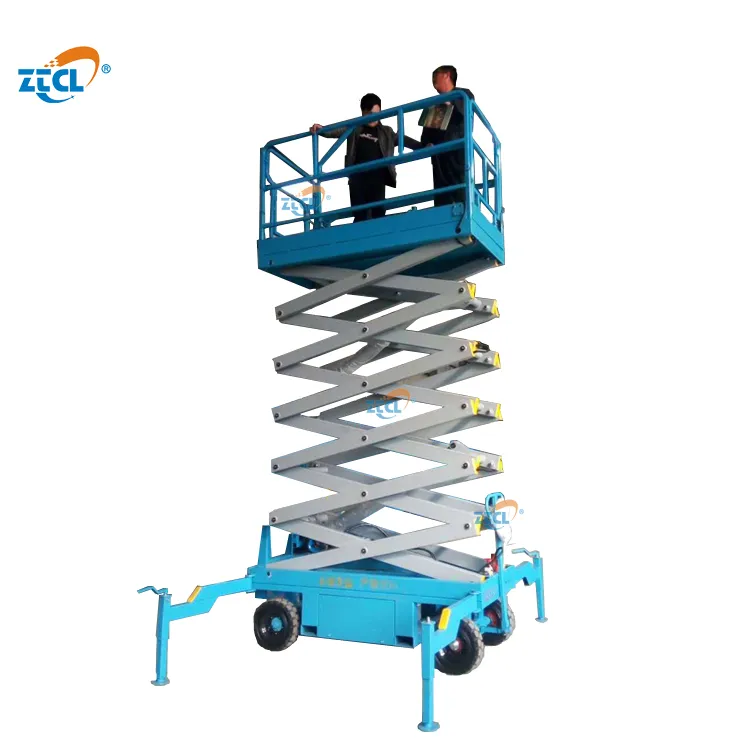

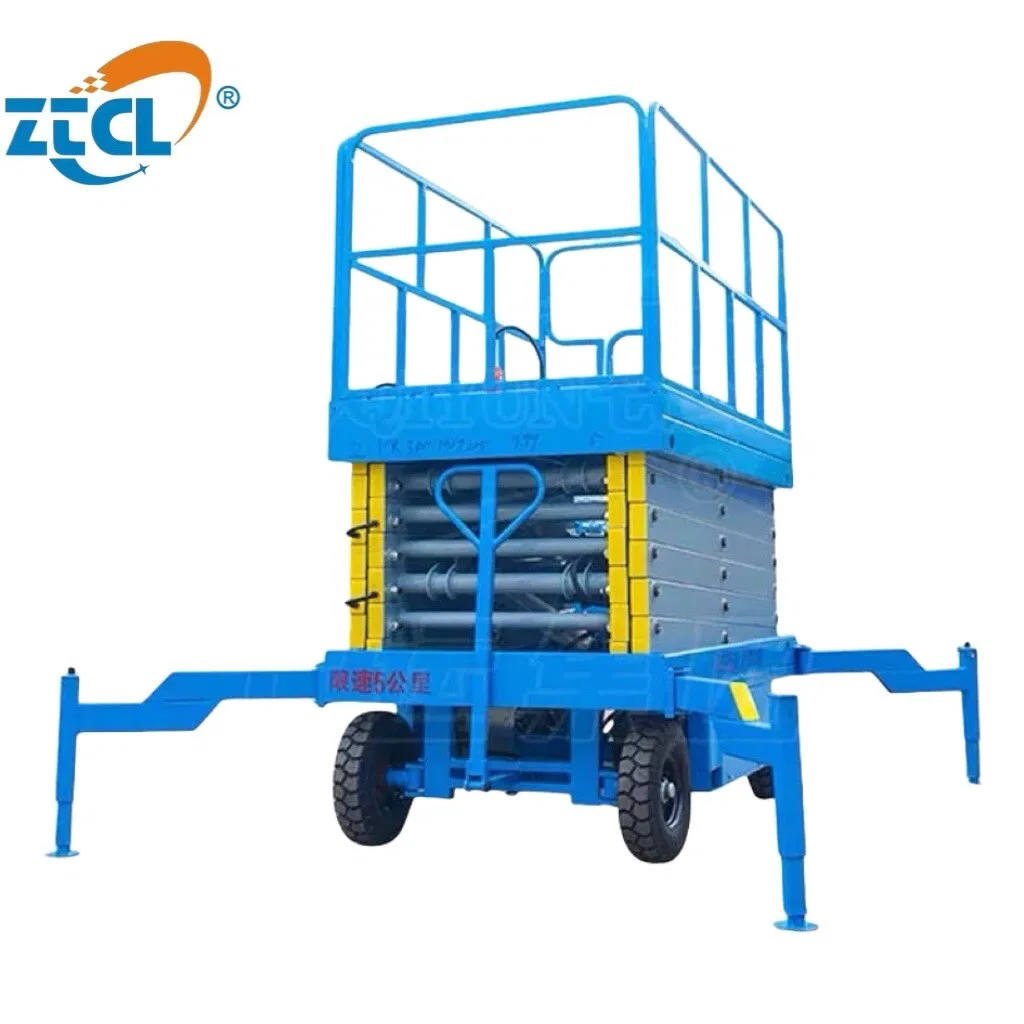

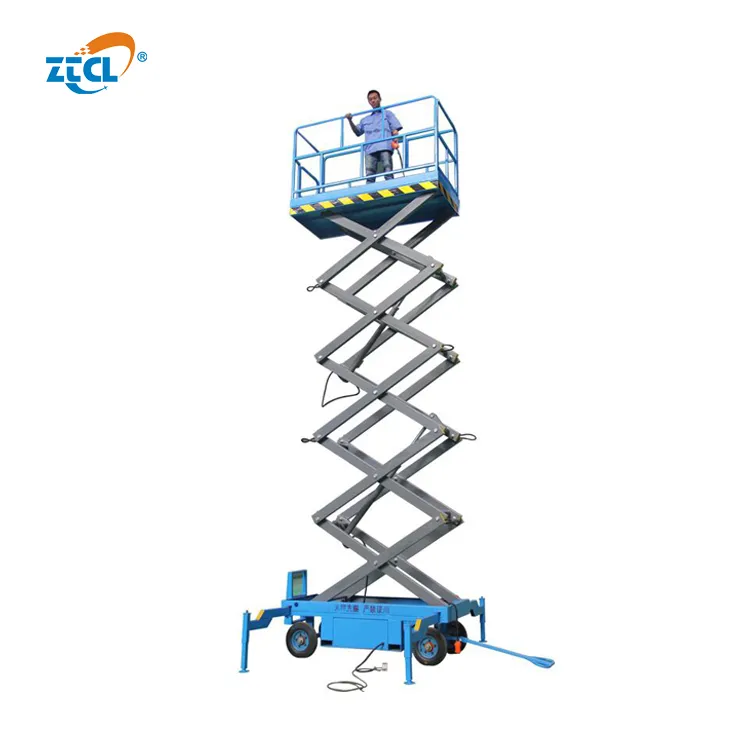

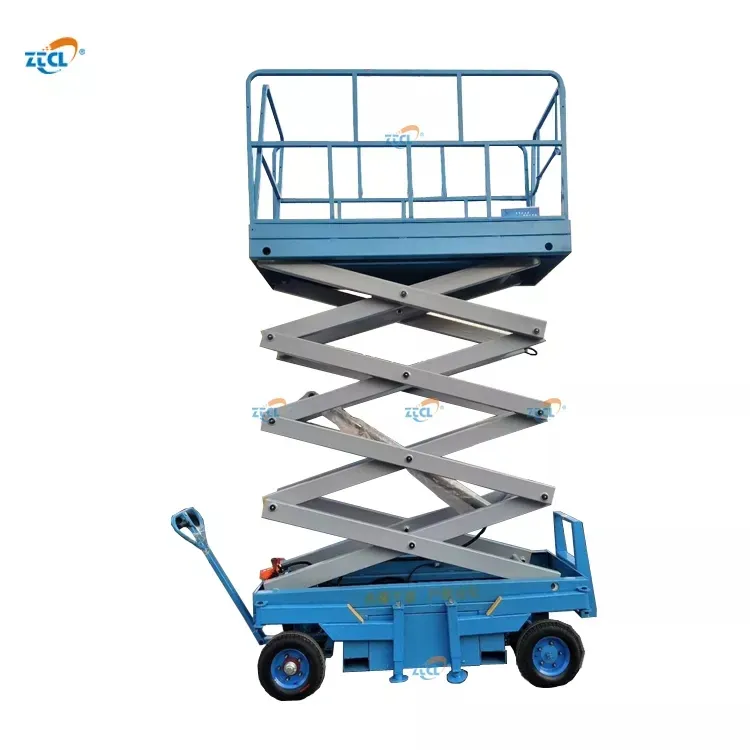

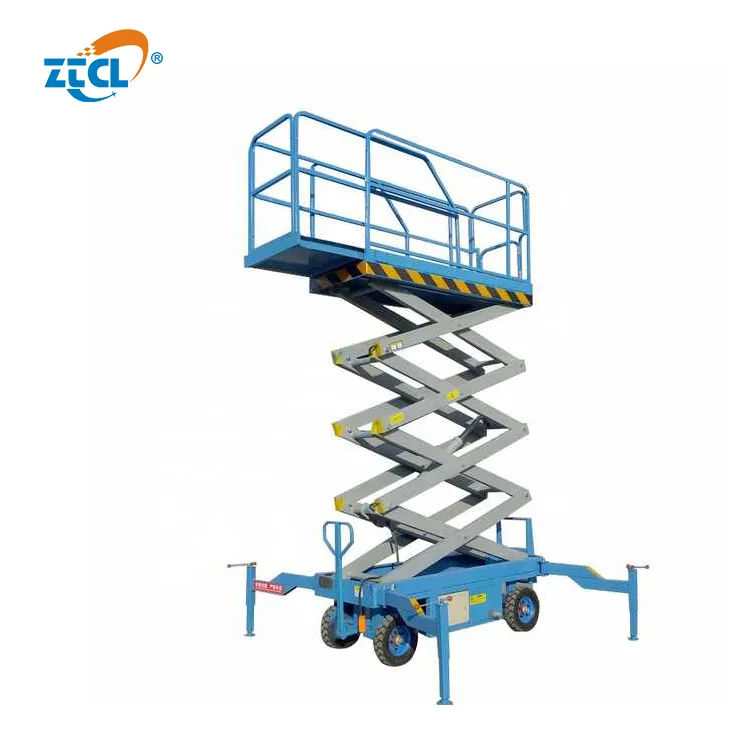

Mobile scissor lifting platform is a piece of special equipment for aerial work with wide applications. Its scissor-type mechanical structure makes the lifting platform has higher stability. A wide space platform and higher load capacity make the work range larger and suitable for many people to work at the same time.
It makes aerial working more efficient and safer. Mainly used for the station, dock, bridge, hall, workshop indoor and outdoor machinery installation, equipment repair, building maintenance.
| Model | Lifting height (m) | Platform size (mm) | Load capacity (kg) | Overall dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ZTSJY0.5-4 | 4 | 2100* 830 | 500 | 2250*950* 1200 | 800 |
| ZTSJY0.5-6 | 6 | 2100* 830 | 500 | 2250*950* 1200 | 880 |
| ZTSJY0.5-7 | 7 | 2100* 830 | 500 | 2250* 950*1280 | 970 |
| ZTSJY0.5-8 | 8 | 2100* 930 | 500 | 2250* 1060*1380 | 1050 |
| ZTSJY0.5-9 | 9 | 2100* 930 | 500 | 2250*1060* 1500 | 1165 |
| ZTSJY0.5-10 | 10 | 2100*1230 | 500 | 2250*1350*1530 | 1360 |
| ZTSJY0.5-11 | 11 | 2100*1230 | 500 | 2250*1350*1650 | 1400 |
| ZTSJY0.5-12 | 12 | 2550*1530 | 500 | 2796*1670*1750 | 2260 |
| ZTSJY0.5-14 | 14 | 2812*1530 | 500 | 3067*1730*1810 | 2486 |
| ZTSJY0.3-16 | 16 | 2812*1600 | 300 | 3067*1810*2080 | 3063 |
