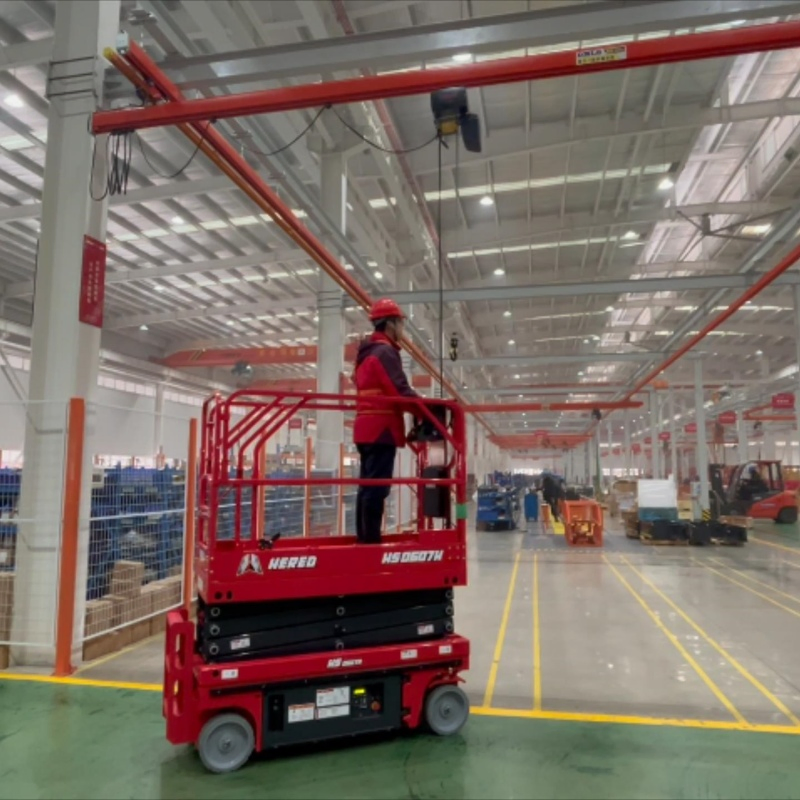

Hydraulic Scissor Lift Platform
Hydraulic scissor lift platform is a very versatile personnel lift, which can provide a large scissor platform for materials and products. Engineered for excellence, this innovative mobile hydraulic lift platform promises unparalleled performance, enduring durability, and versatile applications for operation in warehouses, on construction sites and infrastructure projects.

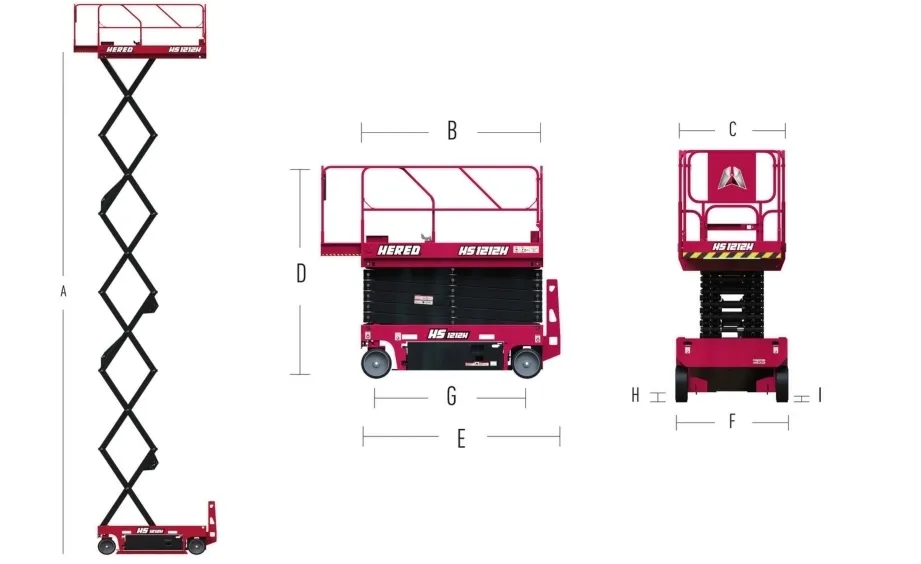

| MODEL: HS0607H | |
| Max. Working Height (In/out) | 7.8m / 7m |
| Max. Platform Height (In/out) | 5.8m / 5m |
| Platform Size (L*W) | 1.63m * 0.74m |
| Extension Size | 0.9m |
| Overall Height (Rails Up) | 2.17m |
| Overall Length (with Ladder) | 1.86m |
| Overall Width | 0.76m |
| PERFORMANCE | |
| Platform Capacity | 230kg |
| Extension Capacity | 113kg |
| Max. Drive Speed (Stowed) | 4km/h |
| Turning Radius (Out.) | 1.55m |
| Up/Down Time | 16/34s |
| Batteries | 24V / 200Ah |
| Total Weight | 1560kg |

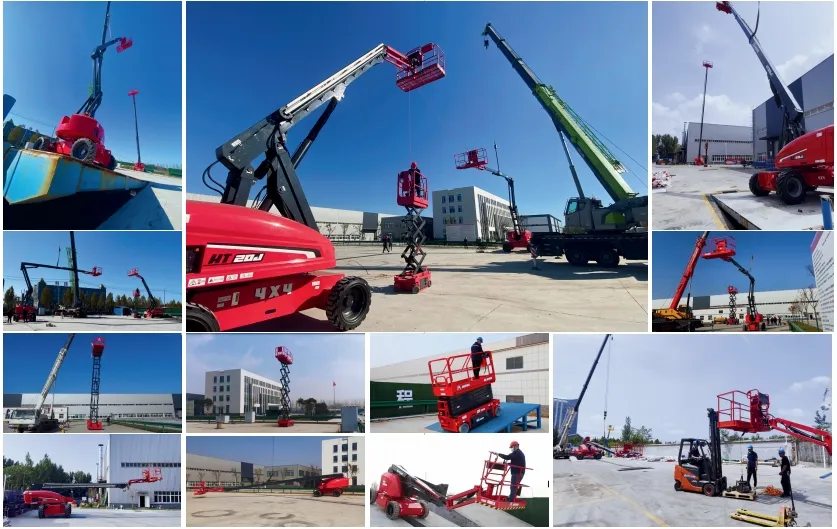

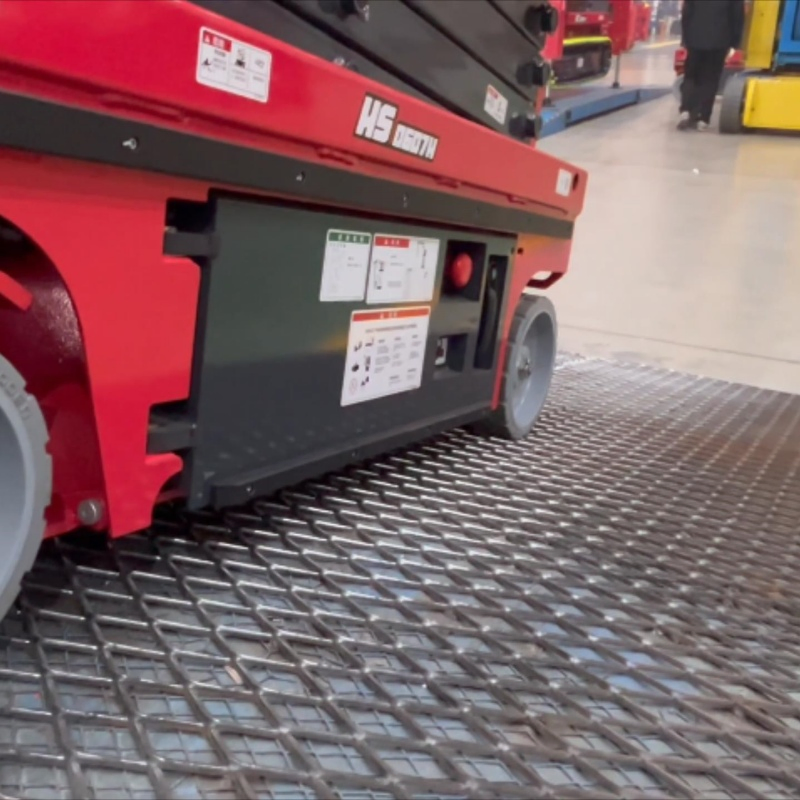

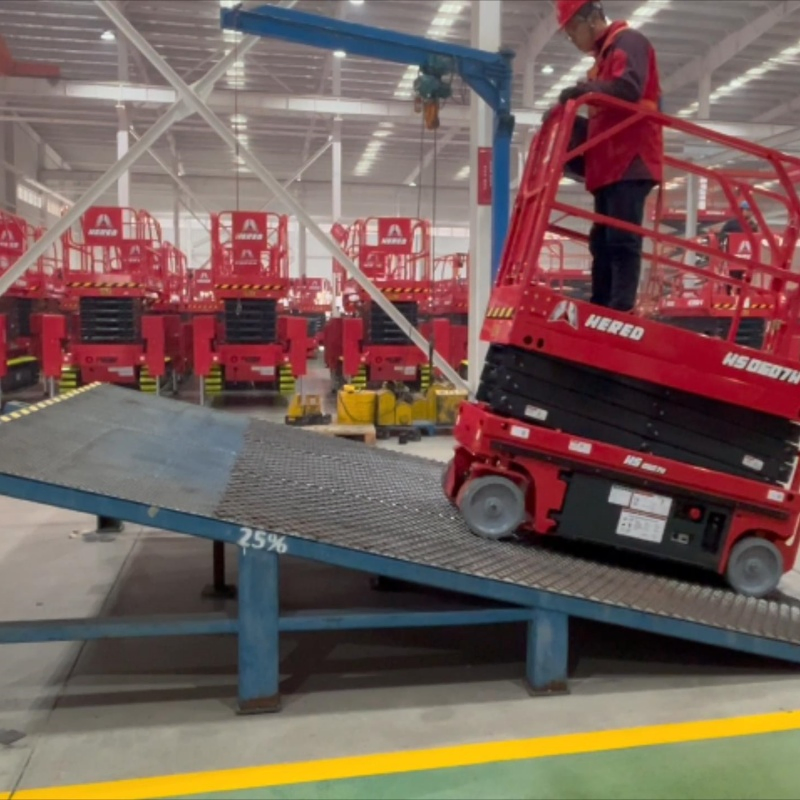

Professional test site, comprehensive test of safety function to ensure design safety. The product has passed 100,000 fatigue tests, climbing ability, potholes, rollover and other tests.

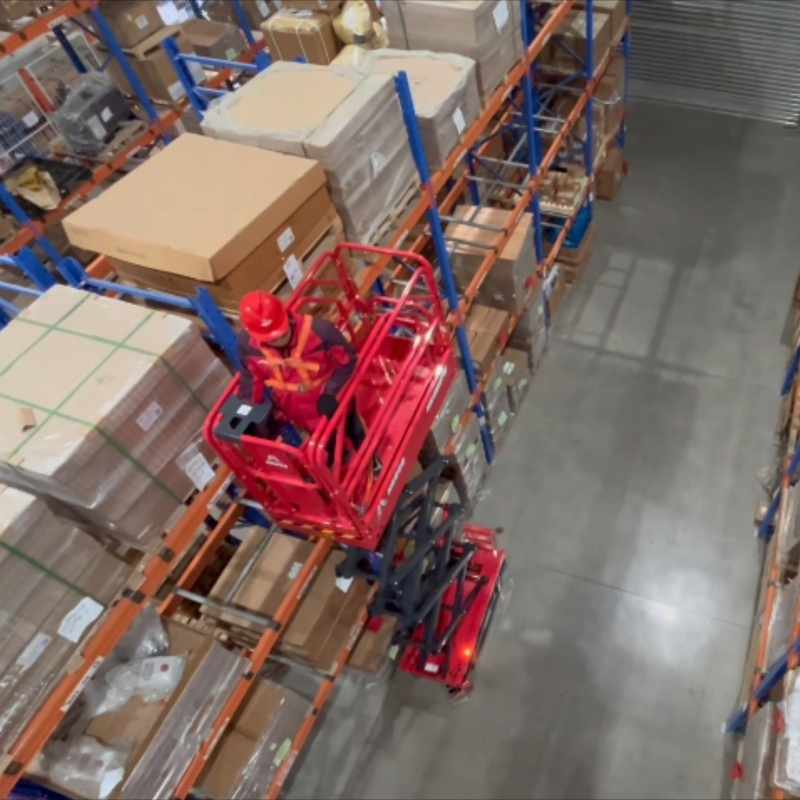

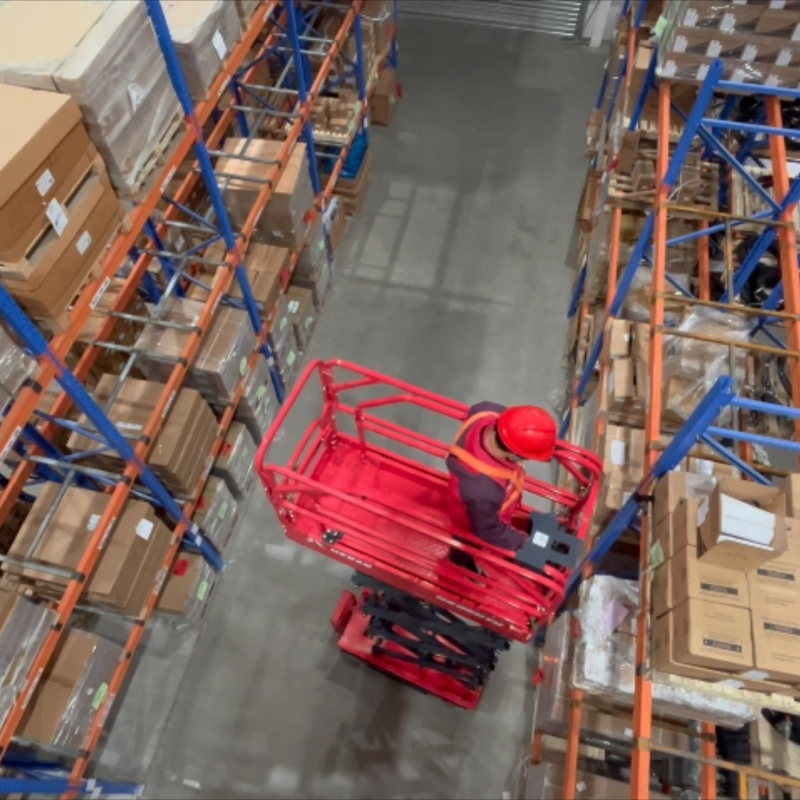

Depending on different environments such as indoors, outdoors, flat terrain, or rugged terrain, customers can choose the appropriate type of scissor lift for warehouse maintenance, construction, and infrastructure projects.
