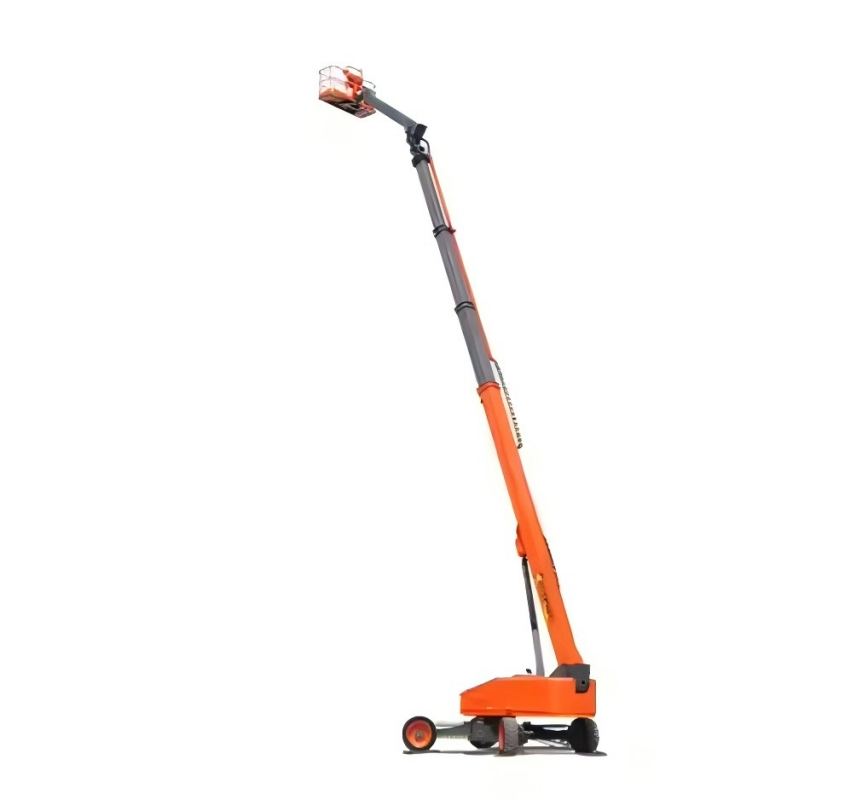

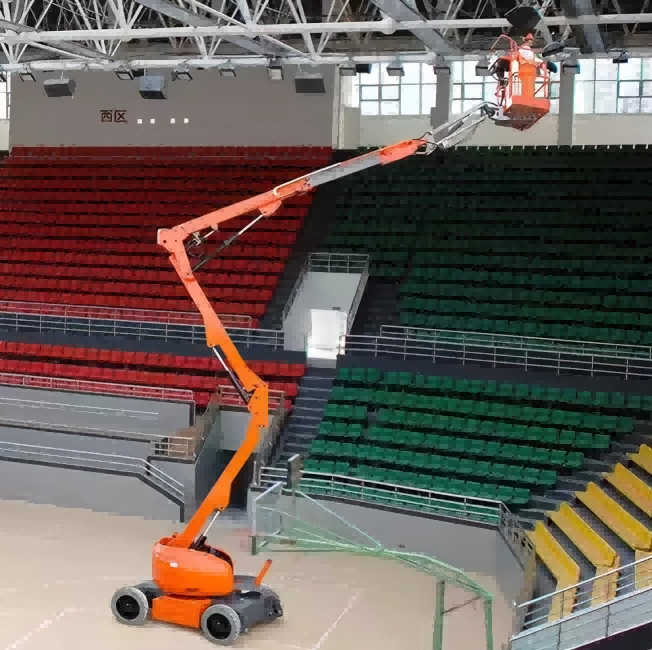

Aerial Working Platform Bt41rt for Indoor Maintenance Warehouse Operations

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

i

Basic Information

Model NO.

BT41RT

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Scissor Lift

Carrying Capacity

Light Level (300kg/454kg)

Moves

Self-propelled

Driven Type

AC / Diesel

Running Mode

Moving

Max. Working Height

44.44m

Max. Occupants

3

Origin

China

📦

Packaging & Delivery

Package Size

500.00cm * 500.00cm * 500.00cm

Gross Weight

21500.000kg

★

Product Description

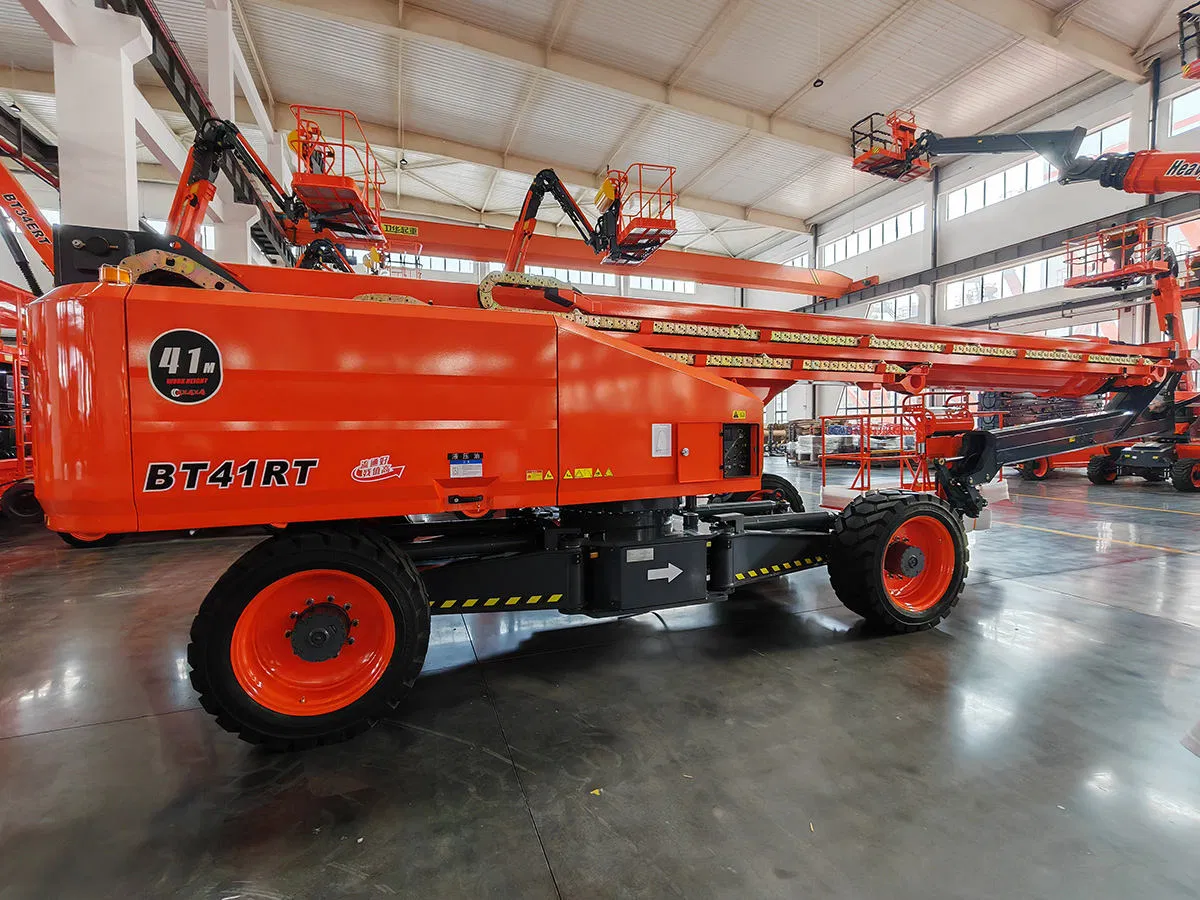

Aerial Working Platform BT41RT for Indoor Maintenance & Warehouse Operations

Modular Design: Horizontally & vertically modular design; 85% of components are common across the range.
Smart Axle System: Patented one-key in-situ axle expansion, four-wheel drive & steering for narrow space maneuverability.
High Efficiency: 40% increase in action efficiency compared to equivalent industry products.
Advanced Safety: Cat3 safety architecture with full redundancy in electronic control software & hardware.
Jib Versatility: 230° amplitude jib, capable of being hooked back for standard container transport.
Powerful Performance: Equipped with a 55.4kw high-power engine, offering gradeability up to 45%.

📋

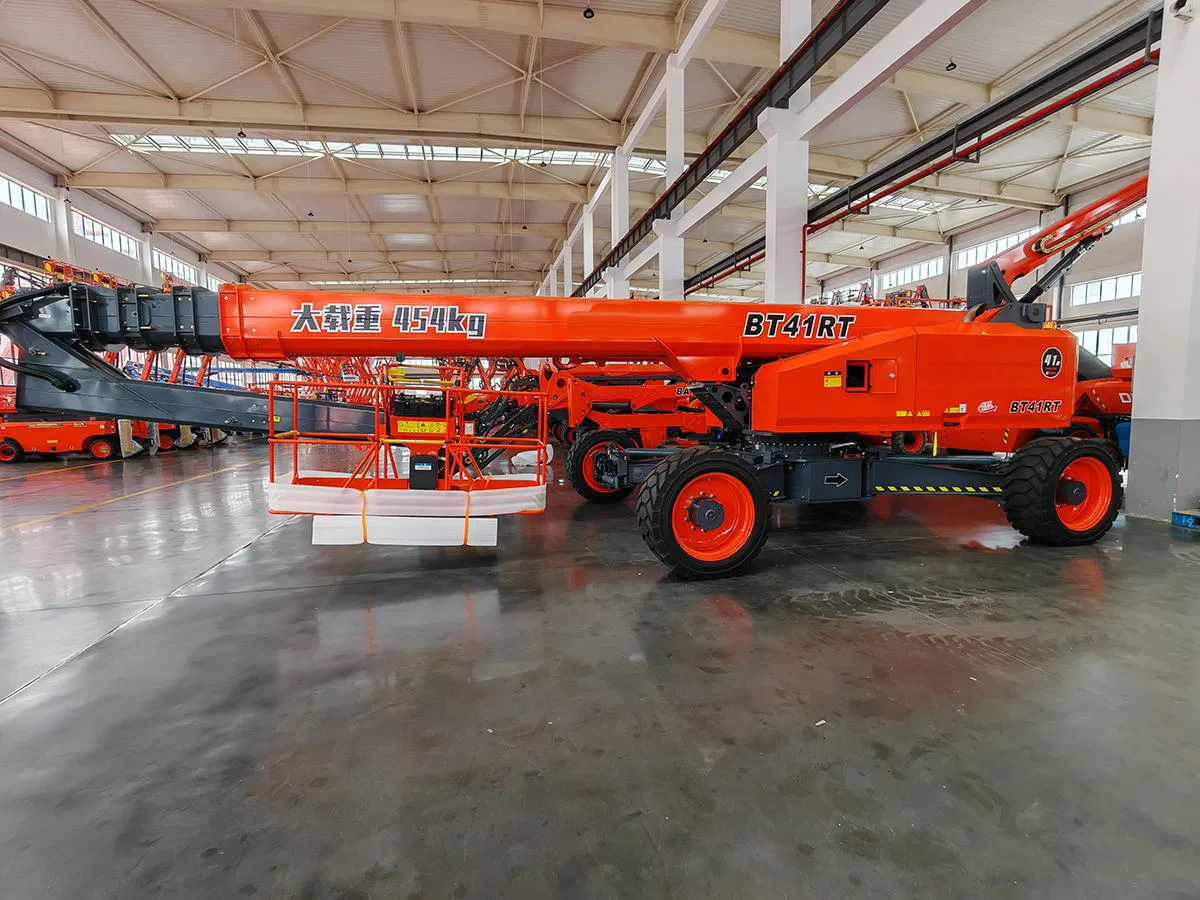

Technical Specification

Parameter	Details (BT41RT)
Max. Working Height	44.44m / 146ft
Max. Platform Height	42.44m / 139ft 3in
Max. Operating Range (+0.6m)	25.60m / 83ft 12in
Max. Platform Range	25.00m / 82ft
Overall Length (Stowed)	17.00m / 55ft 9in
Overall Width (Axle Expanded)	4.17m / 13ft 8in
Overall Width (Axle Retracted)	2.44m / 8ft
Overall Height (Stowed)	2.83m / 9ft 3in
Platform Size (L×W)	2.44m×0.91m / 8ft×2ft 11in
S.W.L (Unrestricted/Restricted)	300kg/454kg / 661lb/1000lb
Max. Occupants	3
Diesel Tank	150L / 39gal

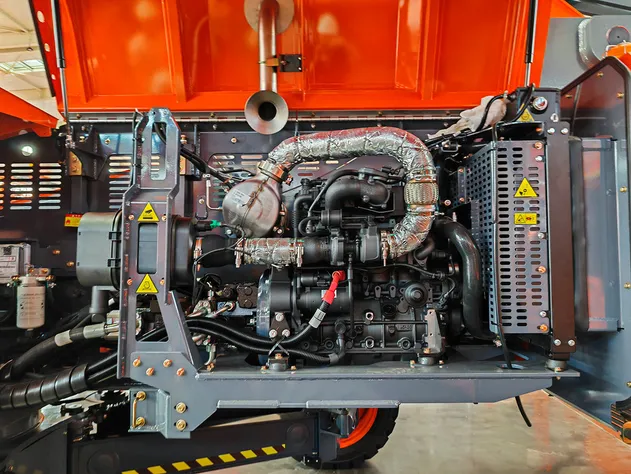

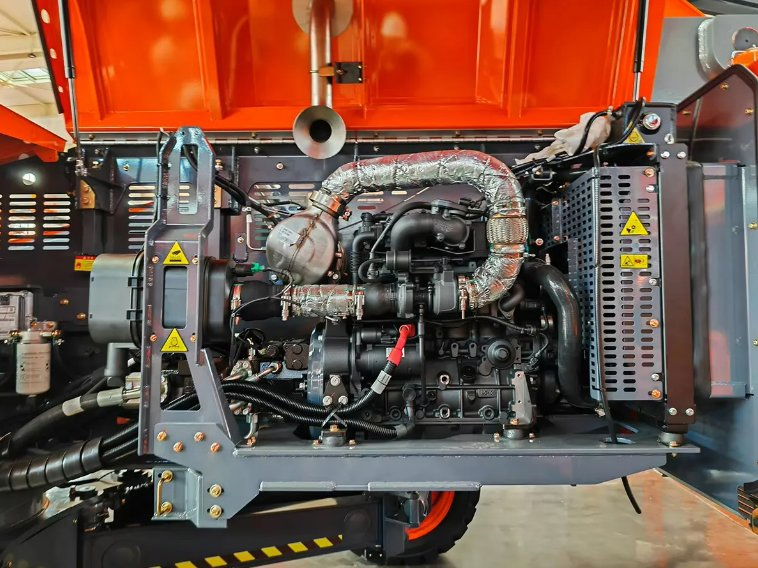

Diesel Engine	TD2.9 L4 / 55.4kW
Emergency Power System	12V

🏭

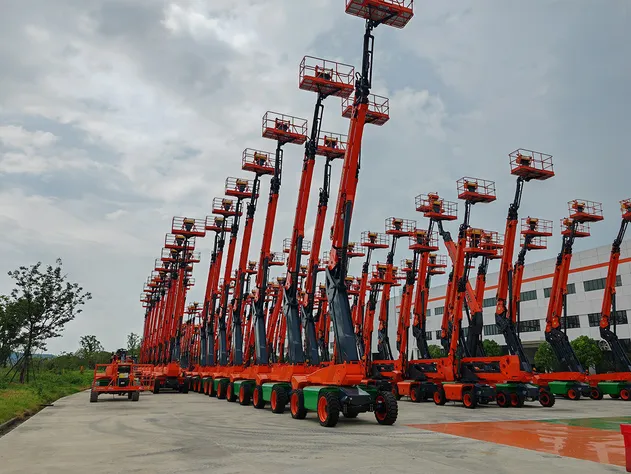

Professional Manufacturing Facility

?

Frequently Asked Questions

1. What is the maximum working height of the BT41RT?

The BT41RT offers an impressive maximum working height of 44.44 meters (146ft), making it suitable for high-reach maintenance and warehouse operations.

2. What is the weight capacity (S.W.L) of the platform?

The platform has a dual capacity rating: 300kg (661lb) for unrestricted movement and 454kg (1000lb) for restricted movement.

3. Can this machine operate in narrow indoor spaces?

Yes, it features a patented one-key in-situ axle expansion and retraction system. The width can be retracted to 2.44m for narrow passages and expanded to 4.17m for stability during operation.

4. What type of engine powers the BT41RT?

It is equipped with a high-performance TD2.9 L4 diesel engine providing 55.4kW of power, ensuring reliable performance even on 45% gradients.

5. How many people can the platform accommodate?

The platform is designed to safely carry up to 3 occupants along with their tools, within the specified weight limits.

6. Is the platform easy to transport?

Yes, the jib features a 230° amplitude that can be hooked back, allowing the entire unit to fit within a standard shipping container.

Product Detail

Aerial Working Platform Bt41rt for Indoor Maintenance Warehouse Operations

Product Description

Basic Information

Packaging & Delivery

Product Description

Technical Specification

Professional Manufacturing Facility

Frequently Asked Questions

Related Products

Product Detail

Aerial Working Platform Bt41rt for Indoor Maintenance Warehouse Operations

Product Description

Basic Information

Packaging & Delivery

Product Description

Technical Specification

Professional Manufacturing Facility

Frequently Asked Questions

Related Products

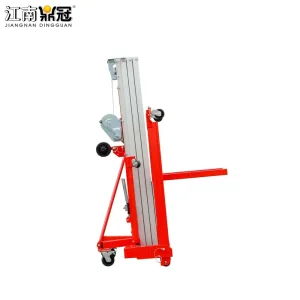

New Manual Hand Cranked Aluminum Alloy Lift Portable Lifting Platform Adjustable Height for Warehouse Maintenance

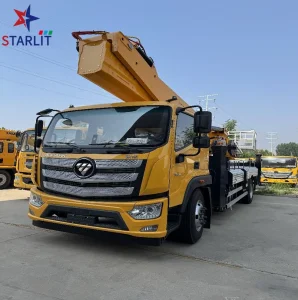

Operator-Friendly Telescopic Boom Truck Mobile Elevating Work Platform for Warehouse Maintenance

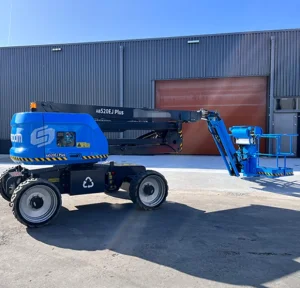

Tb16ejn Aerial Work Platform Telescopic Boom Lifts for Indoor Warehouse Maintenance

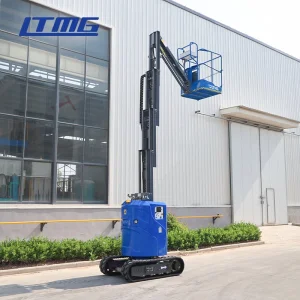

Work Platform Crawler Track Boom Lift Crawler Vertical Mast Lift for Warehouse Maintenance Work

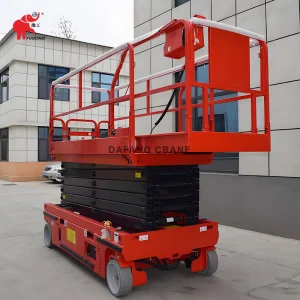

Foremost Rated 8 10 12 Meter Platform Height Self-Propelled Design Heavy Duty Industrial Use Warehouse Maintenance Equipment Mobile Scissor Lift Platform

230kg 8m Mobile Scissor Man Lift Self-Propelled Aerial Work Platform for Warehouse Maintenance

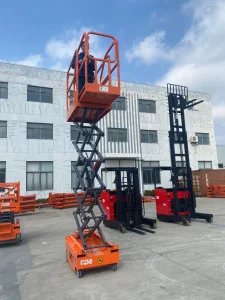

Fully Electric Warehouse Maintenance Hydraulic Scissor Lift Platform

Aerial Working Platform Bt41rt for Indoor Maintenance Warehouse Operations

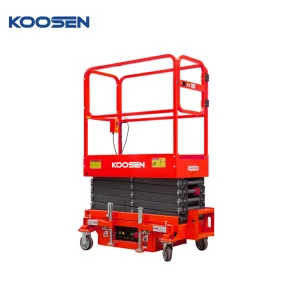

Warehouse Maintenance Mobile Hydraulic Scissor Lift Platform

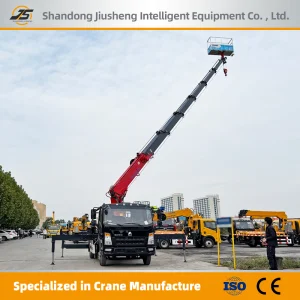

Factory Price 25m30m Telescopic Boom Lift for Warehouse Maintenance Aerial Work Platform
