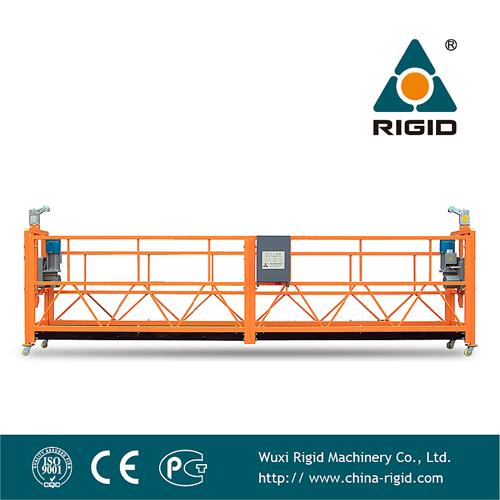

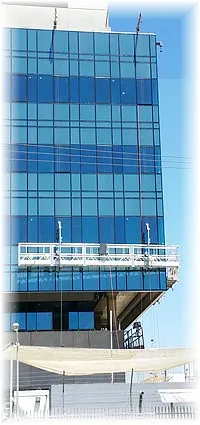

The ZLP series are designed for temporary applications for lifting personnel and their working equipment at unlimited heights. This model is perfectly suited to lightweight applications such as painting, decorating, refurbishing, jointing, repairs, and window cleaning.

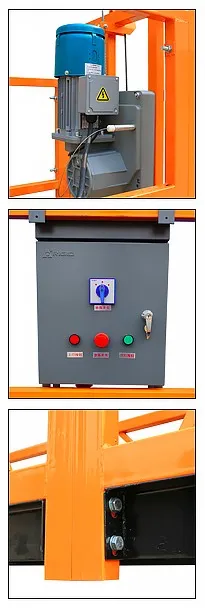

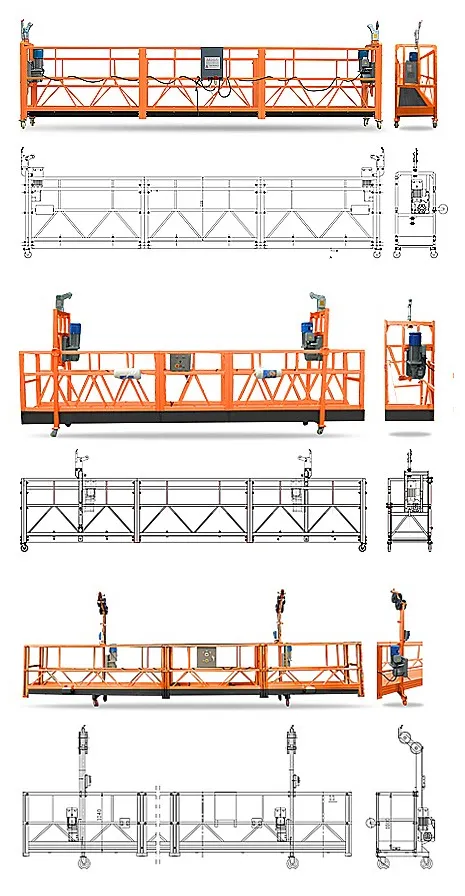

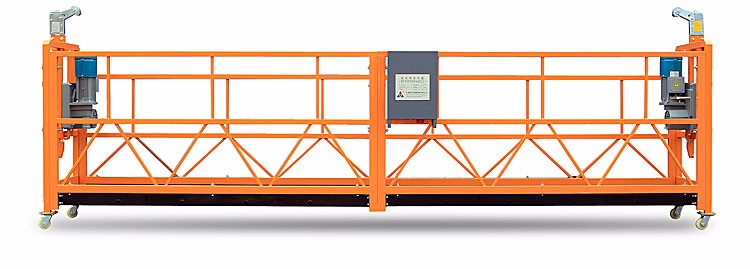

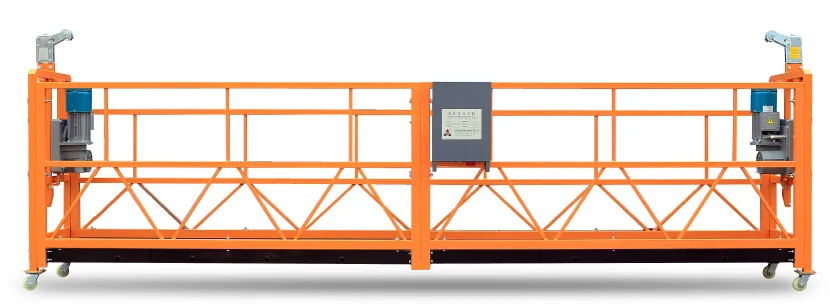

The complete system consists of a working platform equipped with two electric LTD hoists and support wheels, suspended by steel wire ropes from a robust suspension structure.
| Type | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
|---|---|---|---|---|
| Rated Load | 500kg | 630kg | 800kg | 1000kg |
| Lifting Speed | 9m/min | 9m/min | 9m/min | 8.7m/min |
| Voltage | 380V (415V/220V) 3-Phase, 50Hz/60Hz | |||
| Power | 1.1kW x 2 | 1.5kW x 2 | 1.8kW x 2 | 2.0kW x 2 |
| Hoist Model | LTD50 | LTD63 | LTD80 | LTD100 |
| Wire Rope Dia. | 8.3mm | 8.3mm | 9.1mm | 10.2mm |
| Platform Size (LxWxH) | (2.5x2)x0.76x1.45M | (2x3)x0.76x1.45M | (2.5x3)x0.76x1.45M | (2.5x3)x0.76x1.45M |
| Counter Weight | 800kgs | 900kgs | 1000kgs | 1200kgs |

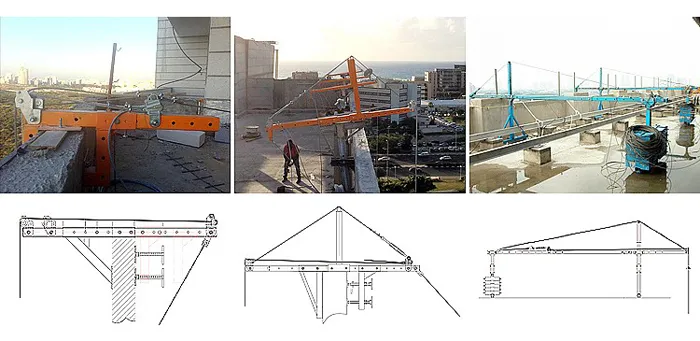

Our systems provide flexible roof attachment solutions including Light Parapet clamps, standard Parapet clamps, and Normal suspension jibs to suit various architectural requirements.

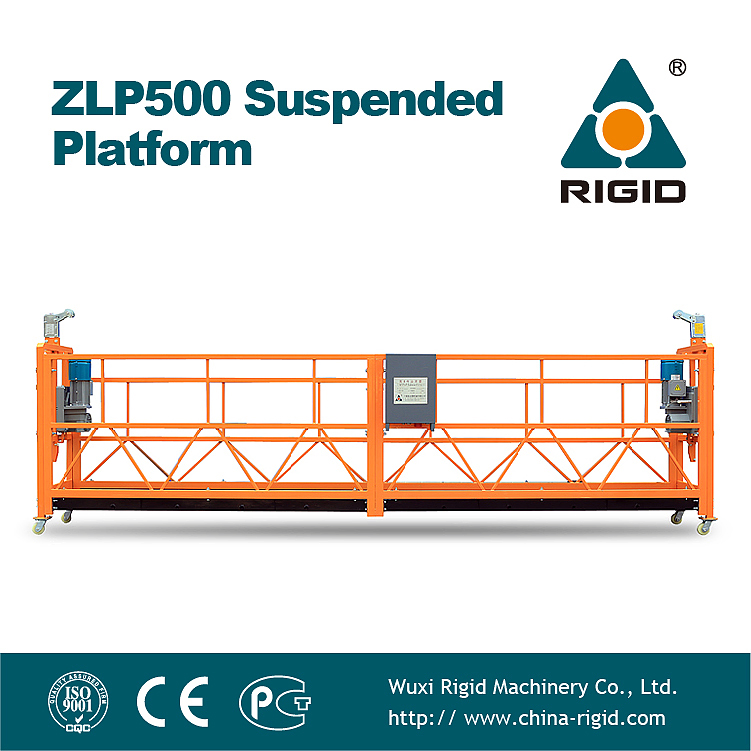

The ZLP500 model has a rated load capacity of 500KG, making it ideal for standard window cleaning and maintenance tasks.

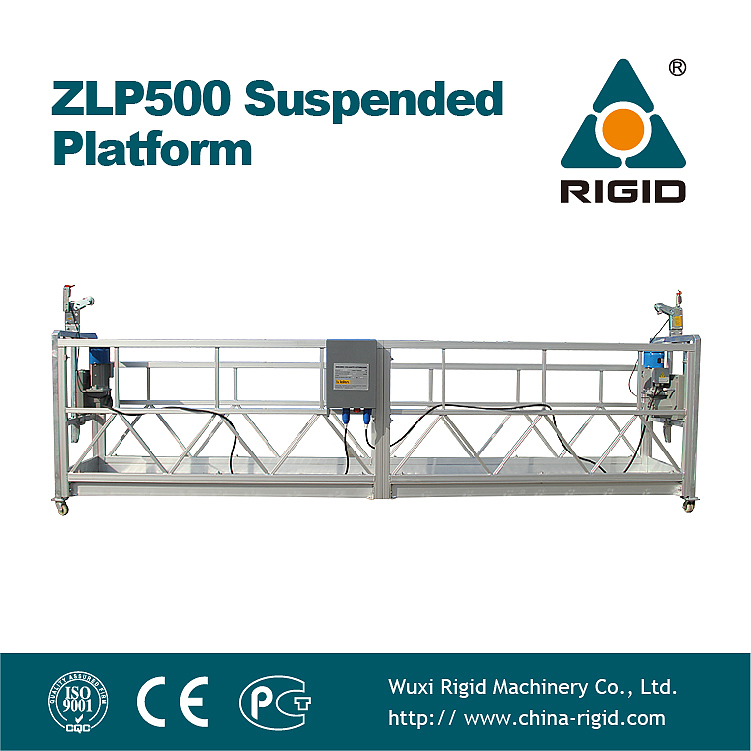

The platform is typically constructed from high-strength Steel, but Aluminum versions are also available for lightweight requirements.
Our suspended platforms are certified by TUV, ISO, and CE, ensuring they meet rigorous international safety standards.
Yes, the ZLP series is designed for applications at unlimited heights, depending on the length of the steel wire rope used.

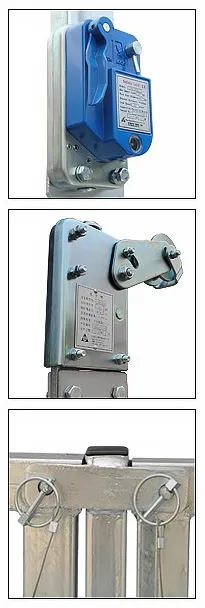

The system is designed with a "no power descent" feature and manual release mechanisms to ensure the safety of personnel during a power outage.
Yes, we offer both screw-type and pin-type assembly options. The pin-type is specifically designed for quick and easy assembly on-site.
