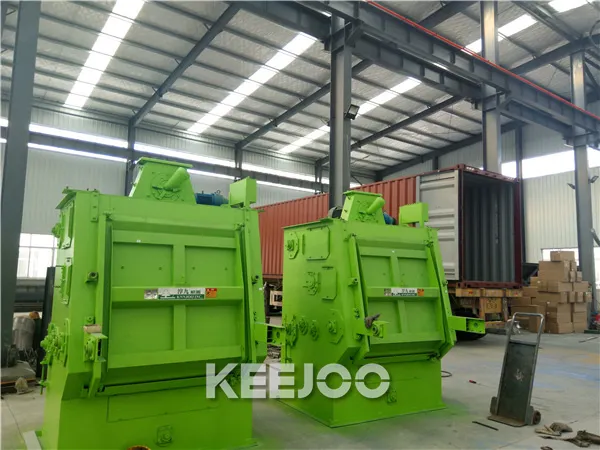

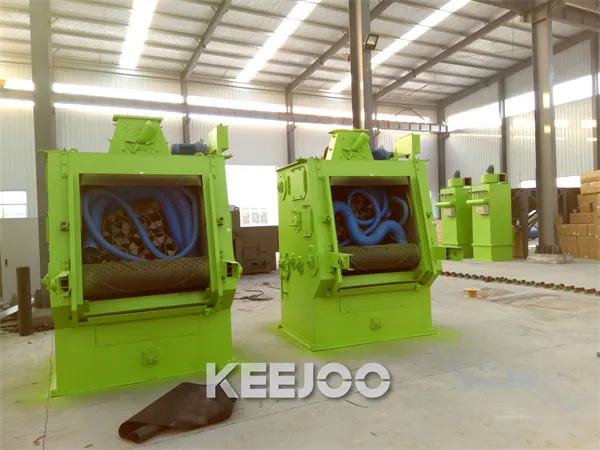

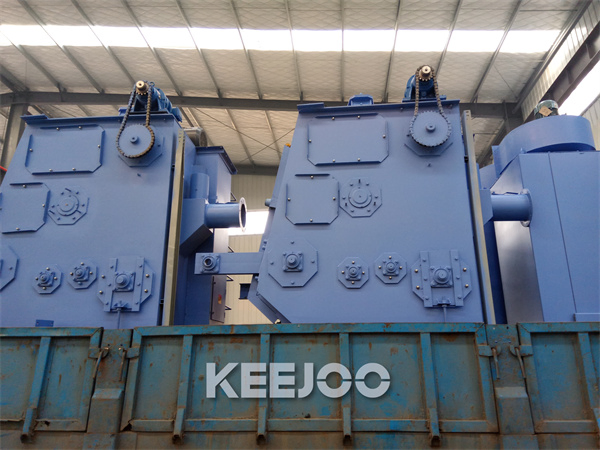

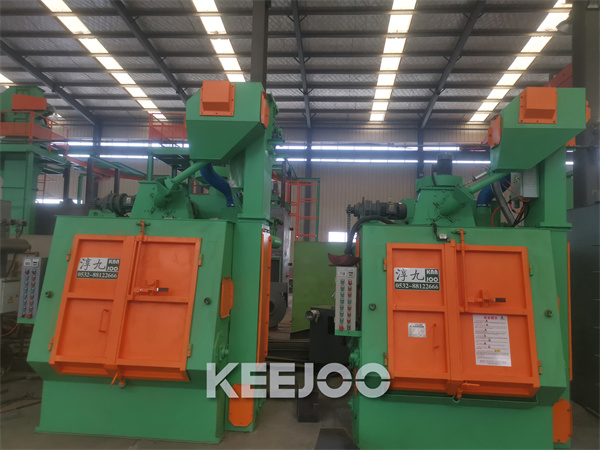

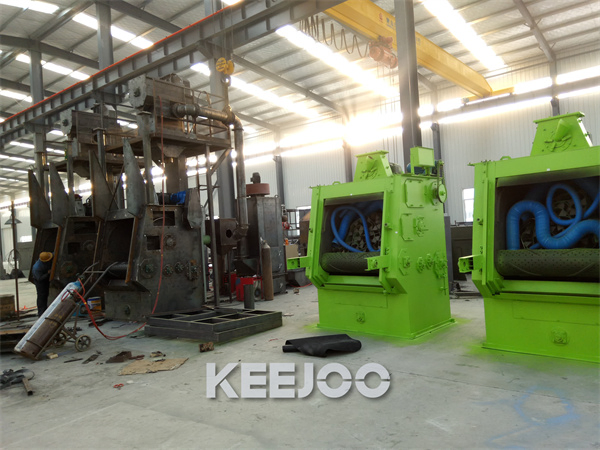

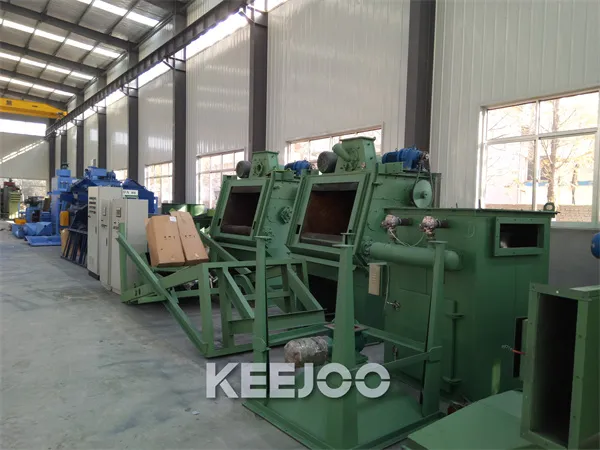

Crawler type shot blasting machine, Rubber belt track sander. This machine uses fore and aft phase rubber tracks to form a drum space, enabling the workpiece to undergo continuous rolling during the blasting process. It is primarily used for the shot blasting treatment of non-ferrous metal artifacts.
| NO | Item | 3GN | 8GN | 8GN-5R | 15GN |
|---|---|---|---|---|---|
| 1 | Productivity | 0.6-1.3 | 3-5 | 2-4 | 2-3 |
| 2 | Feeding Amount | 220 | 800 | 630 | 1362 |
| 3 | Max Single Piece Weight | 12 | 150 | 35 | 80 |
| 4 | Diameter of Disk | 650 | 1000 | 1000 | 1292 |
| 5 | Effective Volume | 0.15 | 0.5 | 0.3 | 0.3 |
| 6 | Abrasive Flow Rate | 160 | 270 | 270 | 430 |
| 7 | Ventilation Capacity | 2000 | 6000 | 3500 | 6500 |
| 8 | Power Consumption | 12.6 | 32.6 | 27.3 | 40.3 |
| 9 | Belt Type | Rubber | Rubber | Rubber | Metal |

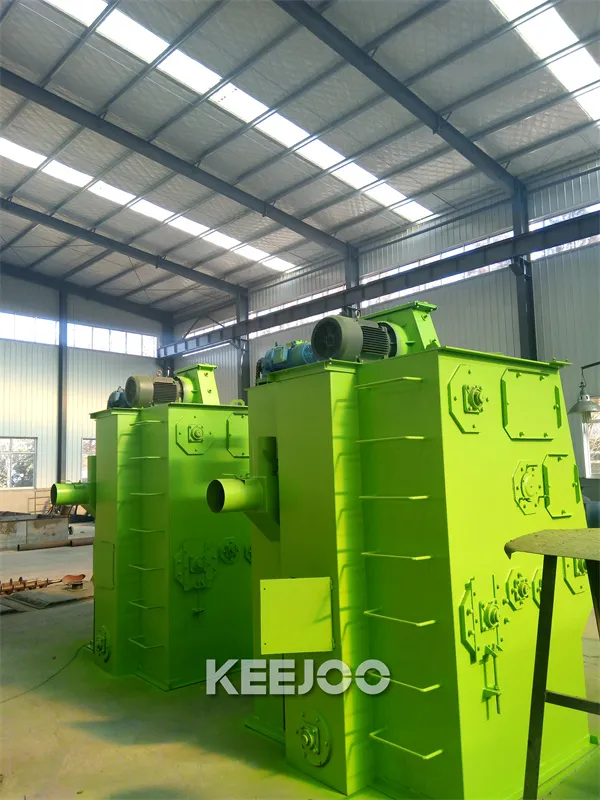

Equipped with a high-efficiency blast wheel featuring a simple structure and low noise. The 8 blades are fixed by centrifugal force, allowing for quick replacement within 3 to 5 minutes without complex clamping apparatus.
