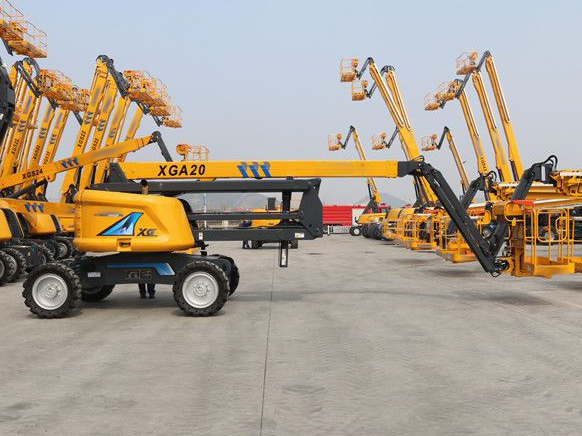

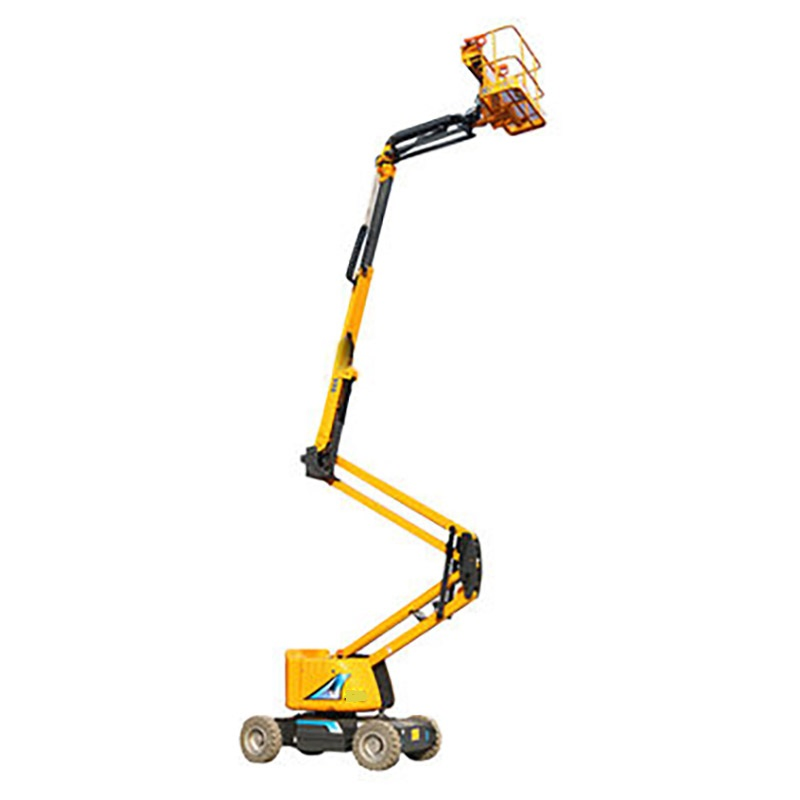

Xga20 20m Mobile Elevated Aerial Work Platform for Sale

1 / 5

Xga20 20m Mobile Elevated Aerial Work Platform for Sale

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info. Overview

Model NO.

XGA20

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Articulated Lift

Carrying Capacity

Special Weight Level

Driven Type

Certification

GS, CE, RoHS, ISO 9001

Max. Working Height

20.4m

Max. Load Capacity

230kg

Max. Grade Ability

45%

Overall Dimensions

9080*2490*2680mm

🏗️ Product Description

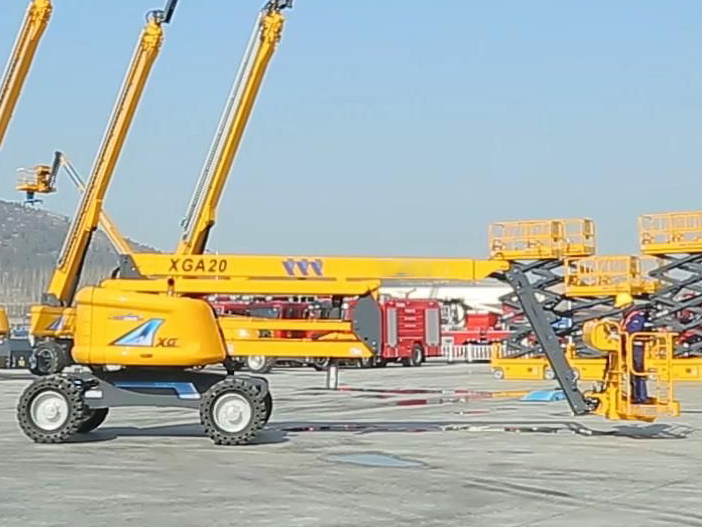

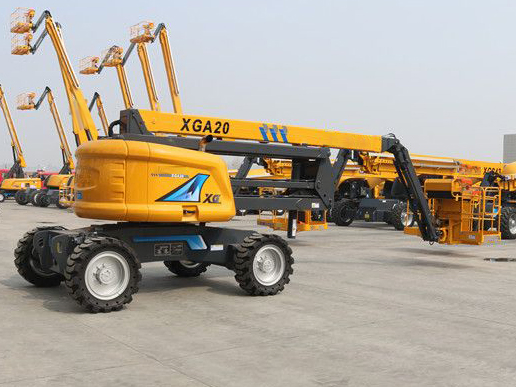

XGA20 20m Mobile Elevated Aerial Work Platform

Dual parallel linkage and telescopic arm realize dynamic adjustment of the vehicle center of gravity for superior stability.
Equipped with 4WD, off-road wide tires, and axle balance system for excellent drive adaptability.
Multi-load envelope control technologies for real-time load monitoring and optimized boom performance.
Auto balance extending mechanism improves safety and extends the service life of the steel rope.
Electrical control system using PLC and CAN distributed technologies for auto-leveling, weighting, and fault warning.

📊 Technical Parameters

Model	XGA16	XGA16AC	XGA20	XGA20AC	XGA26
Max. Working Height(m)	16.05	15.8	20.4	20.7	26.38
Max. Platform Height(m)	14.05	13.8	18.4	18.7	24.38
Max. Working Range(m)	8.2	8	11.9	11.98	18.9
Max. Load Capacity(kg)	230	227	230	256/350	230
Rotation Angle(°)	355	355	360°(Continuous)	360°(Continuous)	360°(Continuous)
Max. Travel Speed(km/h)	6.1	5.2	6	4.8	5
Total Weight(kg)	7100	6500	10600	9100	17800

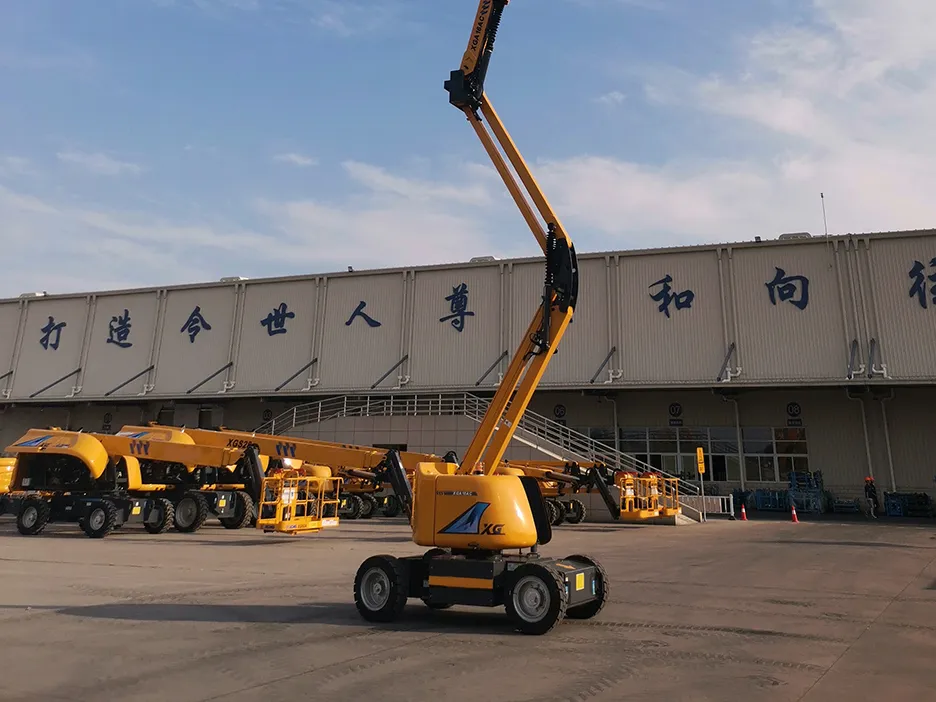

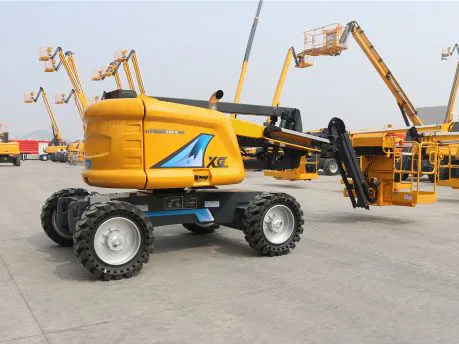

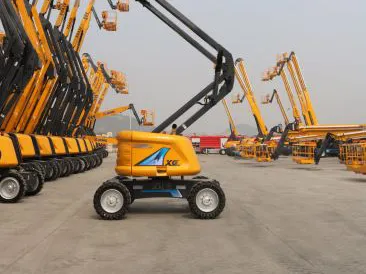

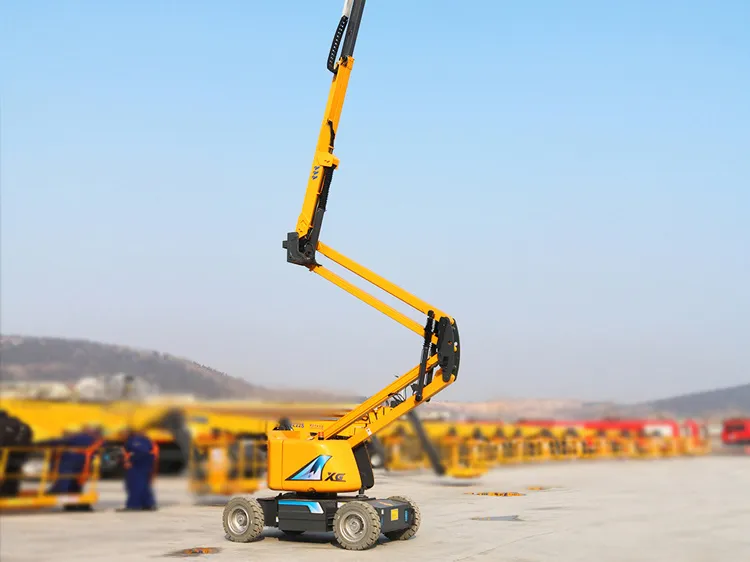

📸 Detailed Photos

🏢 Capabilities Showcase

Frequently Asked Questions

Q1: What is the maximum working height of the XGA20 model? A: The XGA20 offers a maximum working height of 20.4 meters and a platform height of 18.4 meters.

Q2: What are the main terrain capabilities of this aerial work platform? A: It features 4WD, off-road wide tires, and a 45% gradeability, making it excellent for rough road conditions and outdoor construction sites.

Q3: How does the XGA20 ensure stability during operation? A: It utilizes dual parallel linkage and a telescopic arm to dynamically adjust the vehicle's center of gravity, ensuring the machine remains stable even at high elevations.

Q4: What control technologies are integrated into the system? A: The electrical control system is based on PLC and CAN distributed control technologies, which manage auto-leveling, payload weighting, and real-time fault monitoring.

Q5: What is the load capacity of the platform? A: The XGA20 has a standard maximum load capacity of 230kg, suitable for operators and their necessary tools.

Q6: Is the turntable rotation continuous? A: Yes, the XGA20 model features a 360-degree continuous turntable rotation for maximum operational flexibility.
