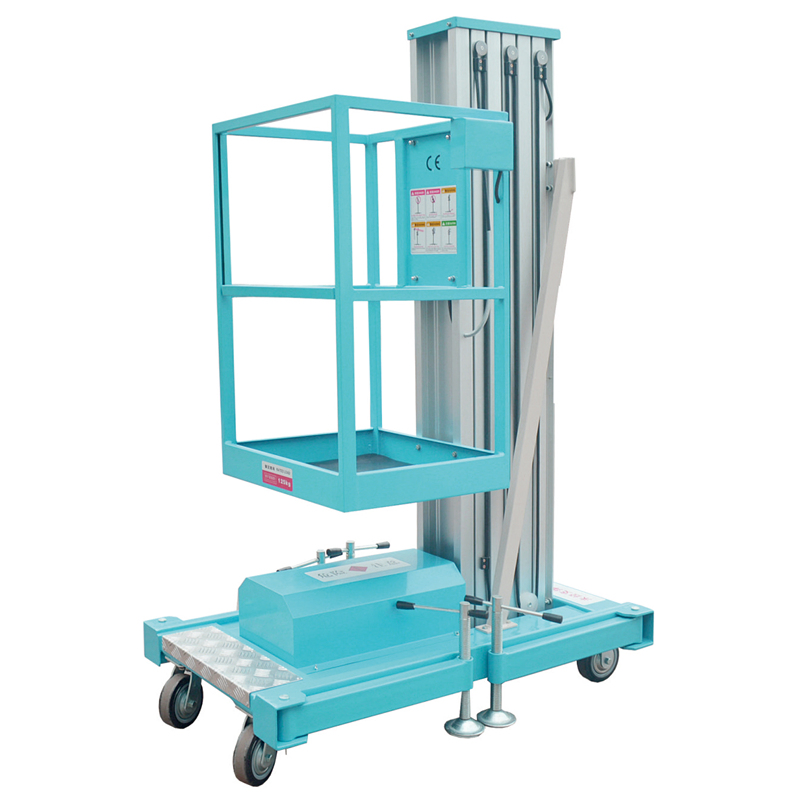

Top Quality Mobile Elevated Hydraulic Aluminum Alloy Vertical Lift Single Mast Aerial Work Platform

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
GTWY4-150-1
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Cylinder
Capacity
150kg (Middle-Level)
Driven Type
AC 220V/1.1kw
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Max Height
Platform: 4m | Working: 5.7m
Material
Aluminium Alloy
Production
200 Units/ Month
Single Mast Aerial Work Platform Specifications
Model Max Platform Height (m) Rated Load (kg) Overall Weight (kg) Platform Size (m) Overall L*W*H (m) AC (VAC/kw) Standard Price
GTWY4-150-141502800.65*0.651.42*0.78*1.97220/1.1US$1,348
GTWY4-100-1mn41002800.64*0.491.45*0.6*1.63220/1.1US$1,348
GTWY6-150-161503600.65*0.651.40*0.78*1.97220/1.1US$1,463
GTWY8-130-181303800.65*0.651.42*0.78*1.97220/1.1US$1,578
GTWY10-130-1101304200.65*0.651.42*0.78*1.97220/1.1US$1,808
Standard Configuration
  • Power Supply: Single phase AC (220V)
  • Move Mode: Manual maneuverability
  • Driving Unit: High-performance hydraulic pump, low noise
  • Safety Control: Ground and platform control modes available
  • Security Features: Electric limit switch, emergency lowering system
  • Stability: Leveling outriggers with screws and indicator

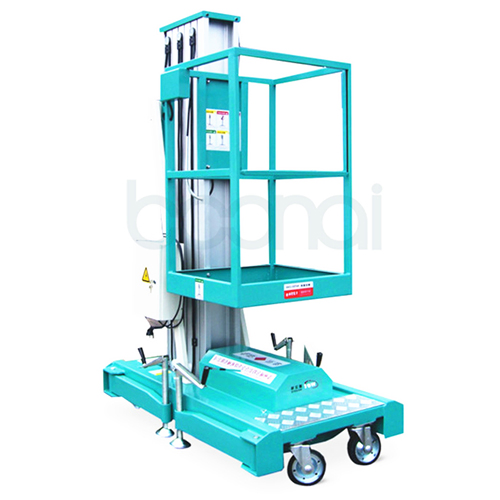

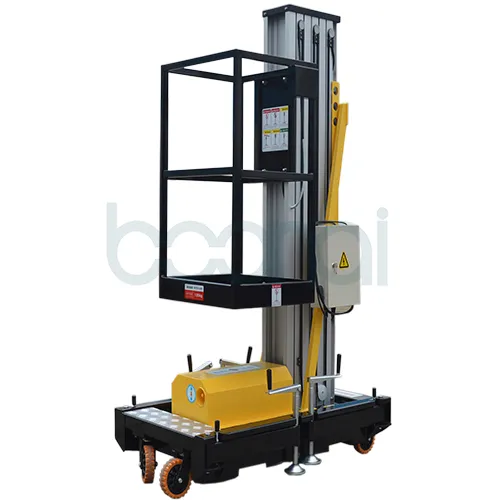

Standard Configuration Aerial Lift
Optional Features
  • Battery DC with charger for outdoor operation
  • Electric moving device for long-distance travel
  • Trailer base or truck carriage integration
  • Explosion-proof electrical system & Insulated platform
  • Overload alarm & Tilt alarm systems
  • AC power output directly to the platform
Optional Configuration Aerial Lift
Core Advantages
  • Aluminum Alloy Materials: High-strength steel pipe for durability.
  • Safety Interlock: Prevents lifting if support legs are not deployed.
  • Forklift Holes: Integrated design for easy transport and loading.
  • Lifting Chains: Industrial-grade chains for maximum reliability.
  • Moving Handle: Ergonomic design for easy manual positioning.

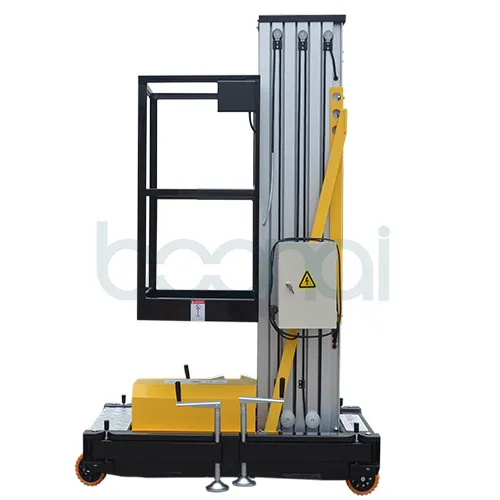

Product Advantages
Company Profile

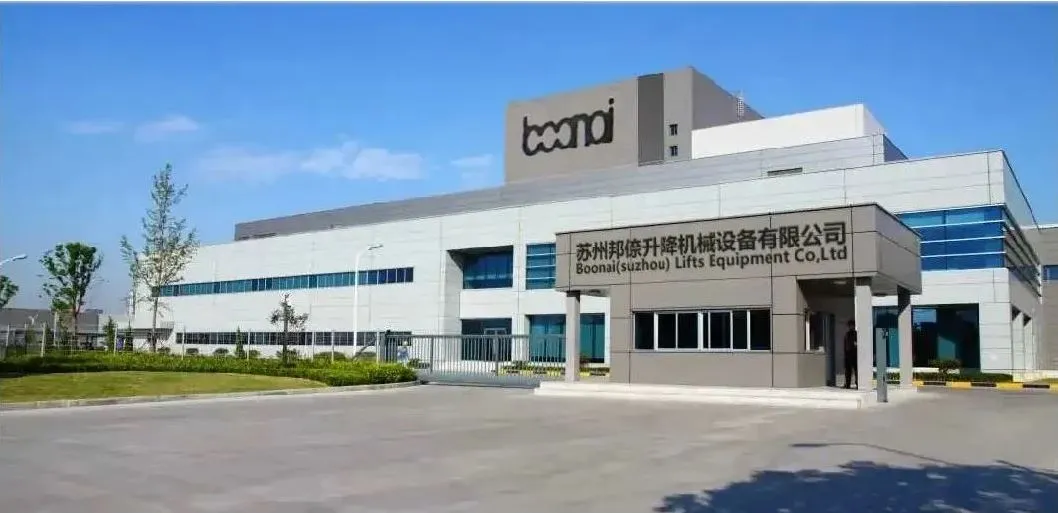

Manufacturing Facility

As a modern manufacturing enterprise specialized in aerial work platforms, we provide integrated services for design, production, and sales. Our experienced team oversees every process from initial design to rigorous quality control, ensuring excellence in every unit produced.

With a business philosophy of "Quality First, Client Oriented", we focus on product innovation and process improvement, pursuing perfection in every detail across our product lines, including mast platforms, scissor lifts, and material pickers.

Production Equipment & Certifications

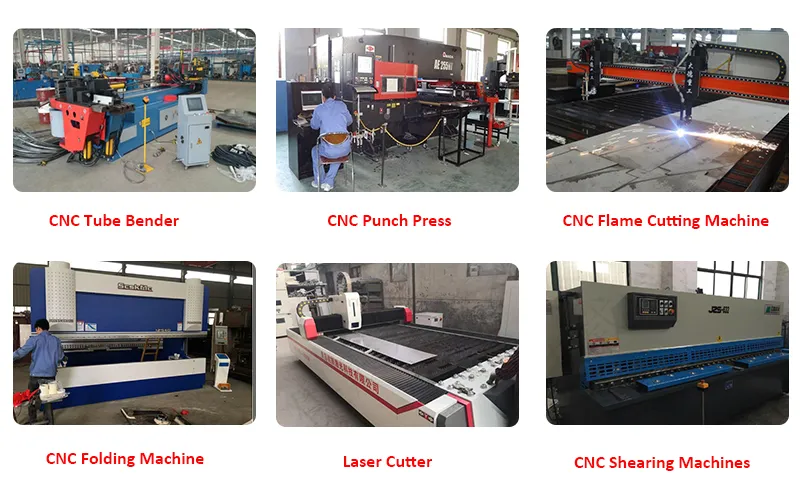

Production Equipment
CE Certification
ISO Certification
After Sales Service
  • Comprehensive English manuals for operation and maintenance.
  • One-year warranty for the entire machine (excluding man-made faults).
  • Free replacement parts for non-human factor issues during the warranty period.
  • 24-hour technical support via email, telephone, or online communication.
  • Rapid response within 2 hours, including weekends and holidays.
Frequently Asked Questions
What is the main material used in the platform?
The platform is constructed using high-strength aluminum alloy, which provides a lightweight structure without compromising on stability or durability.
Can this lift be operated by a single person?
Yes, it is specifically designed for single-passenger use. Both ground and platform controls are available to allow a single operator to manage the lift effectively.
Is the unit suitable for narrow spaces?
Absolutely. With its small footprint and lightweight design, this aerial work platform is ideal for accessing limited passageways where traditional ladders or larger rigger equipment cannot fit.
What power options are available for outdoor use?
While the standard configuration uses 220V AC power, we offer an optional Battery DC configuration with a charger, making it perfectly suitable for outdoor operations where power outlets are unavailable.
How is the equipment's stability guaranteed?
Stability is ensured through four adjustable outriggers with screws, a built-in leveling indicator (gradienter), and a safety interlock system that prevents the lift from working if the legs are not properly deployed.
What kind of maintenance support do you provide?
We provide a user-friendly English manual for maintenance. Additionally, we offer a one-year warranty and 24-hour technical support to assist with any operational questions.
