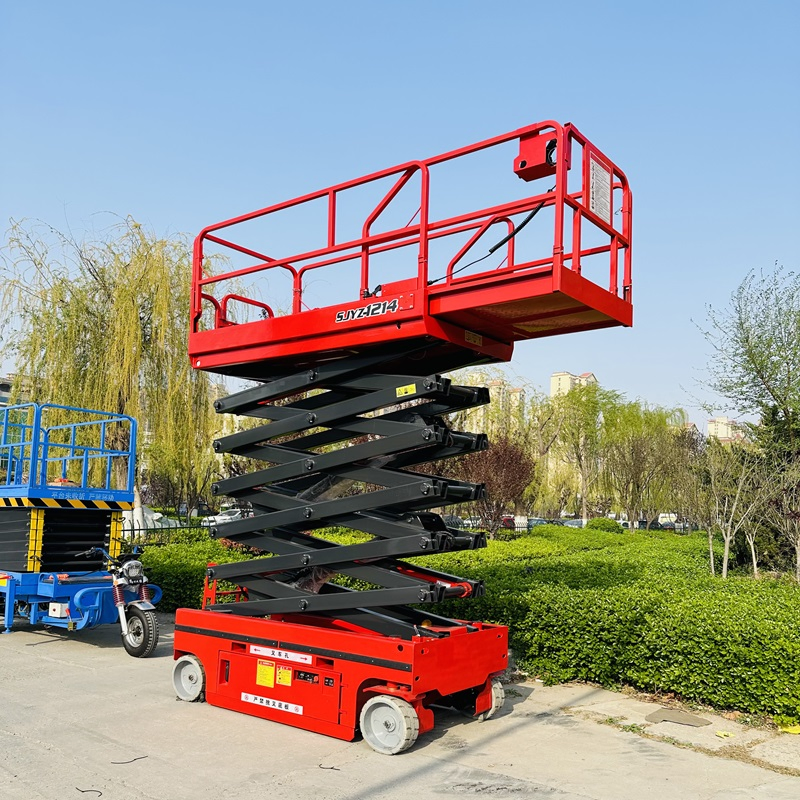

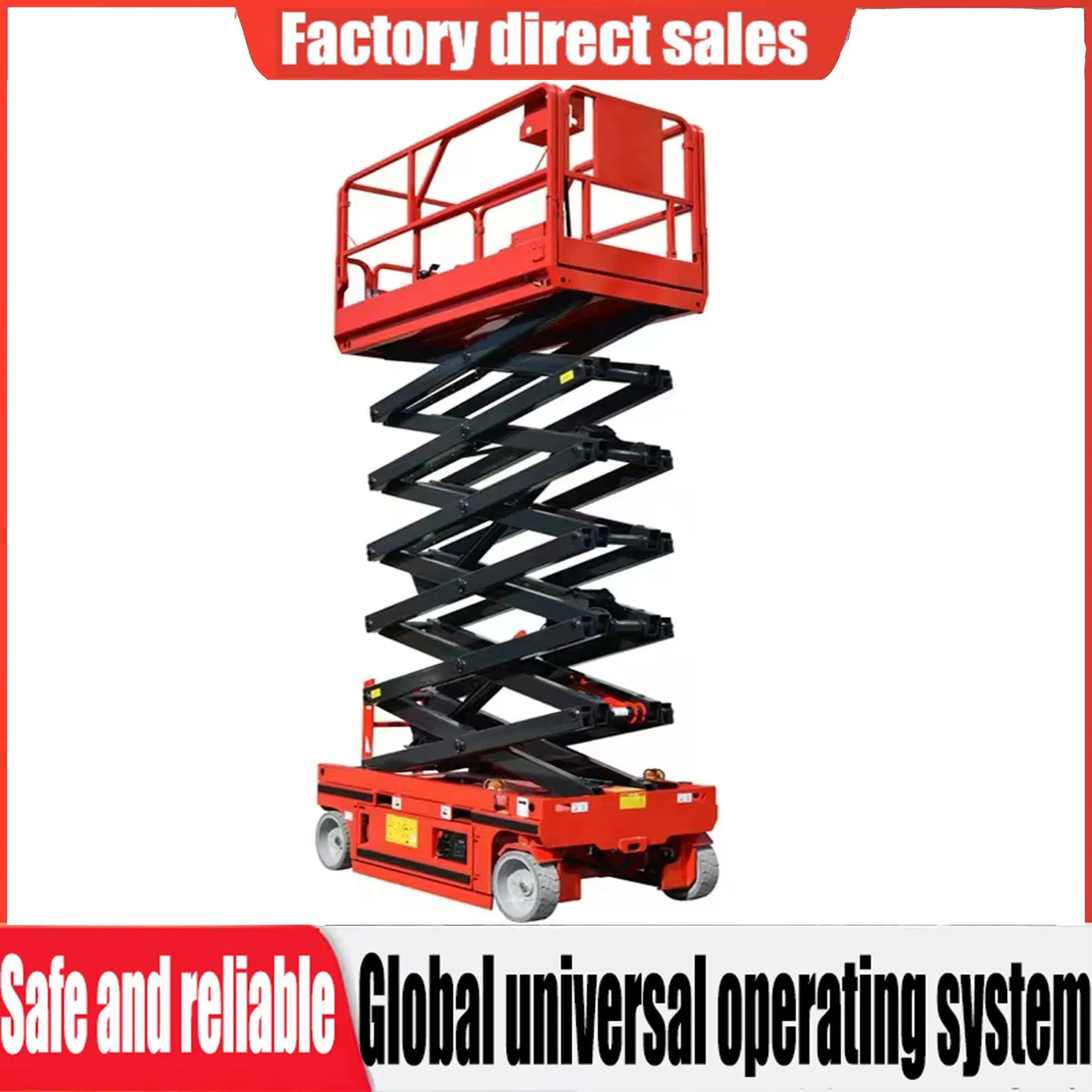

Hydraulic Mobile Scaffold Platform for Elevated Work Solutions

Customization:	Available
After-sales Service:	7*24h
Warranty:	2 Years

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

SJYZ

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Scissor Lift

Moves

Moving

Driven Type

Feature

Intelligent

Certification

CE, ISO 9001

Formal Speed

4km/H

Climb Ability

25%

Security Protection

Yes

Packaging & Delivery

Package Size

220.00cm * 115.00cm * 250.00cm

Gross Weight

2800.000kg

Transport Package

Wooden Case

Origin

China

Product Parameters

Model	Platform Size (mm)	Elevated Height (m)	Load (kg)	External Dimensions (mm)	Weight (kg)
SJYZ0.2-4	1300*680	4	230	14207001880	860
SJYZ0.2-6	1670*740	6	230	18007602000	1200
SJYZ0.5-6	2270*1120	6	500	235011502260	2050
SJYZ0.5-8	2270*1120	8	500	235011502380	2250
SJYZ0.3-10	2270*1120	10	350	235011502500	2550
SJYZ0.3-12	2270*1120	12	350	235011502650	2960
SJYZ0.3-14	2630*1120	14	250	275012402650	3300

Standard Configuration

Proportional Control

Automatic Braking System

Buzzer & Horn

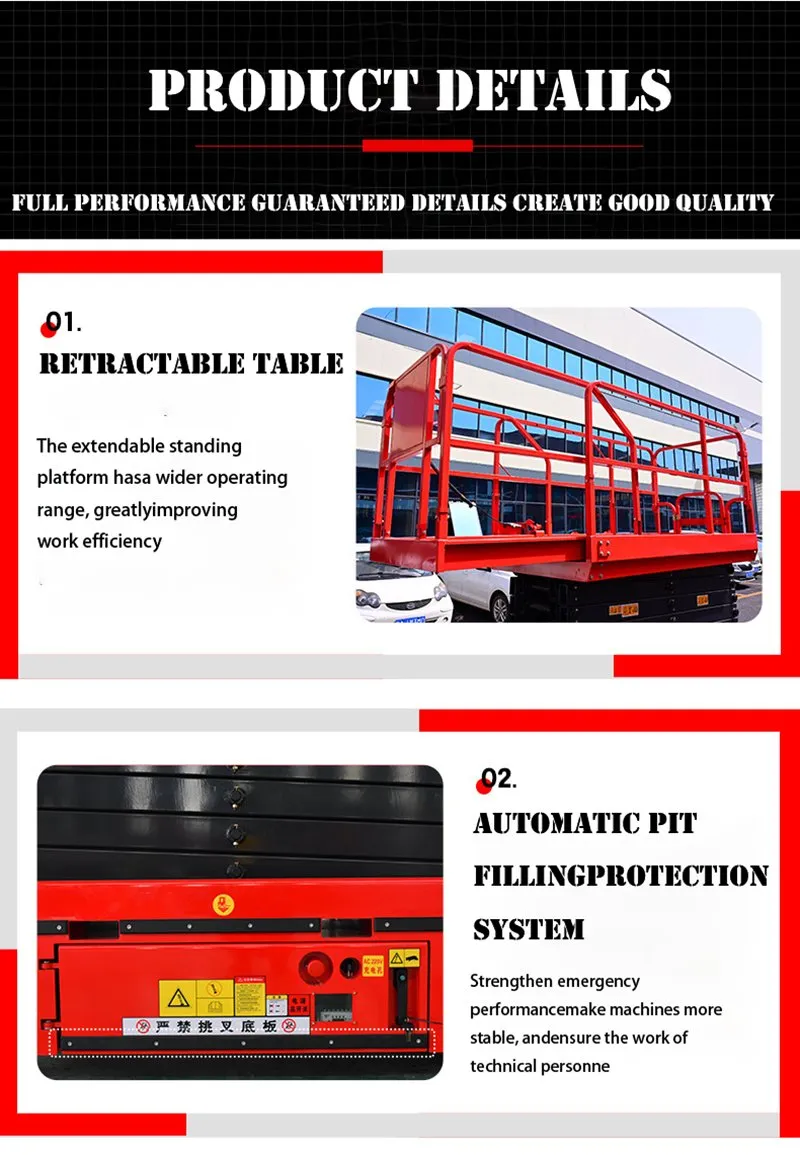

Extension Platform

Automatic Pit Protection

Emergency Descent System

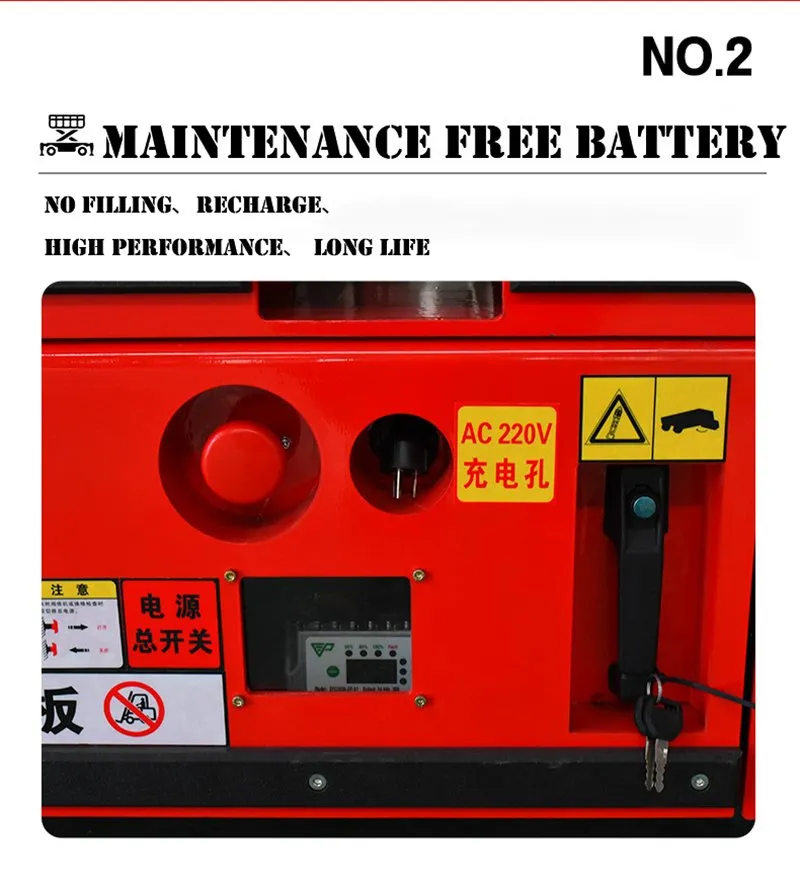

Charging Protection

Platform Self-locking Door

Emergency Stop Button

Work Schedule

Strobe Light

Oil Pipe Explosion-proof

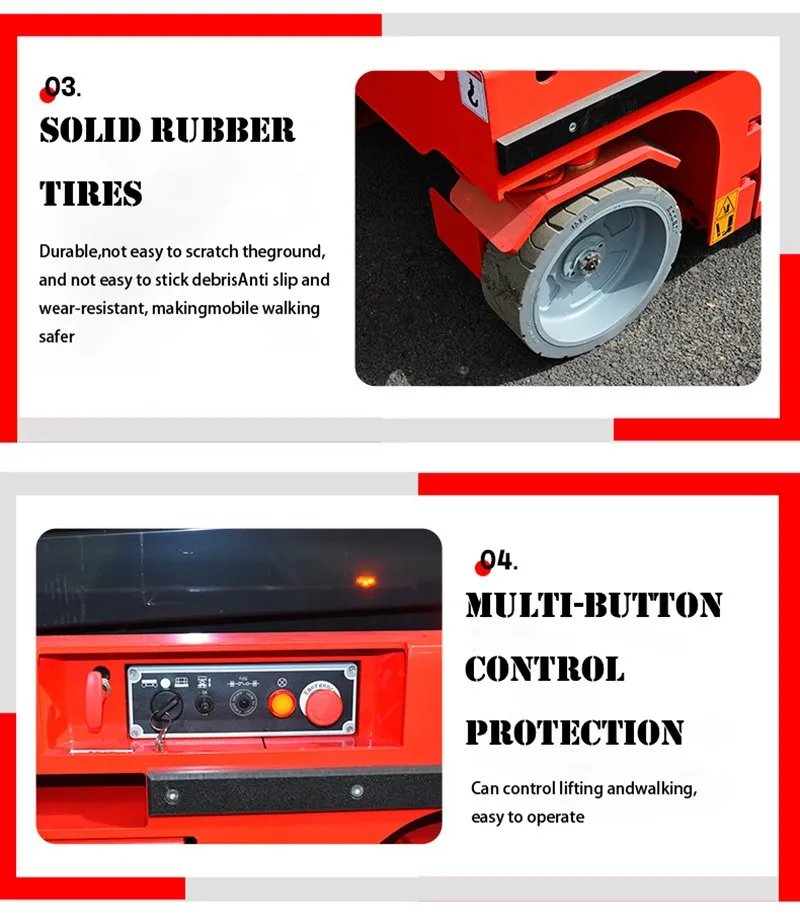

Seamless Tires

Fault Diagnosis System

Hydraulic Drive

Tilt Protection System

Folding Fence

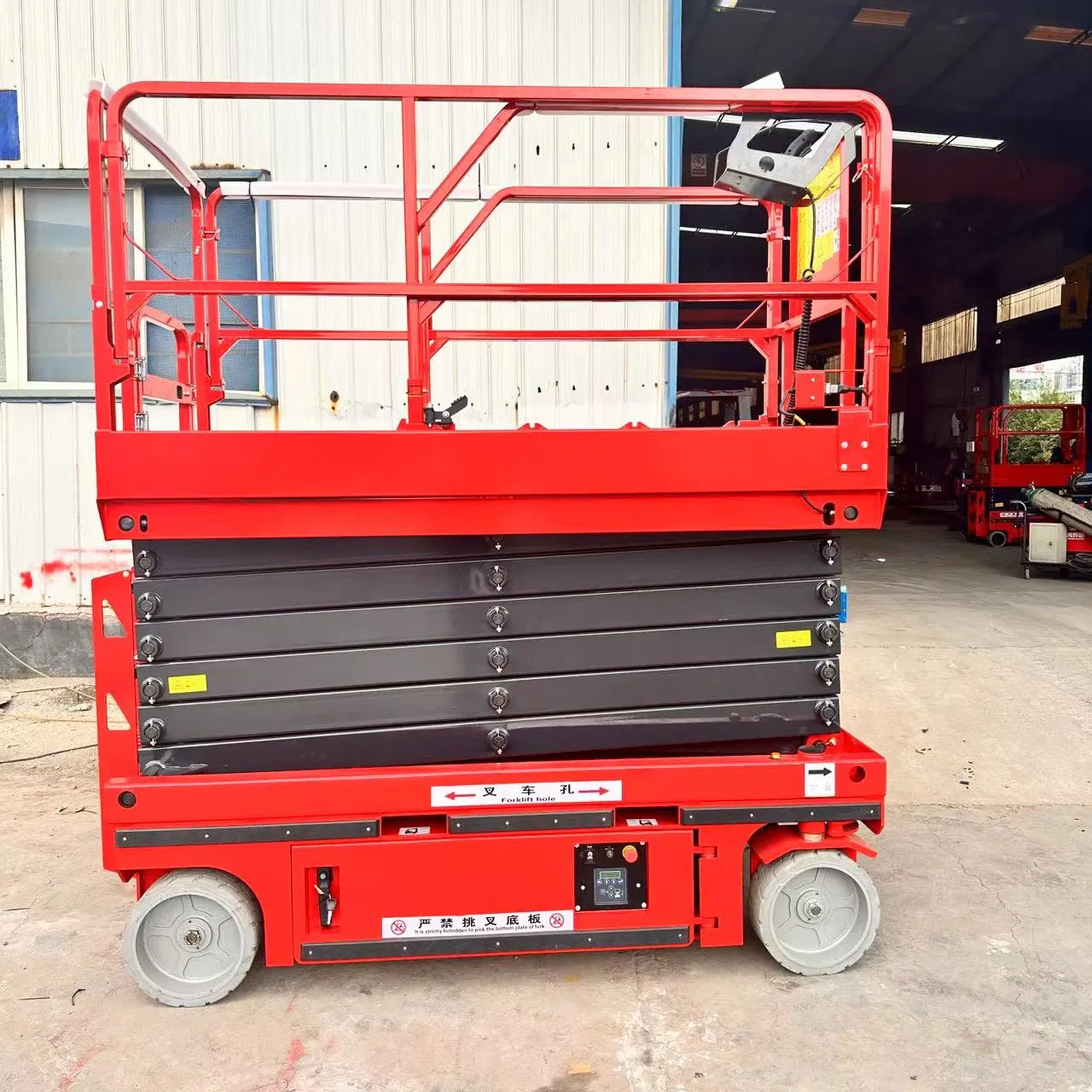

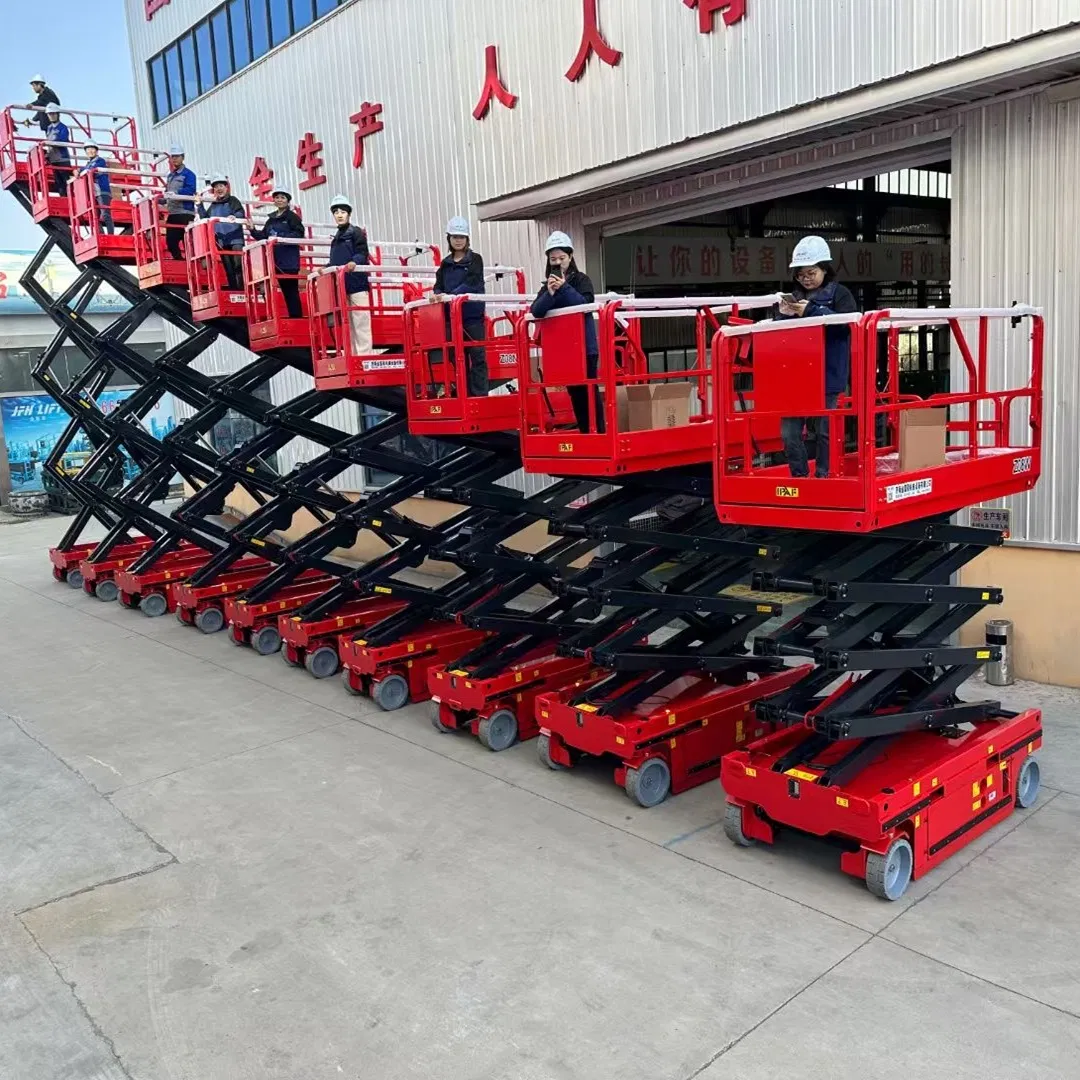

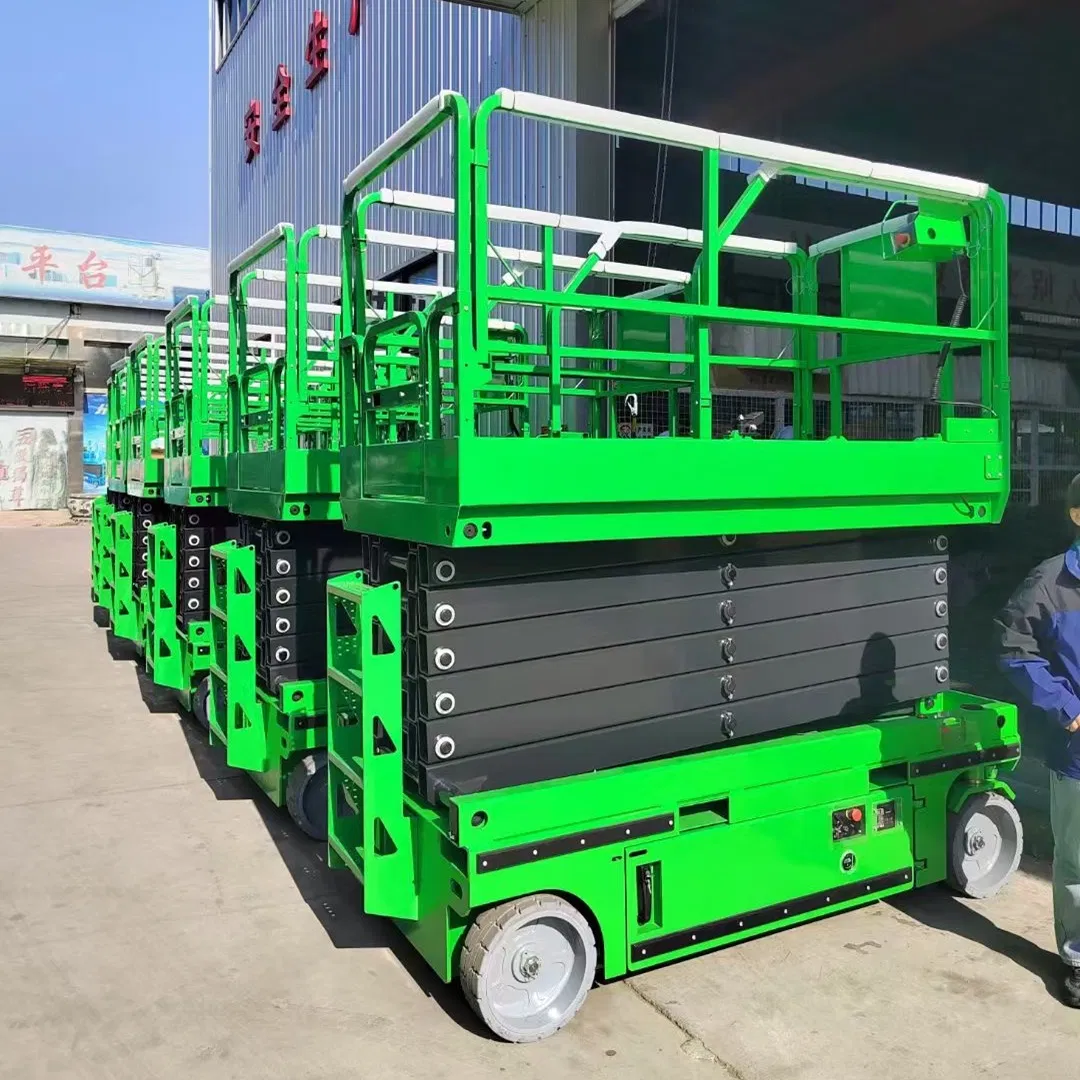

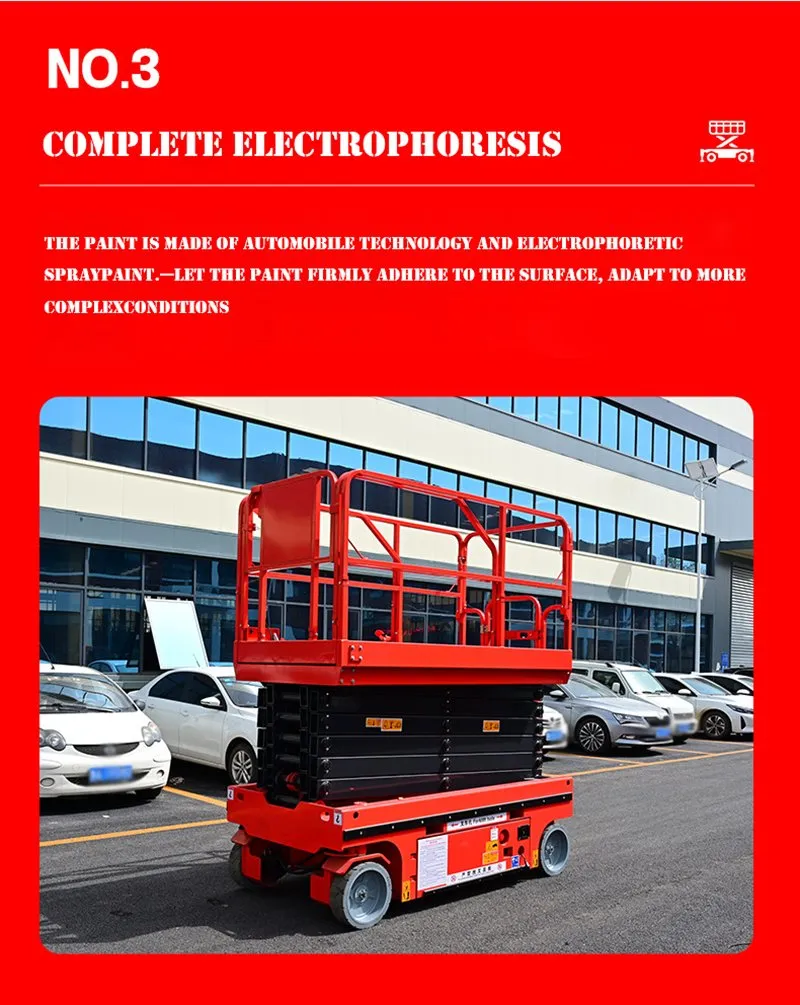

Product Showcase

Frequently Asked Questions

What type of lift mechanism does this model use?

This series utilizes a scissor lift mechanism, which provides excellent stability and support for aerial work applications.

What is the maximum lifting height available?

The SJYZ series offers various models with elevated heights ranging from 4 meters up to a maximum of 14 meters.

Does the platform feature any safety protection?

Yes, it includes an automatic pit protection system, emergency descent system, tilt protection, and an oil pipe explosion-proof system for maximum user safety.

Can the platform be extended for more workspace?

Yes, the product is equipped with an extension platform of 0.9m to provide additional horizontal reach when needed.

What is the power source and gradeability of the lift?

The lift is DC driven and features a gradeability (ability to climb grades) of 25%, making it suitable for various indoor and outdoor terrains.

Is the equipment certified for international standards?

Yes, the SJYZ series holds CE and ISO 9001 certifications, ensuring compliance with high quality and safety standards.
