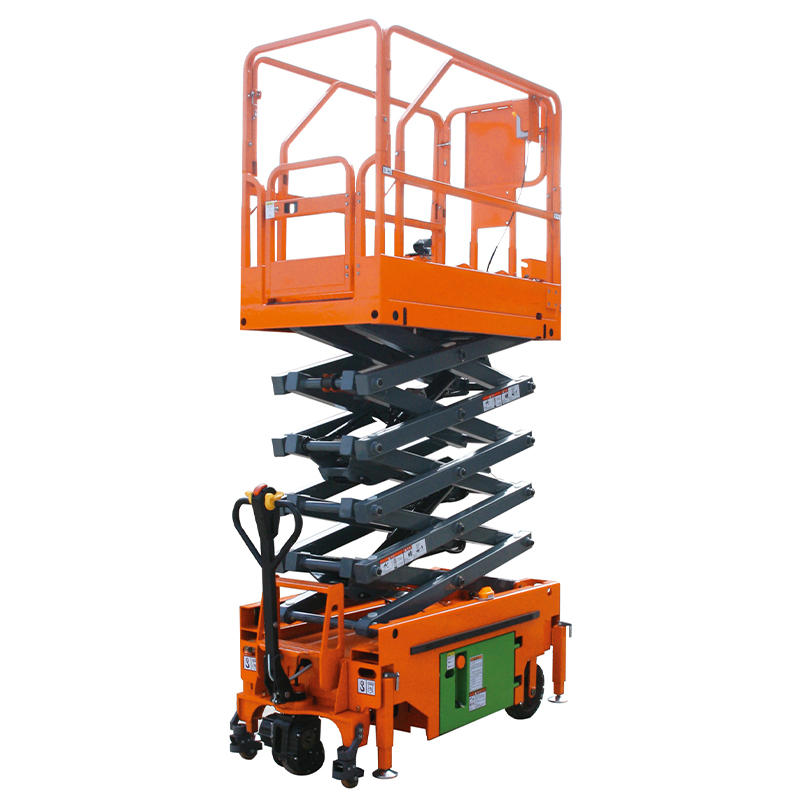

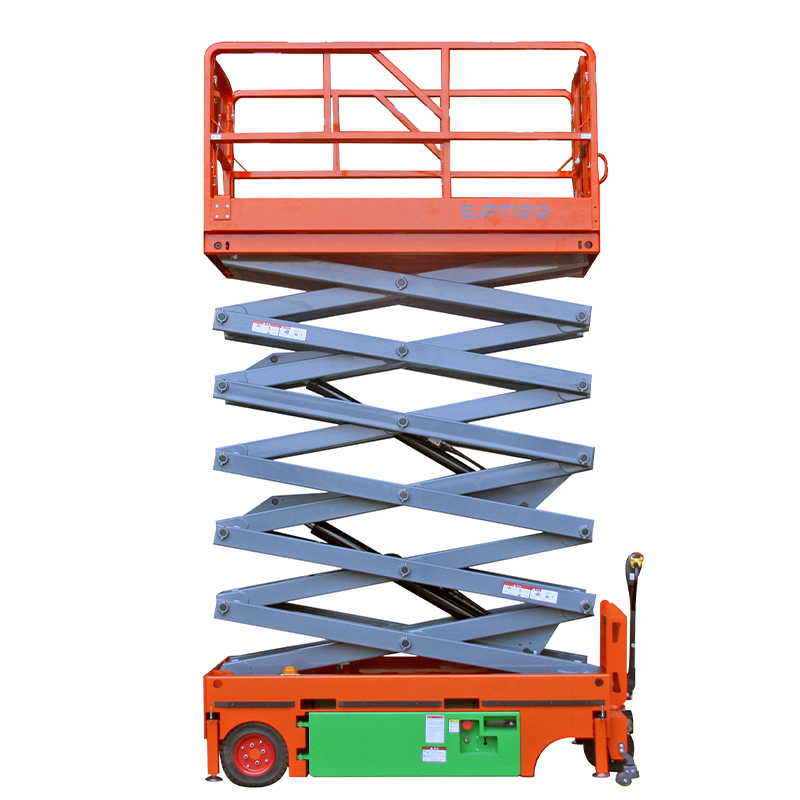

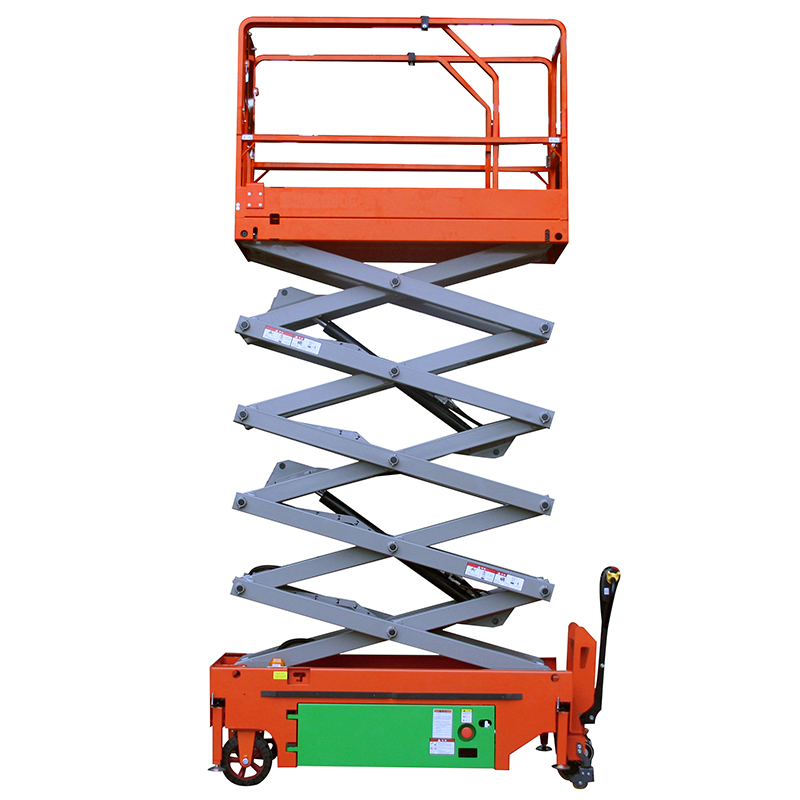

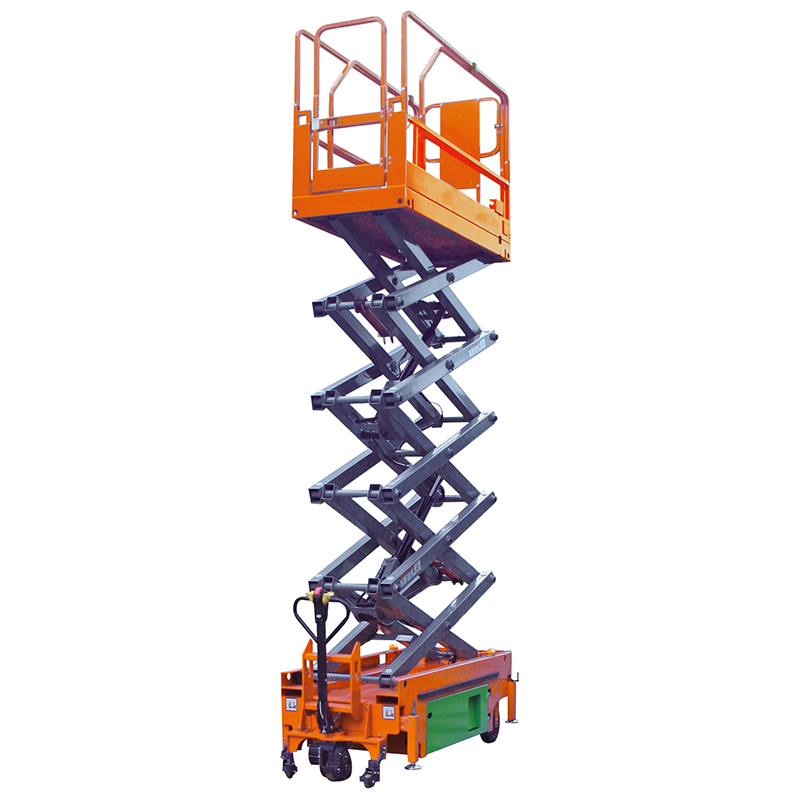

Mobile Small Scissor Lifting Works Platform Cargo Lift Table Elevated Work Platform

Still deciding? Get samples of $ !
Request Sample

Product Description

Hydraulic Construction Elevator Scissor Lift Platform

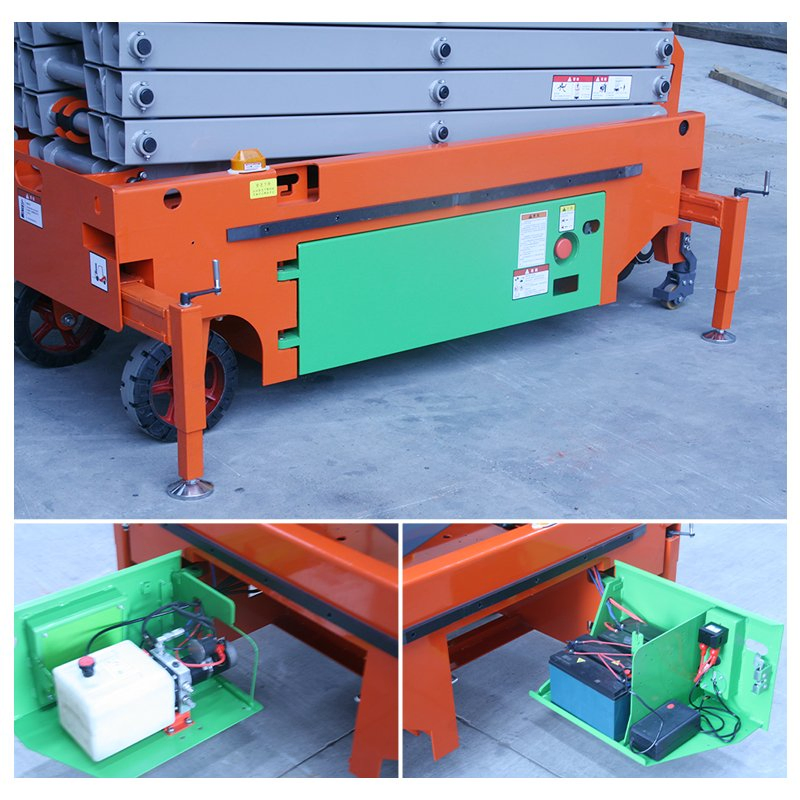

This semi-automatic scissor lift platform is designed for safe and efficient aerial work, featuring simple operation, dual side swing-out trays for easy maintenance, and a powerful DC brushless motor for assisted travel. Powered by clean energy, it's compact, lightweight, and pollution-free—ideal for indoor and environmentally sensitive jobs.

Basic Specifications
Model NO.
SJPT0808B
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
DC Power
Certification
CE, ISO 9001
Max. Working Height
10.3m
Platform Size
1.8 * 0.8m
Carrying Capacity
300KG (Light Level)
Feature
Explosion-Proof, Insulating
Production Capacity
100 set/Month
Technical Parameters
Model SJPT0407B SJPT0607B SJPT0608B SJPT0808B SJPT1012B SJPT1212B
Max. Working Height 6M 7.8M 8.3M 10.3M 11.8M 13.8M
Platform Size (CM) 140*78 140*78 180*80 180*80 227*113 235*113
Rated Load 230KG 230KG 300KG 300KG 450KG 450KG
Driving Speed 2KM/H 2KM/H 2KM/H 2KM/H 3.5KM/H 3.5KM/H
Battery 4*12V-32Ah 4*12V-32Ah 4*12V-45Ah 4*12V-45Ah 4*12V-45Ah 4*12V-45Ah
Weight 820KG 900KG 1150KG 1250KG 2240KG 2450KG
Product Features & Advantages

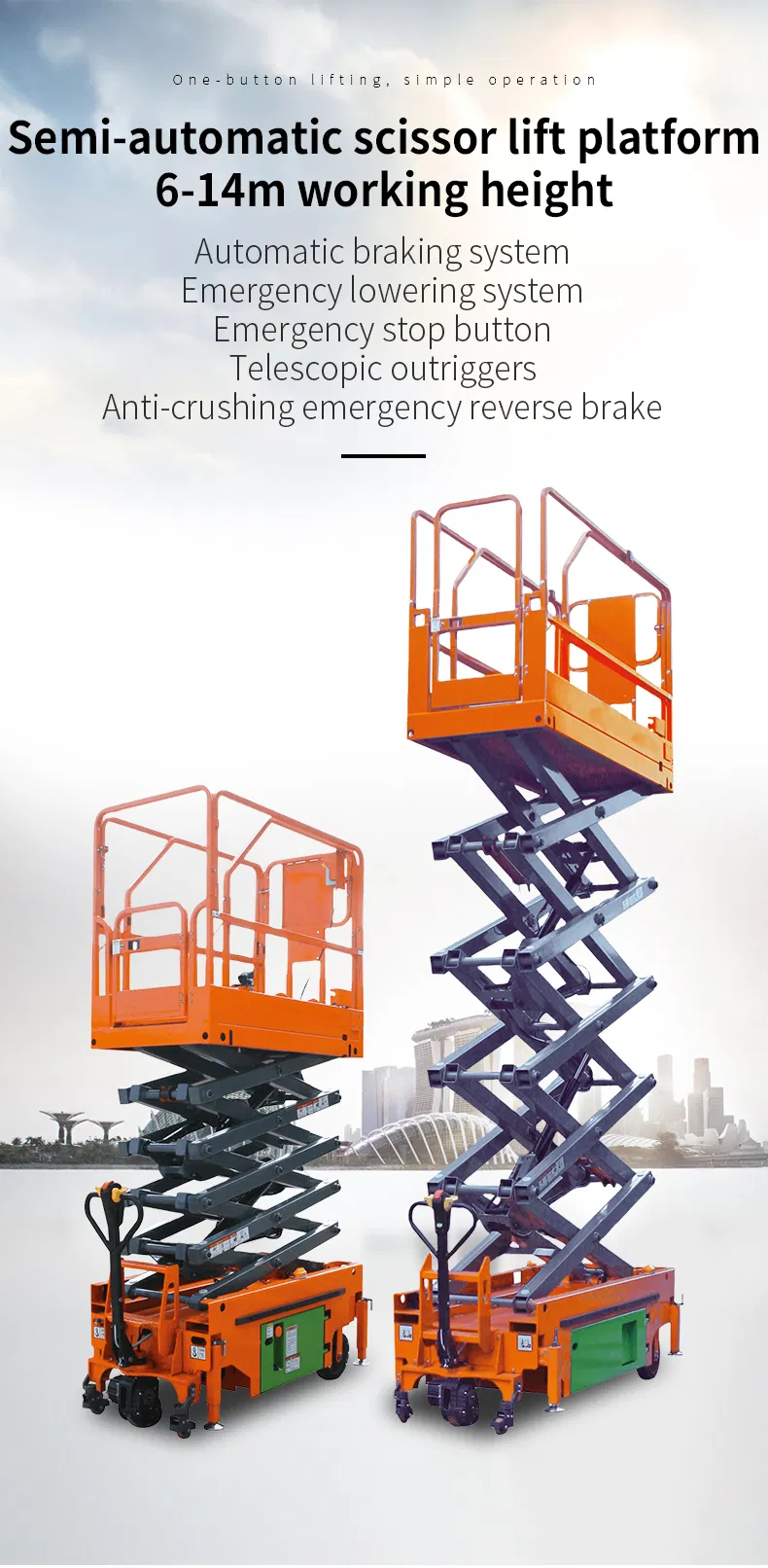

Scissor Lift Platform
🛡️
Smart Design & Safe Operation This scissor lift includes a self-locking platform door, automatic brakes, emergency lowering system, and an emergency stop button. The easy-to-use control handle allows one-handed operation for lifting and moving.
Aerial Work Application

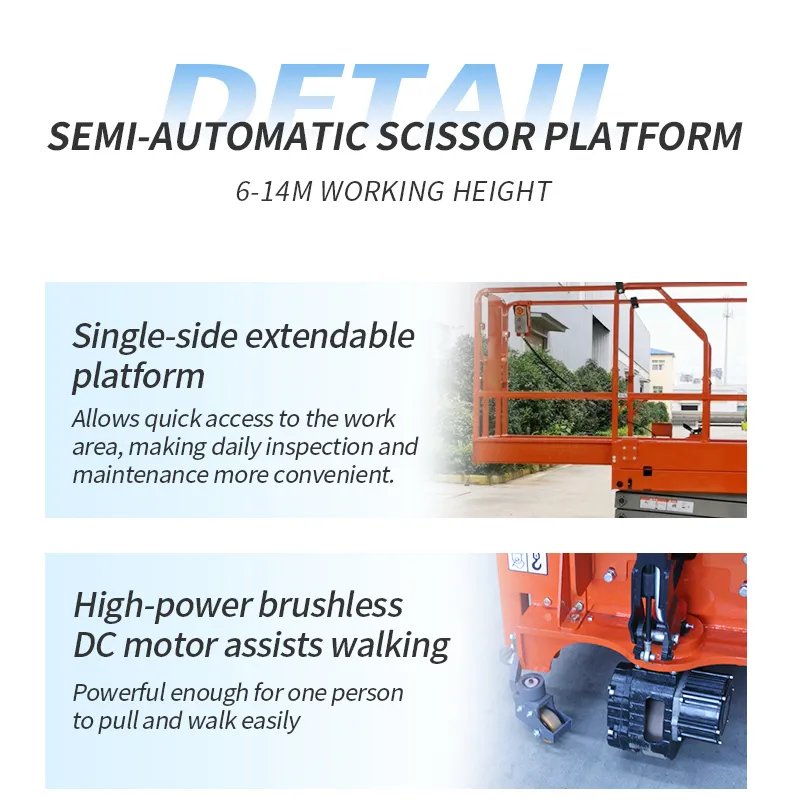

Extendable Platform
🚀
Versatile Applications Ideal for maintenance in large venues, high-rise buildings, equipment servicing, property inspections, overhead pipeline construction, and billboard installation.

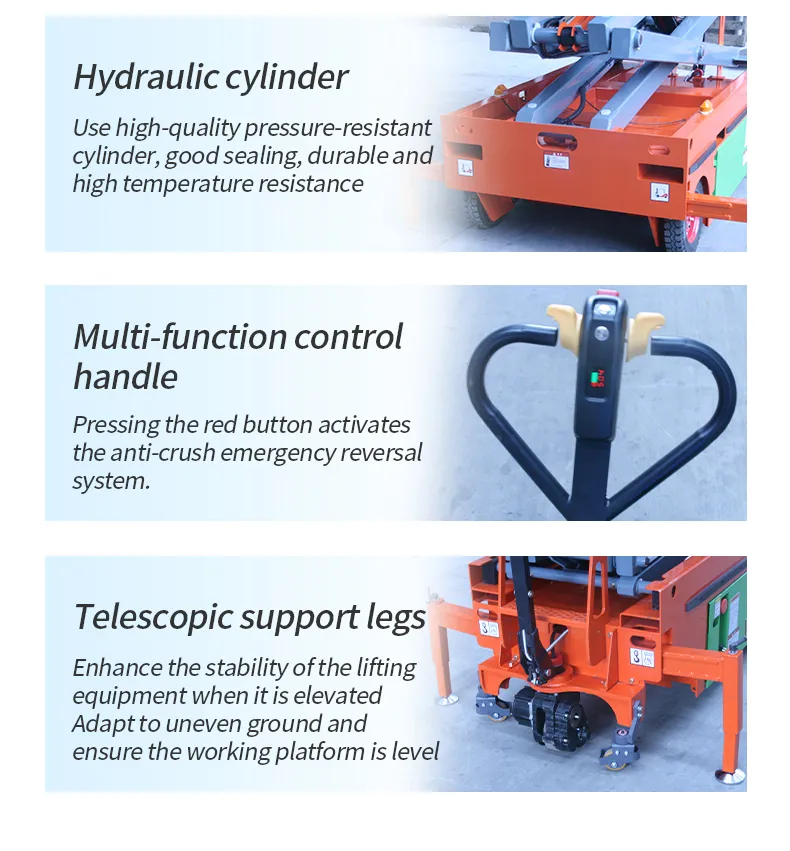

Stable Support

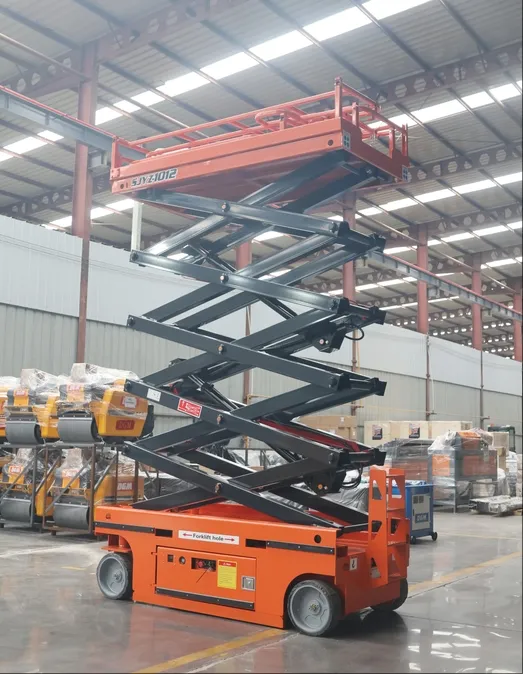

Machine Details
Packing & Delivery

Our products are carefully packaged using high-quality materials to ensure safe and secure transportation. Securely placed in sturdy containers, we follow strict professional procedures to guarantee the integrity of the goods during transit. Clear labeling and instructions facilitate easy handling and storage.

Packaging

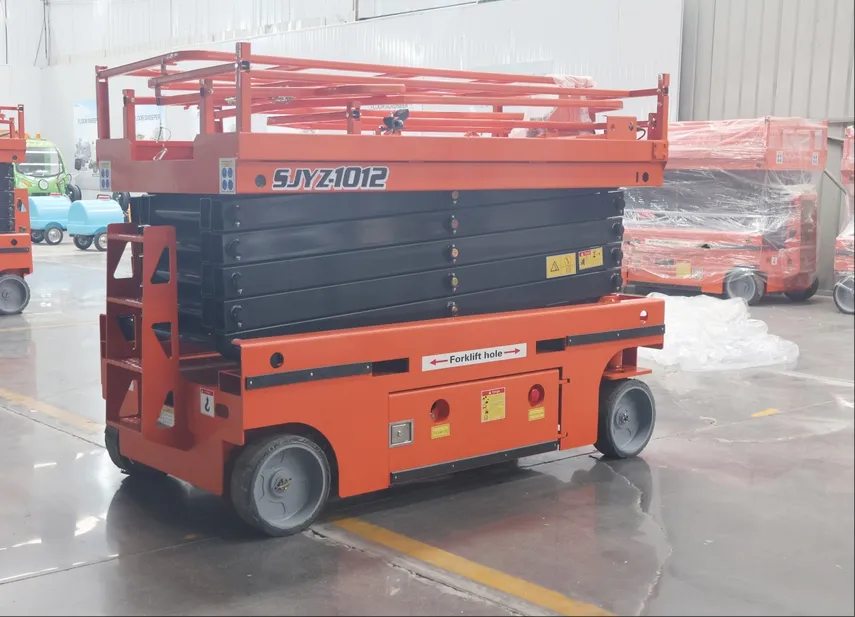

Shipping

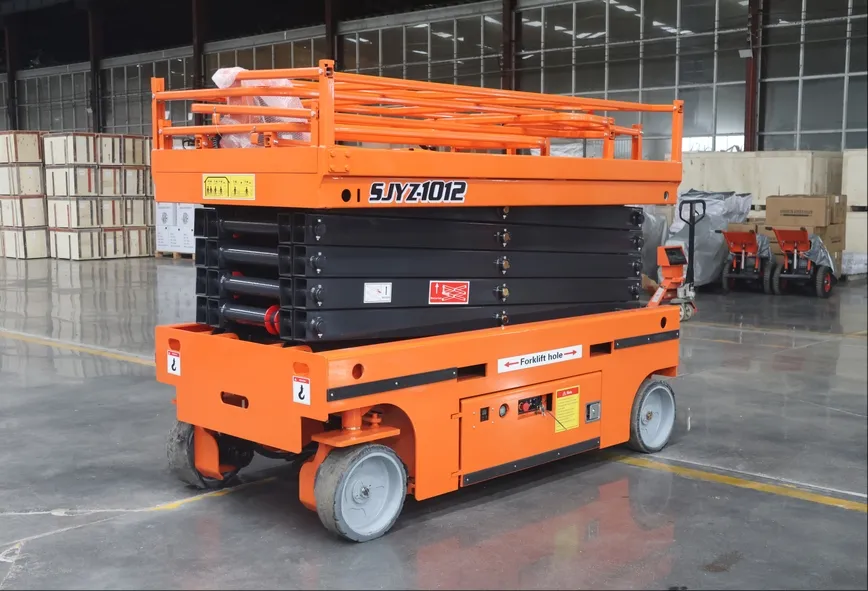

Loading
Industry Experience

We are a professional supplier with 10 years of export experience and 14 years of manufacturing experience. We focus on construction and engineering machinery, offering a wide range of road machinery, steel bar processing machinery, and concrete machinery. Our solutions are successfully utilized in over 70 countries worldwide.

Workshop
Production Line
Frequently Asked Questions
Q1: What safety features does the lift platform have?
Our lift is equipped with automatic braking, emergency stop buttons, anti-crush reversal systems, and tilt protection to ensure maximum operator safety.
Q2: How easy is it to operate the scissor lift?
The platform features a multifunctional control handle and simple controls, making it easy for one person to operate safely and efficiently.
Q3: What maintenance is required for the lift?
Routine checks of hydraulic systems and control handles are recommended. The design includes easy-access swing-out trays to simplify daily inspection.
Q4: Can the lift be used on uneven surfaces?
Yes, telescopic outriggers and automatic leveling features help maintain platform stability on slightly uneven ground for safe operation.
Q5: What is the power source for this lift?
The lift is powered by a high-power DC brushless motor and clean energy batteries, making it eco-friendly and suitable for indoor use.
Q6: Is the platform extendable?
Yes, the machine features a single-side extendable platform (up to 90cm depending on the model) to help operators reach work areas more easily.
