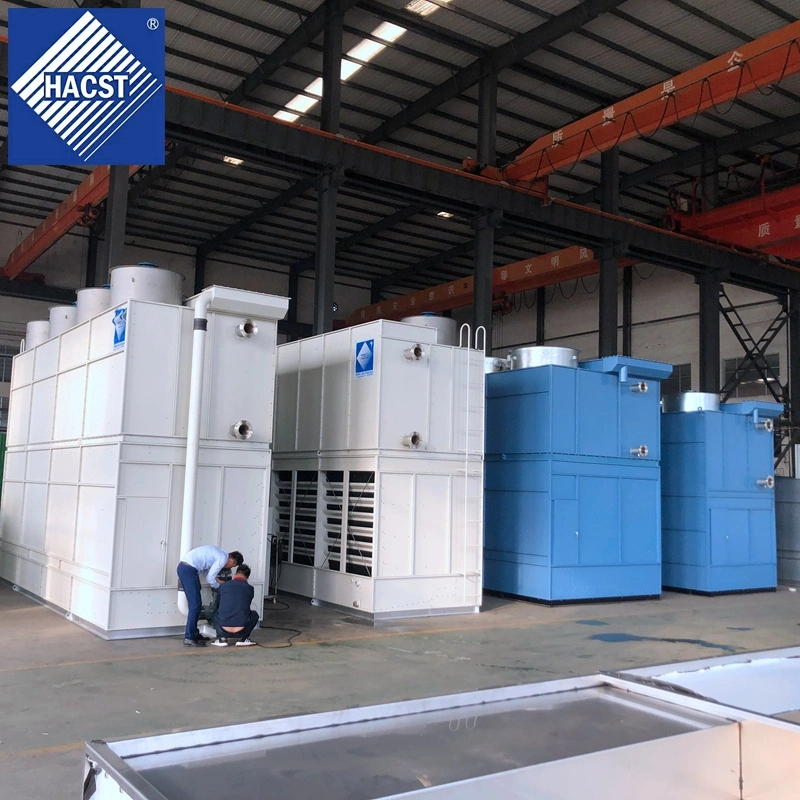

Water Cooling Tower Galvanized Steel Cooling System for Chiller

1 / 5

Water Cooling Tower Galvanized Steel Cooling System for Chiller

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model

BHX-100

Cooling Method

Cross Flow

Ventilation

Mixing Ventilation

Material

Metal / SS304

Air Contact Form

Wet

Shape

Square

Noise Level

Ultra Low

Certification

ISO, CE, CCC, CTI

Water Drift Loss

Less Than 0.005%

Motor Brand

ABB / Siemens / Weg

Capacity

10 - 1000 Tons/Hour

Voltage

220V - 480V

Advantages of Galvanized Steel Cooling System

Protect process fluids from pollution.
Maximize system efficiency by reducing fouling and scaling tendencies.
Significant reduction in system energy costs.
Lower system maintenance requirements.
Provides reliable, efficient, and year-round operation.

Professional Service Support

Engineers available for overseas service, installation, and commissioning.
Complimentary training for refrigeration operators.
Timely and reliable spare parts supply.

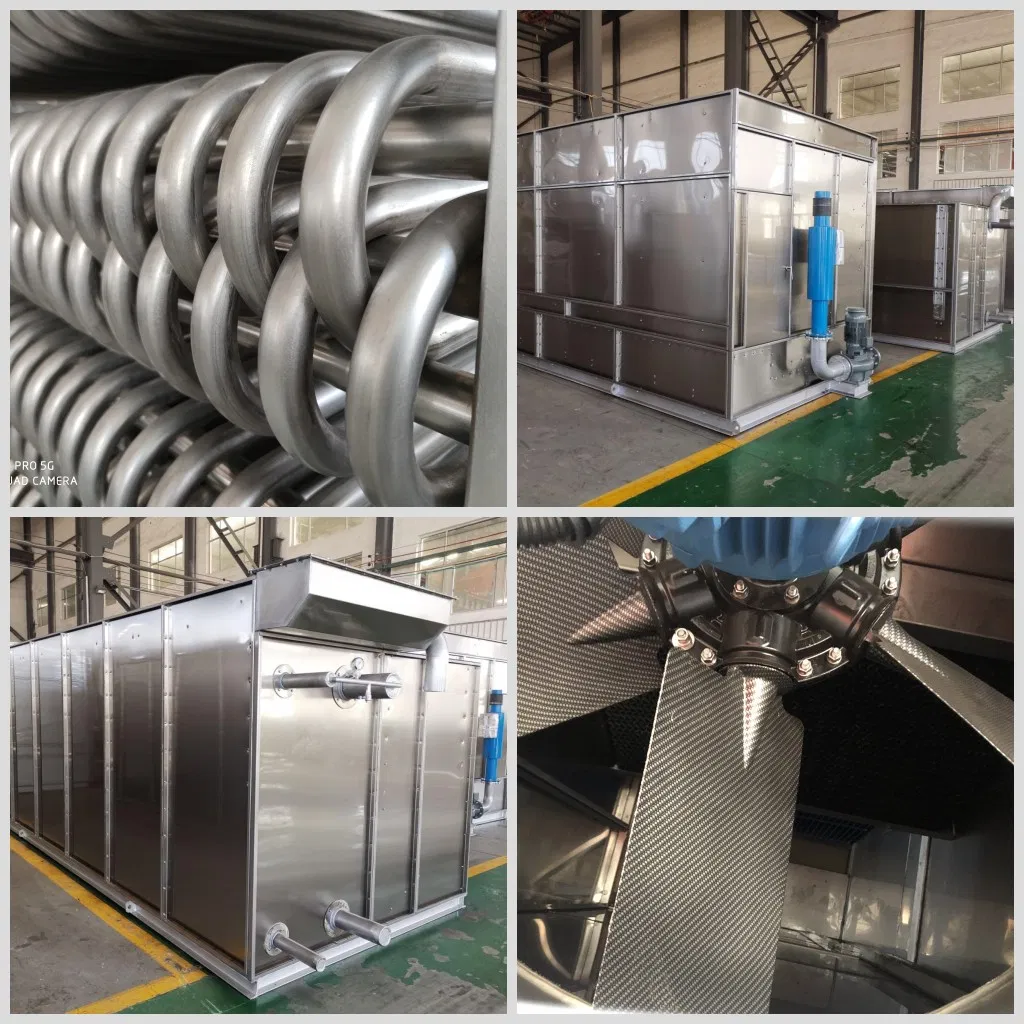

Product Gallery

Main Parameters

MODEL	CAPACITY (M3/h)	FAN SYSTEM			WATER SPRAY PUMP			DIMENSION (MM)
MODEL	CAPACITY (M3/h)	QTY	POWER (KW)	AIR VOL (M3/h)	QTY	POWER (KW)	WATER VOL (M3/h)	DIMENSION (MM)
BHX-30	30	1	3	35000	1	1.1	36	192523804220
BHX-50	50	1	5.5	65000	1	1.1	45	192525804220
BHX-80	80	2	4	45000	1	2.2	84	377022004220
BHX-100	100	2	4	45000	1	2.2	84	377022004965
BHX-150	150	4	3	40000	1	3	120	561022004730
BHX-200	200	4	4	45000	1	5.5	230	745022004720

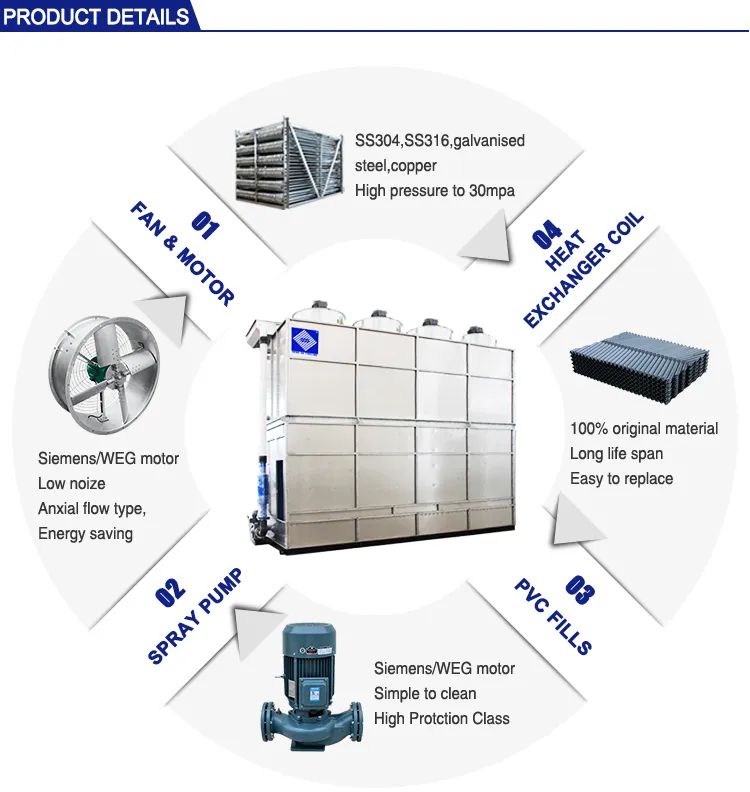

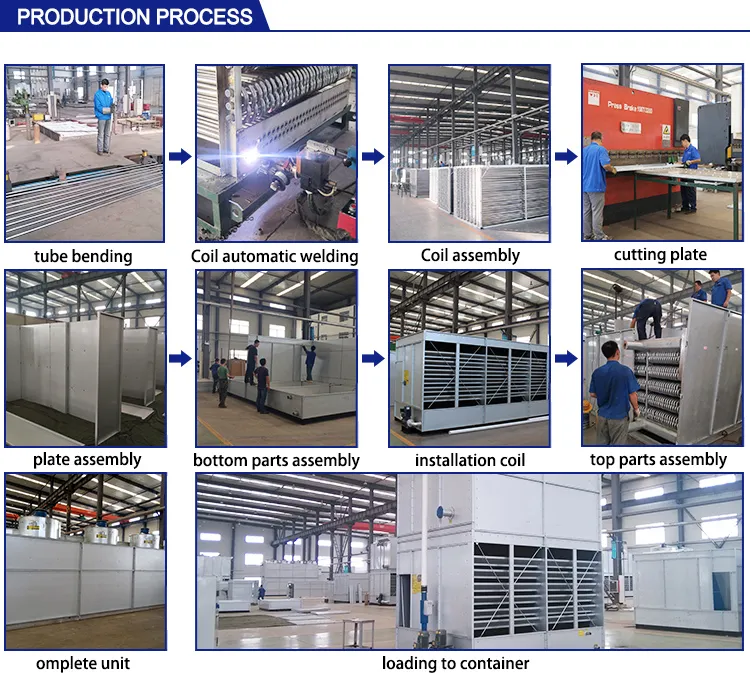

System Structure & Components

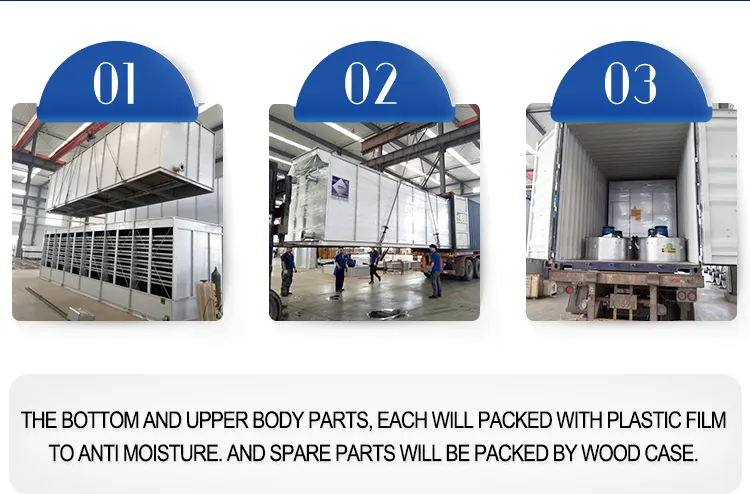

Shipment Notice: The cooling tower is separated into an upper and lower part for easy shipping and onsite assembly. Spare parts are securely packed in wooden boxes.

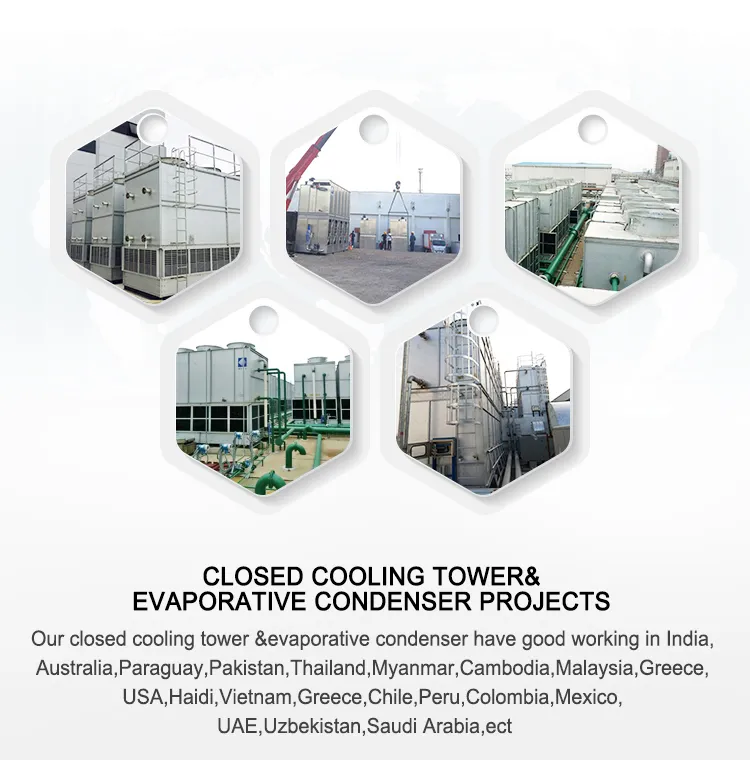

Projects & Applications

Our cooling towers are widely utilized across various sectors including water-source heat pumps, industrial chillers, compressor jacket cooling, induction furnaces, and data centers.

Frequently Asked Questions

How do I choose the right cooling tower model?

To select the ideal model, please provide the application (e.g., HVAC, induction furnace), required water flow rate (tons/hour), inlet/outlet water temperatures, and the local wet-bulb temperature.

What materials are used for the coils and casing?

The system utilizes high-grade SS304 (Stainless Steel) for both the cooling coils and the casing to ensure maximum corrosion resistance and durability.

Is the equipment suitable for ultra-low noise environments?

Yes, our units are designed for "Ultra Low" noise levels, making them suitable for industrial and commercial areas where sound restrictions apply.

How is the product shipped and installed?

The tower is typically split into upper and lower sections for efficient transport. This modular design allows for straightforward onsite assembly.

What power supply requirements should I consider?

Our standard power supply is 380V/3 Phase. However, we can accommodate custom voltages ranging from 220V to 480V based on your specific regional requirements.

What certifications does this cooling system hold?

The equipment is fully certified according to ISO, CE, CCC, and CTI standards, ensuring compliance with international quality and safety benchmarks.
