Premium Drive-in Pallet Racking System with Fast Access to Position Fifo Storage

Basic Information

Model NO.

WD-PR-001

Usage

Warehouse Rack, Logistics, Industrial, Supermarket

Material

Steel

Structure

Rack

Type

Drive-In Pallet Racking

Mobility

Fixed

Height

5-15m

Weight Capacity

500-4000kg/Per Level

Design Service

Free CAD Service Available

Certification

ISO9001

Lead Time

Within 15 Work Days

Production

20,000tons/Month

Product Description

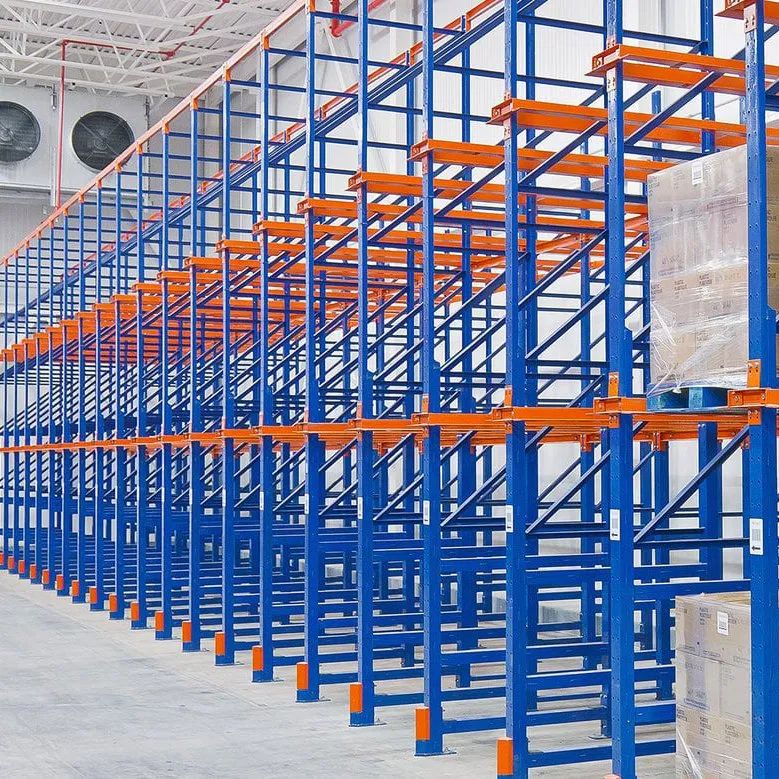

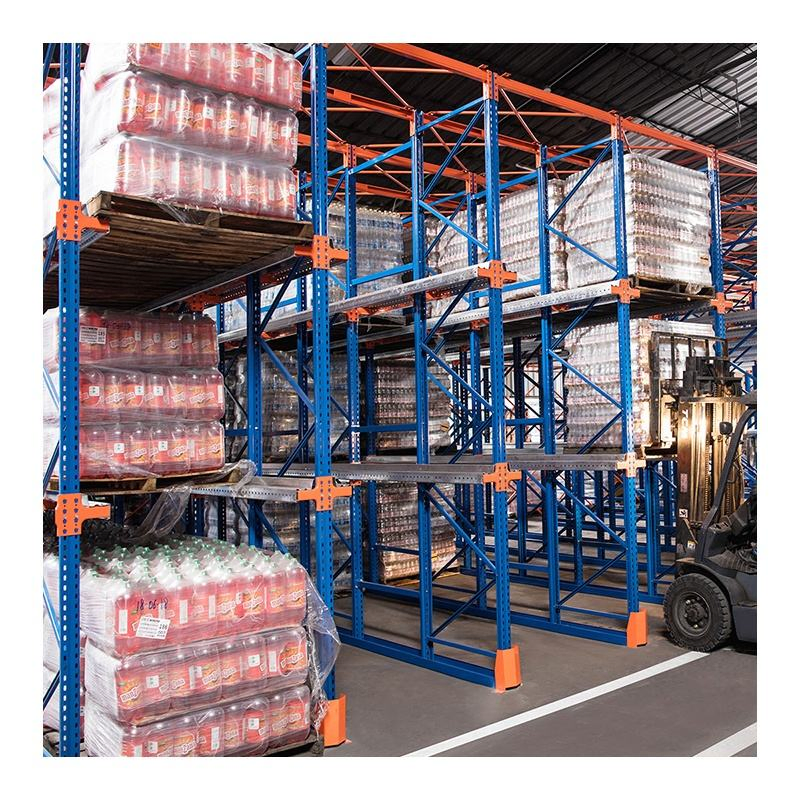

What is Drive-in Racking?

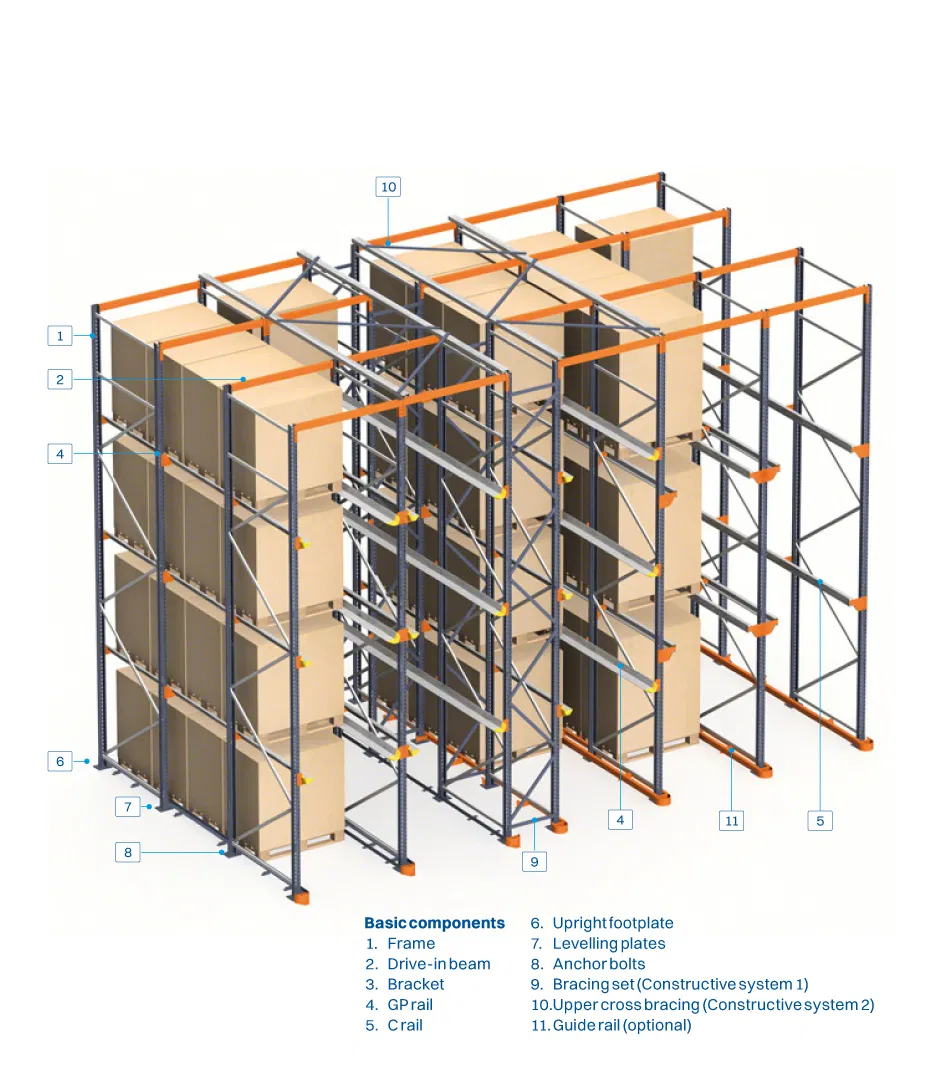

Drive-in racking is a high-density storage system designed to maximize warehouse space utilization. It is especially effective for high-volume, low SKU items. The system consists of upright frames with horizontal rails that create deep channels, allowing forklifts to enter the structure to deposit or retrieve pallets. Pallets are loaded one behind the other on the rails, creating an efficient, compact storage solution.

Our Advantages

✓

High Storage Capacity: Eliminates wide aisles between racks, significantly increasing storage density compared to traditional systems.

✓

Space Optimization: Capable of utilizing over 80% of available warehouse floor space.

✓

Ideal for Homogeneous Goods: Perfect for large quantities of similar items with low stock rotation, such as seasonal products or cold storage.

✓

LIFO Principle: Follows the Last-In, First-Out principle, where pallets are loaded and retrieved from the same entry side.

Technical Specifications

Component	Standard Specifications
Upright Sizes	8070, 9070, 10570, 12085mm
Hole Pitch	76.2mm, 50mm, 50.8mm
Box Beam Size	8050 up to 16050 mm
Upright/Beam Thickness	1.8 / 2.0 / 2.5 / 2.75 / 3.0 mm
Frame Height	Up to 12,000 mm
Beam Length	Up to 6,000 mm
Capacity Per Layer	500 - 4000 Kg
Surface Finish	Powder coating (Customizable colors) or Hot-dip galvanized

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

There are no special requirements for MOQ. However, purchasing in large quantities earns better pricing. A 20ft container is highly recommended for optimized production and shipping.

What is the typical lead time for an order?

For a standard 20ft container, manufacturing time is approximately 10-15 days. Customized items typically require 20-25 days for completion.

What payment methods do you accept?

We primarily accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) at sight.

Can I get samples before placing a bulk order?

Yes, short sections of uprights and beams can be provided free of charge. However, the freight costs are the responsibility of the customer.

Is the racking system customizable?

Absolutely. We offer customizable specifications for height, beam length, load capacity, and color finish to meet your specific warehouse requirements.

What certifications does your racking system hold?

Our production processes and products are ISO9001 certified, ensuring high-quality standards and structural safety.
