Product and Function Overview
The control panel is primarily utilized in building control systems, forming an integrated system when installed with other bus devices. Its interface is designed to be simple and intuitive, allowing users to systematically execute functions tailored to their specific requirements.

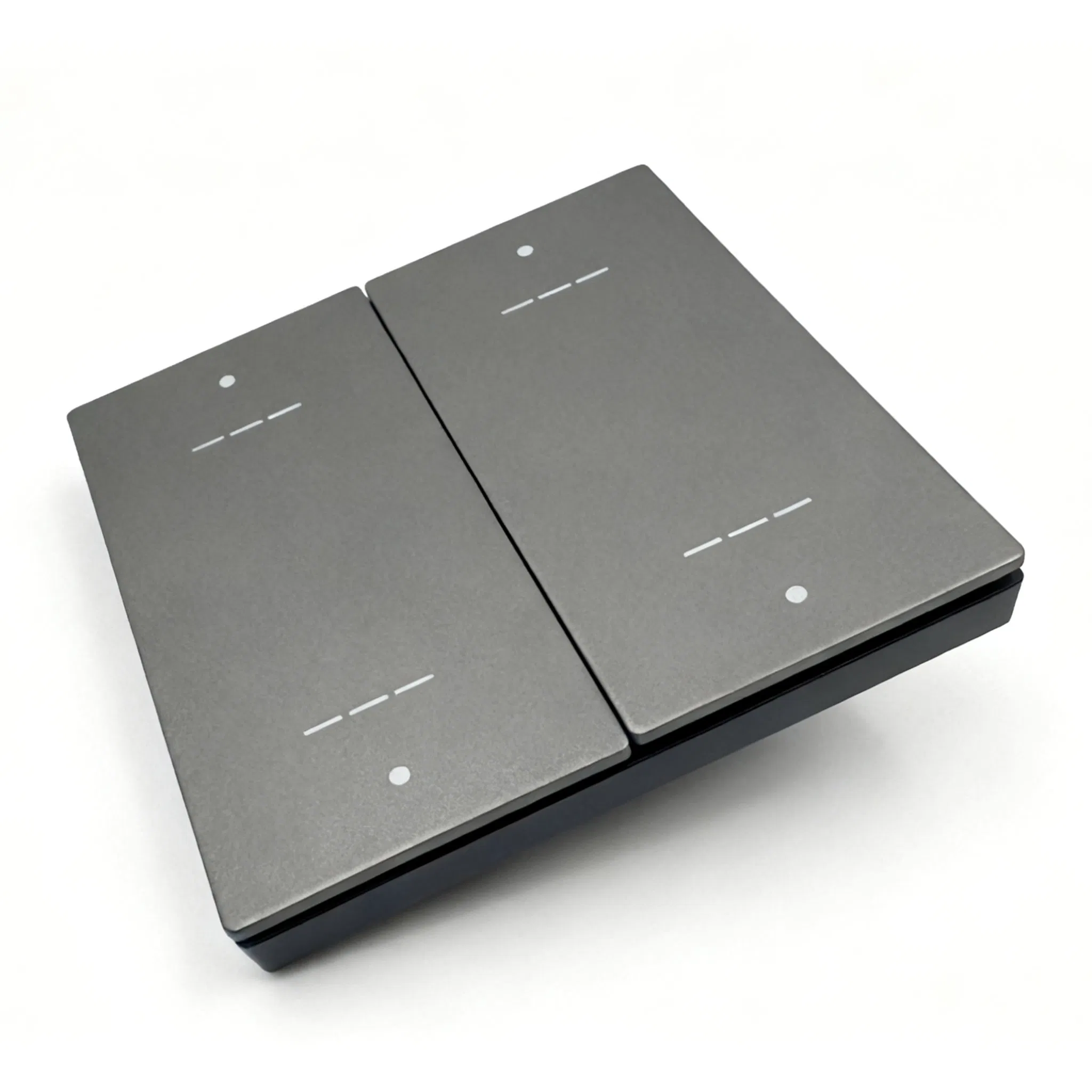

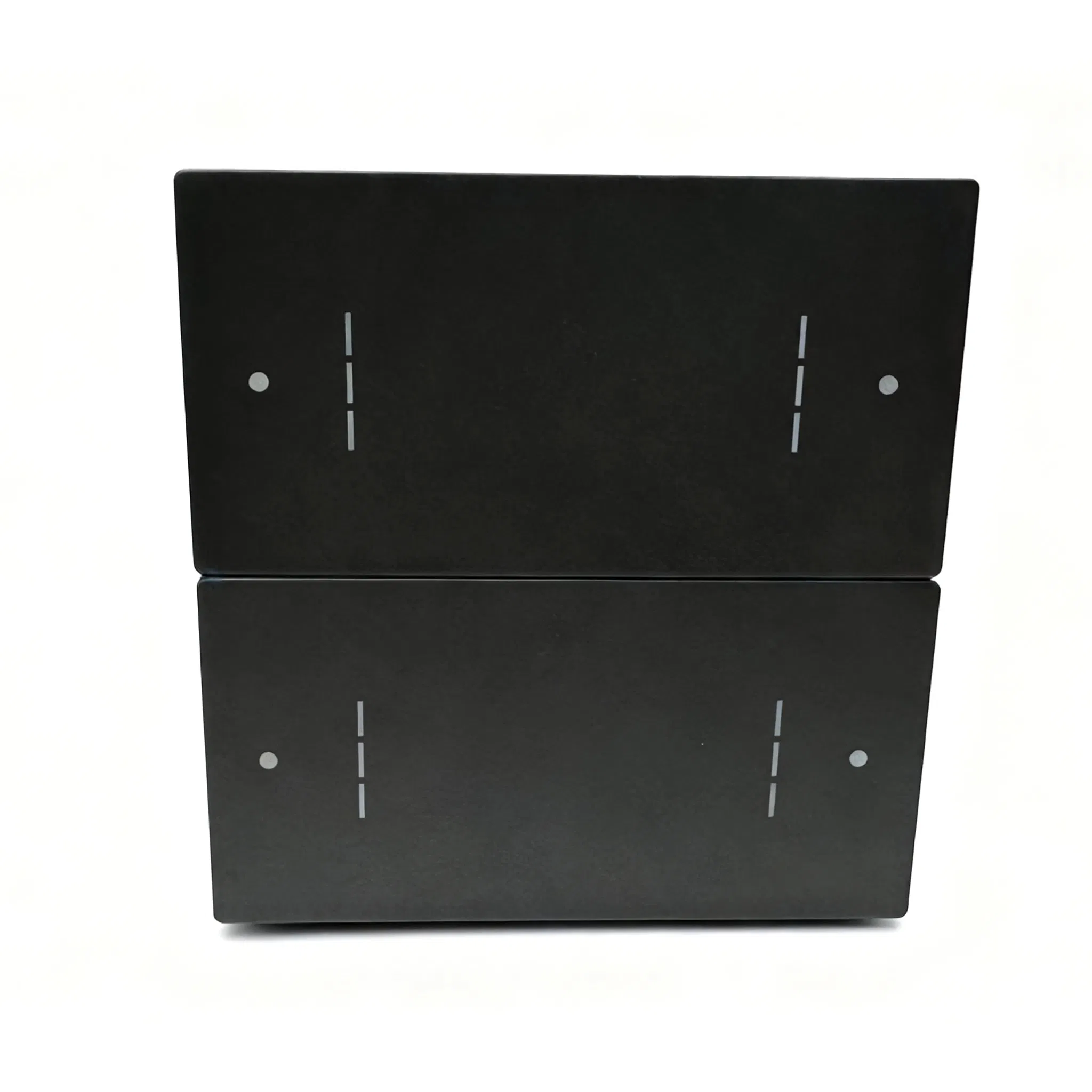

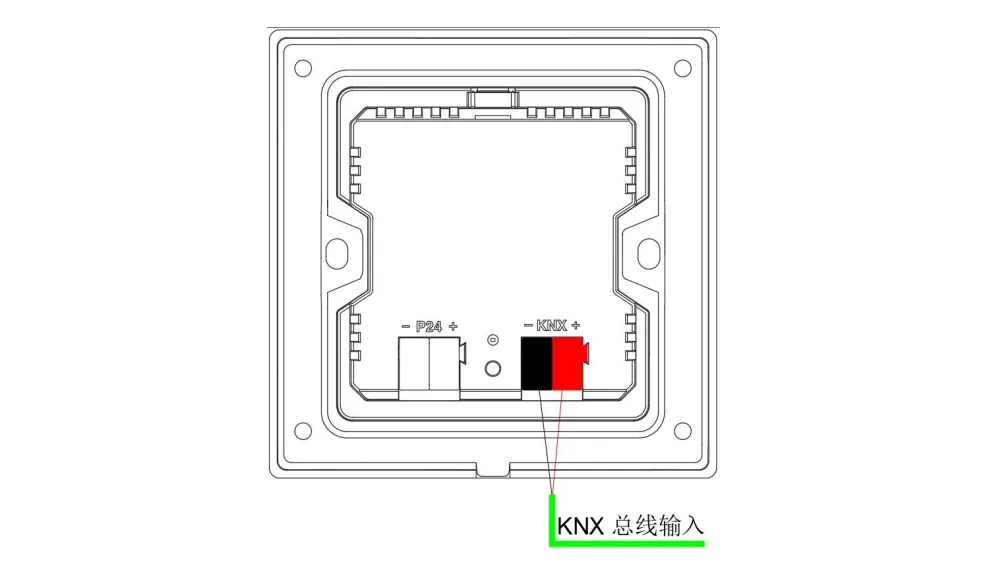

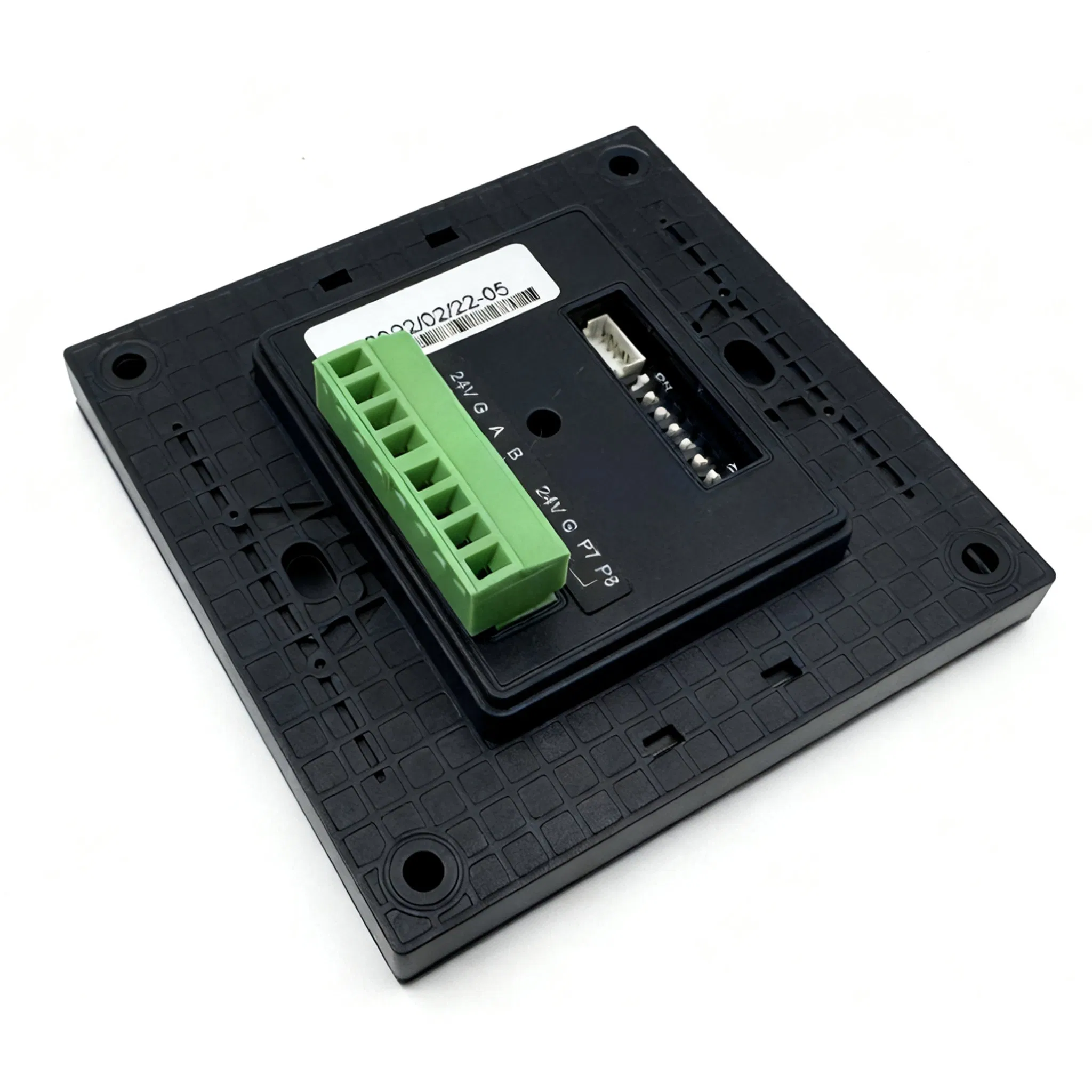

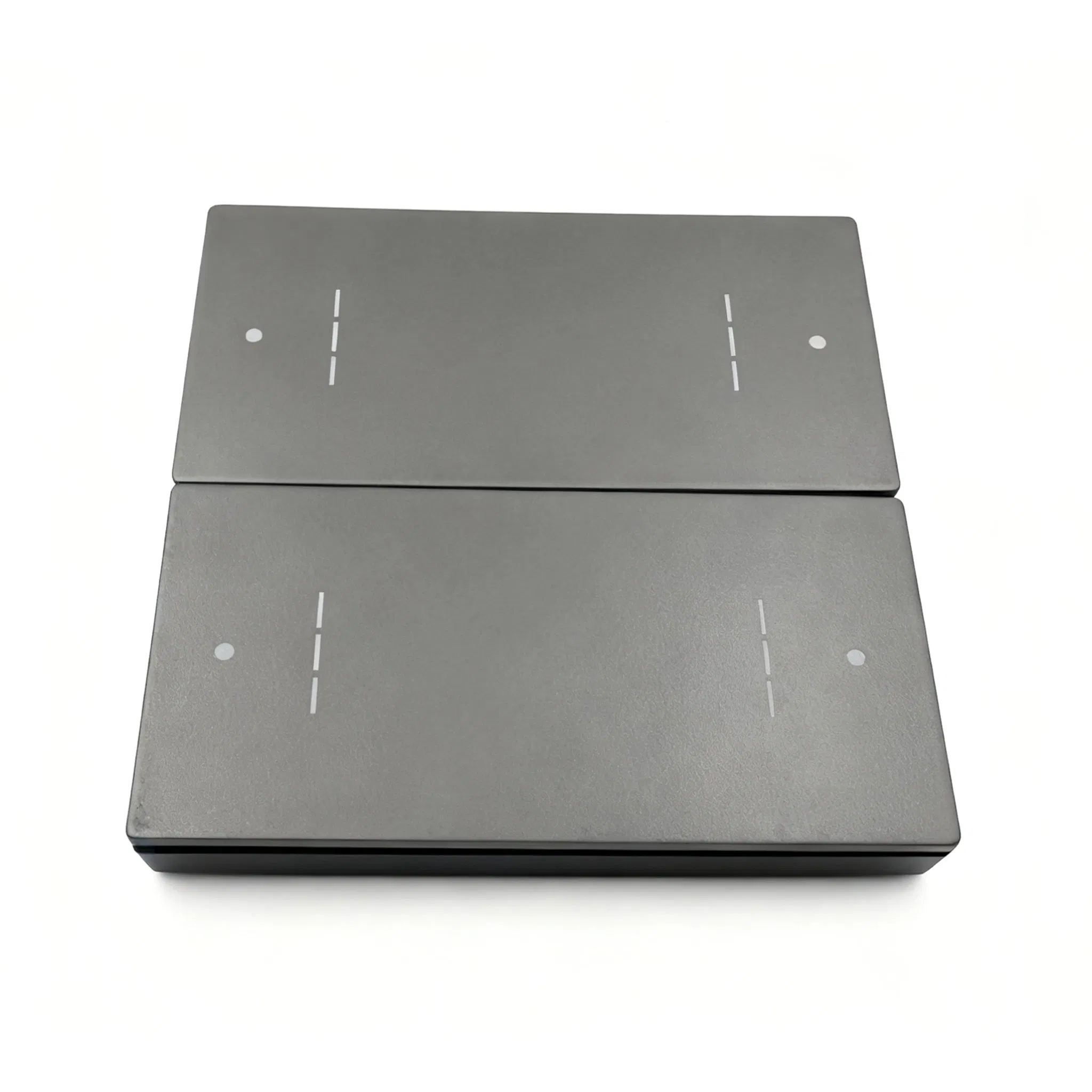

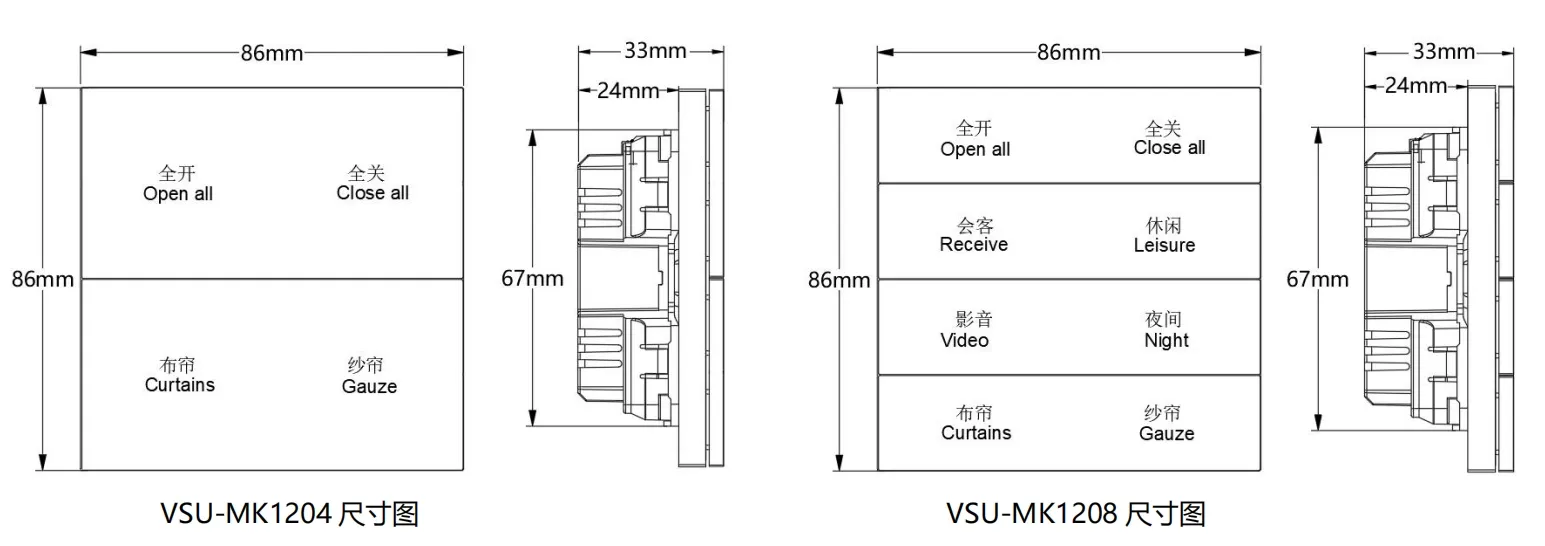

This versatile panel controls switches, dimming, and blinds. Each channel features dedicated buttons and LED indicator lights. Designed for standard 86 bottom box installation, it offers 1-4 or 1-8 button outputs. Connection to the system is achieved via the EIB bus, utilizing design tools for physical address allocation and parameter settings.
- Compatible with switching lighting, curtains, and projection screens.
- Supports relative and absolute dimming functions.
- 8-bit scene control for pre-set environment settings.
- Multiple LED display states: normally on, off, or flashing.
- LED interlocking grouping and brightness adjustment.
- Wake-up conditions include button pressing and object triggering.
Frequently Asked Questions
Q1: What are the primary applications for this control panel?
The panel is used for intelligent control of lighting (switching and dimming), motorized curtains/blinds, and scene management in residential and commercial buildings.
Q2: Does the device support remote control and mobile app integration?
Yes, the system supports APP control, remote access, and voice control functionalities when integrated into the compatible smart network.
Q3: What type of installation box is required?
The panel is designed for standard 86-box installation, which is a common standard for wall-mounted controllers.
Q4: Are the LED indicators customizable?
Yes, the LED indicators support various states such as normally on, off, or flashing, and feature adjustable brightness levels.
Q5: What certifications do the products carry?
All products are original and have passed international CE certifications and ISO9001 quality system standards.
Q6: What is the typical lead time for orders?
For items in stock, they can usually be shipped within 7 days. For larger bulk orders, lead times are negotiated based on quantity.
