Advanced Parking Ticket System with Rapid Access Technology

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Info.

Model NO.

Operation Mode

Automatic

Payment Method

Card Payment

Product Dimensions

Medium

Screen Size

12 inch

Position

Vehicle Fence

Material

Aluminium

Post Fixation

Embedded Type

Degree of Distortion

Flexible Barrier

After-Sales Service

Online Service

Warranty

2 years

Function

Vehicle Identification

Upright Post

440*385*1070mm

Arm Speed

1.2s, 3s, 6s (Suggest Use 3s)

Color

Orange/Grey, Other Colors Selectable

Cabinet Weight

45kg

Product Name

Parking Barrier

Boom Type

Straight Boom Barrier Gate

Usage

Parking Safety

Type

Parking Equipment

Production Capacity

5000 set/Year

📦

Packaging & Delivery

Package Size

100.00cm * 52.00cm * 120.00cm

Package Gross Weight

100.000kg

📝

Product Description

Introducing the Automatic Traffic Barrier Arm Barrier Gate System: a breakthrough in traffic management technology.

Our Standard Barrier Gate is meticulously engineered for high performance. With an arm length up to 6 meters and customizable speeds (1.2s, 3s, and 5s), it ensures optimal operations in parking lots, hotels, schools, and public institutions. The recommended 3s speed offers a perfect balance of efficiency and safety.

⭐

Main Features

✔Unmatched system integration and robust functionality for performance beyond expectations.

✔Advanced motor overheating and elevating overtime protection to prevent abnormal damage.

✔Hall sensing device for precise, non-contact inductive limit control and long-lasting durability.

✔Premium large power relay for exceptional operational reliability and system stability.

✔Photoelectric isolated protection circuit to maintain signal integrity against interferences.

✔Wireless remote control with one million learning codes for enhanced security and dependability.

✔Innovative arc extinction processing circuit significantly prolonging control panel lifespan.

✔High-quality magnetic core transformer designed for stable performance in outdoor/moist environments.

⚙️

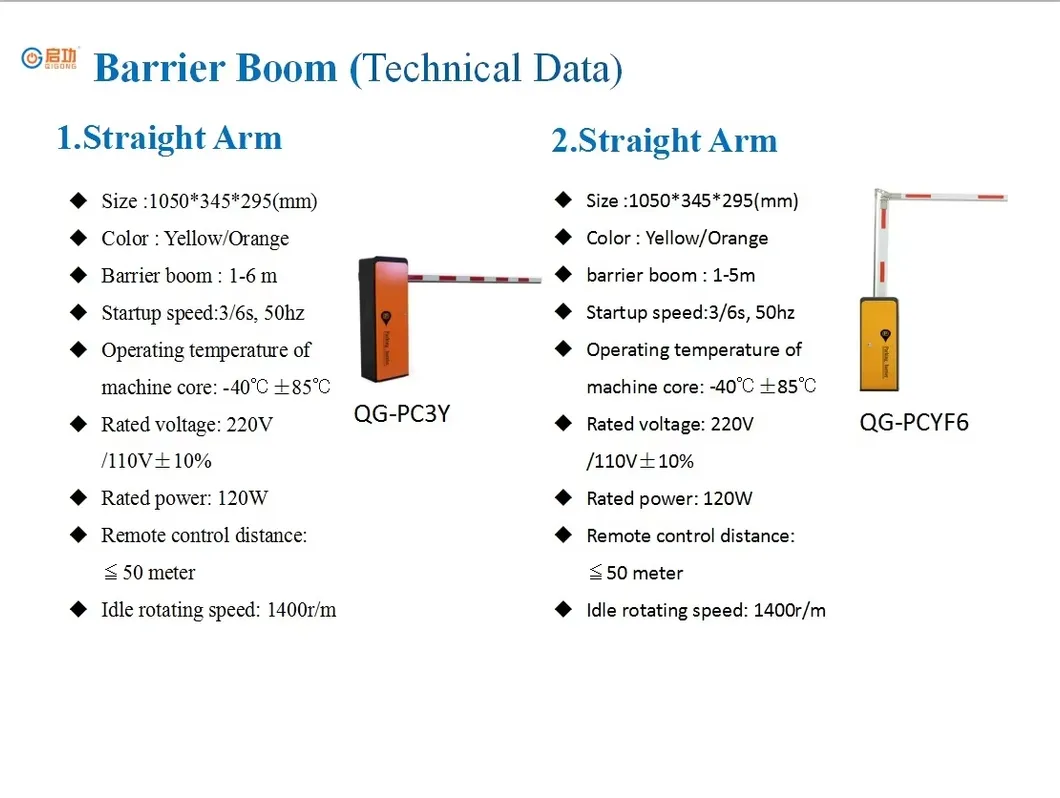

Technical Parameters

Parameter Item	Specifications
Input power	AC220/AC110 50/60HZ
Rated power	100W
Motor working temperature	-30°C to 80°C
Cabinet weight	55KG
Protection grade	IP44
Height of rod center from ground	830mm or 890mm
Remote-controlled distance	> 30 meters
Communication interface	Enhanced RS232 (Direct PC Connection)
Input interface	+12V level signal or pulse width > 100MS

📷

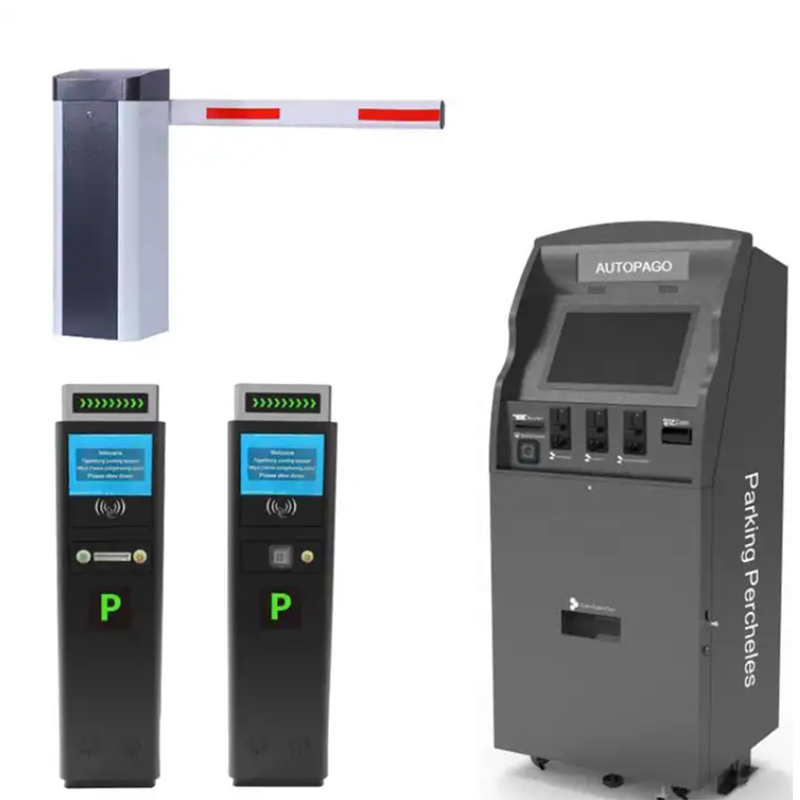

Product Gallery

🏗️

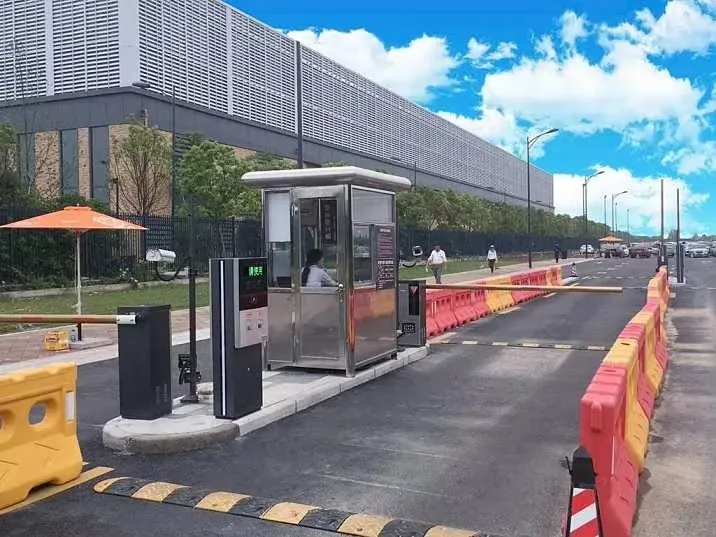

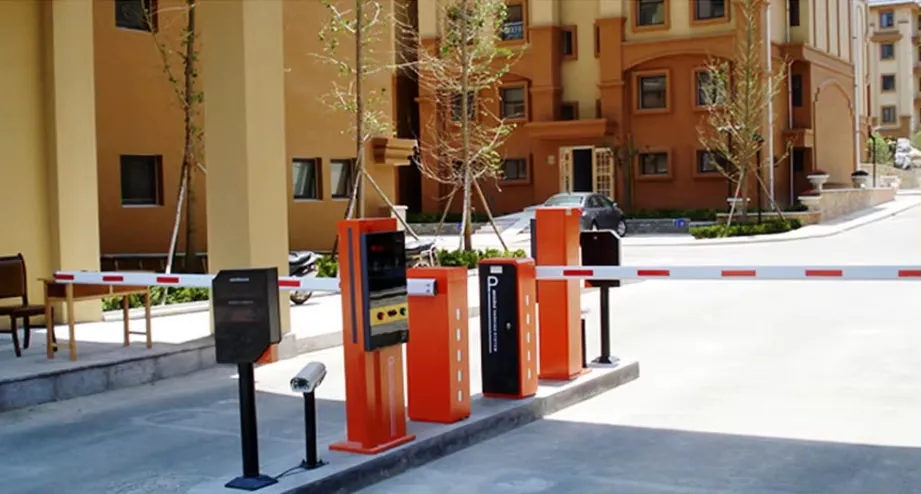

Project Cases

🤝

Customer Photo

❓

FAQ

1. What products do you specialize in?

We offer a wide range of security solutions including License Plate Recognition Systems, Cantilever Sliding Gates, Folding and Telescopic Gates, Boom Barriers, Bollards, and Turnstiles.

2. How is the quality of the barrier gate guaranteed?

We follow strict quality control protocols, including a pre-production sample check before mass production and a final inspection before every shipment to ensure reliable performance.

3. What are the key technical advantages of your barrier systems?

Our systems feature high integration, motor overheating protection, Hall sensing for non-contact control, and isolated circuits for strong interference resistance.

4. Can the barrier gate be used in extreme weather?

Yes, the motor is designed to work in temperatures ranging from -30°C to 80°C, and the high-quality magnetic core transformer ensures stability in moisture-laden outdoor environments.

5. What payment and delivery terms are accepted?

We accept various delivery terms including FOB, CIF, EXW, and Express Delivery. Payment can be made via T/T or L/C in USD or CNY currencies.

6. Why choose these barrier gates over other suppliers?

Our products are based on independent research and development with numerous patents, over a decade of customer service experience, and a robust after-sales support system.
