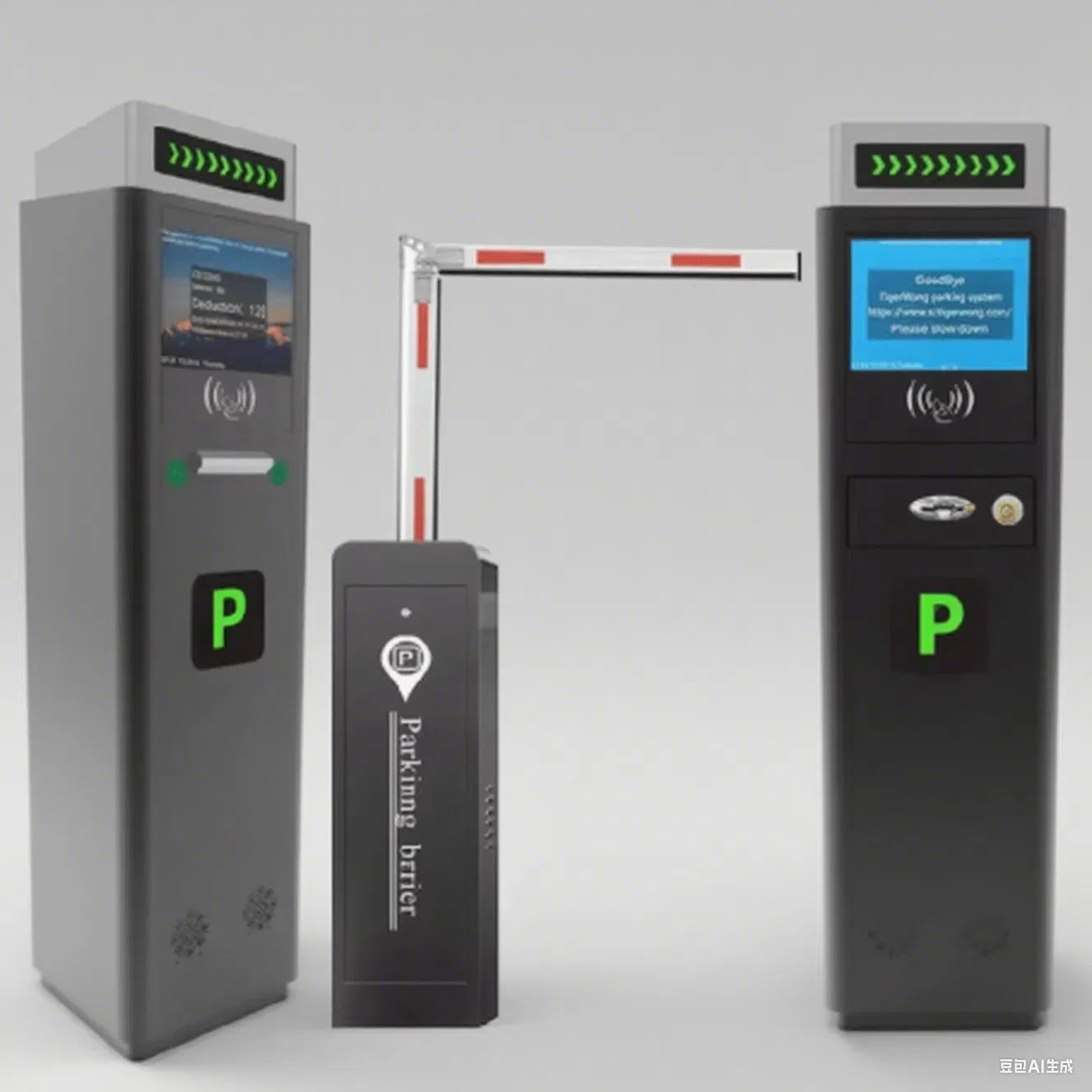

Versatile Electric Vehicle Access Barrier System for Fast Entry

Basic Information

Model NO.

QG

Operation Mode

Automatic

Screen Size

12 inch

Material

Aluminium

Arm Speed

1.2s, 3s, 6s

Function

Vehicle Identification

Boom Type

Straight Boom

Cabinet Weight

45kg - 55kg

Warranty

2 Years

Protection Grade

IP44

Product Description

Automatic Traffic Barrier Arm Barrier Gate System

Our Standard Barrier Gate is meticulously crafted to elevate traffic management to new heights. Featuring an arm length up to 6 meters and adjustable speeds (1.2s, 3s, and 5s), it offers tailored performance for both indoor and outdoor settings. It is the quintessential solution for parking lots, hotels, educational institutions, and public entities, enhancing operational efficiency and user experience.

⚙️ High Integration

Delivers unmatched system integration with robust functionality for reliable performance.

🛡️ Smart Protection

Equipped with motor overheating and elevating overtime protection to prevent damage.

🎯 Precision Control

Outfitted with a Hall sensing device for non-contact, high-precision inductive limit control.

📶 Remote Access

Advanced wireless remote control receiving module with millions of learning codes.

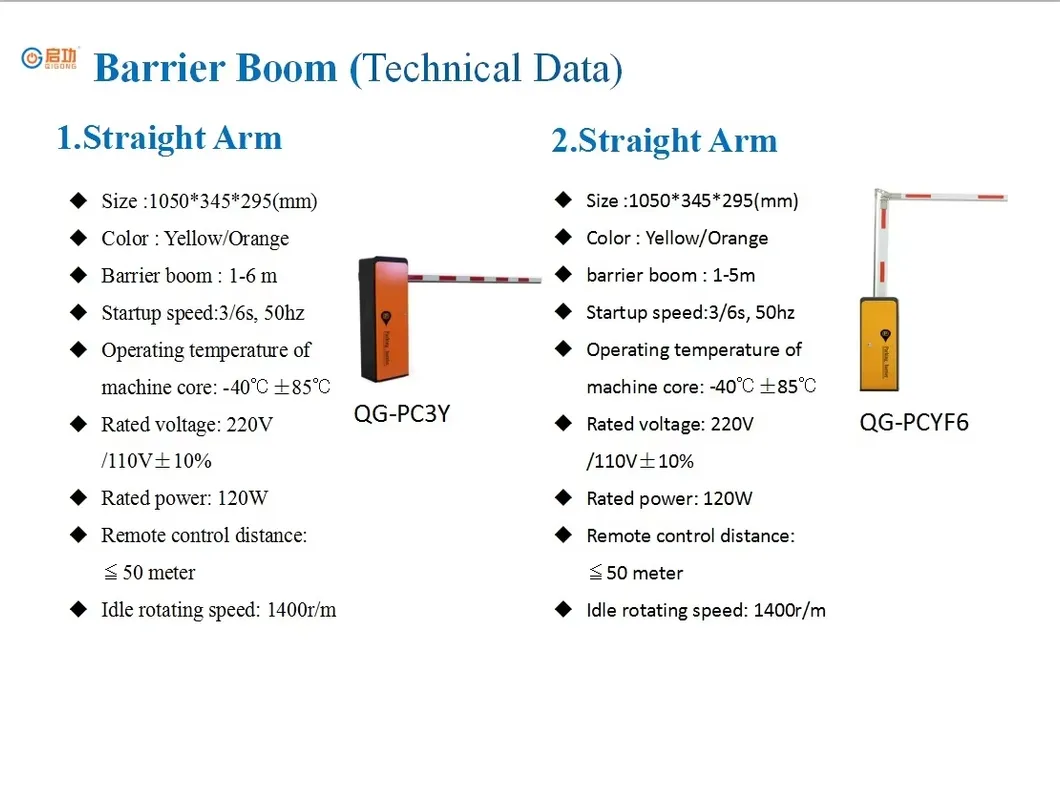

Technical Parameters

Parameter	Specification
Input Power	AC220/AC110 50/60HZ
Rated Power	100W
Motor Working Temp	-30°C to 80°C
Protection Grade	IP44
Remote Distance	> 30 Meters
Communication Interface	RS232 (Direct PC Connection)
Rod Center Height	830 / 890 mm

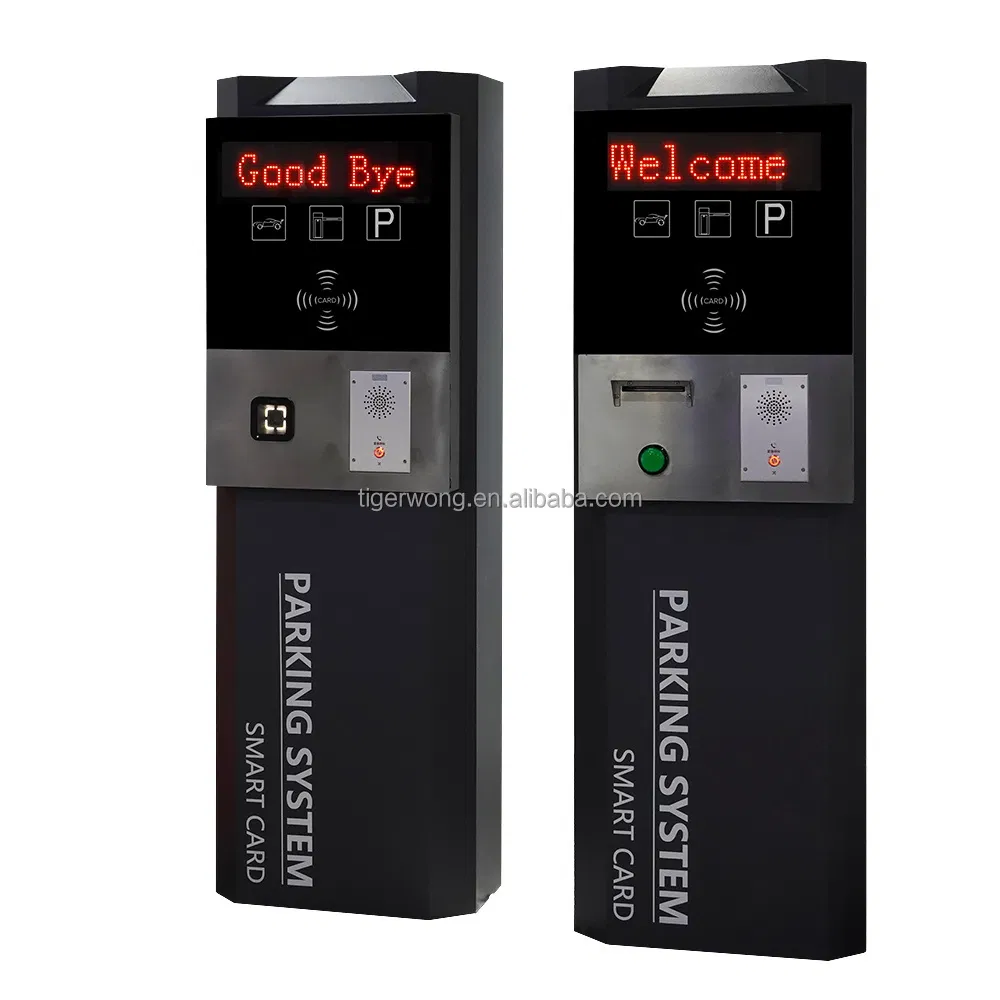

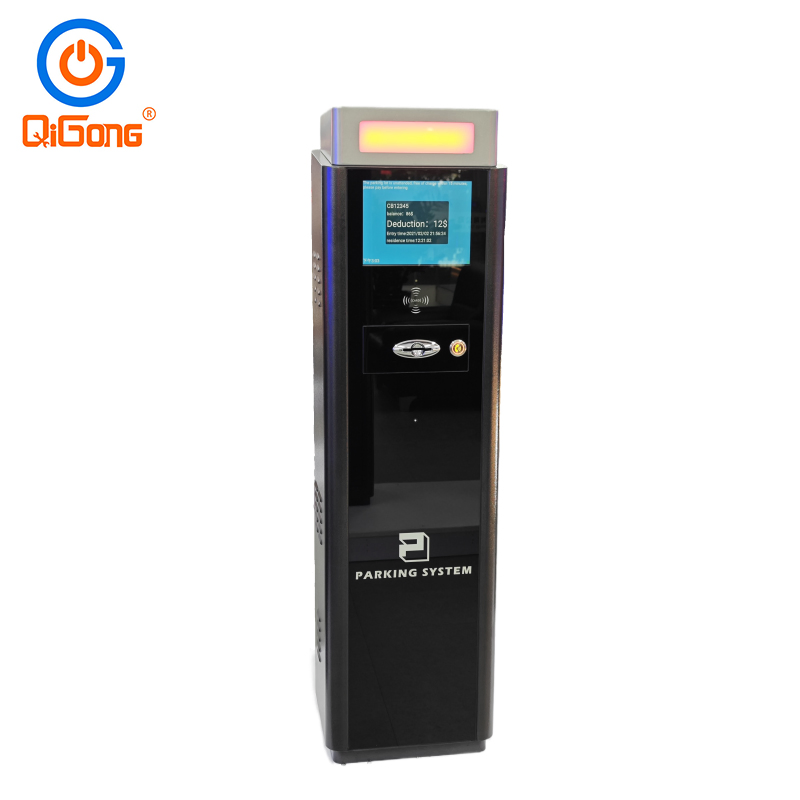

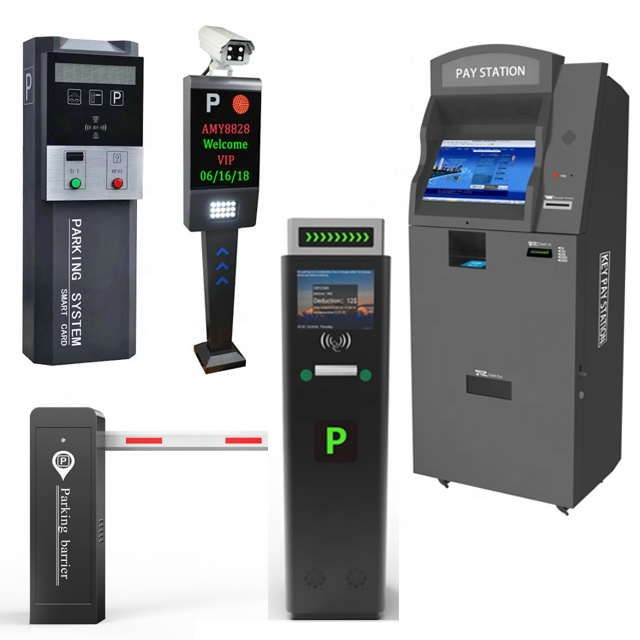

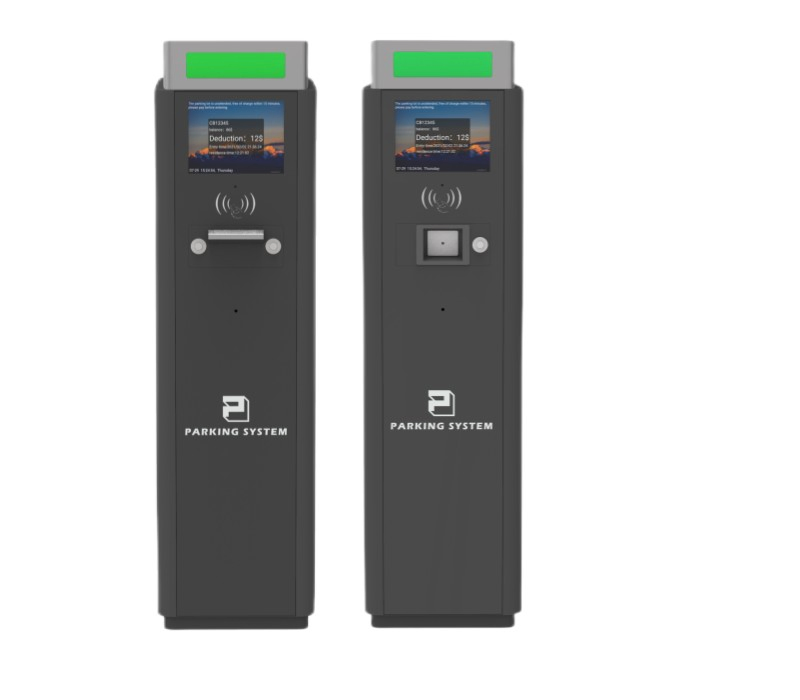

Product Showcase

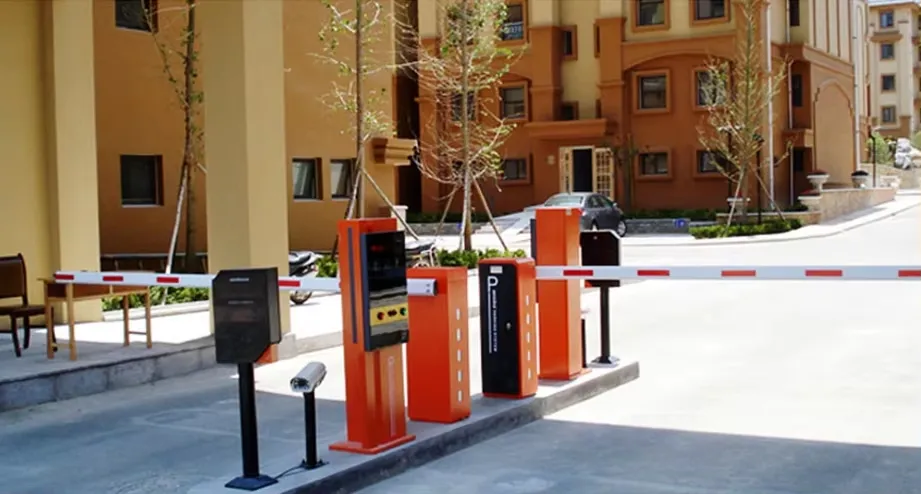

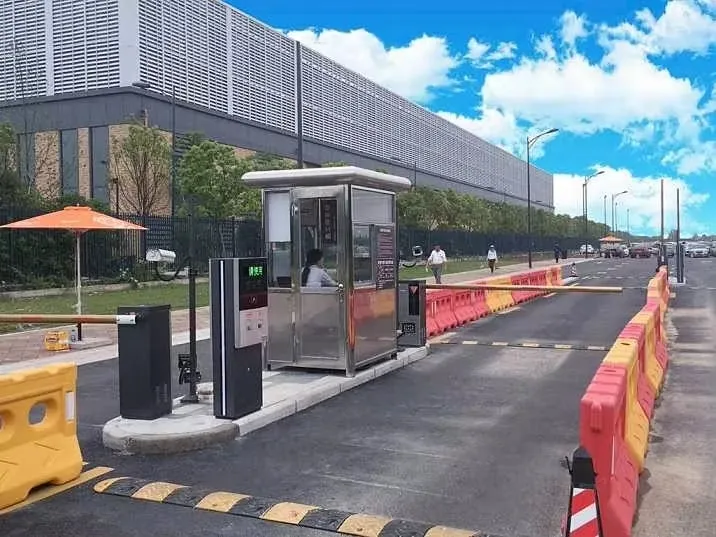

Project Cases & Customer Photos

Frequently Asked Questions

What is the maximum arm length and available speed?

The barrier gate supports a maximum arm length of 6 meters. Operating speeds are adjustable at 1.2s, 3s, and 6s intervals to suit different traffic flow requirements.

Does the system provide protection against overheating?

Yes, the motor is engineered with sophisticated elevating overtime and overheating protection features to ensure system durability and resilience.

Can this barrier gate be used in extreme weather?

The system is rated at IP44 protection grade and the motor is designed to work in temperatures ranging from -30°C to 80°C, making it suitable for moisture-laden or outdoor environments.

How far is the remote control range?

The wireless remote control functions reliably at a distance of more than 30 meters.

Can it be connected directly to a computer?

Yes, it features an enhancement-type RS232 communication interface that allows it to be connected directly to a computer for management.

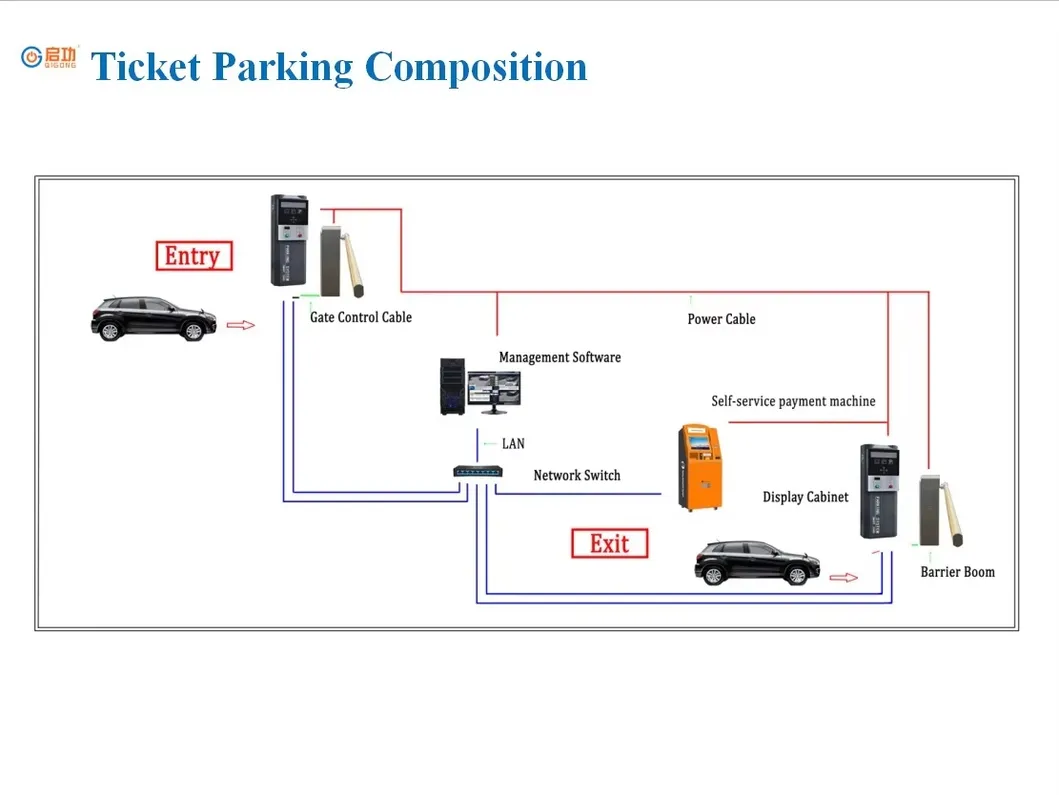

What products can be integrated with this system?

It is highly compatible with License Plate Recognition Systems, Bollards, Turnstiles, and various limit detection devices via its auxiliary 12V power supply.
