Underground Pit Car Parking System Solutions with CE

Customization:	Available
Parking Post:	2or4 Cars
Level:	2 Levels

Send Inquiry

Product Description

Technical Specifications Overview

Model NO.

Starke 2127 & 2227

Capacity

2700kg

Material

Aluminum

Lifting Height

2.2 Meters, 1769mm

Safety Features

Automatic Safety Locks, Emergency Stop, Overload Protection

Drive Mode

Hydraulic

Surface Treatment

Powder Coating

Certification

CE, ISO

Introduction

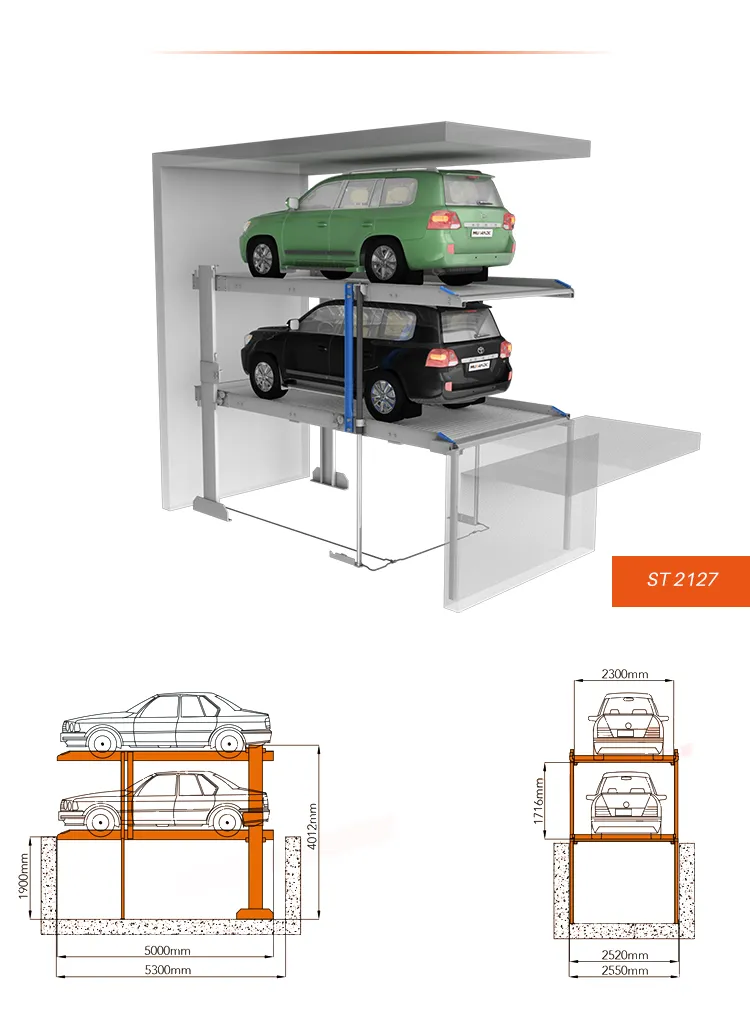

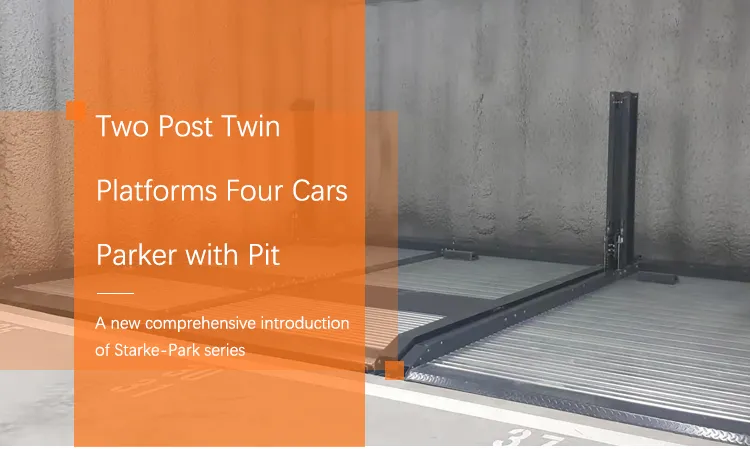

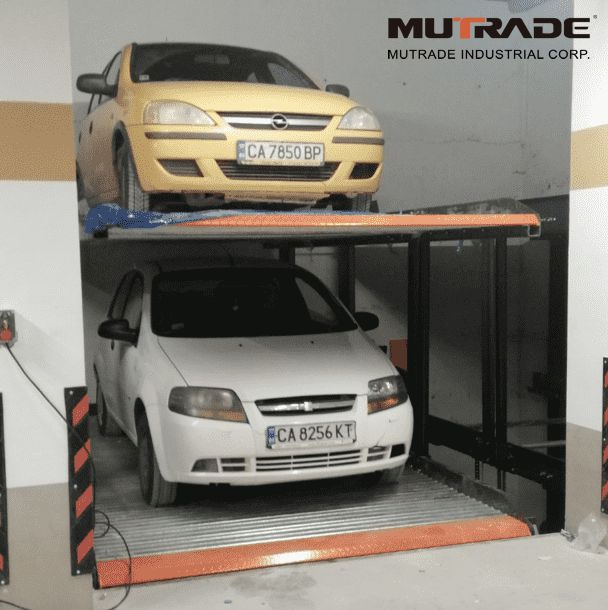

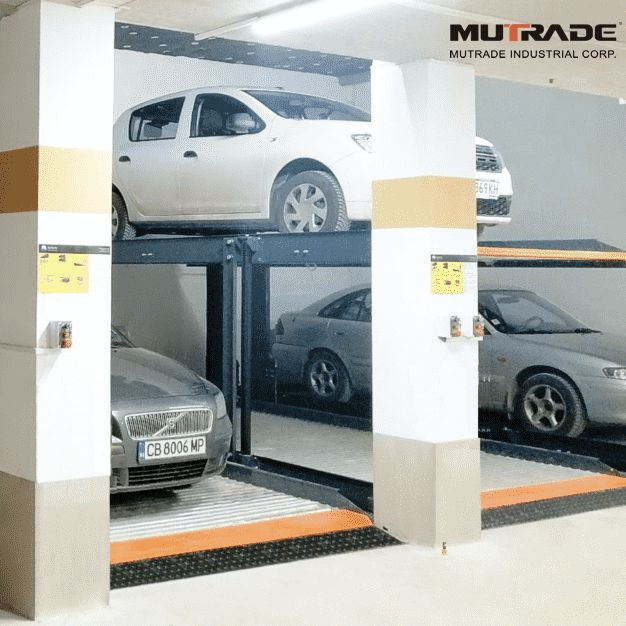

Starke 2127 and Starke 2227 are newly developed parking lifts of pit installation, offering 2 parking spaces or 4 parking spaces above each other, one in pit and another on ground. Their new structure allows 2300mm entrance width within total system width of 2550mm only. Both are independent parking, no cars need to drive out before using the other platform. Operation can be achieved by wall-mounted key switch panel.

Core Features & Advantages

TUV Compliant Certification standard 2006/42/EC and EN14010, the most authoritative certification.

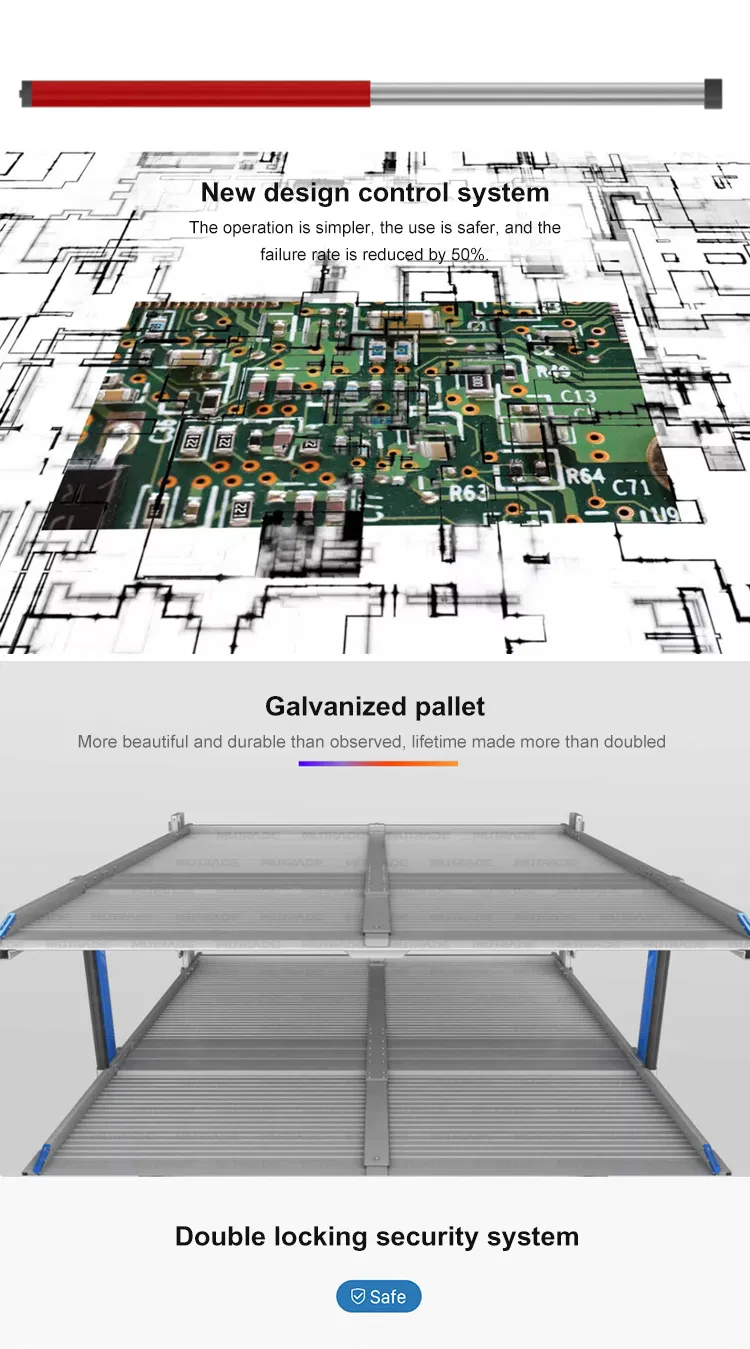

New Hydraulic System German top-level product structure design, stable and reliable with doubled lifetime compared to older models.

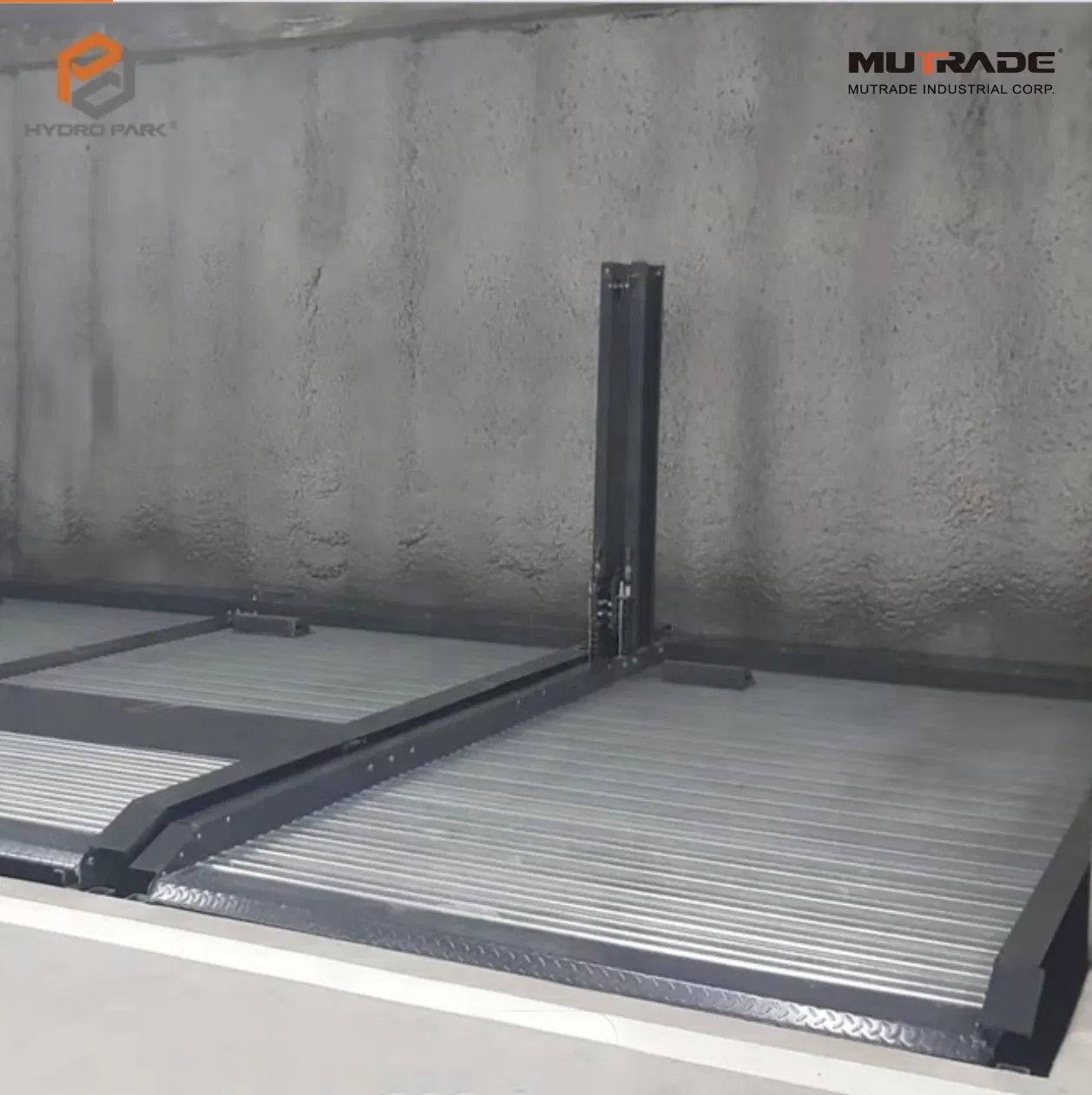

Galvanized Pallet Anti-slip corrugated deck protects vehicle and driver; high-heel shoe friendly and extremely durable.

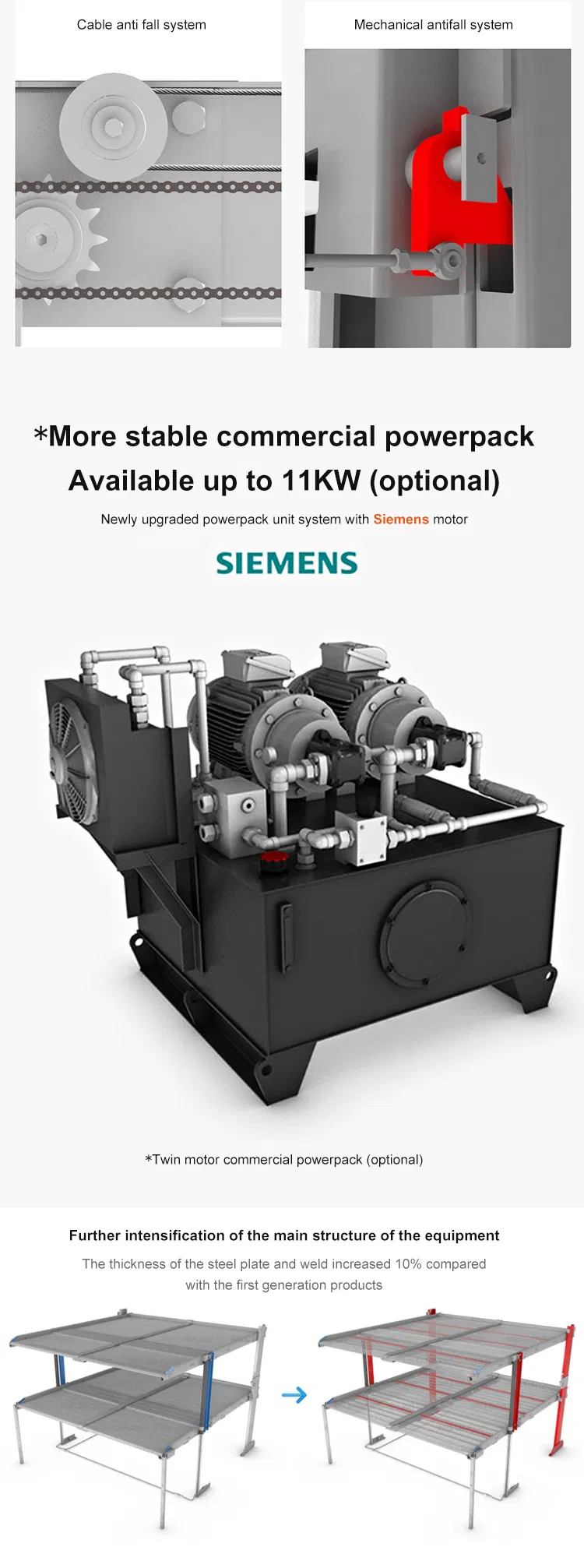

Zero Accident Security System Upgraded security features including mechanical anti-falling locks and dynamic locking devices.

Multiple Chain Protection Loosen detection and break protection ensures safety in case of chain issues.

Detailed Specifications

Feature	Starke 2127	Starke 2227
Vehicles per unit	2	4
Lifting capacity	2700kg	2700kg
Available car length	5000mm	5000mm
Available car height	1700mm	1700mm
Power pack	5.5Kw hydraulic pump	5.5Kw hydraulic pump
Operation mode	Key switch	Key switch
Rising / descending time	<55s	<55s

Superior Manufacturing Quality

German Structure Hydraulic System

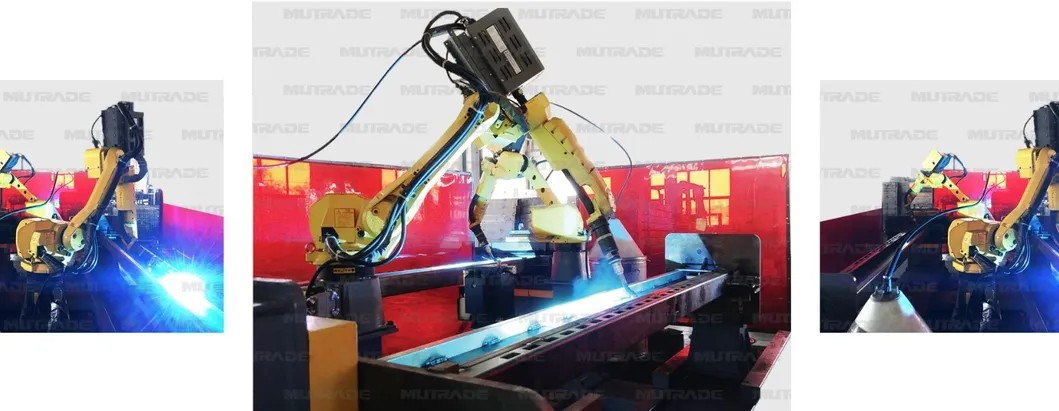

Laser Cutting & Robotic Welding

Frequently Asked Questions

What is the lifting capacity for each platform?

The Starke 2127 and 2227 models both offer a robust lifting capacity of 2700kg per unit, suitable for sedans and most SUVs.

Can the parking platforms be used independently?

Yes, these are independent parking systems. Due to the pit installation, no cars need to be moved out from the ground level to access the platform in the pit.

What safety mechanisms are in place?

The system includes dynamic anti-falling locks, emergency stop buttons, multiple chain protection devices, and overload protection to ensure zero-accident operation.

Is the surface treatment resistant to weather and wear?

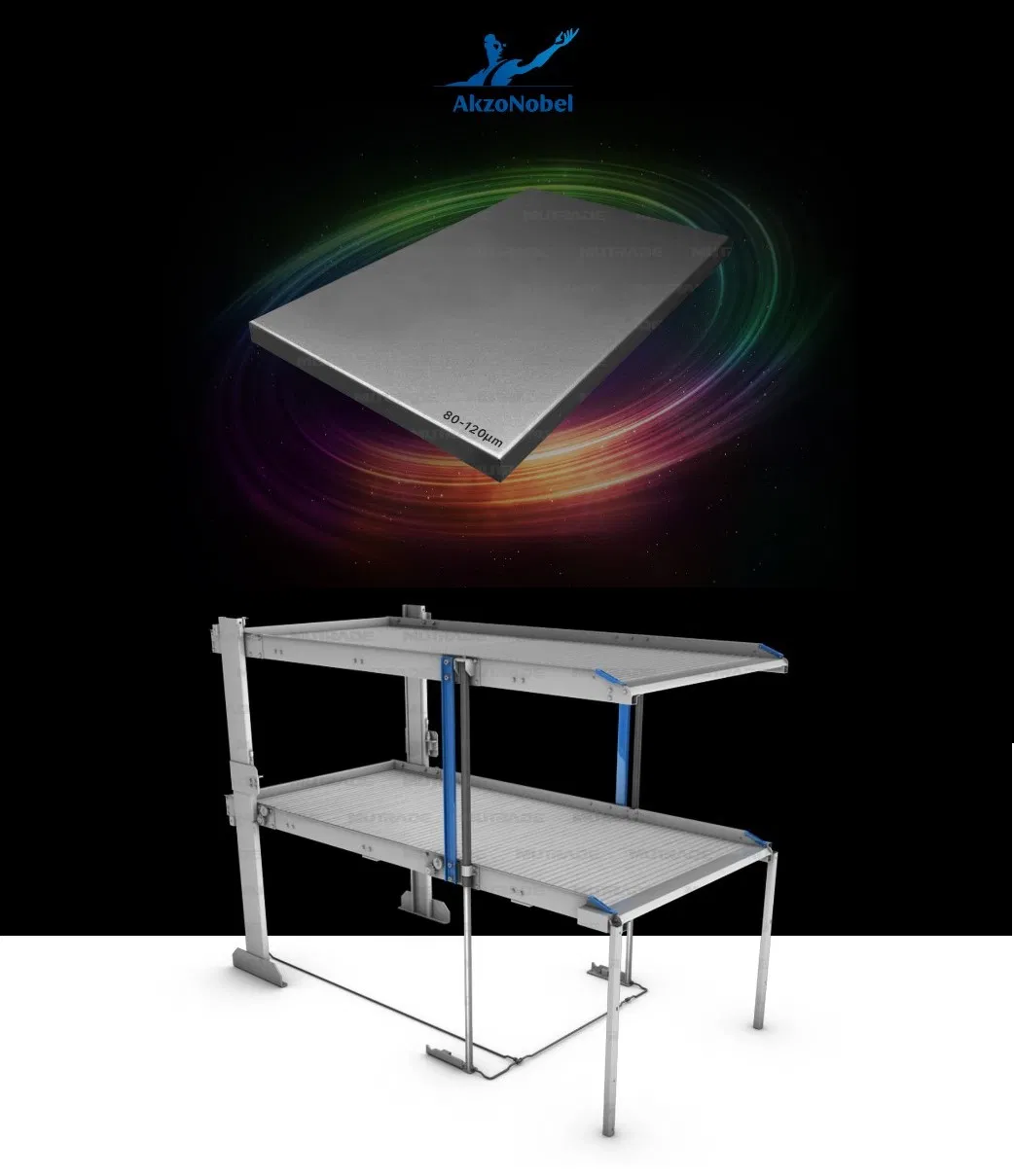

Absolutely. The units feature galvanized pallets and are finished with high-quality powder coating, which significantly enhances color saturation, weather resistance, and adhesion.

How is the system operated?

The system is operated via a wall-mounted key switch panel using a safe 24V operation voltage for user convenience and safety.

What are the installation requirements?

These models require a pit installation. The new design allows for a 2300mm entrance width within a very compact total system width of only 2550mm.
