Please peruse this exhaustive manual attentively before commencing any operations. Should you have any questions or seek further clarification on aspects not covered herein, do not hesitate to reach out for assistance and guidance.

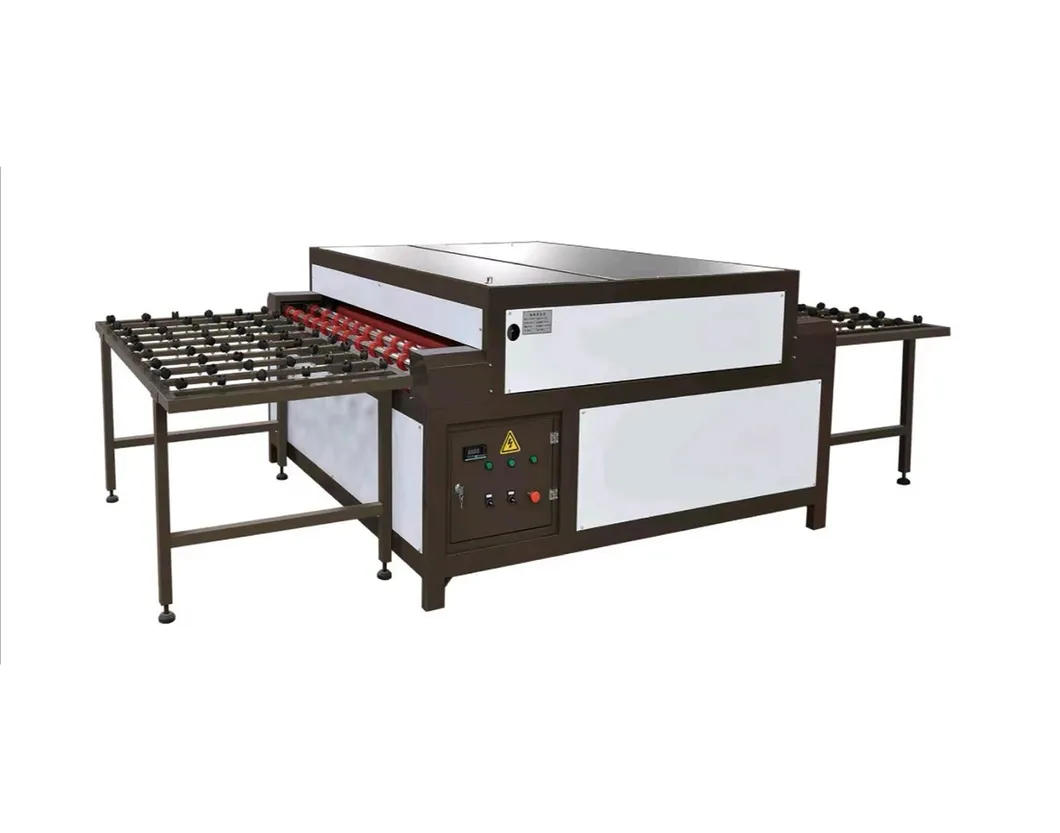

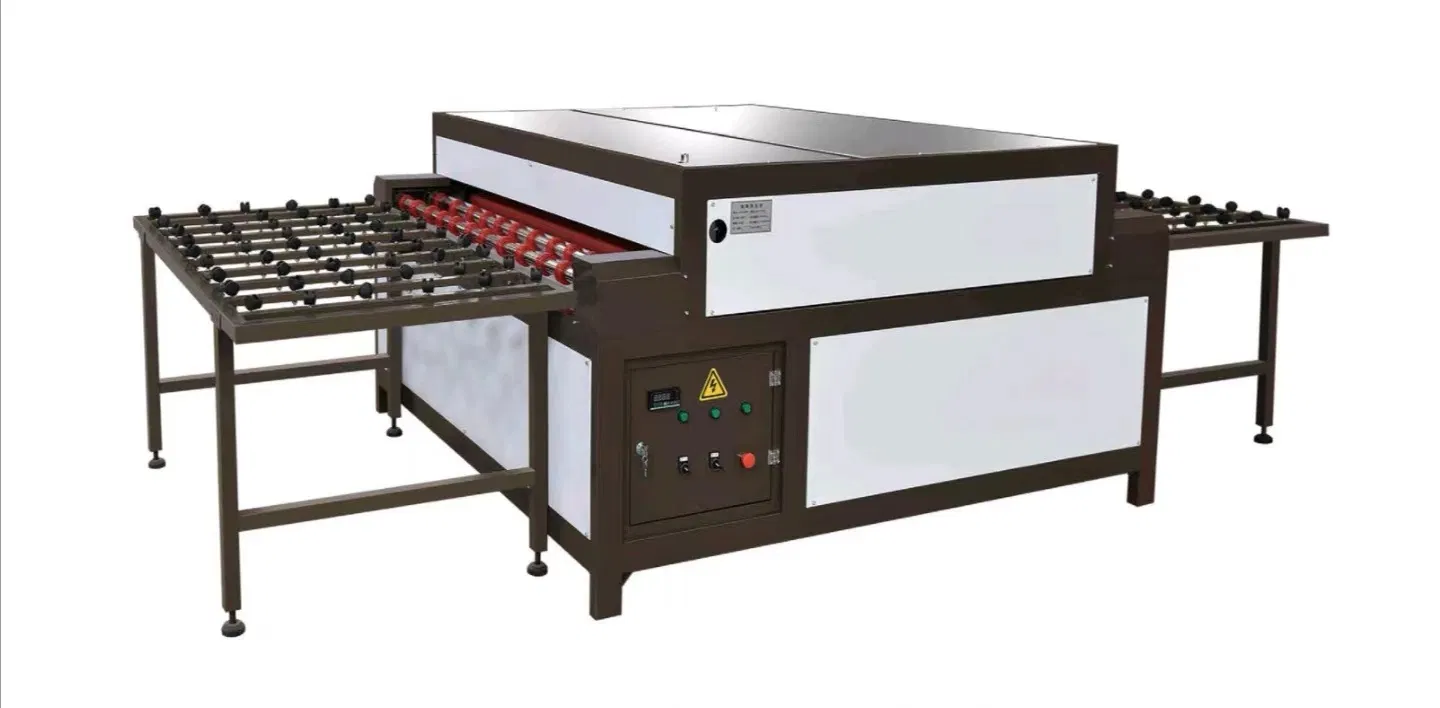

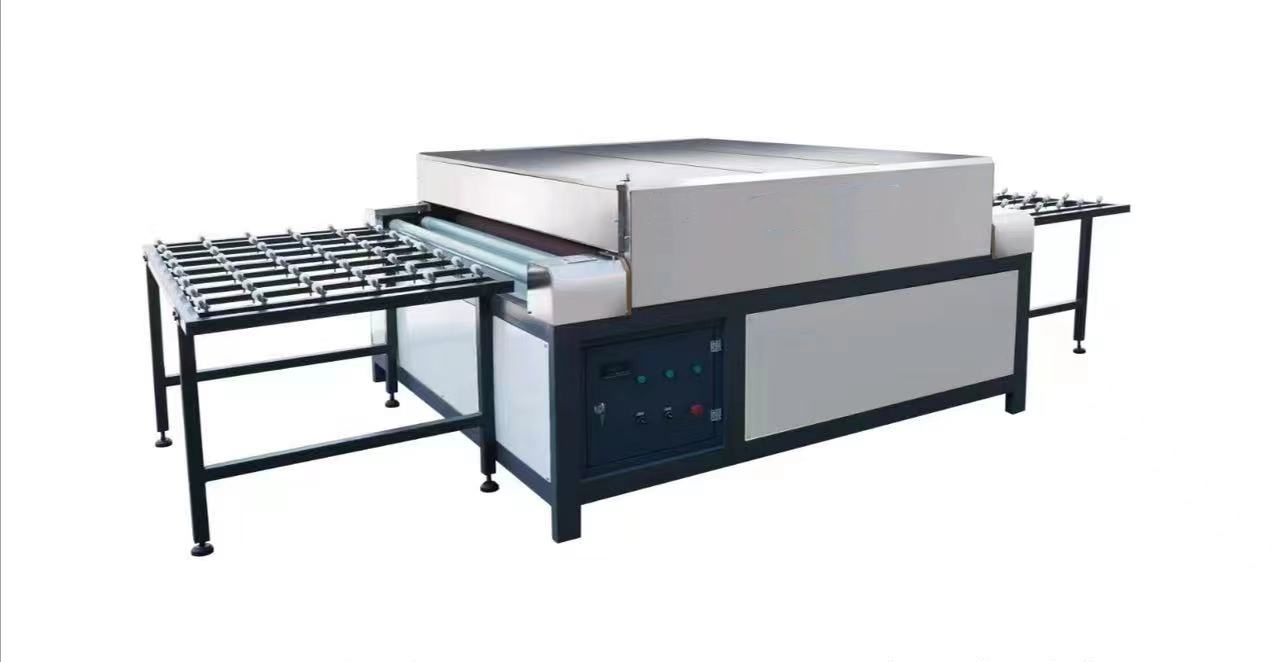

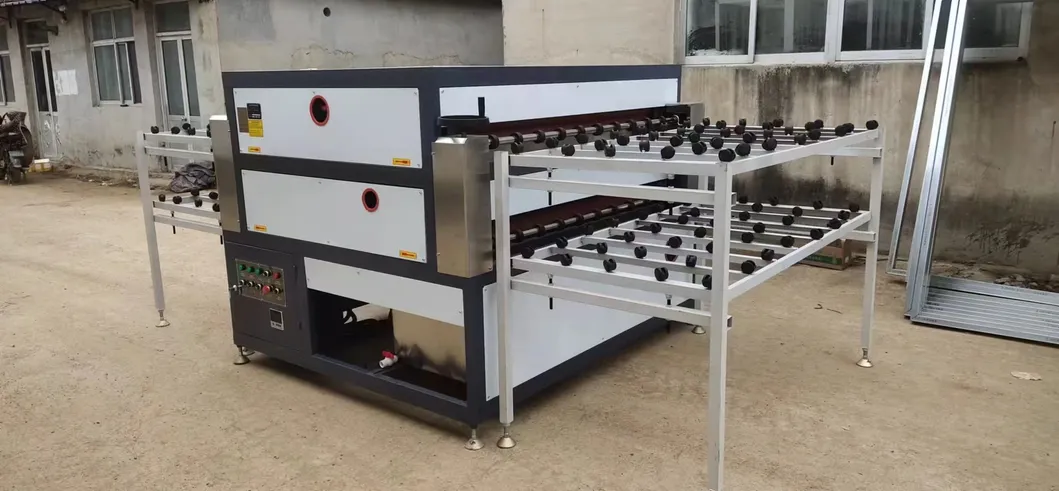

1. Main use and scope of application: The RYB1600(A) type insulating glass hot press is an indispensable asset within the specialized realm of insulating glass deep processing. It excels in meticulous hot pressing following the composite rubber strip processing phase.
2. Main structural characteristics: Features a revolutionary screw structure enhancing yield. Constructed from premium rubber and durable steel pipe for reliable performance.
3. Main components: Includes input, output, heating, roller pressing, and transmission segments.
| Input voltage | 380V 50HZ three-phase four-wire |
| Power | 20kW |
| Transmission speed | 1.5-2.5m/min (V-0.126f frequency) |
| Minimum glass size | 400mm x 400mm |
| Maximum glass size | 3000mm x 1650mm |
| Processing Thickness | Not more than 26mm |
| Dimensions | 2650mm x 2000mm x 1100mm |
| Weight | About 0.5T |
4.1 Input and Output
Ensures an effortless and smooth transfer during the intricate hot pressing procedure of the glass.
4.2 Heating Part
Equipped with steel rollers and heating frames, heating glass to an ideal temperature of approximately 55°C.
4.3 Roller Pressure Part
Masterfully shapes insulating glass upon entry using press rollers and lead screws for impeccable form.
5. Working Environment
Operate in a dry, gas-free indoor environment (15ºC to 35ºC) with a hard cement floor and 380V power supply.
6. Handling and Storage
Store in well-ventilated, dry warehouses. Avoid corrosive substances. If stored over three months, resealing is essential to prevent rusting.
Frequently Asked Questions
Q: What is the standard delivery time for the RYB1600 hot press?
A: The delivery time is impressively swift, typically within 15 days.
Q: What machine widths are available for selection?
A: It is available in versatile widths of 1200mm, 1600mm, and 1800mm to suit specific production requirements.
Q: Is the glass processing operation difficult to learn?
A: No, the operation is designed to be wonderfully simple and exceptionally user-friendly.
Q: What is the maximum thickness of glass the machine can handle?
A: The machine can process insulating glass with a thickness of up to 26mm, with a total range of 6-30mm.
Q: What are the power requirements for installation?
A: The machine requires a 380V 50Hz three-phase four-wire power supply with a power capacity of 20kW.
Q: How do I maintain the machine for long-term use?
A: Regularly lubricate the drive shaft and ensure the working environment remains dry and free of corrosive gases.
