Basic Information
Model NO.Hydro Park 1127
Capacity2300/2700kg
Lifting Height2100mm
MaterialAluminum & Steel
InstallationIndoor, Outdoor
Drive ModeHydraulic
OperationManual/Key Switch

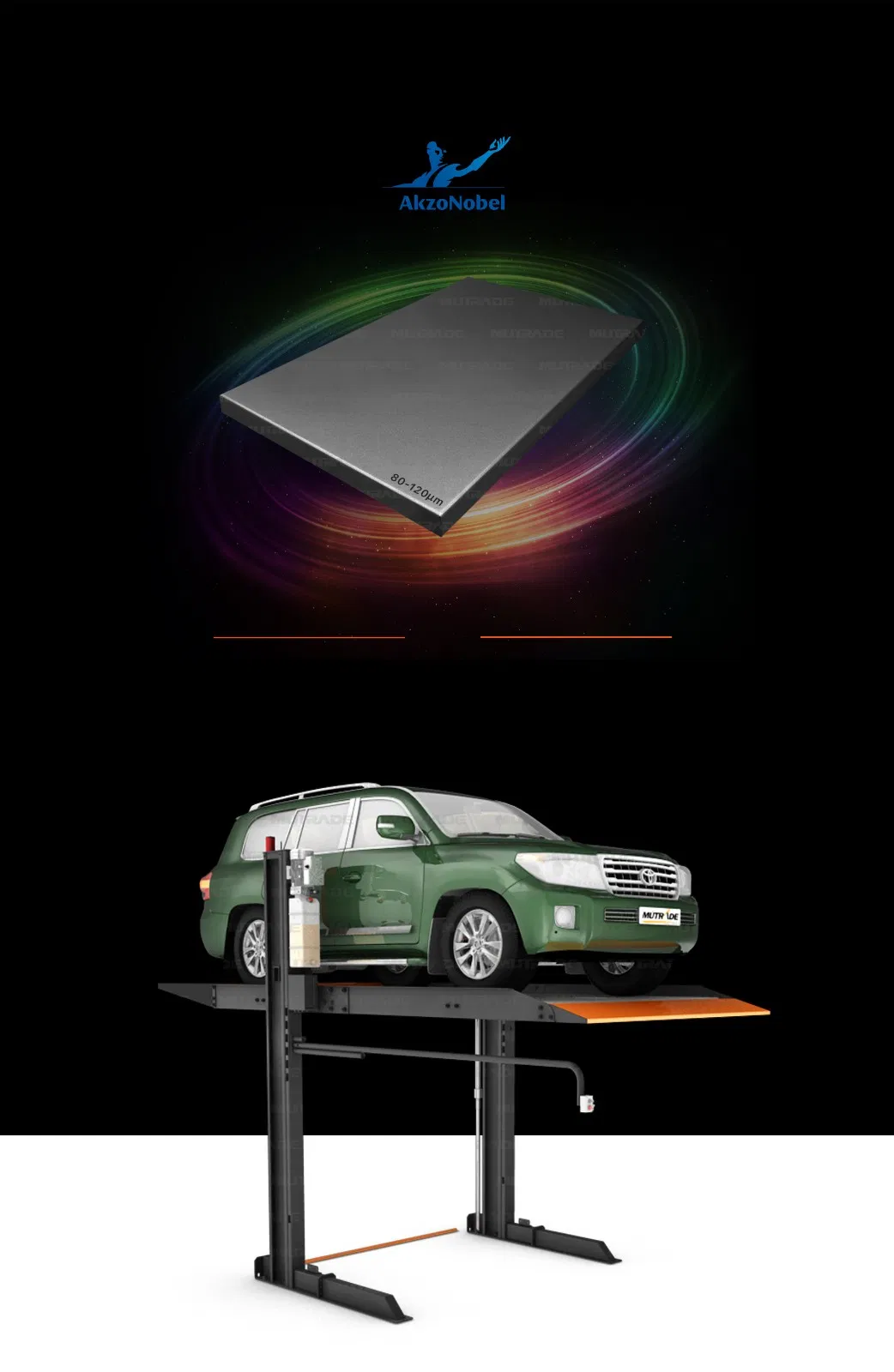

Surface TreatmentPowder Coating
CertificationCE, ISO, TUV
Warranty12 Months
Product Description

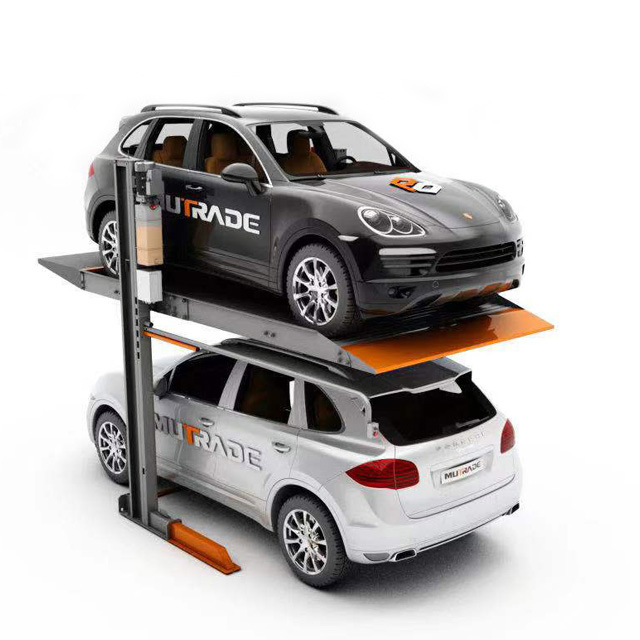

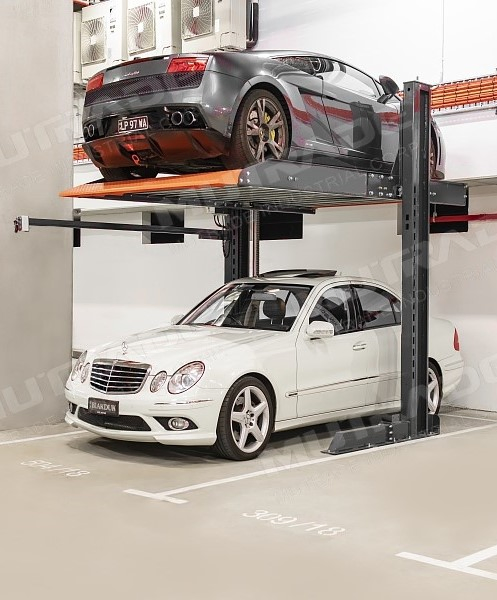

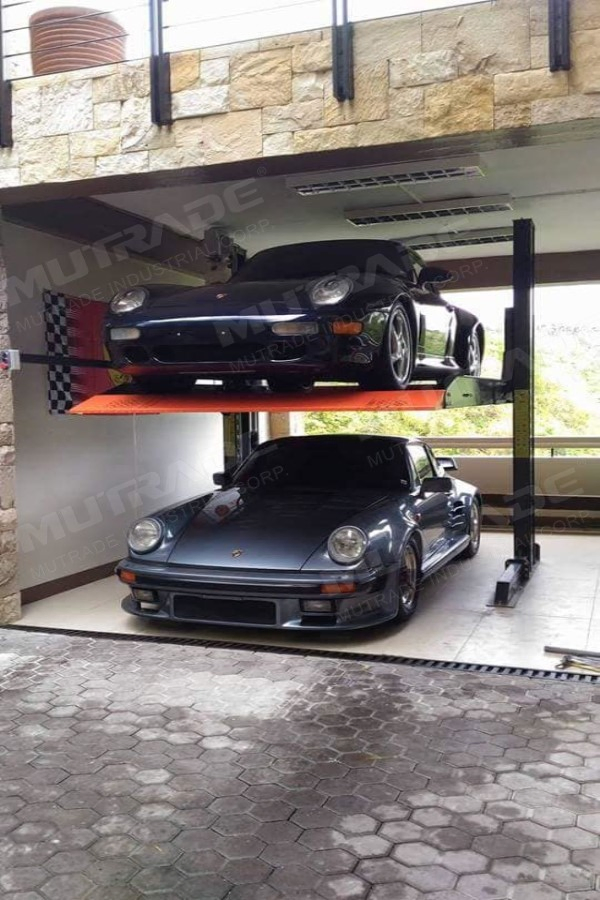

Hydro-Park 1127 is a 2 post parking lift where the platform moves only vertically. It is a dependent car parking equipment suitable for both commercial and residential parking purposes. It is designed for sedans and small SUVs.
🛡️

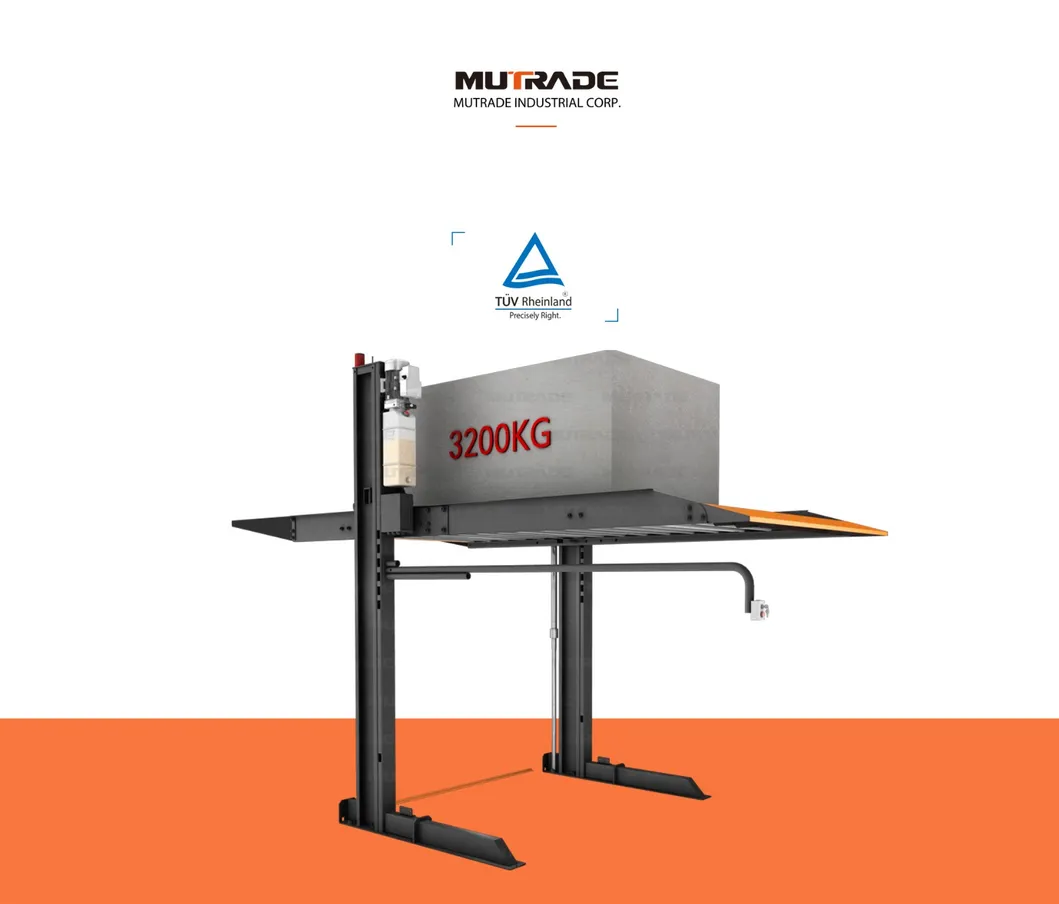

TUV Compliant: The most authoritative certification globally, adhering to 2006/42/EC and EN14010 standards.
💰
Low Usage Cost: Gravity-driven descent means zero electricity consumption for the power pack when lowering.
⚙️

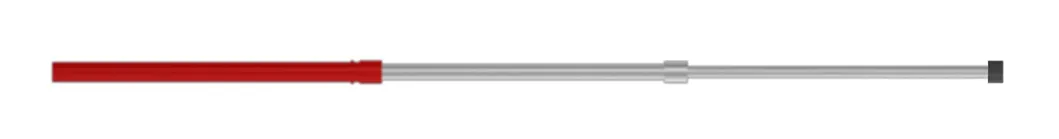

Advanced Hydraulic System: Features a German-style structure for stability, reliability, and doubled lifetime.
🎮
New Control System: Easier manipulation with a 50% reduced failure rate.
✨
Galvanized Pallet: Durable and aesthetically pleasing with a significantly extended service life.
🔒
Dynamic Locking Device: Mechanical anti-falling locks every 100mm on both posts.
🧩

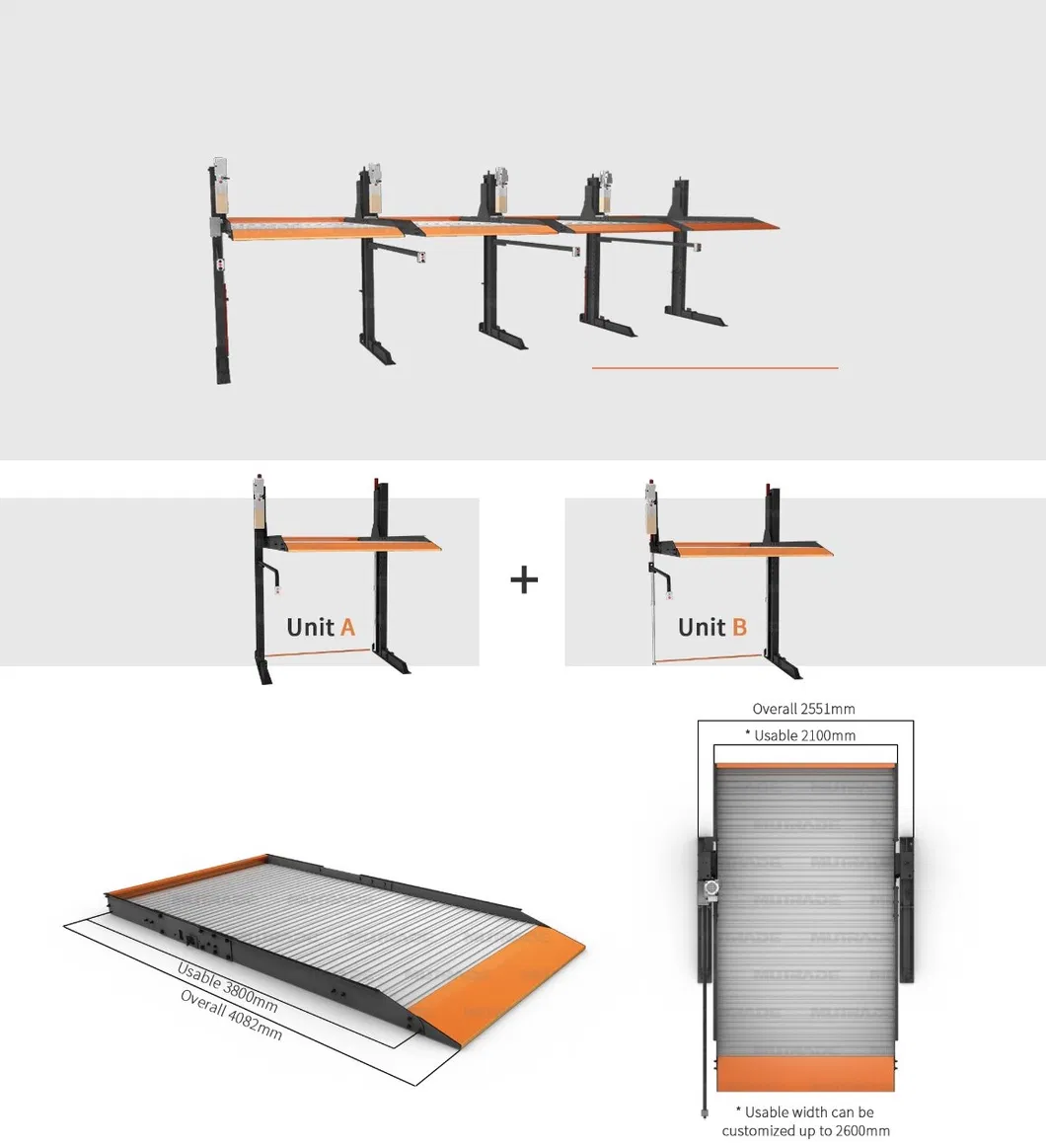

Modular Connection: Innovative sharing post design allows multiple units to be combined.
Technical Specifications
| Model | Hydro-Park 1127 |
| Rated Capacity | 2300kg |
| Lifting Height | 2100mm |
| Usable Platform Width | 2100mm |
| Power Pack | 2.2Kw hydraulic pump |
| Available Voltage | 100V-480V, 1 or 3 Phase, 50/60Hz |
| Operation Mode | Key switch (24V) |
| Safety Lock | Dynamic mechanical anti-falling lock |
| Lock Release | Electric auto release |
| Rising / Descending Time | <55s |
Key Components & Features
Precision Engineering

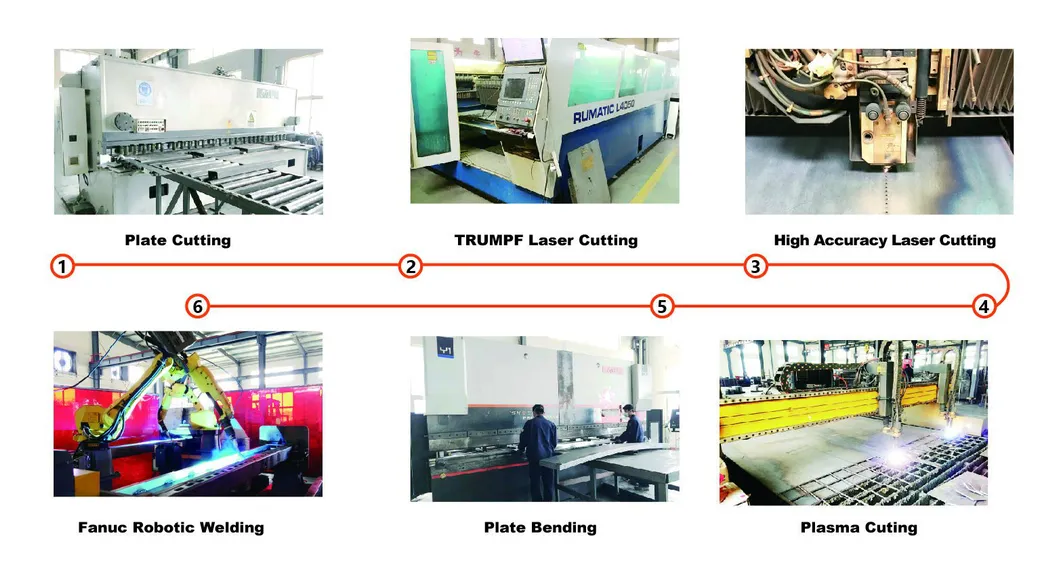

Laser Cutting + Robotic Welding: Improves part accuracy and ensures weld joints are firm and beautiful.
Frequently Asked Questions
What is the lifting capacity of the Hydro Park 1127?
The standard rated capacity is 2300kg, but options for 2700kg and 3200kg are also available depending on your specific requirements.
Can this parking lift be installed outdoors?

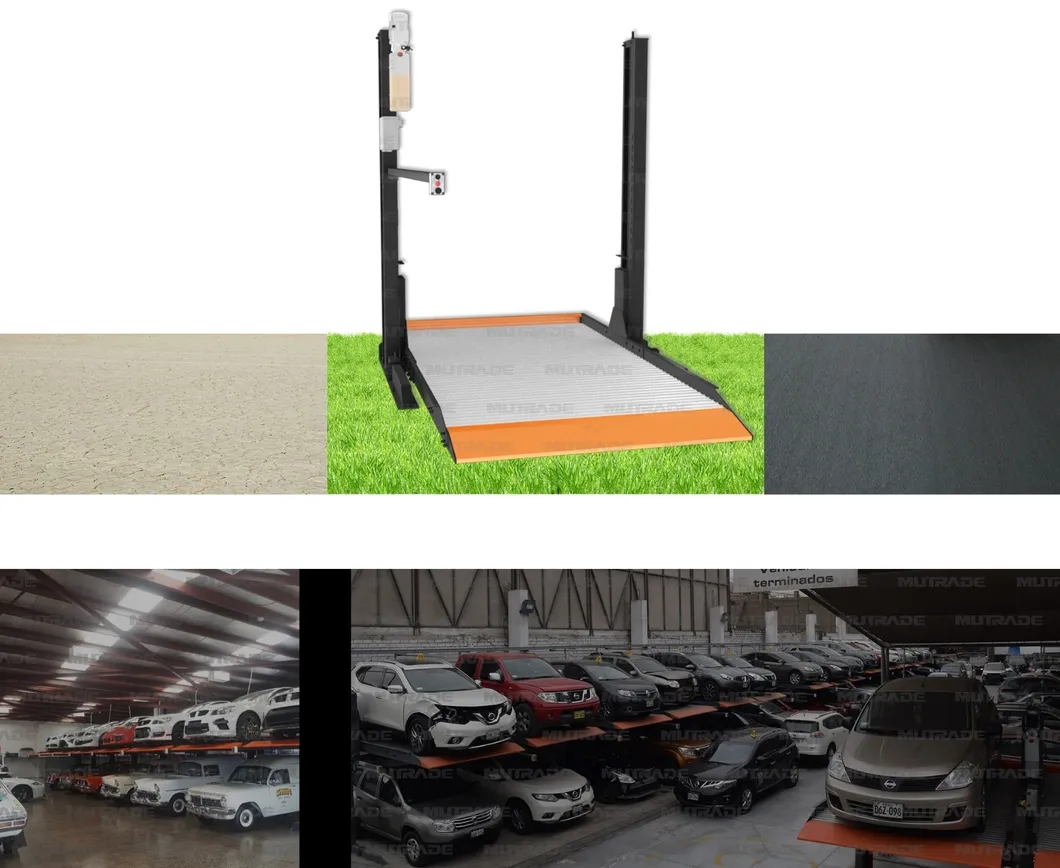

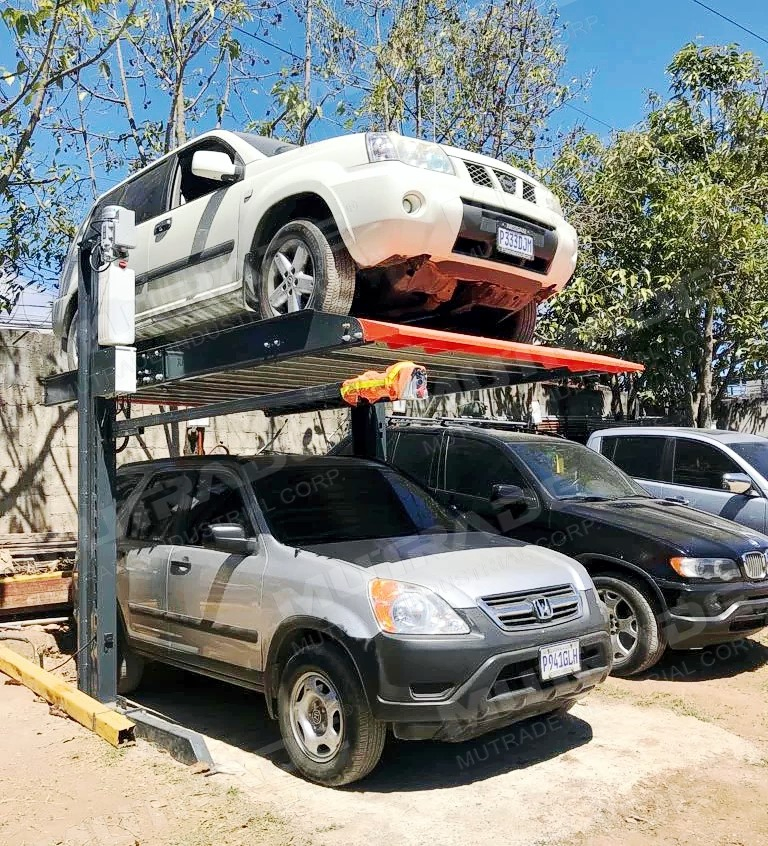

Yes, the Hydro Park 1127 is suitable for both indoor and outdoor installations. It features a durable powder-coated finish to withstand various environments.
How does the "Sharing Post" design work?
The modular design allows multiple units to share the same middle post, which saves space and reduces the total width of the installation while providing more usable platform space.
Is the lift safe for residential use?
Absolutely. It includes a zero-accident security system with dynamic mechanical anti-falling locks at every 100mm and an emergency stop button.
What kind of maintenance does the hydraulic system require?
The German-structured hydraulic system is designed to be stable and reliable, minimizing maintenance needs and offering a lifetime twice as long as traditional systems.
What vehicles are compatible with this lift?
It is designed to accommodate both sedans and small SUVs, making it a versatile choice for different car types.
